FRONT SUSPENSION



The  functions  of  axle  and  suspension  system  include  receiving  the  torque  generated  by
engine  and  passed  via  transmission  system;  producing  the  traction  force  between  the  road
surface  and  the  vehicle  body  through  the  adhesive  force  between  the  driving  wheel  and  the
ground  in  order  to  keep  the  whole  vehicle  steering  normally;  passing  and  bearing  the
counterforce on the wheel  from different directions and relieving the  impact and shake from
the road to the vehicle body in order to ensure the stability and maneuverability of the whole
vehicle. The front suspension is composed of the sub-frame, lateral stabilizer bar, control arm
and etc.





REMOVAL AND INSTALLATION OF THE FRONT SUSPENSION


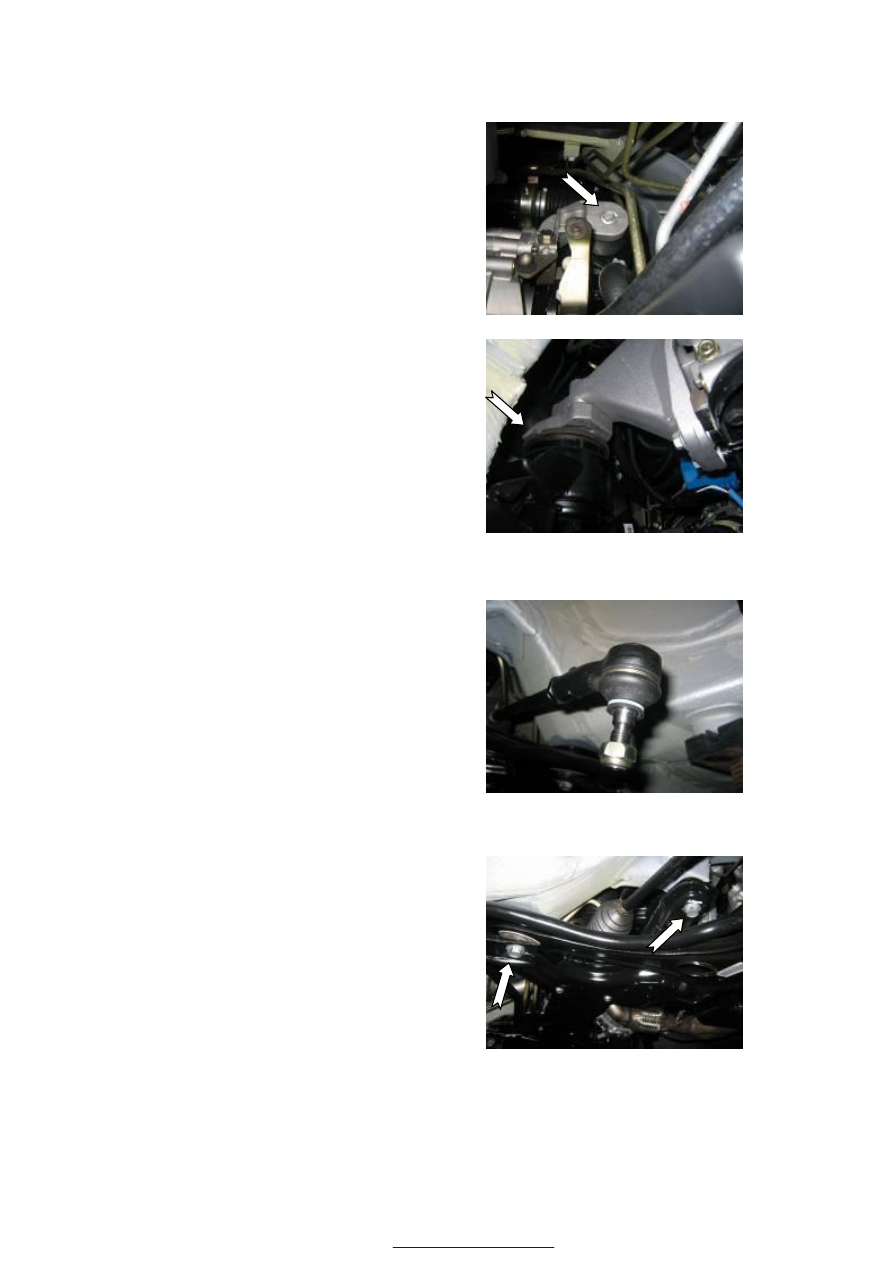

----Loosen the opening  of  the  joint  bracket of

the  front  shock  absorber  assy  and  clip  it
to  the  bolt  of  the  steering  knuckle
arm(tightening  the  lock  nut  to  80N•m),
(shown as the picture)











----Remove  the  joint  bolt  of  the  control  arm

assy  and  the  front  steering  knuckle  with
braker,  and  then  release  the  front  control
arm assy.

Inspection  of  the  control  arm:  check  the
situations of the damage crack and bend.







----Loosen  the  four  bolts  amounted  on  the

sub-frame of the steering gear with tie rod
assy  (the  specified  tightening  torque  is
30N•m). (shown as the picture)













----Suspend  the  engine  and  transmission  assy,

loosen  the  bolts  at  the  two  supporting
points  from  the  engine  and  transmission
to the sub-frame.









Caution:  The  removal  process  is  extremely
dangerous  which  could  cause  serious
damage or even death. Please make sure the
power assy is well fixed.











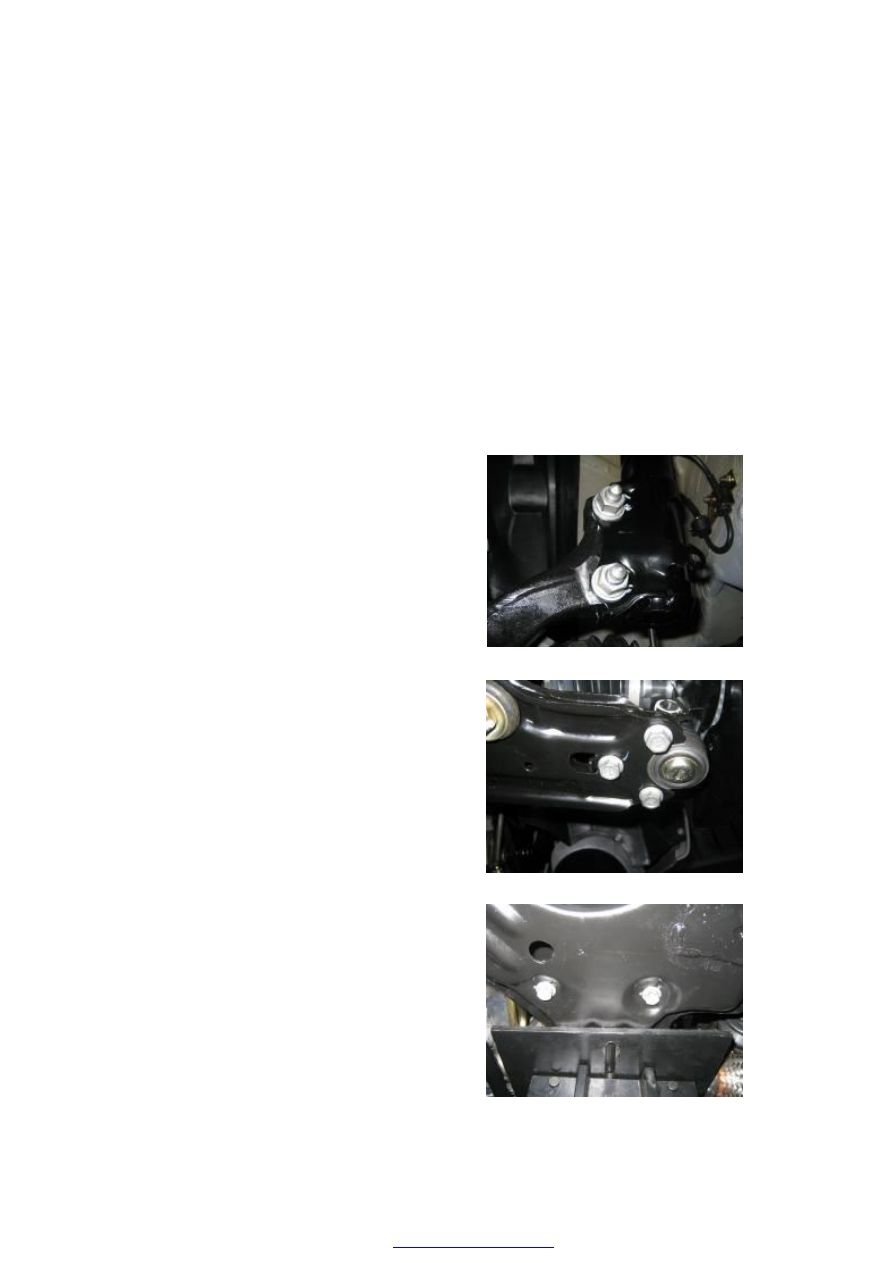

----Loosen  the  lock  nut  of  the  left-right

steering  tie  rod  and  the  steering  knuckle
arm,  knock  from  one  side  to  pry  the  ball
joint out of the steering knuckle arm (The
tightening  torque  is  specified  as  35±3
N·m).









----Stand  the  front  sub-frame  by  jack  and

loosen the four long-short bolts of the left
-right  sub-frame  with  the  cross  beam.
(The  tightening  torque  is  specified  as
130±10 N·m).



Caution:  The  removal  of  the  cross  beam  is
extremely  dangerous.  The  drop  of  cross
beam  components  could  cause  serious
damage  or  even  death.  Please  make  sure
that  the  jack  has  supported  fully  the  cross
beam components before the removal.





OVERHAUL OF THE FRONT SUSPENSION

Installation of the front axle





Cherry adopts the divided steering drive axle as
the  front  axle.  The  suspension  is  the  model  of
shock  absorber  (also  called  MacPherson)
independent  suspension.  The  front  suspension
of  A15RHD  model  has  the  functions  of  both
driving  and  steering.  The  top of  the  suspension
is  connected  with  the  vehicle  body  while  the
bottom  with  the  steering  knuckle.  The  wheel
camber  is  adjusted through the  joint  bolt of  the
suspension the steering knuckle. The sub-frame
enhances  the  stability  and  comfortability of  the
vehicle  through  the  connection  of  the  control
arm  ball  pin  and  the  hinge  by  adopting  the
elastic components.



Overhaul of the front suspension

----When overhaul the front suspension, please

do  not  weld  or  remodel  the  support  and
guide devices of the front suspension.

----Use the special purpose tools to remove the

joint  bolts  or  nuts.  Make  sure  the
tightening torque fits the specified value.

----When  install  the  sub-frame  to  the  vehicle

body, the sequence of tightening the joint
bolts  is  the  rear  left  bolt,  the  rear  right
bolt, the front left  bolt and the front right
bolt last.

----Check  the  position  of  steering  wheel  and

measure  the  data  of  front  wheel
alignment after installation.

Overhaul of front shock absorber assy

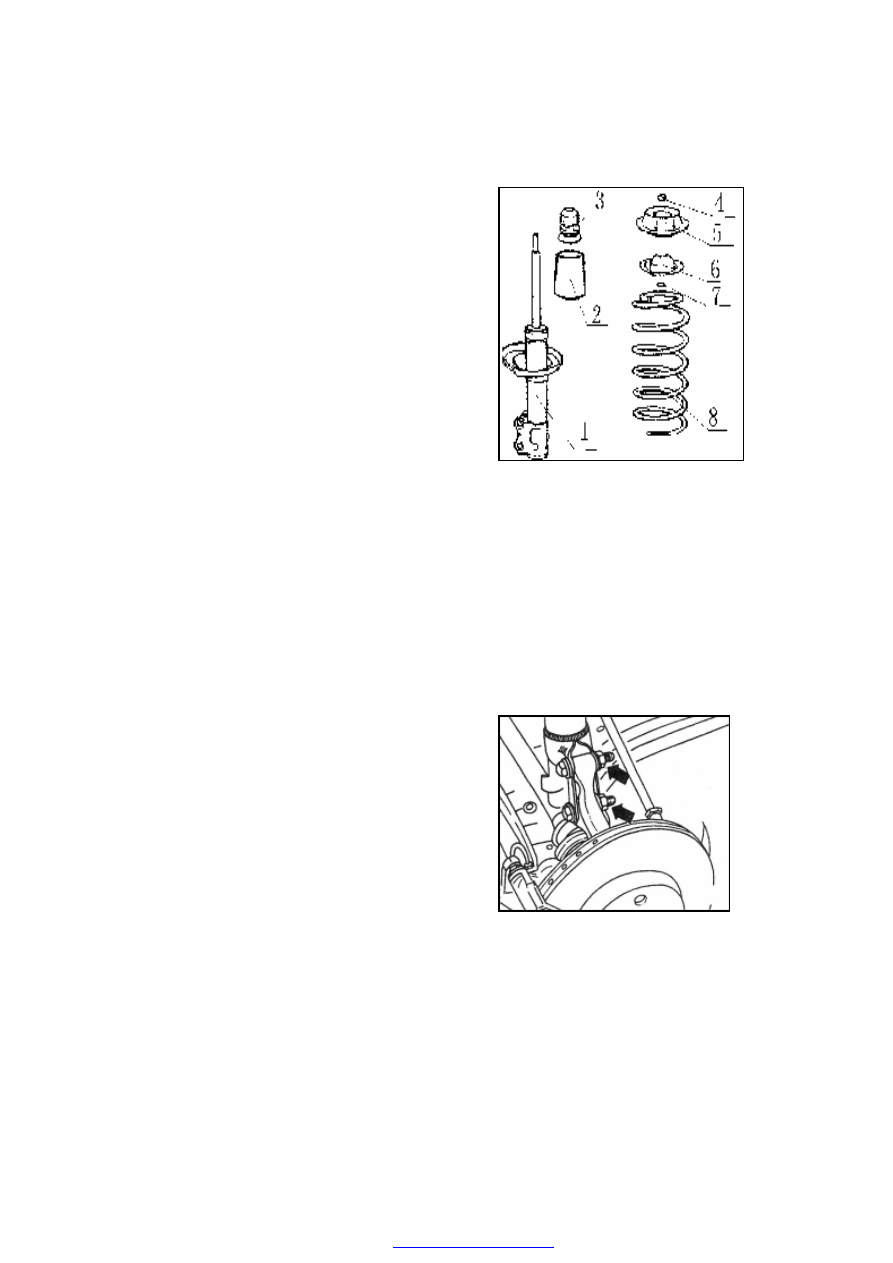

----Structure  of  the  front  shock  absorber

(shown as the illustration)



Illustration.  The  installation



of  the

front strut assy

1-front

shock

absorber

assy

2-front dust cover

3-front  bumper  block4-slotted  nut

40N•m

5-bearing and vibration isolator assy

6-front spring top tray

7-washer      8-front coil spring

Removal of the front shock absorber assy

Precaution:  Before  the  procedure  below,  the
careless  pull  may  lead  the  disconnection  of
the harness if the ABS vehicle speed sensor is
not  removed  first.  Therefore,  before  the
following procedure, remove the ABS vehicle
speed  sensor  (the  axle  side)  first  and fix it in
a proper position in order to keep the sensor
untouched during the vehicle maintaining.

----Remove  the  wheel.  Then  loosen  the  joint

bolt  of  the  propeller  shaft  and  the  brake
disc.

----Use the special socket wrench to remove the

joint  bolt  of  the  shock  absorber  strut  and
the  steering  knuckle  arm.  (shown  as  the
illustration)

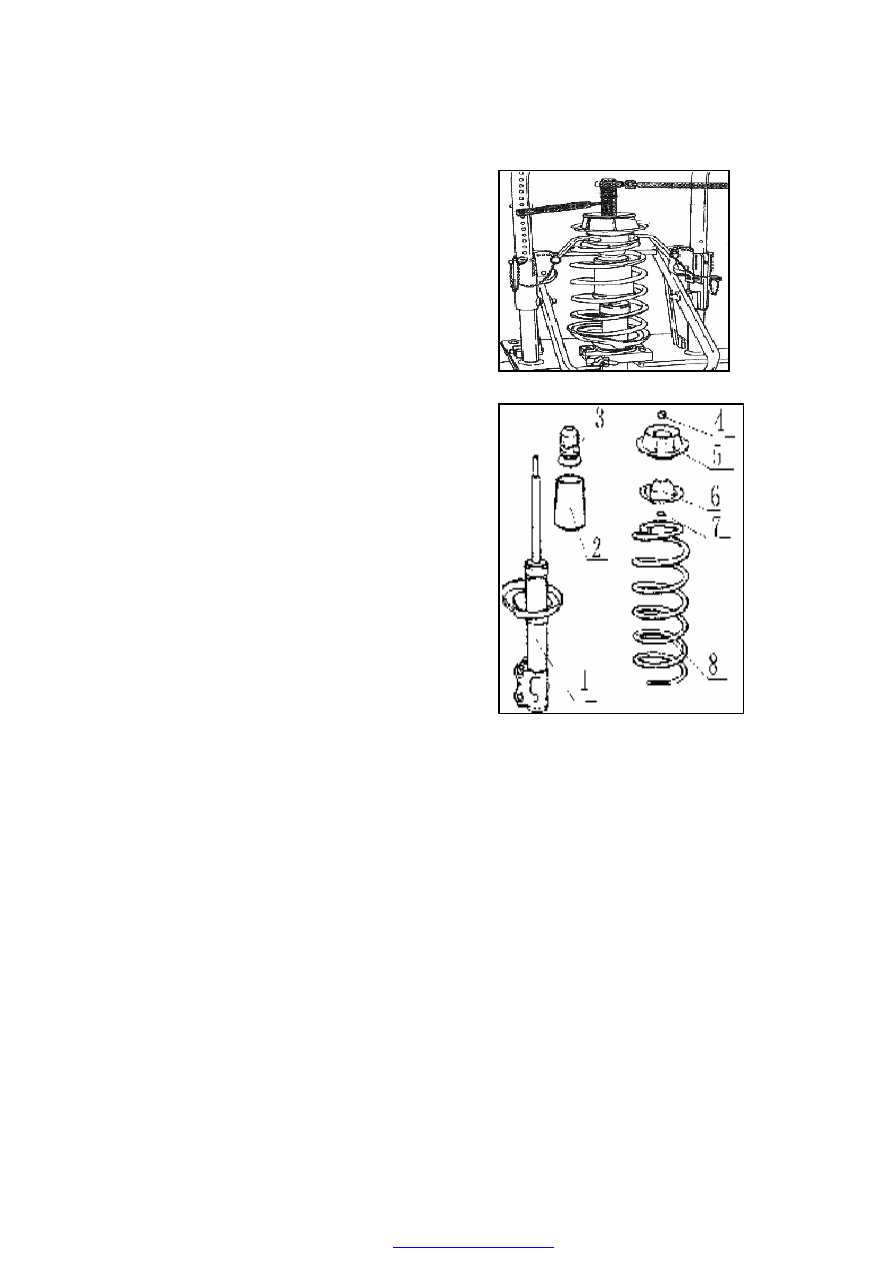

----Use  special  purpose  tools  to  remove  and

install  the  shock  absorber  coil  spring.
(shown  as  the  illustration)  During  the
removal,  push  down  the  vibration  isolator
assy  of  the  coil  spring  by  puller  first,
compress  the  coil  spring,  and  then  loosen
the piston rod nut to release the tension of
the coil spring.

Caution: The removal of the piston rod nut is
extremely  dangerous,  because  the  shock
absorber and the spring will burst out under
tremendous  pressure  which  could  cause
injury  or  even  death.  Please  make  sure  the
shock  absorber  is  fixed  properly  before  the
removal of the piston rod nut.





Installation  of  the  front  shock  absorber
(refer  to  the  installation  illustration  of  the
front strut assy)

----Assemble  the  front  cover  dust  2  with  the

front bumper block 3, and then cover them
onto  the  piston  rod  of  the  front  shock
absorber 1.





Illustration.  The  installation



of  front

strut assy

1-Front shock absorber assy

2-Front dust cover

3-Front bumper block

4-Slotted nut 40N•m

5-Bearing and vibration isolator assy

6-Front spring top tray

7-Washer        8-Front coil spring
