(7) Unscrew the clutch subpump set
bolts (Figure 99).
(8) Unfix the crankcase oil tray fittings.
(9) Unfix the crankcase oil tray.







2. Fixing the crankcase oil tray pad.
(1) Clean the crankcase oil tray and the
sealing surfaces.
(2) Replace new engine oil pad.
(3) Fix the crankcase oil tray (Figure
100).





(4) Fix the crankcase oil tray fittings
(Figure 101) with a torque of 31N.m.
(5) Screw on the clutch subpump bolts
(Figure 99).
(6) Fix the air compressor lower bracket.
(7) Fix the new driving belt guard board.
(8) Fix the front right wheel.
(9) Lower the car.
(10) Add 4L engine oil.
(11) Fix the storage battery cathode.

























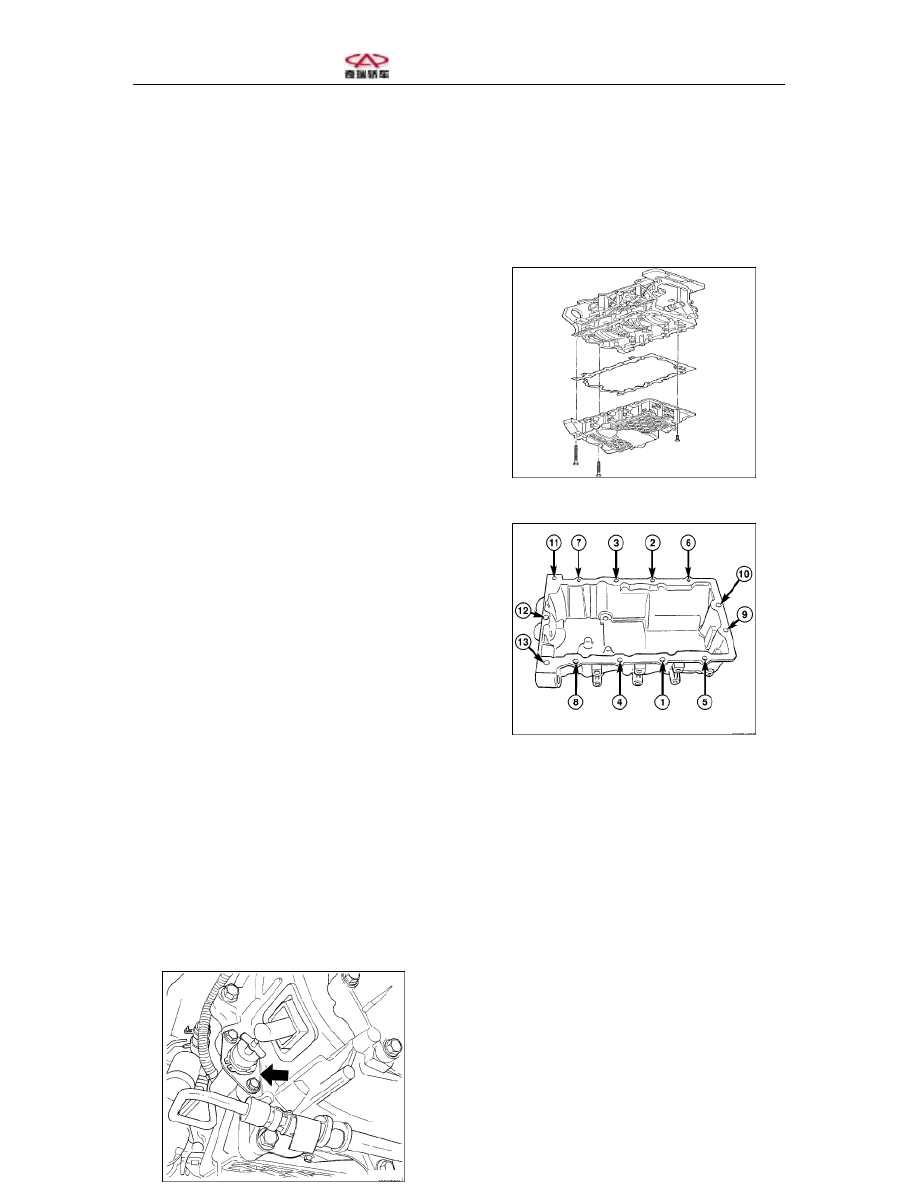

Figure 99 Clutch Subpump













Figure 100 Crankcase oil tray and Pad














Figure 101 Screwing Sequence of the

Crankcase Oil Tray Bolts








Six. Engine oil pump strainer
1. Unfixing
Unfix the timing chain (see
Engine/Valve Timing/Valve Timing
Cover – Unfixing)
2. Fixing



Fix the engine oil chain cover (see
Engine/Valve Timing/Timing Chain
Cover – Fixing)




3. Engine oil pump – unfixing




(1) Unfix the crankcase oil tray (see
Engine/Lubrication/Crankcase oil tray –
Unfixing).





(2) Unfix the engine oil pump bracket
fittings (Figure 102).




(3) Unfix the engine oil pump bracket.















1-Fittings



2-Engine oil pump bracket



3-O-ring
















4. Fixing




(1) Clean the sealing surfaces.

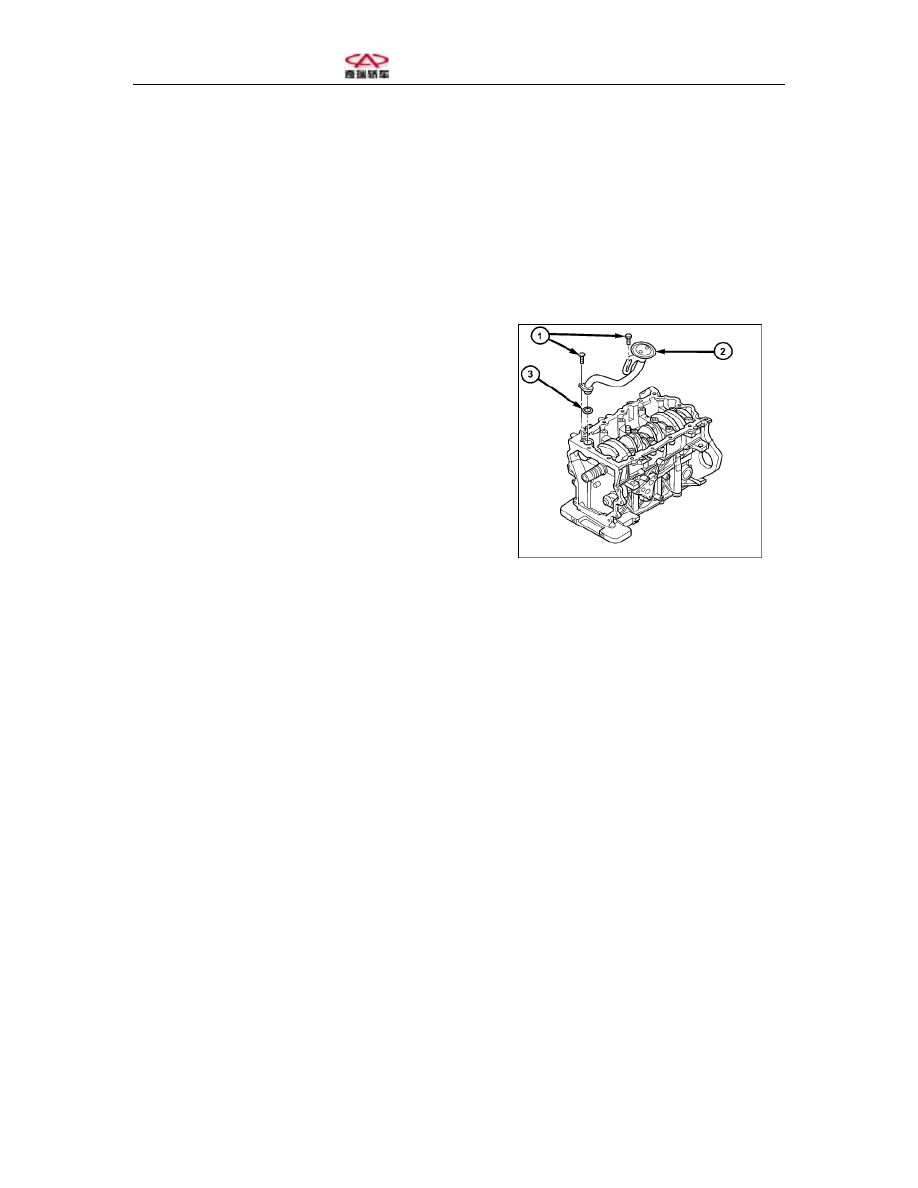

Figure 102 Engine Oil Bracket

(2) Replace the O-ring (Figure 102).



(3) Fix the oil pump bracket with a
torque of 12N.m.




(4) Fix the crankcase oil tray (see
Engine/Lubrication/Crankcase oil tray –
Unfixing).
































































Section Nine Engine Cooling System





Traditional water-cooled forced-circulation water-cooling system is adopted for A15 car.
The power steering pump is also fixed onto the water pump and driven by the same
transimmsion shaft. In this system, the water pump pressurizes the cooling fluid and
forces it to circulate through the engine. The water pump is a centrifual pump and driven
by the driving belt.

One. Fixing/unfixing the heat radiator
1. Fixing the heat radiator
- Screw the two air deflectors onto the radiator with tapping screws using a torque of 6-
7N.m.
- Fix the radiator onto the front beam.
- Fix the tensioner onto the radiator and screw the bolts of the left and right tensioners
with a torque of 10 + 2N.m.
2. Fixing the expansion tank and expansion tank cover
- Fix the expansion tank and screw on two double-end bolts with a torque of 10 + 1Nm
- Fix the protective cover
- Screw fast the expansion tank cover
3. Fixing the water pipe
- Clamp the elastic snap hoop with a special tool and fix it onto corresponding water pipe.
- Clamp the elastic snap hoop with a special tool and fix the water pipe onto the
corresponding fitting; release the special tool and clamp the elastic snap loop where
appropriate on the water pipe.
Note:
1. The snap hoop shall be 5mm±2mm away from the water pipe outlet.
2. Do not clamp the elastic snap loop on the water pipe in an inclined manner.


Two. Fixing/unfixing the heat radiator fan
1. Unfixing
- Unfix the wire connected to the wire harness.
- Unscrew the bolts of the radiator
- Take off the radiator fan












2. Fixing



- Align the fixing holes in the fan with the fixing holes in the radiator and screw on the
bolts.
- Plug in the wire harness.



Three. Fixing/unfixing the water pump and power steering pump assembly
1) Detach the storage battery cathode.
2) Drain the cooling fluid of the cooling system.
3) Unfix the driving belt (see Fixing/Unfixing the Driving Belt)
4) Unfix the power steering pump and its attached hoses and put them aside.
5) Unfix the power steering pump bracket.
6) Release the water pump set bolts and then unfix the water pump and its O-rings.















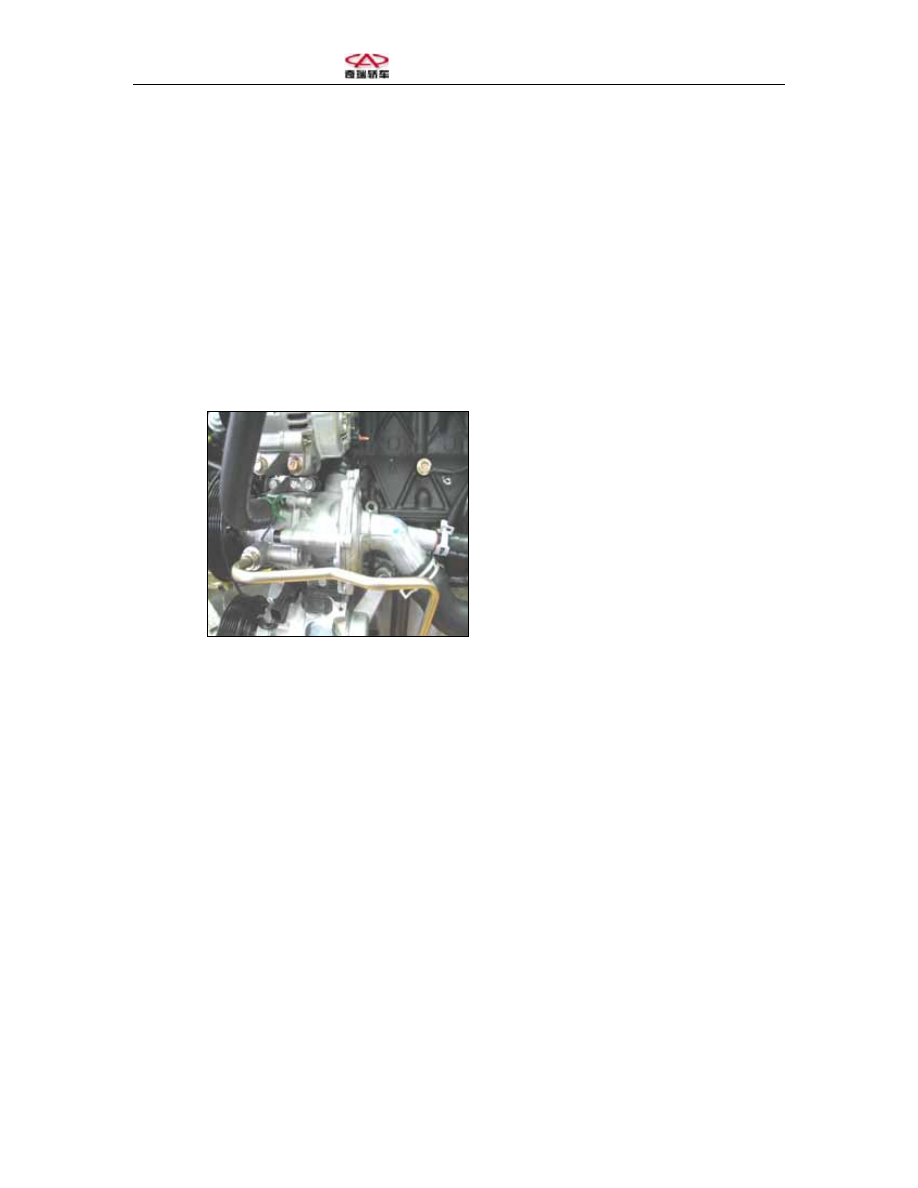

    Figure 103 Water Pump Set Bolts

Four. Adding the cooling fluid
- Add the mixed cooling fluid into the expansion tank (proportioning ratio is 50% glycol
+ 50% soft water)
- The cooling fluid level shall be between the “max” and “min” marks of the expansion
tank.
- The working temperature ofthe cooling fluid shall not be lower than -35℃, failing
which the content of glycol shall be increased as appropriate. But the glycol content shall
not exceed 60%.


Five. Draining the cooling system
1. Fill the system with water and run the engine until the radiator’s upper hose becomes
hot.
2. Drain the water in the system. For that purpose, unfix the upper water pipe’s lower end
of the radiator and refix the pipe and plug after the water is drained.
