Section Two Commonly-used Special Tools





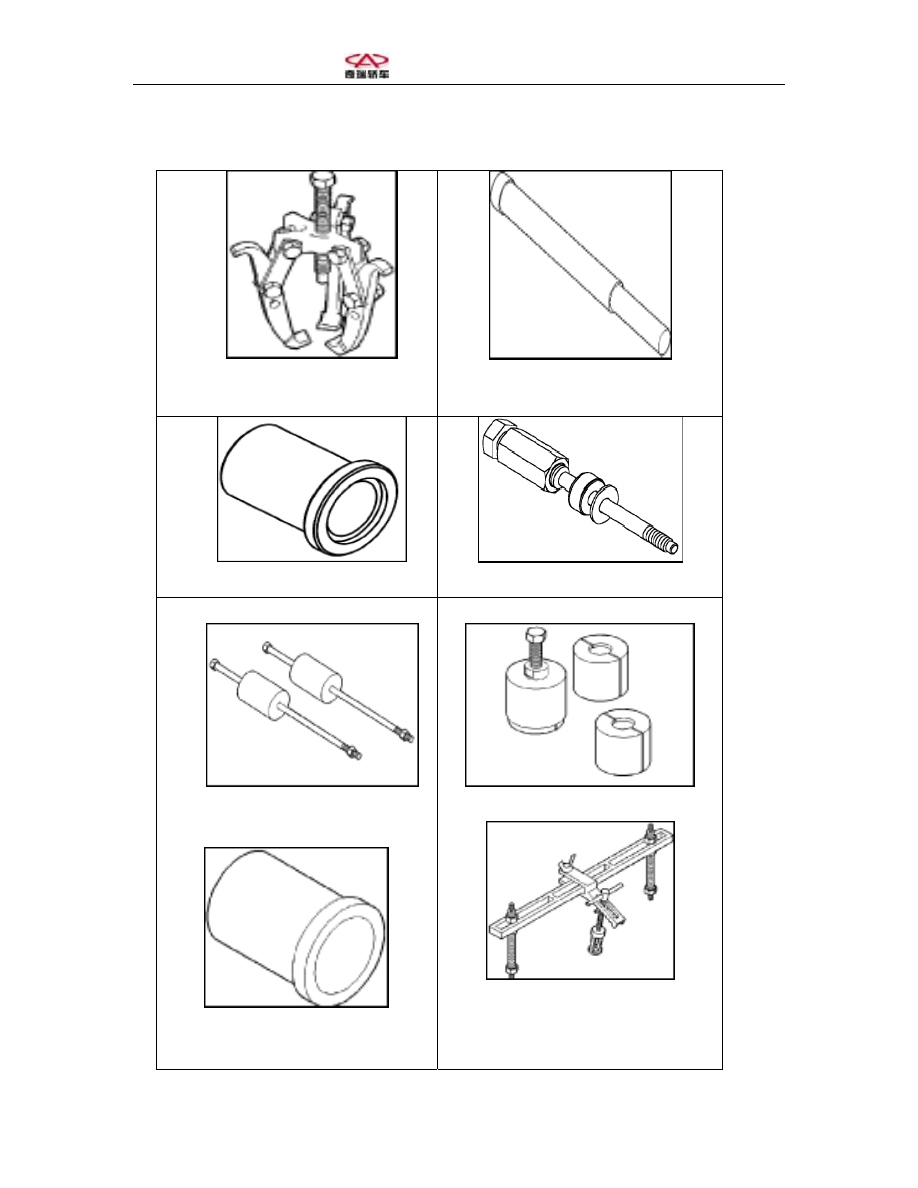

Crank shaft belt pulley unfixing tool



Camshaft fixing/unfixing tool



Crank shaft sprocket wheel fixing tool



Crank shaft sprocket wheel aligning tool





Crank shaft shock absorber/

Sprocket wheel unfixing tool



Spark plug conduit sealing

and fixing tool





Puller



Valve spring compressor



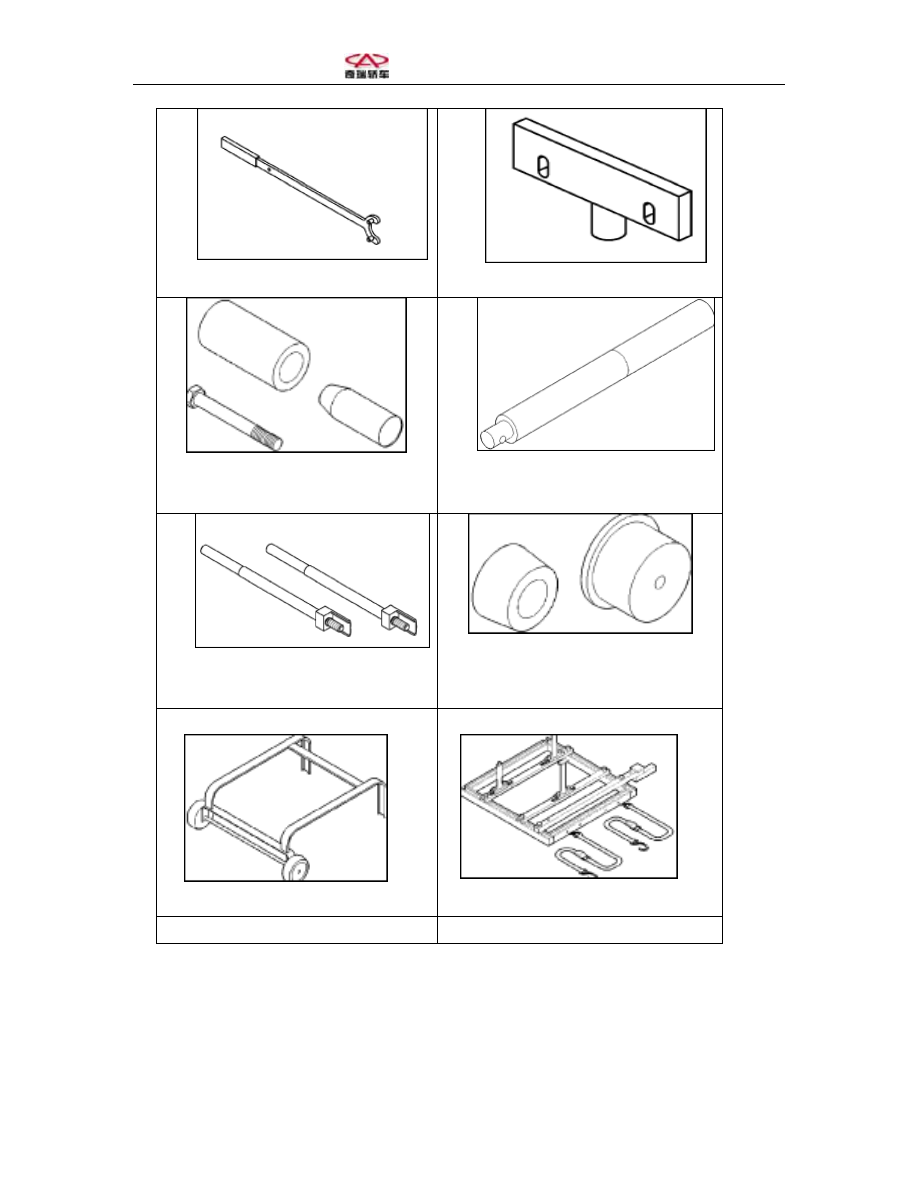

Camshaft sprocket wheel fixing spanner



Camshaft sprocket wheel fixer



Front crank shaft sealing

and fixing tool



Handle

Connecting rod fixing and

guiding tool



Rear crank shaft sealing conduit

and fixer









Moving frame







Engine frame









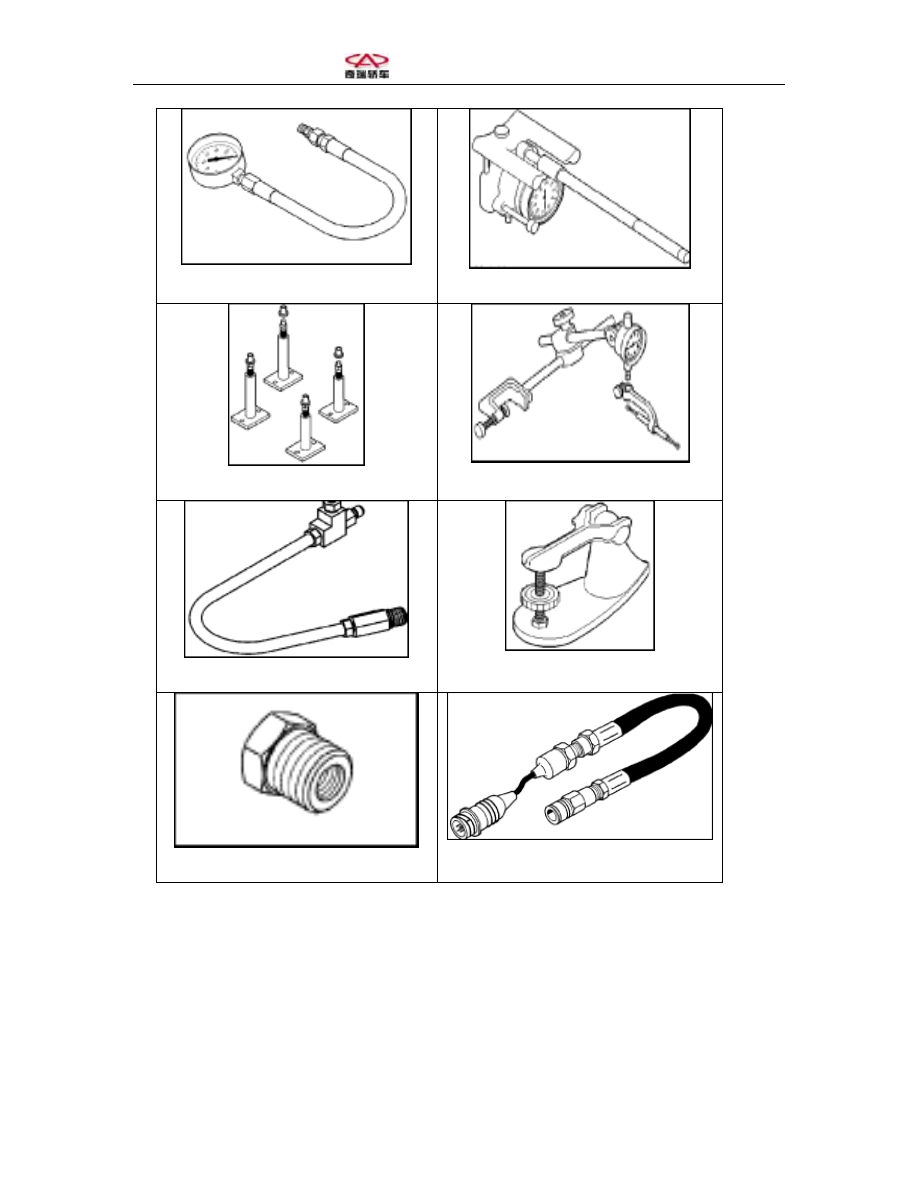

Cylinder pressure gauge



Dial indicator



Engine support



Dial indicator



Cylinder compression pressure adaptor



Valve spring tester



Test fitting adaptor



Pressure sensor













Section Three Unfixing the Engine


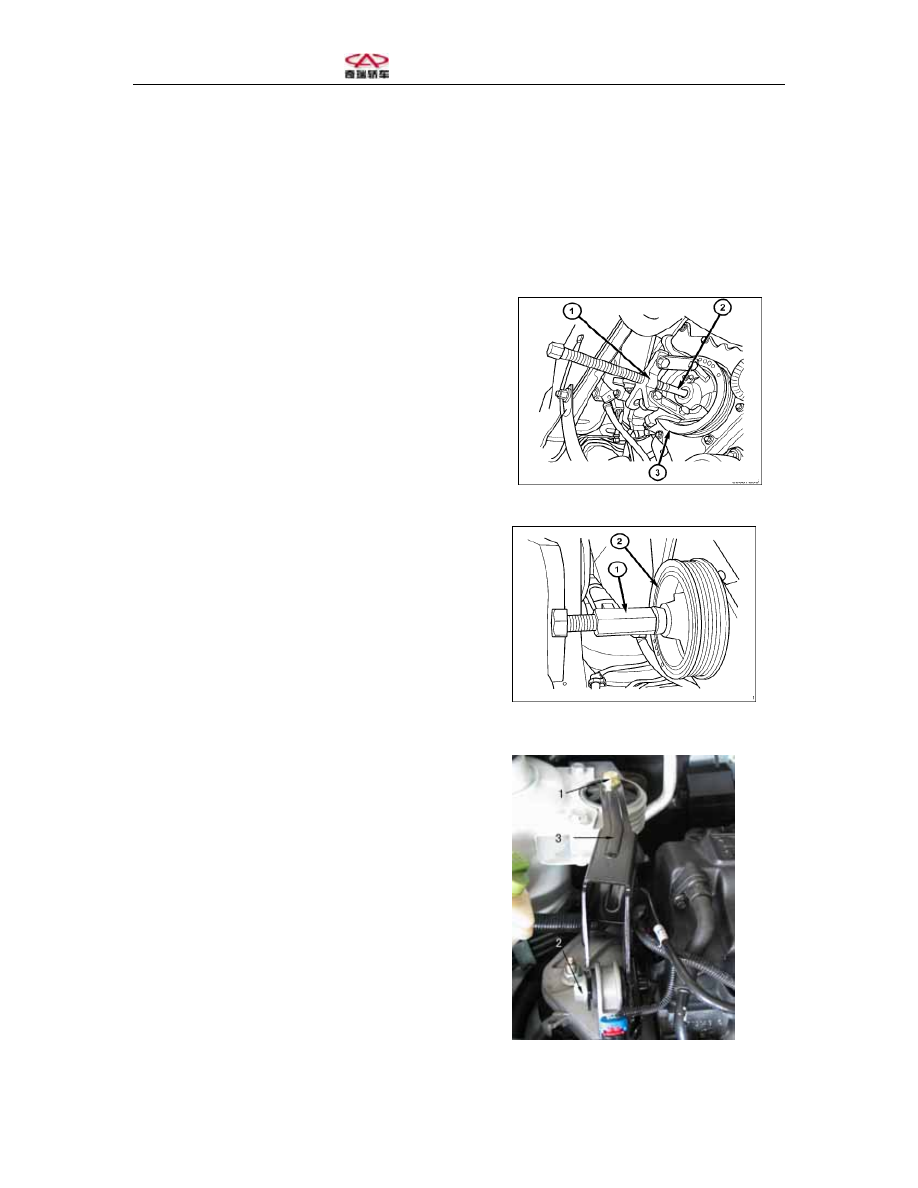

One. Unfixing the crank shaft belt pulley
1. Unfixing
(1) Detach the storage battery cathode fittings;
(2) Jack up the car;
(3) Unfix the right wheel and attachment driving belt cover plate;
(4) Unfix the attachment driving belt (see Driving Belt – Unfixing)
(5) Unfix the crank shaft belt pulley bolt; use special puller and unfix the belt pulley
(Figure 1).




1-Special tool for unfixing the belt
pulley
2-Special tool for guding the belt pulley
3-Crank shaft belt pulley

2. Fixing
(1) Fix the crank shaft belt pulley with a
special tool (Figure 2).
(2) Screw on the bolt of the crank shaft
belt pulley with a torque of 115N.m.
(3) Fix the driving belt (see Driving Belt
– Fixing).
(4) Fix the attachment driving belt cover
plate.
(5) Lower the car.
(6) Connect the storage battery cathod
fittings.

1-Fix the special tool
2-Crank shaft belt pulley


Two. Bracket
1. Unfixing the upper torsion bar
(1) Unscrew the bolts of the torsion bar
and the engine bracket (Figure 3).
(2) Unfix the upper torsion bar.


1,2 – Torsion bar fittings
3 – Upper torsion bar













Figure 1 Unfixing the Crank Shaft Belt
Pulley









Figure 2 Fixing the Crank Shaft Belt
Pulley














Figure 3
