   Chery A15 Maintenance Manual

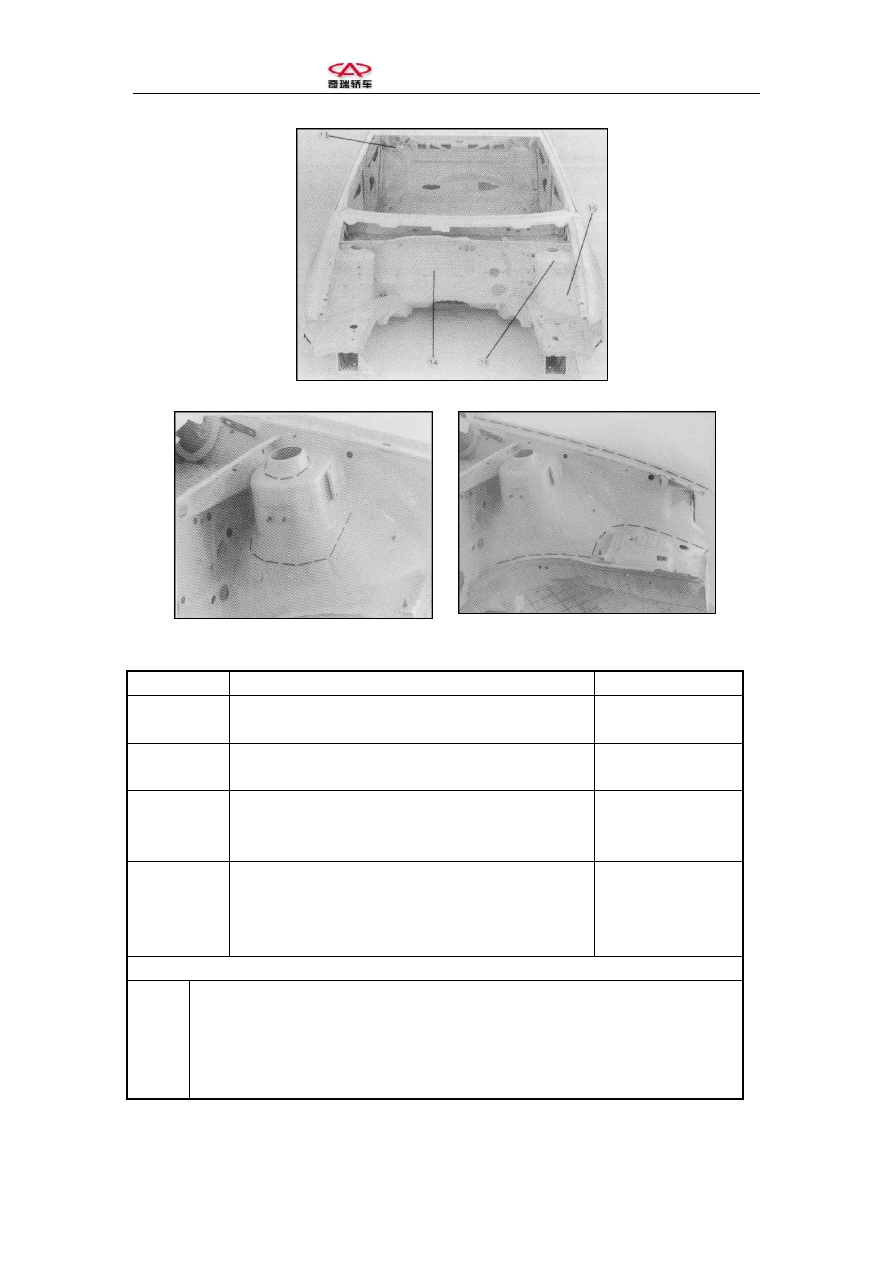

Table for applications of puffy adhesive

Number   Application

area

Material code

13

-- Jointing surface between the vehicle roof and the

vehicle side

D

14

-- Jointing surface between the rear door or the tailgate

and the external frame

A

15

--Jointing surface of the rear wheel cover

-- The supporting bracket of the rear shock-absorber

-- Sectional plane for assembling of the driving system

C

D

E

16

-- Jointing surface between the rear lining board and

the side fender

-- Jointing surface between the rear beam and the floor

peripheries

D

C

External end, front

A

B

C

D

E

AMV   162 000 PVC    Framework adhesive

AMV   168 000 PCV    Doped adhesive

AKR   303 P10 PCV    Multi-function putty adhesive

AKD   473 K20        Sealing oil putty adhesive

AKD   466 000         Electrical welding adhesive

   Chery A15 Maintenance Manual

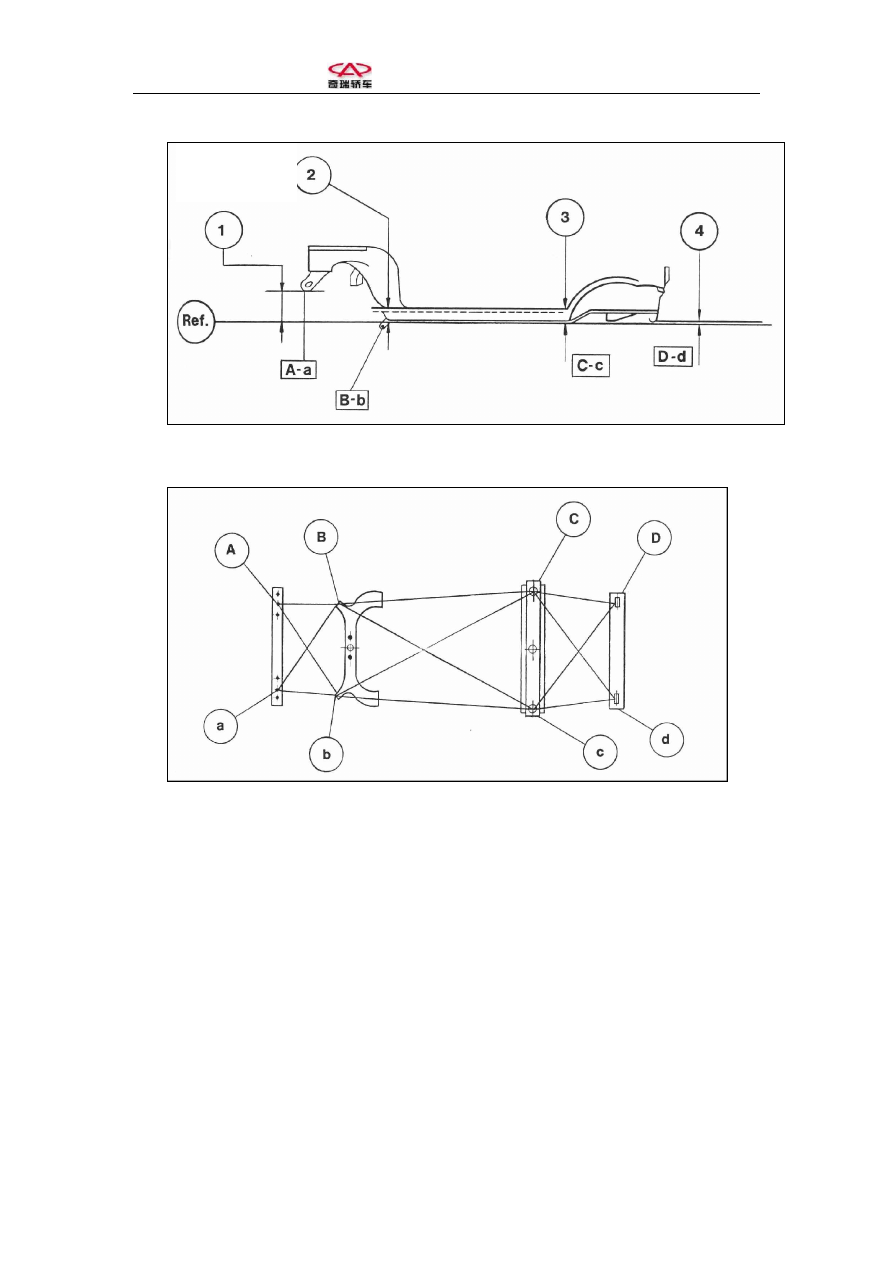

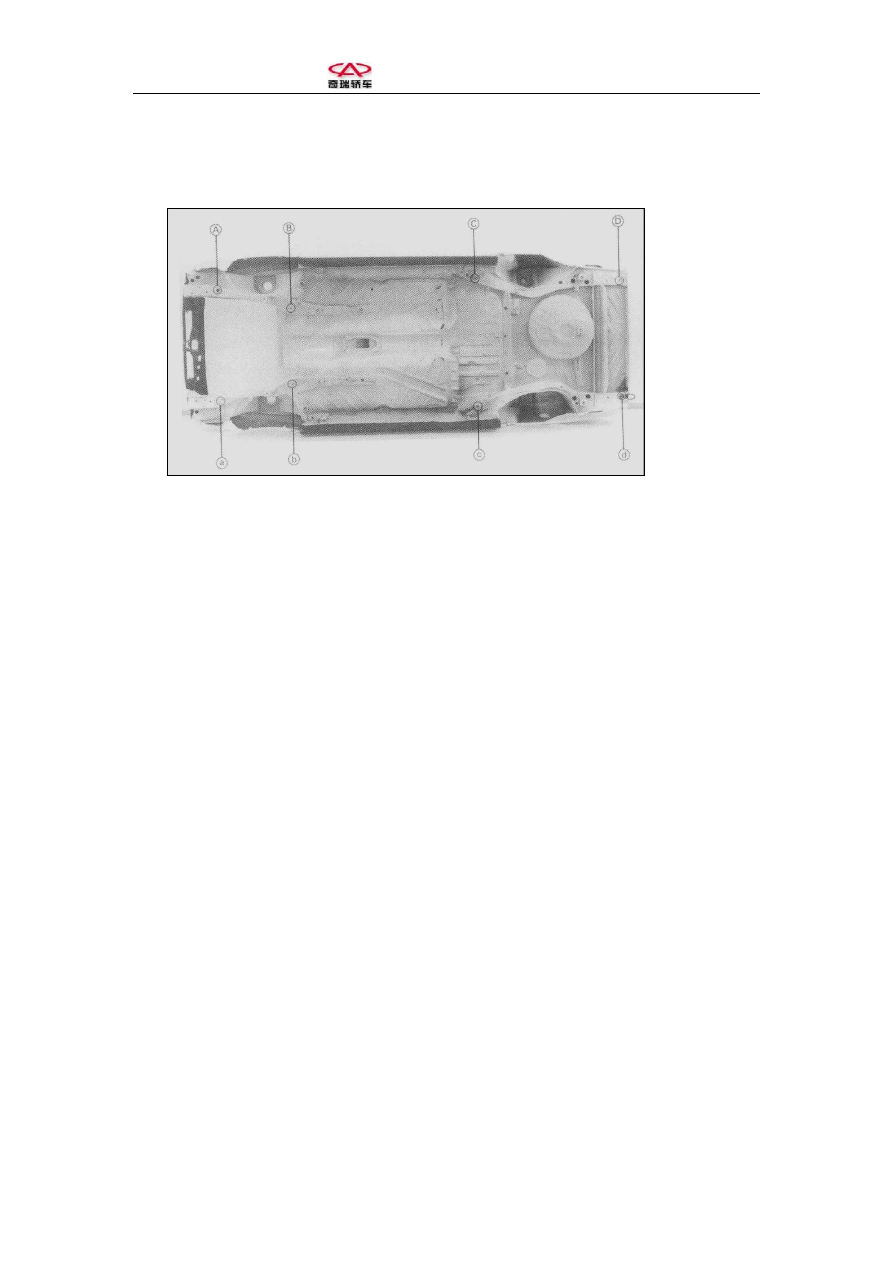

Check dimension of vehicle bottom plate

Point A

a: Fixing position of the engine beam;

Point B

b: Fixing position of the beam of differential case;

Point C

c: Fixing position of the rear axle;

Point D

d: Fixing position of the rear bumper bracket

Number                    Standard  value                              Measuring  item

1                          1020±1mm                                  Between  A  and  a

2                          1090±1.5mm                                Between  A  and  a

3                          679±1mm                                    Between  B  and  b

4                          703±1mm                                    Between  A  and  B

5                          2124±1.5mm                                Between  B  and  C

6                          2261±2mm                                  Between  B  and  c

7                          880±1.5mm                                  Between  C  and  c

8                          875±1.5mm                                  Between  C  and  D

9                          1306±1.5mm                                Between  C  and  d

10                          1047±1.5mm                                Between  D  and  d

   Chery A15 Maintenance Manual

1. Distance between fiducial line and point A

a=246

2. Distance between fiducial line and point B

b=140

3. Distance between fiducial line and point C

c=94.2

4. Distance between fiducial line and point D

d=246

Fiducial line=-100Z

Structure of the
protection board

   Chery A15 Maintenance Manual

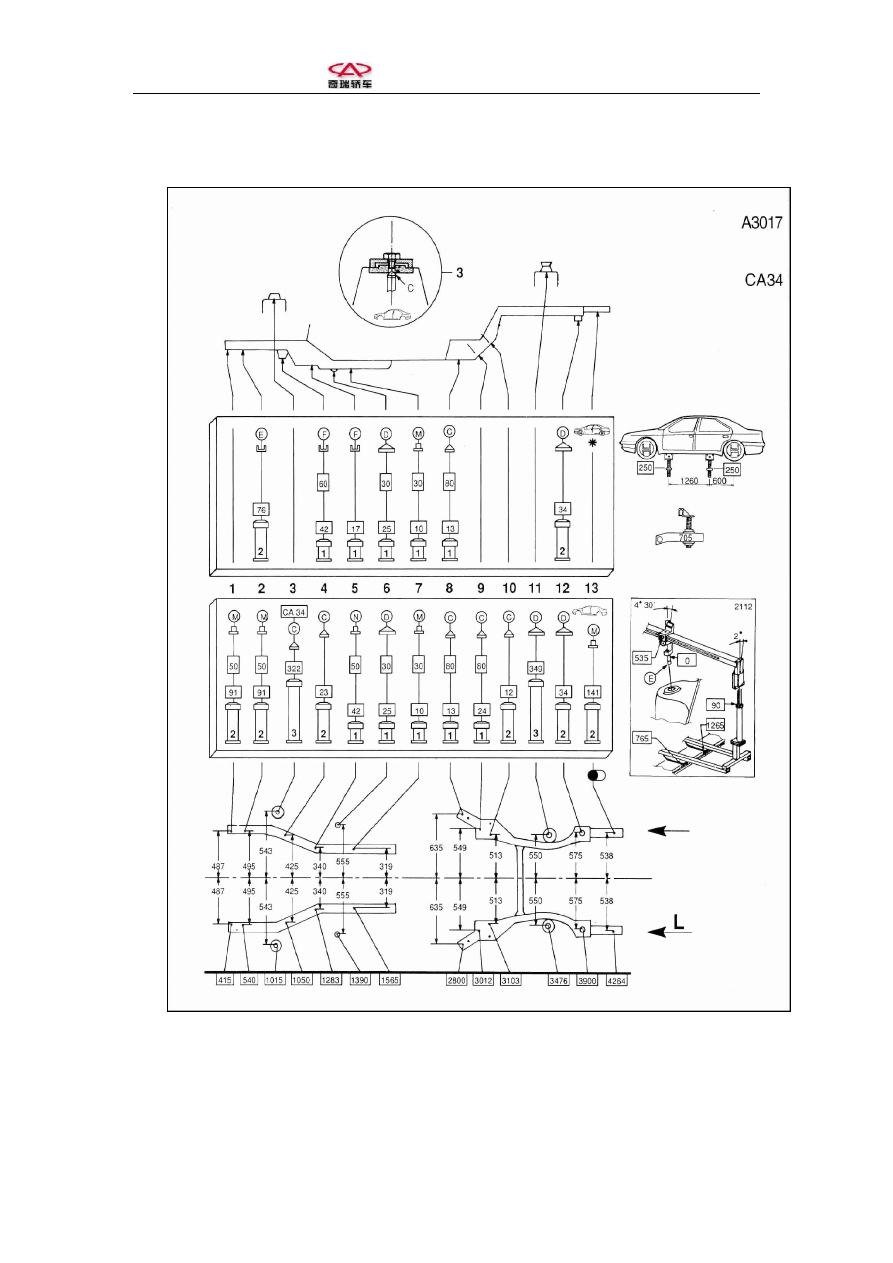

Check the vehicle body with the frame of the special measuring system
