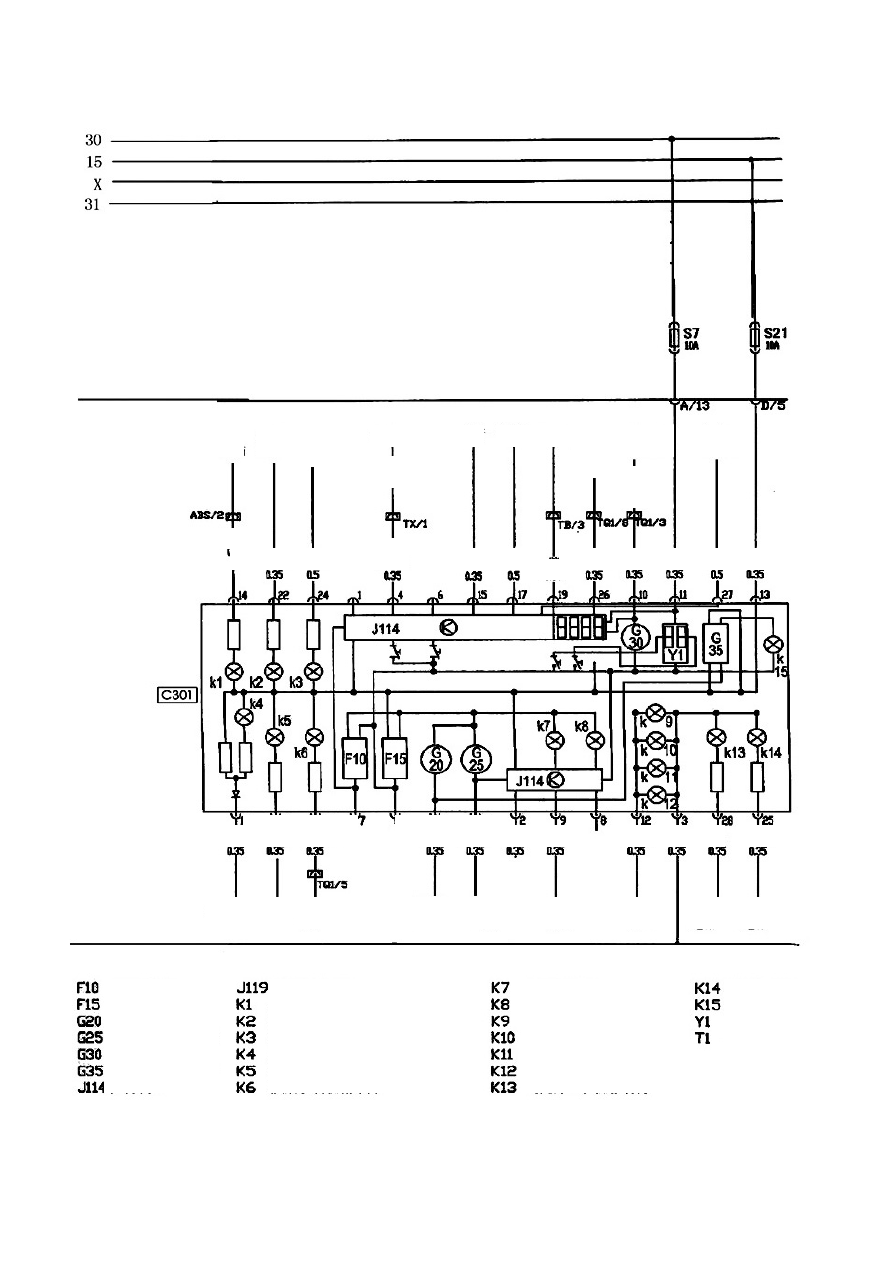

Chery A15. Manual - part 117

high beam warning lamp

fuel warning lamp

digital clock

single socket plug in connector

fuel pressure warning lamp

engine over temperature warning

lamp

instrumental panel illuminator

multi function display

ABS warning lamp

left turn light

right turn light

generator charging warning lamp

hand brake warning lamp

Multiplexer

voltage regulator

fuel sensor

coolant temperature sensor

RPM sensor

preset level comparator

light relay

light switch

fuel
pressure
switch

water

temperature

signal of ECU

fuel sensor

door switch engine ECU

engine

blue and white

gray

gray and red brow

purple

and black

blue

brown

and white

green and

red

purple
and black

purple

and black

yellow
and

blue and

yellow

brown and

yellow

green and

red

purple

black

white and

blue

red

black and

brown

and white

brown

and green

red and black

black

and brown

brown and gray

speed,

steering device

hand
brake
switch
/ brake
oil

black

and

rotary speed
signal of
ECU

seat belt

air bag

diagnosi

left turn

light

right turn

light,

ABS

computer,

T-25

The 28-socket connector of the wiring harness of combination instrument

The function of each socket is described in the table below:

Socket Function Socket

Function

1 No

connected 16

Connecting to the terminal D+ of

generator

Connecting to the water warning

switch of water tank

Air bag warning signal

Terminal 31# (ground)

Door light

TX1 speed signal of Hall Sensor

Seat belt warning lamp

Terminal 31#

Engine malfunction warning lamp

Connecting to the fuel meter sensor

Left-turn signal lamp

Water temperature signal of the ECU

Oil pressure warning switch

(30kpa)

Right-turn signal lamp

10 The

ECU

A20RPM 25

Power supply terminal for high beam

indicator lamp

Terminal 30#, power supply for

clock and multi-function display

Warning switch for brake oil level;

indicator lamp switch for hand brake

Terminal 58b#, power supply for

instrument panel illumination

27 Speedometer

sensor

Terminal 15#

Night illumination

ABS warning lamp

15 Diagnostic

wire

T-26

1. SPEED ODOMETER

The Chery sedan A15LHD employs the cross coil type speedometer to indicate the driving
speed and accumulated road mileage, as well as equipped with digital odometer. The section
for measuring car speed employs a magnetic type of structure, while the section for recording
mileage is controlled by multifunction liquid crystal display.

See figure (Illustration-2)

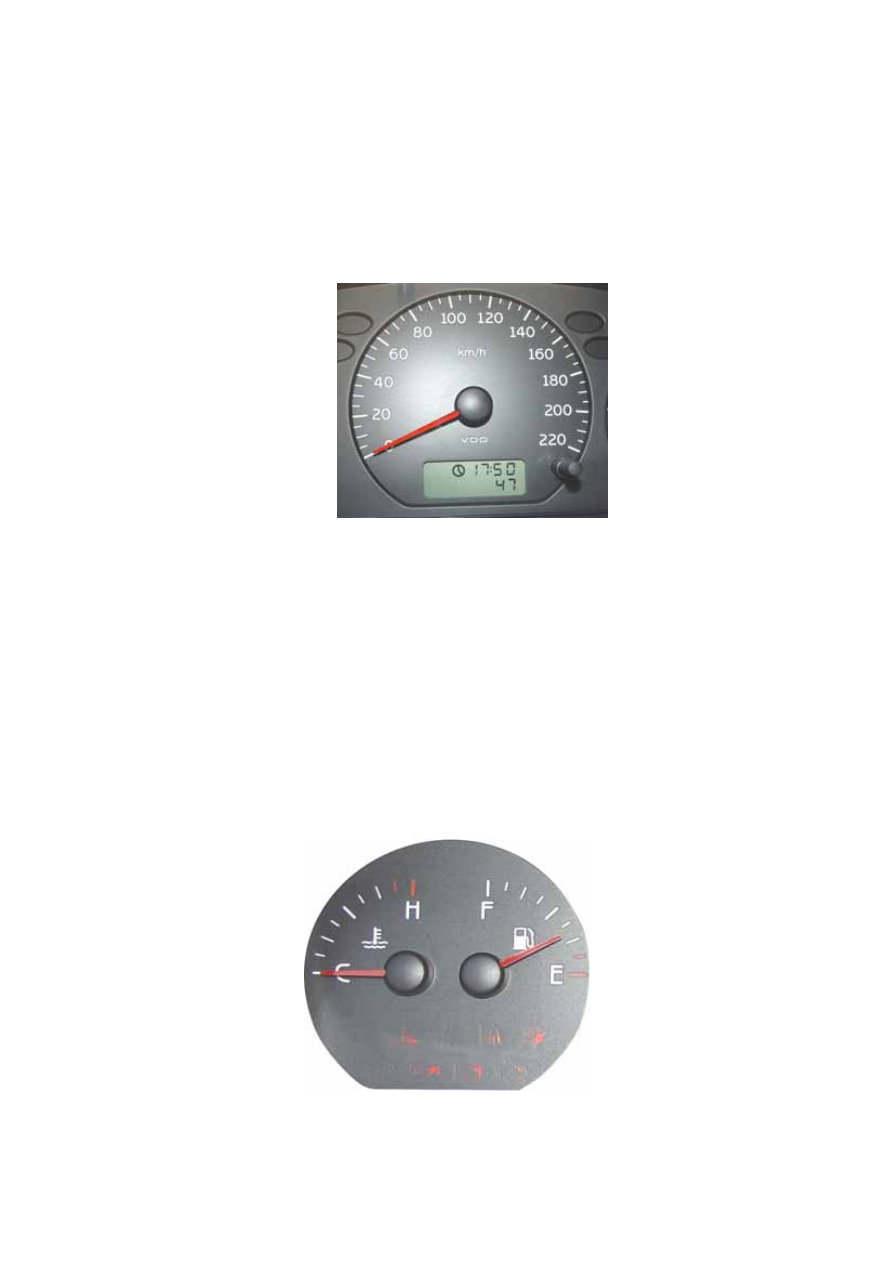

Speedometer (Illustration-2)

The indicator needle is located at the scale zero when the speedometer is not in use. When the
car is driving, the transmission gear in the gearbox is activating and cutting the magnetic flux
of the permanent-magnet of the Hall Speed Sensor, so that the latter will produce pulse
signals to the cross coil type Speed Odometer to drive the indicator needle of speedometer,
and meanwhile it will also provide the same signal to the mileage-recording multifunction
liquid crystal display to control the mileage counting.

2. WATER TEMPERATURE METER

Water temperature meter

The Chery sedan A15LHD employs the water temperature meter equipped with cross coil
type indicator needle. See figure (Illustration-3)—the water temperature meter is located at
left.

Water temperature meter (Illustration-3)

T-27

The pointer head of the cross coil meter is a kind of electromagnetic device. The coils are
round on the surface of its magnetic rotor in four directions, with an included angle of 90º
between the two adjacent coils. The strength of the current passing through the coils is
depended on the resistance of the sensor, so that the magnetic flux densities produced by the
coils in four directions are varied correspondingly, which subsequently activates the rotation
of the magnetic rotor and the movement of indicator needle.

3. FUNCTION AND PREINCIPLE OF WATER TEMPERATURE SENSOR

The water temperature sensor of Chery sedan A15 LHD employs the thermo-sensitive
resistance, which is shown in the figure above:

The coolant temperature sensor is used to inspect working temperature of the engine; the
ECM will provide the best control program for the engine according to different temperature
environment;

Composition and working principle: The sensor is a thermo-sensitive resistance of negative
temperature coefficient (NTC). Its resistance will decrease as the coolant temperature
increases, but not linearly related. This thermo-sensitive resistance of negative temperature
coefficient is loaded into a copper heat-conducted sleeve. The ECU converts the changes of
value of the thermo-sensitive resistance into variable voltages supplying the ECU via a
divider circuit so as to monitor the changes of the water temperature. (ECU’s internal
structure)

Pin: the sensor has 3 interchangeable pins totally.

1 Coolant temperature sensor signal (ECU39#)

2 Sensor signal ground (ECU35#)

3 Another wire is used to connect the water temperature signal of the instrument.

Installation: the coolant temperature sensor is mounted on the sub-loop passage of the coolant
behind the engine.

Notes on installation:

aximum tightening torque is 15Nm.

4. PRODUCT CHARACTERISTICS

Working voltage: 5V DC

Working temperature: -40 ~ 135

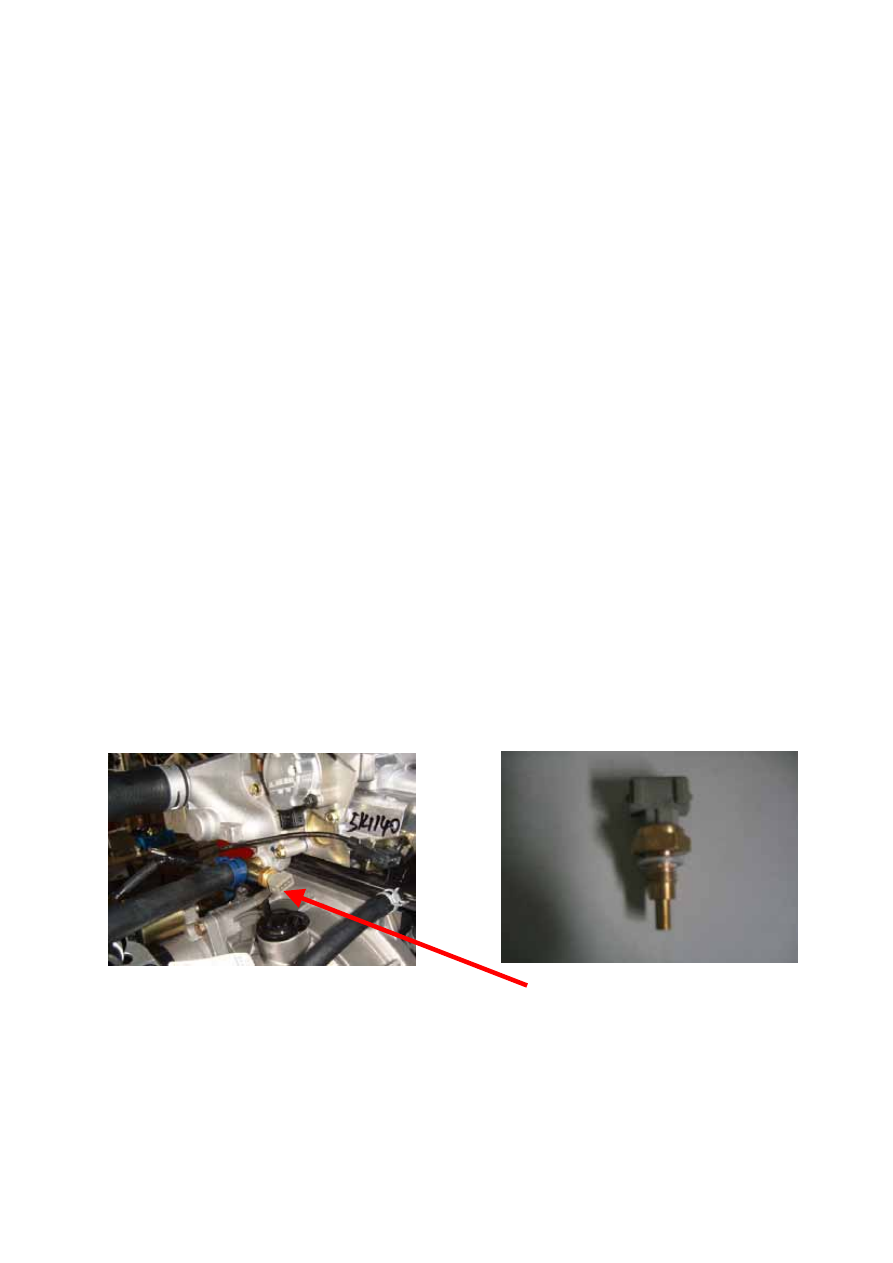

Figure of coolant temperature sensor

T-28
