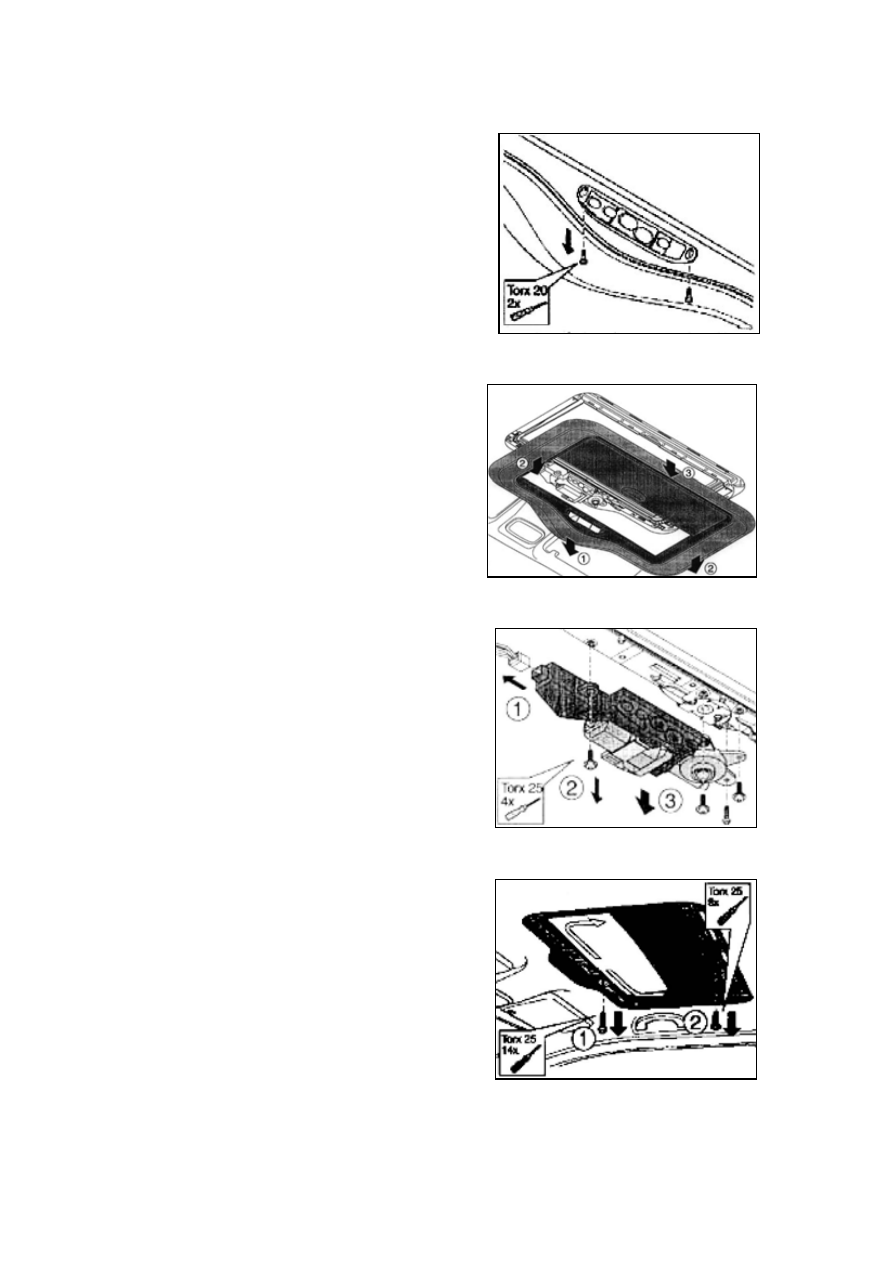

Remove the two fastening bolts in the front of
interior trim rim.













Remove the interior trim rim (pull downward
as the order shown in the figure), pay attention
not to damage the control buttons.










Move the fastening clip to the direction of
computer box, disconnect the connectors of
motor and the SCU, disengage the fastening
hook between the SCU and the motor, and
separate the motor from the SCU to carry out
the replacement.





Pull out the harness connecting to the SCU,
remove the 4 fastening bolts of motor and the
SCU, and remove the motor and the SCU
downwards.










S-70

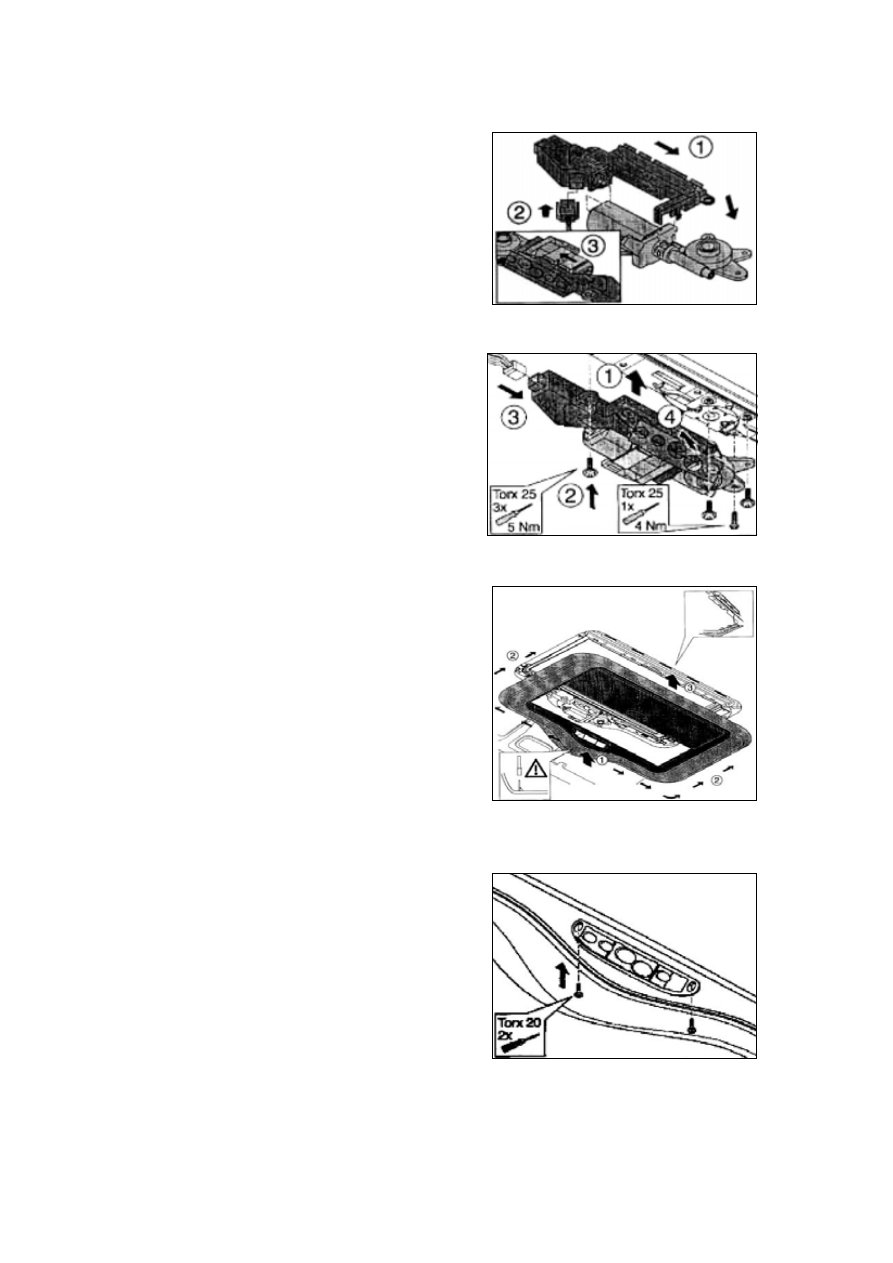

Install the motor and the SCU in the reverse
order of step 7.












Install in the reverse order of step 6.

Pay attention on the engagement of drive shaft and

the gear of motor.












Install the interior trim rim (push upwards as
the order shown in the figure, note that the
clamp should be aligned to the groove). Install
additional strip if necessary.














Tighten the fastening bolts of interior trim rim.

















S-71

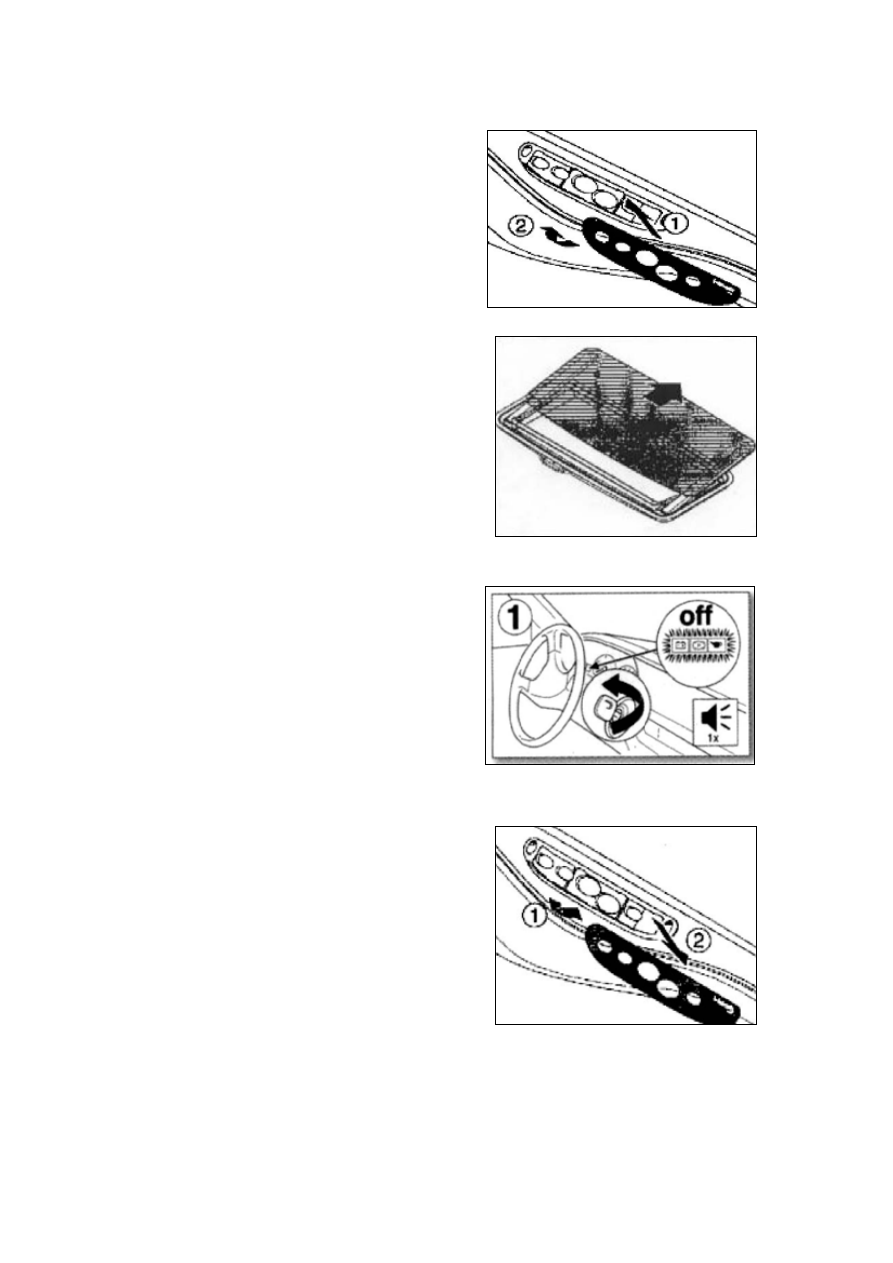

Install the cover of control buttons.










DISASSEMBLY AND ASSEMBLY OF
SUNROOF



Disassembly:

1. Fully open the sunroof.






2. Turn off the ignition switch, keep pressing

the control button to prevent the sunroof
from automatic closing.







3. Remove the cover of control buttons.











S-72

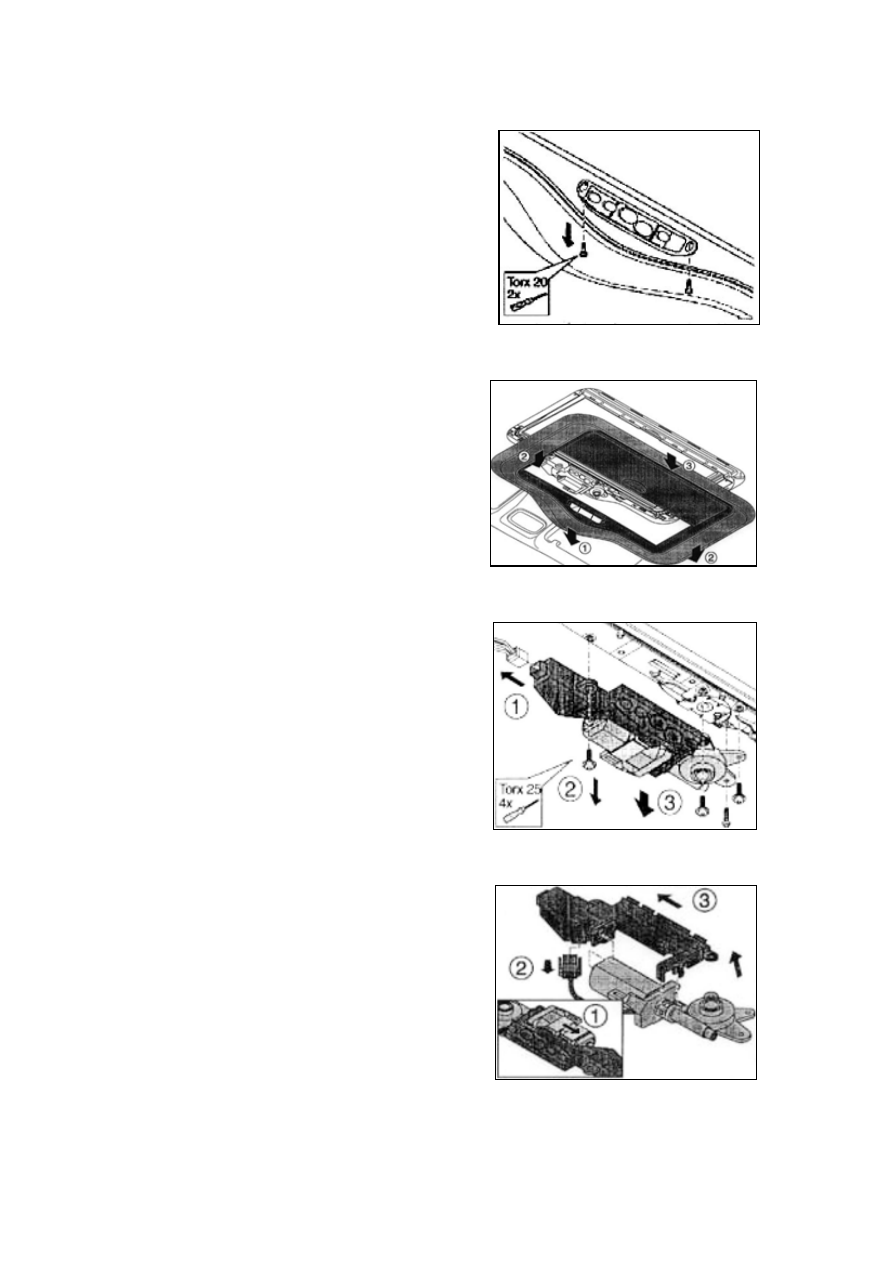

4. Remove the 2 fastening bolts in the front of

interior trim rim.






5. Remove the interior trim rim (pull upwards

as the order shown in the figure), pay
attention not to damage the control buttons.









6. Disconnect the harness of SCU.

Remove the 4 fastening bolts of motor and the
SCU, and pull upwards to remove the motor
and the SCU.




7. Remove the fastening bolts of frames.










S-73
