Chery A15. Manual - part 94

DISASSEMBLY AND ASSEMBLY OF
INTERIOR CEILING

Disassembly:

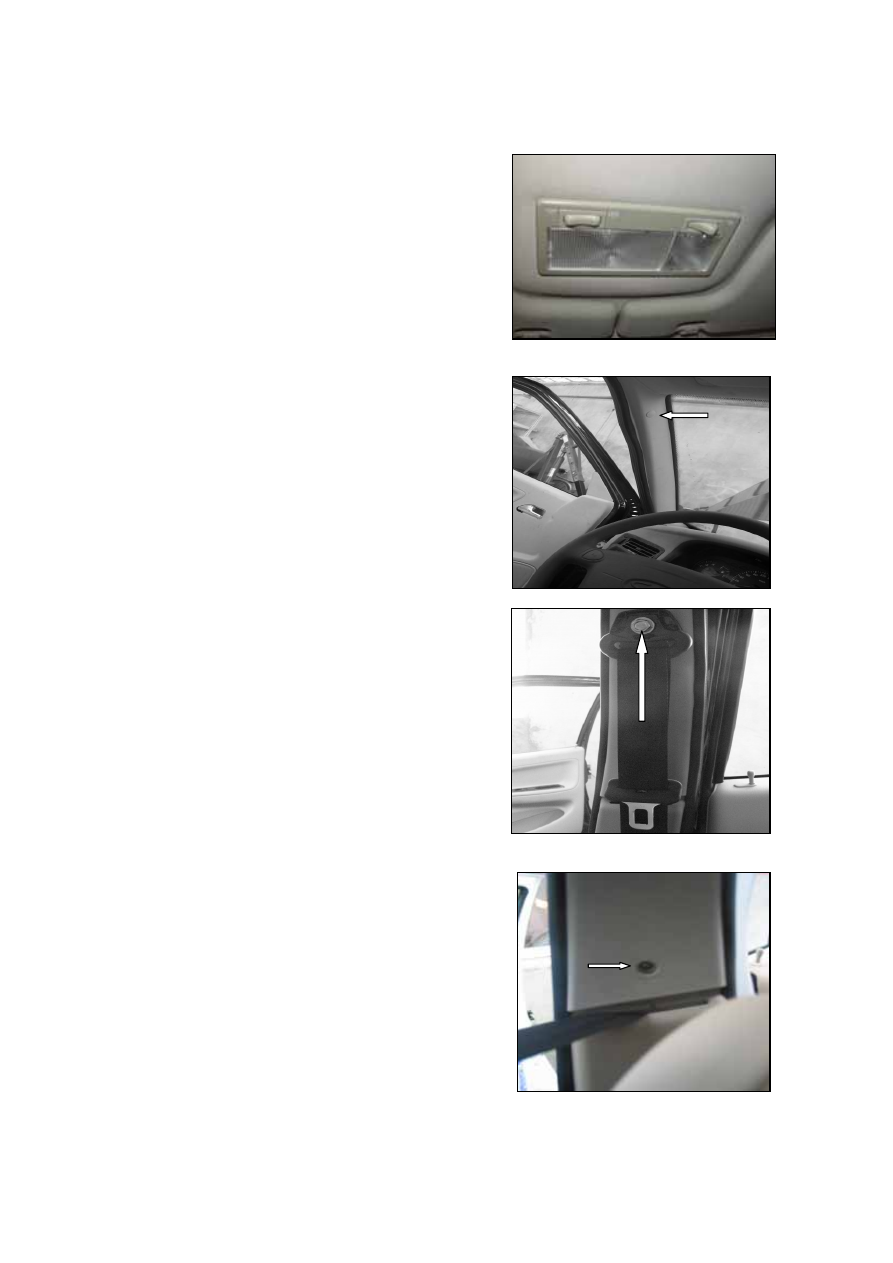

Remove the armrest, sun visor and bracket
according to the instruction.

Pry the mirror and the interior lamp in the
headliner with a minus screwdriver and remove
them. Remove two lamps if the car is equipped
with two lamps.







REMOVE COLUMN A.

Take off the decorative cap, and remove the
seal of the door opening partially within the
working area.

Loosen the lock nut between the internal lining
and column A, and remove column A.



DISASSEMBLY OF COLUMN B:

Take off the cap, loosen the lock nut between
the internal lining and column B; Remove the
seal of the door opening partly within the
working area.



Remove the decorative cap, loosen the lock nut
between the internal lining and column B and
remove column B.







S-26

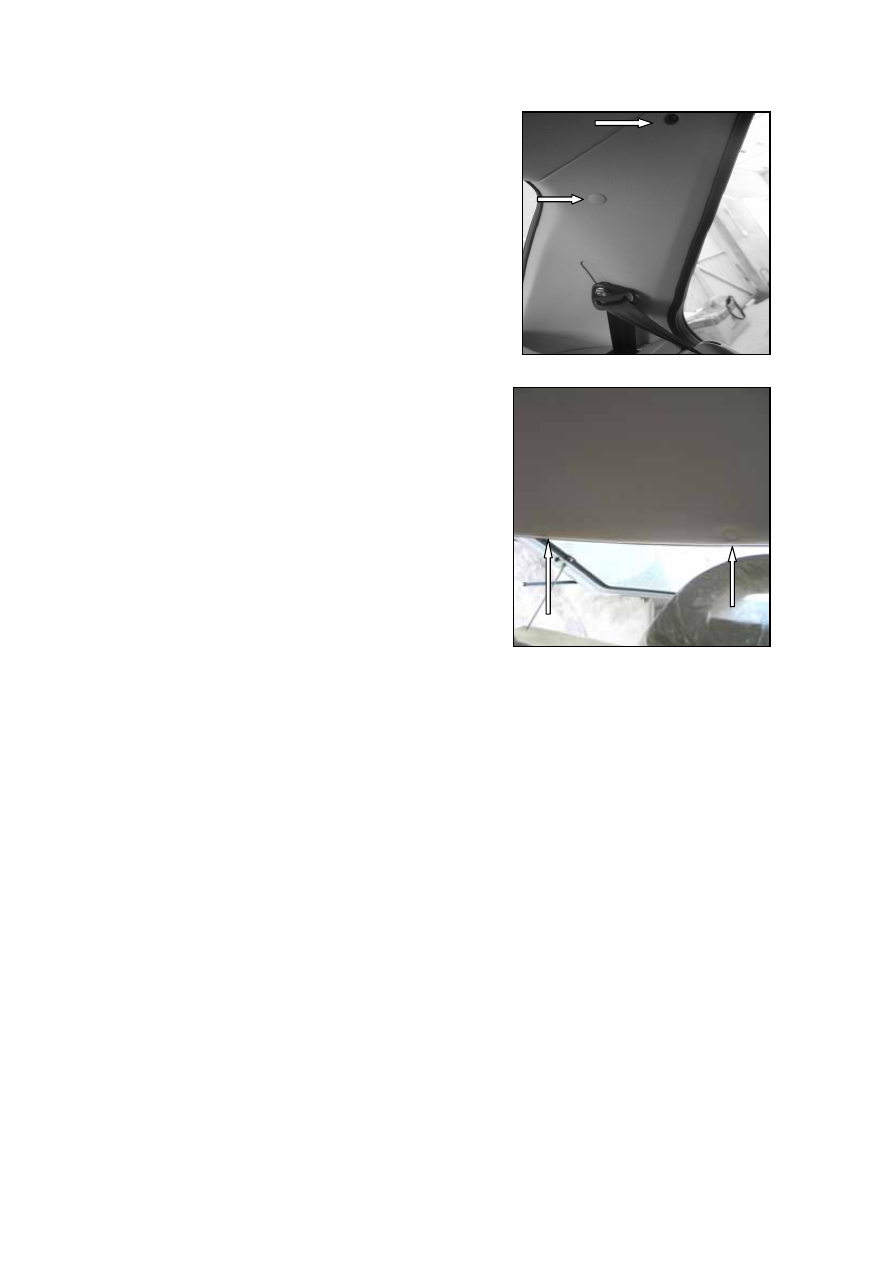

DISASSEMBLY OF COLUMN C:

Remove the decorative cap, after that loosen
the lock nut between the internal lining and
column C.



Use a plug extraction tool to remove the
fastening plug in the headliner of the car
ceiling.

Other worker will remove the headliner and
pull it out from the rear door opening.

Assembly:

The steps are the reverse of disassembly. The
installing angle for the retractor assembly of
left/right front safety belt is 0º, the tightening
torque of the locking bolt is 50±10N·m, the
tightening torque of the fastening bolt for
adjusting the sliding guide rail is 24±5N·m ,
the tightening torque of the guide ring
fastening bolt is 50±10N·m. The installing
angle for the retractor assembly of left/right
rear safety belt is 30º, and the tightening torque
is 50±10N·m.

Note: Appropriate measures should be taken to
avoid dirtying the car during disassembly and
assembly.







S-27

DISASSEMBLY AND ASSEMBLY OF
REAR DOOR TRIM PANEL

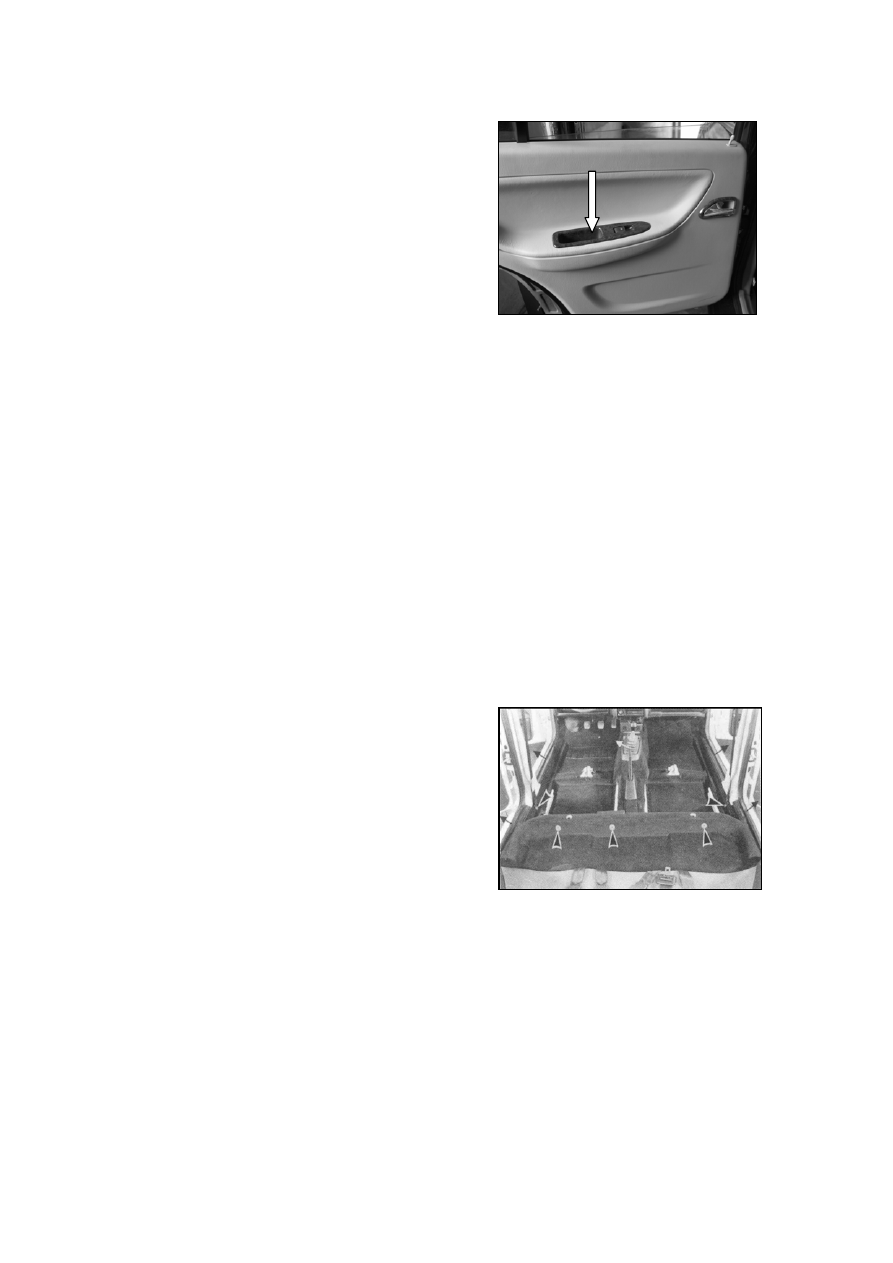

Disassembly:

1. Remove the armrest decorative fastening

bolt, and dismantle the armrest cover and
armrest base. Remove the inner door open
handle guard frame. Remove the safety
handle.

2. Remove the fastening bolt between the trim

panel and doorframe.

Assembly:

Assembly is the reverse of disassembly.

The tightening torque of the screw for the inner
handle assembly is 1.5±0.15N·m.

Note: Appropriate measures should be taken to
avoid dirtying the working area during
disassembly and assembly. It is very important
to maintain the cleanliness inside the car
during working.





























DISASSEMBLY/ASSEMBLY OF CARPET
FOR PASSENGER COMPARTMENT

Disassembly:

Remove the fixed decoration between the seal
and the carpet. Loosen the fastening bolt
between the floor and the safety belts of
passenger seats. Remove the oil pan. Use a
plug extraction tool to remove the fastening
plug for the carpet

Assembly:

Assembly is the reverse of disassembly.

Remember that the tightening torque of safety
belt is 50±10N·m.





















S-28

DISASSEMBLY AND ASSEMBLY OF
SEATS

DISASSEMBLY AND ASSEMBLY OF
FRONT SEATS.

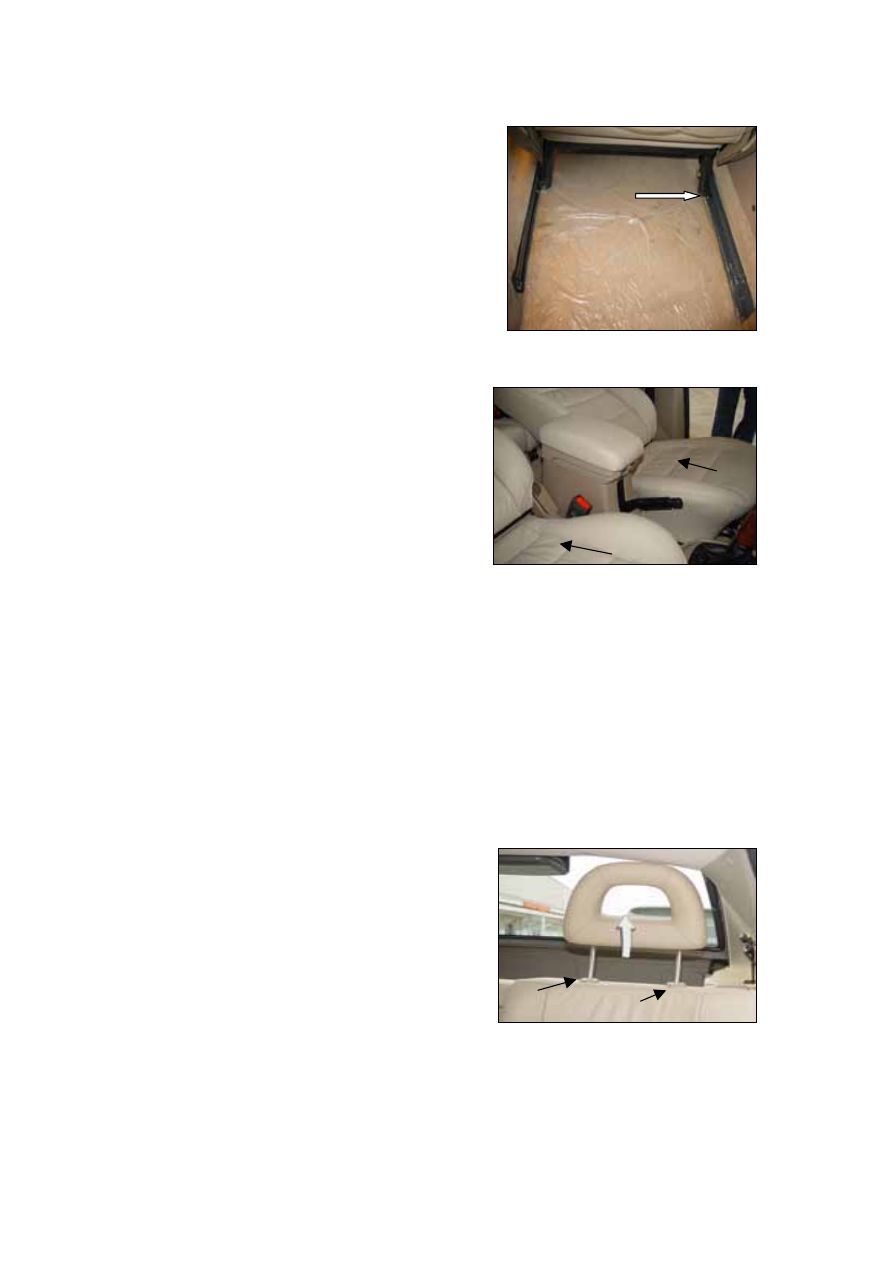

Disassembly:

1. Move the seat forward, remove the rear

brake. Loosen the fastening bolt of the
regulator and remove the guide rail.



2.Loosen the nut and remove the locking bolts.

3. Loosen the adjusting level of seats, move the

seats backward and disconnect the guide
rail.

4. Disconnect the power line of seat safety belt

5. Remove the guard plate of the sliding rail of

the seat.

Assembly:

When installing, the steps are the reverse of
disassembly.

The tightening torque of the seat stopper bolts
is 2.5±0.5N·m. The position arrangement for
the left/right front seats should meet the
requirement in such that the space between the
front and rear seats is 740±20mm.

















DISASSEMBLY AND ASSEMBLY OF
HEADREST

Disassembly:

Pull the headrest upwards until the contact
point of the side level. Remove the fastening
clamp between the headrest side rod and the
rear slot of the seat with a screwdriver.

Assembly:

When installing, remember the position of the
spring clamp, and install it before inserting the
headrest side rod.
