Chery A15. Manual - part 91

------Remove the four screws on the two sides

of instrument panel. Remove the two
bolts at where instrument panel and
firewall meet from near wiper motor.
Remove the two bolts connecting the
instrument panel center and the bracket.



------Remove the central electrical box and

pull out the connector connecting the box
and the instrument.





INSTALLATION
------Install in the reverse order of removal.







REMOVAL & INSTALLATION OF FRONT SEAT BELT
REMOVAL
-----Remove the doorsill scuff plate, and

partially remove the weatherproof rubber
strip of the door opening.










-----Remove the cap and loosen the fixing

bolt that secures the seat belt to the
B-pillar.















S-14

----Remove the nuts, loosen the bolt

secured to the inner lining of B-pillar,
and remove the B-pillar protective
panel.








----Loosen the two fixing screws of

bottom-lining panel of B-pillar; remove
the protective panel at the bottom of
B-pillar.

----Remove the decoration cap and loosen

the fixing bolt between the safety seat
belt and the floor as well as loosen the
fixing bolt between the automatic lock
device and B-pillar.

----In case of seat belt with height adjuster as

shown in the right figure, it is needed to
loosen the two fixing bolts between the
belt and B-pillar.





INSTALLATION
----Installation is in the reverse order of

removal. Note the tightening torque for
fixing bolt connecting seat belt with
power steering device is 50±10N•m.

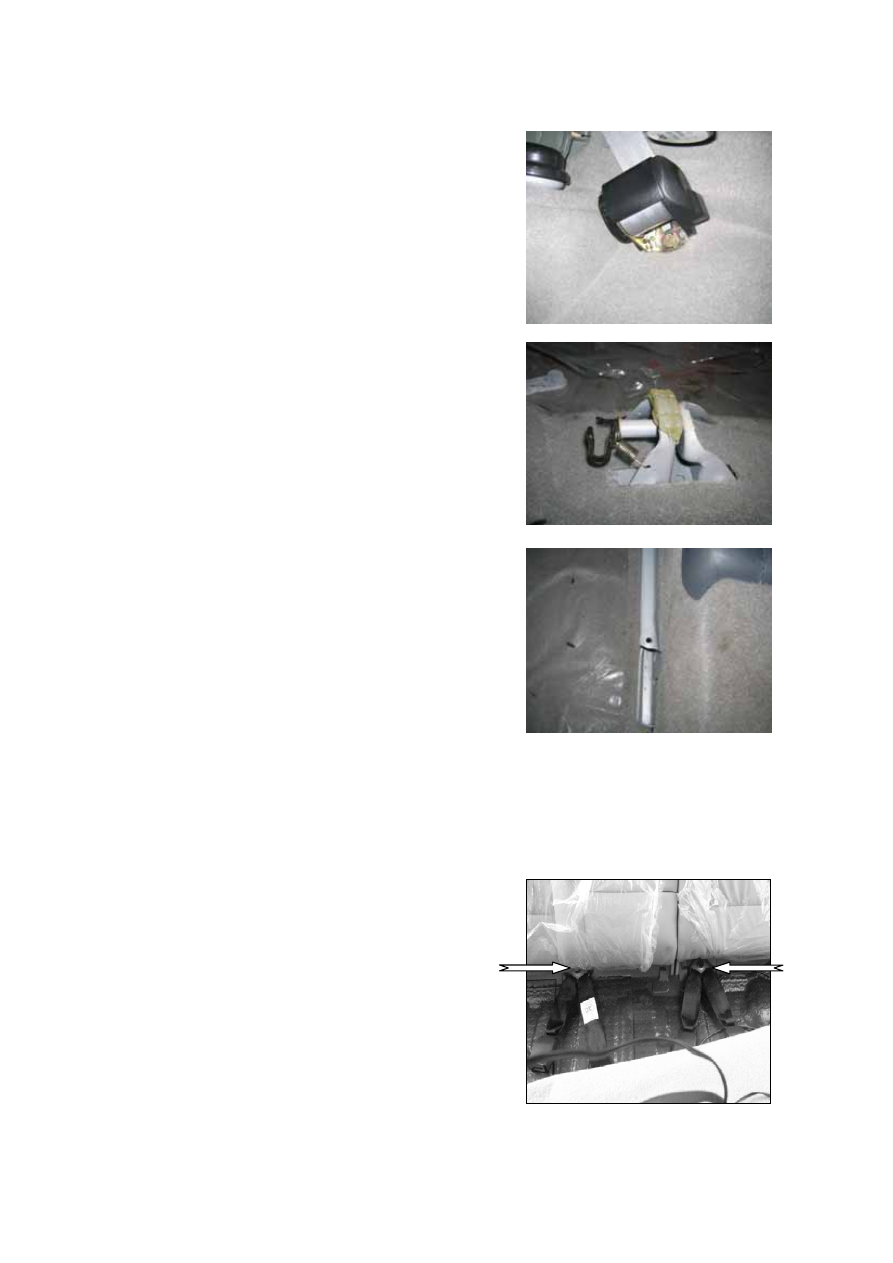

REMOVAL & INSTALLATION OF REAR
SEAT BELT



----Remove the decoration of screw cap on

the top, and loosen the two fixing bolt
between seat belt and C-pillar and rear
wheel house.








S-15



----Loosen fixed bolt of automatic

rewinding to remove seat belt.


PRECAUTION:

As the fixed position of belt has come
away, wrap the belt in reverse on
automatic device, and you should
prevent the belt twisting up.





REMOVAL & INSTALLATION OF FRONT

SEAT

REMOVAL：

----Remove the limiting screw of the seat.




----Remove the bolt stopper of regulating

handle of the seat.


----Press down the core of retainer pin of

the seat track cover to take out the
retainer pin and seat track cover. Pull out
the seat backward.


INSTALLATION:
----Install in the reverse order of removal.

PRECUATION：
Lubricative grease shall be applied in both sides
of tracks.

REMOVAL & INSTALLATON OF REAR
SEAT



REMOVAL：
----Fold the rear seat forward until reaching

the fixed bolt of lock. Loosen the bolt
and the bolt connecting middle seat belt
and the floor panel.


INSTALLATION：
----Install in the reverse order of removal.

Tightening torque for middle seat belt
and the lock is 50±10N·m.



S-16

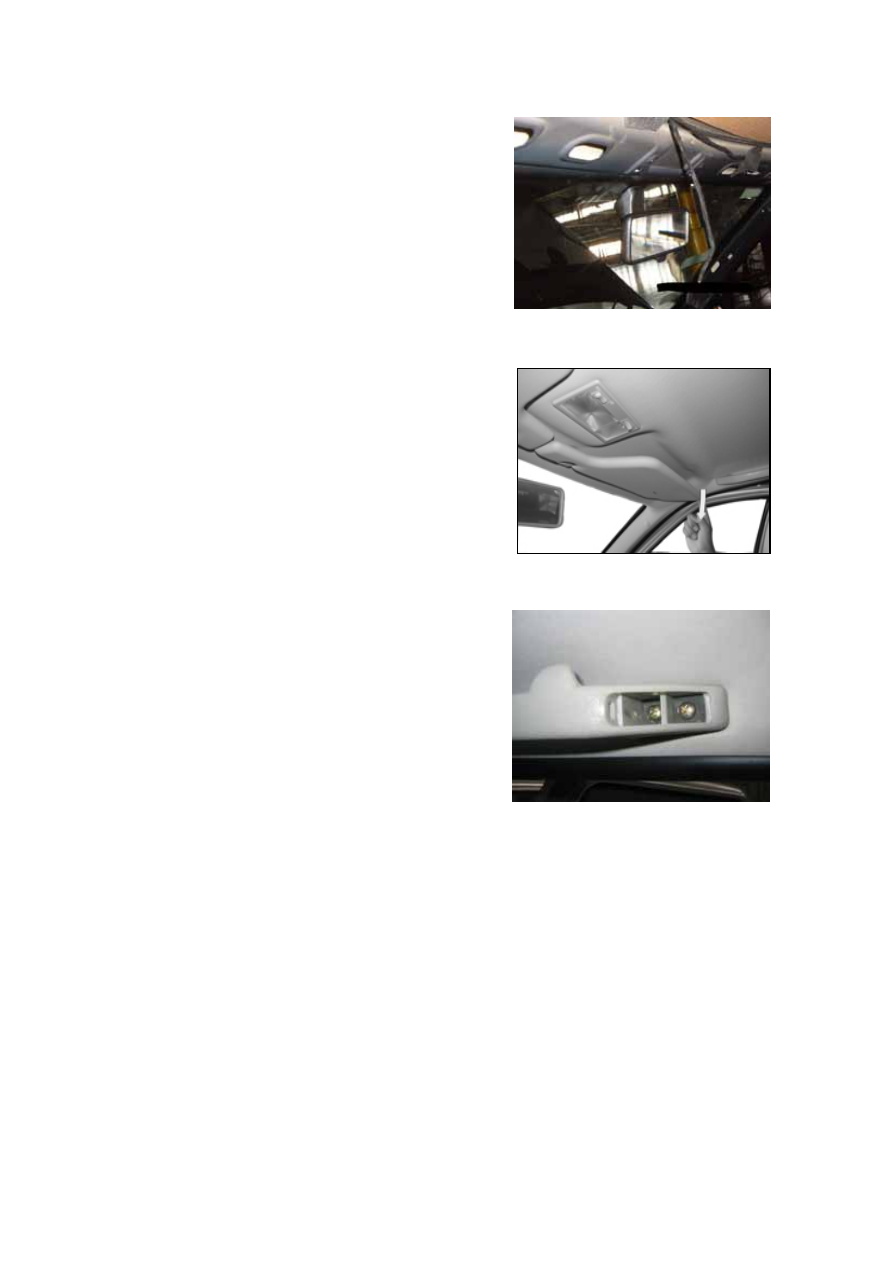

REMOVAL & INSTALLATON OF
INNER REARVIEW MIRROR
----Turn inner rearview mirror, making a 1

5℃ ～ 20

 angle between pole and

℃

beeline of vehicle.


----Install in reverse order of removal.





REMOVAL & INSTALLATON OF SUN
VISOR & ITS BRACKET



---- Remove sun visor after remove bracket

and its fixed bolt. For the vehicle with
door-controlled mirror, it is necessary
to remove electrical system.

---- Install in reverse order of removal.







REMOVAL & INSTALLATON OF

PASSENGER GRAB HANDLE

---- Remove lid on bottom end of inner grab

handle and fixed bolt with screwdriver.

---- Take out fixed bolt between the handle

and body to remove the grab handle.

---- Install in the reverse order of removal.






















S-17
