OVERHAUL OF THE FRONT AND REAR AXLE



Trouble Causes

Solutions

Deflecting of

vehicle running

1.  Different tire pressure of both

sides

2.  Half way releasing of front

braker

3.  Invalidation of front spring or

housing

4.  Inaccurate alignment of front

wheel

5.  Invalidation of shock absorber
6.  Invalidation of metal rubber

bushes of suspension

7.  Deformation of vehicle chassis,

frame or control arm

1. Adjust
2. Overhaul,

adjust

3. Replace
4. Check,

adjust

5. Replace
6.  Check and replace the

damaged bushes

7.  Replace or align

Abnormal wear

on tire

1.  Inaccurate alignment of wheel
2.  Serious wear or loose of metal

bushes of suspension system

3.  Looseness of steering link ball

joint

4. Looseness of front wheel

bearing

1. Check,

adjust

2. Replace
3. Replace
4. Replace

Oscillation of

vehicle

1.  Low or different tire pressure
2.  Inaccurate alignment of front

wheel

3.  Invalidation of stabilizer bar
4.  Unbalance of wheels
5.  Looseness of hub bearing
6.  Improper adjustment of steering

gear or serious wear of
components

1.  Adjust tire pressure
2. Check,

adjust

3. Replace
4. Balance
5. Adjust
6. Adjust

Abnormal noise

of chassis

1.  Too small tightening torque of

chassis sub-frame bolt

2.  Looseness of rear axle bracket
3.  Abnormal noise of front and

rear shock absorber

4.  Looseness of rear axle rubber

hinge bolt looses

1.  Tighten according to the

specified torque

2. Tighten
3. Check,

replace

4. Check,

tighten





M-28

STEERING SYSTEM

INTRODUCTION OF STEERING SYSTEM …… …… … ……… …… … ……… N-2

    INTRODUCTION OF STRUCTURE …… … ………… … ………… … ……N-2



    WORKING PRINCIPLE … ……… … ………… … ……… … ………… …N-3

    INTRODUCTION OF PERFORMANCE … … ………… … ………… … ……N-4

REMOVAL/INSTALLATION  OF STEERING COLUMN …… …… … ………N-5

REMOVAL/INSTALLATION AND CHECK OF STEERING GEAR …… …… …N-6

REMOVAL/INSTALLATION AND REPAIR OF MAIN BODY OF STEERING

GEAR …… … … ……… …… … …… …… … ……… …… … …… …… N-7

CHECK OF STEERING SYSTEM …… …… … …… … … …… …… … …N-18

    REGULAR INSPECTION …… … …… … …… … …… … …… … ……… …N-18

    CHECK OF THE SEAL OF POWER STEERING SYSTEM …… … …… … …N-19

    CHECK AND REPLACEMENT OF THE HYDRAULIC POWER OIL… …… … N-20

    EXHUAST OF THE STEERING HYDRALIC SYSTEM … …… … …… …    …N-20

    CHECK OF THE OUTPUT PRESSURE OF POWER STEERING PUMP  … …N-21

    CHECK OF THE TENSION OF THE BELT… …… …… … …… … …… … …N-21

DIAGNOSIS AND TROUBLESHOOTING OF POWER STEERING SYSTEM … N-22

PRECAUTION OF STEERING SYSTEM MAINTENANCE … …… …… …N-26















N-1

INTRODUCTION OF STEERING SYSTEM

INTRODUCTION OF STRUCTURE

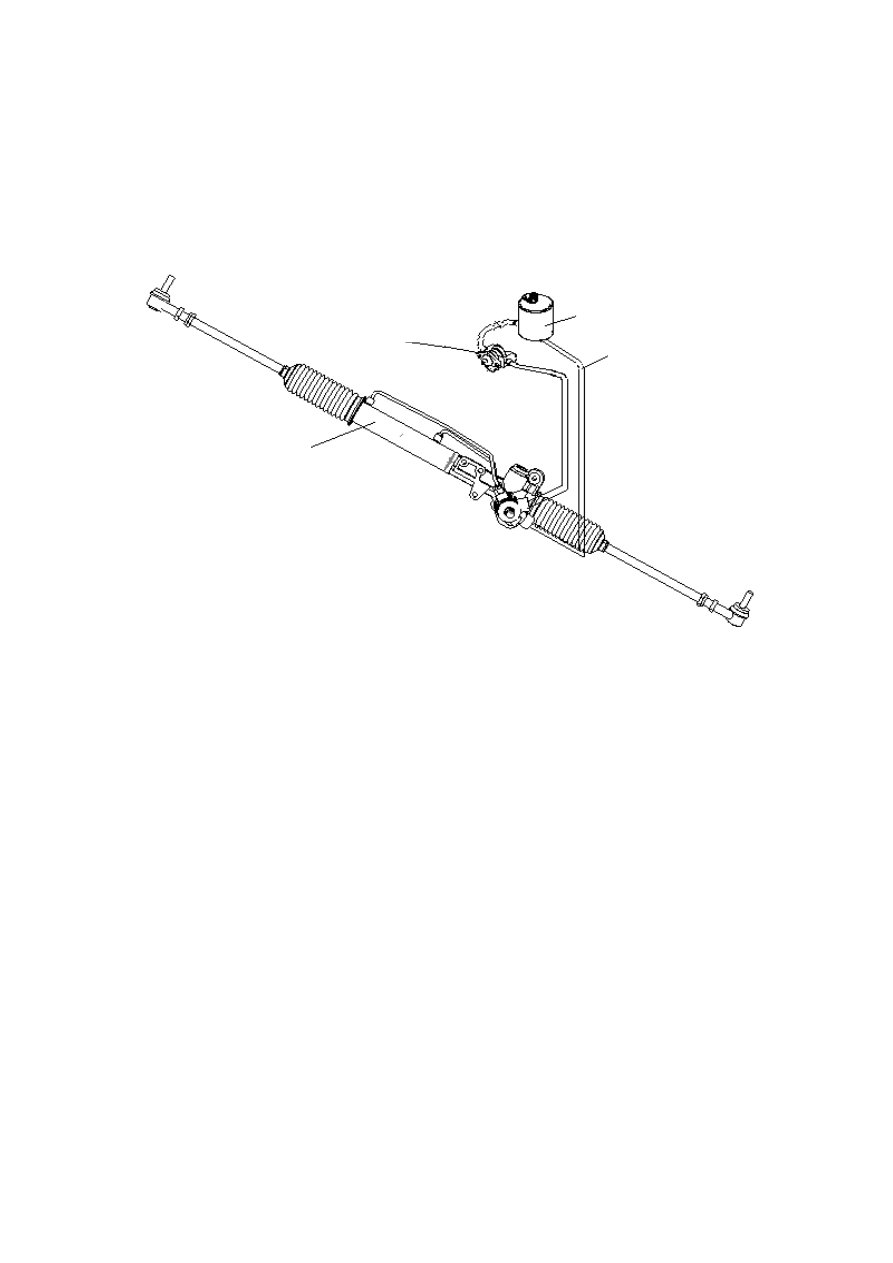

The structure of the Power Steering System is shown as Figure 1:



he rack & pinion power steering gear is composed of three sections: control valve,

ol Valve

is a normally open rotary valve and consisted of: torsion bar1, input shaft

※





sm is rack & pinion pattern and composed of three

※

etallic hull, which is divided into right and left oil chambers by the

Figure

 1

Power Steering Gear

Steering Hose



Steering Oil Reservoir



Steering Oil Pump

T
mechanical steering gear and servo cylinder. The control valve is widely utilized overseas due
to its advanced structure and high sensitivity. The mechanical steering gear is rack & pinion
pattern.

※Contr

·The control valve

2, valve bush 3 and other components. The hydraulic oil flows into the left and right oil
chambers through the pre-opened clearance of the input shaft 2 and the valve bush 3. The
structure is shown as Figure 2.

Mechanical Steering Mechanism

·The mechanical steering mechani

sections: pinion shaft, steering rack piston assy and steering link.

Servo Cylinder

·The servo cylinder has m

inner rack piston and connected with the two oil inlets of control valve.

N-2



1. Torsion Bar

2. Input Shaft

3. Valve Bush

Figure 2





To Left Chamber



Oil Inlet

To



Right Chamber

Return oil inlet













WORKING PRINCIPLE

Middle Position

·When the vehicle moves straight (the steering wheel does not turn), the hydraulic oil

which is supplied by the oil pump enters the oil inlet through the pre-opened
clearance of the rotary valve. As the rotary valve keeps immovable, the hydraulic oil
flows back to the oil reservoir from the return oil inlet. No power is produced
because the oil pressures of the two chambers of the steering gear are same.

Steering Process

·When the steering wheel turns, the clearance of the valve spool between the valve

bush and the input shaft will be changed, so the hydraulic oil which flows to the two
oil chambers forms the oil pressure difference. This difference acts on the piston and
pushes it to overcome the steering resistance and make movements. Therefore, the
steering link assy is moved to realize power steering.

Return Process

·Once the steering is completed, the force on the steering wheel will disappear. As the

effect of the torsion bar elasticity, the input shaft returns to the relative balance
position of the valve bush and the oil pressure difference between the two oil
chambers of the steering gear follows to disappear. And then the vehicle will convert
to straight-line motion by the effect of the vehicle self aligning torque of the front
wheels until it enters the straight-line position.



Road Sense Effect

·The road sense effect is also called the ability of feeling steering. The driver applies

the force on the steering wheel, which also act on the torsion bar of the steering gear
and makes it deform. The amount of deformation which increases as the steering
resistance grows, depends on the wheel steering resistance. Therefore, the driver can
judge the variation of the steering resistance by the force applied on the steering
wheel to obtain the road sense effect.
