Precaution: Before the procedure below, the
careless pull may lead the disconnection of the
harness if the ABS vehicle speed sensor is not
removed first. Therefore, before the following
procedure, remove the ABS vehicle speed
sensor (the axle side) first and fix it in a
proper position in order to keep the sensor
untouched during the vehicle maintaining.







Caution: The removal of the rear axle is
extremely dangerous. The drop of the rear
axle could cause severe damage or even death.
Please make sure that the jack has supported
fully the rear axle before the removal.







































M-24

REMOVAL AND INSTALLATION OF THE REAR SHOCK ABSORBER ASSY



The structure of rear shock absorber assy is shown as the illustration:

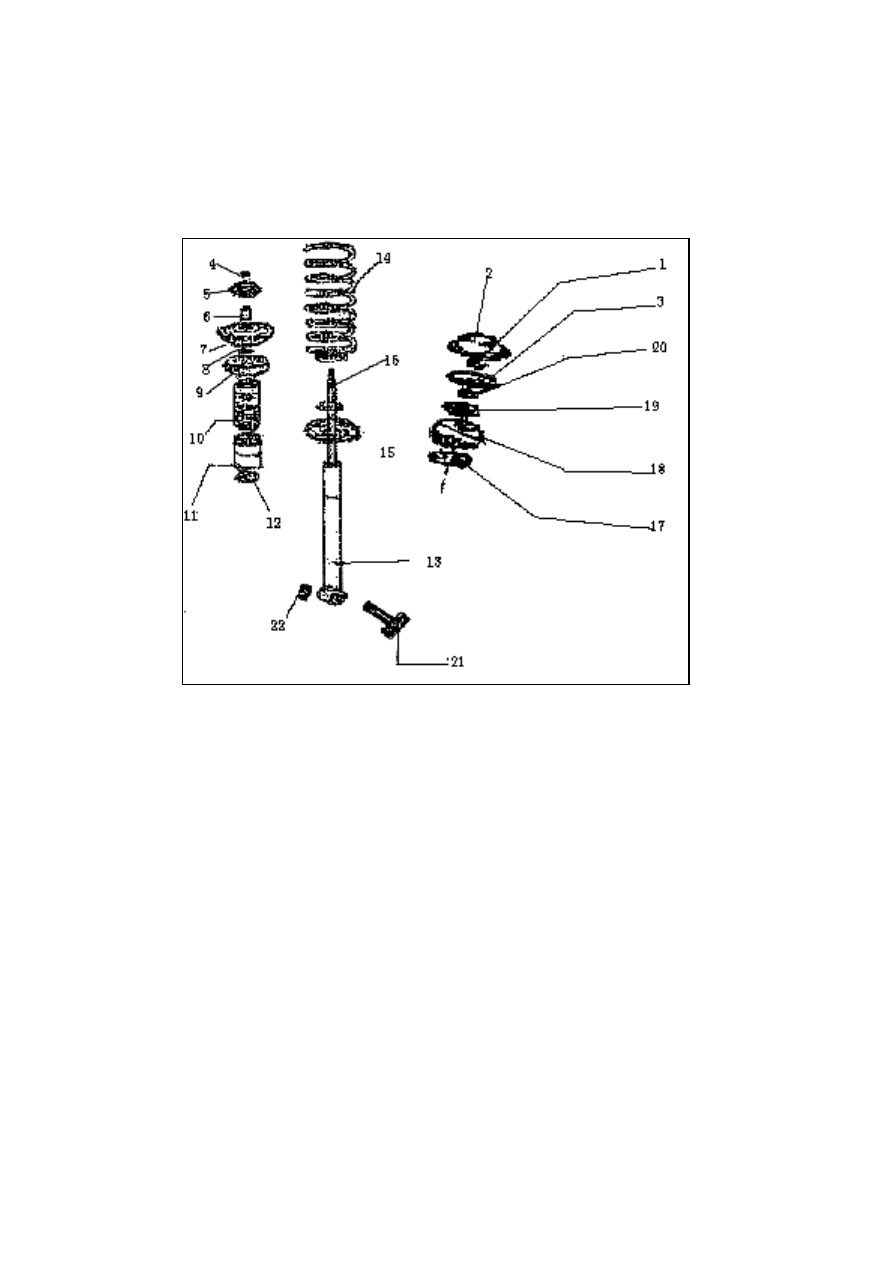

Illustration. Rear shock absorber assy

1 Hexagon thin nut 15N·m       2 Rear strut upper cover      3 Belleville washer

4 Hexagon thin nut 15N·m       5 Rubber bearing block II     6 Bearing sleeve

7 Rear spring upper holder        8 Locating ring      9 Rear spring upper soft pad

10 Rear bumper block      11 Dust cover      12 Valve cap      13 Rear shock absorber assy

14 Rear coil spring    15 Rear spring bottom tray     16 Bottom tray bearing pad

17 Bowl washer    18 Rubber bearing block I   19 Support disc  20 Hexagon thin nut

25N·m            21 Bolt            22 Nut 70 N·m





M-25

Precaution: Before the procedure below, the
careless pull may lead the disconnection of
the harness if the ABS vehicle speed sensor
is not removed first. Therefore, before the
following procedure, remove the ABS
vehicle speed sensor (the axle side) first and
fix it in a proper position in order to keep the
sensor untouched during the vehicle
maintaining.

Assemblage of the rear shock absorber
(refer to the illustration of the rear shock
absorber assy)

----Cover the rear spring bottom tray 15 onto

the rear shock absorber assy 13, fix it on
the rear shock absorber with the pressure
of 9.5~10kN, and then set the bottom
tray bearing pad with the pressure of
2~3kN.

----Cover the rear coil spring 14 and the valve

cap 12 onto the piston rod of the rear
shock absorber in sequence, and then set
into the rear bumper block 10 and the dust
cover 11 which have been assembled
together;

----Press the rear coil spring 14 to

280~300mm, and then fix the locating
ring 8, the rear spring upper soft pad 9,
the rear spring upper holder 7, the
bearing sleeve 6, and the rubber bearing
block II 5. Tighten the hexagon thin nut 4
to the specified torque (15N·m);

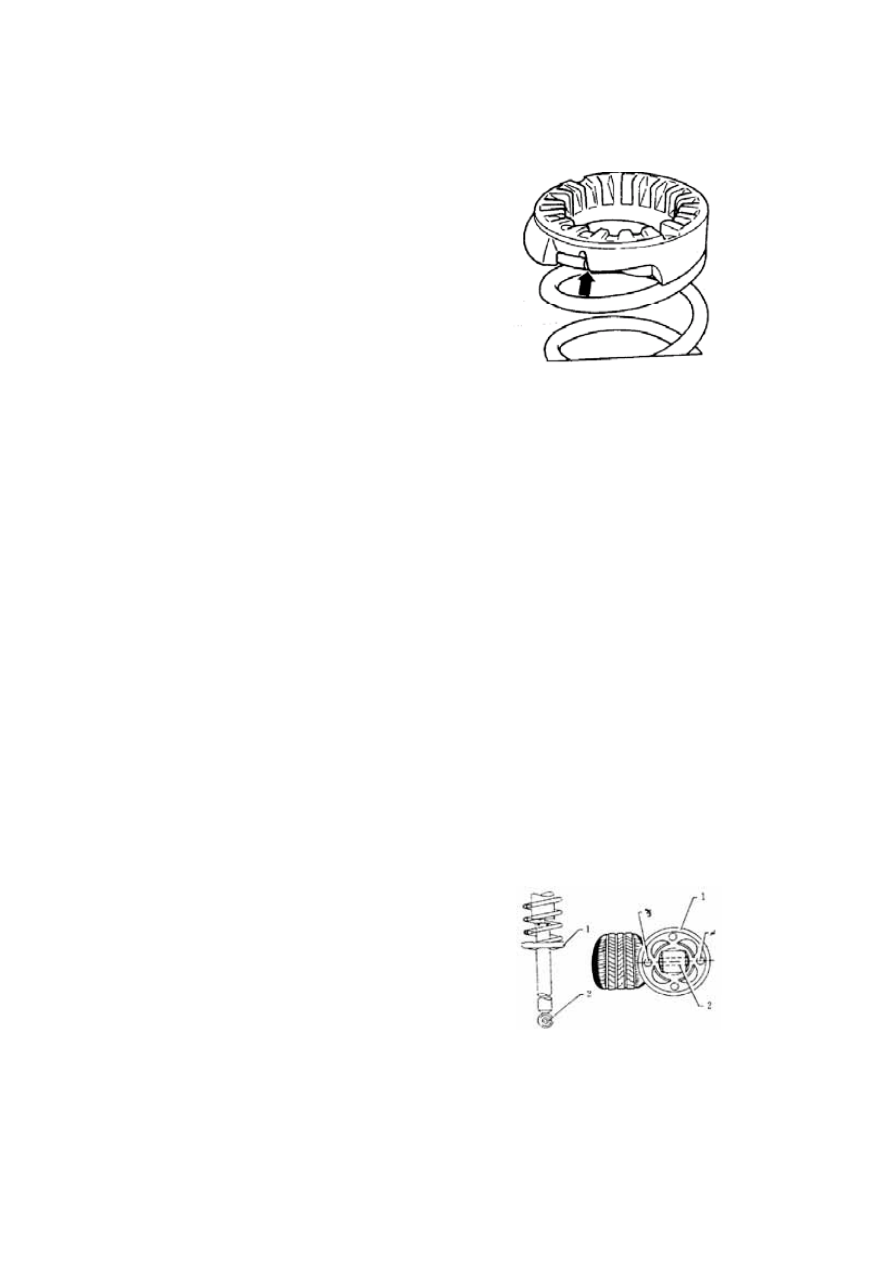

Installation position of the spring holder

Installation of the shock absorber spring

----As the illustration shows, aperture a must

aim at the bush of the connecting sleeve
2 when install the rear spring bottom tray,
otherwise the spring tray 1 would hit the
tire under extreme steering condition.

----As the illustration shows, please pay

attention to the installation position of
the rear spring upper soft pad.

Installation of the rear shock absorber
assy (refer to the illustration of the rear
shock absorber assy)





Installation position of the spring bottom

tray

M-26

----Install upward the rear shock absorber assy

from the vehicle body bottom and extend
the piston rod into the carriage through the
rear shock absorber holder;

----Inside the carriage, cover bowl washer 17,

rubber bearing block 18 and support disc
19 onto the piston rod in sequence, and
then tighten the hexagon nut 20 with
tightening torque of 20N·m. (shown as
the assy picture above)











----Lift the vehicle, and then put the

connecting sleeve of the rear shock
absorber into the corresponding
installation position on the rear axle assy
and then tighten the bolt 21 and the nut
22 with the specified torque (70±7N·m)

----Fix the tire, ground the vehicle and

tighten the hexagon thin nut 20 with the
specified torque (25 N·m)

----Fix the belleville washer 3 and tighten the

hexagon thin nut 1 with the specified
torque (15 N·m)

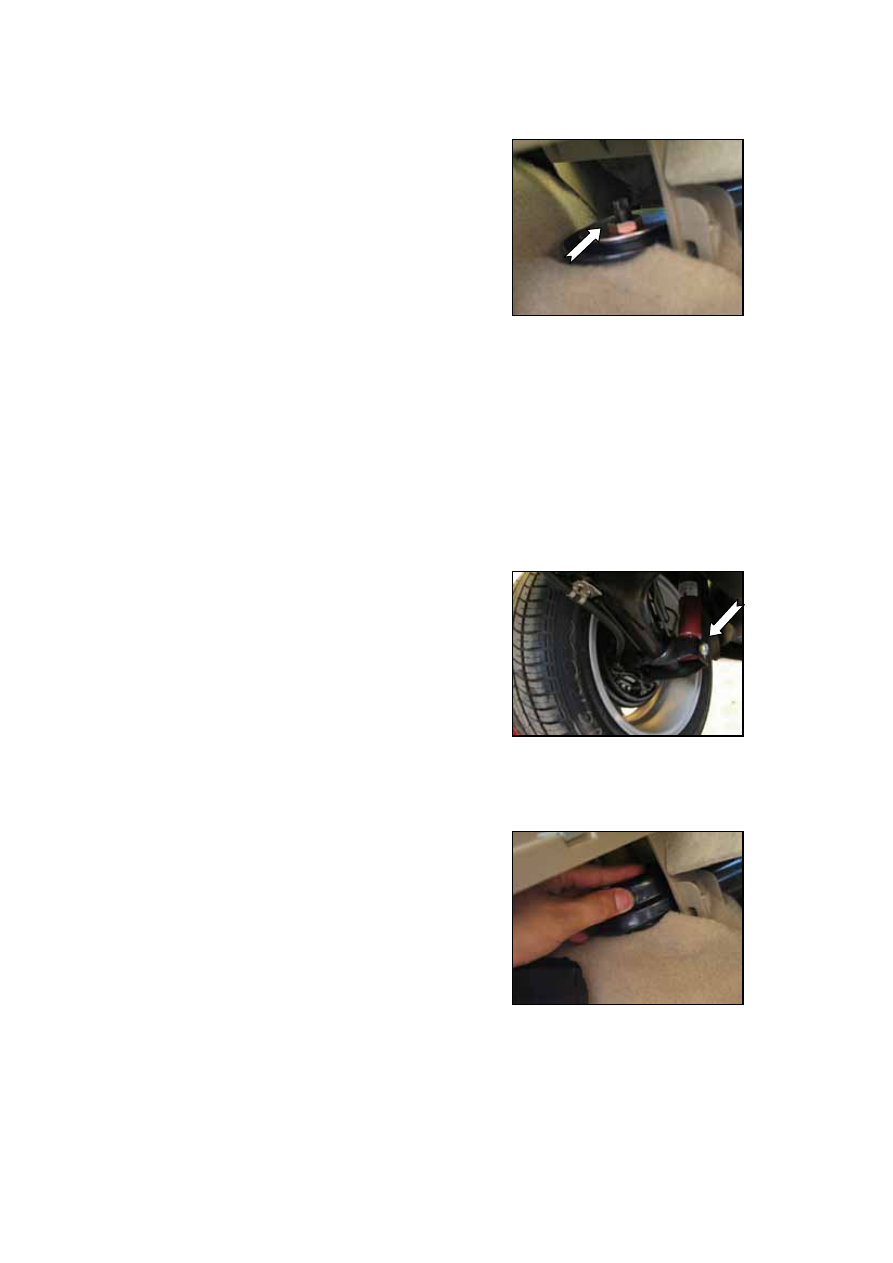

----Fix the rear shock absorber upper cover 2,

in order to keep away from the dust and
dirt which could lead to abnormal wear on
the piston rod. (shown as the picture)
