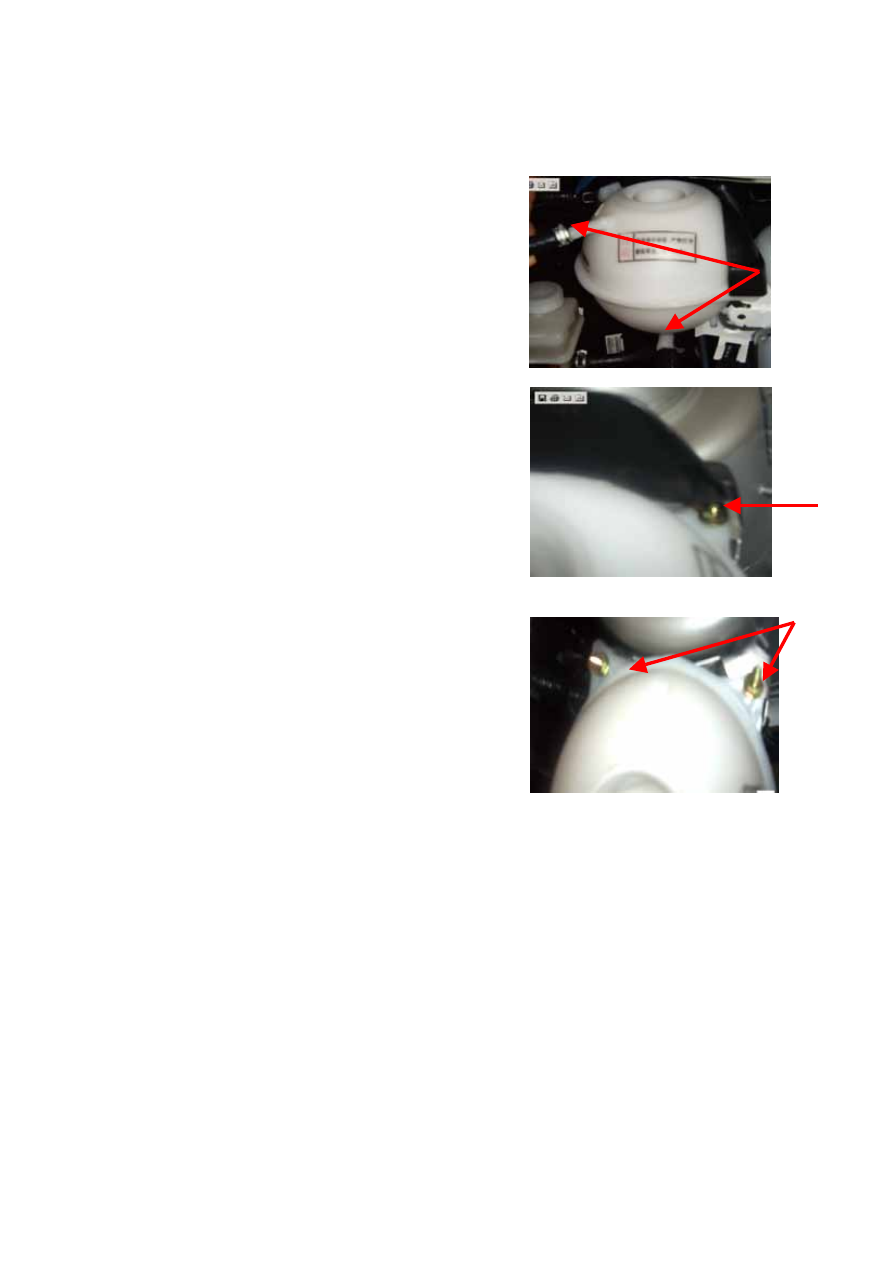

EXPANSION RESERVOIR



——To pry out the protecting hood of expansion

reservoir by using a screw drive.








——To demount the fastening bolts of the expansion

reservoir by using M10 sleeve.





——To pull out the plug of liquid level sensor.

——To take the expansion reservoir out.











Disassembly:

——To demount the water pipe connecting with the

expansion reservoir.







E-11

Assembly:

——To assemble the expansion reservoir according to

the order opposite to the disassembly order(the
tightening torque of self-tapping screw is
4.0~5.0Nm).

——To refill coolant.

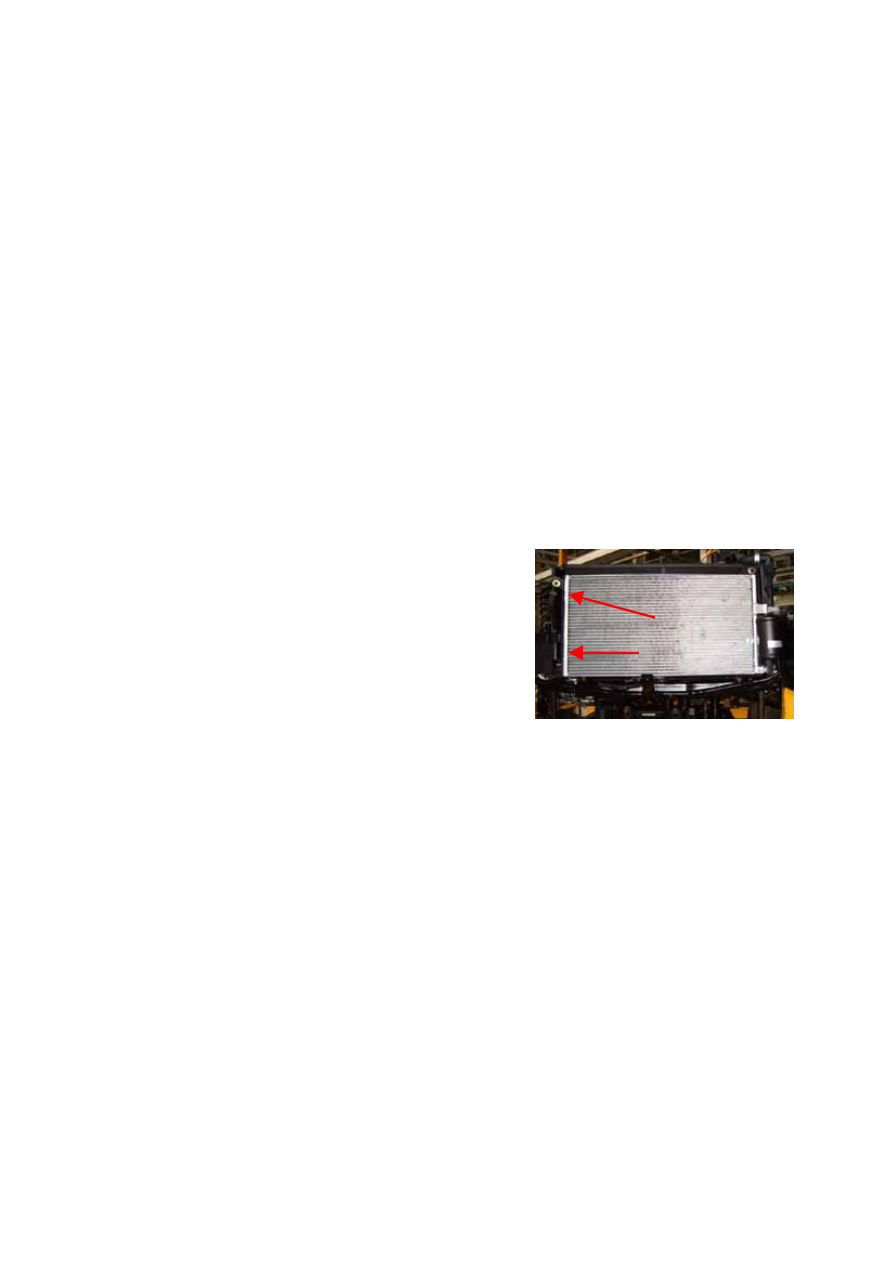

ASSEMBLY OF RADIATOR

Disassembly:

——To discharge coolant (refer to the coolant discharge

process)

——To demount the cooling fan (refer to the

disassembly process of the cooling fan).



——To demount the left and right wind boards by M10

sleeve.







——To take out the radiator.



E-12

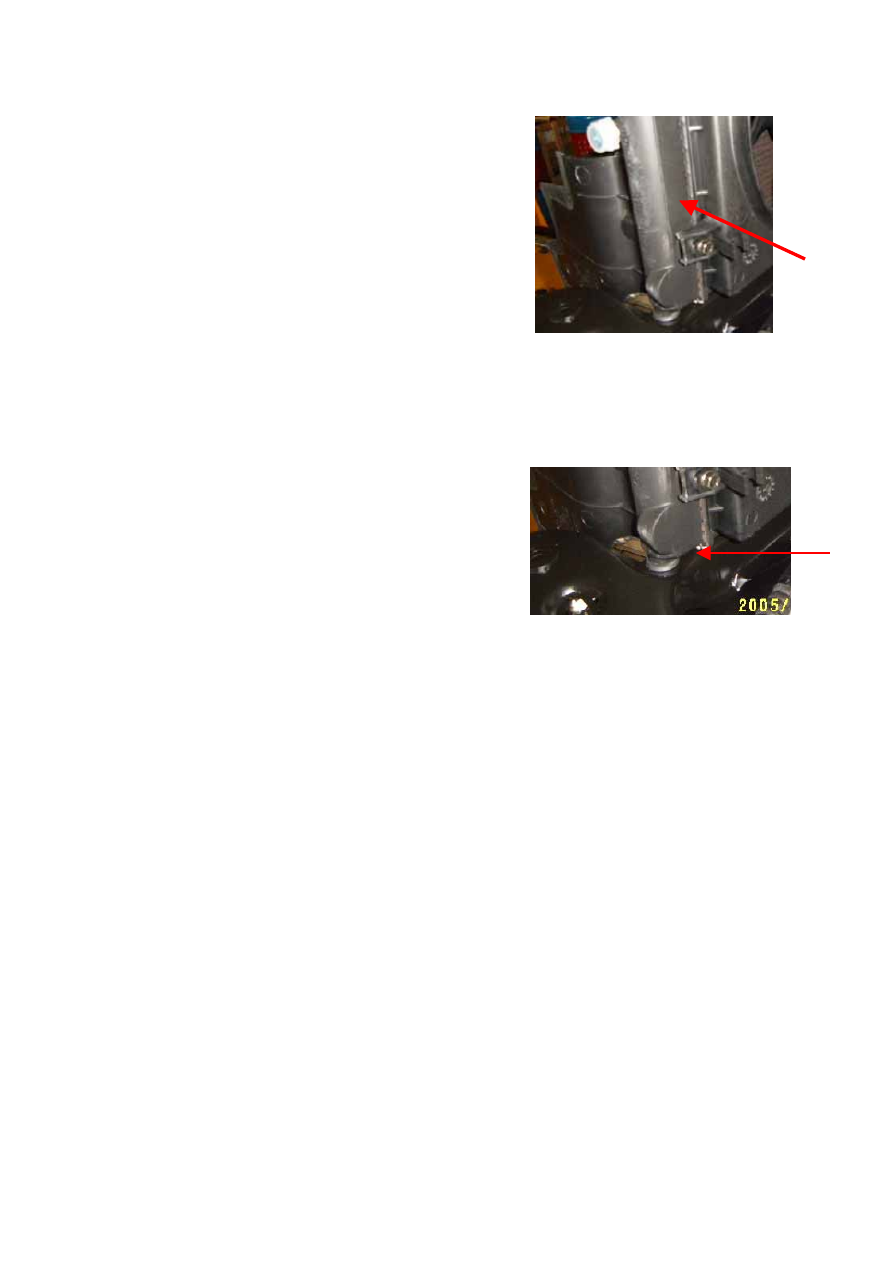

——To take out the radiator














——To install the radiator onto the front transom and

put it straightly towards the positioning hole.


——To install the left and right tensioned plates of the

radiator, and tighten the bolts of the plates with
tightening torque of 5±1Nm.

Assembly:

——To assemble the radiator according to the order

opposite of the disassembly order.

——To install the 2 wind boards onto the radiator by

using self-tapping screws with their tightening
torque of 6~7Nm.















E-13
