Chery A11. Manual - part 51

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

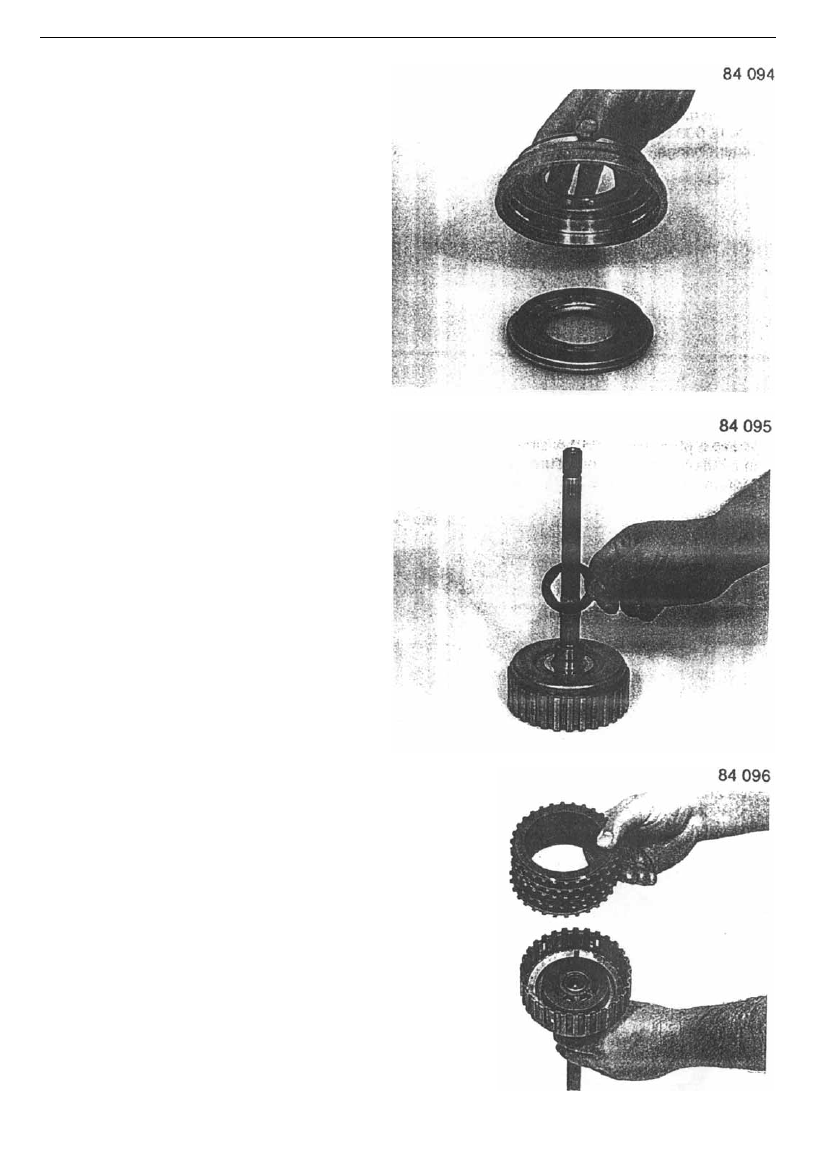

Knock piston gently, and remove piston A and the

diaphragm spring.

2.7、Removing clutch E

Take out thrust washer.

Remove cotter snap ring and clutch E assembly.

-51-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

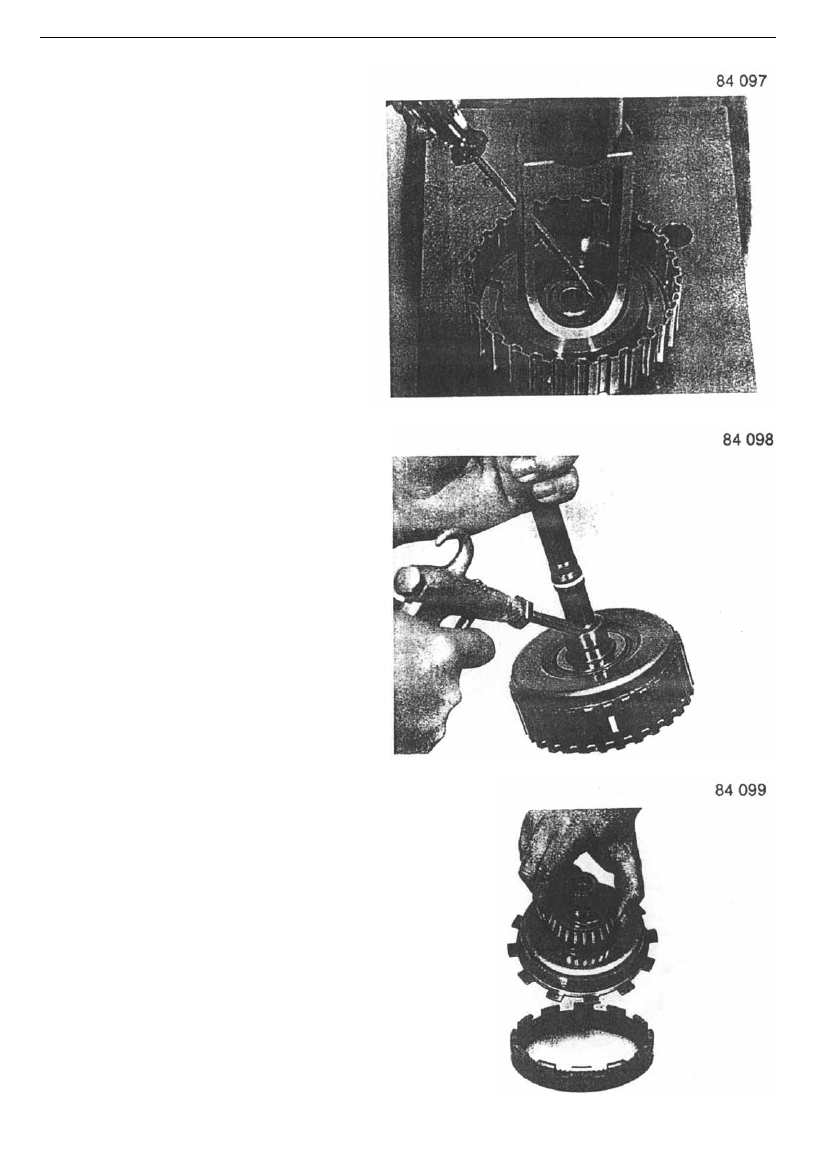

Remove diaphragm spring with the special tool 5

×46 000 148, and then take off retainer.

Remove shim spring. Insert air gun, and remove

piston E using HP gas.

2.8、Removing output shaft and 1

gear

one-way overrun clutch

Remove cotter snap ring, and then separate gear

ring and output shaft.

-52-

The manual of 4HP14 A/T removing & installing CHERY AUTOMOBILE CO., LTD

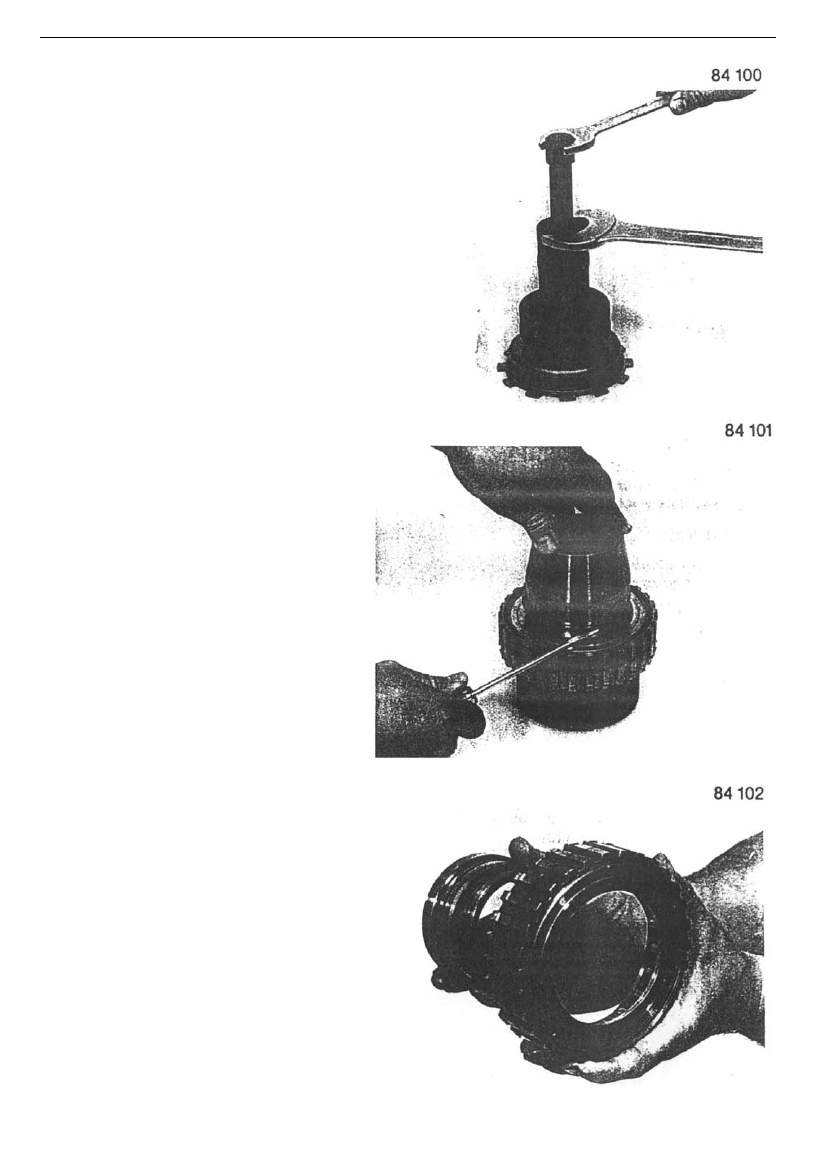

Remove rolling bearing using special tool 5×46

000 296.

Remove cotter snap ring, place whole one-way

overrun clutch into remover/installer 5×46 000

232. Remove cotter snap ring with installing

sleeve 5×46 000 243 and a screwdriver.

Remove one-way overrun clutch inner ring.

-53-

The manual of 4HP14 A/T removing and installing CHERY AUTOMOBILE CO., LTD

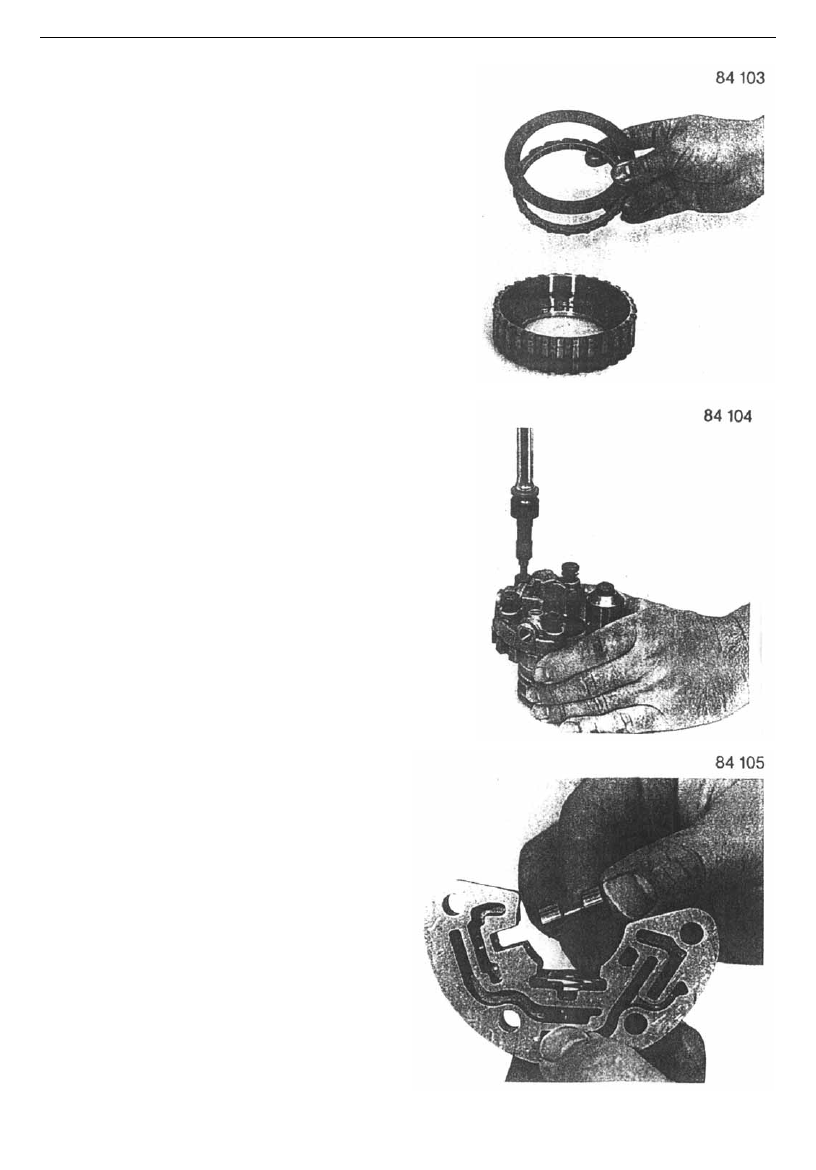

As shown on figure, one-way overrun clutch can be

thoroughly disassembled:

Clutch inner ring, outer gear ring and free wheel.

2.9、Removing governor and speedometer

Loosen four mounting bolts and separate the governor

case from the hub sleeve.

NOTE:

If the case is scratched or damaged, replace a new one.

1、Remove the first piston

Take out locking piece, and remove piston 1 off

housing.
