CAC Gasoline Engine Maintenance And Servicing Manual

55

3) The removal and installation of thermostat seat with thermostat assembly



——Loosen three M6×40 bolts and remove them
——Remove thermostat seat with thermostat assembly
——Pry out spring clip by chisel or screwdriver








——Take out the thermostat













——Take out sealing gasket
——Remove sealing gasket of thermostat seat

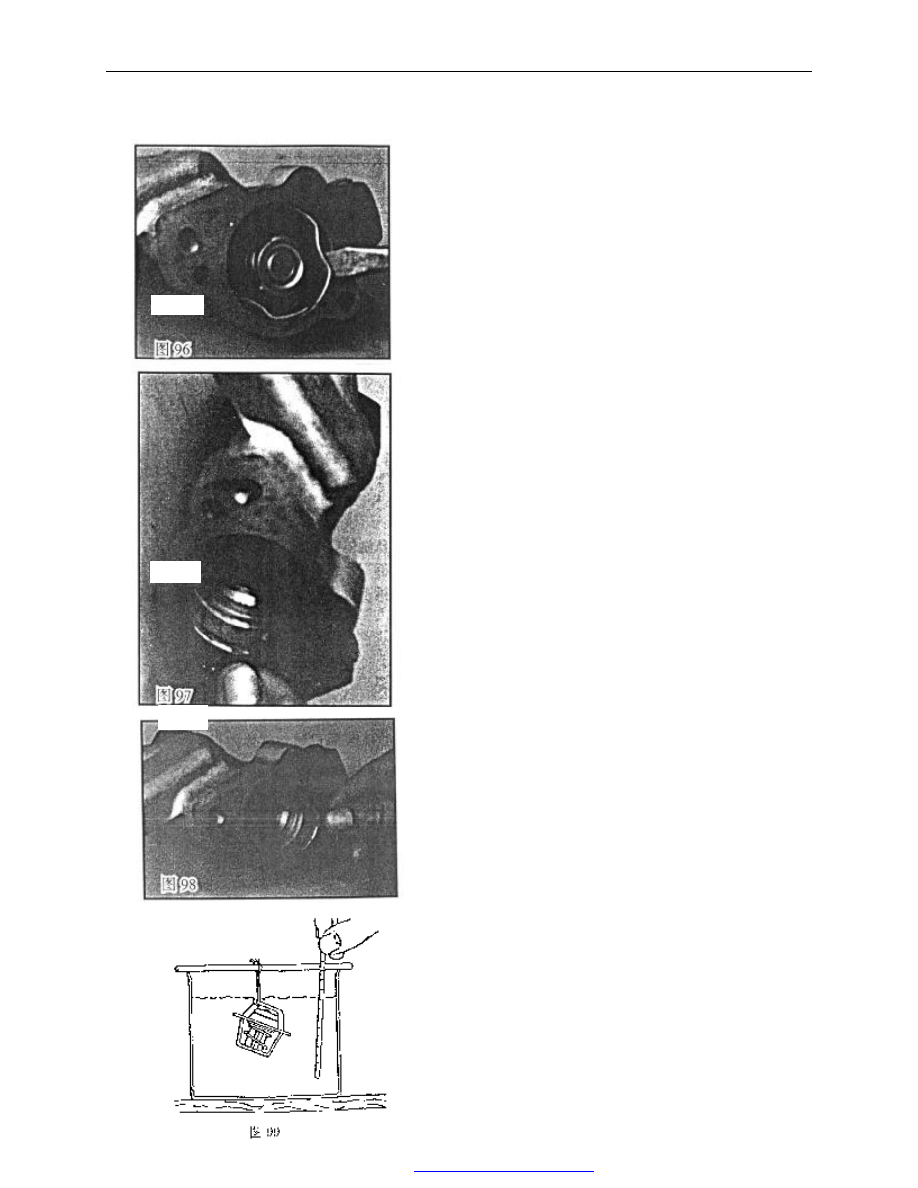

Measure the opening temperature of thermostat in hot water.





















Fig.96

Fig. 97

Fig. 98

Fig. 99

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

56



Assembly:

——Clip the thermostat seat, and put the rubber seal ring into the thermostat hole.
——Install the thermostat(with spring outward)
——Install spring clip, ensure that the clip is clipped in the thermostat seat groove.
——Install the sealing gasket of the new thermostat seat on the thermostat assembly with a bolt.
——Install the thermostat together with thermostat assembly into the rear end  hole  of cylinder  head. Finger

screw in 3 bolts and tighten to 9-12Nm.

——Tighten the hex head plug with the sealing gasket on . tightening torque is 38-42Nm.
——For  the  engine  equipped  with  electrical  heater  ,install  air  intake  preheating  switch  .tightening  torque  is

38-42Nm.

3. removal and assembly of the water temperature sensor.
Removal:
——Remove the water temperature sensor(at the exhaust    side , under the rear lug).

Assembly:

——Before  installation,  apply  the  lotite  sealant  243  onto  the  bolt  threads  .finger  screw  in  and  tighten  to

7.0-10.0Nm .


15】: The intake and exhaust system of the engine.
1.  Description for the intake and exhaust system of carburetor engine.
The intake system of Carburetor Engine 478 and 480 includes: air filter, Intake hose, Guide cover, Carburetor,
Intake hose, Intake air preheating hose of Positive Crankcase Ventilation(PCV), and so on.
——air filter type is 1GD129607G, and its basic parameters are as the following:
Filtering area: 100cm2              nominal air flow(L): 600±150
filtering efficiency:  ≥99%        filtering resistance: 2kPa

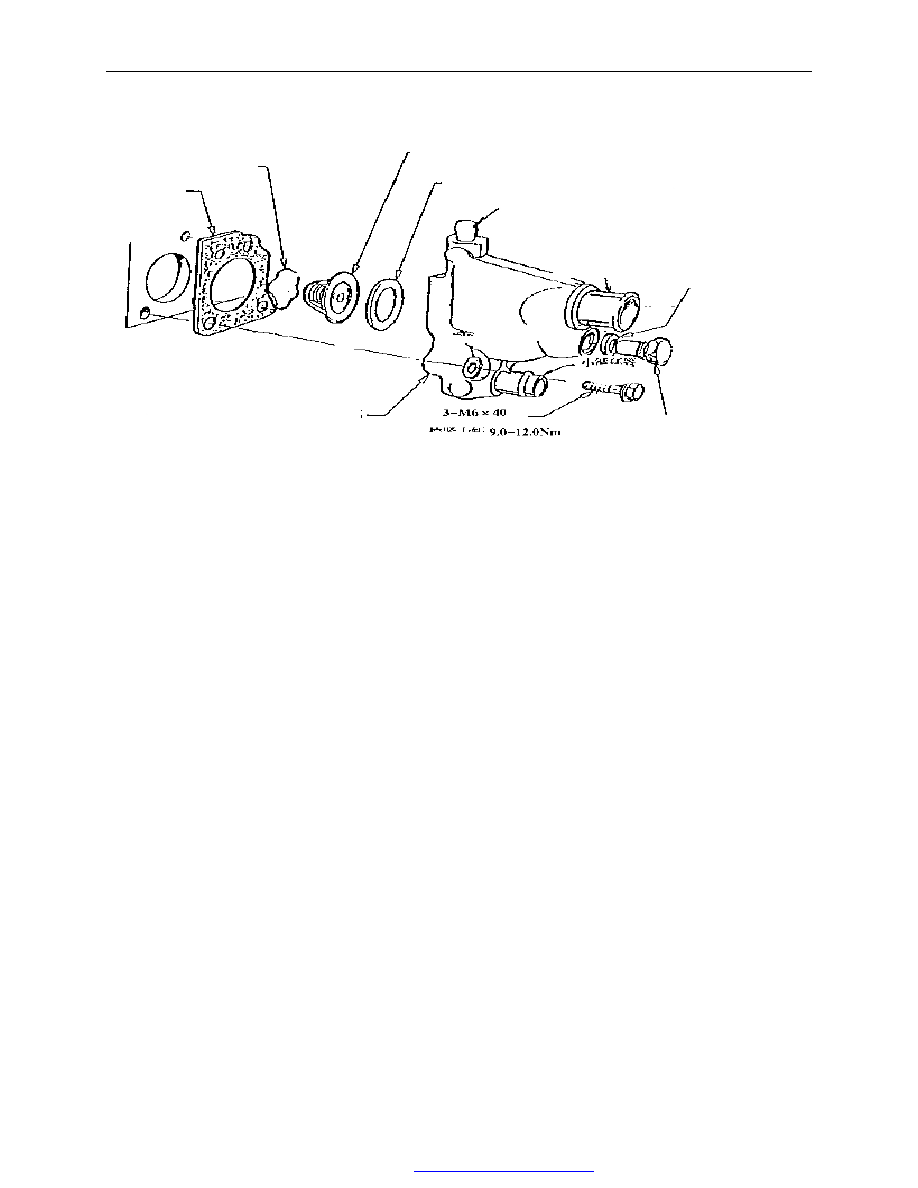

thermostat

Sealing gasket


Overflow pipe

Drainage pipe

Sealing gasket

Small recircula-

ting pipe



Plug screw

Spring clip

Sealing gasket

Tighten torque

Fig.100

Temperature seat assembly

PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

57



——The air filter is equipped with a intake air temperature controller. When the temperature is low, the hot air
intake valve controlled by the temperature controller will open and the hot air, flowing by the exhaust manifold,
will be directed into the air filter from the intake preheating hose to supply more hot air and facilitate the fuel
atomization during cold winter. As temperature is high , valve is shutted off and the hot air is not permitted to
enter the air filter.
——Carburetor(see Fuel System)

The  exhaust  system  of  the  carburetor  engine  478  and  480  includes  Exhaust  Manifold,  Heat  Insulation
Cover, Exhaust Hose, Front Muffler, Rear Muffler.


2. Description for the Exhaust System of Engine 2.480M:



The  Intake  System  of  Engine  480M  includes:  air  filter,  Intake  Hose,  Guide  Cover,  Throttle  Valve,  Intake
Manifold, Intake air preheating hose of Positive Crankcase Ventilation(PCV)and so on.
——Air filter type is 1GD    129    607G, and its basic parameters are as follows:

Filtering area: 100cm2              nominal air flow(L): 600±150
filtering efficiency:  ≥99%        filtering resistance: 2kPa

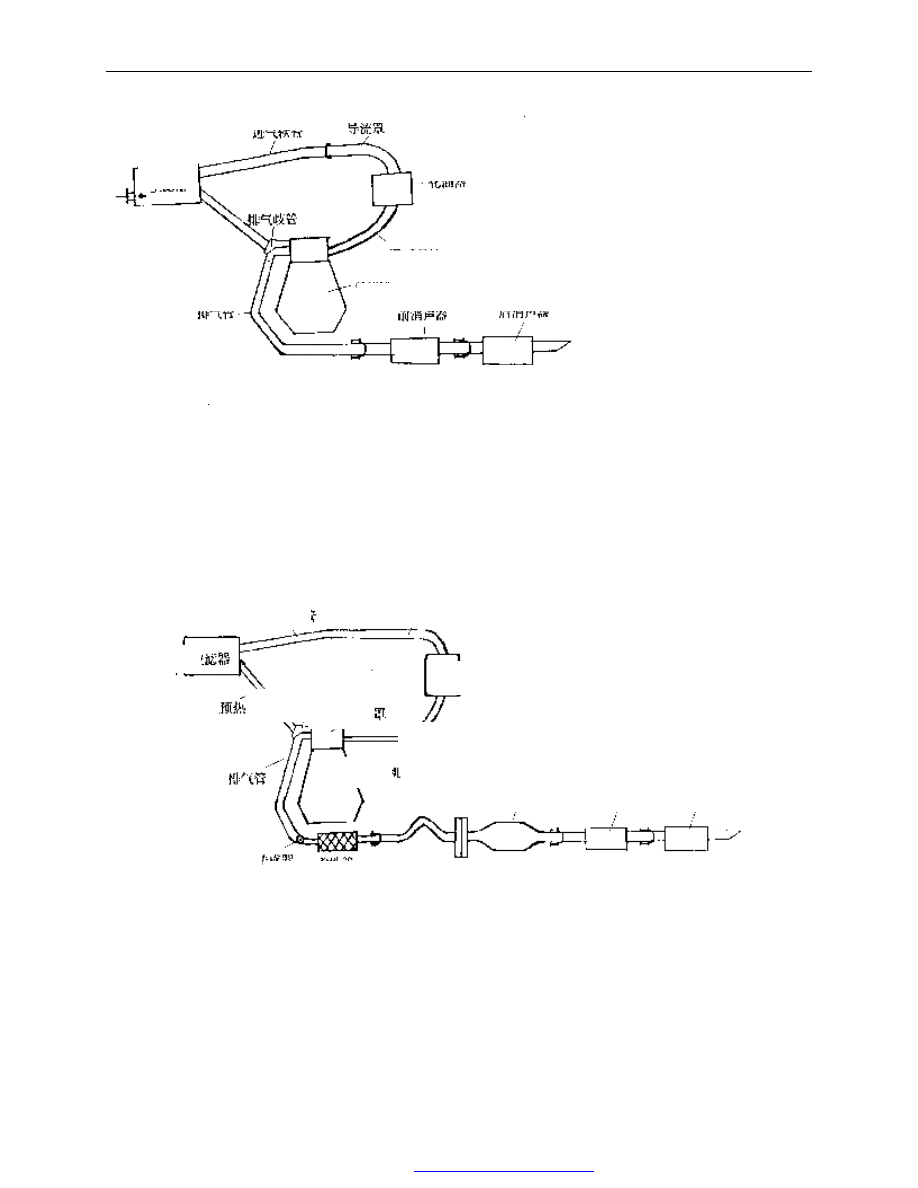

Fig. 101 intake and exhaust system arrangement of carburetor engine


Intake hose

guide cover

carburetor

Air filter

Intake preheat hose

exhaust manifold

intake manifold


Exhaust hose

engine

front sound absorber    back sound absorber


Fig.102 intake and exhaust system schematic drawing of engine 480M


3 way catalyst

front sound absorber    back sound absorber

flexible hose

Oxygen sensor

Exhaust hose

engine

Intake hose

Air filter

guide cover


throttle valve

Intake preheat hose

insulating
cover

cylinder

cap cover

intake manifold


PDF 文件使用 "pdfFactory Pro" 试用版本创建



















www.fineprint.com.cn

CAC Gasoline Engine Maintenance And Servicing Manual

58

——The air filter is equipped with a intake air temperature controller. When the temperature is low, the hot air
intake valve controlled by the temperature controller will open and the hot air, flowing by the exhaust manifold,
will be directed into the air filter from the intake preheating hose to supply more hot air and facilitate the fuel
atomization during cold winter. As temperature is high , valve is shutted off and the hot air is not permitted to
enter the air filter.
——See “CAC480M Engine’s single port injection system” to know about the throttle valve.
The  exhaust  system  of  Engine  480M  includes  Exhaust  Manifold,  Heat  Insulation  Cover,  Exhaust  Hose,
Oxygen Sensor, Flexible Hose, Three-Way Catalyst Converter, Front Muffler, Rear Muffler.


Removal and assembly of the Intake Manifold Assembly and Front lifting Lug:

1.  The Intake Manifold Assembly of the Carburetor Engine.





2. Description for the Intake Manifold Assembly of Engine 480M:

The  Intake  Manifold  Assembly  includes:  Water  Hose,  Vacuum  Fitting,  Water  Temperature  Gauge  Sensor,
and Electric Heater. The water hose fitting is connected to the water hose of the throttle valve body. The left
vacuum  fitting  is  connected  to  the  PCV  valve,  and  the  right  vacuum  fitting  is  connected  to  the  absolute
pressure  sensor.  And  the  vacuum  fitting  from  the  intake  manifold’s  branch  is  applied  on  the  entire  brake
system, the water temperature sensor is connected to ECU .





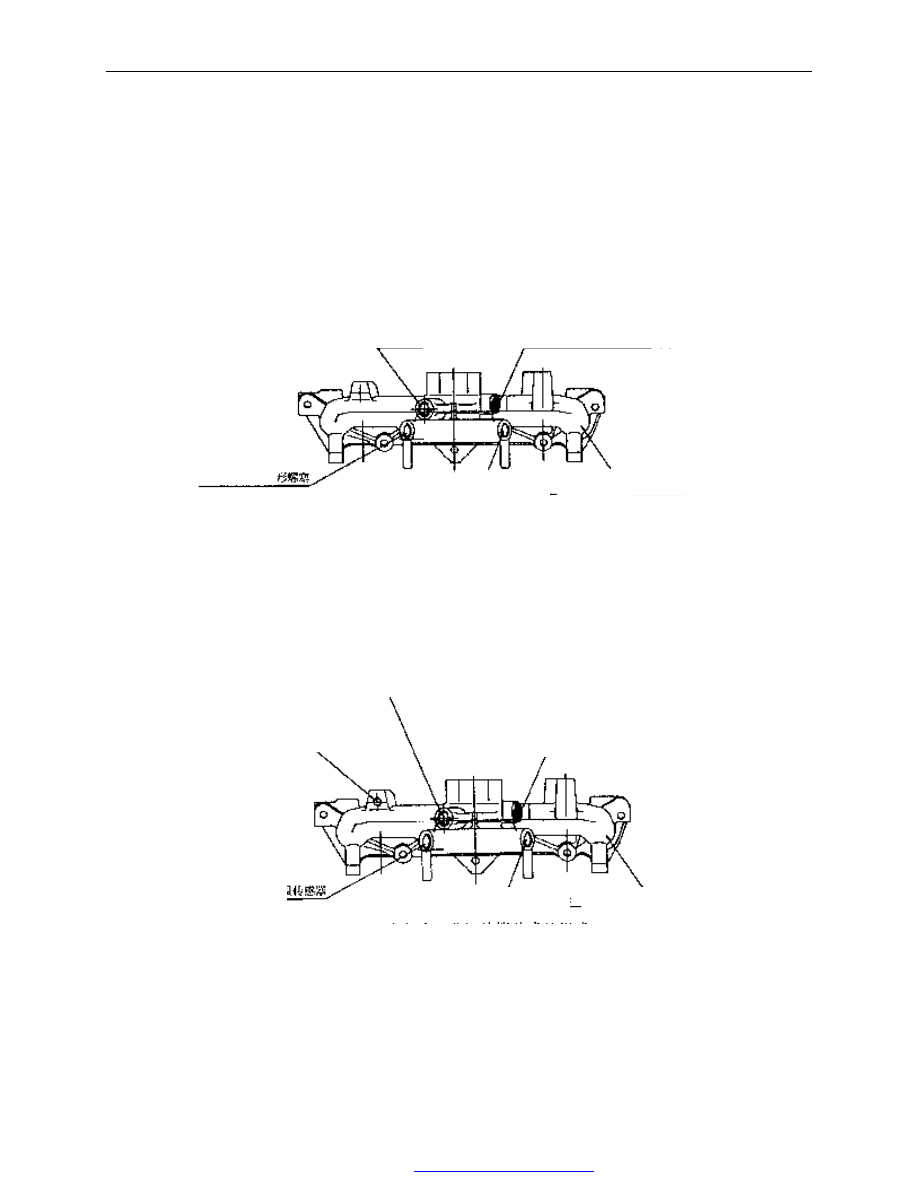

Fig 103 composing of intake manifold assembly of carburetor engine


Vacuum fitting (for brake boost)    absolute pressure sensor connecting

pipe connector (connect to 3 way hose)



3/8” hexagonal cone plug screw

drainage

connector

intake manifold

Fig.104    composing of intake manifold assemble of electric injection engine

Vacuum fitting (for brake boost)

Vacuum fitting (for PCV valve)

absolute pressure sensor connecting pipe connector


Install  water  temperature
sensor here

intake manifold
