A dimension measurement for the steering column must be carried out.

Check whether there is any crack or other damage on the instrument panel and steering
column guard.

Check whether there is any deformation, bending, crack or other damage on the instrument
panel support

Check the seat belt and installation fastening point.

(7) Activation and spreading of the airbag (in the vehicle)

The airbag must be activated and spread before the vehicle is discarded. If the vehicle is
discarded and disassembled, the airbag may be activated in the vehicle.

(8) Disposal of activated airbag

Warning: In order to prevent any injury in case the airbag is activated in the vehicle, please
follow the preventive measures as follows:

Before spreading the airbag, remove all the removable objects or loose components within
the spreading range.

The airbag shall be activated and spread after closing the vehicle doors and opening side
windows.

Spread the airbag only in the prepared airbag spreading area. The servicemen have to
participate in should stay at least 10 meters away in front of the vehicle.

Do not apply any voltage before completing all the preparation works.

Cool down the airbag for at least 30 minutes before handling with the activated airbag.

Please wear suitable gloves and protective goggles during the discard process.

If the activation and spreading of the airbag fails, cut off the voltage and waiting for at least 5
minutes before approaching the vehicle.

(9) Process of activation and spreading

Warning: When the ignition is turned off and at the same time the fuse is taken out, the airbag
control module (BCM) can provide the sufficient voltage for 1 minute to activate the airbag.
If the airbag is not disconnected, do not start the maintenance work within 1 minute after
disconnecting the power supply to BCM. If the airbag has been disconnected, the
maintenance work can be carried out immediately without waiting for the discharge of 1
minute. The failure of shutting off the SRS system temporarily during the maintenance will
result in false ignition, physical injury and SRS system discarded.

Disconnect the two grids of the battery and place the battery 10 meters away from the vehicle.
Remove the lower panel of the driver side instrument panel from the steering column;
disconnect the two SRS wiring harnesses that connect to the clock spring under the steering
column. Peel off the 13 mm insulated outer layer of the wiring harness end that connects to
the clock spring. Connect the airbag and the battery used to activate the airbag with 2 extra



T-58



wiring harnesses of at least 10 meters long each. Peel off the 13 mm insulated outer layer of
the 2 extra wiring harness ends, and tie the two ends of the wiring harnesses together. Place
the tied ends beside the battery use to activate the airbag, but do not connect it to the battery
at this moment. Connect the other two loose ends of the extra wiring harnesses separately to
join up with the wiring harnesses connecting the airbag, and insulate the connection point
with insulated tape. That means each end of the two extra wiring harnesses should be
connected to the two wiring harnesses of the airbag separately, and the other end of the extra
wiring harnesses should be tied together and place beside the battery. Clear the site.

Loosen the wiring harness end beside the airbag activation purpose battery, connect one wire
to the negative grid of the battery, and the other to the positive grid of the battery, and the
airbag is immediately activated.

Dispose the activated airbag according to the proper preventive measures. Please refer to the
“Disposal of activated airbag” of this manual.

(10) Activation and spreading of airbag (outside of the vehicle)

If the vehicle is within the guarantee period, please contact with the region maintenance
manager for the approval and other specifications before activating and spreading the airbag.

Please activate the airbag under the following conditions:

The vehicle will be disassembled. Please refer to the “Airbag Spreading” of this manual.

The airbag is damaged during shipment, storage or maintenance.

Warning: In order to prevent any injury when the airbag is activated outside of the vehicle,
please take the preventive measures as follow:

Spread the airbag only in the preserved airbag spreading area. The servicemen have to
participate in should stay at least 10 meters away in front of the vehicle.

Do not apply any voltage before completion of all the preparation works.

Cool down the airbag for at least 30 minutes before disposal of activated airbag.

Please wear the gloves and protective goggles during the discard process.

If the activation and spreading of airbag fails, approach the vehicle at least 5 minutes after
shutting off the voltage.

Face the front side of the airbag upwards and place it horizontally on the outdoor flat ground
for at least 10 meters away from the people or barriers.

Place the vehicle battery 10 meters away from the airbag.

Activate and spread the airbag:

If there is no airbag spreading tool, please follow the specifications below:

Disconnect the yellow wiring harness connect to the airbag;

Peel off the 13 mm insulated outer layer of the wiring harness end that connect to the airbag;



T-59



Connect the airbag and the airbag activation purpose battery with two extra wiring harnesses
of at least 10 meters long each;

Peel off the 13 mm insulated outer layer of the two extra wiring harness ends;

Tie the two ends of the two extra wiring harnesses where its insulated outer layers have been
peeled off;

Place the tied ends beside the airbag activation purpose battery, but remember not to connect
to the battery at this moment;

Connect the other two loose ends separately to join the wiring harnesses connecting the
airbag;

Bind the joint point with insulated tape;

Each end of the two extra wiring harnesses should be connected to the two wiring harnesses
of the airbag separately, and the other end of the extra wiring harnesses should be tied
together and place beside the airbag activation purpose battery. Clear the site.

Loosen the tied end beside the airbag activation purpose battery;

Connect one wire to the negative grid of the battery, connect the other wire to the positive
grid of the battery, and the airbag is immediately activated.

Dispose the activated airbag according to the proper preventive measures. Please refer to the
“Disposal of activated airbag” of this manual.

(11) Activating the airbag before discarding

This specification is applicable for all kinds of vehicles to be discarded and disassembled. If
the vehicle is within the guarantee period, please contact the region maintenance manager for
the approval and other specifications before activating and spreading the airbag. Besides the
extra steps listed below, the activated and spread airbag should be treated with the same
measures of other components to be discarded and disassembled.

Place the activated airbag into a tough plastic bag;

Ensure to seal the plastic bag properly;

Wash both hands carefully after disposal of the activated airbag.

(12) Maintenance of SRS system wiring harness

Warning: Before carrying out any maintenance, the SRS system must be disconnected. Please
refer to “Disconnection of airbag system” of this manual.

The connectors used in the SRS system are made of special material to ensure the good
conductivity of the low power circuit. The airbag wiring harness assembly must be replaced
if the plug is damaged. Do not try to use any other type of connectors to replace the connector
of this connector.



T-60

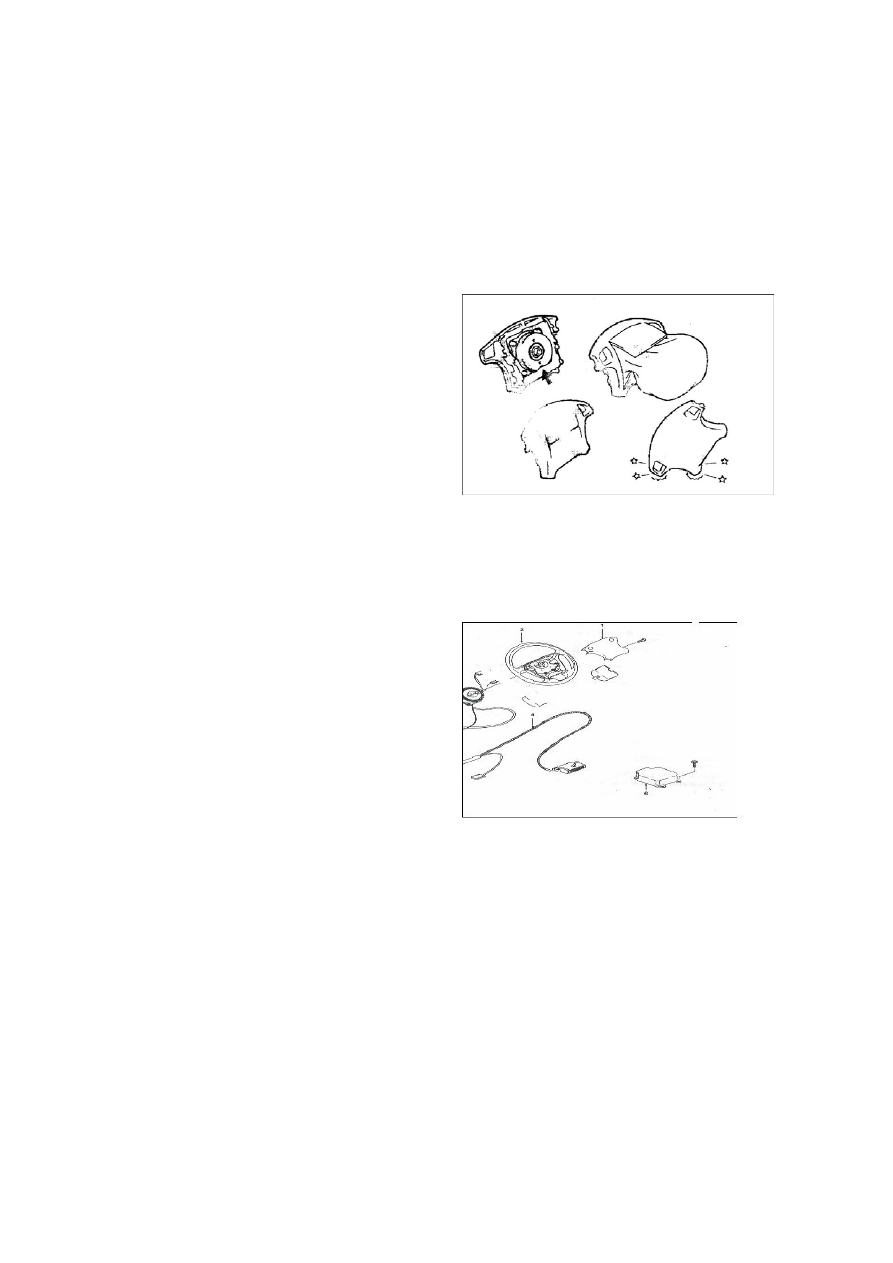

REMOVAL/INSTALLATION OF AIRBAG SYSTEM

1. REMOVAL/INSTALLATION OF AIRBAG

Removal:

----Disconnect the negative cable of the

battery (—)

Warning: When the ignition is turned off

and at the same time the fuse is
taken out, the airbag control
module (BCM) can provide the
sufficient voltage for 1 minute to
activate the airbag. If the airbag is
not disconnected, do not start the
maintenance work within 1 minute
after turning off the power supply
to the BCM. If the airbag has been
disconnected, the maintenance
work can be carried out
immediately without waiting for
the discharging of 1 minute. The
failure of shutting off the SRS
system temporarily during the
maintenance work will result in
false ignition, physical injury and
SRS system discarded.





----Place the steering wheel at the center

Warning: When dealing with the airbag,

please face the front side of the
module upwards so as to provide
sufficient spreading space in case
of false activation. The airbag may
fly to the people or objects
resulting in injury or vehicle
damage due to the lack of
spreading space.

Remove the two airbag bolts on the steering
wheel.

Pull out the horn and the airbag wiring harness
plug from the airbag. Remove the airbag.
