presses on the airbag due to the effect of inertia, the airbag is pressed and the air will be
discharged from the discharging hole, so that the kinetic energy resulted by the collision
between the driver and the airbag can be absorbed, which preventing the driver from injuring.

The function of the inflator components is such that when the igniter activates the ignition
agent, generating air and inflating the airbag, causing the airbag to spread out. When the
computer sends the ignition instruction, the heating element circuit turns on, which is heated
quickly and activates the ignition agent, the activated ignition agent explodes immediately
and generates heat, and then the inflating agent is heated up and decomposed to generate the
air into the airbag.



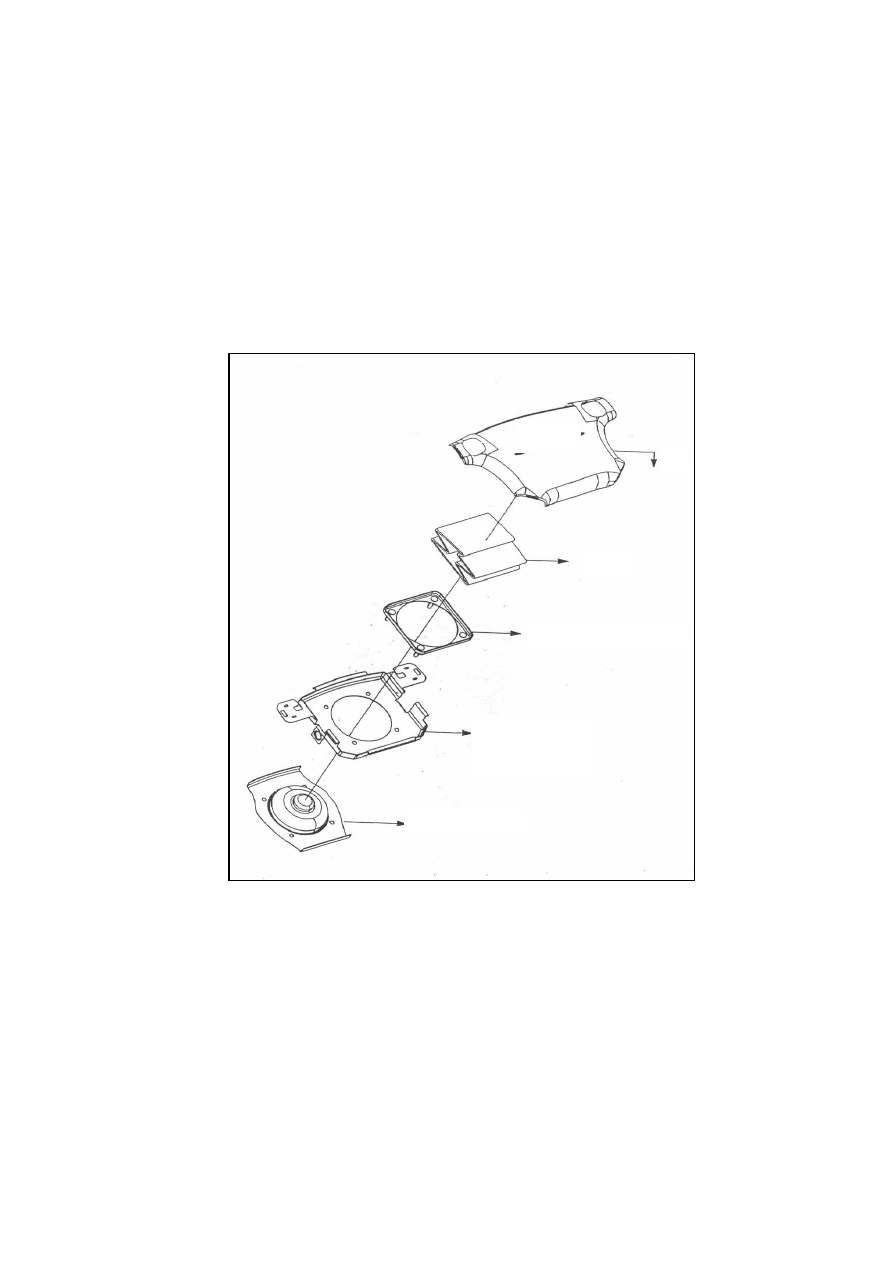

lid

inflation assembly

machine base
2 bolts
tightening torque

fastening ring assembly

preheat


























(2) BCM (airbag control module)

Irreparable component. It is the component of the monitoring system during operation and
sends the instructions when the airbag function.

Record any detected malfunction.

Turn on the warning lamp to warn the driver that there is a malfunction.

Diagnose malfunction code can only be detected by the diagnostic tester.

The BCM controls the inflation and spreading of the airbag through the following



T-54



components:

·

Safety sensor

·

Capacitor

·

Collision sensor or accelerometer

(4) Capacitor

The capacitor provides the backup power.

(5) Bulb

When the operation voltage is increased to the BCM point, the BCM will trigger the warning
lamp and we can now check the bulb. The BCM turns on the warning lamp for 4 seconds and
then turn it off during the bulb inspection.

Malfunction Display

The airbag control module records the malfunctions of the system in two forms.

1. Current malfunction.

2. Historic malfunction detected before.

(6) Warning lamp

·

When any malfunction appears, the malfunction warning lamp will be turned on.

·

It is kept “on”.

(7) Wiring harness

Most of the wiring harness linkers adopted in the airbag system are yellow.



FAULT DIAGOSIS, INSPECTION AND OPERATION

1. INSPECTION OF SRS DIAGNOSIS SYSTEM

When the supplementary restriction system (SRS) is turned on, the airbag controlling module
(BCM) will turn on the airbag warning lamp and start system self-diagnosis. The warning
lamp will flash for 6 seconds with frequency of 1Hz during the system diagnosis. If BCM
diagnoses any malfunction, it will turn on the airbag warning lamp and record the
malfunction into the BCM memory. The BCM will diagnose the SRS system malfunction
automatically once it is turned on.

If 5 consecutive malfunctions are diagnosed during the self-checking, the SDM will mark the
malfunction. A malfunction diagnosis test cycle is 400 milliseconds, so that the SDM will
confirm the malfunction within 2 seconds (400 milliseconds x 5 times). If the malfunction is
marked and maintained as the malfunction state, the warning lamp will be “ON” continuously.
This state is called the “existing malfunction”. Once the malfunction is marked, and if this
malfunction does not appear again after 25 continuous fault diagnosis test cycles (400



T-55



milliseconds X25=10 second), the malfunction mark will be cancelled. The warning lamp
will be turned off under this condition, and it is called the “historical malfunction”.

2. DIAGNOSIS OF THE DIAGOSTIC TESTER

The diagnostic tester can read data from the BCM memorizer to carry on the continuous data
exchanging. The diagnostic tester is used for reading and storing the malfunction codes, and
clears part of the stored data after the maintenance. But it can not clear the interior
malfunctions, such as the accident records and the arithmetic data malfunctions.

The proper usage of the diagnostic tester: firstly, turn off the ignition switch, connect the
diagnostic tester to the OBDII connector, and then turn on the ignition switch. See the
diagnostic tester manual for the follow-up procedure.




SRS SYSTEM MAINTENANCE AND OPERATION

If it is required to inspect the vehicle protection supplementary system or inspect the accident
vehicle, the procedures below should be followed. If any malfunction is found, the
corresponding parts should be replaced by new ones.

1. MAINTENANCE OF SRS SYSTEM

Warning: When the ignition is turned off and at the same time the fuse is taken out, the sensor
and the diagnostic module (BCM) can provide the sufficient voltage for 1 minute to activate
the airbag. If the airbag is not disconnected, then do not start the maintenance work within 1
minute after turning off the power supply to BCM. If the airbag has been disconnected, then
the maintenance work can be carried out immediately without waiting for the 1 minute
electrical discharging time. The failure of shutting off the SRS system temporarily during the
maintenance will result in false ignition, physical injury and SRS system discarded.

(1) Turn off the airbag system

Adjust the steering wheel to the center position, turn the ignition switch to “Lock” position
and remove the key, remove the airbag fuse from the fuse box and wait for more than 1
minute for BCM capacitor discharging.

(2) Turn on the airbag system

Insert the airbag fuse into fuse box, turn the ignition switch to “ON” position, and inspect
whether the airbag indicator lamp is off after being on for 6 seconds. If the indicator lamp
does not function in this way, please refer to the “Diagnosis and inspection of SRS system” of
this manual.

Warning: When the ignition switch is turned on, keep away from the airbag as far as possible,
otherwise it may cause physical injury.

(3) Operation, installation and diagnosis

The airbag should be placed in an environment with the temperature not higher than
65℃(149℉). If the airbag drop from a height of more than 0.9 meter (3 feet), the airbag and



T-56



BCM should not be used any more.

When replacing the BCM, the arrow on the BCM must point to the direction right ahead of
the vehicle.

The BCM must be horizontally installed onto the installation plane, and parallel with the
coordinate axis of the vehicle body.

In order to avoid the occurrence of malfunction codes during the diagnosis, do not connect
the power supply to the airbag system or turn on the power supply according to the special
requirements listed in the diagnosis table before all the system components are connected
properly.

The SRS diagnosis system inspection must be the starting point of any SRS system diagnosis.
The SRS diagnosis system inspection can check whether the indicator function is proper, and
direct the accurate method of diagnosing any SRS malfunctions. Omitting these procedures
may result in longer diagnostic time or inaccurate replacement of components.

(4) Maintenance and inspection after the accident

Warning: Any maintenance of the vehicle structure must ensure to restore the vehicle to its
original state. The activated airbag needs to replace the BCM control module and airbag, and
inspect the dimension of the steering column.

All the SRS components must be replaced after been defective. If the installation point for the
SRS component is damaged, it must also be replaced.

Never use SRS spare parts from other vehicles (not including the new type SRS components
from the same model vehicle).

Do not try to repair the hairspring spring, airbag and seat belt. If there is any defect, these
components must be replaced.

Check the part number or part marking of the SRS components after replacement. The airbag
air generators that are alike in the appearance may have different internal structure.

(5) Replacement of activated airbag components after accident

All the SRS components must be replaced immediately after airbag had been activated in the
accident. After the airbag is activated, there may be powder like leftover on the airbag surface.
These leftover mainly includes the amylum and chemical reaction product (for lubricating the
airbag during the inflation).

Airbag

Airbag control module

SRS wiring harness

(6) Inspection of inactivated airbag components after the accident

Irrespective of whether the airbag has been activated or not, a specific inspection must be
carried out after any collision accidents.



T-57
