NOTES ON MAINTENANCE AND
USEAGE

1. MAINTENANCE OF SUNROOF



The glass panel is designed with the function
of heat and ultraviolet ray insulation. Please
clean with soft cloth and detergent, don’t use
any sticky detergent. Please clean the sunshade
with soft cloth and detergent, don’t use any
sticky detergent.











The glass panel is sealed by an antiwear rubber
seal with high elasticity to ensure the
completely water-proof of sunroof. Make sure
that the seal is free of dust and chip. Clean with
wet sponge to ensure cleanness. It’s suggested
to clean once a month at least. Maintaining
with talc powder periodically may extend the
use life of seal. The movable parts of sunroof
are made of such material without requiring
frequent maintenance, clean the mechanical
devices periodically with oil or lubricant, and
it’s suggested to clean at least once every two
months.







In case of water penetration of sunroof, clean
the sunroof’s seal immediately.










S-91








2. NOTES:

It is not allowed to open the sunroof while
raining or washing.











The sunroof should not be opened after at least
5 minutes of driving in a rainy day or after
washing.














It’s not allowed to put head or hand through the
sunroof.











S-92

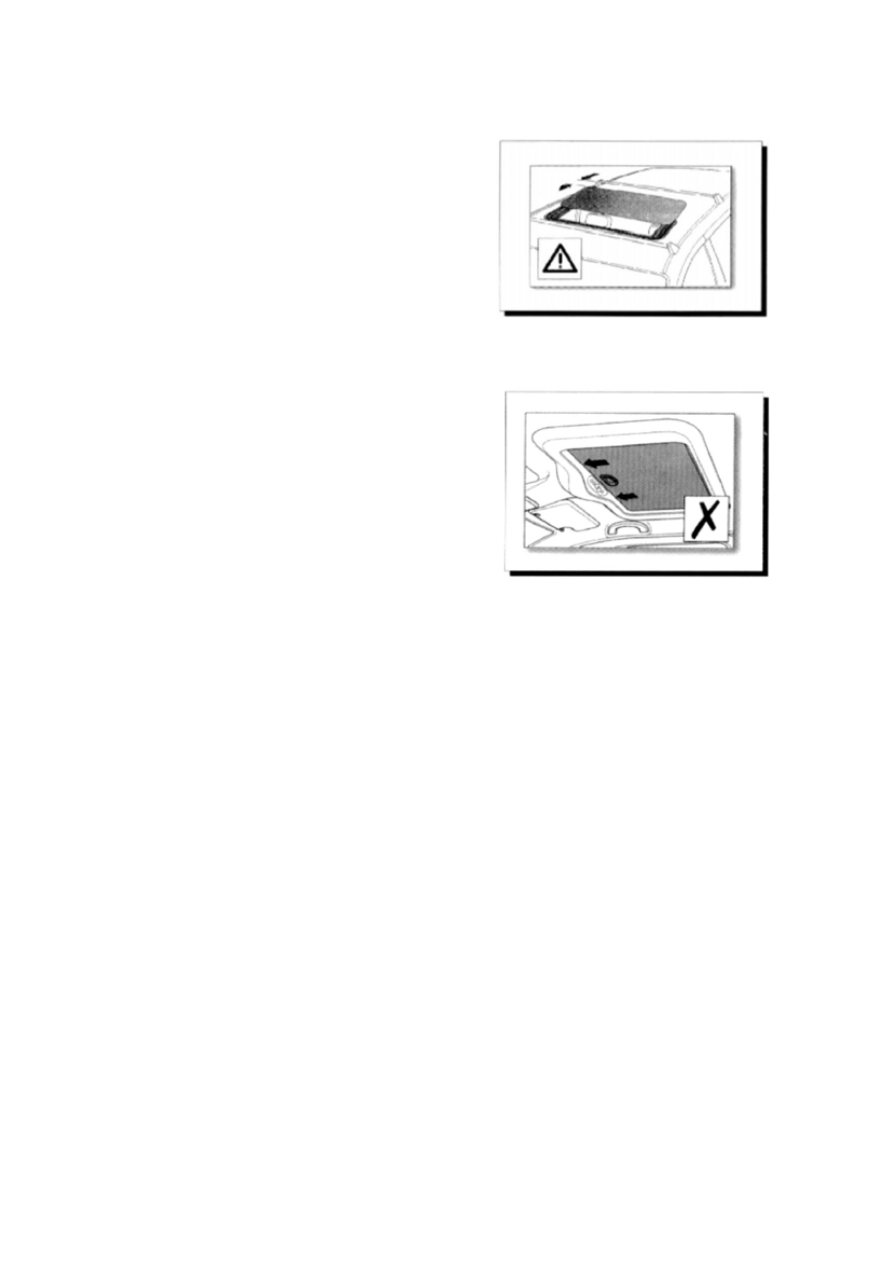

Note: Make sure that there is no obstruction
on the top of sedan to disturb the movement
of glass panel prior opening the sunroof.










When the sedan is running in high speed, the
sunshade should not be shut completely under
the condition that the sunroof is opened.



In case of that the electrical control of sunroof
fails to function properly or the functions
including automatic closing, tirggering are
disabled, firstly verify that the fuse of sunroof
is burned out. If the fuse is normal, try to
re-program for the sunroof. (Refer to
maintanece  instruction for details).














S-93



BODY ELECTRICAL SYSTEM

CHARGING AND STARTING SYSTEM … …… … …… …… … ………… ……… T-4

REMOVAL/INSTALLATION OF THE BATTERY …… … …… …… … ……T-4

INSPECTION OF THE BATTERY …… … …… …… … ………… …… ……T-4

CHARGING OF THE BATTERY …… … …… …… … ……… …… … …… ……T-5

REMOVAL/INSTALLATION OF THE GENERATOR …… …… …… … ………T-5

INSPECTION OF GENERATOR… …… … …… …… … ……… …………T-8

REMOVAL/INSTALLATION OF STARTER … ……… ……… ……………T-9

OVERHAUL OF STARTER … ……… ……… ……… ……… ………… ……T-9

LOAD INSPECTION OF STARTER … ……… ……… ……… ………… ……T-10

LIGHTING SYSTEM … ……… ……… ……… ……… ……… ………… ……T-11

REMOVAL/INSTALLATION OF LIGHTINGS FOR THE COMPLETE CAR…T-11

REMOVAL/INSTALLATION OF THE HEADLAMP … ………… ……… ……T-11

REMOVAL/INSTALLATION OF THE FRONT FOG LAMP … ………… ……T-11

REMOVAL/INSTALLATION OF THE SIDE TURN SIGNAL LAMP … ………T-12

FIXED REMOVAL/INSTALLATION OF TAIL LAMP … ……… ………… ……T-12

FLEXIBLE REMOVAL/INSTALLATION OF TAIL LAMP … ……… ………… T-12

REMOVAL/INSTALLATION OF LICENSE LAMP … ……… ………… ………T-12

REMOVAL/INSTALLATION OF INTERIOR CEILING LIGHT … ………… …T-13

REMOVAL/INSTALLATION OF TRUNK LAMP … ……… ………… ……… …T-13

REMOVAL/INSTALLATION OF HIGH MOUNTED STOP LAMP … ………… T-13

REMOVAL/INSTALLATION OF DOOR SWITCH … ……… ……… …………T-14

REMOVAL/INSTALLATION OF INSTRUMENT CONTROL SWITCH … ……T-14

REGULATION OF HEADLAMP … ……… ……… ……… ……… ………… …T-14

COMMON FAILURES OF LIGHTING SYSTEM … ……… ……… ………… …T-15

COMMON FAILURES TROUBLESHOOTING OF HEADLAMP … ………… …T-15

COMMON FAILURES AND TROUBLESHOOTING OF FOG LAMP … ………T-15

COMMON FAILURES AND TROUBLESHOOTING OF BACKUP LAMP … …T-16

COMMON FAILURES AND TROUBLESHOOTING OF STOP LAMP …… ……T-16
