ELECTRICAL SYSTEM



ELECTRICAL PARTS

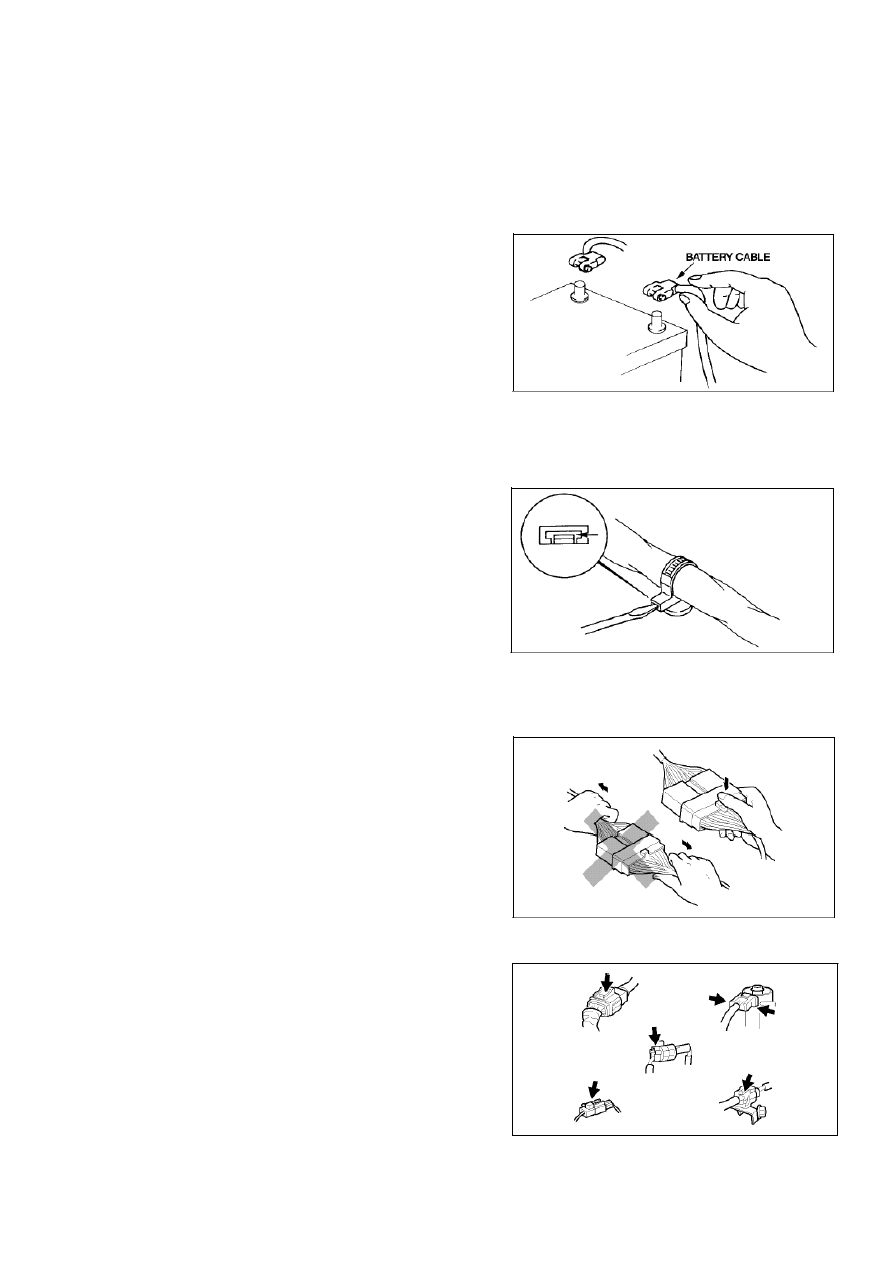

Battery cable



·Before disconnecting connector or removing
    electrical parts, disconnect the negative battery
  cable.















Wiring Harness
·To remove the wiring harness from the clip in the
    engine room, pry up the hook of the clip using a
  flathead screwdriver.












CONNECTORS
Disconnecting connectors
·When disconnecting connector, grasp the
    connectors, not the wires.
















·Connectors can be disconnected by pressing or
    pulling the lock lever as shown.












GI-8

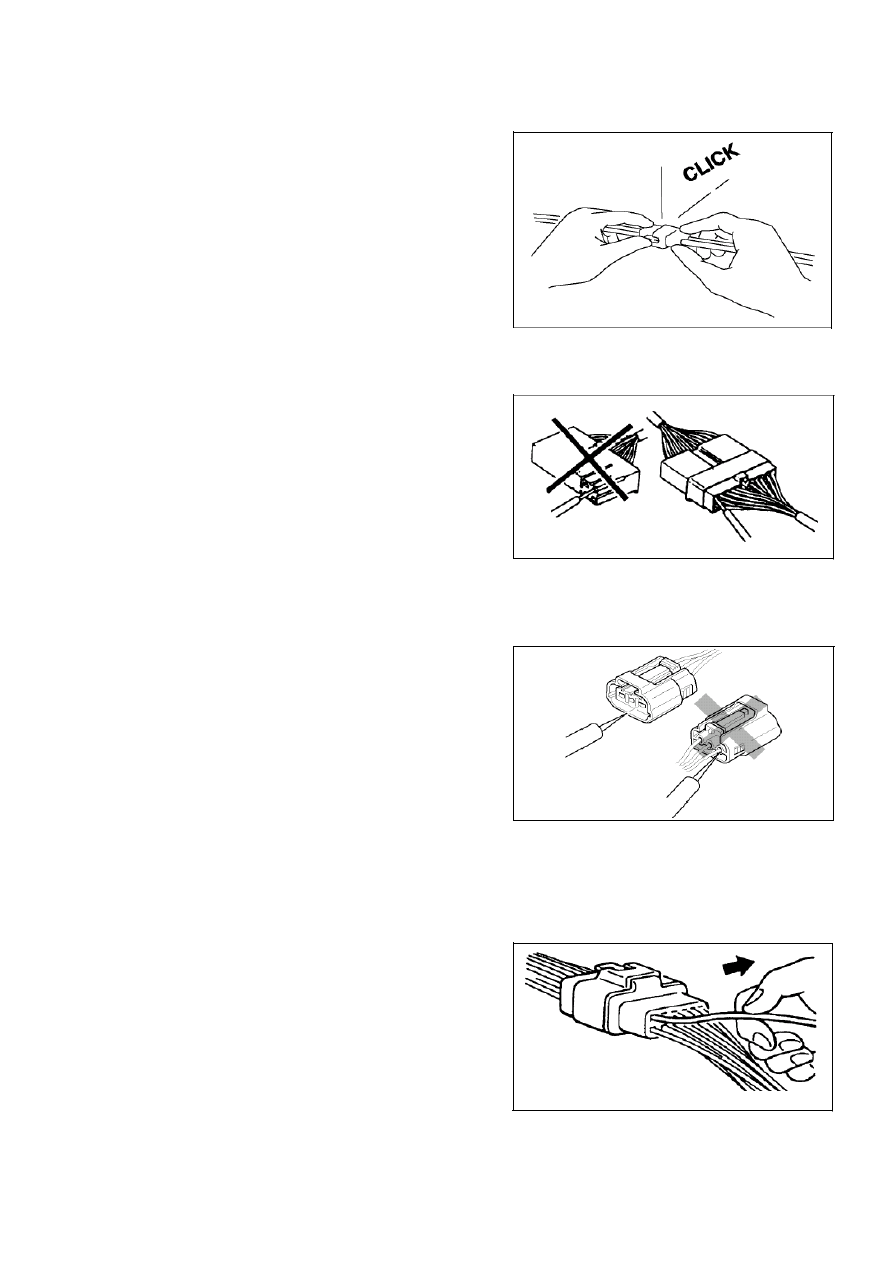

Locking connector
·when locking connectors, listen for a click
    indicating they are securely locked.



















Inspection
·When a tester is used to inspect for continuity or
    measuring voltage, insert the tester probe from
    the wiring harness side.







·Inspect the terminals of waterproof connectors
    from the connector side since they cannot be
    accessed from the wiring harness side.

      Caution

·To prevent damage to the terminal, wrap

a thin wire around the tester probe before

  inserting into terminal









Terminals
Inspection
·Pull lightly on individual wires to verify that they

are secured in the terminal.















GI-9

Replacement
·Use the appropriate tools to remove a terminal as
    shown. When installing a terminal, be sure to
    insert it until it locks securely.
·Insert a thin piece of metal from the terminal side
    of the connector and with the terminal locking tab
    pressed down, pull the terminal out from the
  connector.







Sensors, Switches, and Relays
·Handle sensors, switches, and relays carefully.
    Do not drop them or strike them against other
  objects.










Wiring Harness

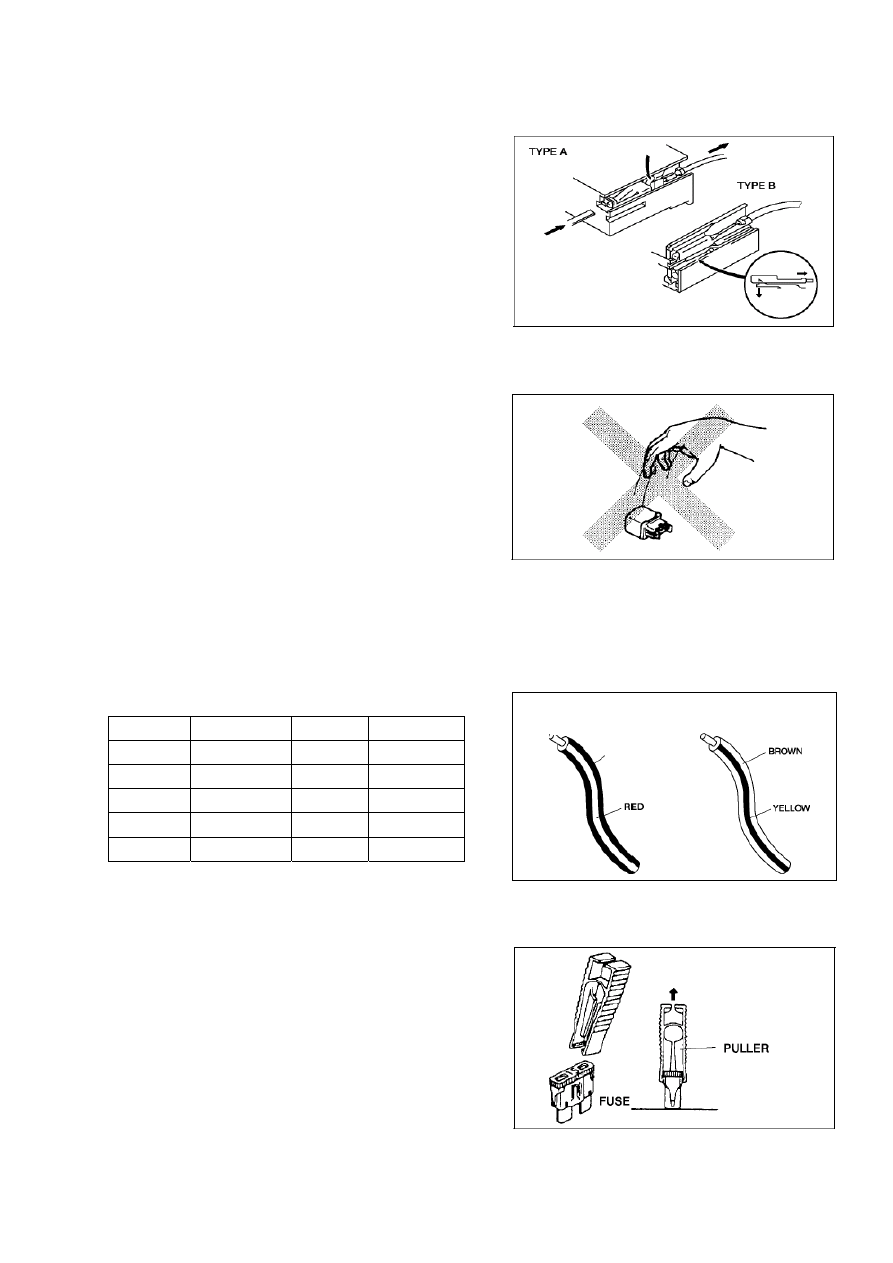

Wiring color codes
·Two-color wires are indicated by a two-color code symbol.
·The first letter indicates the base color of the wire and the second the color of the stripe.



CODE COLOR CODE COLOR

V Green R  Red
H Gray Z

Purple

A Blue B

White

N Black G

Yellow

M Brown




Fuse
Replacement
·When replacing a fuse, be sure to replace it with
    one of the same capacity. If a fuse fails again, the
    circuit probably has a short and the wiring should

be inspected.

·Be sure the negative battery terminal is
    disconnected before replacing a main fuse.
·When replacing a pullout fuse, use the fuse
  puller.



BLACK

N/R

M/G



GI-10


ELECTRICAL TROUBLESHOOTING TOOLS

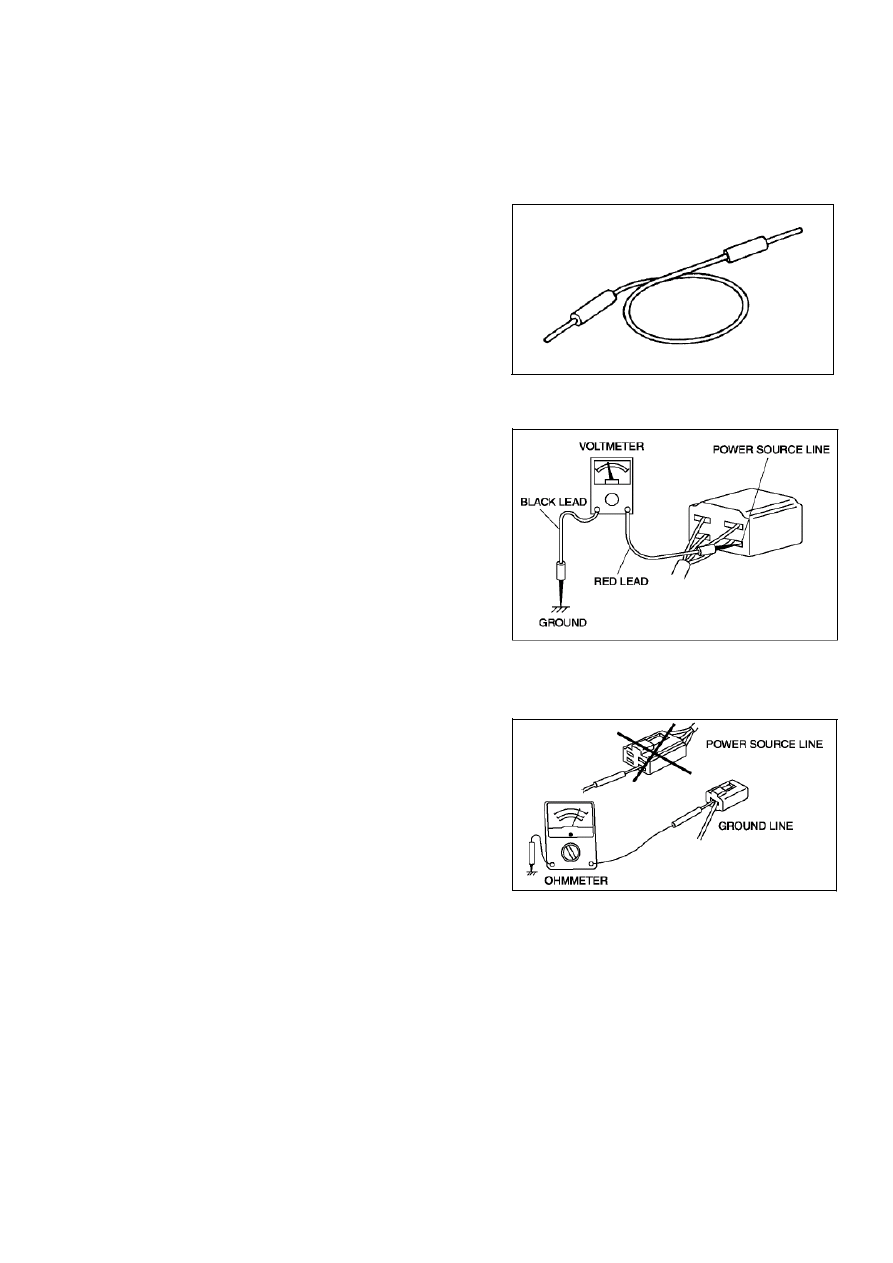

Jumper wire
·A jumper wire is used to create a temporary
    circuit. Connect the jumper wire between the
    terminals of a circuit to bypass a switch.


Caution

      ·Do not connect a jumper wire from the

  power source line to a body ground. This
  wiring harnesses or electronic
 components.


Voltmeter
·The DC voltmeter is used to measure circuit
    voltage. A voltmeter with a range of 15V or more
    is used by connecting the positive (+) probe (red
    lead wire) to the point where voltage will be
    measured and the negative (-) probe (black lead
    wire) to a body ground.




Ohmmeter
·The ohmmeter is used to measure the resistance
    between two points in a circuit and to inspect for
    continuity and short circuits.
      Caution
      ·Do not connect the ohmmeter to any

circuit where voltage is applied. This will

GI-11

damage the ohmmeter.
