Chery A series. Manual - part 2

UNIT

UNIT



Electric current

A（ampere）

Electric power

W（watt）

Electric resistance

Ω（ohm）

Electric voltage

V（volt）

Length mm（millimeter）

kPa（kilo pascal）

Kg/cm

2

（kilogram force per square centimeter）

Negative pressure

Bar (bar)

kPa（kilo pascal）

Positive pressure

Kg/cm

2

（kg/square centimeter）

Torque N.m（Newton meter）

L（liter）

Volume

ml（milliliter）

g（gram）

Weight

Kg (kilogram)



































GI-4

FUNDAMENTAL PROCEDURES


PROTECTION OF VEHICLE
·Always be sure to cover fenders, seats and floor
    areas before starting work.



















PREPARATION OF TOOLS AND MEASURING EQUIPMENT
·Be sure that all necessary tools and measuring
    equipment are available before starting any work.







DISASSEMBLY
·If the disassembly procedure is complex,
    requiring many parts to be disassembled ,all parts
    should be marked in a place that will not affect
    their performance or external appearance and
    identified so that reassembly can be performed
  easily and efficiently.




INSPECTION DURING REMOVAL, DISASSEMBLY
·When removed, each part should be carefully
    inspected for malfunction, deformation, damage,
  and other problems.











GI-5

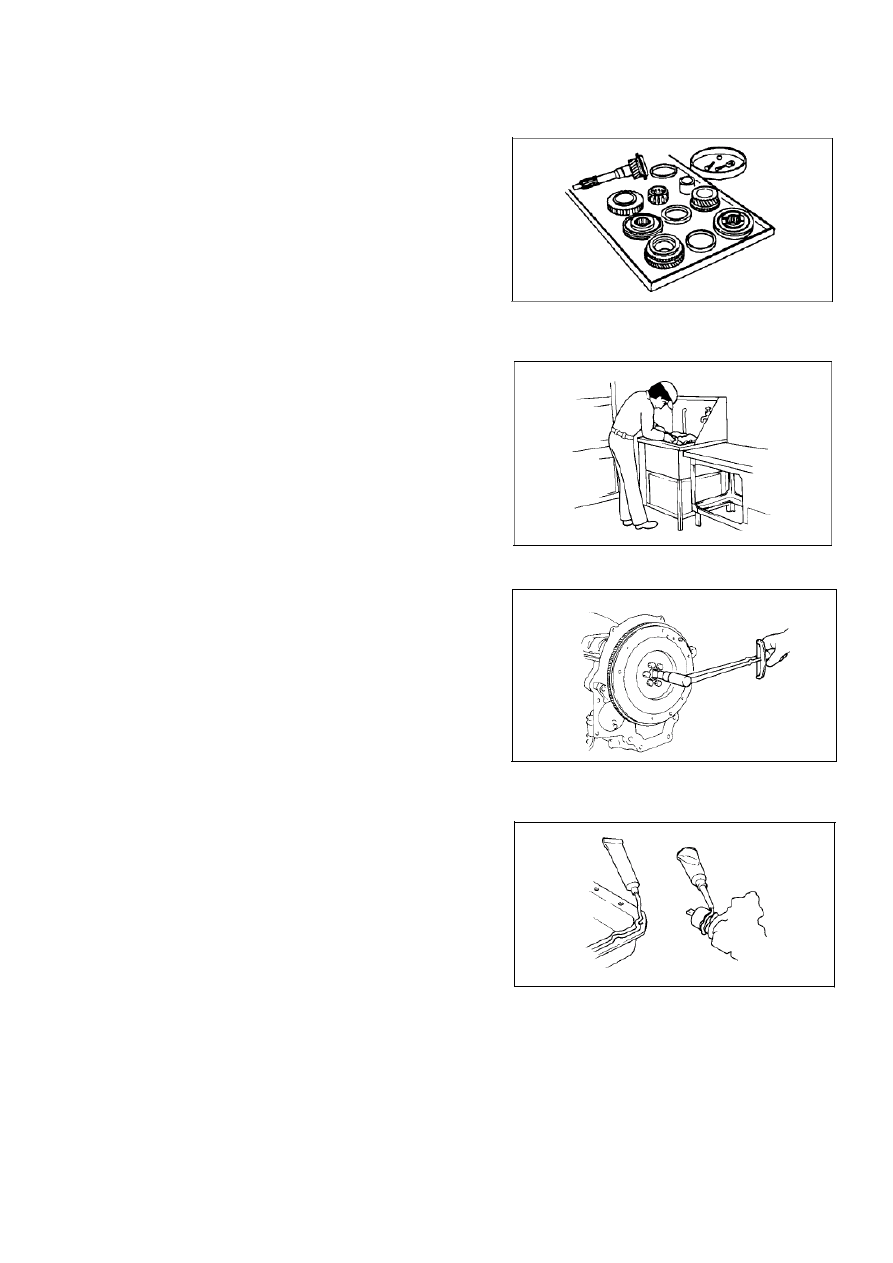

ARRANGEMENT OF PARTS
·All disassembled parts should be carefully
  arranged for reassembly.
·Be sure to separate or otherwise identify the parts
    to be replaced from those that will be reused.




CLEANING OF PARTS
·All parts to be reused should be carefully and
    thoroughly cleaned in the appropriate method.

    Warning

·Using compressed air can cause dirt and
    other particles to fly out causing injury to
    the eyes. Wear protective eye wear
    whenever using compressed air.



REASSEMBLY
·Standard values, such as torques and certain
    adjustments, must be strictly observed in the
    reassembly of all parts.





·If removed, these parts should replace with new ones.

— Oil seals
— Gaskets
— O-rings
— Lockwashers
— Cotter pins
— Nylon nuts



·Depending on location:

— Sealant and gaskets, or both, should be applied to specified locations. When sealant is

applied, parts should be installed before sealant hardens to prevent leakage.

— Oil should be applied to the moving components of parts.
— Specified oil or grease should be applied at the prescribed locations (such as oil seals)

before reassembly.

GI-6

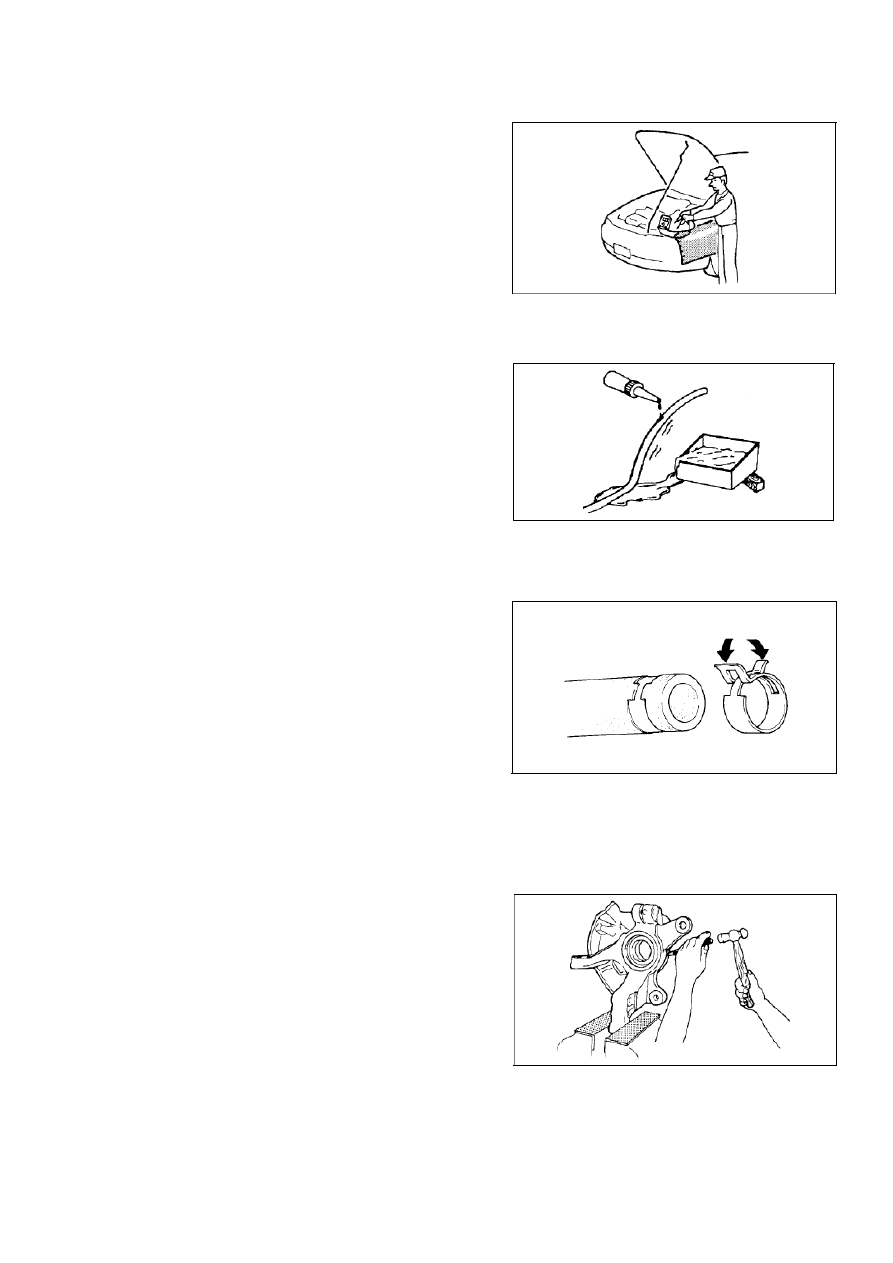

ADJUSTMENT
·Use suitable gauges and/or testers when making
  adjustment.

















RUBBER PARTS AND TUBING
·Prevent gasoline or oil from getting on rubber
  parts or tubing.















HOSE CLAMPS
·When reinstalling, position the hose clamp in the
    original location on the hose and squeeze the clamp
    lightly with large pliers to ensure a good fit.














VISE
·When using a vise, put protective plates in the jaws of the vise to prevent damage to parts.

























GI-7
