Access and Starting Function

Intelligent

key

(electronic

card-type) can unlock/lock doors and
start engine.

Access Function

– unlock/lock doors.

+ For detailed information, please see

―Front Door‖ in this Chapter.

Starting function

– when intelligent key

is in the car, it can switch power supply
mode and start engine. For detailed
information

please

see

―Engine

Starting

‖ in this Chapter.

Steering Lock Function

When  the  doors  are  locked  through
wireless  remote  control  or  microswitch,
the steering wheel will be locked.

When the key is in the car, if you press
down  ―Engine  Start  Stop‖  switch,  the
steering

lock

will

released

automatically.  If  green  indicator  on  the
―ENGINE START STOP‖ switch flashes,
it  means  steering  lock  cannot  be
released.  To  release  it,  press  down
―Engine Start Stop‖ switch and shake the
steering  wheel  slightly.  If  the  green
indicator  still  flashes,  it  means  the
steering  lock  has  fault  and  please
contact BYD service station for help. For
details, please see ―Start Engine‖ in this
Chapter.

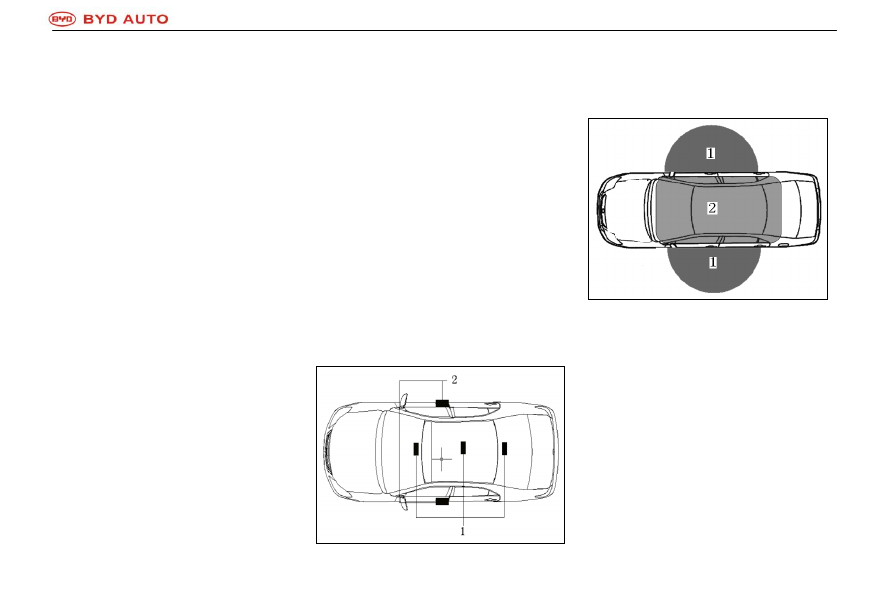

Antenna Position

Antenna in carriage

Antenna out of carriage

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Active Region

After an intelligent key is registered, the
access and starting engine function is
available in the active region.

Access function active region

– some

0.7m m from the handle microswitch of
the front outer door. If the key is too
close to door handle or window, the
access function may not be activated.

Starting engine function active region

–

in carriage.

If the key is on instrument panel or floor,
or in trunk or glove box, the starting
engine function may not be activated.

In the following cases, intelligent access
and  engine  starting  function  may  not
work normally:
● When there are facilities nearby which
give  out  strong  electromagnetic  wave,
such  as  broadcast  tower,  power  plant,
radio  station  and  telecommunication
signal tower.
●  When  you  take  the  intelligent  key
together with  mobile telecommunication
devices, such as a two-way radio device
or cell phone.

● When the intelligent key is touched or
covered by metal objects.
● When you operate the door handle
quickly.

●  When  the  intelligent  key  is  close  to
door handle.
●  When  somebody  else  operates
wireless remote control function on a car
nearby.
●  When  the  battery  is  depleted.  (To

replace battery, please see ―Replace
Card-type

Intelligent

Key

Battery

‖

and ‖Replace Electronic Intelligent Key
Battery

‖ in this Chapter.)

● When  the  intelligent  key  is  near  high
voltage  devices  or  noise-generating
devices.
●  When  you  take  the  intelligent  key
together with a key for intelligent access
and  engine  starting  system  of  another
car or other radio devices.
●  The  intelligent  key  may  not  work
normally even in the active region due to
your location or profile of the car.

If you cannot get in the car when the
intelligent

access

and

keyless

starting system can not function
normally, you can use wireless
remote

control

function

unlock/lock all doors.

When  the  intelligent  key  of  another  car
is near to the intelligent key of your car,
it  may  take  a  longer  time  to  unlock  the
doors, which is normal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

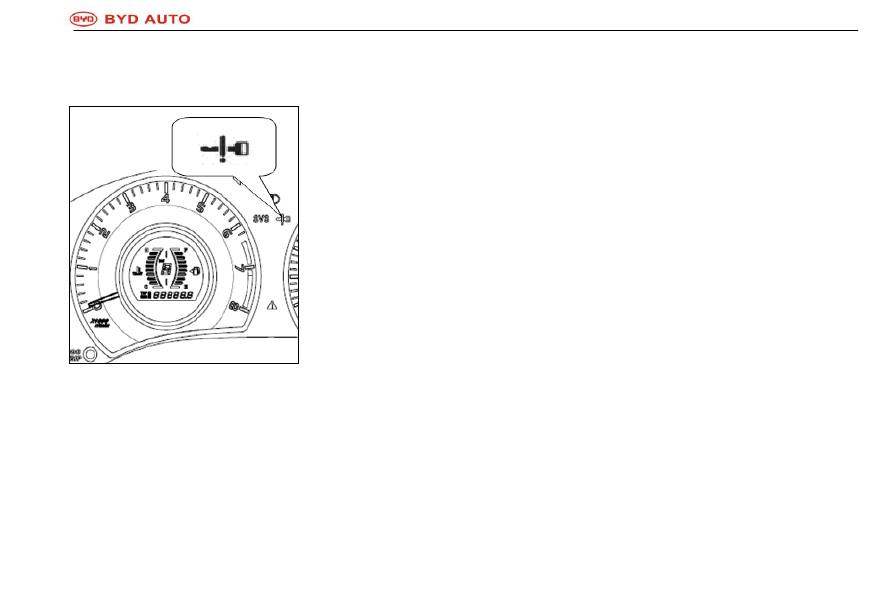

Depleted Intelligent Key Battery

If

the

indicator

for

electronic

intelligent key does not flash and its
starting function cannot start the
engine,

the

battery

may

have

depleted.  You  shall  replace  the
battery  as  soon as  possible.  (Please
see  “Replace  Battery  of  Electronic
Intelligent Key

” in this chapter. )

In this case, you can start the engine
with card-type intelligent key.

If  the  card-type  intelligent  key  is  not
available or also has a depleted battery,
you can start the engine in the following
steps:
1.  Step  on  brake  pedal  or  press  down
―ENGINE START STOP‖ switch, the key
position  indicator  of  the  intelligent  key
system  on  the  combination  instrument
will  turn  on  with  the  buzzer  beeping
once.
2. Put the electronic intelligent key near
―ENGINE  START  STOP‖  switch  within
30 seconds after the buzzer beeps, the
buzzer will beeps once again, indicating
that you can start the engine.
3. Start the engine with 5 seconds after
the buzzer beeps.

You can also conduct the procedure
above with a card-type intelligent key
which has a depleted battery to start
the engine.

If you cannot access the car or start
the

engine

with

the

card-type

intelligent  key,  the  battery  may  have
depleted.  Please  replace  the  battery
as  soon  as  possible.  (Please  see
“Replace  Battery

Card-type

Intelligent Key

” in this chapter. )

Save Battery Power

The  key  will  communicate  with  the  car
even when you are not driving the it. Do
not  leave  the  key  near  the  car  (within
2m).
If the car is not used for a long time, the
on-vehicle  battery  may  deplete.  To
prevent  battery  over  discharge,  please
disconnect  the  negative  terminal  of  the
battery.

To  activate  intelligent  access  and
starting  system  again,  please  make
any of the following actions:
a. When the intelligent key is available,
press  the  microswitch  on  the  door
handle of the front outer door.
b. Make radio remote control operation.
If  an  intelligent  key  receives  strong
electromagnetic  wave  for  long  period,
the battery will run low quickly. Intelligent
key shall be kept at least 1m away from
the following devices:

● TV set

● PC

● Cell phone charger

● Lamp holder

● Fluorescent lights

Warning

Unauthorized

amendment

and

alteration may result in failure of
some devices.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

If  intelligent  access  and  starting
system  fails,  please  contact  BYD
service  station.  You  shall  take  all
intelligent  keys  with  you,  which  are
required in repairing this system.

Note



Without permission, do not alter
the

emission

frequency,

increase the emission power
(including but not limited to
adding

emission

frequency

amplifiers),

equip

external

antenna or use other emission
antennas.



Use of the electronic intelligent
key should not produce any
harmful interference to any legal
wireless

communication

services;

stop

use

immediately if any interference
is found and do not use it until
the

interference

has

been

eliminated.



When using a micropower radio
device,  it  must  withstandby
interference  of  radio  services
and  radiation  interference  from
industrial, scientific and medical
devices.



Do not use the electronic
intelligent key near aircrafts or
airports.

Front Door

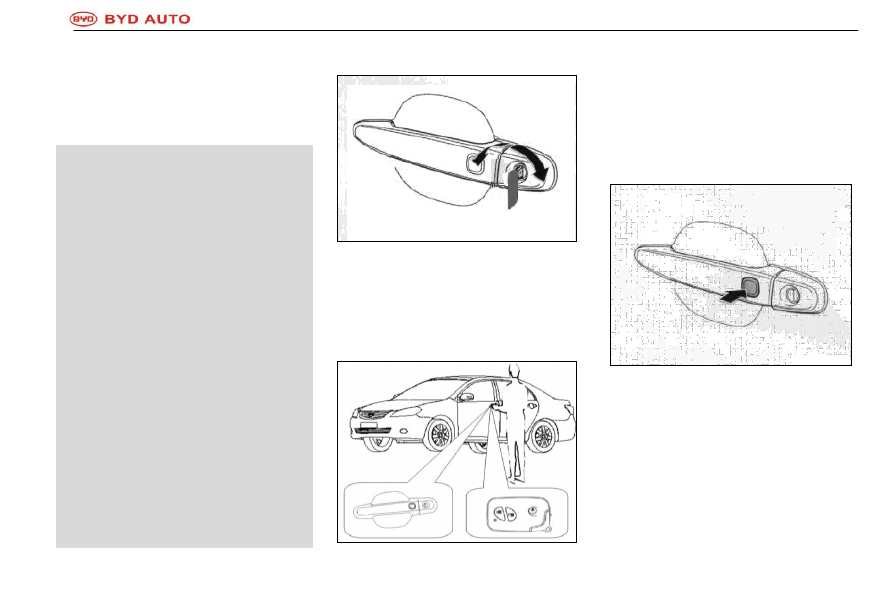

Unlocking/Locking with Mechanical
Key
Insert the key into lock hole and
rotate it.
Lock up: turn the key clockwise.
Unlock: turn the key anticlockwise.

Lock and Unlock

When  you  enter  active  region  with  a
registered  intelligent  key  (electronic  or
card-type,  the  former  is  shown  in  the
figure)  for  the  intelligent  access  and
starting system, you can lock / unlock all
doors without using the key.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Locking Operation

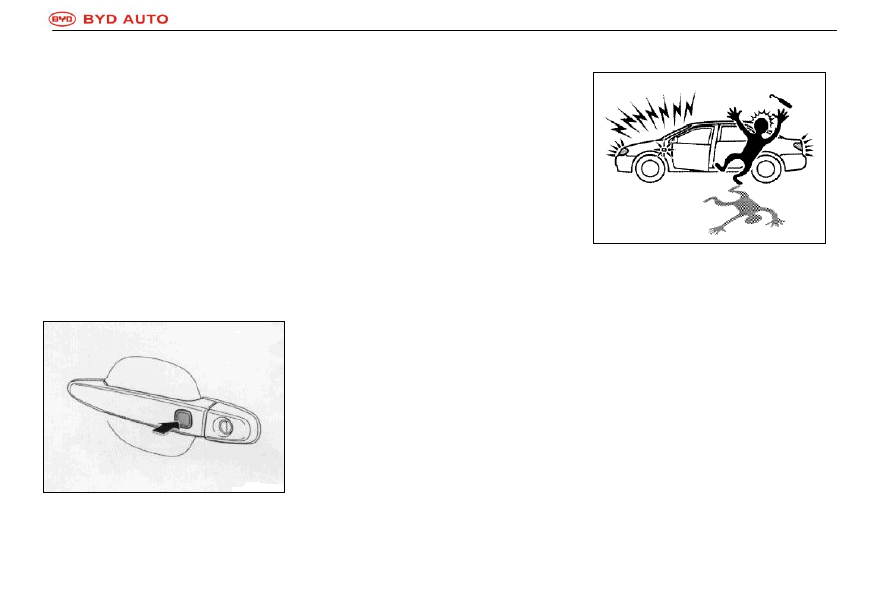

Press  down  the  microswitch  button
on  the  outer  door handle  slowly  and
firmly. All doors will be locked at the
same time. The turn signal lights will
flash once.

In the following cases the doors will  not
be

locked

when

pressing

the

microswitch.
● When any door is not closed.

●Pressing  the  locking  button  while
opening/closing any door.
● When the engine is not shut down.
● When the power supply is at ACC or
ON.

Unlocking Operation

Press  down  the  microswitch  button
on  the  outer  door handle  slowly  and
firmly.  All  doors  will  be  unlocked  at
the same time. The turn signal lights
will flash twice.

When the doors are unlocked, you shall
open  a  door  in  30  seconds.  Otherwise
all doors will be locked up automatically.

When  using  intelligent  access  and
starting  system,  check  whether  the
doors  are  unlocked  before  pulling  the
door handle.

Anti-theft System

To  prevent  the  car  from  theft,  under
anti-theft  status,  if  any  door  is
opened the system will give out alarm
sound.
While the alarm system gives out sound,
the turn signal lights will flash.

System Settings
1. Shut down the engine.
2. All passengers shall get off.
3. Lock up all doors.
When all doors are locked, the anti-theft
indicator  will  remains  on.  The  anti-theft
system will be set up automatically after
10 seconds.  The  anti-theft  indicator  will
flash after the system is set up.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

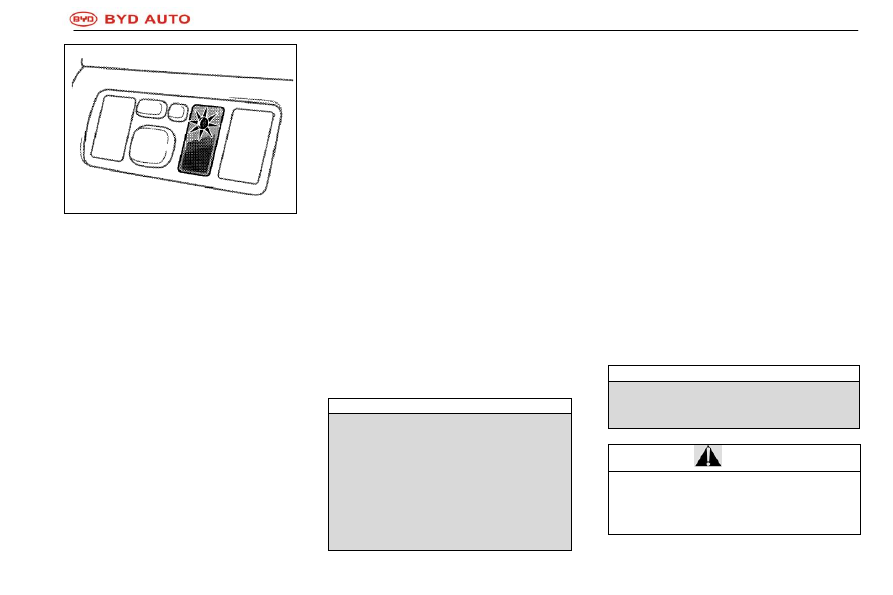

4.  Make  sure  the  indicator  is  flashing
before you leave the car.
If anyone in the car unlocks the door, the
anti-theft system will be activated. So do
not leave anybody in the car.

Activate Anti-theft System
The system will give out alarm sound in
the following cases:



Any  door  is  unlocked  when  the
intelligent  key  access  function  is
not used.



The power supply is turned on
when the intelligent key starting
function is not used.

Disable Anti-theft System
You  can  use  the  following  means  to
disable anti-theft alarm:


Unlock doors with remote control.



Unlock doors with microswitch.

Start Engine

Before Starting Engine
1. Check the environment around the

car before getting in.

2. Adjust seat position, seatback angle,

seat

cushion

height,

head

protection device height, steering
wheel angle and height.

3. Adjust

interior

and

exterior

rear-view mirror.

4.  Make sure all doors are closed.
5.  Fasten seat belts.
How to Start Engine
(a) Before Staring Engine
1. Apply parking brake firmly.
2.  Shut  down  all  unwanted  lights  and
electrical devices.
3.  AT:  Shift  gear  shift  lever  to  P  or  N
gear.

MT: shift gear shift lever to Neutral

gear.
4.  Step  brake  pedal  or  clutch  pedal  to
the bottom.

Note



Each  starting  attempt  shall  be
no  more  than  5  seconds,  or  it
will cause overheating of engine
or wires.



Do not let cold engine run at
high speed.



Check the engine immediately if
it has difficulty in starting or
stalls frequently.

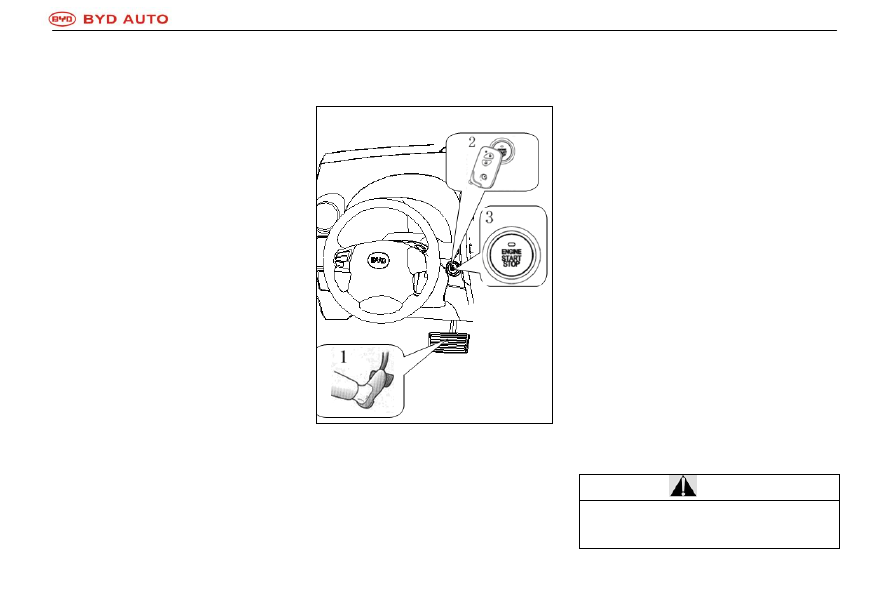

(b) Start Engine

Button Starting Function
When  an  intelligent  key  is  in  the  car,
press ―ENGINE START STOP‖ switch to
start engine.
Before

starting,

you

shall

instructions in ―(a) Before Staring
Engine

‖.

Normal Starting Steps
The engine can be started only when an
intelligent key is in the car.
When stepping on brake pedal or clutch
pedal, indicator on the ―ENGINE START
STOP‖  switch  will  turn  green.  Press
―ENGINE  START  STOP‖  switch  slowly
to start the engine.

If Engine Stops Working
Restart the engine in the normal starting
procedure.

Note

When  there  is  grease  on  your
hands,  do  not  touch  “ENGINE
START STOP” switch.

Warning

When

“ENGINE START STOP”

switch fails in operation, stop
operating it immediately and contact
BYD service station.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

When Engine Cannot Start

The engine cannot start in the following
cases:



When  press  down  ―ENGINE
START  STOP‖  switch,  if  the  key
position  indicator  of  the  intelligent
key  system  is  on  with  the  buzzer
giving out warning t

one and ―Key is

not detected‖ is displayed on the
right information screen, it means
the key is not in place.



Even the intelligent key is in the car
(for example, on floor, in cup holder,
trunk or glove box), the engine
cannot be started in these cases.

When  pressing  down  “ENGINE
START  STOP”  switch,  if  the  starting
function  is  not  normal,  the  possible
causes are:



If  the  intelligent  key  does  not
function,  the  key  position  indicator
of the intelligent key system on the
combination  instrument  is  on  with

―Key battery is low‖ displayed on
the right information screen, the
key battery may have depleted.

Hold the key near ―ENGINE
START STOP

‖ switch, the engine

may  start  up.  (For  details,  please
refer  to  ―Intelligent  Access  and
Starting System‖ in this chapter.)
Please  replace  intelligent  key

battery. (Please see ―Replace
Card-type Intelligent Key Battery

‖

and ‖Replace Electronic Intelligent
Key Battery

‖ in this Chapter.)



The engine is started repeatedly in
short period.

Wait for 10 seconds before starting
the engine again.

If starting fails, orange indicator on
the ―ENGINE START STOP‖
switch flashes.



If orange indicator on the ―ENGINE
START STOP‖ switch flashes, it
means steering lock function may
have fault.

Please contact BYD service station
to check the car and all keys.

In  some  cases,  the  intelligent  access
and  keyless  starting  system  cannot
function  normally  due  to  environment
factors.  For  details,  please  refer  to

―Intelligent Access and Starting System‖
in this chapter.

Drive  and  Parking  with  Intelligent
Access and Starting System
Tips on Using Intelligent Access and
Starting System

With the  Intelligent Access and Starting
System,  you  can  start  the  engine  only
when an intelligent key is available.
In  some  cases,  the  intelligent  key  may
have  been  brought  away  by  some
passenger  and  thus  the  engine  cannot
be  started.  In  addition,  the  driver  may
ignore  that  the  power  supply  switch  is
not at OFF when leaving the car.
Before leaving and entering the car, the
driver shall make sure the intelligent key
is on the hand.

Note

Do not touch “ENGINE START
STOP” switch in driving.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

For emergency stall in driving, please
press ―ENGINE START STOP‖ switch
for over 3 seconds.

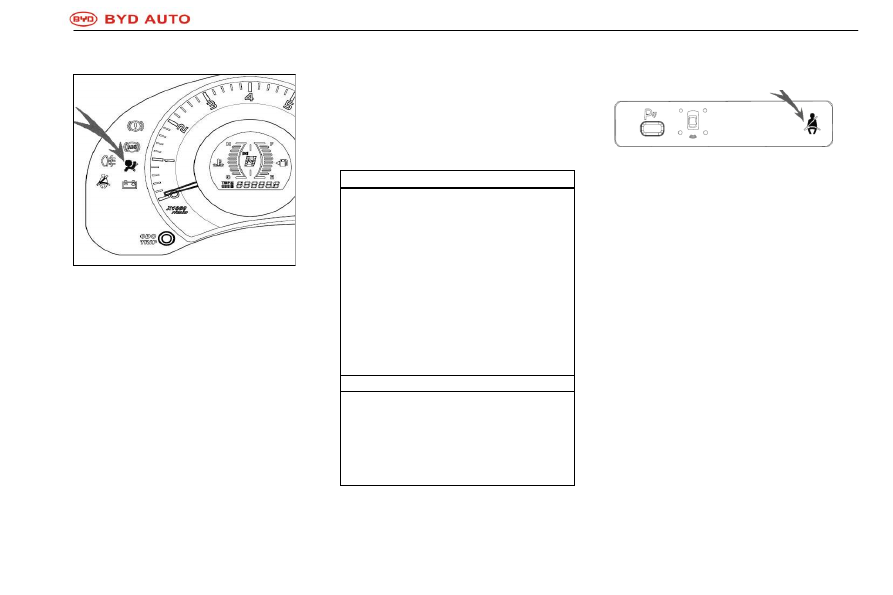

Key  Position  Indicator  of  Intelligent
Key System

System Function Indicator

If  any  of  the  following  warning,  please
follow the instructions below:

（A）

When pressing down “ENGINE

START STOP” switch to connect
the

power,

the

instrument

warning buzzer gives out a tone
with “Key is not detected”
displayed

the

right

information display.

It  means  the  driver  does  not  take  the
intelligent  key  when  entering  the  car.
Key  position  indicator  of  intelligent  key
system  on  the  instrument  panel  will  be
on  for  8  seconds  with  ―Key  is  not
detected‖  displayed  on  the  right
information  screen.  Make  sure  the
intelligent  key  is  in  the  car  before
operating  ―ENGINE  START  STOP‖
switch.

（B）

When pressing down “ENGINE

START STOP” switch to connect
the

power,

the

instrument

warning buzzer gives out a tone
with the indicator flashing and
“Key battery is low” is displayed
on the right information screen.

It means the intelligent key battery is low.
Replace intelligent key battery in time to
ensure that Intelligent Access and
Starting System function normally.

（C）

When pressing down “ENGINE

START STOP” switch to connect
the

power,

gre

en “ENGINE

START STOP” indicator flashes.

It  means  steering  lock  is  locked  up;  to
release  it,  pressing  down  ―ENGINE
START  STOP‖  switch  and  shake  the
steering wheel slightly at the same time.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Chapter 1

Section 3

Operation of Instruments and Controllers

Seat, Seatbelt, Steering wheel, Rear-view Mirror and
Sunroof

Seats ................................................................................................................... 23
Front Seats ......................................................................................................... 23
Seat Belts ........................................................................................................... 24
Airbag for Driver and Front Passenger ............................................................. 28
Steering Wheel ................................................................................................... 34
Outer Rearview Mirrors...................................................................................... 35
Inner Rearview Mirror ........................................................................................ 35
Power Sunroof (optional) ................................................................................... 36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Seats

In  driving,  all  passengers  shall  lean  on
seatbacks  which  has  been  adjusted  to
vertical  position,  and  use  seat  belts
correctly.

Tips

● The car shall not start until all

passengers has been seated well.
Do not sit on folded seatback,
baggage

trunk

emergency  braking  or  collisions,
passengers  who  have  not  been
seated  straightly  or  have  not
buckled  the  seat  belts  may  be
seriously injured.

● In driving, do not let passengers

stand  up  or  move  among  seats;
Otherwise,  they  may  be  seriously
injured  in  emergency  braking  or
collisions.

Front Seats

Notice on Seat Adjustment
Adjust  the  driver  seat  to  include  the
pedals,  the  steering  wheel  and  the
instrument  panel  controller  into  the
easy-control range of the driver.

Tips

● Do not adjust the seat in driving, as

sudden movement of the seat may
cause the car out of control.

● In seat adjustment, take care to

avoid collision between the seat
and passengers or baggage.

● After the seat adjustment, shake it

to make sure it is locked up at its
position.

● After seat adjustment, lean

backward to make sure the seat
back is locked up at its position.

● Do not place things under the seat;

this  may  affect  the  seat  lockup
mechanism  or  push  the  seat
adjustment  rod  randomly,  which
may  cause  movement  of  the  seat
and  result  in  losing  control  of  the
car.

● In seat adjustment, do not put your

hand under the seat or near moving
parts; otherwise your hand or
fingers may be injured.

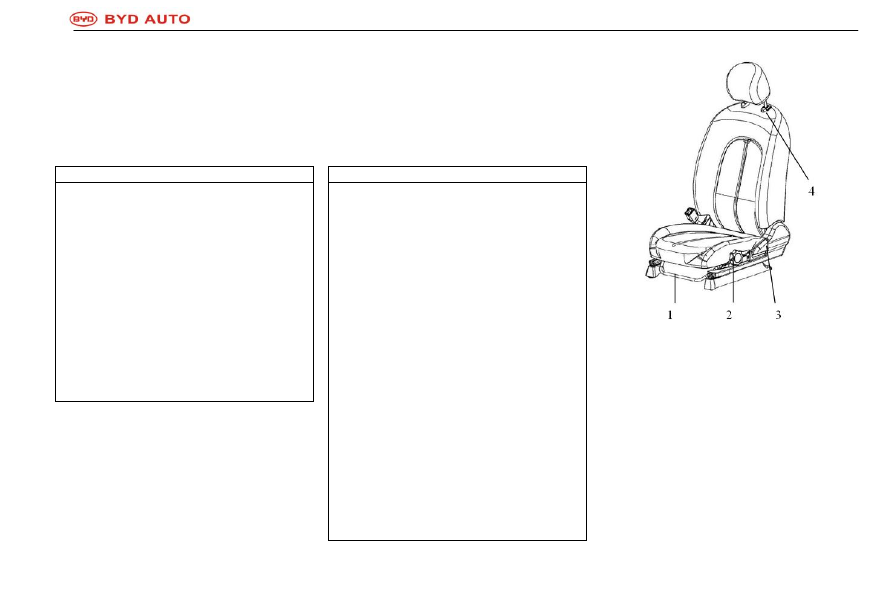

Adjustment of Front Seats

Adjustment

Rod

for

Seat

Longitudinal Position
Hold the rod in the middle and pull it
upwards.  Move  the  seat  frontward
and backward to the desired position
with pressure of your body and then
release the rod.
2.  Hand  Wheel  for  Seat  Height
Adjustment
Rotate the hand wheel for seat height
adjustment  to  adjust  the  seat  to
desired  position.  (Note:  Economic
model  and  Standard  model  does not
have this mechanism.)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

3. Adjustment Rod for Seat Back
Angle

Lean forward and pull the rod
upwards, then lean backward to the
desired angle and release the rod.

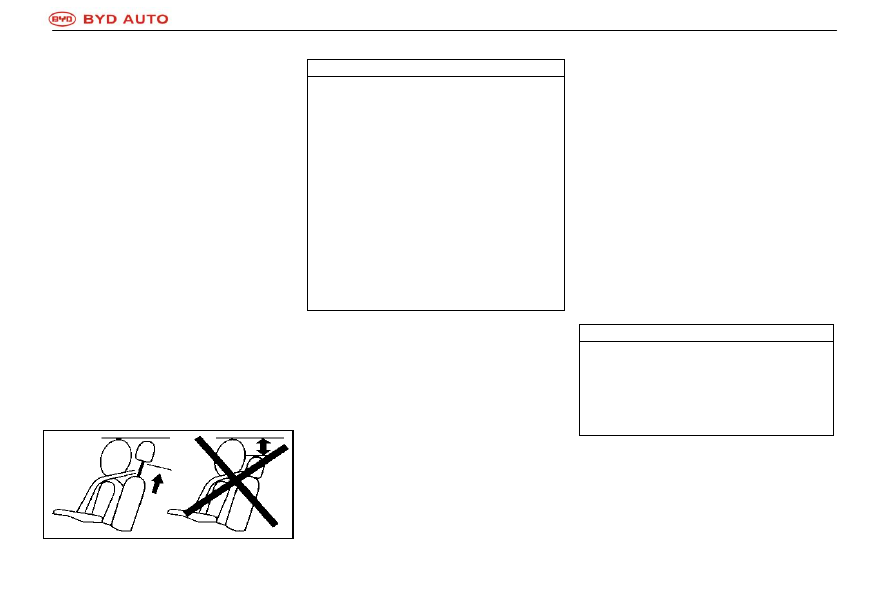

4. Adjustment Button for Headrest
Height

Raise Headrest
Move the headrest to desired height and
then release it.
Lower Headrest
Press  and  hold  the  button  to  lower  the
headrest  to  desired  position,  and  then
release it.
Remove Headrest
Press  and  hold  the  button,  lift  up  and
remove the headrest.
Reinstall Headrest
Insert  the  link  rod  of  headrest  into  the
bush, keeping the groove facing forward.
Press  and  hold  the  button,  push  down
the  headrest  to  desired  position,  and
then release the button.

Tips

To  reduce  the  dangerous  possibility
that  the  passenger  slides  down  the
buckle of seat belt in collision, do not
make  the  seat  back  over  slant.  Seat
belts  can  provide  the  maximum
protection  in front  and  rear  collision
accidents

the

driver

and

passengers  sit  straight  and  lean  on
the  seat  backs.  If  the  passenger  is
lean on seat back slantwise, the belt
may  slide  along  the  hip  and  pose
pressure  to  abdominal  part.  In
front-collision

accidents,

over

obliquity of the seat may increase the
risk of human injuries.

Seat Belts

Notice on Seat Belt:
BYD strongly require that the driver and
passenger in the vehicle wear seat belts
at  any  time  to  reduce  the  possibility  of
injuries in accidents.

Seat  belts  equipped  on  the  vehicle  are
designed for adults.

Children  shall  be  seated  in  rear  seats
with seat belt
applied  properly.  Statistics  of  accidents

shows that children seated in rear seats
are  better  protected  than  children
seated in front seats.
If  a  child  has  to  be  seated  in  the  front
seat,  the  seat  belt  shall  be  properly
applied.  In  accidents,  the  quickly
deployed  seat  belt  may  cause  severe
injury  and  even  death  to  children  if  the
seat belt is not fastened correctly.

In  front  seats  or  rear  seats,  children
shall  be  prevented  from  standing  up  or
kneeling down. In emergency braking or
crashes,  unprotected  children  may  be
seriously  injured.  Similarly,  do  not  seat
children on your legs as in this way they
can not be sufficiently protected.

Tips

In  driving,  passengers  shall  be
seated  on  the  seats  and  fasten  the
seat  belts  correctly.  Otherwise,  in
emergency  braking  or  crashes,
passengers  in  the  car  are  more
prone to be severely injured.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Follow the instructions below when
using seat belt:

● One seat belt shall be applied to one

passenger only. It’s not allowed that two
or more passengers share one seat
belt

—even for children.

●  Do  not  over slant  the  seat  back.  The
seat  belt  provides  the  best  protection
when  the  seat  back  is  in  the  upright
position.  (Refer  to  instructions  on  seat
adjustment)

● Pay attention to not damaging the belt
or other part of the seat belt. Prevent
them from being caught in the seat or
the door.

●  Check  the  seat  belt  regularly  to  see
whether  it  is  cut,  worn  or  loosen.
Damaged  parts  shall  be  replaced  with
new ones. Do not disassemble or modify
the system.

●  Keep  seat  belt  clean  and  dry.  For
cleaning,  use  neutral  soap  water  or
warm  water.  Bleaching  agents,  dyes  or
grinding cleaning agents are not suitable
for  seat  belt  cleaning  -  they  may
severely

reduce

the

protection

performance of the seat belt. (See

―Interior Cleaning‖ in the manual).

● After serious crashes, the seat belt
system (including bolts) should be
replaced, even if the damage is not
obvious.

Tips

Seat belt is designed for adults,
so it is not suitable for child. It is
recommended that child

seated in rear seats.

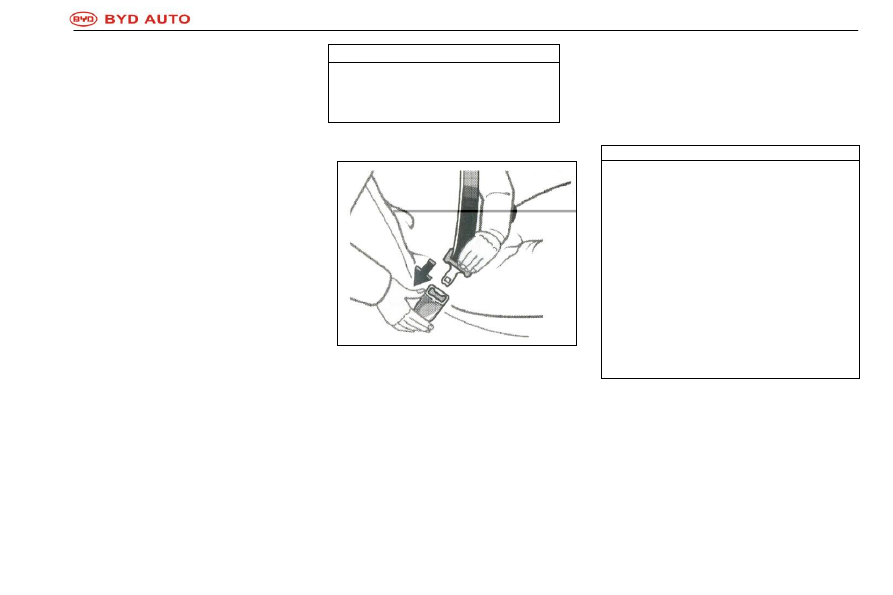

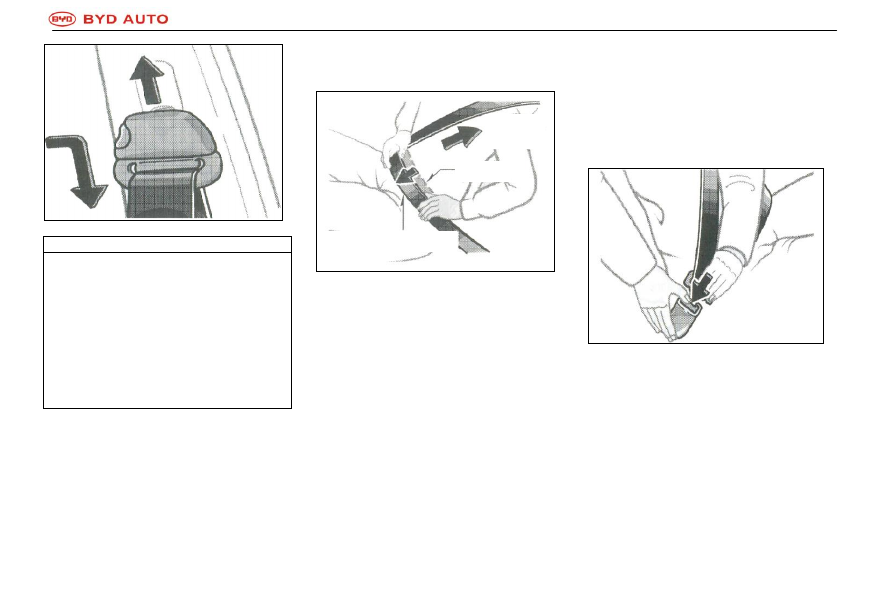

3-point Seat Belt

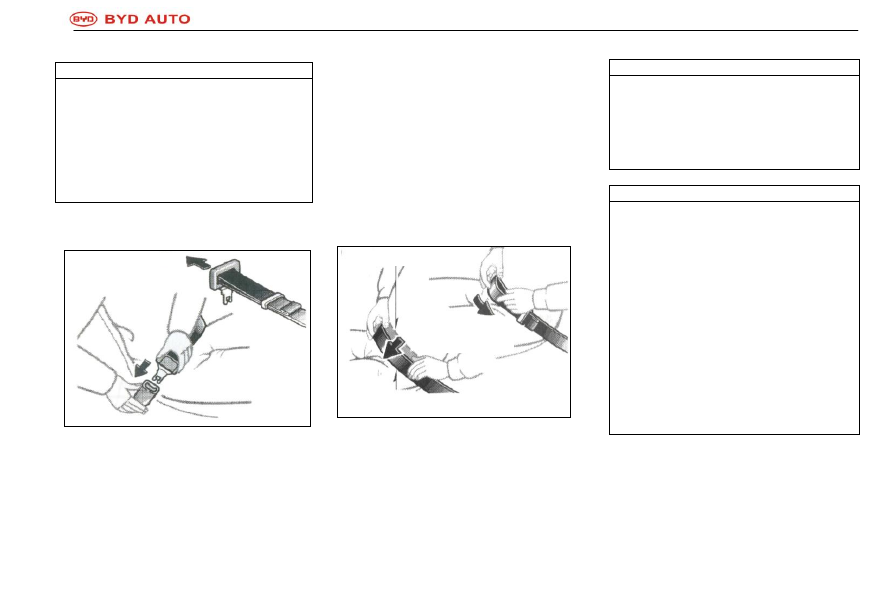

Adjust  the  seat  according  to  your
demand,  and  sit  upright  leaning  on
the seat back. To fasten seat belt, pull
it  out  of  the  retractor  and  insert  the
tab into the buckle.

clicking

sound

indicates

well

connection of the seat belt.

Length of seat belt can be automatically
adjusted according to the passenger
figure and the seat position.

In  emergency  braking  or  crashes,  the
retractor  will  lock  the  seat  belt.  If  the
body inclines forward fast, it will also be
locked.  Slow  and  steady  operation  can
drag  out  the  seat  belt  so  that  you  can
feel free.

Tips

● After the tab is inserted, make sure

it is locked up to the buckle firmly
and the seat belt is not twisted

Do not leave small objects, such as

coins,  paper  clips,  etc.  in  the
buckle,  as  they  may  affect  the
proper  connection  of  the  tab  and
the buckle.

● If seat belt functions abnormally,

immediately  inform  BYD  service
station.  Before repaired,  do not sit
on the seat with damaged seat belt
as  it  cannot  protect  passengers
and may cause injuries.

If you cannot pull the seat belt out from
the retractor, drag to tighten it and then
release it. Then, you can pull it out from
the retractor.

When shoulder safety belt for rear seat
is extended fully, retract it slightly and it
will be locked at that position prevented
from extension. To release the
shoulder safety belt once again, retract it
completely and then pull it out again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Tips

● Lap belt high above waist and

loose  safety  belt  may  cause
severe injury  to  the  passenger in
collision  and  other  accidents
when

the

passenger

slip

downward. Try to keep lap belt as
low as hip.

● For safety, shoulder safety belt

shall not be lower than the upper
arm.

Seat Belt with Height Regulating
Device

Adjust the height regulating device to fit
your body.

Raise:  move  up  the  height  regulating
device.

Lower:  press  down  the  regulating
button  of  height  regulating  device,  and
slide the device downwards.

Make sure the device is locked in place
after adjustment is finished.

Adjust the position of lap belt and
should safety belt.

Keep the lap belt as low as hip

– it is not

allowed to lock it around waist. Move up
the shoulder belt through lock plate to
adjust the belt to proper position.

To  release  belt,  press  the  button  on
the  buckle  and  the  belt  will  retract
automatically.

If  the  seat  belt  cannot  smoothly  retract
automatically,  pull it out  to see whether
there is any knot or twist. Make sure it is
twisted when retracting.

Tighten
the belt

Too high

Keep it as low as hip

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Tips

Make sure shoulder safety belt at the
middle  of  your  shoulder.  Keep  the
belt away from neck, but also prevent
it  from  falling  off  the  shoulder.
Otherwise  the  belt’s  protection
performance  will  be  reduced  in
accidents,  which  may  cause  severe
injury to passengers.

2-point Seat Belt

Sit upright in seat and lean on the
seat back. Fasten the seat belt and
insert the tab into the buckle.

A clicking sound indicates well
connection of the seat belt.

If the seat belt is not long enough, keep
the tab perpendicular to the seat belt
and pull the tab. Keep the safety belt as
low as the hip.

Retract the excessive length of the
seat belt and adjust its position.

To shorten the seat belt, pull the unfixed
end. Keep the lap belt as low as hip

– it

is not allowed to lock it around waist,
and then adjust its position.

Tips

● Lap belt which is high above waist
or loose may cause severe injury to
the passenger in collision and other
accidents when the passenger slip
downward. Try to keep lap belt as
low as hip.

Tips

●  After  the  tab  is  inserted,  make
sure  it  is  locked  up  to  the  buckle
firmly  and  the  seat  belt  is  not
twisted
●  Do not  leave  small  objects,  such
as  coins,  paper  clips,  etc.  in  the
buckle,  as  they  may  affect  the
proper connection of the tab and the
buckle.
●  If  seat  belt  functions  abnormally,
immediately  inform  BYD  service
station.  Before  repaired,  do  not  sit
on  the seat with damaged  seat  belt
as it cannot protect passengers and
may cause injuries.

Draw out

Too high

Adjust it to a
proper position

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

To release belt, press the release button
on the buckle.

Airbags

for

Driver

and

Front

Passenger

As  a  supplemental  restraint  system
(SRS), airbag system is a supplement
to  seat  belts.  It  can  provide  extra
protection  for  heads  and  chests  of
the driver and passenger and reduce
casualties in severe frontal crashes

The airbag system cannot take the place
of  seat  belts  and  is  only  a  part  of  the
whole  passive  safety  protection  system
of  the  car. Note  that  the  airbag  system
has  the  best  protection  performance
only  when  working  together  with
fastened  seat  belts.  For  the  safety  of
yourself  and  your  family,  please  pay
sp

ecial attention to the ―Tips‖ and

―Notice‖ in this section.

●  Please  keep  the  seat  belt
fastened in driving.
●  Please  keep  sitting  in  correct
posture  so  that  the  protection
effect  of  the  seat belt and  airbag
system can be taken into full play.
● Children shall be seated in rear

seats.

● Do not dismount parts of the

airbag without permission.

System Components

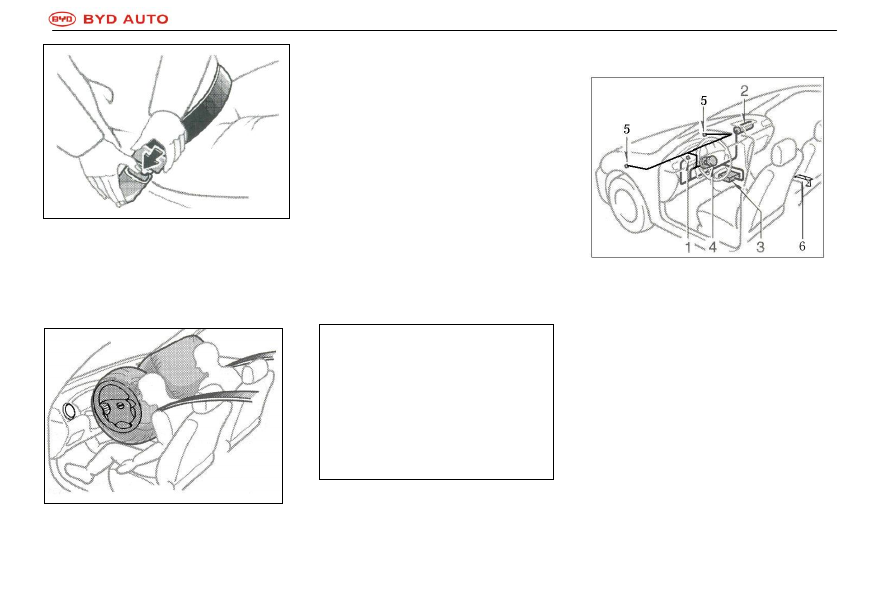

SRS  airbag  consists  of  the  following
components  and  their  positions  are
shown in the figure below:
1. SRS warning light
2.  Front  passenger  airbag  assembly
(airbag and air charging system)
3. Airbag electronic control unit (ECU)
4. Driver’s airbag assembly (airbag and
air charging system)
5. Impact sensor
6. Safety belt warning sensor (optional)

Airbag ECU consists of a safety sensor
and an airbag sensor.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3 AUTO Owner’s Manual

Airbag Warning Indicator

Airbag system is monitored by ECU
and

integrates

self-diagnosis

function.  Its  status  is  indicated  by
warning  indicator  on  instrument
panel.

● Airbag warning light will be on for 5

seconds after turning on ignition
switch, then it will goes out and
remains for over 5 seconds, which
indicates that the system is normal.

● If the airbag is disabled by BYD

service

station,

the

warning

indicator

still

functions

described in the above procedure,
but it does not provides protection
any more.

This warning indicator is intended to
monitor airbag ECU, impact sensor, air
charging

device,

warning

light,

connecting wire and power supply. (For
details, ple

ase refer to ―Maintenance of

Indicators and Warning Buzzer‖ in
Section 1-5)）

Note

If any of the following conditions,
airbag system may have trouble:
●  The  indicator  is  not  on  after
turning on the ignition switch.
●  5s  after  the  ignition  switch  is
turned on, the warning light won’t
go  out  or,    after  going  out,
flashes and turns on again.
● The indicator is on after turning
off the ignition switch.
●  The  indicator  turns  on  or
flashes in driving.

Tips

If any trouble with airbag system,
please  send  the  car  to  BYD
service  station  for  check  and
repair. Or in  case  of  an  accident,
the airbag system can not provide
protection as designed.

Indicator

for

Unfastened

Front

Passenger Seat Belt (optional)

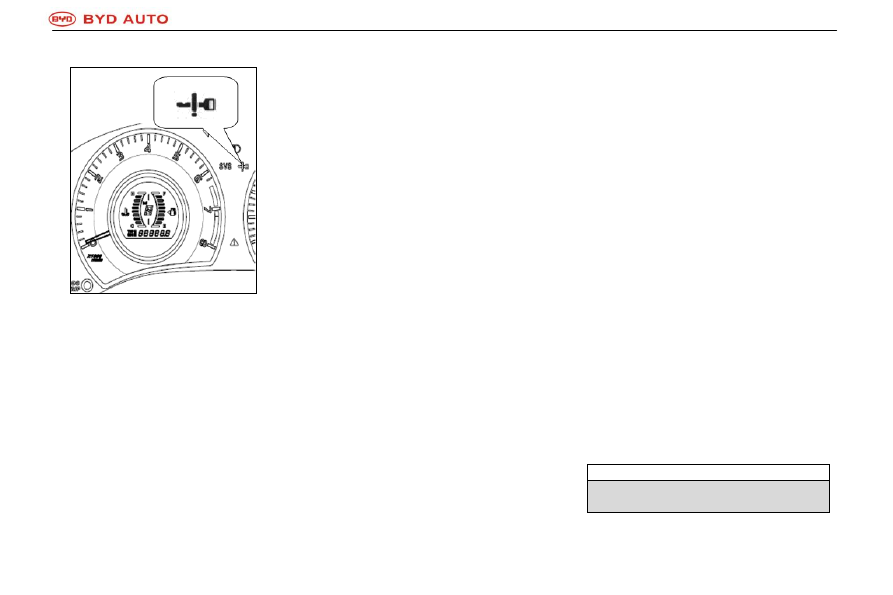

If  BYD  G3  comes  with  a  seat  belt
warning sensor, on the 1# switch group
of central  control  panel  on  the  console,
you  will see an indicator for unfastened
front  passenger  seat  belt.  It  works
together  with  the  seat  belt,  when  the
front  passenger  seat  is  occupied  with
the  seat  belt  unfastened,  this  indicator
will  turn  on  with  warning  tone  for
reminding.  When  the  front  seat  belt  is
fastened,  this  indicator  turns  off.  This
indicator  shall  be  off  when  the  front
passenger  seat  is  not  occupied.  If  any
difference  from  the  above  description,
there  is  abnormality  with  the  airbag
system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD G3. Service Manual - part 2
