BYD F3DM. Service Manual - part 10

- 145 -

F3DM Owner’s Manual

Chapter 4

—————————————————————————————

In Case of An Emergency

If the Car Cannot Start  …………………………………………… 146
If the DM system stalls in Driving ………………………………… 146
If the Car Overheats ……………………………………………… 146
If the Car Has Flat Tires ………………………………………… 148
If the Car Gets Stuck ……………………………………………… 154

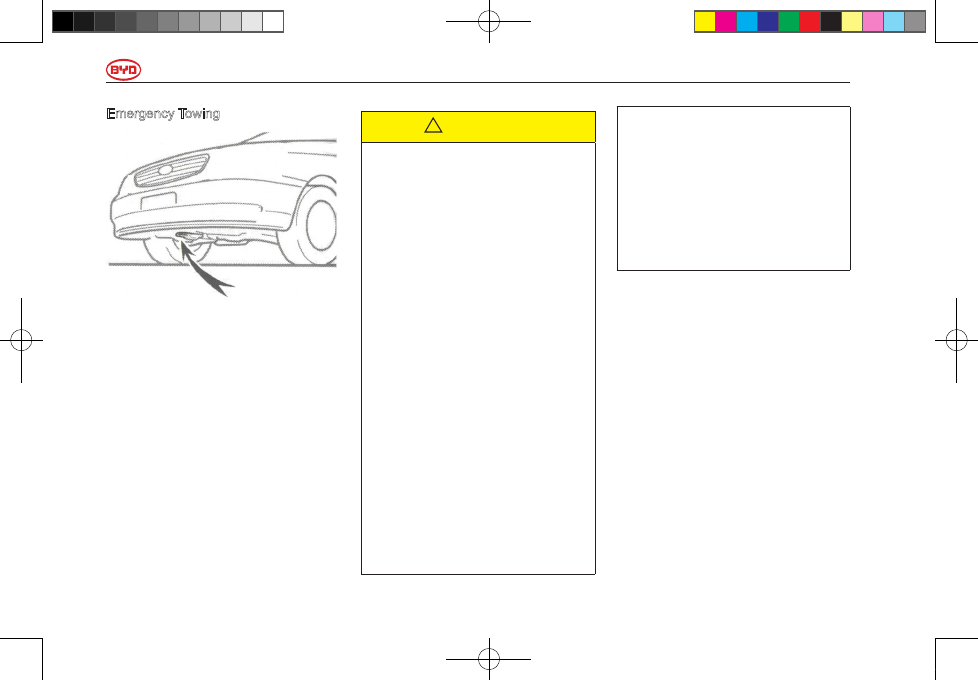

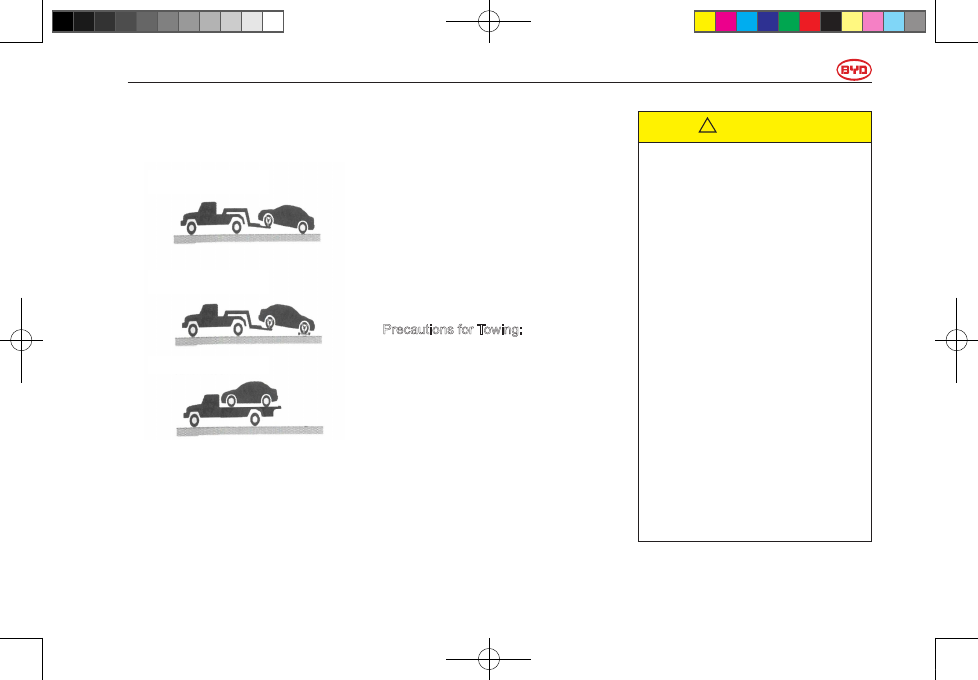

If Car-towing is Needed …………………………………………… 155

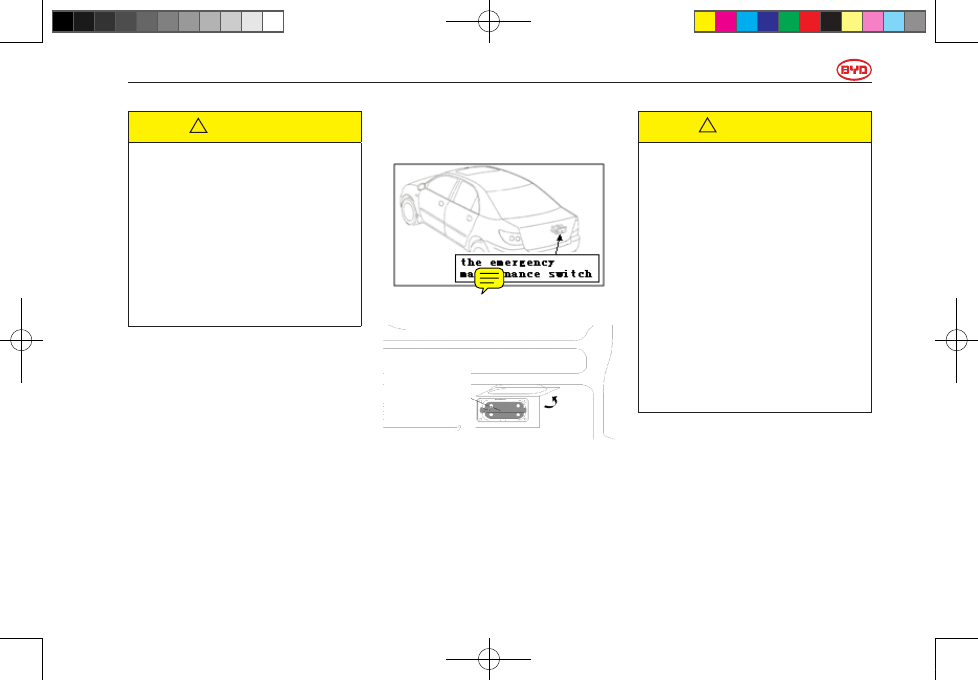

Emergency Maintenance Switch ………………………………… 157

使用手册小330.indd   145

2011-4-13   18:36:52

- 146 -

F3DM Owner’s Manual

If the Car Cannot Start

(a) Simple Check
Before conducting this check, make
sure the starting procedure in “How
to Start the Car” in Chapter 3 is
performed properly and there are
sufficient fuel and power.   Meanwhile,
check if the car can get started by
using the spare key. If it works, your
key may be broken. Please contact
BYD authorized dealer to check your
key. If none of your keys work, the
vehicle control system may have a
malfunction, please contact BYD
authorized dealer for help. (Refer to
description “Keys” in Section 1-2.)
1.Check that the auxiliary battery
connections are tight and clean.
2.Turn the ignition switch to the ON
position, turn on the headlights, and
check their brightness. If the headlights

are very dim or do not come on at all,
the battery is discharged. Please refer
to “Jump Starting” in section 7-3.
3.Check whether the power battery is
discharged, if yes, charge the battery
immediately.
4. Check if there is sufficient fuel in the
tank. Insufficient fuel also cause the
car cannot startup.
If you find nothing is wrong, but the car
can’t start. You will need a qualified
technician to find the problem. Please
contact your BYD authorized dealer.

WARNING

You cannot start your vehicle by
pushing or pulling it.

If the DM system stalls in

Driving

1. Turn on the emergency flashlight.
2. Please slow down the car gradually,
keep moving in a straight line and run
off the road to a safe place.
3. Follow “Car Starting Methods” and
try to start the car again.
If the car cannot start, please see “If
the Car Cannot Start Up”.

WARNING

If the DM system is off, the boosters
of brake and steering device cannot
work, which makes steering and
braking much harder than usual.

If the Car Overheats

If the high coolant temperature warning
light comes on, if there is no power

!

!

使用手册小330.indd   146

2011-4-13   18:36:52

- 147 -

F3DM Owner’s Manual

output or if there is loud knocking or
ping noise, that means the power train
or engine controller is overheated.
Please handle it as per the procedures
below…
1. Turn on the emergency flashlight,
drive the car safely off the road and
stop it. Put the transaxle in P position
and apply the parking brake. Shut
down air conditioner if it is running.
2. If there is  antifreeze or steam boiling
out of the tank, shut down the DM
system. Wait until the steam subsides
before opening the hood. If there is no
antifreeze or steam boiling over, leave
the DM system running and check the
electric cooling fan. If electric cooling
fan do not work, turn the ignition off,
call your BYD authorized dealer for
repair.

WARNING

Driving in the condition of car
overheats can cause serious
damage to your engine.

WARNING

Steam and spray from overheated
engine can seriously scald you.
Do not open the hood if steam is
coming out.

3. Check whether there is obvious
antifreeze leakage under the radiator,
hose.  Water  draining  from  the  air
conditioning is normal if it has been
used.

WARNING

Keep a proper distance between the
fan and things, such as hands and
clothes, to avoid a danger caused
by abrupt startup of the fan.

4. If any antifreeze leakage, you shall
stop the engine immediately. Please
contact BYD authorized dealer for
help.
5. In case of no obvious leakage,
please check the antifreeze reservoir;
if the level is below the MIN mark or
there is no antifreeze in the reservoir,
add some   antifreeze to the reservoir
up to the maximum scale mark with the
DM system is running.

!

!

!

使用手册小330.indd   147

2011-4-13   18:36:52

- 148 -

F3DM Owner’s Manual

WARNING

Removal of the radiator cap Under
high temperature can cause the
antifreeze to spray out, and serious
injury may be resulted from scalding
fluid and steam blown out under
pressure.
Always let the engine and radiator
cool down before removing the
radiator cap.

6. When the antifreeze temperature
be cooled to normal, check the
antifreeze level in the tank again and
add additional antifreeze up to the
maximum scale mark if necessary.
Large drop of antifreeze level means
leakage in the system. Please contact
BYD authorized dealer for immediate
examination.

If the Car Has Flat Tires

Turn on the emergency flashlight.
Drive slowly along the shoulder until
you get to an exit or an area to stop a
safe place away from the traffic lanes.
Park the car on firm, level and non-
slippery ground.
Put the transmission in P and apply the
parking brake.
Turn the ignition switch to “LOCK”
position.
All the passengers get out of the car
on the side away from traffic.
Read the following instructions
carefully.

WARNING

To reduce the possibility of serious
personal injury, please obey the
instructions below when you lift the
car by a jack.



y

Follow the directions for changing

a tire exactly, and never get
under the vehicle when it is
supported only by the jack



y

When the car is lifted by a jack,

do not start and run the DM
system.



y

 Park the car on firm, level and

non-slippery ground, apply
parking brake tightly and shift
the transmission to P gear. If
necessary, block the wheel
diagonally opposite to the one
being changed.



y

Make sure to set the jack properly

!

!

使用手册小330.indd   148

2011-4-13   18:36:52

- 149 -

F3DM Owner’s Manual

in the jack point. Raising the
vehicle with jack improperly
positioned will damage the
vehicle or may allow the vehicle
to fall off the jack and cause
personal injury.



y

When  the  car  is  supported  by

jack, no one is allowed to get
under the car.



y

Use jack only for lifting the car

while tire changing.



y

Do not lift up the car when

someone is in it.



y

Do not put anything at the top or

bottom of the jack while lifting the
car.



y

Just lift the car to a height

that allows tire removal and
replacement.

WARNING



y

Do not continue driving the car

with a flat tire. Driving even a
short distance on a deflated
tire can lead to tire failure, also
reduce fuel efficiency and tire
life, and may affect the vehicle’s
handling and stopping ability.



y

Use the spare tire  as a temporary

replacement  only.  Get  your
regular tire repaired or replaced,
and put on your vehicle as soon
as you can.

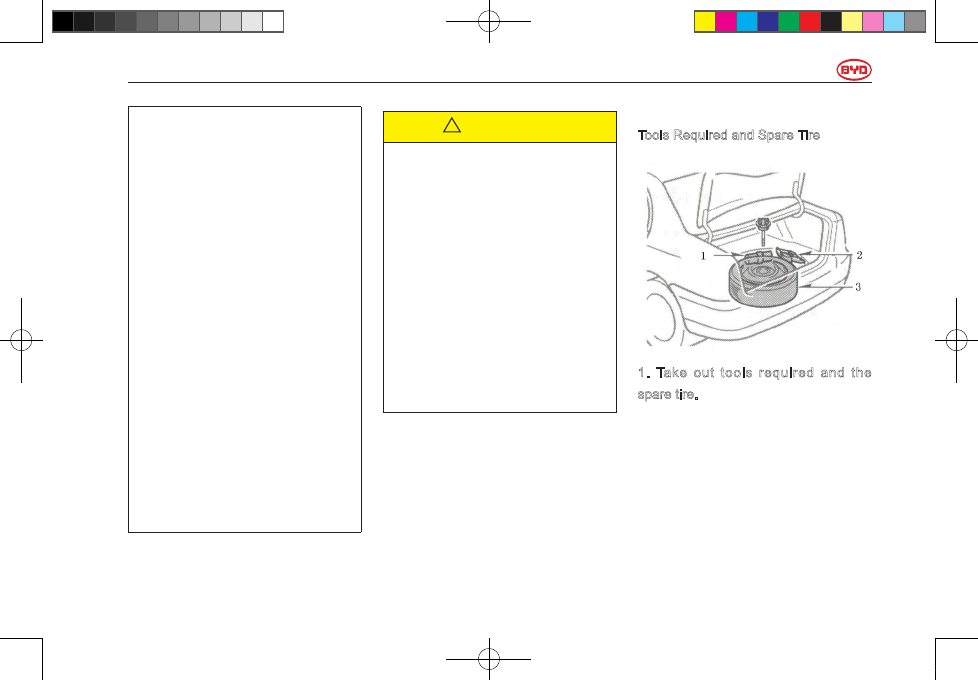

Tools Required and Spare Tire

1. Take  out  tools  required  and  the
spare tire.
1.Toolkit
2.Jack
3.Spare tire
In emergency conditions, you may
have to repair the car by yourself.
Please well know the use method and
storage location of the jack and various
tools.

!

使用手册小330.indd   149

2011-4-13   18:36:52

- 150 -

F3DM Owner’s Manual

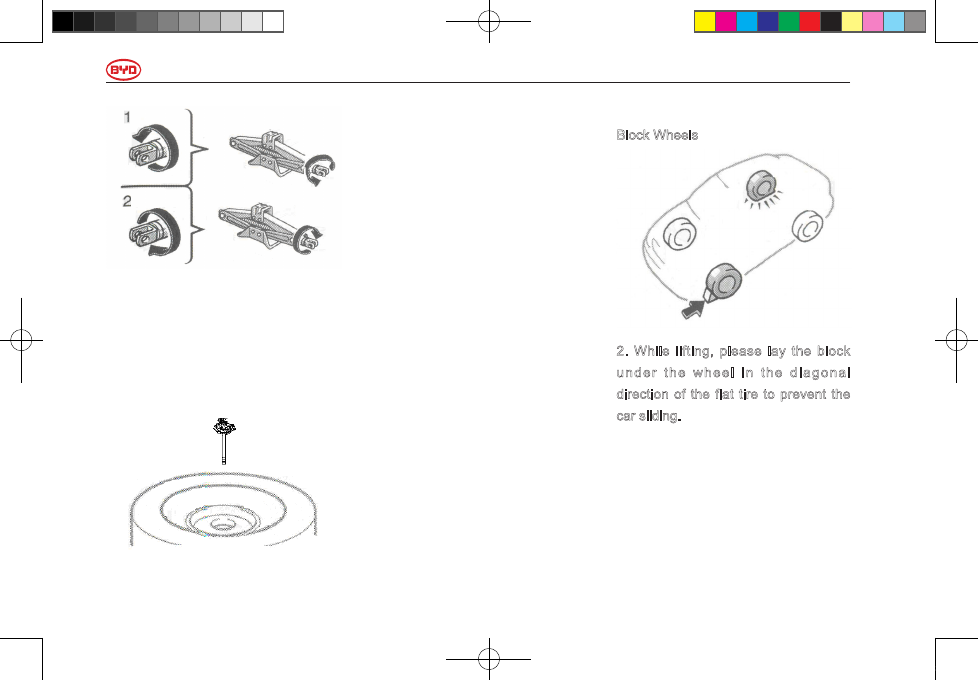

Remove: rotate the terminal in direction
1 until the jack becomes flexible.
Storage: rotate the terminal in direction
2 until the jack is fixed tightly to prevent
it from being thrown forward when
there is crash or emergency braking.

Loosen and remove the spare tire
carrier, then take out the spare tire.
To store the tire, please put the outside
of the tire downward in place, and then
fasten the tire in the opposite order to
prevent it from being thrown forward
when there is a crash or emergency
braking.
Note: when fastening the original tire
of the car with methods of fastening
the spare tire carrier, please put the
side with higher convex plate facing
upwards.

Block Wheels

2. While lifting, please lay the block
under the wheel in the diagonal
direction of the flat tire to prevent the
car sliding.
Put the block in front of a front wheel
or behind a rear wheel.

使用手册小330.indd   150

2011-4-13   18:36:52

- 151 -

F3DM Owner’s Manual

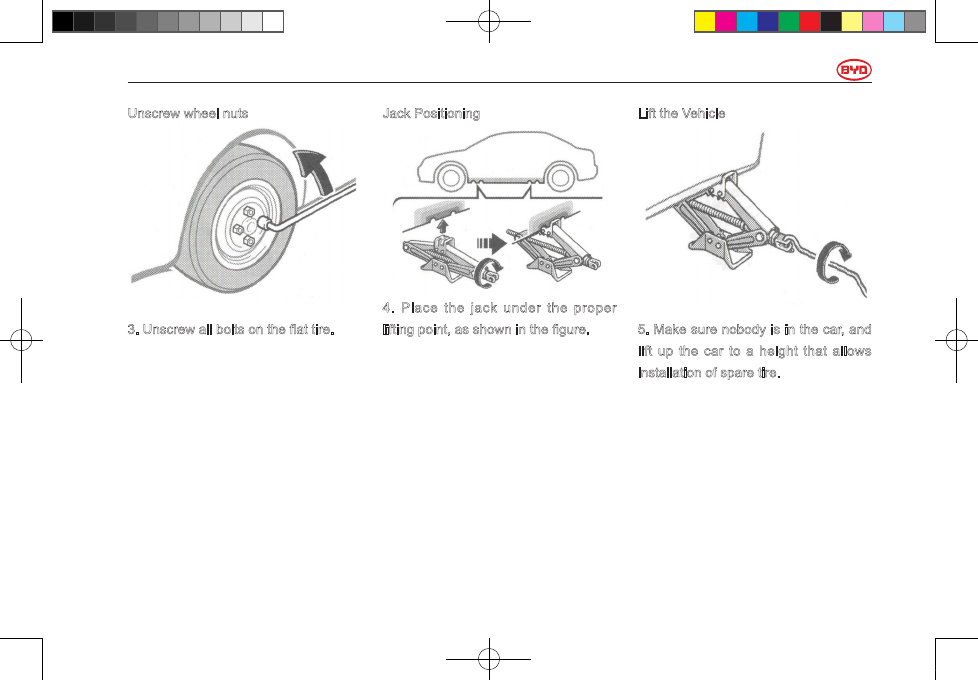

Unscrew wheel nuts

3. Unscrew all bolts on the flat tire.
Unscrew all bolts on the wheel before
lifting the car.
Unscrew the bolts on the wheel anti-
clockwise. For better torque, you can
fit the wrench to the nut with its handle
on the right side, as shown in the figure
above. Grip at the end of the wrench
handle and pull upwards. Please avoid
the wrench slipping off the nut.
Do not remove the nuts, just loosen
them.

Jack Positioning

4. Place the jack under the proper
lifting point, as shown in the figure.
Make sure that the jack is placed on
the flat and solid ground.

Lift the Vehicle

5. Make sure nobody is in the car, and
lift up the car to a height that allows
installation of spare tire.
Please notice that it needs larger
ground clearance to install the spare
tire than removing the flat tire.
To lift up the car, please insert the
jack handle into the jack (loose joint)
and  rotate  it  clockwise.  When  the
jack touches the car and starts lifting,
please check again if the jack is at the
right position.

使用手册小330.indd   151

2011-4-13   18:36:52

- 152 -

F3DM Owner’s Manual

WARNING

When the car is supported only by
jack, no one is allowed to get under
the car.
Pay attention to the exhaust pipes
on both sides of car in using jack, to
avoid burns.

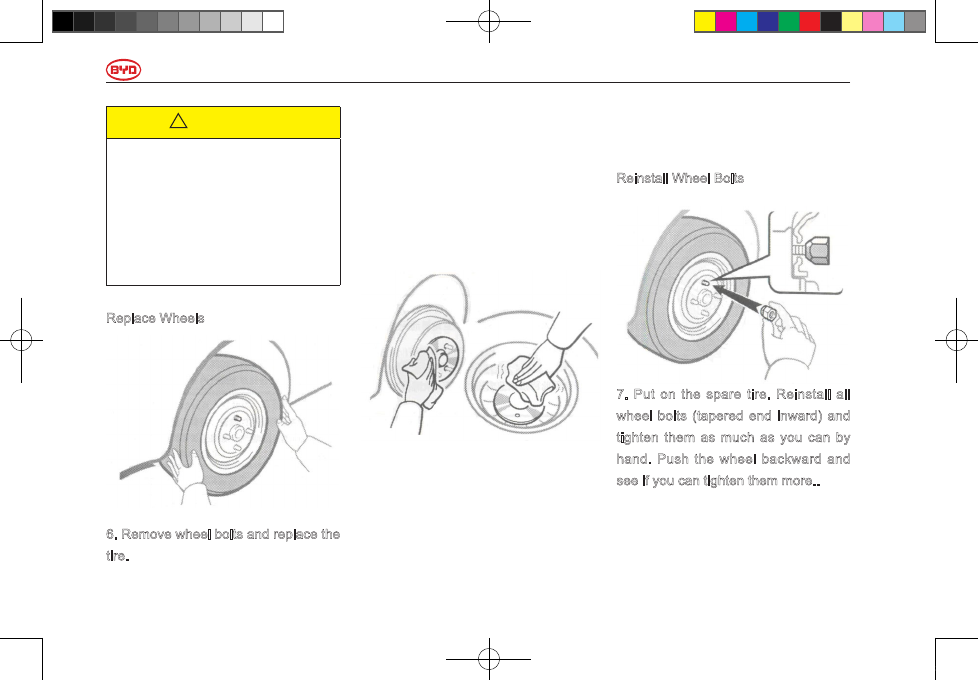

Replace Wheels

6. Remove wheel bolts and replace the
tire.

Take off the flat tire and put it aside
Move the spare tire to the installation
position, align the bolts to tire holes,
and then raise the tire until the top bolt
fits into the screw hole. Rotate the tire
and push it until all bolts can fit into
corresponding screw holes.

Before installation, please brush off all
corrosive materials on the installation
surface with a wire brush. During
installation, the metal area on the
installation surfaces must be in good
contact with each other, or the wheel

bolts may get loose, which may cause
the tire falling off while driving.

Reinstall Wheel Bolts

7. Put on the spare tire. Reinstall all
wheel bolts (tapered end inward) and
tighten them as much as you can by
hand. Push the wheel backward and
see if you can tighten them more..

!

使用手册小330.indd   152

2011-4-13   18:36:52

- 153 -

F3DM Owner’s Manual

WARNING

Do not apply engine oil or lubricant
on the nuts, or they will get loose,
w h i c h   m a y   c a u s e   t h e   w h e e l
detached and lead to serious
accident. If there is engine oil or
lubricant on the bolts or nuts, clean
them immediately.

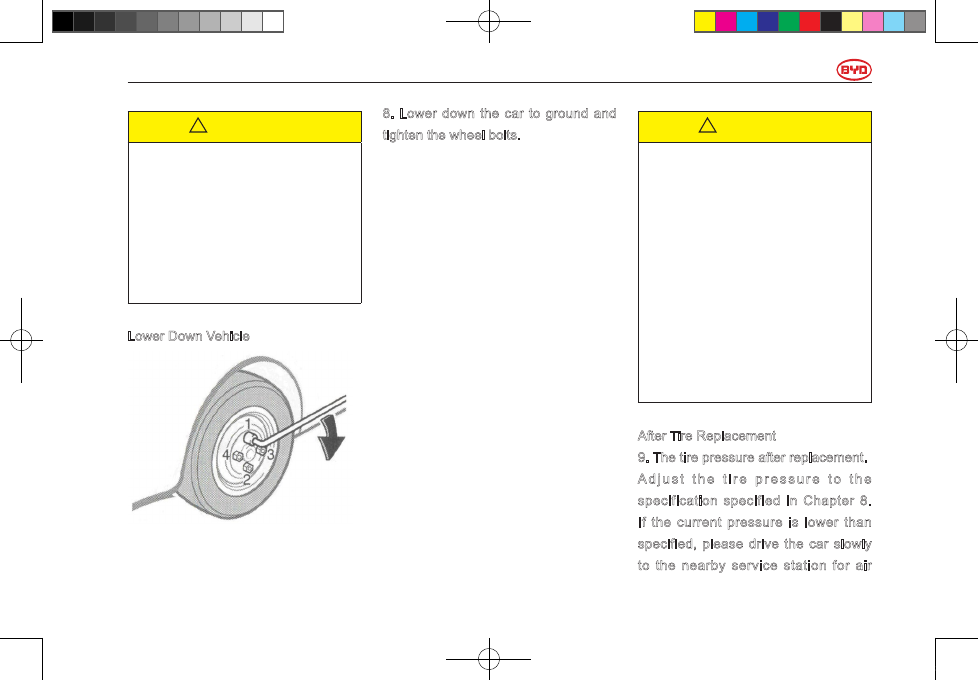

Lower Down Vehicle

8. Lower down the car to ground and
tighten the wheel bolts.
To lay down the car, please rotate the
jack handle counterclockwise.
Please use a wheel wrench to tighten
the wheel bolts. Do not use any other
tools or lever other than your hands,
like hammer, tube, or your foot. Make
sure the wrench is securely engaged
over the bolts.
As per the order shown in the figure
above, tighten the bolts slightly one by
one, repeat the procedure until all the
bolts are fastened firmly.

WARNING



y

Please make sure no part of your

body and no one nearby will get
injured while laying down the car
onto the ground.



y

After the tire is replaced, Have

the wheel bolts tightened with
torque wrench to 110N·ｍ (11.5
kgf·m). Otherwise if the torque
is insufficient, the nuts will get
loose, which may cause the
tire fell off and result in serious
accident.

After Tire Replacement
9. The tire pressure after replacement.
Adjust the tire pressure to the
specification specified in Chapter 8.
If the current pressure is lower than
specified, please drive the car slowly
to the nearby service station for air

!

!

使用手册小330.indd   153

2011-4-13   18:36:52

- 154 -

F3DM Owner’s Manual

charging.
Do not forget to install the tire valve
cap, or dust and moisture will enter
the valve core to cause possible air
leakage. If the tire valve cap is missing,
please use a new one immediately.
10. Keep all the tools, jack and flat tire
properly and fasten the flat tire in the
spare tire carrier.

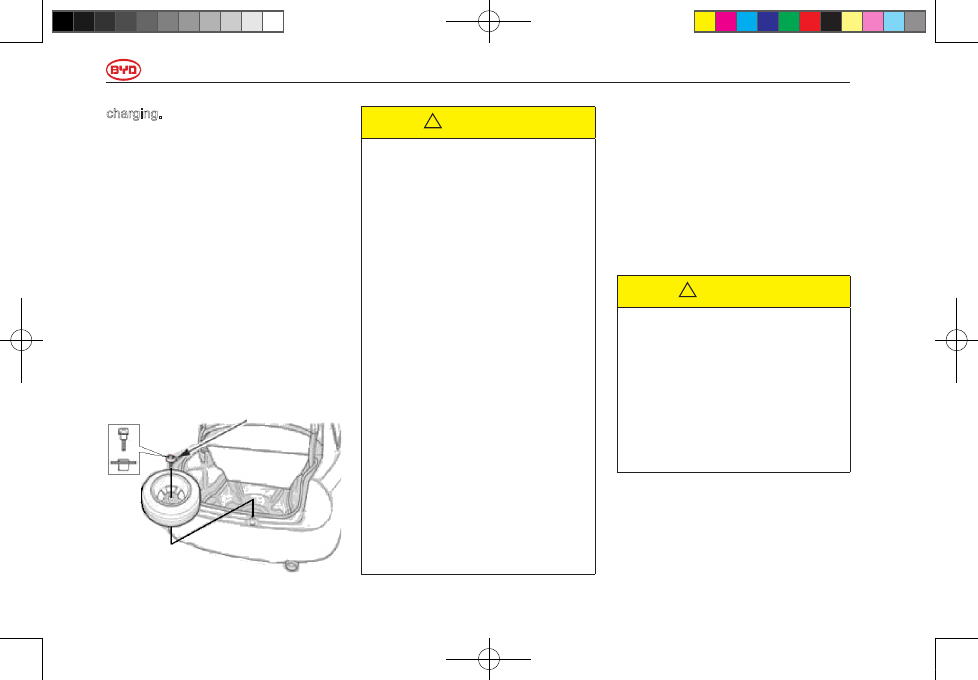

Flat tire shall be repaired by the
professional technician. The flat tire
should fasten as follow way, with higher
convex plate side facing upwards. See
the  following  illustration.

Bolt

WARNING



y

Store the jack, wheel, and tools

securely before driving. Loose
items can fly around the interior
in a crash or sudden braking, and
could seriously injure occupants.



y

After tire replacement, please do

not drive over 70km/h and single
travel cannot exceed 100km; you
shall drive slowly to the nearest
BYD authorized dealer to get the
tire replaced. Otherwise, serious
accidents such as tire burst and
failure of operation may occur.



y

If you ever replaced a tire, make

sure that the tire’s specifications
match those of the original tires.



y

when the compact spare tire is

installed,avoid driving over obstacles
and drive slowly on rough, unpaved
roads and speed bumps.

If the Car Gets Stuck

If the car gets stuck in snow, mud, or
sand, please try to get it out by pushing
it forward or backward. Or you can call
a towing service to pull it out (see the
next section If Car-towing is Needed)

WARNING

If there are persons or objects near
the car, please do not try to move
the car by pushing it forward and
backward. If not, once the car gets
out and suddenly moves forward or
backward, there may be personal
injury or damage to objects.

!

!

使用手册小330.indd   154

2011-4-13   18:36:53

- 155 -

F3DM Owner’s Manual

If Car-towing is Needed

Tow from the front

Tow from the back

Use flat bed truck

Proper  equipment  will  help  ensure
that your vehicle is not damaged
while being towed. Your vehicle can
be damaged if it is towed incorrectly.
Although most operators know the
correct procedure, it is possible to
make a mistake. To avoid damage to
your vehicle, make sure the following
precautions are observed.

Precautions for Towing:
Use safety chain system and abide
by applicable national and local laws.
If you cannot shift the transmission or
start the DM system, your vehicle must
be towed by a flat bed truck.

WARNING



y

You  are  required  to  release  P

gear before towing the car, that’s
to say, when the engine starts,
you shall shift transaxle to N gear
before driving. If P gear is locked,
you can only tow the car by lifting
the front wheels off the ground, or
it may damage the transmission
box.



y

Do not tow with sling type truck,

either from the front or rear. This
may cause body damage.



y

When  lifting  wheels,  should

e n s u r e   a d e q u a t e   g r o u n d
clearance for towing the raised
v e h i c l e .   O t h e r w i s e ,   i n   t h e
course of towing vehicle may be
damaged.

!

使用手册小330.indd   155

2011-4-13   18:36:53

- 156 -

F3DM Owner’s Manual

Emergency Towing

For emergency towing, we recommend
you to have it done by    your BYD
authorized dealer.
If you cannot find a towing company
under emergency situation, please
tie the towing cable or chain to the
emergency towing hook at the bottom
of the car for temporary towing. In this
case, you shall be extremely careful.

WARNING



y

Please use the specified towing

hook, cable or chain and tie the
cable or chain to the hook tightly,
or it may damage the car and
cause serious injury or death.



y

Do not tow the car from the

rear with all four wheels on
the ground, or it will seriously
damage the transmission.



y

You  are  required  to  release  P

gear before towing the car, that’s
to say, when the engine starts,
you shall shift transaxle to N gear
before driving. If P gear is locked,
you can only tow the car by lifting
the front wheels off the ground, or
it may damage the transmission
box.



y

Do not tow the car farther than

10km and keep the speed below
30  KM/h.



y

The DM system shall be running

in towing; if not, boosters of
brake and steering device cannot
work, which makes steering and
braking much harder than usual.

The driver must be in the vehicle to
steer the car and control the brake.
Towing in this way may be done only
on hard–surfaced roads for a short
distance and at low speeds. Also the
wheels, axles, transmission, drive train,
steering, and brakes must be in good
condition.

!

使用手册小330.indd   156

2011-4-13   18:36:53

- 157 -

F3DM Owner’s Manual

WARNING

Take extremely attention when
towing the car. Avoid sudden starts
or unstable operation which would
effect great stress on the emergency
towing hook and towing cable or
chain. It may cause the hook and
towing cable or chain break and
cause serious injury or damage.

Emergency Maintenance

Switch

Functions of emergency maintenance
switch
In vehicle maintenance and
emergency, cut off all high-voltage
system in the unit.
Emergency  maintenance  switch  is
under the guard board of luggage
carrier. Press the button on the

handle when using and then pull it out
horizontally.

E m e r g e n c y
maintenance
switch

WARNING



y

When the ignition key is at “ON”,

strictly prohibit from plugging/
unplugging the emergency
maintenance switch and
connectors on the box.



y

Before repair/dismantle the whole

unit, do pull out the emergency
maintenance switch first.



y

Do not pull out the emergency

m a i n t e n a n c e   s w i t c h   a n d
connectors on the box when the
car is being charged

!

!

使用手册小330.indd   157

2011-4-13   18:36:53

- 158 -

F3DM Owner’s Manual

WARNING



y

Please check that the ignition

key do turn to “LOCK” position
and the emergency maintenance
switch has been installed on
the high-voltage distribution box
before charging the battery.



y

You’d better pull out the

emergency maintenance switch
if the car is not used for a long
time.

WARNING



y

Do not pour any fluid or solid into

high-voltage distribution box and
on the connectors of box. Do
not start the car when fluid and
solid enter into the high-voltage
distribution box.



y

When there is no emergency

maintenance switch, do not
replace it with any other
conductive metal.



y

Avoid an electric shock, it’s strictly

forbidden to touch the high-
voltage parts without security
device.



y

It’s strictly forbidden to disconnect

the high-voltage distribution box
privately.



y

Do not plug/unplug the connectors

of battery administrator in driving
and parking.

●It’s strictly forbidden to compress
or knock the shell of the controller.
If any sunk part and crack on the
shell, you shall stop the car and
call your BYD authorized dealer for
repair.
You shall be responsible for all
consequences  arising  from  the
operations in violation of the rules

!

!

使用手册小330.indd   158

2011-4-13   18:36:53

- 159 -

F3DM Owner’s Manual

Chapter 5

—————————————————————————————

Corrosion Prevention and Appearance Care

Protecting F3DM from corrosion ………………………………… 160
Tips on maintenance of vehicle surface ………………………… 161
Washing and waxing ……………………………………………… 162
Cleaning the interior ……………………………………………… 165

使用手册小330.indd   159

2011-4-13   18:36:53

- 160 -

F3DM Owner’s Manual

Protecting F3DM from

corrosion

Proper maintenance of your car can
help ensure long-term corrosion
prevention.
The most common causes to corrosion
to your vehicle are:
●The accumulation of road salt, dirt
and moisture in hard-to-reach areas
under the vehicle
●Clipping  of  paint,  or  undercoating
caused by minor accident or by stones
and gravel.
If you live in particular areas or operate
your vehicle under certain environment
condition, care is of utmost importance:
●Road salt or dust with chemicals will
accelerate corrosion. Salt also exists in
the air near the sea coast or in areas
of industrial pollution.
●High  humidity  will  accelerate

corrosion, especially when temperature
range just above the freezing point.
●When  certain  parts  of  the  car  are
always under circumstances with high
humidity and moisture, even if the rest
parts may be dry, corrosion will occur.
●High ambient temperature may cause
corrosion to those components which
cannot get dry quickly due to lack of
proper ventilation.
Those above signifies the necessity to
keep your car, especially its underside,
as clean as possible and to repair any
damage to paint or protective coatings
as soon as possible.,
To prevent corrosion on your F3DM,
please follow the guidelines below:
Washing your car regularly can keep
it clean. But to prevent corrosion,
please the following points should be
observed:
●If you drive the car on salted roads in

winter or live near the ocean, please
wash the running part of the car at
least once per month to minimize
corrosion.
●It  is  effective  for  cleaning  chassis
and wheel cover under high pressure
water or steam. Pay more attention
to the vehicle’s underside and wheel
housings as it is difficult to see all the
mud and dirt. It will be much more
harmful to simply wet the mud and
debris without removing. Drain holes
in the lower edge of doors, rocker
panels and frame members should not
be allowed to clog with dirt, because
trapped water in these areas can
cause corrosion.
●Wash the underside of your vehicle
thoroughly when winter is over.
For further information, please refer to
“Washing and Waxing”.
Check the condition of your vehicle’s

使用手册小330.indd   160

2011-4-13   18:36:53
