BYD F3, F3-R. Service Manual - part 7





BYD AUTO
F3 OWNER’S MANUAL
Operating tips
z
To cool off your BYD F3 after it
has been parked in the hot sun,
drive with the windows open for a
few minutes. This vents the hot air,
allowing the aid conditioning to
cool the interior more quickly.
z
Make sure the air intake grilles in
front of the windshield are not
blocked (by leaves or snow, for
example).
z
On humid days, do not blow cold
air on the windshield. The
windshield could fog up because of
the difference in air temperature on
the inside and outside of the
windshield.
z
Keep the area under the front seats
clear to allow air to circulate
throughout the vehicle.
z
On cold days, set the fan speed to
high speed for one minute to help
clear the intake ducts of snow or
moisture. This can reduce the
amount of fogging on the windows.
z
When driving on dusty roads, close
all windows. If dust thrown up by
the vehicle is still drawn into the
vehicle after closing the windows,
it is recommended that the air
intake selector be set to FRESH and
the fan speed selector to any value.
100
BYD AUTO
F3 OWNER’S MANUAL

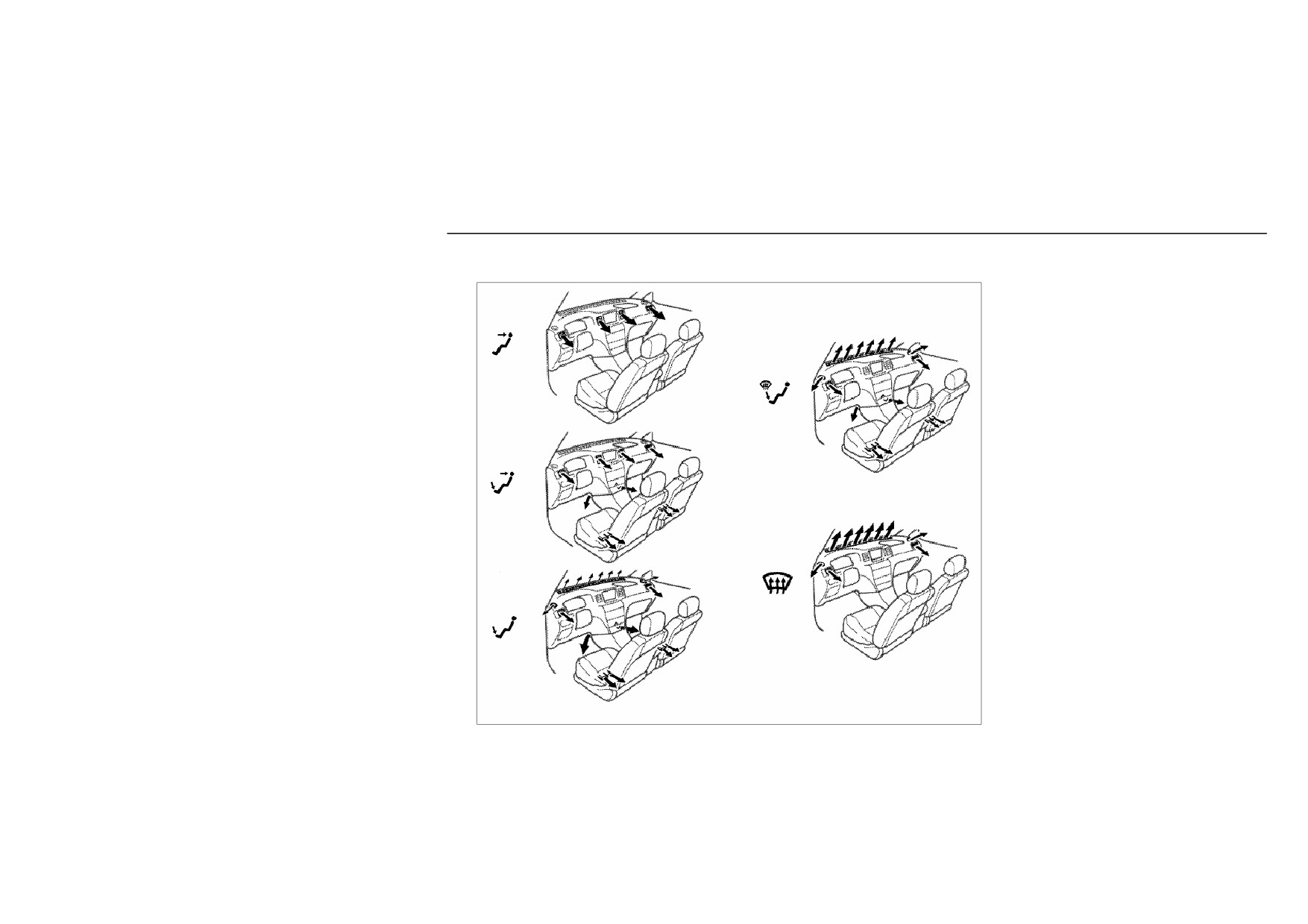

Heating
interior while defrosting or
Ventilation
For best results, set controls to:
defogging the windshield.
For best results, set controls to:
For automatic operation
Fan speed: to the desired fan speed
Press in the “AUTO” button
Air conditioning
Temperature: towards low
Temperature: to the desired
For best results, set controls to:
temperature
temperature
For automatic operation
Air intake: FRESH (outside air)
Air intake: FRESH (outside air)
Press in the “AUTO” button
Air flow: PANEL
Air conditioning: OFF
Temperature: to the desired
Air conditioning: OFF
temperature
For manual operation
Air intake: FRESH (outside air)
Fan speed: to the desired fan speed
Temperature: towards high
For manual operation
temperature
Fan speed: to the desired fan speed
Air intake: FRESH (outside air)
Temperature: towards low
Air flow: FLOOR
temperature
Air conditioning: OFF
Air intake: FRESH (outside air)
z
For quick heating, select
Air flow: PANEL
re-circulated air for a few
Air conditioning: ON
minutes. To keep the windows
z
For quick cooling, move the air
from fogging, select FRESH
intake selector to
after the vehicle interior has
RECIRCULATE for a few
been warmed.
minutes.
z
Choose FLOOR/WINDSHIELD
air flow to heat the vehicle
101
BYD AUTO
F3 OWNER’S MANUAL

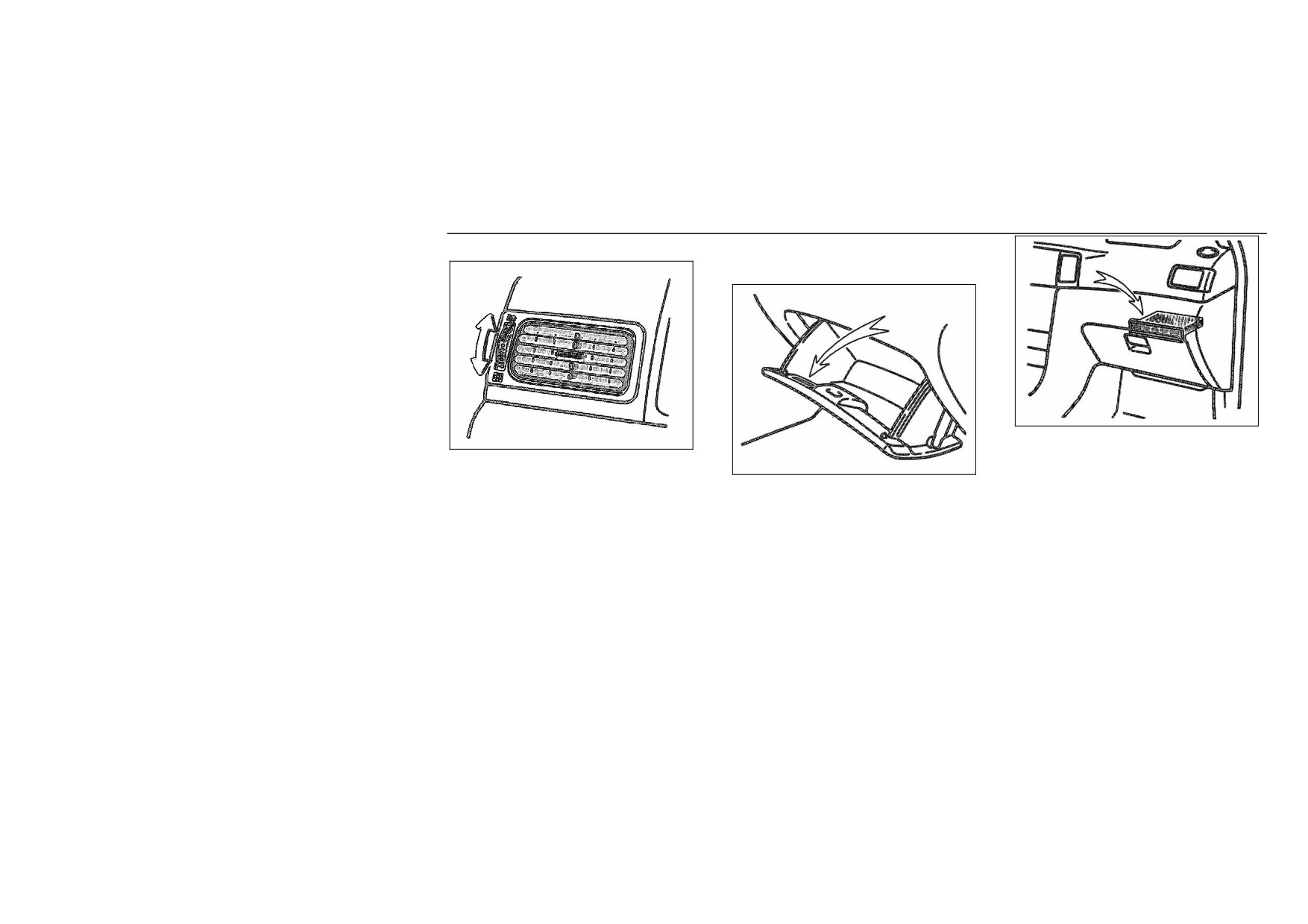

Side vents
Checking and replacing air
conditioning filter
The air conditioning filter is placed
If the air flow control is not
behind the glove box.
satisfactory, check the side vents.
The instruction plate of air
The air condition will be blocked
The side vents may be opened or
conditioning filter is pasted inside
though a long time. If you feel that
closed as shown.
the glove box. This indicates the
the air flow decreases, replace the air
filter has been fixed.
conditioning filter.
The air conditioning filter can block
To guarantee the A/C working effect,
the dust to enter the vehicle though
follow the maintain plan to check and
the air intake vent.
replace the air filter. For details, see
Section 6.
102
BYD AUTO
F3 OWNER’S MANUAL

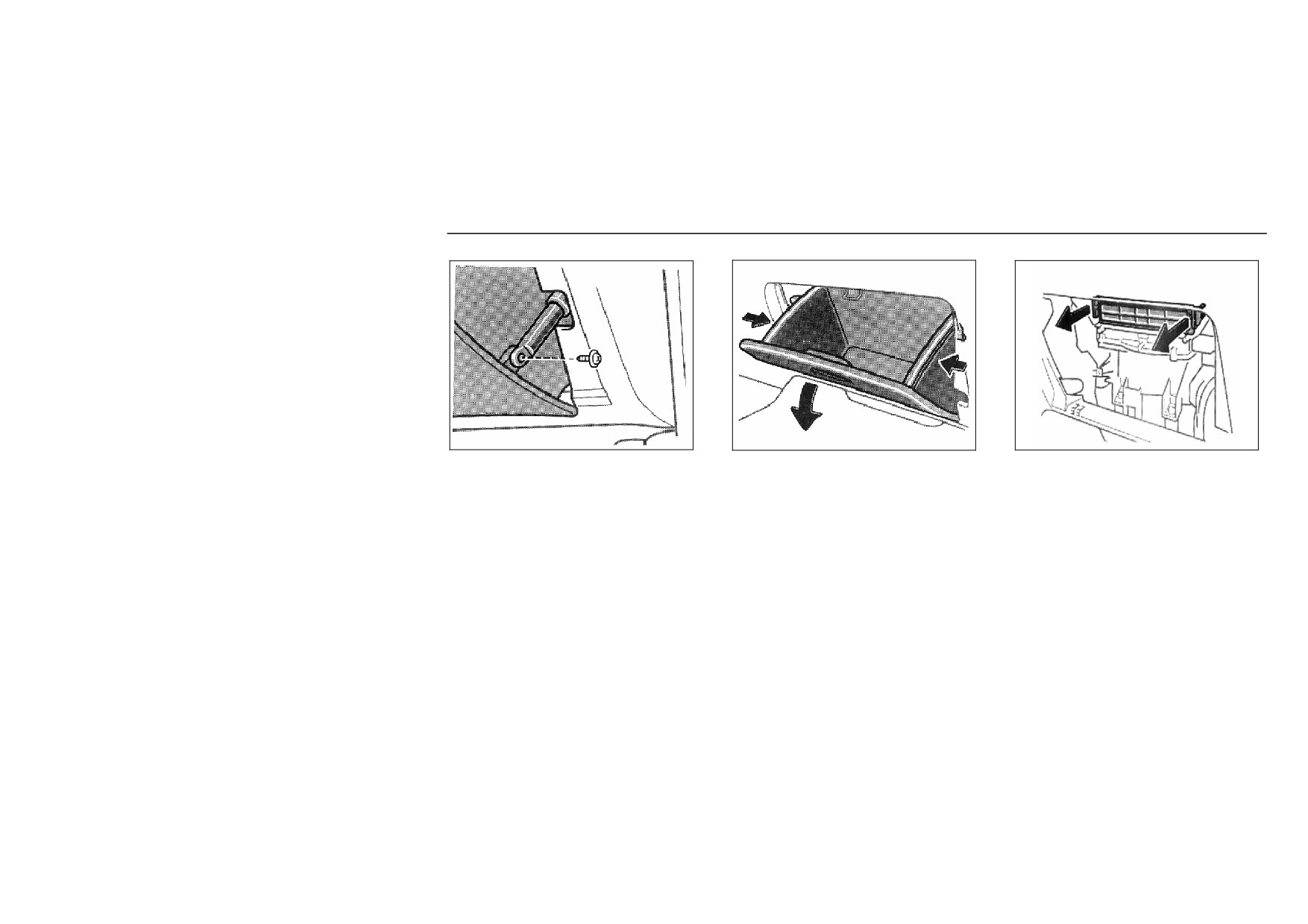

1. Open the right glove box and use
2. Press both sides of the glove box
3. Follow the picture to remove the
a cross-head screwdriver to release
to unfasten the pothook and
air conditioning filter.
the specified screw on the damper.
remove the glove box.
103
BYD AUTO
F3 OWNER’S MANUAL
CAUTION
The air conditioning filter must be
installed in its correct position.
Using an air conditioning system
without a filter will weaken the
dust-proof function and the air
conditioning capability.

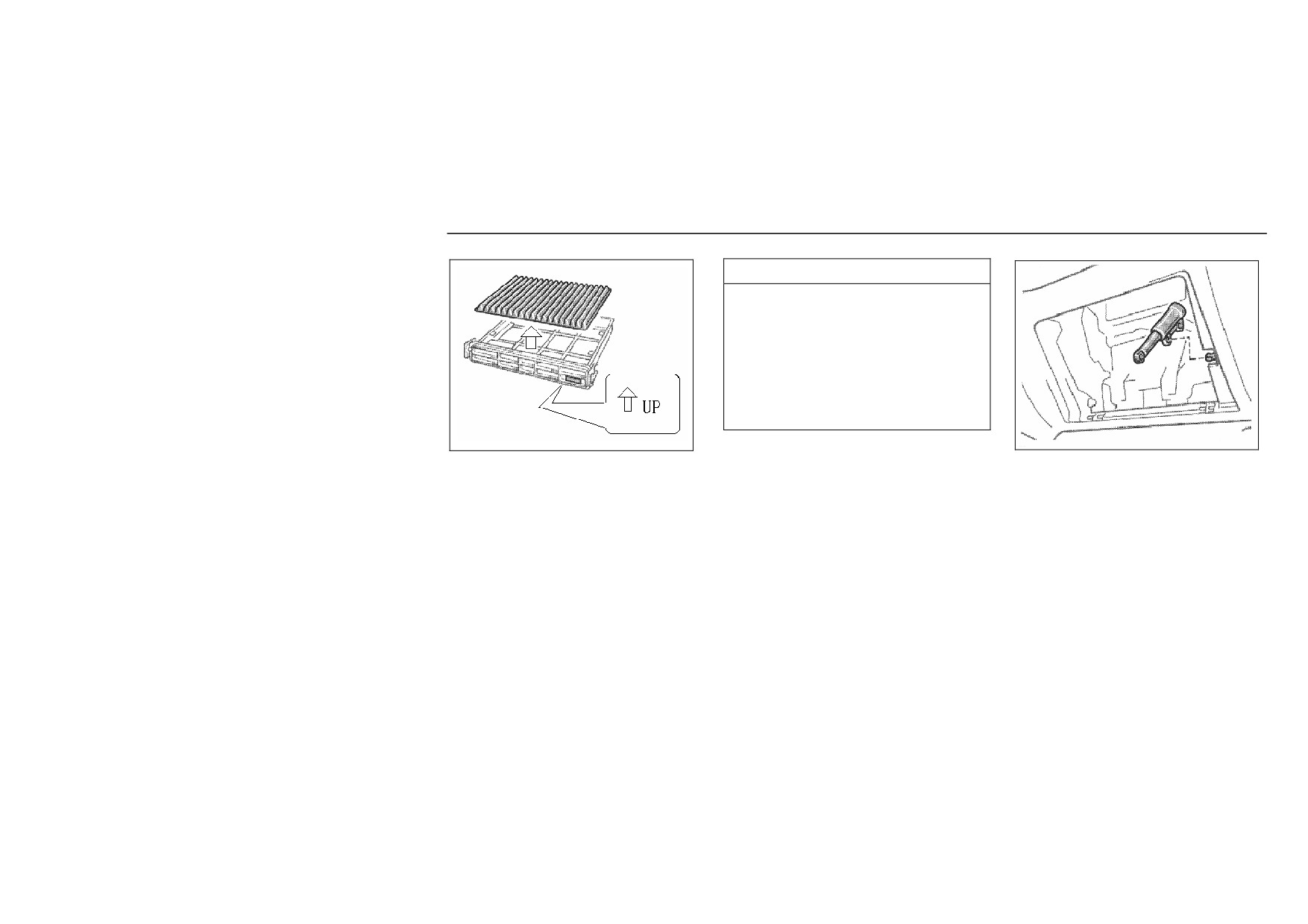

4. Pull the filter core out from the
Install the glove box
filter box.
1. Insert the pin into the damper
5. Check the surface of the filter
hole as illustrated above.
core.
If it is dusty, replace it.
While installing the air
conditioning filter, keep the
arrowhead up.
104
BYD AUTO
F3 OWNER’S MANUAL

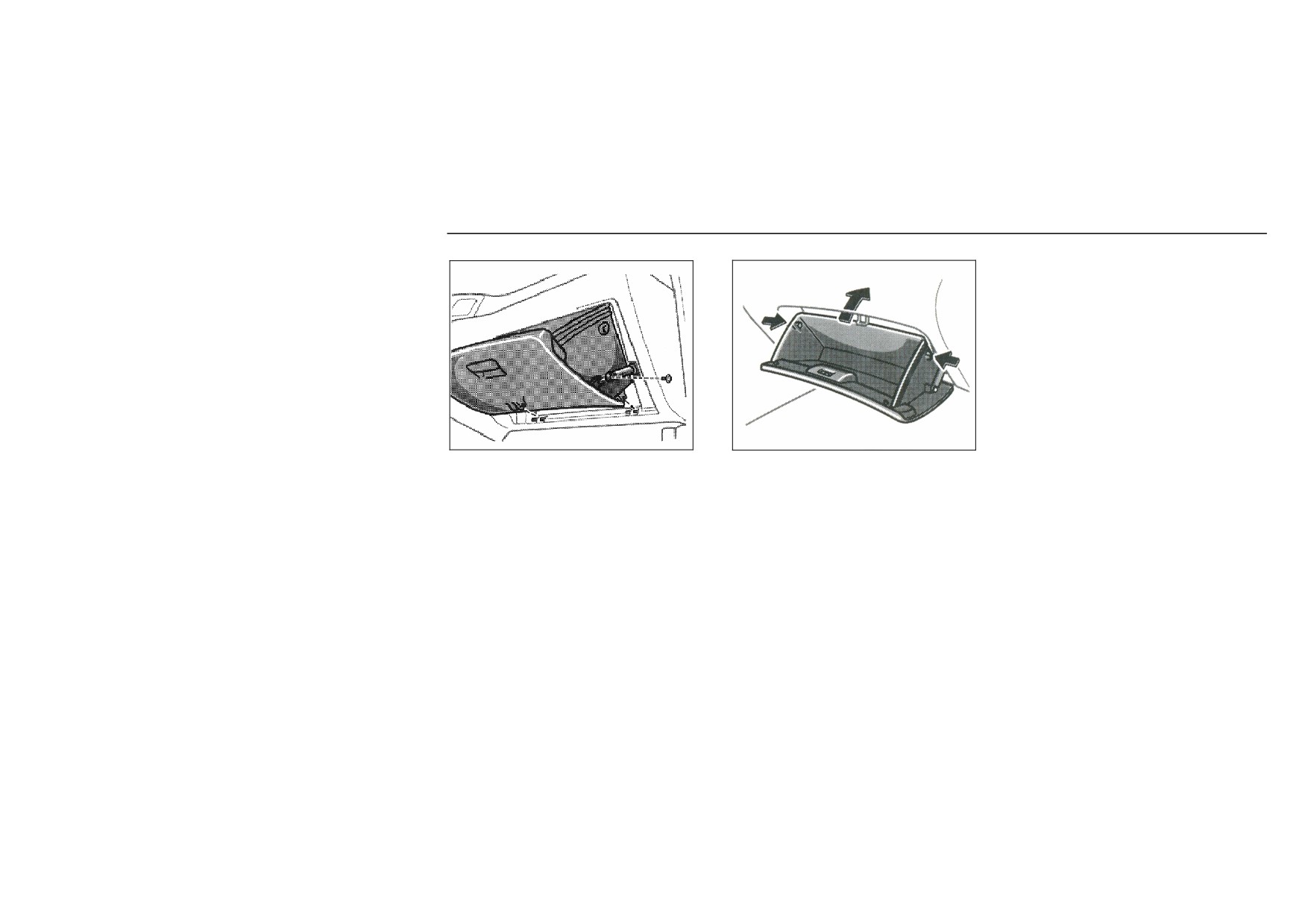

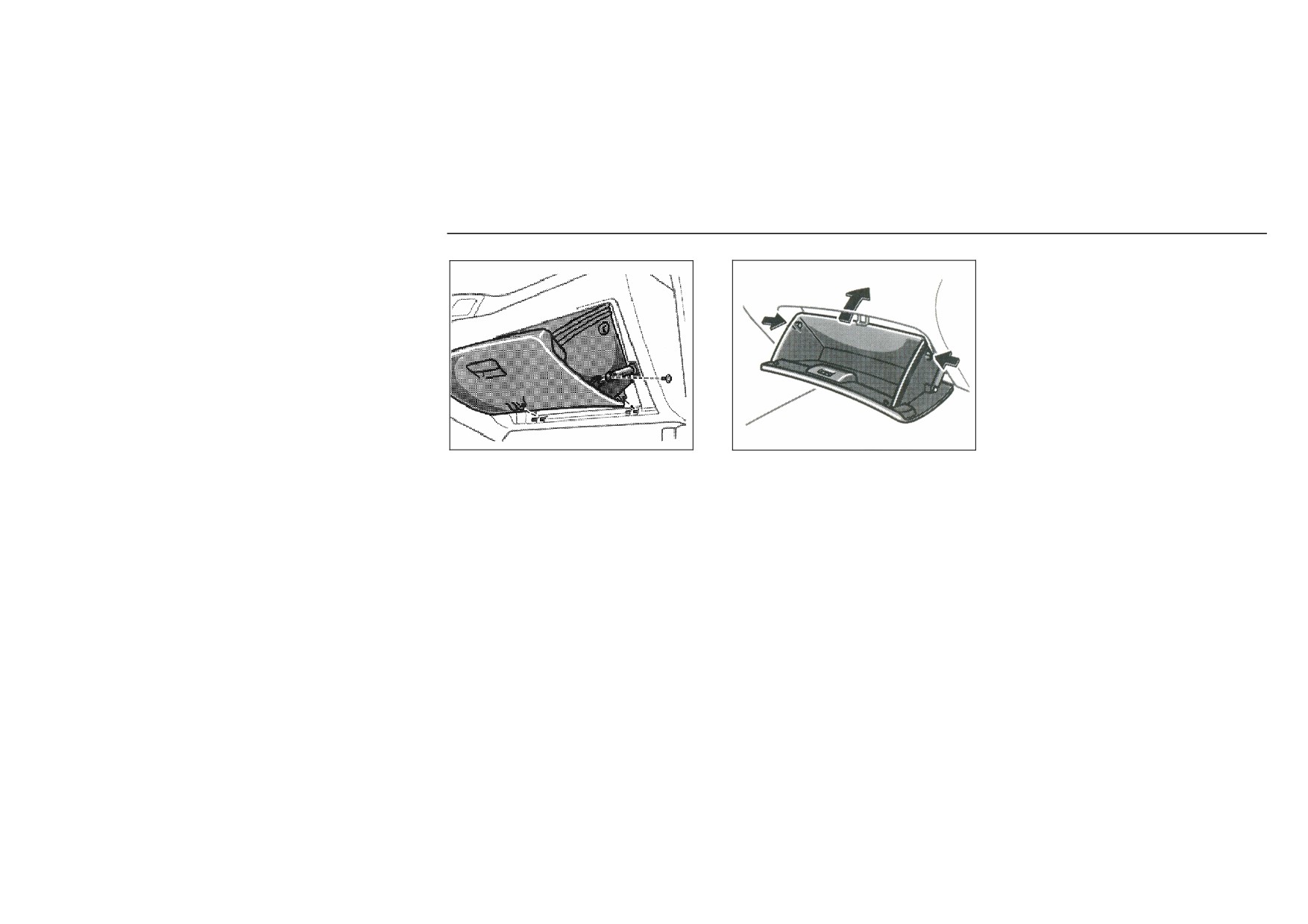

2. Connect the glove box, draw out
3. Press both sides of glove box and
the damper, and insert the screw
close it.
into damper. Use the cross-head
screwdriver to tighten the screw.
105
BYD AUTO
F3 OWNER’S MANUAL
SECTION1-9
OPERATION OF INSTRUMENTS AND CONTROLS
9. Other equipment
Electronic clock……………………………………………………………………………………………………………...115
Outside temperature display…………………………………………………………………………………………………115
Cigarette lighter and ashtrays………………………………………………………………………………………………..115
Glove box……………………………………………………………………………………………………………………116
Auxiliary boxes……………………………………………………………………………………………………………
117
Console box………………………………………………………………………………………………………………….117
Backing radar system………………………………………………………………………………………………………..118
Rear sun visor………………………………………………………………………………………………………………..121
106
BYD AUTO
F3 OWNER’S MANUAL
If the electrical power source has
TEMP” button once to show the

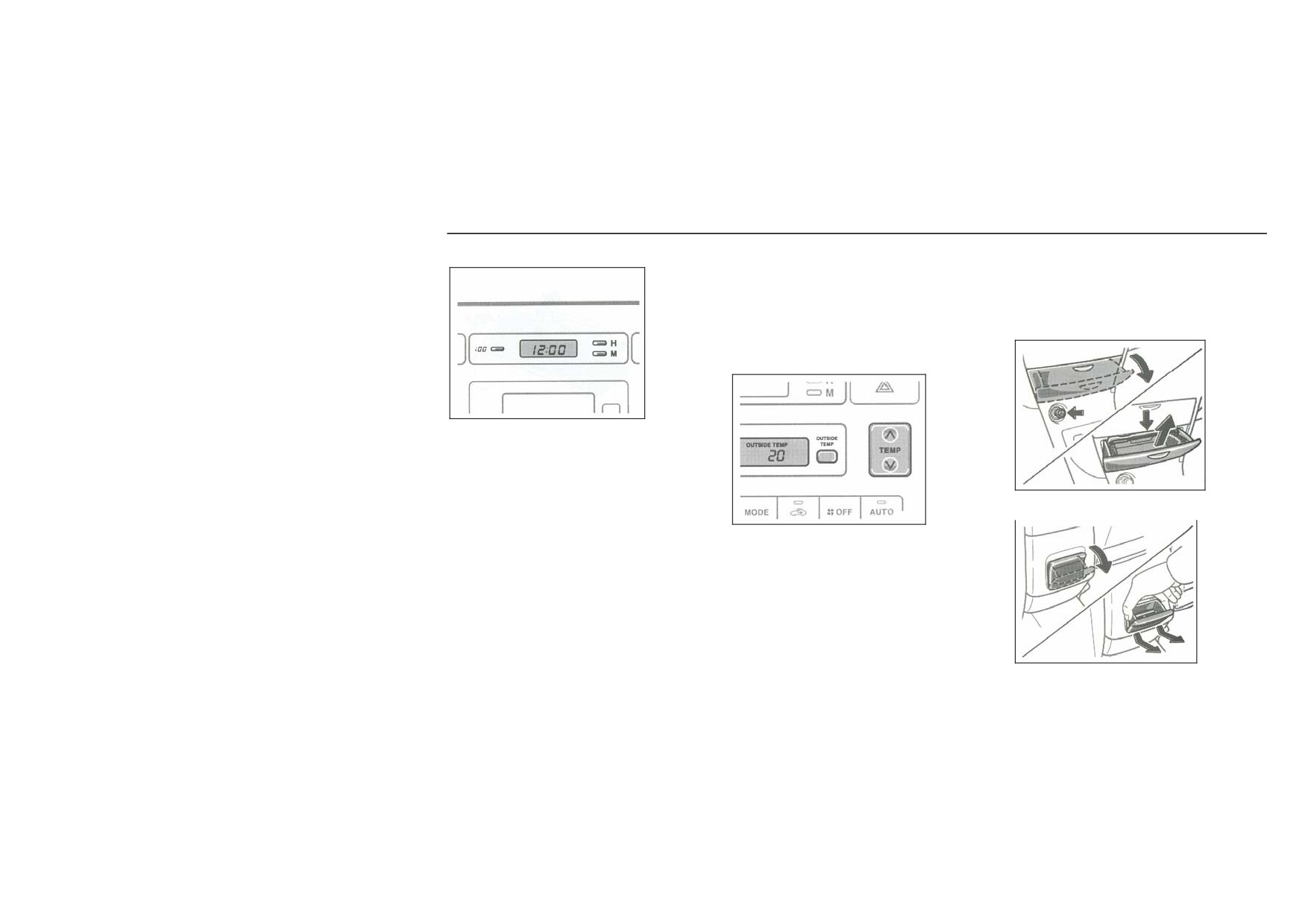

Electronic clock
outside temperature. Pushing the
been disconnected from the clock, the
“OUTSIDE TEMP” or “TEMP”
time display will automatically be set
button will change the display back to
to AM 1:00.
the air conditioning temperature.
Outside temperature display (with
Cigarette lighter and ashtray
automatic electric air-conditioning
system)
The ignition switch must be at
“ACC” or “ON” position.
To reset the hour, press the “H”
button.
To reset the minutes, press the “M”
Cigarette lighter and front ashtray
button.
The outside temperature display
Press the “:00” button to change the
indicates the outside air
time fast.
temperature on Celsius when you
For example, if the present time
press the “OUTSIDE TEMP”
ranges from 1:01 to 1:29, you can
button.
The key must be in the “ON” position.
press the “:00” button to change the
Pushing the button once again will
time to l:00. If present time is
turn off the display.
between 1:30 and l:59, you can press
When the air conditioning system is
it to change the time to 2:00.
enabled, pushing the “OUTSIDE
Cigarette lighter and rear ashtray
107
BYD AUTO
F3 OWNER’S MANUAL

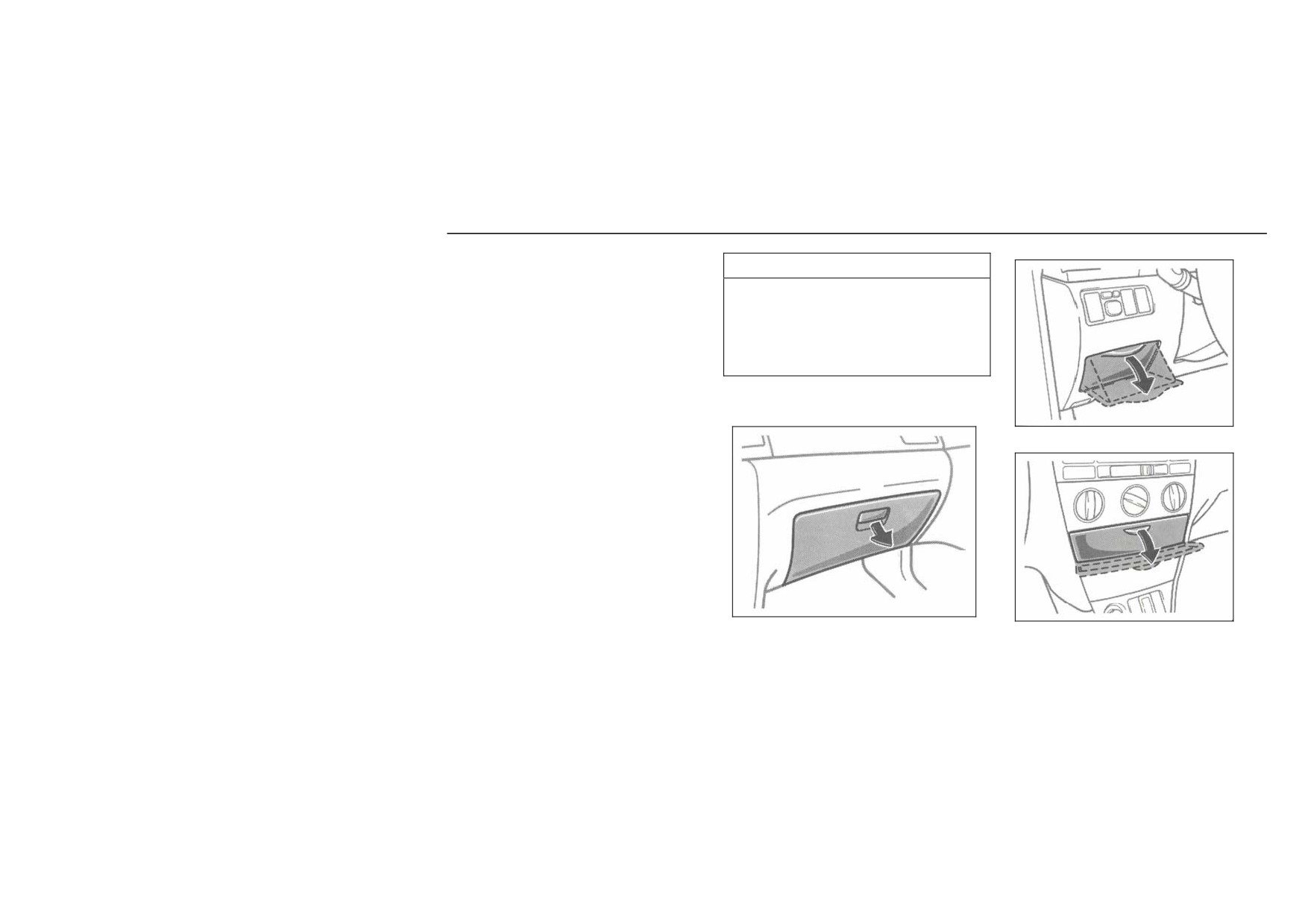

Cigarette lighter
Left glove box (Auxiliary box)
To use the cigarette lighter, press it in.
CAUTION
After finishing heating up, it
To reduce the chance of injury in
automatically pops out ready for use.
case of an accident or sudden stop
If the engine is not running, the key
must be in the “ACC” position.
while driving, always completely
Do not keep the cigarette lighter
close the ashtray after use.
being pressed in.
Ashtray
Right glove box
To use the ashtray, pull it out.
When finishing with your cigarette,
thoroughly extinguish it in the ashtray
to prevent other cigarette butts from
catching fire. After using the ashtray,
close the lid completely.
Front: to remove the ashtray, press
down on the lock spring plate and
pull it out.
Rear: to remove the ashtray, hold the
ashtray on both sides and pull it out.
To open the glove box door, pull
To use the box, pull on the handle.
the lever.
108
BYD AUTO
F3 OWNER’S MANUAL

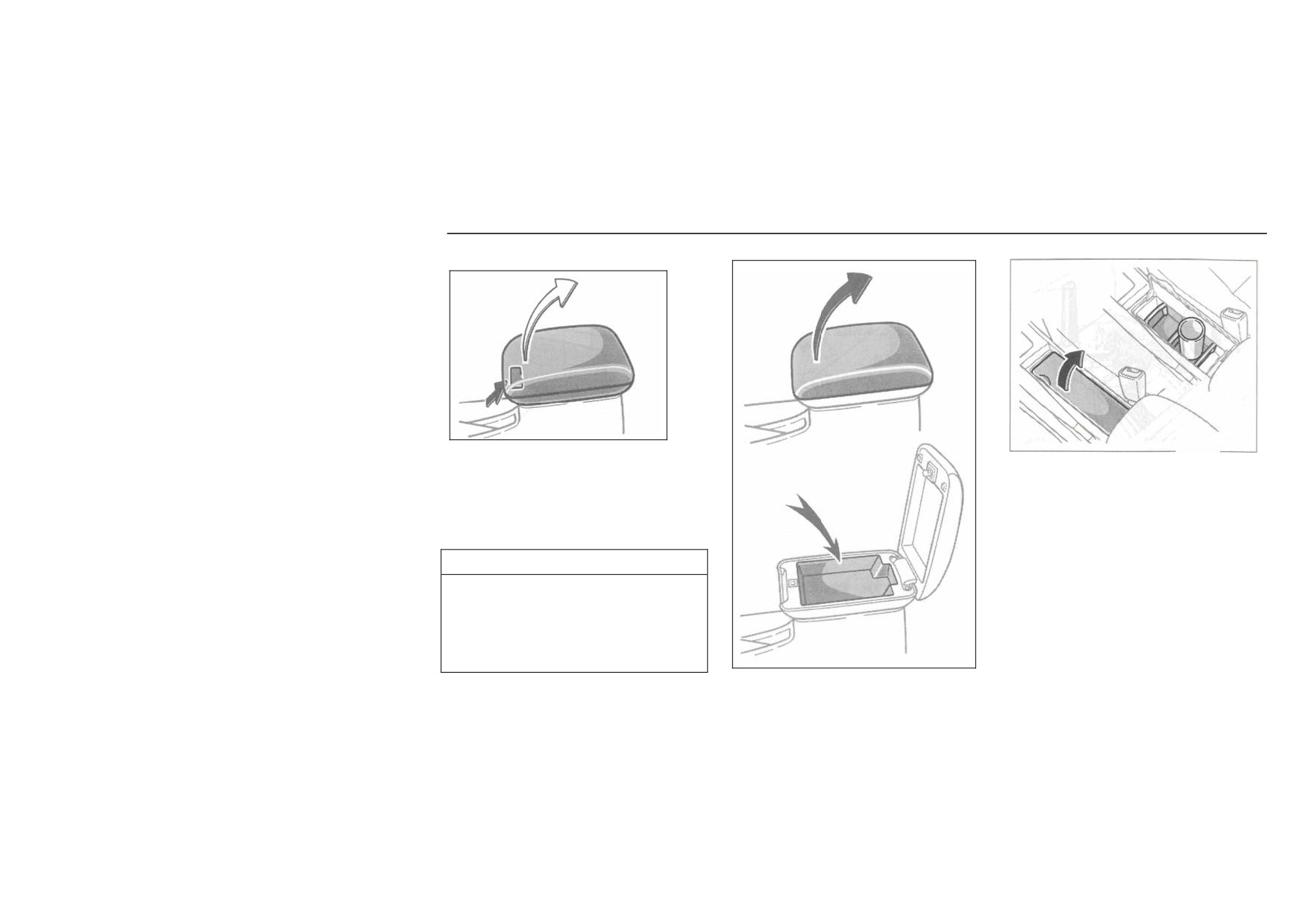

Console box
Cup holder
To access the console box, pull up
The cup holder is designed for
the lock release lever while raising
holding cups or drink-cans
the console box lid.
securely.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden
stop, always keep the console box
closed while driving.
109
BYD AUTO
F3 OWNER’S MANUAL

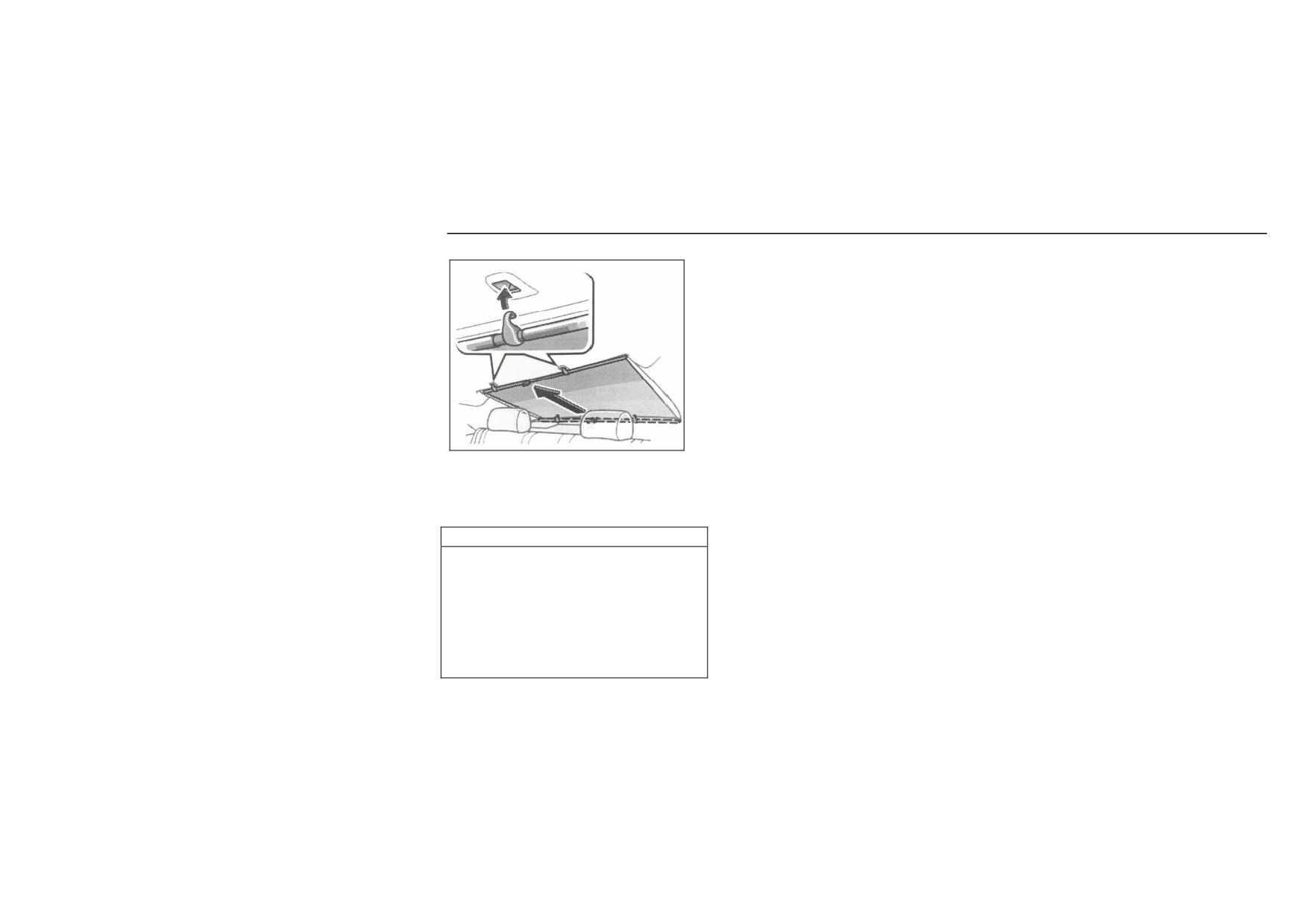

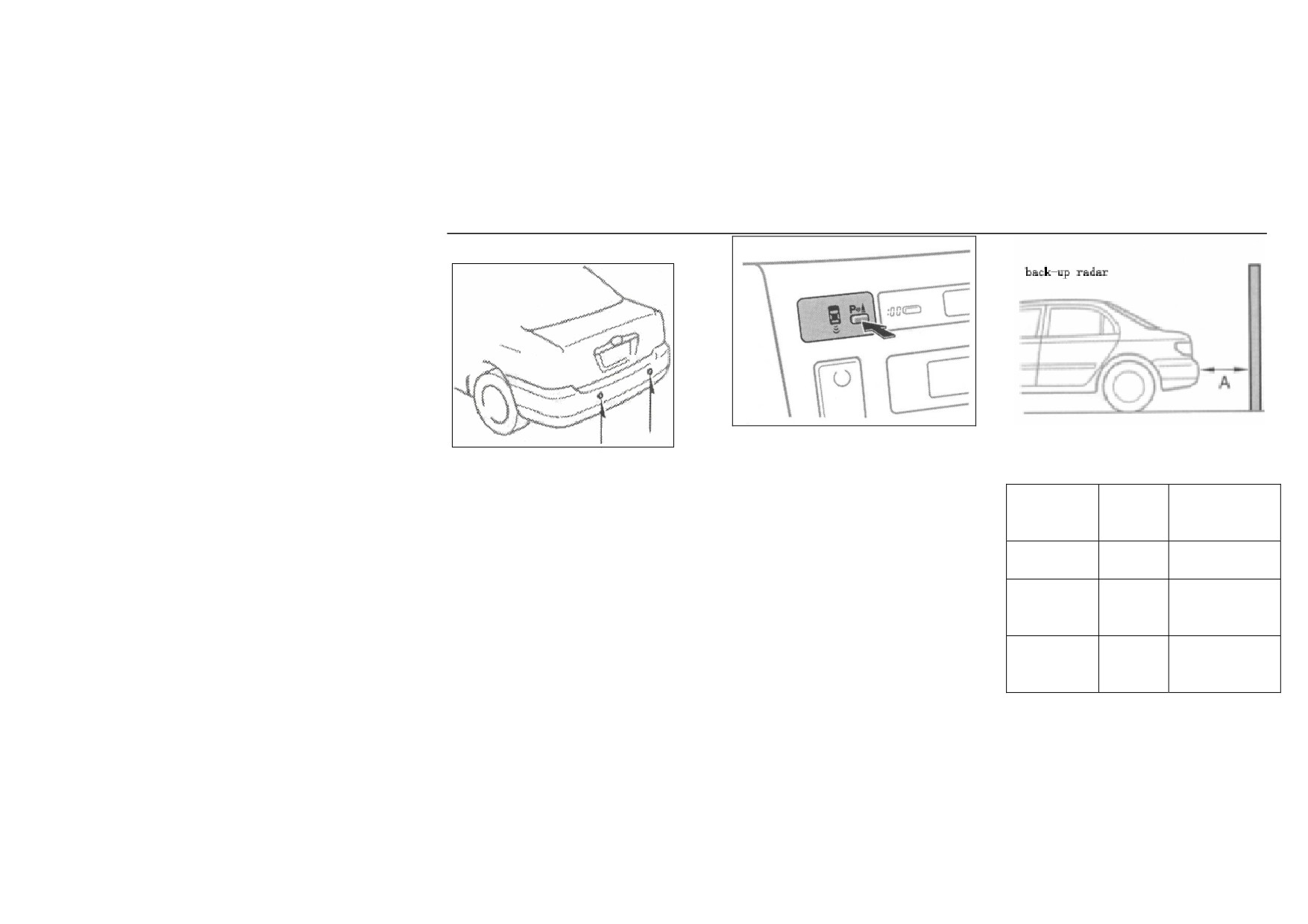

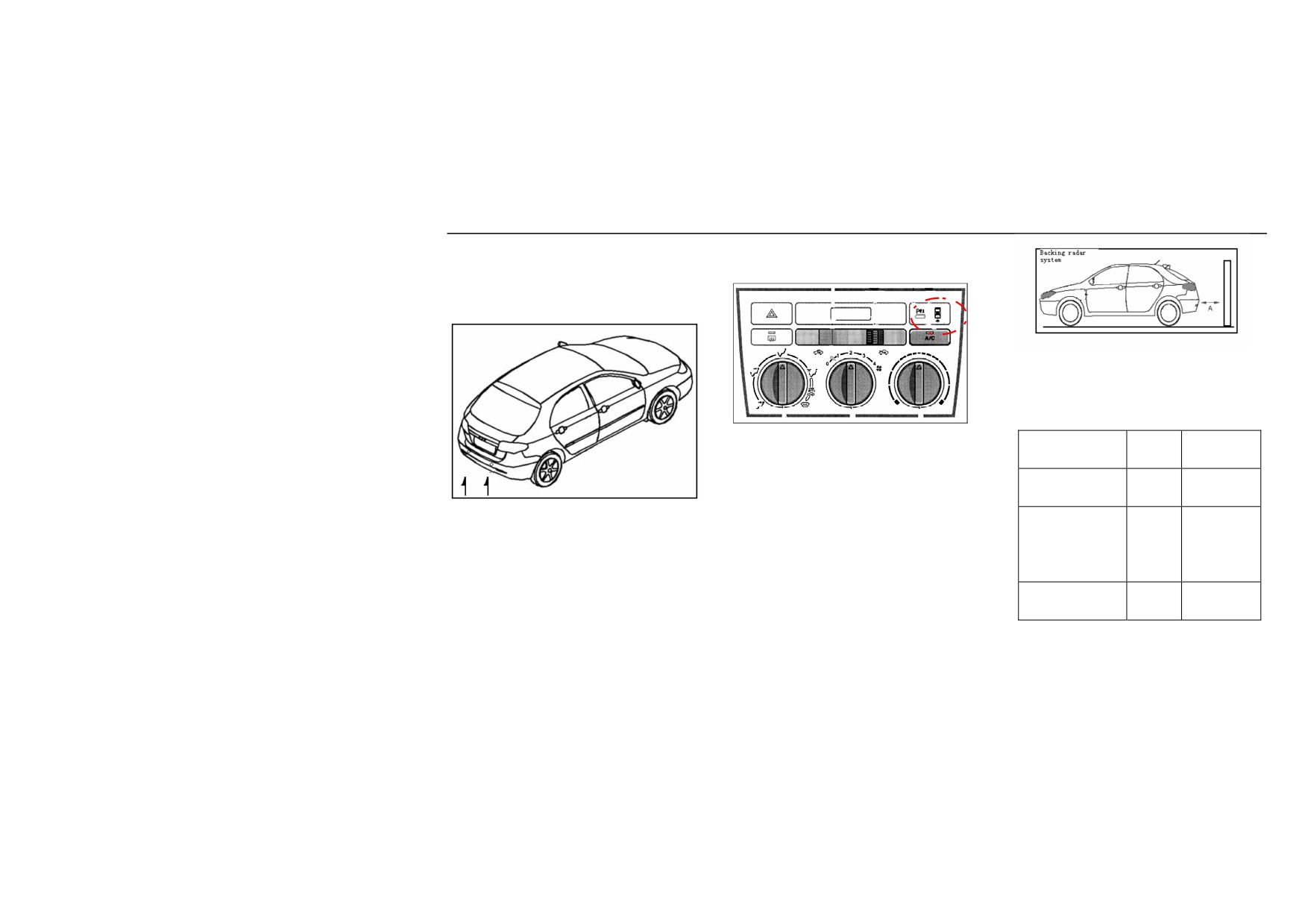

Backing radar system (optional)
Open: press the switch and the
This system prompts driver distance
between vehicle and stumbling block
Backing radar system
indicator illuminates and the buzzer
though indicator light and buzzer.
While backing, the backing radar
beeps.
A refers to
Indicat
buzzer
system prompts the driver the
Close: press the switch again to turn
distance
or
distance between vehicle and
(mm)
off the system.
stumbling block through indicator
About
Flash
Intermittently
light and buzzer. The system uses
l,000-750
beeps
the sensor to detect stumbling
About
Flash
Quickly and
blocks.
750-500
intermittently
When the ignition key stays at “ON”
beeps
and the selector lever is in reverse
About 500
ON
Continuously
gear, this system is under working.
or less than
beeps
500
110
BYD AUTO
F3 OWNER’S MANUAL
lever is in reverse gear, the system
is under working.
Backup radar system (only for
F3-R fashionable mode)
This system prompts driver distance
between vehicle and stumbling block
through indicator light and buzzer.
A refers to
Indicat
Open: press the switch and the
Buzzer
distance (mm)
or
indicator illuminates and the buzzer
About
Intermitten
Flash
beeps.
l,000-750
tly beeps
Quickly
Close: press the switch again to turn
Backing radar system
and
off the system.
About 750-500
Flash
intermitten
While backing, the backing radar
prompts driver the distance
tly beeps
between vehicle and stumbling
About 500 or
Continuou
On
block through the indicator light
less than 500
sly beeps
and buzzer. The system uses sensor
to detect stumbling blocks.
When the ignition key stays at
“ON” position and the selector
111
BYD AUTO
F3 OWNER’S MANUAL
Sensing area
The system may not work normally
If the following things come near
at following conditions:
the sensor, the system may fails to
The sensing area (i.e. the maximal
There is something on the sensor,
work:
distance from “A”) of the sensor
for example, ice, snow, slurry
● Metal lead wire, cord, or thin
reaches to about 1100mm.
and so on.
objects
The vehicle has been parked at
● Cotton, snowflakes or objects
Apperceive is limited, so you have to
higher temperature and lower
check the surroundings before
with absorbency
temperature surrounding for long
starting driving and get vehicle
● Small objects
time.
started slowly.
● Objects with sharp ends
The vehicle is driven at muddy,
● High and protuberant objects
rude, or other special road.
Please contact your BYD AUTO
The vehicle is near the objects
service station at following
CAUTION
which can eradiate ultrasonic,
situations:
Do not affix something onto sensor.
such as vehicle horn, motor of
● The bumpers are destroyed or
motorcycle and so on.
Otherwise, this may cause the
sunken.
Drive the vehicle when it rains
● The indicator is solid on but the
system not to work normally and
heavy or water spatters on
buzzer does not beep.
vehicle.
even an accident.
Install the dual-pass wireless
antenna or buffer.
The center of gravity is
acclivitous.
The sensor is shielded by hand.
The vehicle is too near to objects.
The sensor is knocked seriously.
112
BYD AUTO
F3 OWNER’S MANUAL
Rear sun visor (optional)
To raise the rear sun visor, pull the
hook of the rear sun visor and hang it
to the bracket. To descend it, pull the
hook and put it down.
NOTICE
Follow the rules below. Otherwise,
damages or losses may be caused.
Do not put any objects that may
block the curtain from moving
under the rear sun visor.
Do not place objects on the
visor.
113
BYD AUTO
F3 OWNER’S MANUAL
Section 2 Driving Information for BYD F3
Running-in period……………………………………………………………………………………………………………
Fuel…………………………………………………………………………………………………………………………..
Fuel cut-off system…………………………………………………………………………………………………………..
Three-way catalytic converter……………………………………………………………………………………………….
Engine exhaust cautions……………………………………………………………………………………………………..
Facts about engine oil consumption…………………………………………………………………………………………
Brake system…………………………………………………………………………………………………………………
Warning of brake pad ………………………………………………………………………………………………………
Luggage storage precautions………………………………………………………………………………………………...
Suspension and chassis………………………………………………………………………………………………………
114
BYD AUTO
F3 OWNER’S MANUAL
Running-in period
Fuel
NOTICE
Drive gently and avoid high speed.
Selecting the proper fuel is essential
Do not use leaded gasoline on
Your vehicle does not need an
for satisfactory engine
vehicle. This may cause the
elaborate running in, but you can
performance.
three-way catalytic converter to lose
follow a few simple tips below for the
It’s also important to pay attention
its effectiveness and the emission
first 2000 km to save fuel and
to the emission control and the
control system to function
prolong the service life of your
maintenance of relevant apparatus.
improperly. In addition, this can
vehicle:
Engine damage caused by use of
increase the maintenance cost.
● Avoid full throttle acceleration
improper fuels is not covered under
NOTICE
when starting and driving.
BYD F3 warranty.
The vehicle emission system must
● Avoid running the engine in over
Fuel type
apply the GB17930-93# or above
speed mode.
Only the GB17930-93# unleaded
unleaded gasoline.
● Avoid sudden brakes for the first
gasoline can be applied.
If your engine has ignition knock
300km.
In order to avoid the mistakes made
If you detect heavy ignition knock
● Do not drive for a long time at
by gas station, there is a smaller
even when using the recommended
any single speed, either fast or
opening in the fuel box. The special
fuel, or if you hear steady ignition
slow.
muzzle of unleaded gasoline pump is
knocks while holding a steady speed
● Do not tow a trailer during the
well-matched with it, while the bigger
on level roads, consult your BYD
first 2000km.
standard muzzle is unusable.
AUTO service station.
115















Content      ..     5      6      7      8     ..
