CD: CD disk is playing.
Radio: The radio is in signal
receiving state.
84
BYD AUTO
F3 OWNER’S MANUAL
Instruction of eliminating on-board CD malfunction
Failure
Reason
Solution
1.
The ignition switch is not
1.
Turn the vehicle key to
turned on.
1
No power or sound
“ACC” or “ON”.
2.
The wire is not connected
2.
Check the wire connection.
properly.
1.
The disk is put in reversely.
1.
Put in the disk correctly.
2
No sound with disk put in
2.
The disk is dirty or
2.
Wipe the disk or change a
scratched seriously.
new one
1.
Fix the machine with
1.
Installation is infirm.
Unstable sound caused by
installation parts.
3
2.
The disk is dirty or
vibration
2.
Clean up the disk or change
scratched seriously.
a new one.
Can not store channels and the
The battery line is connected
4
Connect the cable to correct pole.
preset broadcast
improperly.
The noise sent by FM
The broadcasting station is far
Choose other broadcasting
5
stereophony and single channel
away or the signal is excessively
station with stronger signal.
broadcast give are too loud
weak.
85
BYD AUTO
F3 OWNER’S MANUAL
Technique specifications
Usage of multi-media player
Item
Parameter
Unit
Features
Working
DC:
V
voltage
11~16
1. 6.5 inches and 16:9 TFT liquid
Max. output
crystal display
25 W*4
W
power
2. VCD/CD play supported
Video system
NTSC
3. Built-in AM/FM radio
FM
4. Anti-vibration structure
87.5~108.
MH
frequency
5. High power output: 25W×4
0
Z
range
6. Manual flexible structure allows
AM
you to adjust the view angle
KH
frequency
522~1620
manually.
Z
range
7. External GPS navigation system
supported
86
BYD AUTO
F3 OWNER’S MANUAL

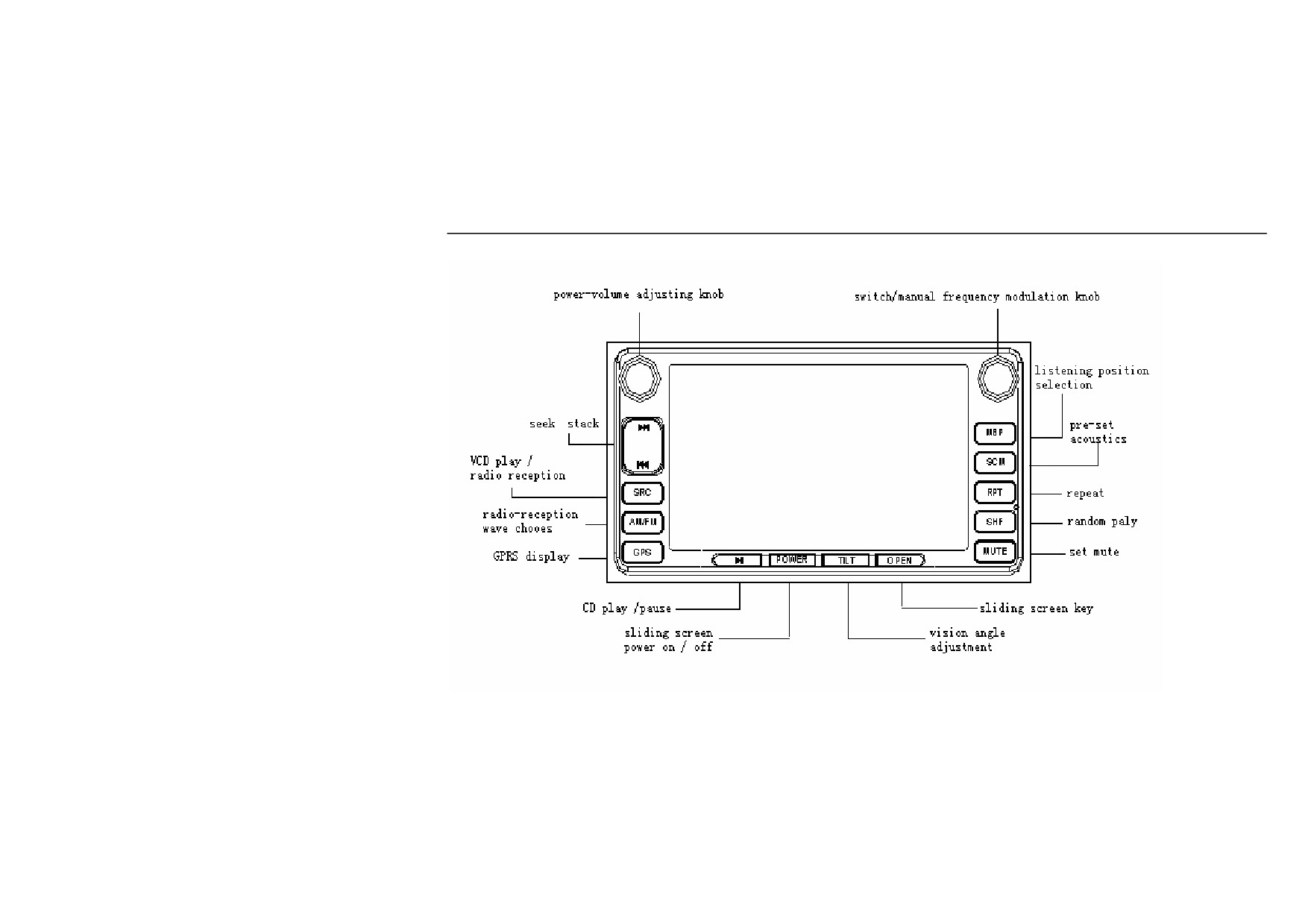

Instruction of the multi-media player function panel
87
BYD AUTO
F3 OWNER’S MANUAL
Instruction of multi-media player
“AM/FM” key: To choose radio wave
“RPT” key: Press it to activate the
band at the sequence of “FM1”,
repeated play mode. To quit, press it
function panel keys
“FM2”, “FM3”, “AM1”, and “AM2”.
again.
Power-Volume adjusting knob: To
“SCM”key: Preset the equalizer.
“MBP” key: To choose a suitable
adjust the volume/audio mode. To
“BEAT”indicates strong sound effect
position for listening. Basing on your
adjust the volume, turn the knob. To
applying to rock & roll and disco
position, choose the perfect timbre,
switch the audio mode among VOL,
waltz; “SOFT” indicates soft sound
“self centered”, to locate the sound at
BAS, TRE, BAL, and FRD in turn,
effect applying to quiet music; “POP”
three positions: left front, right front,
press the knob. To change a mode,
indicates popular effect, applying to
and midpoint.
turn the knob leftward or rightward.
popular music.
“POWER” key: Screen power switch.
Switch/manual frequency modulation
“
” / “
”: In radio mode, press
Press it to power off the display and
knob: To switch on the device or
the key for 0.5 second to perform
again to power on.
search a channel manually. In the
single-step channel-choosing. Press it
radio mode, press it to operate
for 2 seconds or above to search the
“TILT” key: Press it to adjust the
single-step channel-choosing.
next channel automatically. In CD
vision angle of liquid crystal display.
play mode, press the key to operate
The display can be moved by 10º, 20º,
“SRC” key: To choose play mode or
single-direction music-choosing.
and 30º.
radio mode. To switch the mode,
press the key. To resume, press it
Press it for a while to perform FF or
“OPEN” key: Key of LCD sliding
again.
REW. To return to normal state,
screen. Press it to slide the screen
release the key.
without showing images. Press it
“GPS” key: Press it to switch the
again to return to normal state.
current mode to “GPS” display mode.
“
” key: Press it to play a CD or
To resume, press the key again.
pause. Press it once to pause and
again to continue playing.
“MUTE” key: Press the key to mute
your device. To resume, press it
“SHF” key: Press it to play randomly.
again.
Press it again to cancel it.
88
BYD AUTO
F3 OWNER’S MANUAL
Troubleshootings for multimedia player (optional)
Failure
Reason
Solution
1.
Turn the vehicle key to
1.
The ignition switch is
“ACC” or “ON”.
not turned on.
2.
Check the wire
1
No power or sound
2.
The wire is not
connection.
connected properly.
3.
Change a fuse with
3.
The fuse breaks.
specified specification.
1.
The disk is put in
1.
Put in the disk correctly.
reversely.
2
No sound with disk put in
2.
Wipe the disk or change
2.
The disk is dirty or
a new one
scratched seriously.
1.
Fix the machine with
1.
Installation is infirm.
Unstable sound caused by
installation parts.
3
2.
The disk is dirty or
vibration
2.
Clean up the disk or
scratched seriously.
change a new one.
Can not store channels and
The battery line is connected
Connect the cable to correct
4
the preset broadcast
improperly.
pole.
The noise sent by FM
The broadcasting station is far
stereophony and single
Choose other broadcasting
5
away or the signal is
channel broadcast give are
station with stronger signal.
excessively weak.
too loud
89
BYD AUTO
F3 OWNER’S MANUAL
CAUTION
NOTICE
If malfunction is detected, please
z
When the screen is sliding,
turn off the power at once. If there
do not put your hand inside
are smoke or peculiar smell,
the screen.
remember not to keep using it and
contact your BYD AUTO service
z
When the disk is being taken
station. Do not repair it by
out, do not press “OPEN”
yourself.
key, preventing the disk from
being scratched with the
screen sliding back. Press it
after the disk is out.
z
When putting in a disk, keep
the side with words upward.
z
Do not press the screen with
great force, or the screen
would break. Because liquid
crystal is deleterious, take
care when screen breaks.
90
BYD AUTO
F3 OWNER’S MANUAL
Loudhailer
z
Guide users to reach the
The particular maps even show
destination by words or screen.
constructions and small alleys in
The loudhailer 4SP consists of 2
z
Navigation statistic information
range of 50 meters
treble loudhailers and 2 woofers.
is detailed, including the total
z
The touch screen facilitates
The loudhailer 6SP (optional)
mileage per hour, estimated
zooming in/out and roaming
consists of 2 treble loudhailers and 4
reaching time, time /distance
operation.
woofers.
needed to drive or driven.
z
Display the vehicle position at
Instruction of on-board GPS
2. Course Deviation Indicator
any time.
function (optional)
When users drive the wrong route or
z
The map is designed with SD
sheer from the marked-out route with
memory card, which eases the
On-board GPS mainly has such
traffic jam or restraint, the system
renewal of map data.
functions as listed below:
will reprogram the route so that users
5. Satellite navigation together with
1. Route:
can arrive as soon as possible.
automatic navigation
Layout and navigation
3. Integrative information inquiry
The system can provide satellite
z
GPS location: longitude/latitude,
z
Inquire the position by unit
navigation of highly precision. When
height above sea level, target
name.
the vehicle drives into an area without
position display, moving speed,
z
Inquire the companies or
satellite data (e.g. tunnel, roads
and distance to the destination.
institutions near to one certain
between high buildings), a gyroscope,
z
Multiple destinations can be set.
position.
and a speed sensor can be applied to
The system is able to select the
4. Zoom in/zoom out of the map and
calculate the current position for
best route for user;
roaming
automatic navigation.
z
Adopt effective and powerful
z
Abundant electronic map
NOTICE
algorithm to mark the route,
information, including particular
Do not use CDs with viscous labels which
solving the complicated route
maps of 34 capital-level cities all
may scroll. This may cause the CD to get
layout problems such as
over the country and national
stuck in the player.
crossroads, one-way street,
map. The national map lists all
restrained street, and trestle.
towns, traffic artery, and rivers.
91
BYD AUTO
F3 OWNER’S MANUAL
SECTION 1-8
OPERATION OF INSTRUMENTS AND CONTROLS
8. Air conditioning system
Manual air conditioning system……………………………………………………………………………………………...
Control panel……………………………………………………………………………………………………………...
Air flow selector settings………………………………………………………………………………………………….
Operating tips……………………………………………………………………………………………………………...
Automatic air conditioning system…………………………………………………………………………………………..
Control panel……………………………………………………………………………………………………………...
Air flow selector settings………………………………………………………………………………………………….
Operating tips……………………………………………………………………………………………………………...
Side vents…………………………………………………………………………………………………………………….
Checking and replacing air condition filter……………………………………………………………………………………..
92
BYD AUTO
F3 OWNER’S MANUAL
Manual air conditioning system

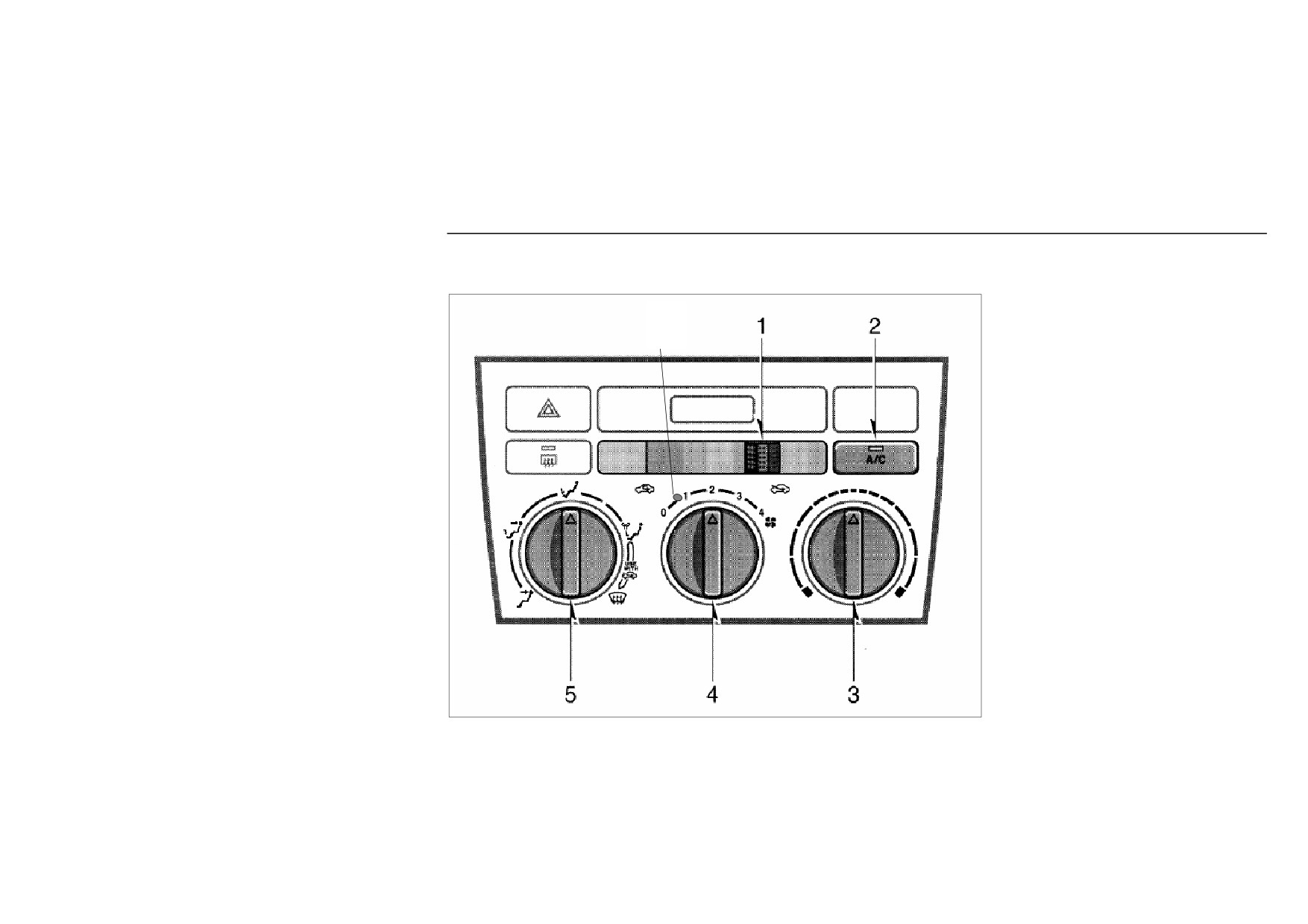

Control panel
1. Air cycle mode selector
2. “A/C” switch
6
3. Cool/warm wind selector
4. Fan speed selector
5. Air flow mode selector
6. Anion generator (Optional)
93
BYD AUTO
F3 OWNER’S MANUAL
Fan speed selector
used for air flow.
Turn the knob to adjust the fan speed:

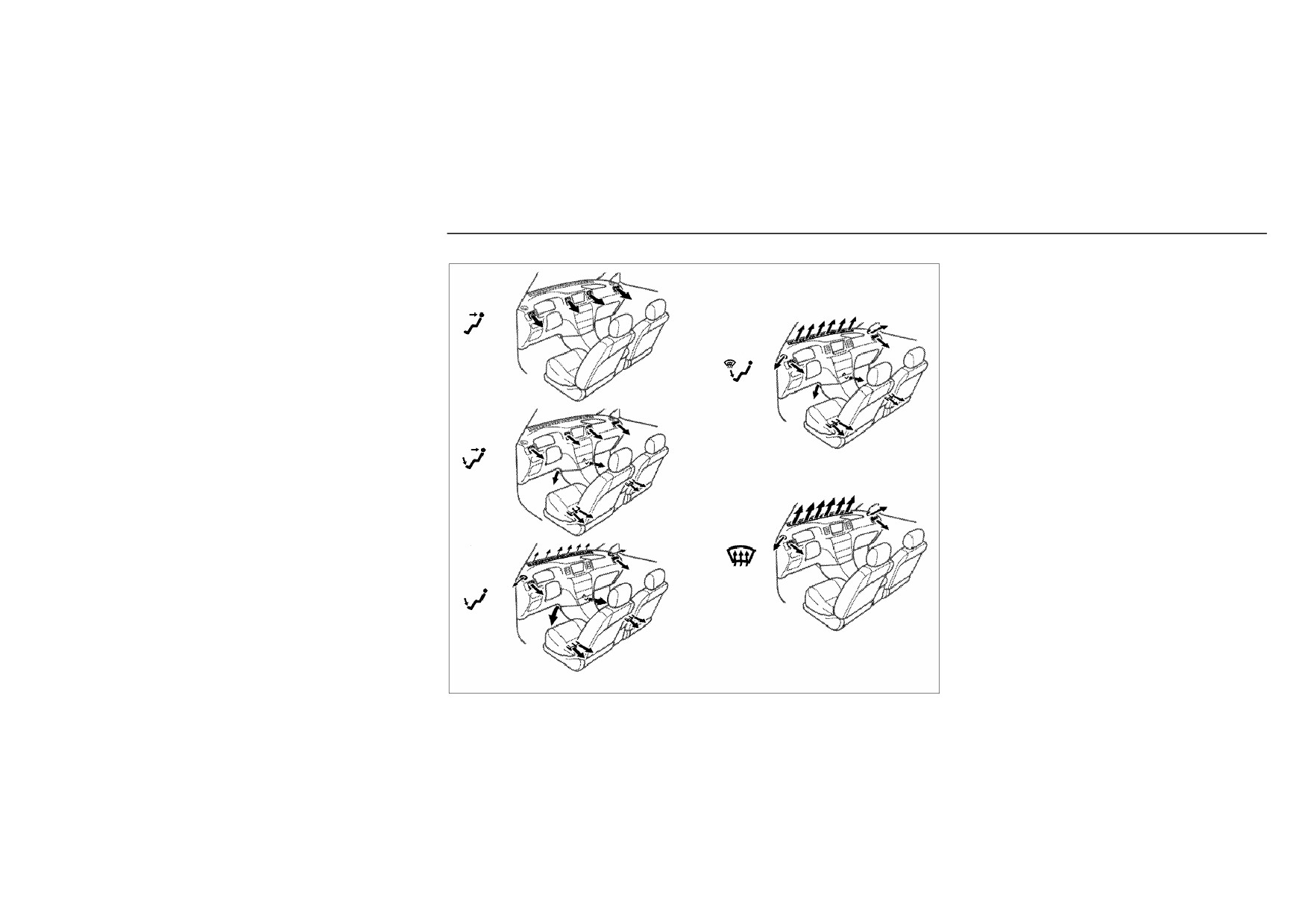

1 PANAL: The air flows mainly
To increase, turn the knob clockwise.
from the instrument panel vents and
To decrease, turn the knob
side vents.
anticlockwise. At the same time,
2 BI-LEVEL: The air flows from the
there will be leaf-like icons showed
floor vents, the instrument panel
on the controls (if an anion generator
vents and side vents.
is equipped)
3 FLOOR: The air flows mainly
Cool/warm wind selector
from the floor vents.
4 FLOOR/WINDSHIELD: The air
Turn the knob to adjust the
Move the lever to select the air
flows mainly from the floor vents and
temperature: To select warm wind,
source.
windshield vents.

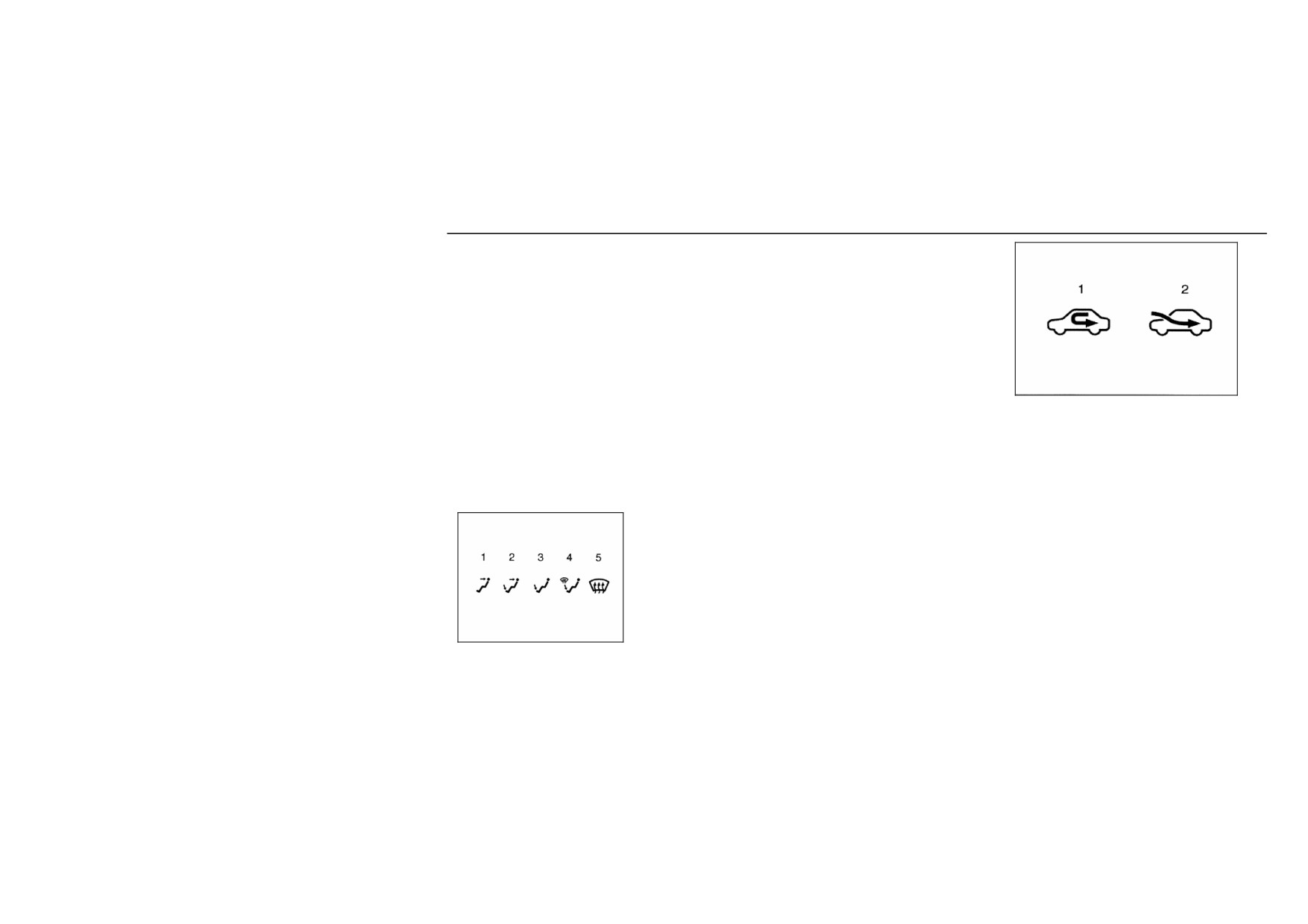

1. RECIRCULATE: To re-circulate
turn the knob clockwise. To select
Use when the air cycle mode knob
the air inside the vehicle.
cool wind, turn the knob
2. FRESH: To draw the external air
anticlockwise. To turn off the air
stays in FRESH.
into the system.
conditioning, turn the knob to “OFF”.
5 WINDSHIELD: The air flows
mainly from the windshield vents.
“A/C” BUTTON
Use when the air cycle mode knob
To turn the air condition on, first turn
the fan speed knob, and then press the
stays in FRESH.
“A/C” button. The “A/C” button
For instructions on settings of air
indicator will illuminate. To turn the
flow knob, see the following part.
air conditioning off, press the button
Air cycle mode selector
again or set the fan speed knob to
“0”.
Air flow mode selector
Turn the knob to select the vent
94
BYD AUTO
F3 OWNER’S MANUAL
Air flow knob settings
Op
ked in the hot sun, drive with the
windows open for a few minutes.
era
z
Make sure the air intake grilles in
ting
front of the windshield are not
tips
blocked (by leaves or snow, for
z
T
example).
o
z
On humid days, do not blow cold
c
air on the windshield. The
o
windshield could fog up because of
ol
the difference in air temperature on
of
the inside and outside of the
f
windshield.
y
z
Keep the underside of front seats
o
vacant so that air in vehicle can be
ur
cycled completely.
B
z
On cold days, set the fan speed to
Y
high speed for one minute to help
D
clear the intake ducts of snow or
F
moisture. This can reduce the
3
amount of fogging in the windows.
af
z
When driving on dusty roads, close
te
all windows. If dust thrown up by
r
the vehicle is still drawn into the
it
vehicle after closing the windows,
h
it is recommended that the air
as
intake selector be set to FRESH and
b
the fan speed selector to any
e
position expect “0”.
e
n
p
ar
95
BYD AUTO
F3 OWNER’S MANUAL
Air conditioning
Air intake: FRESH (outside air)
Heating
For best results, set controls to:
Air flow: WINDSHIELD
For best results, set controls to:
Fan speed: any value except for “0”
Air conditioning: ON
Fan speed: any value except “0”
Temperature: towards COLD (blue
z On humid days, do not blow cold
Temperature: towards WARM (red
zone)
air on the windshield, as the
zone)
Air intake: FRESH (outside air)
difference between the outside and
Air intake: FRESH (outside air)
Air flow: PANEL
inside temperatures could make the
Air flow: FLOOR
Air conditioning: ON
fogging worse.
Air conditioning: OFF
For quick cooling, turn the air cycle
Defrosting
mode selector to re-circulated air for
The outside of the windshield
z For quick heating, select
a few minutes.
For best results, set controls to:
re-circulated air for a few minutes.
Ventilation
Fan speed: any value expect “0”
To keep the windows from fogging,
For best results, set controls to:
select FRESH after the interior of
Fan speed: any value except for “0”
Temperature: towards WARM (red
Temperature: towards COLD (blue
the vehicle has been warmed.
zone)
zone)
z Press the “A/C” button on for
Air intake: FRESH (outside air)
Air intake: FRESH (outside air)
dehumidified heating.
Air flow: PANEL
Air flow: WINDSHIELD
z Choose floor/windshield air flow to
Air conditioning: OFF
heat the vehicle interior while
Air conditioning: OFF
Defogging
defrosting or defogging the
z To heat the vehicle interior while
The inside of the windshield
windshield.
defrosting the windshield, choose
For best results, set controls to:
FLOOR/WINDSHIELD air flow.
Fan speed: any value except for “0”
Temperature: towards WARM (red
zone)
96
BYD AUTO
F3 OWNER’S MANUAL

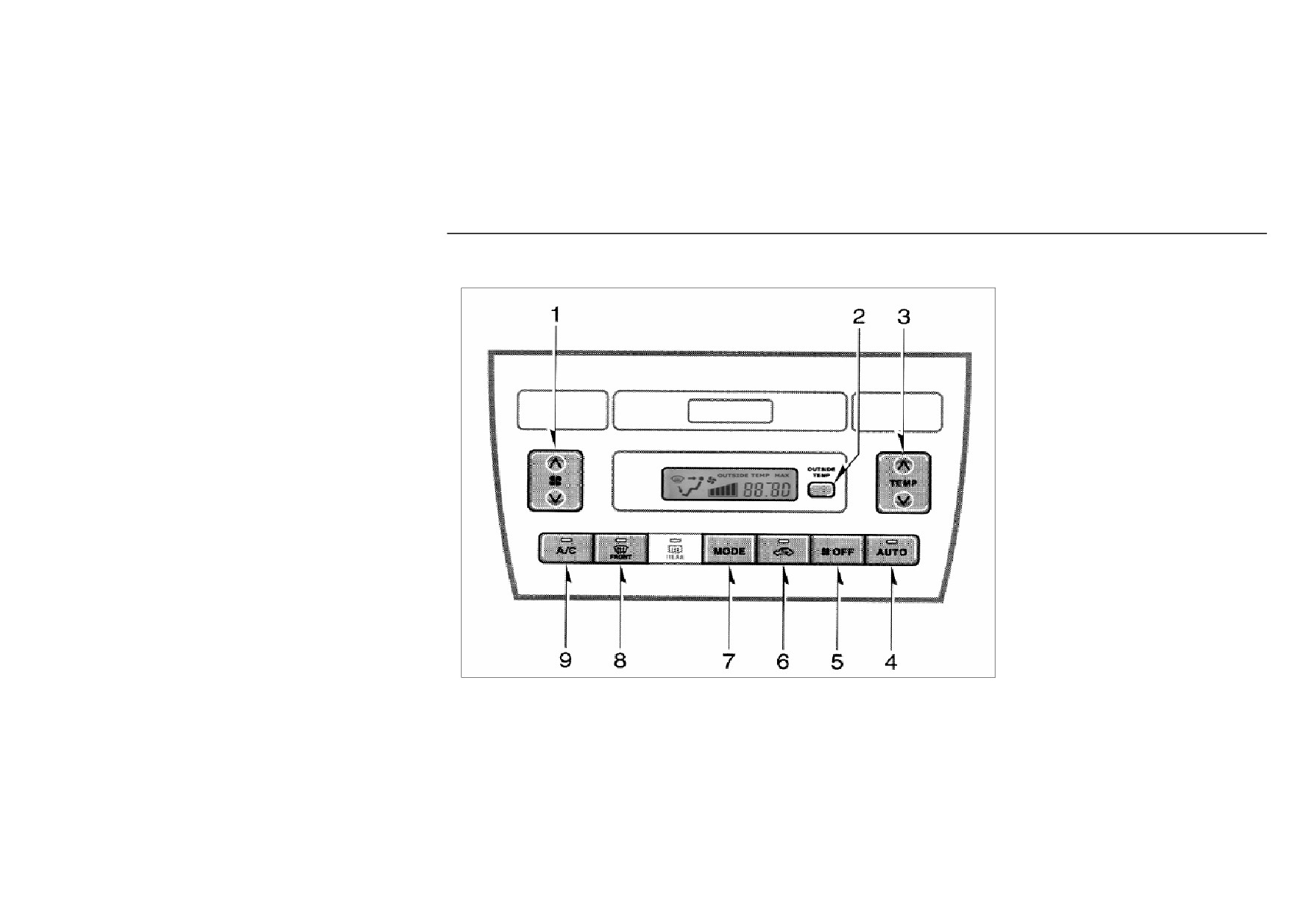

Automatic air conditioning system
Control panel
1. Fan speed selector
2. “OUTSIDE TEMP” button
3. “TEMP” button
4. “AUTO” button
5. “OFF” button
6. Air intake selector
7. Air flow selector
8. Front defroster button
9. “A/C” button
97
BYD AUTO
F3 OWNER’S MANUAL
“AUTO” button
“TEMP” button
Air flow selector
For automatic operation of the air
To increase the temperature, press the
conditioner, press the “AUTO”
“∧” side. To decrease it, press the
button. An indicator light will
“∨” side.
illuminate to show that the automatic
“MAX. COLD” appears when you
operation mode has been selected.
adjust to maximum cooling
In the automatic operation mode, the
temperature, and “MAX. HOT”
air conditioner selects the most
appears when you adjust to maximum
suitable fan speed and air flow
warming temperature.
according to the temperature.
The anion generator will work while
You may use manual controls if you
fan working.
want to select your own settings.
“OURSIDE TEMP” button
Turn the knob to select the vent
To turn off the automatic operation,
Press the “OURSIDE TEMP” button
used for air flow.
press “OFF” button, the air flow
to change the temperature display
In the automatic operation mode,
selector, or fan speed selector.
between the air conditioning
there is not necessary to adjust the air
Fan speed selector
temperature and outside temperature.
flow unless need other way of air
Push the “∧” (increase) or “∨”
For details, see “Outside temperature
flow.
(decrease) button to adjust the fan
display” in section 1-9.
1 PANAL: The air flows mainly
speed.
from the instrument panel vents and
In automatic operation, you do not
“OFF” button
side vents.
have to adjust the fan speed unless
Press the button to turn off the air
2 BI-LEVEL: The air flows from the
you want to use another fan speed
conditioning system.
floor vents, the instrument panel
mode.
vents and side vents.
3 FLOOR: The air flows mainly
98
BYD AUTO
F3 OWNER’S MANUAL
from the floor vents.
For details about air flow selector
“A/C” BUTTON
4 FLOOR/WINDSHIELD: The air
settings, see “Air flow selector
To turn the air condition on, press the
flows mainly from the floor vents and
settings” described below.
“A/C” button. The “A/C” button
windshield vents.
Air cycle mode selector
Use with the air intake selector
indicator will illuminate. To turn the
positioned in FRESH.
air conditioning off, press the button
again.
Front defroster button
When this button is pressed, the air
If the fan is not turned on and there is
flows mainly from the windshield
air flowing out, the A/C system
vents with reminder flashing.
cannot be started by pressing the
Press the button once again to exit
from the air flow mode to the
“A/C” button.
previous one used and the reminder
off.
Press the front defroster button while
Press the button to select the air
there is the fog, and the A/C will be
source.
turned on automatically while the
1. RECIRCULATE: To re-circulate
“A/C” button indicator illuminates.
the air inside the vehicle.
The fresh air will come in to clean the
2. FRESH: To draw the external air
into the system.
windshield. While there is frost, the
A/C will start heating function, and
the hot air will come in to clean the
windshield.
99
