BYD F3, F3R. Service Manual

F3/F3R OWNER’S MANUAL

display

2. VCD/CD play supported
3. Built-in AM/FM radio
4. Anti-vibration structure
5. High power output: 25W×4
6. Manual flexible structure allows you to

adjust the view angle manually.

7. External GPS navigation system supported

Technique specifications

Item

Parameter

Unit

Working voltage

DC: 11~16

Max. output

power

25 W*4

Video system

NTSC

FM frequency

range

87.5~108.0

MHZ

AM frequency

range

522~1620

KHZ

Multi-media player (Option)

- 9 -

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 99 -

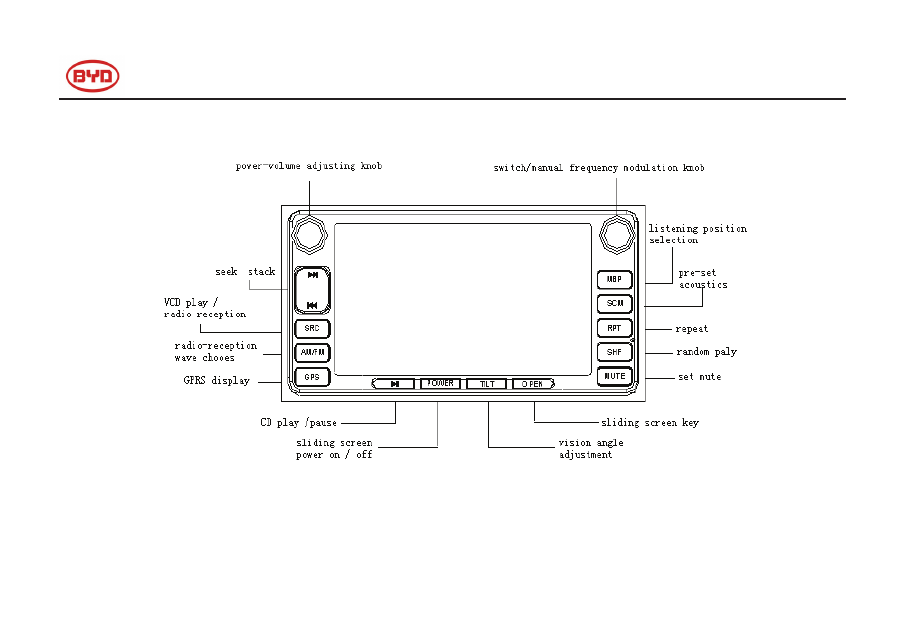

volume/audio mode. To adjust the volume,
turn the knob. To switch the audio mode
among VOL, BAS, TRE, BAL, and FRD in
turn, press the knob. To change a mode, turn
the knob leftward or rightward.

Switch/manual frequency modulation knob:
To switch on the device or search a channel
manually. In the radio mode, press it to
operate single-step channel-choosing.

“SRC” key: To choose play mode or radio
mode. To switch the mode,

press the key. To resume, press it again.

“GPS” key: Press it to switch the current
mode to “GPS” display mode. To resume,
press the key again.

“MUTE” key: Press the key to mute your
device. To resume, press it again.

“AM/FM” key: To choose radio wave band at
the sequence of “FM1”, “FM2”, “FM3”, “AM1”,
and “AM2”.

“SCM”key: Preset the equalizer. “BEAT”
indicates strong sound effect applying to rock
& roll and disco waltz; “SOFT” indicates soft
sound

effect applying to quiet music; “POP”
indicates popular effect, applying to popular
music.

“

” / “

”: In radio mode, press the key

for 0.5 second to perform single-step
channel-choosing. Press it for 2 seconds or

above to search the next channel
automatically. In CD play mode, press the
key to operate single-direction
music-choosing. Press it for a while to
perform FF or REW. To return to normal state,
release the key.

“ ” key: Press it to play a CD or pause.
Press it once to pause and again to continue
playing.

“SHF” key: Press it to play randomly. Press
it again to cancel it.

“RPT” key: Press it to activate the repeated
play mode. To quit, press it again.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 100 -

“MBP” key: To choose a suitable position for
listening. Basing on your position, choose the
perfect timbre,

“Self-centered”, to locate the sound at three
positions: left front, right front, and midpoint.

“POWER” key: Screen power switch. Press it
to power off the display and again to power
on.

“TILT” key: Press it to adjust the vision angle
of liquid crystal display. The display can be
moved by 10º, 20º and 30º.

“OPEN” key: Key of LCD sliding screen.
Press it to slide the screen without showing
images. Press it again to return to normal
state.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 101 -

Troubleshooting for multimedia player

No power or sound

The ignition switch is not turned on.

The wire is not connected properly.

The fuse breaks.

Turn the vehicle key to “ACC” or
“ON”.

Check the wire connection.

Change a fuse with specified
specification.

No sound with disk put in

The disk is put in reversely.

The disk is dirty or scratched
seriously.

Put in the disk correctly.

Wipe the disk or change a new one

Unstable sound caused by vibration

Installation is infirm.

The disk is dirty or scratched
seriously.

Fix the machine with installation
parts.

Clean up the disk or change a new
one.

Can not store channels and the preset
broadcast

The battery line is connected improperly.

Connect the cable to correct pole.

The noise sent by FM stereophony and

single channel broadcast give are too loud

The broadcasting station is far away or the
signal is excessively weak.

Choose other broadcasting station with
stronger signal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 102 -

screen.

When the disk is being taken
out, do not press “OPEN” key,
preventing the disk from being
scratched with the screen
sliding back. Press it after the
disk is out.

When putting in a disk, keep the
side with words upward.

Do not press the screen with
great force, or the screen would
break. Because liquid crystal is
deleterious, take care when
screen breaks.

Loudhailer
The loudhailer 4SP consists of 2 treble
loudhailers and 2 woofers.
The loudhailer 6SP (optional) consists of 2
treble loudhailers and 4 woofers.
Instruction of on-board GPS function
(optional)

On-board GPS mainly has such functions as
listed below:
1. Route:

Layout and navigation

GPS location: longitude/latitude, height
above sea level, target position display,
moving speed, and distance to the
destination.

Multiple destinations can be set. The
system is able to select the best route
for user;

Adopt effective and powerful algorithm
to mark the route, solving the
complicated route layout problems
such as crossroads, one-way street,

restrained street, and trestle.

Guide users to reach the destination by
words or screen.

Navigation statistic information is
detailed, including the total mileage per
hour, estimated reaching time, time

CAUTION

If malfunction is detected, please turn off
the power at once. If there are smoke or
peculiar smell, remember not to keep
using it and contact your BYD AUTO
service station. Do not repair it by
yourself.

When the screen is sliding, do

not put your hand inside the

notice

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 103 -

/distance needed to drive or driven.

2. Course Deviation Indicator
When users drive the wrong route or sheer
from the marked-out route with traffic jam or
restraint, the system will reprogram the route
so that users can arrive as soon as possible.
3. Integrative information inquiry

Inquire the position by unit name.

Inquire the companies or

institutions near to one certain position.

4. Zoom in/zoom out of the map and roaming

Abundant electronic map information,
including particular maps of 34
capital-level cities all over the country

and national map. The national map
lists all towns, traffic artery, and rivers.
The particular maps even show
constructions and small alleys in range
of 50 meters

The touch screen facilitates zooming
in/out and roaming operation.

Display the vehicle position at any time.

The map is designed with SD memory
card, which eases the renewal of map
data.

5. Satellite navigation together with automatic
navigation
The system can provide satellite navigation of

highly precision. When the vehicle drives into
an area without satellite data (e.g. tunnel,
roads between high buildings), a gyroscope,
and a speed sensor can be applied to
calculate the current position for automatic
navigation.

NOTICE

Do not use CDs with viscous labels

which may scroll. This may cause

the CD to get stuck in the player.

CMY

折手文档 1.pdf 1 2011-3-21 17:36:27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 104 -

Manual  air  conditioning  system… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . ..1 0 5
C o n t r o l   p a n e l … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . . .105
Air  flow  selector  settings…… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . 106
O p e r a t i n g   t i p s … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . . . 1 0 7

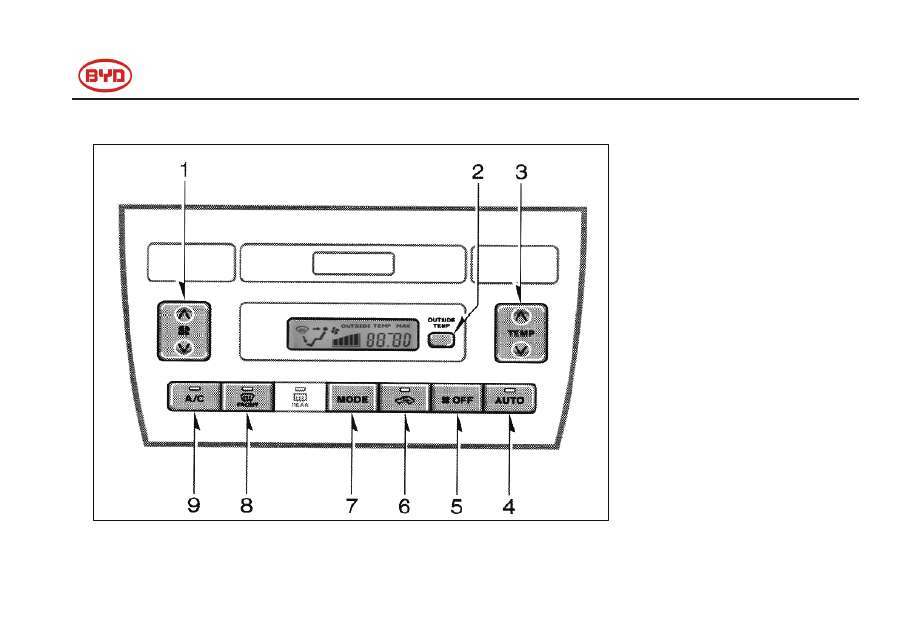

Automatic  air  conditioning  system… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . .110
S i d e   v e n t s … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … .115
Checking  and  replacing  air  condition  filter… … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … 1 15

SECTION 1-8
OPERATION OF INSTRUMENTS AND

CONTROLS

8. Air conditioning system

CMY

折手文档 1.pdf 1 2011-3-21 17:30:08

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 105 -

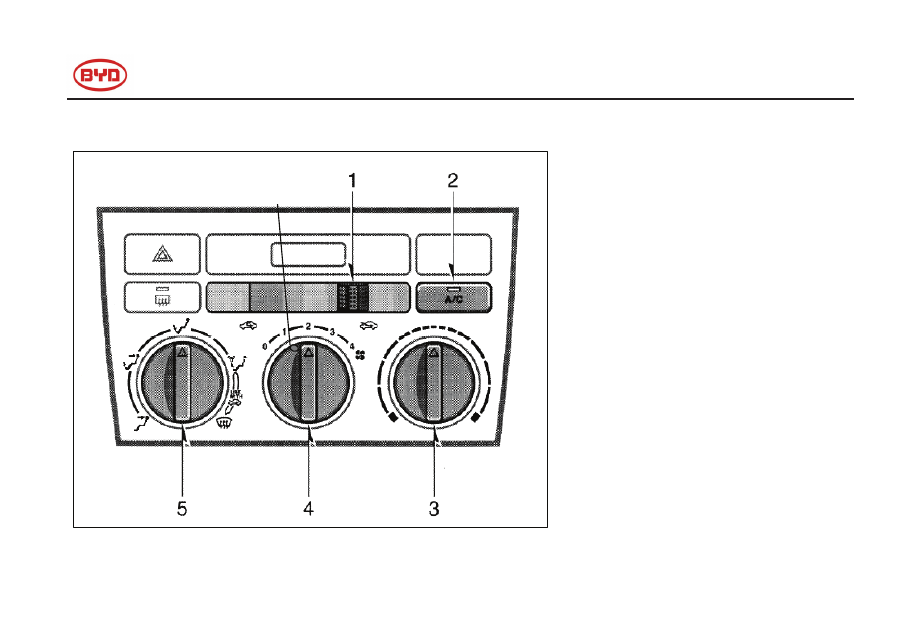

1. Air cycle mode selector
2. “A/C” switch
3. Cool/warm wind selector
4. Fan speed selector
5. Air flow mode selector
6. Anion generator (Option)

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 106 -

Fan speed selector
Turn the knob to adjust the fan speed: To
increase, turn the knob clockwise. To
decrease, turn the knob anticlockwise. At the
same time, there will be leaf-like icons
showed on the controls (if an anion generator
is equipped)
Cool/warm wind selector
Turn the knob to adjust the temperature: To
select warm wind, turn the knob clockwise.
To select cool wind, turn the knob
anticlockwise. To turn off the air conditioning,
turn the knob to “OFF”.

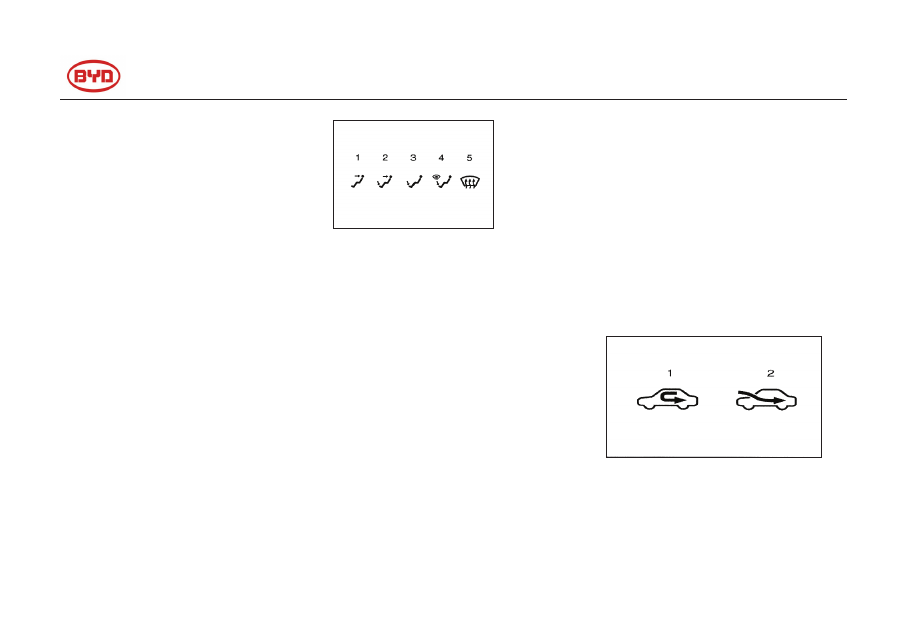

Air flow mode selector
Turn the knob to select the vent used for
air flow.
1 PANAL: The air flows mainly from the
instrument panel vents and side vents.
2 BI-LEVEL: The air flows from the floor
vents, the instrument panel vents and side
vents.
3 FLOOR: The air flows mainly from the floor
vents.
4 FLOOR/WINDSHIELD: The air
flows mainly from the floor vents and
windshield vents.

Use when the air cycle mode knob stays in
FRESH.
5 WINDSHIELD: The air flows mainly from
the windshield vents.
Use when the air cycle mode knob stays in
FRESH.
For instructions on settings of air flow knob,
see the following part.

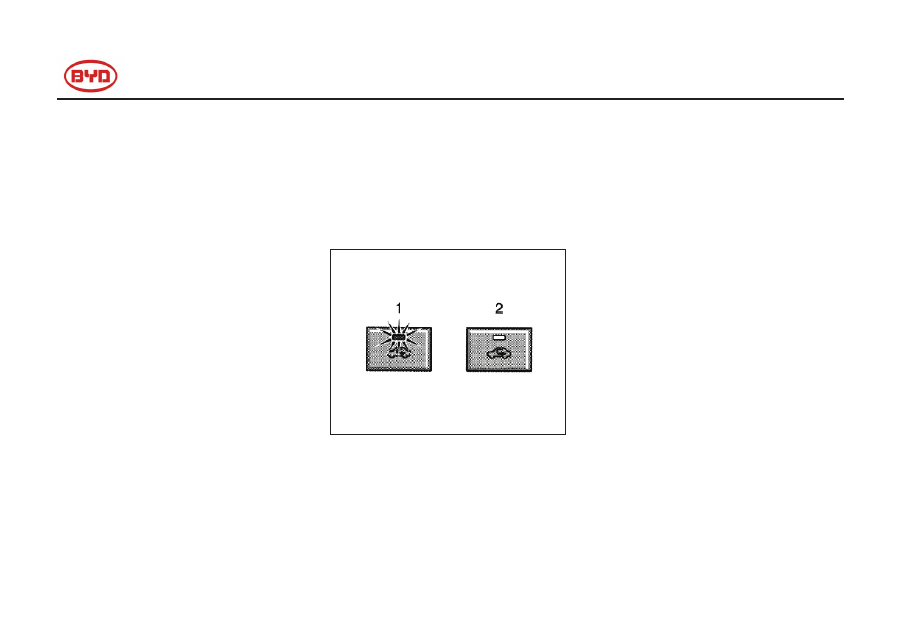

Air cycle mode selector

Move the lever to select the air source.
1. RECIRCULATE: To re-circulate the air
inside the vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 107 -

2. FRESH: To draw the external air into the
system.

“A/C” BUTTON
To turn the air condition on, first turn the fan
speed knob, and then press the “A/C” button.
The “A/C” button indicator will illuminate. To
turn the air conditioning off, press the button
again or set the fan speed knob to “0”.

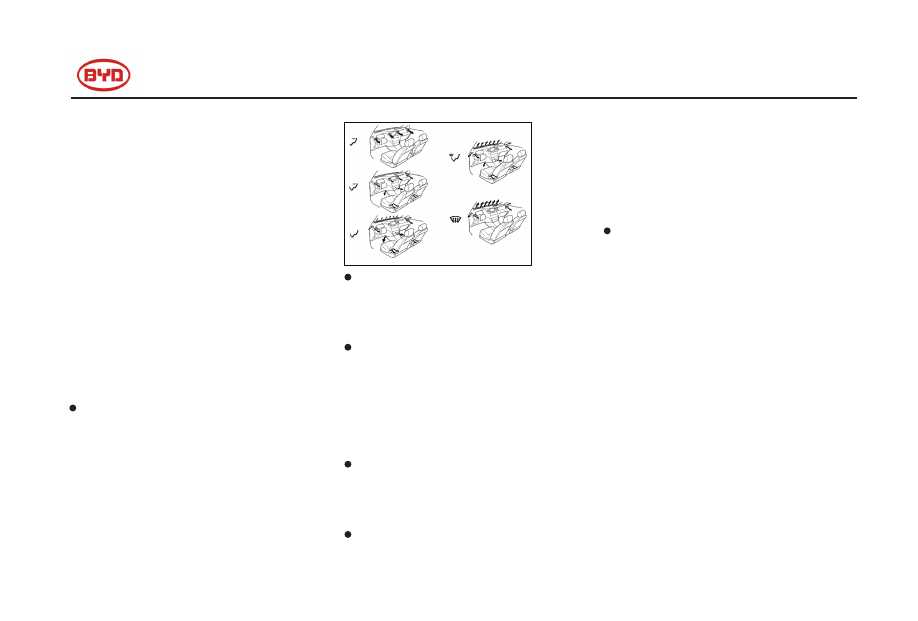

Air flow knob settings

Operating tips

To cool off your BYD F3 after it has been

parked in the hot sun, drive with the
windows open for a few minutes.

Make sure the air intake grilles in front of

the windshield are not blocked (by leaves
or snow, for example).

On humid days, do not blow cold air on

the windshield. The windshield could fog
up because of the difference in air
temperature on the inside and outside of
the windshield.

Keep the underside of front seats vacant

so that air in vehicle can be cycled
completely.

On cold days, set the fan speed to high

speed for one minute to help clear the
intake ducts of snow or moisture. This can
reduce the amount of fogging in the
windows.

When driving on dusty roads, close all

windows. If dust thrown up by the vehicle is
still drawn into the vehicle after closing the
windows, it is recommended that the air
intake selector be set to FRESH and the
fan speed selector to any position expect
“0”.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Heating

For best results, set controls to:

Fan speed: any value except “0”
Temperature: towards WARM (red zone)
Air intake: FRESH (outside air)
Air flow: FLOOR
Air conditioning: OFF

F3/F3R OWNER’S MANUAL

- 108 -

For quick heating, select re-circulated air

for a few minutes. To keep the windows
from fogging, select FRESH after the
interior of the vehicle has been warmed.

Press the “A/C” button on for dehumidified

heating.

Choose floor/windshield air flow to heat the

vehicle interior while

defrosting or defogging the windshield.

Air condition
For best results, set controls to:

Fan speed: any value except for “0”
Temperature: towards COLD (blue zone)
Air intake: FRESH (outside air)
Air flow: PANEL
Air conditioning: ON

For quick cooling, turn the air cycle mode
selector to re-circulated air for a few minutes.

Ventilation
For best results, set controls to:

Fan speed: any value except for “0”
Temperature: towards COLD (blue zone)
Air intake: FRESH (outside air)
Air flow: PANEL
Air conditioning: OFF

Defogging

The inside of the windshield

For best results, set controls to:

Fan speed: any value except for “0”
Temperature: towards WARM (red zone)
Air intake: FRESH (outside air)
Air flow: WINDSHIELD
Air conditioning: ON

On humid days, do not blow cold air on the

windshield, as the difference between the
outside and inside temperatures could
make the fogging worse.

CMY

折手文档 1.pdf 1 2011-3-21 17:39:54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

- 111 -

“AUTO” button
For automatic operation of the air conditioner,
press the “AUTO” button. An indicator light
will illuminate to show that the automatic
operation mode has been selected.
In the automatic operation mode, the air
conditioner selects the most suitable fan
speed and air flow according to the
temperature.
You may use manual controls if you want to
select your own settings.
To turn off the automatic operation, press
“OFF” button, the air flow selector, or fan
speed selector.
Fan speed selector

Push the “∧” (increase) or “∨” (decrease)
button to adjust the fan speed.
In automatic operation, you do not have to
adjust the fan speed unless you want to use
another fan speed mode.

“TEMP” button
To increase the temperature, press the “∧”
side. To decrease it, press the “∨” side.
“MAX. COLD” appears when you adjust to
maximum cooling temperature, and “MAX.
HOT” appears when you adjust to maximum
warming temperature.
The anion generator will work while fan
working.
“OURSIDE TEMP” button
Press the “OURSIDE TEMP” button to
change the temperature display between the
air conditioning temperature and outside
temperature. For details, see “Outside
temperature display” in section 1-9.

“OFF” button
Press the button to turn off the air
conditioning system.

Air flow selector

Turn the knob to select the vent used for
air flow.
In the automatic operation mode, there is not
necessary to adjust the air flow unless need
other way of air flow.
1 PANAL: The air flows mainly from the
instrument panel vents and side vents.
2 BI-LEVEL: The air flows from the floor
vents, the instrument panel vents and side
vents.
3 FLOOR: The air flows mainly from the floor

-------------------------------------------------------------------------------------------------------------------------------------------------------------

F3/F3R OWNER’S MANUAL

112 -

vents.
4 FLOOR/WINDSHIELD: The air flows
mainly from the floor vents and windshield
vents.
Use with the air intake selector positioned in
FRESH.

Front defroster button
When this button is pressed, the air flows
mainly from the windshield vents with
reminder flashing.
Press the button once again to exit from the
air flow mode to the previous one used and
the reminder off.
Press the front defroster button while there is
the fog, and the A/C will be turned on
automatically while the “A/C” button indicator
illuminates. The fresh air will come in to clean
the windshield. While there is frost, the A/C

will start heating function, and
the hot air will come in to clean the
windshield.
For details about air flow selector settings,
see “Air flow selector settings” described
below.
Air cycle mode selector

Press the button to select the air

source.
1. RECIRCULATE: To re-circulate the air

inside the vehicle.

2. FRESH: To draw the external air into

the system.

“A/C” BUTTON
To turn the air condition on, press the “A/C” button.

The “A/C” button indicator will illuminate. To turn
the air conditioning off, press the button again.

If the fan is not turned on and there is air flowing

out, the A/C system

cannot be started by pressing

the “A/C” button

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BYD F3, F3R. Service Manual - part 7
