BMW 325i Sedan (2006 year). Instruction - part 9





Indicat

o

r and

warni

n

g lam

p

s

144

Engine speed too high

Select a higher gear if the driving situa-
tion permits you to do so.

Active cruise control deactivated:

>

Driving stability control systems are
active or

>

handbrake is applied or

>

the vehicle has not achieved a
speed of 20 mph or 30 km/h or

>

engaged gear not suitable for the
speed being driven or

Keep a safe distance.

>

radar sensor dirty

Clean the radar sensor, refer to
page

56

.

Active cruise control failed

Keep a safe distance.
Have the system checked.

Park Distance Control failed

Have the system checked.

Bulb of exterior lighting system failed

Have the exterior lighting checked as
soon as possible.

Low-beam headlamp or fog lamp failed Have the low beams checked as soon

as possible.

High-beam headlamp failed

Have the high-beam headlamps
checked.

Headlamp beam throw adjustment
system failed

Have the headlamp beam throw adjust-
ment system checked.

Adaptive Head Light failed

Coolant level too low

Add coolant immediately, refer to
page

121

.

Engine oil pressure too low

Stop immediately and switch off the
engine. You cannot continue your jour-
ney. Contact your BMW Center.

Engine oil level too low

Add engine oil immediately; refer to
page

119

 for more information.

1

2

Cause

What to do

Re

fe

re

n

c

e

A

t a

g

lanc

e

Co

n

tr

o

ls

D

riv

in

g tip

s

M

o

b

ilit

y

 145

Lights up in red:

Service appointment overdue

Arrange a service appointment.
Check service requirements, refer to
page

63

.

Lights up in yellow:

Service due

Arrange a service appointment.
Check service requirements, refer to
page

63

.

No service due

Check service requirements, refer to
page

63

.

Preset speed limit



exceeded

Time and date no longer correct

Set the time and date, refer to page

64

.

1

2

Cause

What to do

Reference

This chapter contains technical data and an

index that will help you find information most

quickly.

Reference

Technical data

148

Technical data

Engine data

323i (Canada)

 325i/xi

330i/xi

Displacement

cu in/cm

µ

152.4/2,497

182.8/2,996

182.8/2,996

Number of cylinders

6

6

6

Maximum power output

hp

215

255

at engine speed

rpm

6,250

6,600

Maximum torque

lb ft/Nm

185/251

220/298

at engine speed

rpm

2,750

2,750

Re

fe

re

n

c

e

A

t a

g

lanc

e

Co

n

tr

o

ls

D

riv

in

g tip

s

M

o

b

ilit

y

 149

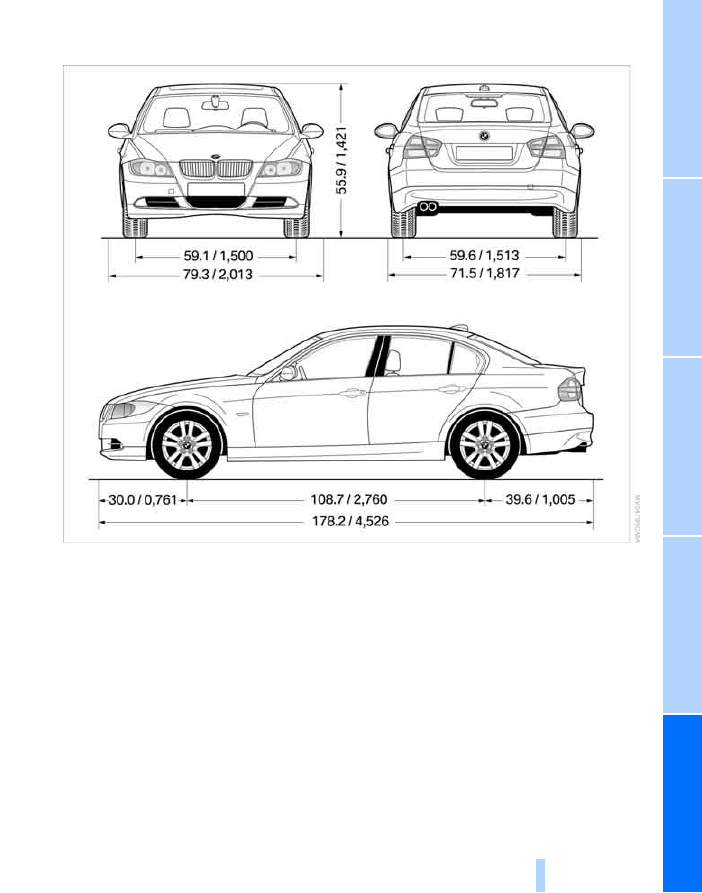

Dimensions

All dimensions given in inches/mm. Smallest turning circle diam.: 36 ft 1 in/11.0 m. All wheel drive:
38 ft 9 in/11.8 m.

Technical data

150

Weights

Never exceed either the approved axle loads or
the gross vehicle weight.

323i (Canada)

325i

325xi

Curb weight

>

with manual transmission

lbs/kg

3,274/1,485

3,285/1,490

3,560/1,615

>

with automatic transmission  lbs/kg

3,329/1,510

3,351/1,520

3,605/1,635

Approved gross weight

>

with manual transmission

lbs/kg

4,332/1,965

4,343/1,970

4,619/2,095

>

with automatic transmission  lbs/kg

4,387/1,990

4,409/2,000

4,663/2,115

Load

lbs/kg

1,058/480

1,058/480

1,058/480

Approved front axle load

lbs/kg

2,083/945

2,072/940

2,282/1,035

Approved rear axle load

lbs/kg

2,403/1,090

2,425/1,100

2,480/1,125

Approved roof load capacity

lbs/kg

165/75

165/75

165/75

Luggage compartment capacity

cu ft/l

16.2/460

16.2/460

16.2/460

330i

330xi

Curb weight

>

with manual transmission

lbs/kg

3,417/1,550

3,627/1,645

>

with automatic transmission lbs/kg

3,450/1,565

3,671/1,665

Approved gross weight

>

with manual transmission

lbs/kg

4,475/2,030

4,685/2,125

>

 with automatic transmission  lbs/kg

4,508/2,045

4,729/2,145

Load

lbs/kg

1,058/480

1,058/480

Approved front axle load

lbs/kg

2,138/970

2,315/1,050

Approved rear axle load

lbs/kg

2,469/1,120

2,513/1,140

Approved roof load capacity

lbs/kg

165/75

165/75

Luggage compartment capacity

cu ft/l

16.2/460

16.2/460

Re

fe

re

n

c

e

A

t a

g

lanc

e

Co

n

tr

o

ls

D

riv

in

g tip

s

M

o

b

ilit

y

 151

Capacities

Notes

Fuel tank

US gal/liters

approx. 16.1/61

Fuel grade: page

107

including reserve of

US gal/liters

approx. 2.1/8.0

Window washer system

For more details: page

50

including headlamp washers

US quarts/liters

approx. 6.3/6.0

Engine with oil filter renewal

US quarts/liters

approx. 6.9/6.5 BMW High Performance

Synthetic Oil

Oil grades: page

120
