volts for a battery with a 25% charge.

Even a fully charged battery cannot
deliver power unless it is properly
connected to the electrical system.
Check the battery terminals for
corrosion or loose cable connections. If
the battery does not maintain the
proper voltage, the charging system
may be at fault. See



121 Battery,

Alternator, Starter

.

If a battery cable connection has no
visible faults, but is still suspect,
measure the voltage drop across the
connection. A large drop indicates
excessive resistance, indicating that the
connection is corroded, dirty, or
damaged. Clean or repair the
connection and retest.

Note:

For instructions on conducting a voltage
drop test and other general electrical
troubleshooting information, see



600

Electrical System–General

.

The DME system operates at low
voltage and current levels, making it
sensitive to small increases in
resistance. The electrical system is
routinely subjected to corrosion,
vibration and wear, so faults or
corrosion in the wiring harness and
connectors are not uncommon.

Visually inspect all wiring, connectors,
switches and fuses in the system.
Loose or damaged connectors can
cause intermittent problems, especially
the small terminals in the ECM
connectors. Disconnect the wiring
harness connectors to check for
corrosion, and use electrical cleaning
spray to remove contaminants.





Main grounds

Good grounds are critical to proper
DME operation. If a ground connection
has no visible faults but is still suspect,
measure the voltage drop across the
connection. A large voltage drop
indicates high resistance, indicating
that the connection is corroded, dirty or
damaged. Clean or repair the
connection and retest.

Note:

For instructions on conducting a voltage
drop test and other general electrical
troubleshooting information, see



600

Electrical System–General

.

Below is a listing of the main grounds
for the fuel and ignition circuits of the
DME system.

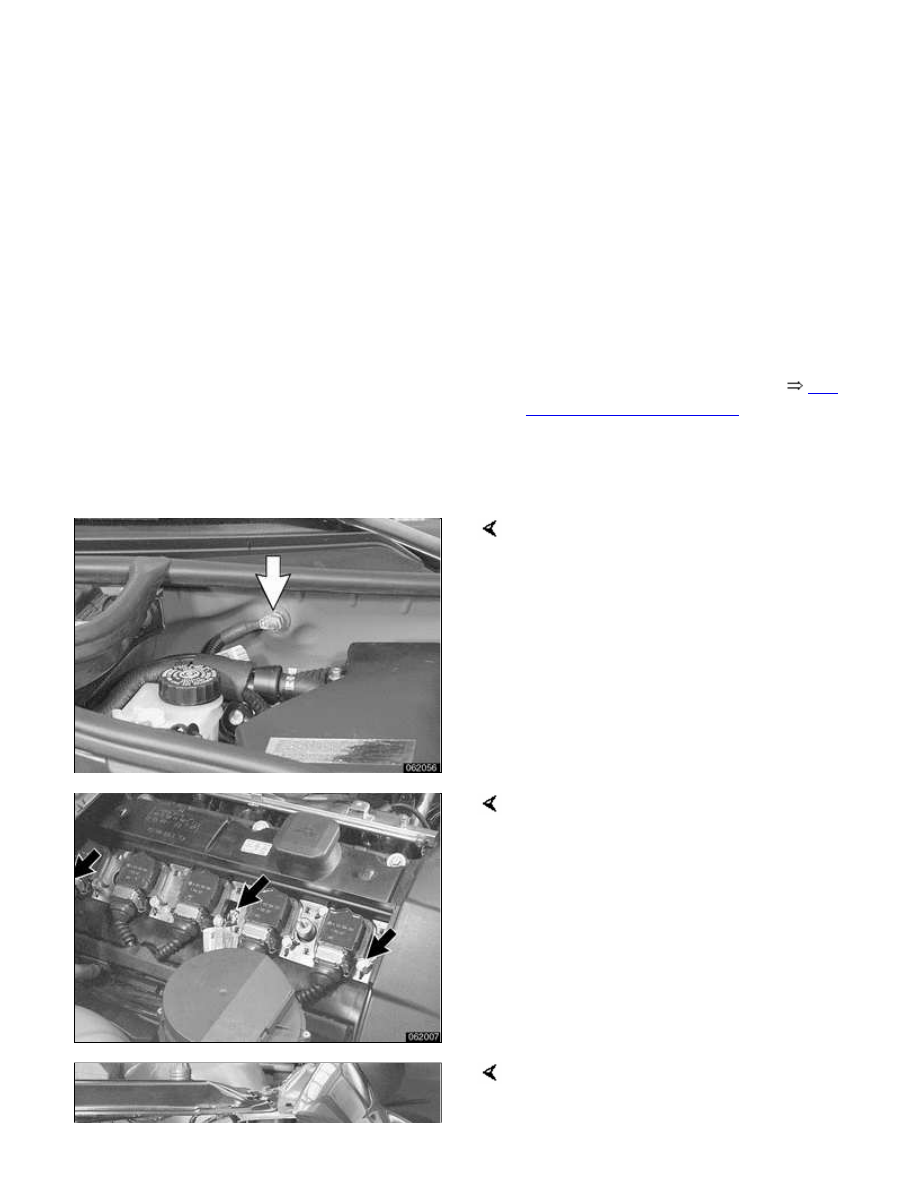

Main ground (arrow) for engine
management system in left rear of
engine compartment on bulkhead
behind E-box.

Main grounds for ignition coils
(arrows).

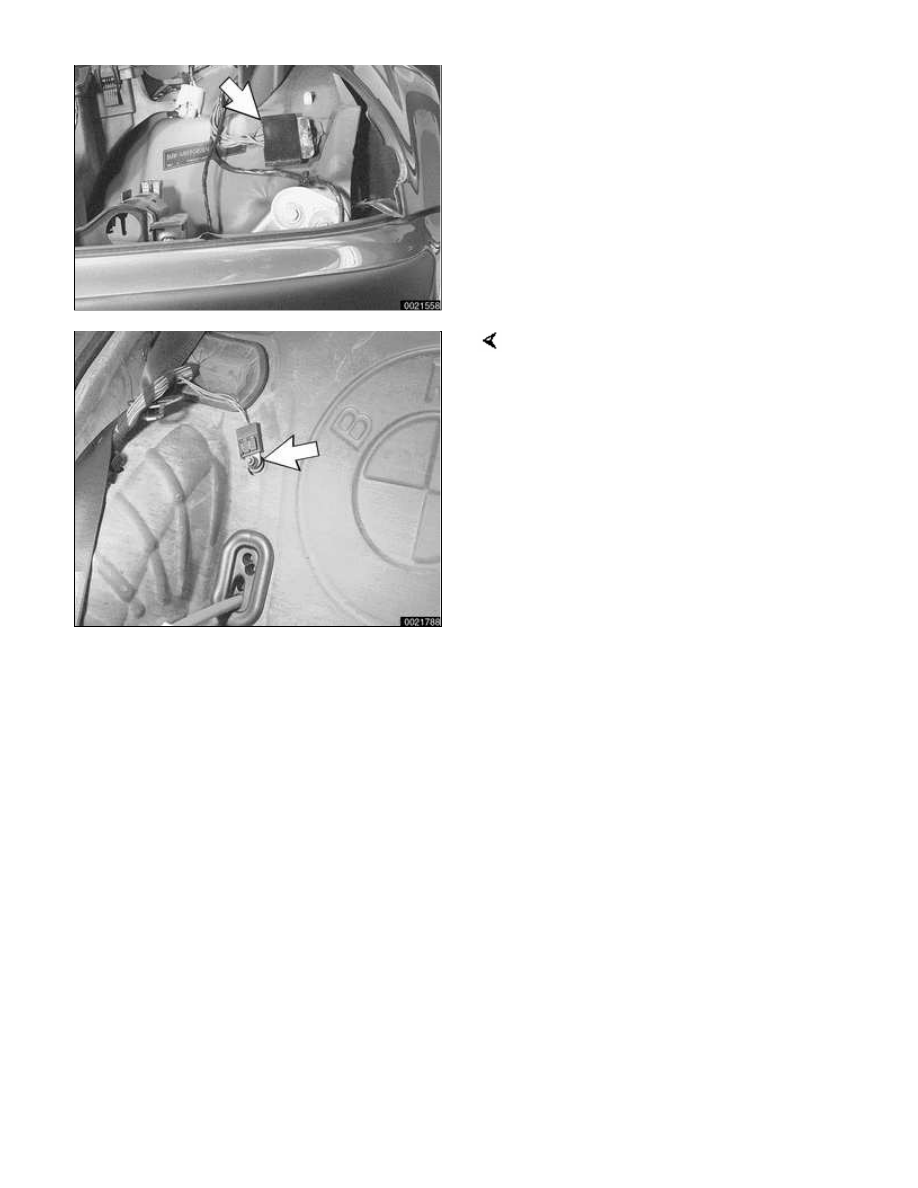

Main chassis ground harness
connection (arrow) in left front of

engine compartment, behind left
headlight assembly (headlight
assembly shown removed).

Main fuel pump ground (arrow) behind
right rear seat back rest.

110-2





Engine Removal and
Installation

Be sure to cover all painted surfaces
before beginning the removal
procedure. As an aid to installation,
label all components, wires and hoses
before removing them. Do not reuse
gaskets, O-rings or seals during
reassembly.

WARNING!

Due to risk of personal injury, be
sure the engine is cold before
beginning the removal procedure.

 -

Remove engine hood or place
hood in service position. See


410 Fenders, Engine Hood

.

Note:

It is not necessary to remove the engine
hood, but it is helpful and will make
engine removal and installation easier.





Intake manifold, removing and
installing

Note:

The intake manifold must be removed
to facilitate engine assembly removal.

 -

Disconnect negative (-) battery
cable in luggage compartment.

CAUTION!

Prior to disconnecting the battery,
read the battery disconnection
cautions given at the front of this
manual on page viii.
