Audi TT (2007 year). Manual - part 207

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.5.2

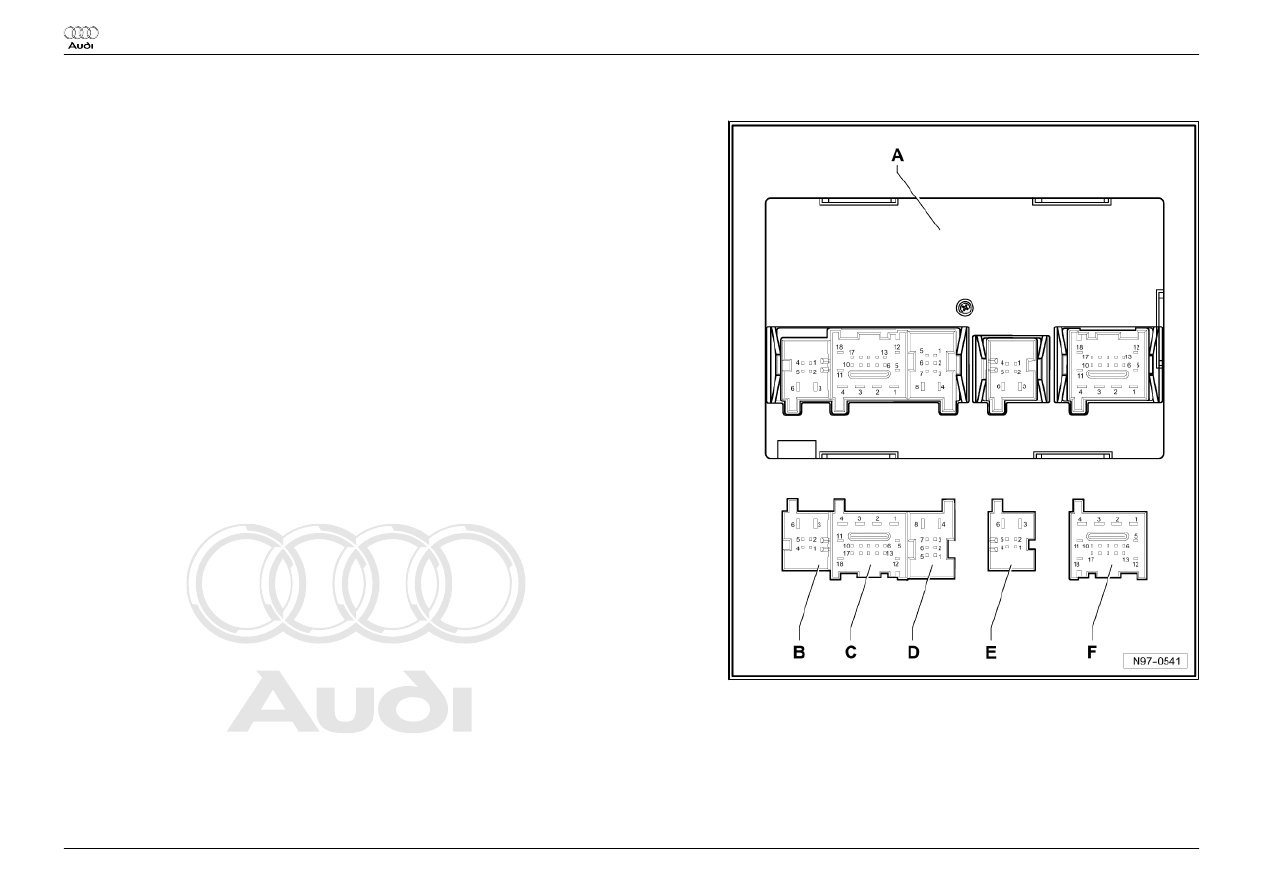

Connector assigment of convenience system central control unit -J393-

A - Convenience system central control unit -J393-
Pin connector

B - Vacant
C - 18-pin connector -T18g- , on wiring harness brown
D - 8-pin connector -T8g- , on wiring harness, black
E - 6-pin connector -T6g- , on wiring harness, black
F - 18-pin connector -T18f- , on wiring harness, black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.6

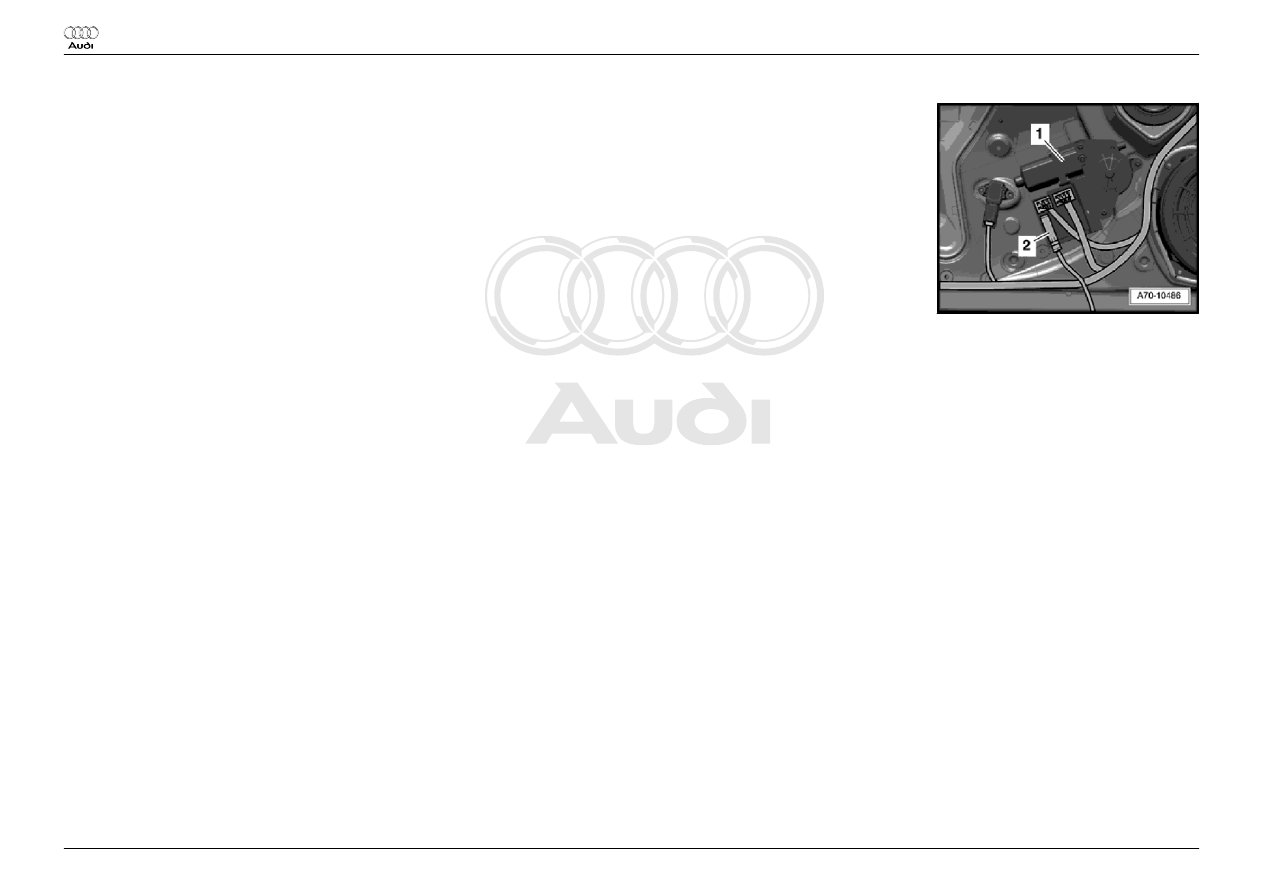

Driver door control unit -J386-

1.6.1

Location:

in driver door
1 - Driver door control unit -J386-
2 - Pin connectors

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.6.2

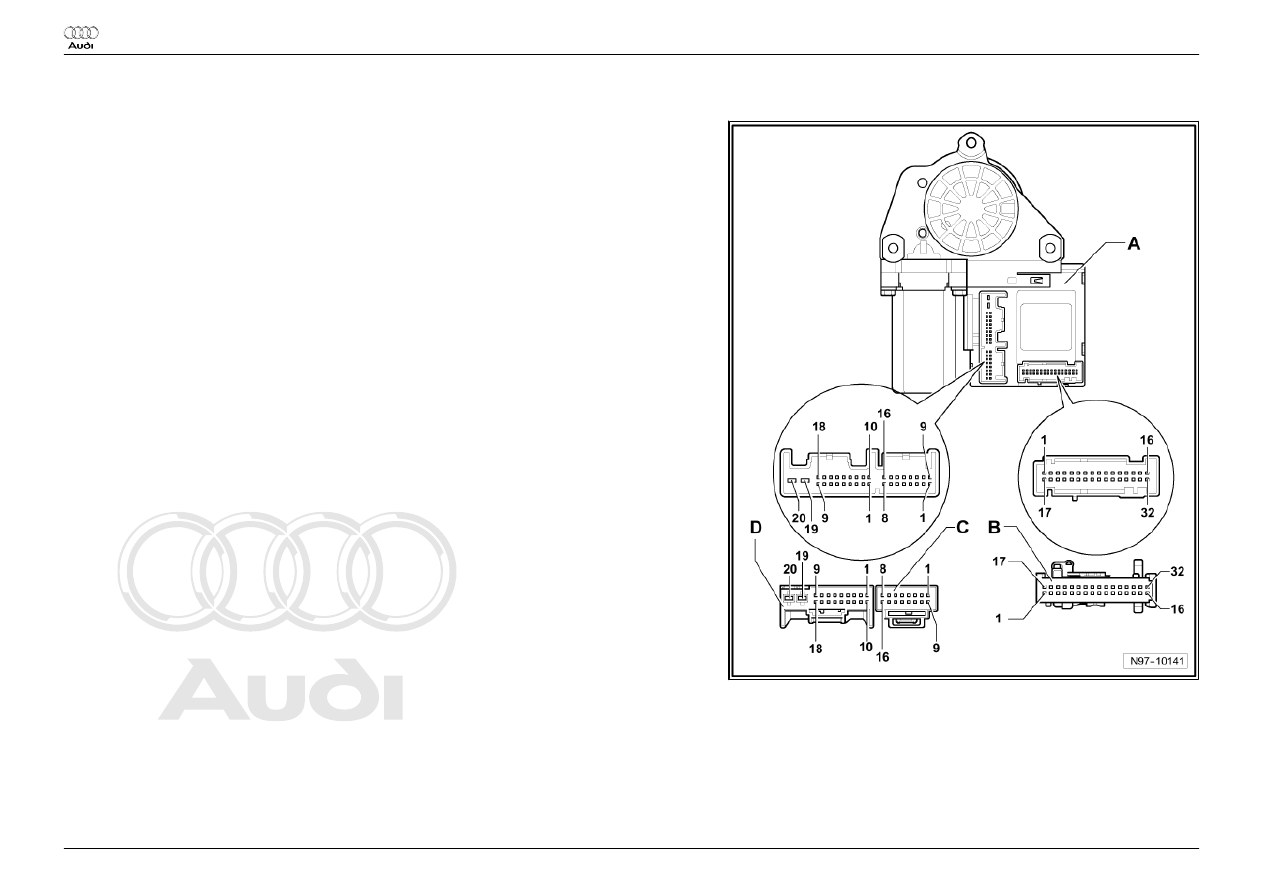

Connector assigment of driver side door control unit -J386-

A - Driver door control unit -J386-
Pin connector

B - 32-pin connector -T32f- , on wiring harness grey
C - 16-pin connector -T16f- , on wiring harness, black
D - 20-pin connector -T20f- , on wiring harness, black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.7

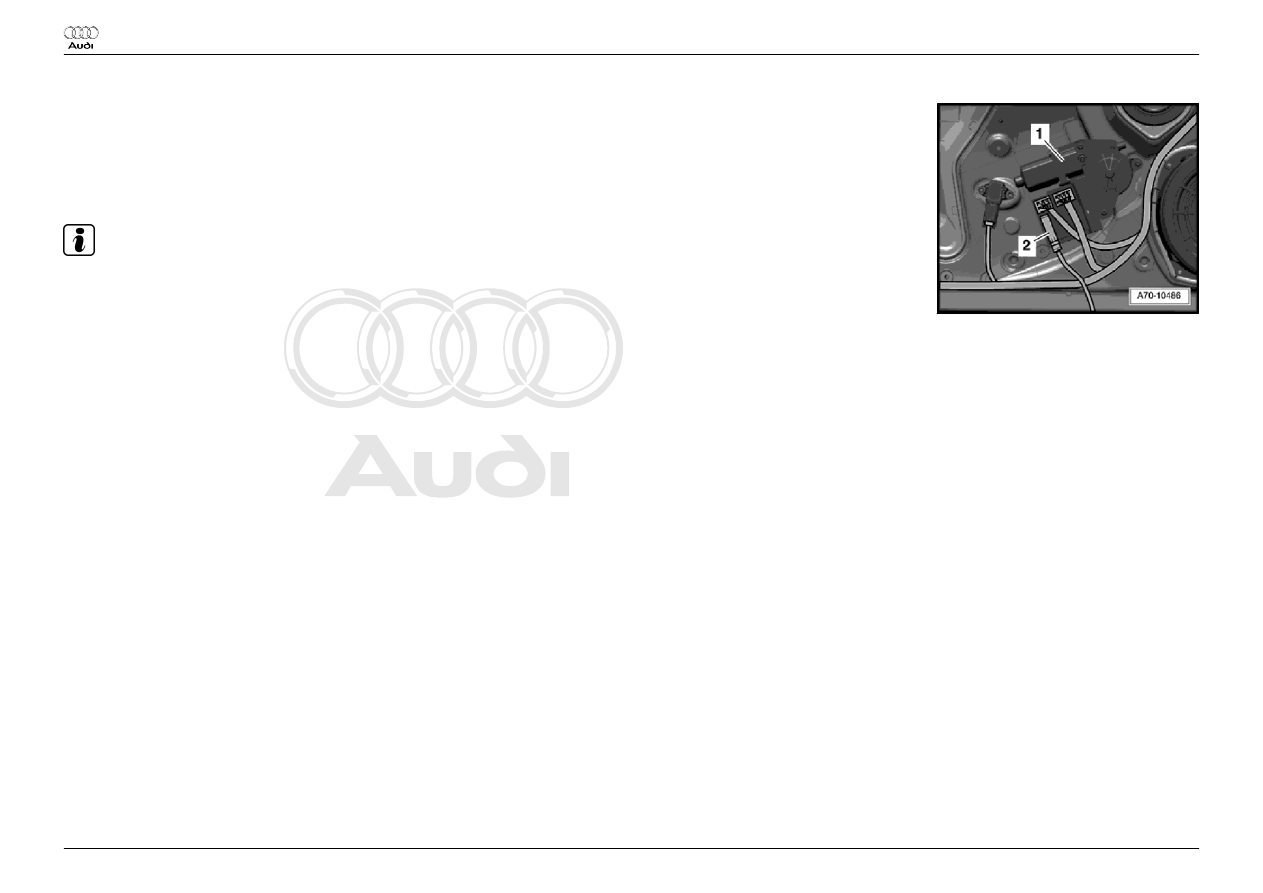

Front passenger door control unit -J387-

1.7.1

Location:

in front passenger door
1 - Front passenger door control unit -J387-
2 - Pin connectors

Note

The illustration shows the left side. The right side is similar.

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009
