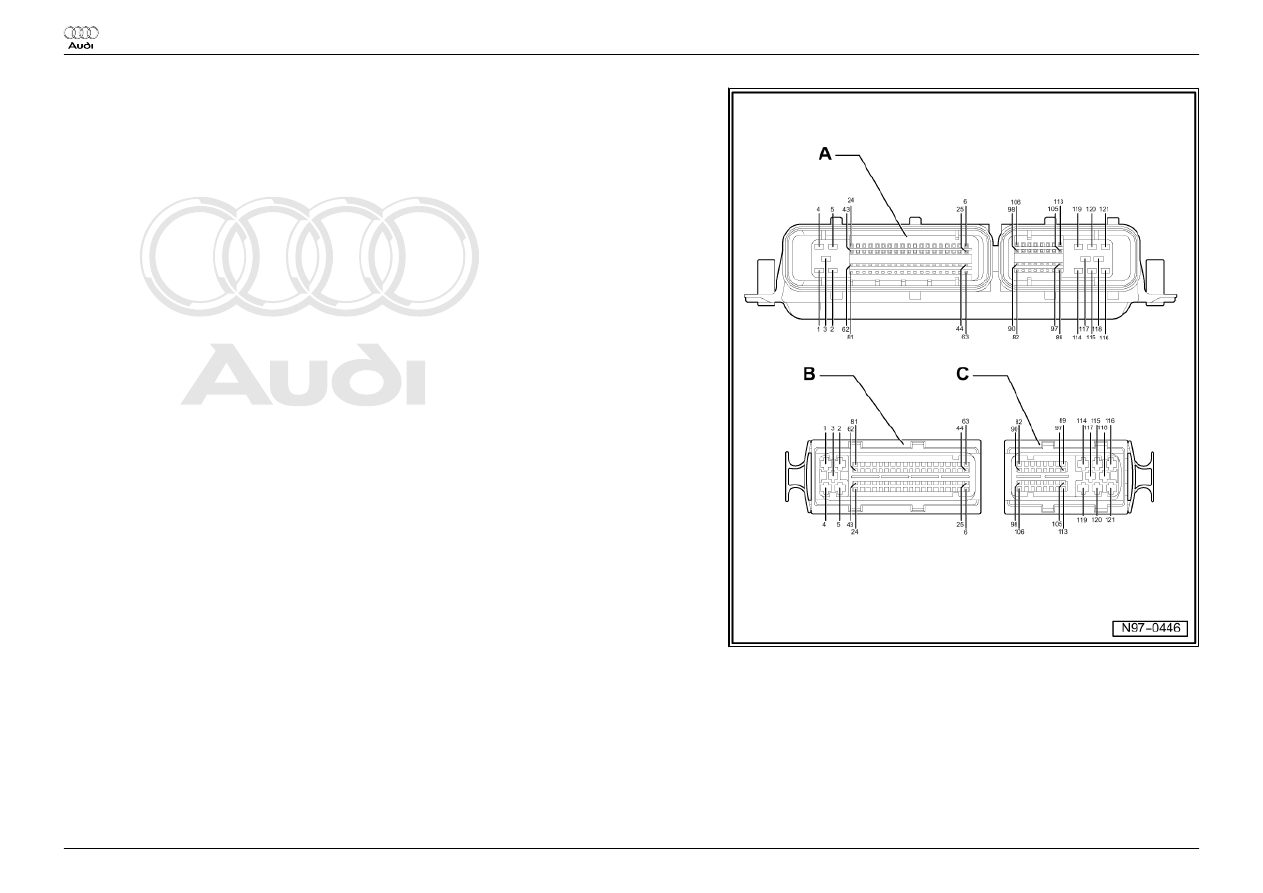

A -

Engine control unit -J623- , 3.2 l V6
Pin connector

B - 81-pin connector -T81- , on wiring harness
C - 40-pin connector -T40- , on wiring harness

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.4

Parking aid control unit -J446-

1.4.1

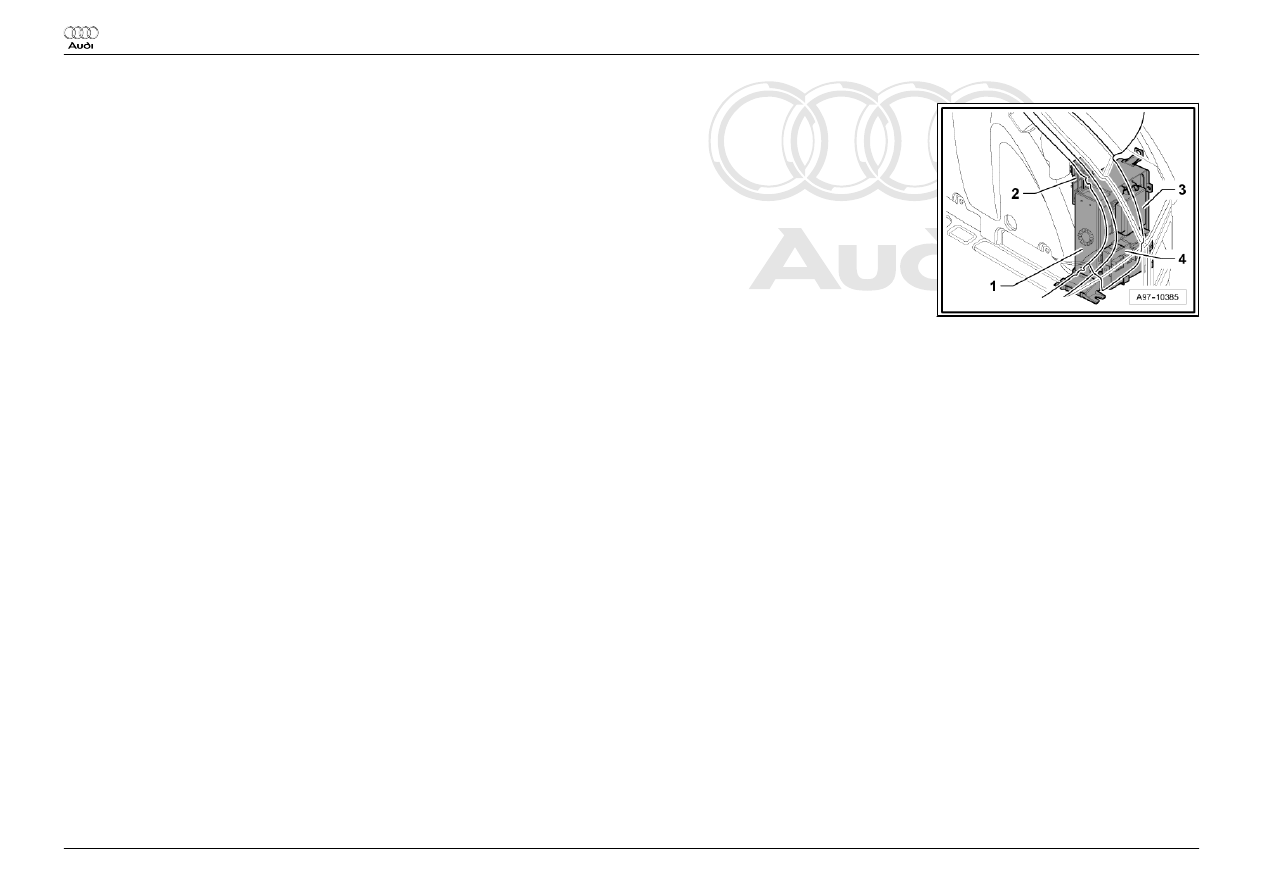

Location:

on right in luggage compartment -Item 3-

1 - TV tuner -R78-
2 - Fuse holder on right in luggage compartment
3 - Parking aid control unit -J446-
4 - Convenience system central control unit -J393- (up to May

2009)

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.4.2

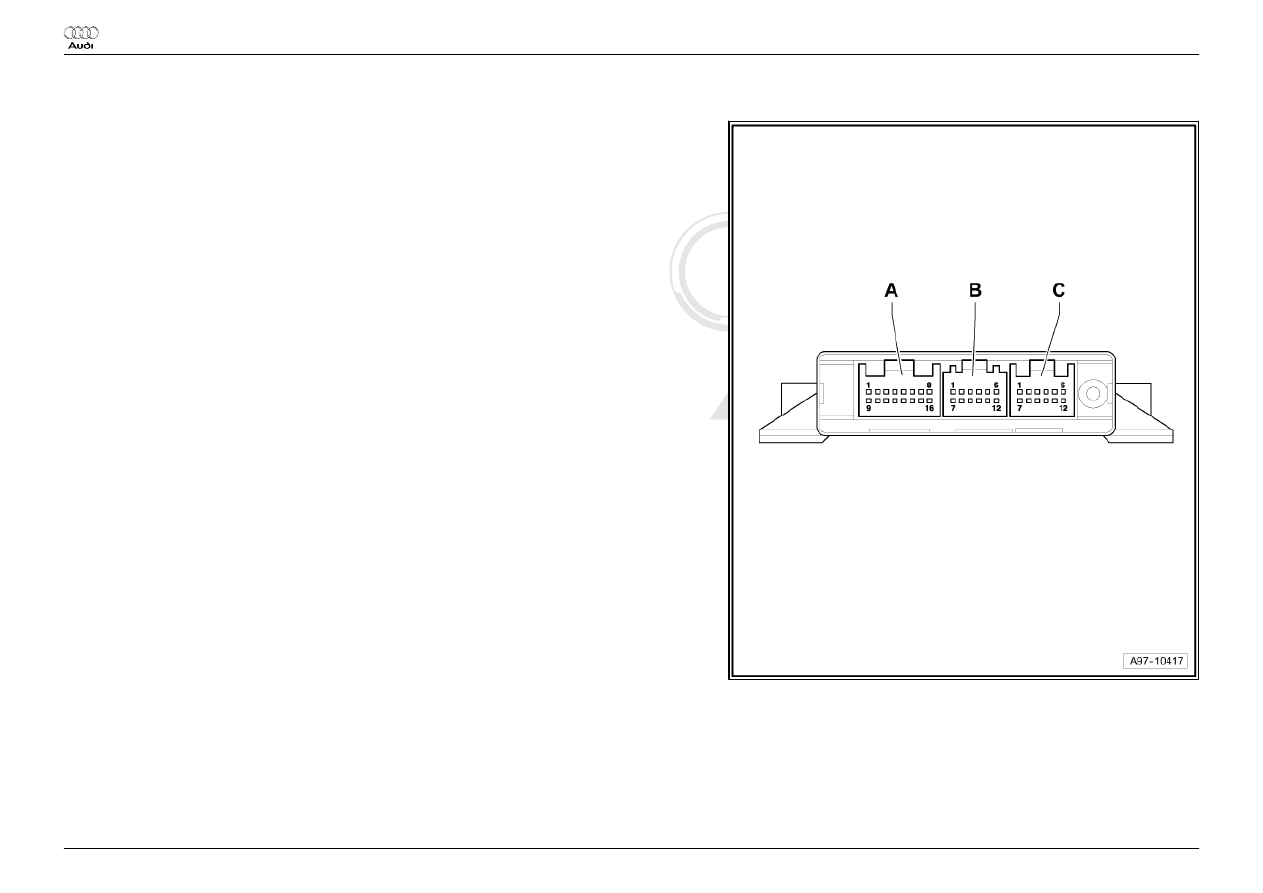

Connector assigment of parking aid control unit -J446-

A - 16-pin connector -T16e- , on wiring harness brown
B - Vacant
C - 12-pin connector -T12l- , on wiring harness, black

 Audi TT

Fitting Locations

No.  804 / 1

Edition  04.2009

Protected by copyright. Copying for private or commercial purposes, in part or in whole, is not
 permitted unless authorised by AUDI AG. AUDI AG does not guarantee or accept any liability
     with respect to the correctness of information in this document. Copyright by AUDI AG.

1.5

Convenience system central control unit -J393- (up to May 2009)

1.5.1

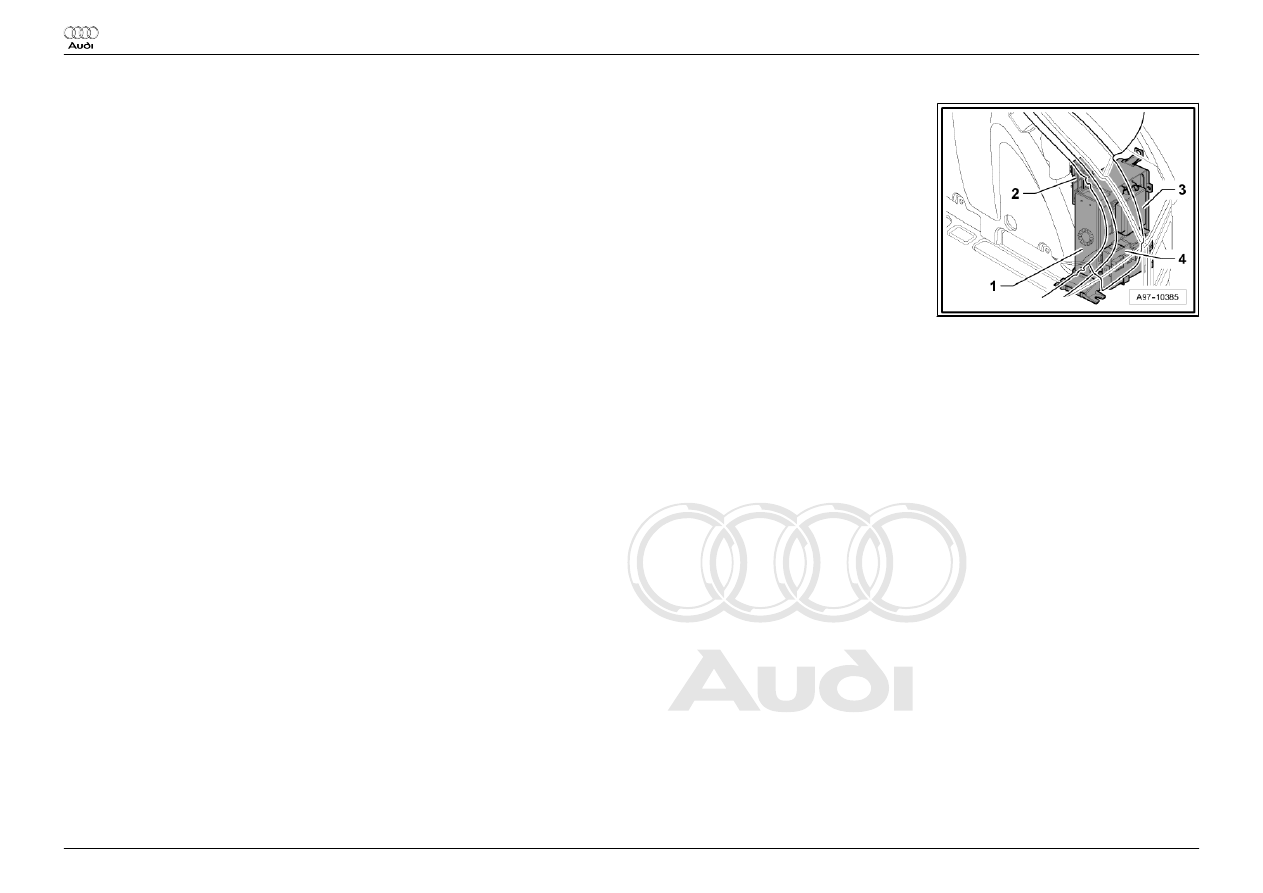

Location:

on right in luggage compartment -Item 4-
1 - TV tuner -R78-
2 - Fuse holder on right in luggage compartment
3 - Parking aid control unit -J446-
4 - Convenience system central control unit -J393- (up to May

2009)
