CAUTION! (Continued)

power rating is exceeded, the fuse protecting the
system will need to be replaced.

• Power outlets are designed for accessory plugs

only. Do not insert any other object in the power
outlets as this will damage the outlet and blow
the fuse. Improper use of the power outlet can
cause damage not covered by your New Vehicle
Limited Warranty.

52 GETTING TO KNOW YOUR VEHICLE

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR INSTRUMENT PANEL

CONTENTS

䡵 INSTRUMENT CLUSTER . . . . . . . . . . . . . . . .54

▫ Instrument Cluster Descriptions . . . . . . . . . . .54

䡵 INSTRUMENT CLUSTER DISPLAY . . . . . . . . . .56

▫ Location And Controls. . . . . . . . . . . . . . . . . .56
▫ Change Engine Oil Indicator System . . . . . . .58
▫ Display Menu Items . . . . . . . . . . . . . . . . . . .58
▫ Values Displayed . . . . . . . . . . . . . . . . . . . . .66

䡵 TRIP COMPUTER . . . . . . . . . . . . . . . . . . . . . .67

▫ Trip Button . . . . . . . . . . . . . . . . . . . . . . . . .67
▫ Trip Functions . . . . . . . . . . . . . . . . . . . . . . .68
▫ New Trip . . . . . . . . . . . . . . . . . . . . . . . . . . .68
▫ Start Of Trip Procedure . . . . . . . . . . . . . . . . .68

▫ Exit Trip . . . . . . . . . . . . . . . . . . . . . . . . . . .68

䡵 WARNING LIGHTS AND MESSAGES. . . . . . . .69

▫ Red Warning Lights. . . . . . . . . . . . . . . . . . . .69
▫ Yellow Warning Lights. . . . . . . . . . . . . . . . . .72
▫ Green Indicator Lights . . . . . . . . . . . . . . . . . .76
▫ Blue Indicator Lights . . . . . . . . . . . . . . . . . . .76

䡵 ONBOARD DIAGNOSTIC SYSTEM — OBD II .77

▫ Onboard Diagnostic System (OBD II)

Cybersecurity . . . . . . . . . . . . . . . . . . . . . . . .77

䡵 EMISSIONS INSPECTION AND MAINTENANCE

PROGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . .78

4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT CLUSTER

Instrument Cluster Descriptions

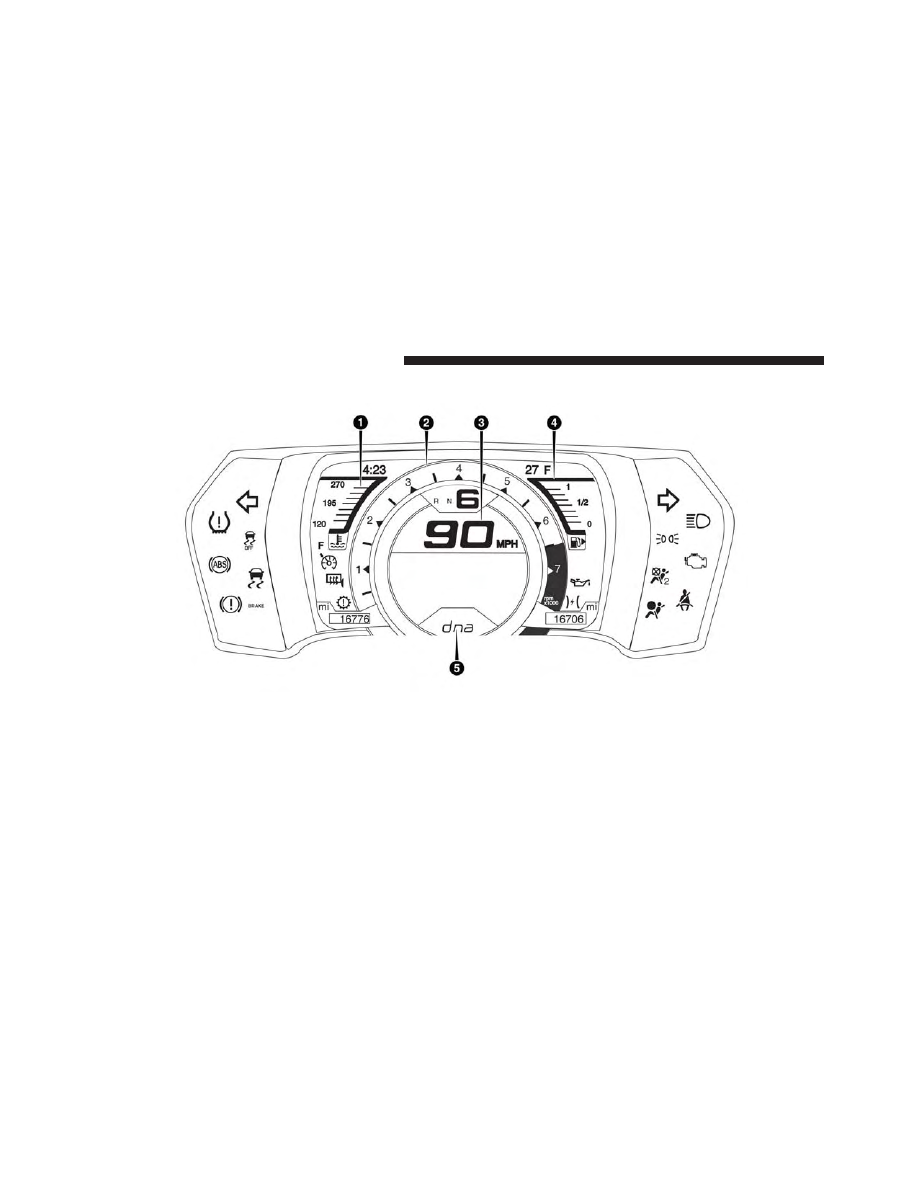

1. Temperature Gauge

• The temperature gauge shows engine coolant tem-

perature. Any reading within the normal range

indicates that the engine cooling system is operat-

ing satisfactorily.

• The digital gauge will likely indicate a higher

temperature when driving in hot weather, or up

mountain grades. It should not be allowed to

exceed the upper limits of the normal operating

range.

Instrument Cluster

54 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

Driving with a hot engine cooling system could

damage your vehicle. The digital warning light may

switch on (together with a message on the display) to

indicate that the coolant temperature is too high; in this

case, stop the engine and contact a dedicated autho-

rized dealership.

WARNING!

A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide
to look under the hood yourself, see “Servicing And
Maintenance.” Follow the warnings under the
Cooling System Pressure Cap paragraph.

2. Tachometer

• This gauge measures engine revolutions per min-

ute (RPM x 1000). Before the pointer reaches the red

area, ease up on the accelerator to prevent engine

damage.

3. Speedometer

• Indicates vehicle speed.

4. Fuel Gauge

• The digital display shows the amount of fuel in the

tank.

• The switching on of the digital warning light

indicates that 1 – 1.3 gallons of fuel are left in the

tank; in this situation, refuel as soon as possible.

• Do not travel with the fuel tank almost empty; any

gaps in fuel delivery could damage the catalytic

converter.

The fuel pump symbol points to the side of

the vehicle where the fuel door is located.

5. “Alfa DNA” Driving Mode Indicator

• This area of the cluster displays which driving

mode the vehicle is currently in. A letter (d, n, or a)

corresponding to the active driving mode (dynamic

or race, natural, all weather) and a dedicated mes-

sage is shown on the display.

NOTE:

The hard telltales will illuminate for a bulb

check when the ignition is first cycled.

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT CLUSTER DISPLAY
Your vehicle is equipped with an instrument cluster

display, which offers useful information to the driver.

With the ignition in the STOP/OFF mode, opening/

closing of a door will activate the display for viewing,

and display the total miles, or kilometers, in the odom-

eter. Your instrument cluster display is designed to

display important information about your vehicle’s

systems and features. Using a driver interactive display

located on the instrument panel, your instrument clus-

ter display can show you how systems are working and

give you warnings when they aren’t. The steering wheel

mounted controls allow you to scroll through and enter

the main menus and submenus. You can access the

specific information you want and make selections and

adjustments.
Location And Controls
Your vehicle is equipped with an instrument cluster

display, which offers useful information to the driver.

With the ignition in the STOP (OFF/LOCK) position

(and the key removed, for vehicles with mechanical

key), opening/closing of a door will activate the display

for viewing, and display the total miles or kilometers in

the odometer. Your instrument cluster display is de-

signed to display important information about your

vehicle’s systems and features. Using a driver interac-

tive display located on the instrument panel, your

instrument cluster display can show you how systems

are working and give you warnings when they aren’t.

The steering wheel mounted controls allow you to scroll

through and enter the main menus and submenus. You

can access the specific information you want and make

selections and adjustments.

The instrument cluster display features a driver-

interactive display that is located in the instrument

cluster.

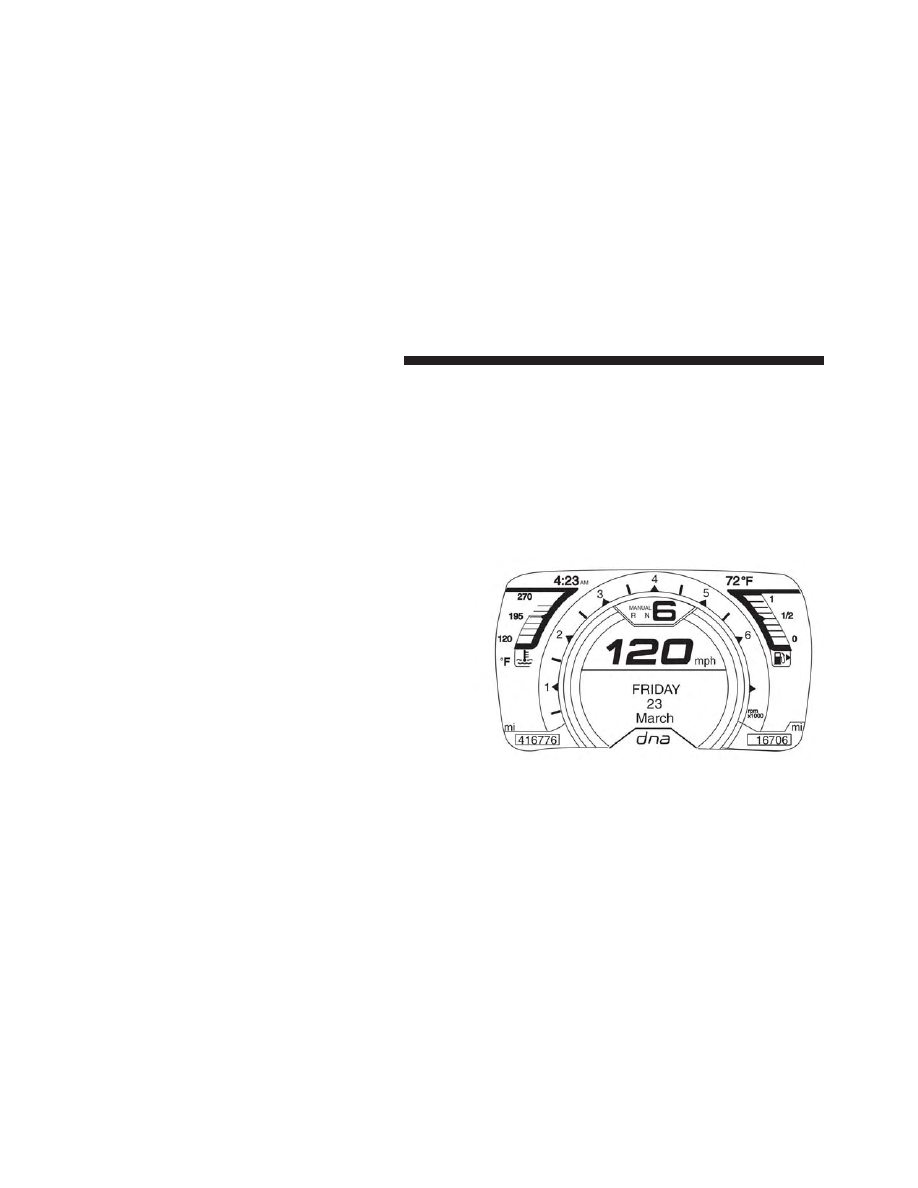

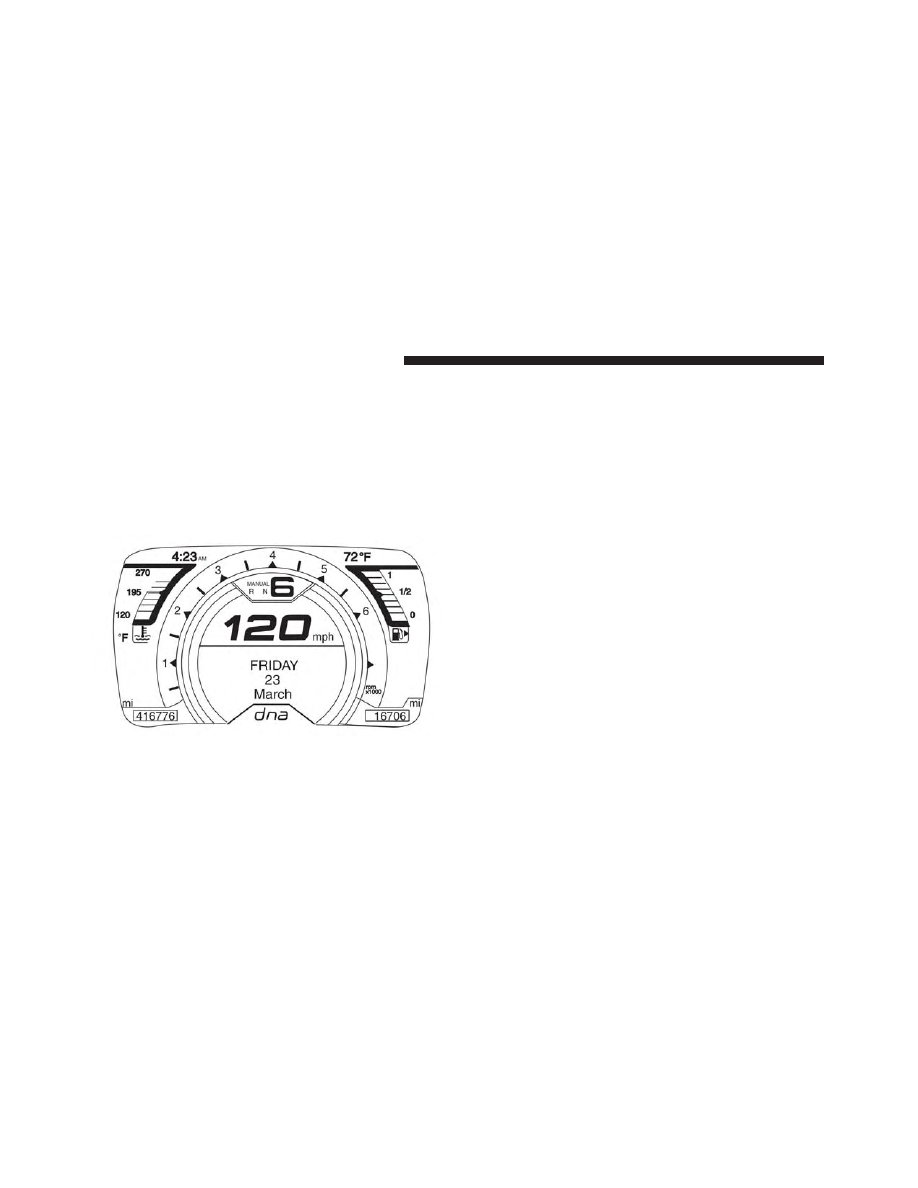

Instrument Cluster Display

56 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The instrument cluster display consists of the following:
• Digital Speedometer
• Vehicle Info
• Fuel Economy Info
• Trip Info
• Screen Setup
• Vehicle Settings
The system allows the driver to select information by

pushing the following buttons mounted on the instru-

ment panel to the left of the steering column:

• Up Arrow Button

Push and release the up arrow button to scroll

upward through the main menu and sub-

menus or to increase the displayed value.

Outside of the menu, the up arrow will adjust

the brightness of the instrument panel.
• Down Arrow Button

Push and release the down arrow button to

scroll downward through the main menu and

submenus or to decrease the displayed value.

Outside of the menu, the down arrow will

adjust the brightness of the instrument panel.
• Set/Back Arrow Button
Push and release the SET/BACK arrow button to

access/select the information screens or submenu

screens of a main menu item. Push and hold the

SET/BACK

arrow button to return to the main menu

from an info screen or submenu item.

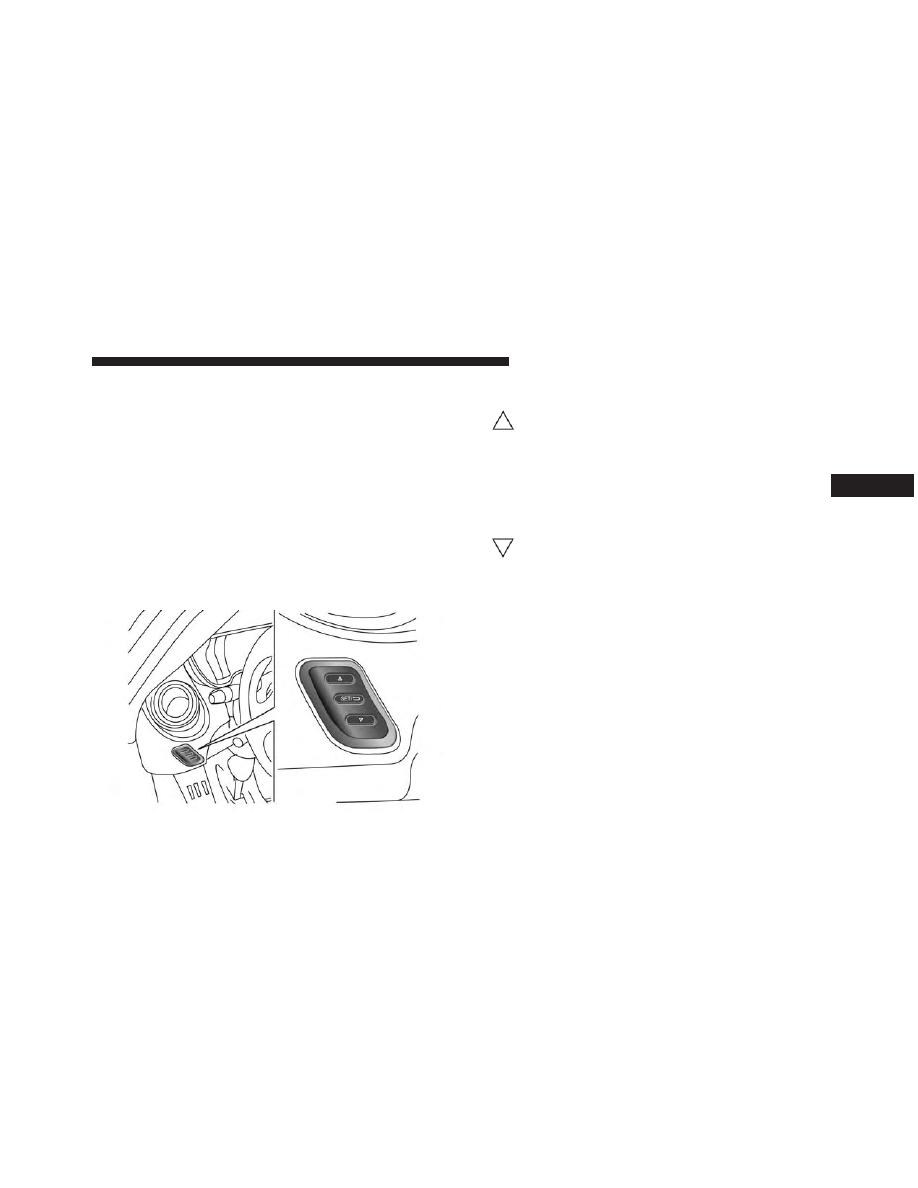

Instrument Cluster Display Control Buttons

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Change Engine Oil Indicator System

Your vehicle is equipped with an engine oil

change indicator system. The “Change Engine Oil”

message will flash in the instrument cluster display for

approximately ten seconds and the oil pressure warning

light will illuminate. The “Change Engine Oil” message

in the instrument cluster display and the oil pressure

warning light will turn off after approximately ten

seconds.
Reset the Oil Change Reminder message as follows:

1. Without pushing the brake pedal, cycle the ignition

to the MAR/ON/RUN position (do not start the

engine).

2. Push and hold the accelerator pedal.
3. Push and release the brake pedal six times; with a

one second pause between each push of the brake

pedal.

4. After the 6th release of the brake pedal, pause one

second and then release the accelerator pedal.

NOTE:

Consult your authorized dealer if the oil change

indicator message does not reset.

Display Menu Items
The menu comprises a series of functions arranged in a

cycle. Push the up and down arrow buttons to access

the different options and settings (setup).
The setup menu can be activated by pushing the

SET/BACK

button. Single push on the up or down

arrow button will scroll through the setup menu op-

tions. The menu includes the following functions:
• Menu
• Speed Buzzer
• Trip B/Data
• Set Time
• Set Date
• Autoclose
• Units
• Language
• Buzzer Volume
• Service
• Daylights (D.R.L.) – If Equipped
• Exit Menu

58 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Selecting An Option Of The Main Menu Without
Submenu

1. Briefly push the SET/BACK button to select the main

menu option to set.

2. Push the up or down arrow button (by a single push)

to select the new setting.

3. Briefly push the SET/BACK button to store the new

setting and go back to the main menu option previ-

ously selected.

Selecting An Option Of The Main Menu With Sub-
menu

1. Briefly push the SET/BACK button to display the

first submenu option.

2. Push the up or down arrow button (by a single push)

to scroll through all the submenu options.

3. Briefly push the SET/BACK button to select the

displayed submenu option and to open the relevant

setup menu.

4. Push the up or down arrow button (by a single push)

to select the new setting for this submenu option.

5. Briefly push the SET/BACK button to store the new

setting and go back to the previously selected sub-

menu option.

6. Push and hold the SET/BACK button to return to the

main menu (short hold) or the main screen (longer

hold).

Speed Buzzer (Speed Limit)
With this function, it is possible to set the vehicle speed

limit (MPH or km/h) to immediately alert the driver

when the set limit is exceeded.
To set the speed limit, proceed as follows:
1. Briefly push the SET/BACK button. The display will

show the message (Speed Buzzer).

2. Push and release the up or down arrow button to

select speed limit activation (On) or deactivation

(Off).

3. When the function is activated (On), briefly push the

SET/BACK

button to display the previously set

speed. Pushing the up or down arrow buttons selects

the speed limit. Push SET/BACK to confirm selec-

tion.

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

NOTE:

The setting can be increased or decreased by 5

MPH or km/h each time the up or down arrow button

is pushed for speed settings above 20 MPH (32 km/h).

To increase or decrease the set speed rapidly, push and

hold the up or down arrow button. Save the setting by

briefly pushing the button when you approach the

required setting.
Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button

(approximately one second) to go back to the main

screen without storing the settings.
To cancel the setting, proceed as follows:
1. Briefly push the SET/BACK button. “On” will dis-

play.

2. Push and release the down button. “Off” will dis-

play.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK

button (approximately one second) to go back to the

main screen without storing the settings.

Trip B Activation
Through this option, it is possible to activate (On) or

deactivate (Off) the Trip B (partial trip) display.
For further information, see “Trip Computer.”
For activation/deactivation, proceed as follows:
1. Briefly push the SET/BACK button. “On” or “Off”

will display in the instrument cluster display (ac-

cording to previous setting).

2. Push and release the up or down arrow button to

select the setting and once selected a beep will occur

to signal the setting is saved.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK

button (approximately one second) to go back to the

main screen without storing the settings.

Set Time
This function may be used to set the clock through two

submenu items: “Time” and “Mode.”

60 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Proceed as follows:
1. Briefly push the SET/BACK button. The display will

show the two submenu items “Time” and “Mode.”

2. Push and release the up or down arrow button to

navigate the two submenu items.

3. Select the required option and then push the SET/

BACK

button.

4. When accessing the “Time” submenu item, briefly

push the SET/BACK button and “hours” will flash

on the display.

5. Push and release the up or down arrow button for

setting.

6. Briefly push the SET/BACK button and “minutes”

will flash on the display.

7. Push and release the up or down arrow button for

setting.

NOTE:

• The setting will increase or decrease by one unit

each time the up or down arrow button is pushed.

Push and hold the button to increase/decrease the

setting rapidly. Save the setting by briefly pushing

the button when you approach the required setting.

• Briefly push the SET/BACK button to return to the

“Time” sub-function.

• When accessing the “Mode” submenu, briefly push

the SET/BACK button. The previously set display

format will flash on the display.

• Push and release the up or down arrow button to

select “24h” or “12h.”

When you have selected the required settings, briefly

push the SET/BACK button to go back to the Time,

Mode submenu screen, or push and hold the SET/

BACK

button (approximately one second) to go back to

the main screen without storing the settings.

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Set Date
This function may be used to set the date (day - month

- year).
To change the date, proceed as follows:
1. Briefly push the SET/BACK button and “year” will

flash on the display.

2. Push and release the up or down arrow button for

setting.

3. Briefly push the SET/BACK button and “month”

will flash on the display.

4. Push and release the up or down arrow button for

setting.

5. Briefly push the SET/BACK button and “day” will

flash on the display.

6. Push and release the up or down button for setting.
NOTE:

The setting will increase or decrease by one

unit each time the up or down arrow button is pushed.

Push and hold the up or down arrow button to

increase/decrease the setting rapidly. Save the setting

by briefly pushing the button when you approach the

required setting.

Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK button

(approximately one second) to go back to the main

screen without storing the settings.
Autoclose
With this function active, the doors will automatically

lock at when the vehicle’s speed exceeds 12 MPH

(20 km/h).
To change the setting, proceed as follows:
1. Briefly push the SET/BACK button “On” or “Off”

will flash on the display (according to the previous

setting).

2. Push and release the up or down arrow button for

setting.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK

button (approximately one second) to go back to the

main screen without storing the settings.

Units (Set Units)
This function may be used to set the measurement unit

in three submenus: “Distance,” “Temperature” and

“Fuel Economy.”

62 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

To set the required unit, proceed as follows:
1. Briefly push the SET/BACK button to display the

three submenus.

2. Push and release the up or down arrow button to

navigate the three submenus.

3. Select the required submenu and then briefly push

the SET/BACK button.

4. When accessing the “Distance” submenu, briefly

push the SET/BACK button. Either “mi” or “km”

will appear on the display (according to the previous

setting).

5. Push and release the up or down arrow button for

setting.

6. Briefly push the SET/BACK button to return to the

submenu.

7. When accessing the “Fuel Economy” submenu,

briefly push the SET/BACK button. Either “mpg,”

“km/l ” or “l/100km” will appear on the display

(according to the previous setting).

If the distance unit set is “mi,” the fuel economy unit

will be displayed in “mpg.”

If the distance unit set is “km,” the fuel economy unit

will be displayed in either km/l or l/100km.
1. Push and release the up or down arrow button for

setting.

2. Briefly push the SET/BACK button to return to the

submenu.

3. When accessing the “Temperature” submenu, briefly

push the SET/BACK button. Either “°F” or “°C” will

appear on the display (according to the previous

setting).

4. Push and release the up or down arrow button for

setting.

5. Briefly push the SET/BACK button to return to the

submenu.

When you have made the required settings, briefly

push the SET/BACK button to go back to the submenu

screen, or push and hold the SET/BACK button (ap-

proximately one second) to go back to the main screen

without storing the settings.

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 63

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Language (Selecting The Language)
The messages can be displayed in the following lan-

guages: Italian, English (USA), German, Portuguese,

Spanish, French, Chinese, Russian, and Mexican Span-

ish.
To set the required language, proceed as follows:
1. Briefly push the SET/BACK button. The previously

set “language” will flash on the display.

2. Push and release the up or down arrow button for

setting.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK

button (approximately one second) to go back to the

main screen without storing the settings.

Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function, the volume of the buzzer accompa-

nying any failure/warning indication can be adjusted

to one of eight volume levels.

To adjust the volume, proceed as follows:
1. Briefly push the SET/BACK button. The previously

set volume “level” will flash on the display.

2. Push and release the up or down arrow button for

setting.

3. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the SET/BACK

button (approximately one second) to go back to the

main screen without storing the settings.

Service (Scheduled Servicing) — If Equipped

With this function, it is possible to view

information on mileage intervals for servic-

ing.

To obtain this information, proceed as follows:
Push the SET/BACK button briefly. The display shows

the service interval in miles (mi) or kilometers (km)

according to the previous setting (see the

⬙Unit Of

Measurement

⬙ paragraph).

64 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Briefly push the SET/BACK button to go back to the

menu screen or hold the button down to go back to the

standard screen.
NOTE:

The “Scheduled Servicing Plan” includes ve-

hicle maintenance at fixed intervals (refer to “Scheduled

Servicing” in “Servicing And Maintenance” for further

information). This message is displayed automatically

along with the warning light when the key is turned to

MAR/ON/RUN - 1242 miles (2,000 km) before these

deadlines and reappears every 124 miles (200 km).

Below 124 miles (200 km) servicing indications are more

frequent. The indication will appear in miles or kilome-

ters according to the

⬙Unit Of Measurement⬙ settings.

When the next scheduled service is approaching and

the key is turned to MAR/ON/RUN, the word Service

will appear on the display, followed by the number of

miles or kilometers left. Contact an authorized dealer.

The operations in the “Scheduled Servicing Plan” will

be performed and the message will be reset.
Daytime Running Lamps
This function may be used to activate/deactivate the

daytime running lamps.

Proceed as follows to switch this function on or off:
1. Briefly push the SET/BACK button to display the

three submenus.

2. Briefly push the SET/BACK button. “On” or “Off”

will flash on the display (according to previous

setting).

3. Push and release the up or down arrow button for

setting.

4. Briefly push the SET/BACK button to go back to the

menu screen, or push and hold the button (approxi-

mately one second) to go back to the main screen

without storing the settings.

Exit Menu
This function closes the initial menu screen.
Briefly push the SET/BACK button to go back to the

main screen.
Push and release the up arrow button to return to the

first menu option (Speed Buzzer).
Push and release the down arrow button to return to the

last menu option (Daylights).

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Values Displayed

Indications On Display
Each time a value is selected, the following information

is shown in the instrument cluster display:
• “Trip A” or “Trip B” location(s)
• Name, value and unit of measure of the selected

value (e.g.

⬙Range 520 mi⬙).

After a few seconds, the name of the selected value is

replaced by the corresponding icon.

Range
This indicates the distance which may be traveled with

the fuel remaining in the tank, assuming that driving

conditions will not change. The message “----” will

appear on the display in the following cases:
• Distance less than 30 miles (or 50 km).
• The vehicle is parked for a long time with the engine

running.

NOTE:

The range depends on several factors: driving

style, type of route (freeway, residential, mountain

roads, etc.), conditions of use of the vehicle (load, tire

pressure, etc.). Trip planning must take into account the

above notes.
Average Fuel Consumption
This value shows the approximate average consump-

tion since the last reset.
Travel Distance
This value shows the distance covered since the last

reset.

Instrument Cluster Display

66 GETTING TO KNOW YOUR INSTRUMENT PANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Current Fuel Consumption
This indicates the fuel consumption. The value is con-

stantly updated. The message “----” will appear on the

display if the vehicle is parked with the engine running.
Average Speed
This value shows the vehicle’s average speed as a

function of the overall time elapsed since the last reset.
Travel Time
This value shows the time elapsed since the last reset.
Tire Pressure Values
This screen will display OK at each Tire Pressure

Monitoring sensor. Refer to “Tire Pressure Monitoring

System” in “Safety” for further information.

TRIP COMPUTER

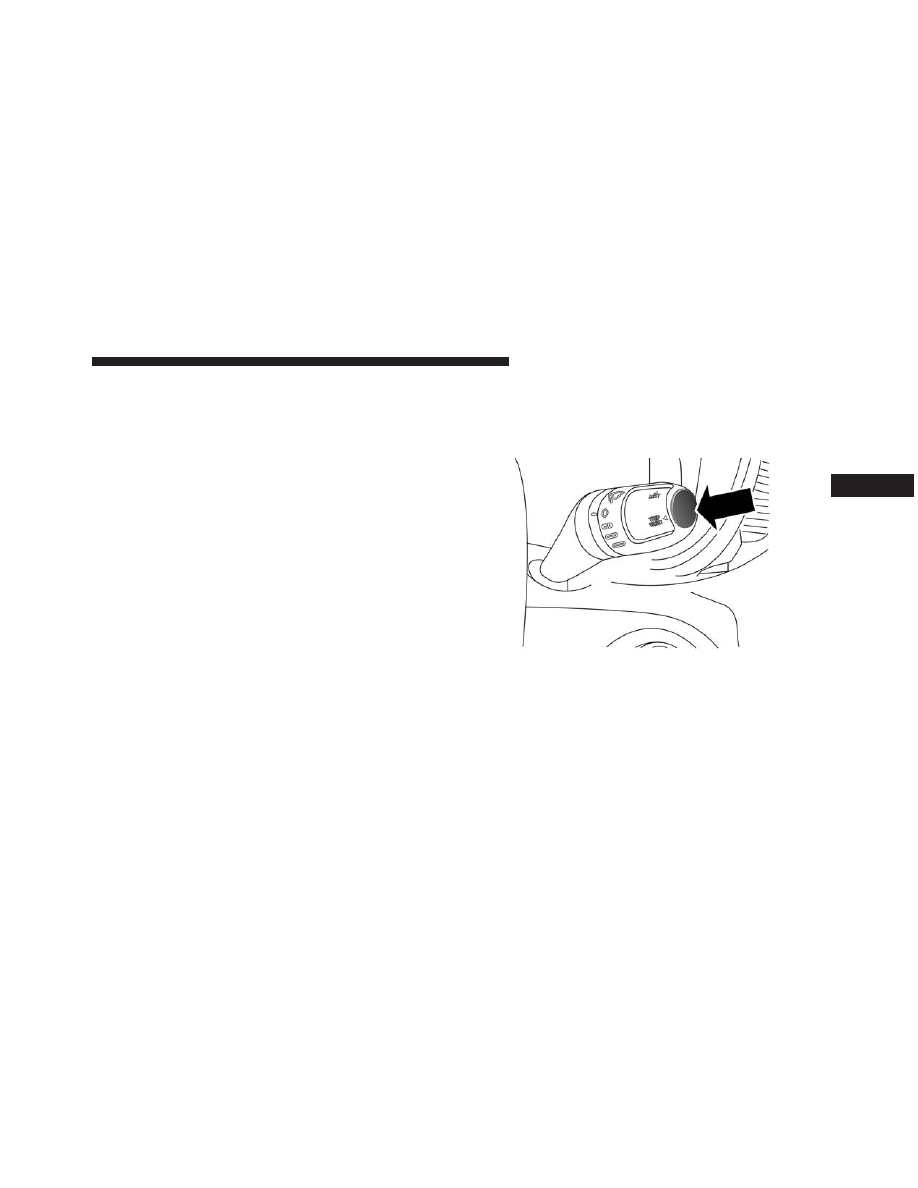

The Trip Computer is located in the instrument cluster.

It features a driver-interactive display (displays infor-

mation such as trip information, range, fuel consump-

tion, average speed, and travel time).

Trip Button
The TRIP/RESET button, located on the right steering

column stalk, can be used to display and to reset the trip

values.

• A short button push displays the different values.
• A long button push resets the system and then starts

a new trip.

TRIP/RESET Button

4

GETTING TO KNOW YOUR INSTRUMENT PANEL 67

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     2      3      4      5     ..
