Alfa Romeo Giulia Quadrifoglio (2017 year). Manual - part 6





Reconfigurable
Multifunctional Display

1. Headlight Warning Lights

Displays the headlight warning light for
either of the following active modes:

Headlights

Automatic Headlights.

2. Gear Selector Information

Displays the following information
controlled by the gear selector function:

= PARK

= REVERSE

= NEUTRAL

= DRIVE, (automatic forward

speed)

AutoStick: + shifting to higher gear

in manual (sequential) driving mode; –
shifting to lower gear in sequential
driving mode.

3. Forward Collision, Lane
Departure, Cruise Control

Displays operations for the following
modes:

Forward Collision Warning (FCW)

Lane Departure Warning (LDW)

Cruise Control (CC) or Active Cruise

Control (ACC) — if equipped

4. Speed Limit Warning Light

Shows information regarding the Speed
Limiter function.

5. Compass

6. Reconfigurable Main Area

Can display the following screens:

Home

Trip A

Trip B (can be activated/deactivated

through the Connect system)

Performance

The screens can be selected, on
rotation, by pushing the MENU selection
button on the windshield wiper stalk.

Depending on the driving mode chosen
using the “Alfa DNA Pro” (Dynamic,
Normal, Advanced Efficiency and

RACE), the screens can be graphically
different. Navigation instructions and
call information can be repeated,
besides on the Connect system display,
also in this area of the display, these
functions can be set on the Connect
system.

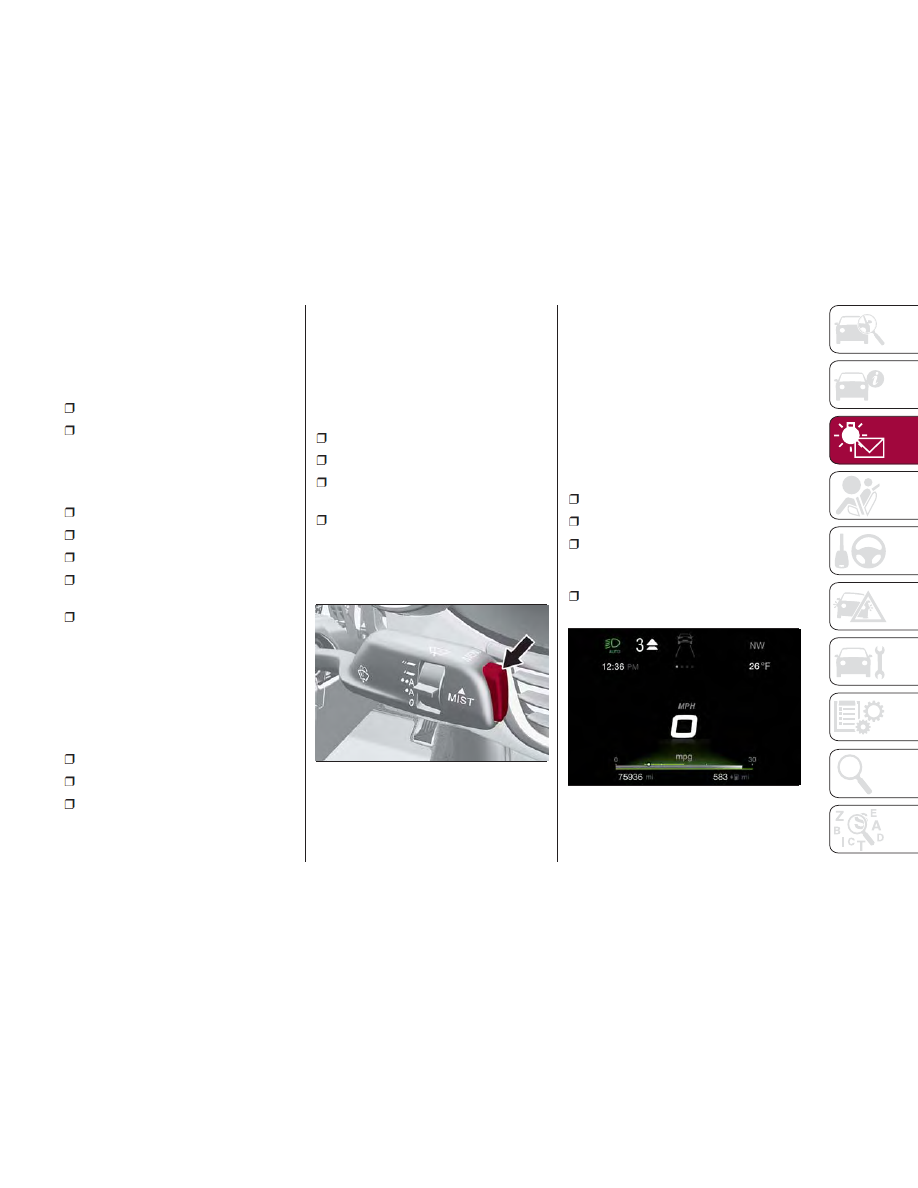

Home

The parameters shown on the display,
for the modes: Dynamic, Normal and
Advanced Efficiency are:

Time

Outside Temperature

Current Speed (shown if the repeat

modes of the Phone and Navigation
functions are not active)

Range

GUID-05036S0002EM

MENU Selection Button

GUID-05036S0004NA

Premium Instrument Cluster Display

65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In RACE mode, the consumption
indication index is not active and a
sports gearshift indicator is displayed.
The sports gearshift indicator is
represented by three yellow segments,
if the third indicator, characterized by
the word "SHIFT,” is on, it means that
the gear should be shifted.

Trip A And B

The "Trip computer" can be used to
display, for all driving modes (Dynamic,
Normal, Advanced Efficiency and
RACE) and with the ignition device ON,
the measurements regarding the
operating state of the vehicle. This
function is characterized by two
separate records, called “Trip A” and
“Trip B” (the latter can be deactivated
by Connect system), where the
“complete missions” (journeys) are
recorded in a reciprocally independent
manner.

“Trip A” and “Trip B” are used to display
the values relating to:

Distance travelled

Average fuel consumption

Average speed

Active trip

Fuel consumption indicator

To reset the values, press and hold
down the button on the windshield
wiper stalk.

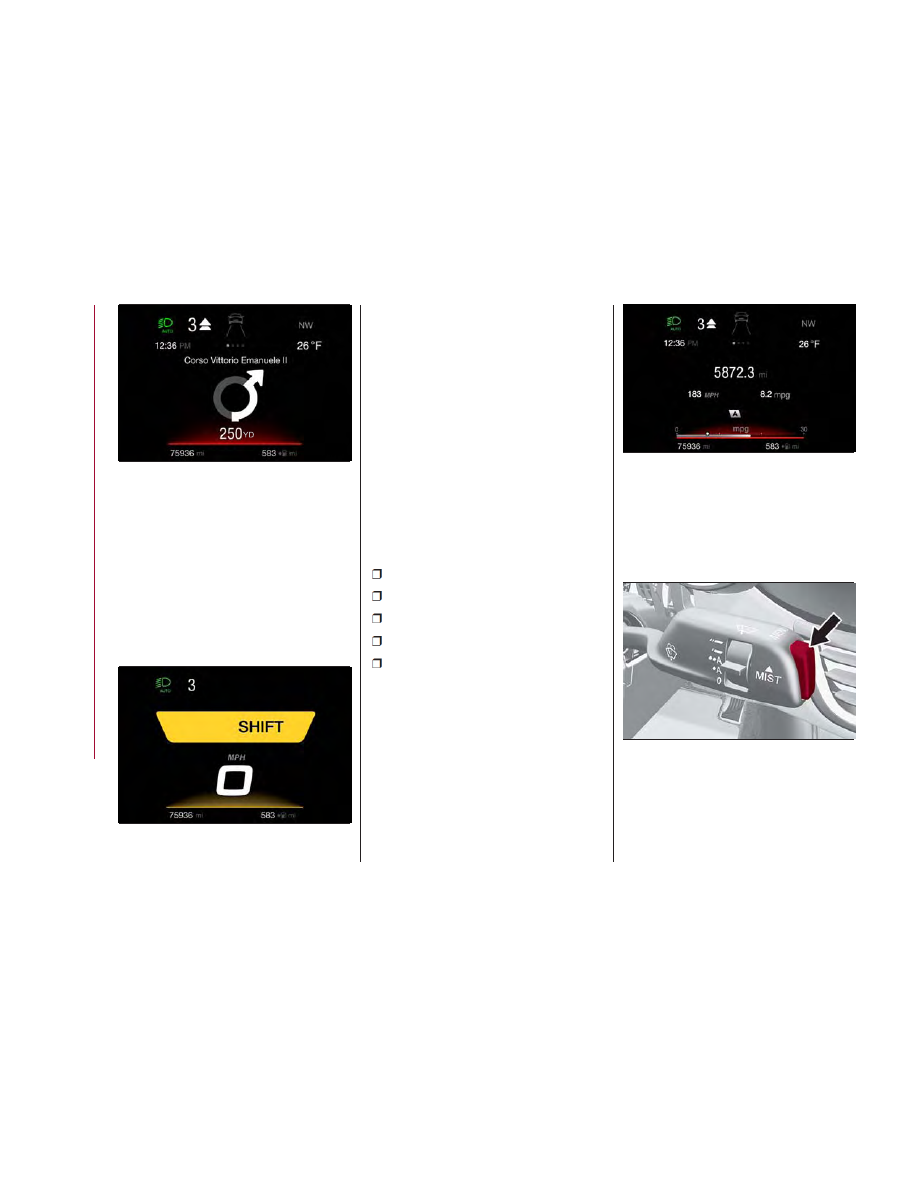

GUID-05036S0055NA

Premium Instrument Cluster

Display

GUID-05036S0005NA

Race Mode

GUID-05036S0007NA

Premium Instrument Cluster

Display

GUID-05036S0002EM

Reset Button

66

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

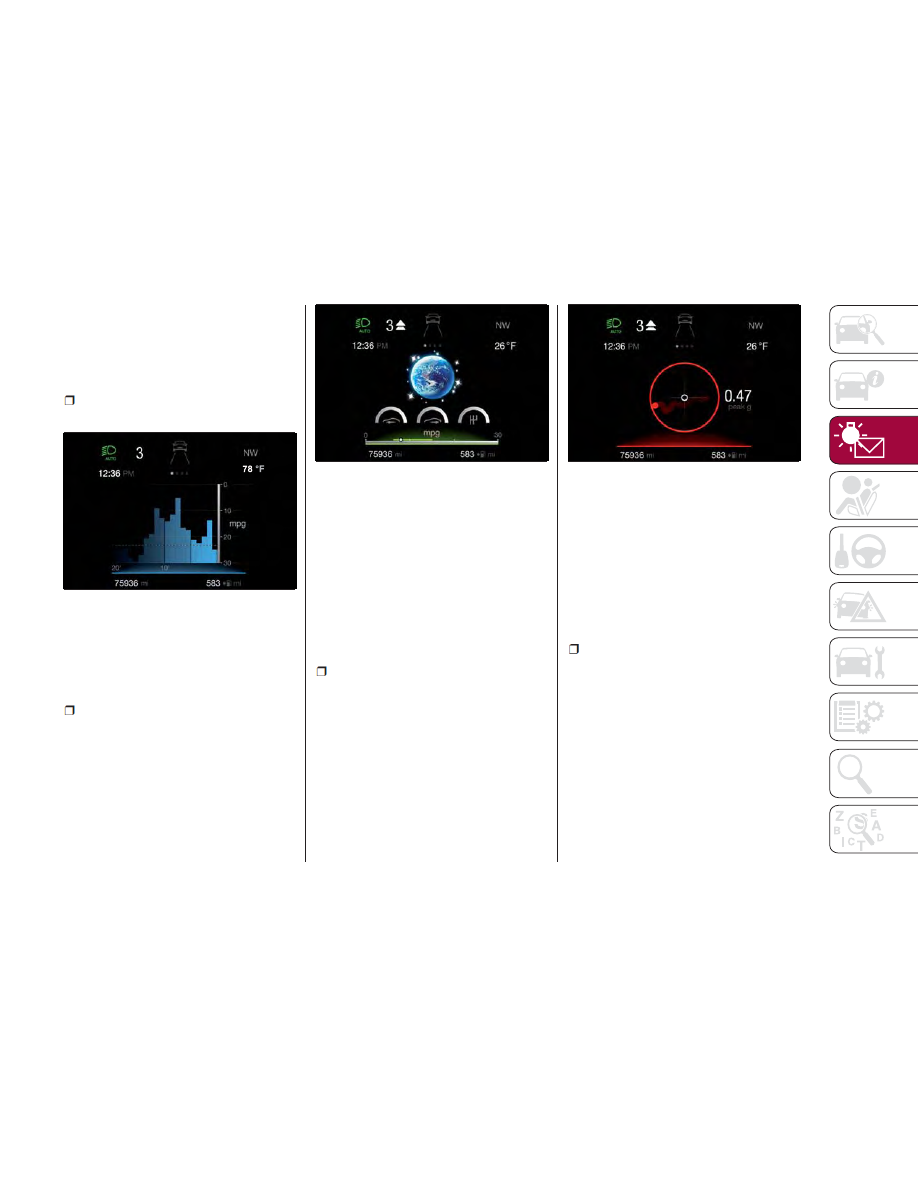

Performance

The displayed parameters differ
according to the active mode.
The modes which can be selected
using the “Alfa DNA Pro” system are:

Normal

The screen graphically reproduces
some parameters closely linked to the
efficiency of the driving style, with a
view to limiting consumption.

Advanced Efficiency

The three central icons on the screen
indicate the effectiveness of the driving
style, linked to the following
parameters: acceleration, deceleration
and gear shifts, with a view to limiting
consumption. The bar below the icons
shows current consumption and the
green line represents the optimal area.
The globe lights up gradually according
to lower consumption.

Dynamic

The displayed parameters are related to
vehicle stability, the graphs illustrate the
trend of the longitudinal/lateral
accelerations (G-meter information),
considering gravity acceleration as a
reference unit.

Lateral acceleration peaks are also
indicated.

Race

GUID-05036S0009NA

Efficiency Consumption Graph

GUID-05036S0011NA

Dynamic Driving Style

GUID-05036S0013NA

Acceleration Gauge

67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The displayed parameters are related to
vehicle stability, the graphs illustrate the
trend of the longitudinal/lateral
accelerations (G-meter information),
considering gravity acceleration as a
reference unit.

Lateral acceleration peaks are also
indicated.

7. Vehicle Range

Indicates the miles left before the fuel
tank is empty.

Displays the position by indicating the
cardinal direction.

8. Failure Warning Lights

Area dedicated to displaying failures,
the following symbols could be
displayed on rotation:

Low criticality symbols (yellow

amber).

High criticality symbols (red).

9. Odometer

Indicates the total miles travelled.

PARAMETERS SET BY USER

Multiple settings can be programmed
by the user using the Connect system.
This section describes only the basic
settings:

Units & Language

Time & Date

Cluster

To access the settings list in the
Connect system, proceed as follows:

1. Press the MENU button to access
the main menu

2. Select “Settings” from the main
menu using the Rotary Knob

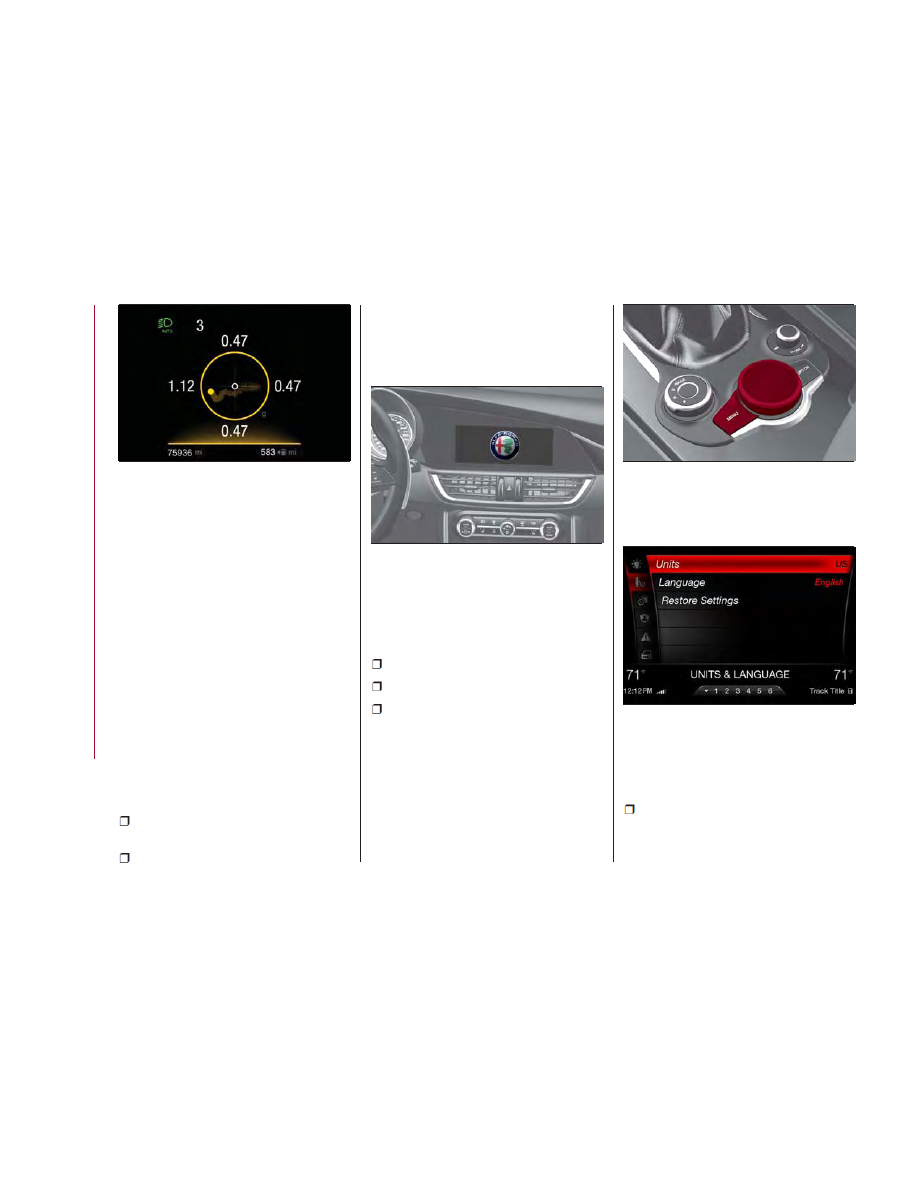

Units & Language

The following settings can be modified
under the “Units & Language” menu:

Measure Units: select US, metric, or

custom. The custom option allows for
individual selection of the unit measures

GUID-05036S0014NA

Acceleration Stability Gauge

GUID-05036S0015EM

Connect System

GUID-05036S0040EM

MENU button

GUID-05036S0016EM

Units & Language Selectable Menu

Options

68

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Language: change the language of

the system

Restore Settings: restores the factory

settings
To access and change the setting, turn
and push the Rotary Pad.

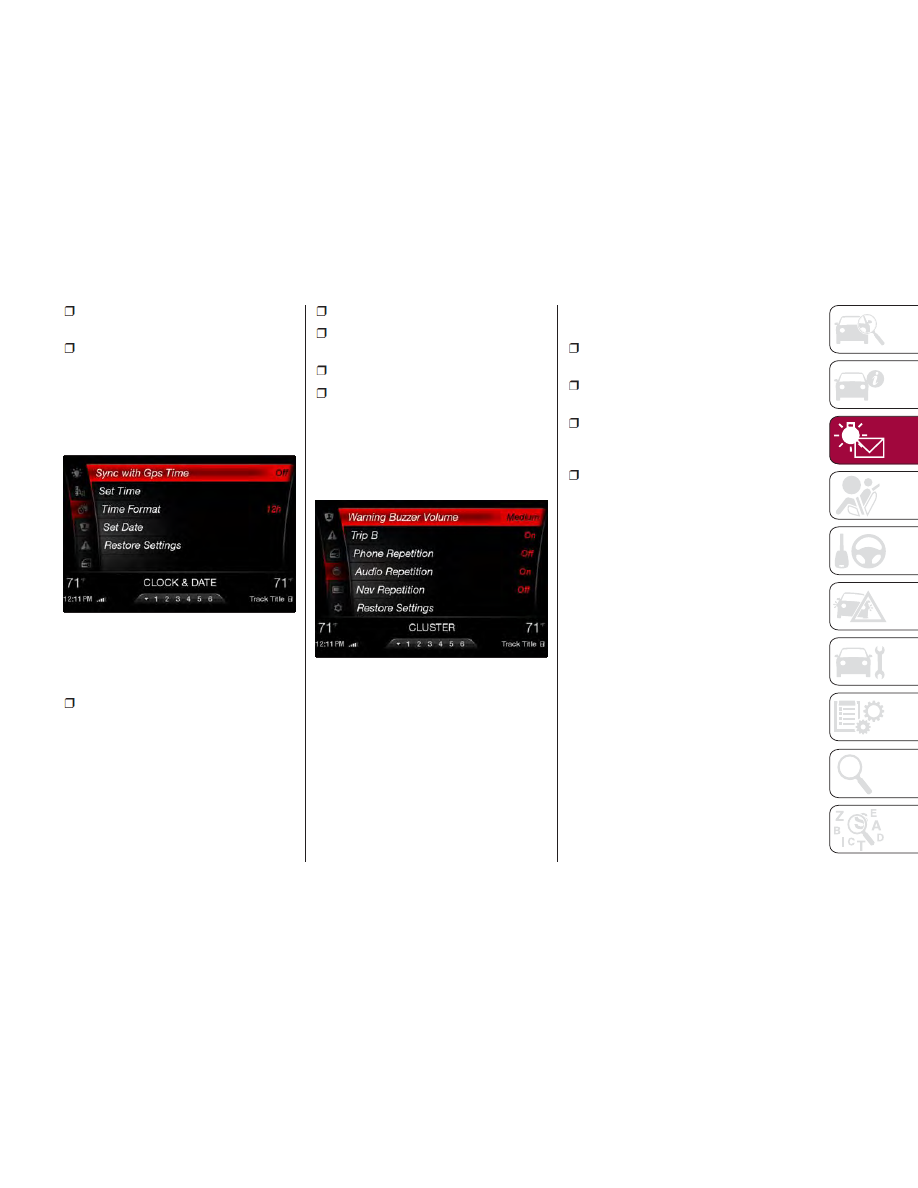

Clock & Date

The following settings can be modified
under the “Clock & Date” menu:

Sync With GPS Time: activates or

deactivates the clock synchronization
through the GPS. If the function is
deactivated, the options Set Time and
Set Date are enabled.

Set Time: set the time manually

Time Format: set the time format to

either a 12-hour and a 24-hour clock

Set Date: set the date manually

Restore Settings: restores the factory

settings
To access and the change the setting,
turn and push the Rotary Pad.

Cluster

The following settings can be modified
under the “Cluster” menu:

Warning buzzer volume: set the

volume of the warning buzzer

Trip B: activate or deactivate the Trip

function

Phone repeat: activate or deactivate

repeating the Phone function screens
on the instrument cluster display

Restore Settings: restores the factory

settings
To access and the change the setting,
turn and push the Rotary Pad.

GUID-05036S0017EM

Clock & Date Menu Option

GUID-05036S0018EM

Instrument Cluster Display Menu

Option

69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

WARNING LIGHTS
AND MESSAGES ON
THE INSTRUMENT
PANEL

The following pages consist of warning
lights and messages.

Note:

The warning light switches on

together with a dedicated message
and/or chime when applicable. These
indications are precautionary and as
such must not be considered as
exhaustive and/or alternative to the
information contained in the Owner’s
Manual, which you are advised to read
carefully in all cases. Always refer to
the information in this section in the
event of a failure indication.

The failure indicators appearing on

the display are divided into two
categories: very serious and less
serious faults. Serious faults are
indicated by a repeated and prolonged
warning "cycle.” Less serious faults are
indicated by a warning "cycle" with a
shorter duration. You can stop the
warning cycle in both cases by
pressing the button located on the
windshield wiper lever. The instrument
panel warning light will stay on until the
cause of the failure is eliminated.

70

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

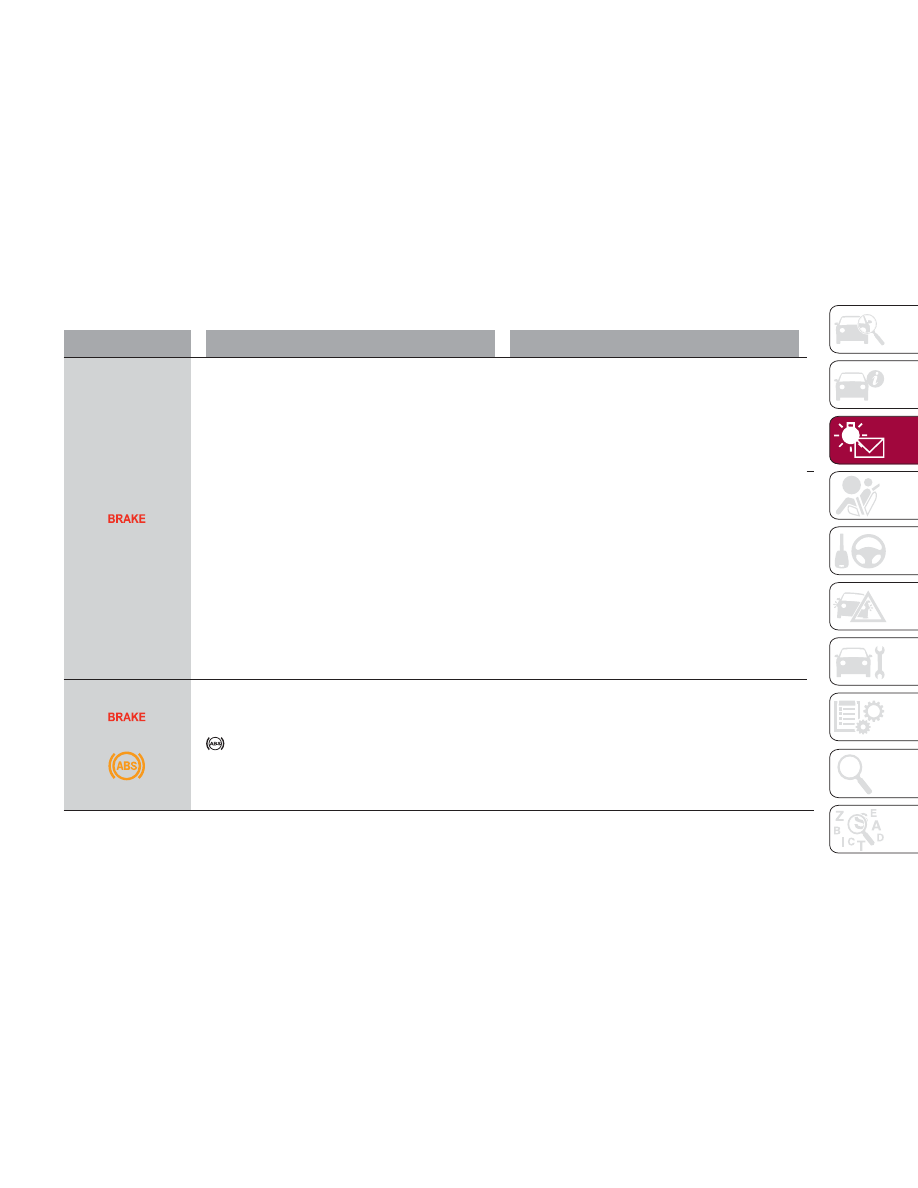

Red Warning Lights

Warning Light

What It Means

What To Do

INSUFFICIENT BRAKE FLUID/ELECTRIC PARK BRAKE
ON
This light monitors various brake functions, including
brake fluid level and parking brake application. If the
brake light turns on it may indicate that the parking
brake is applied, that the brake fluid level is low, or that
there is a problem with the anti-lock brake system
reservoir.
If the light remains on when the parking brake has been
disengaged, and the fluid level is at the full mark on the
master cylinder reservoir, it indicates a possible brake
hydraulic system malfunction or that a problem with the
Brake Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Control (ESC)
system. In this case, the light will remain on until the
condition has been corrected. If the problem is related
to the Brake Booster, the ABS pump will run when
applying the brake, and a brake pedal pulsation may be
felt during each stop.

For low brake fluid level, go to an authorized dealer to
have the system checked as soon as possible.
Release the electric park brake, then check that the
warning light has switched off.
If the warning light stays on, contact an authorized
dealer.

ELECTRONIC BRAKING FORCE DISTRIBUTION (EBD)
FAILURE
The simultaneous switching on of the BRAKE (red) and

(amber) warning lights with the engine on indicates

either a failure of the EBD system or that the system is
not available. In this case, the rear wheels may suddenly
lock and the vehicle may swerve when braking abruptly.

Drive very carefully to the nearest authorized dealer to
have the system inspected immediately.

71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

AIR BAG WARNING LIGHT
This light will turn on for four to eight seconds as a bulb
check when the ignition is placed in the ON/RUN
position. If the light is either not on during startup, stays
on, or turns on while driving, have the system inspected
at an authorized dealer as soon as possible. This light
will illuminate with a single chime when a fault with the
Air Bag Warning Light has been detected, it will stay on
until the fault is cleared. If the light comes on
intermittently or remains on while driving, have an
authorized dealer service the vehicle immediately.

If the problem persists, contact an authorized dealer.

SEAT BELT REMINDER WARNING LIGHT
When the ignition is first placed in the ON/RUN position,
if the driver’s seat belt is unbuckled, a chime will sound
and the light will turn on. When driving, if the driver or
front passenger seat belt remains unbuckled, the Seat
Belt Reminder Light will flash or remain on continuously
and a chime will sound. Refer to “Occupant Restraints”
in “Safety” for further information.

OIL TEMPERATURE WARNING LIGHT
This telltale indicates engine oil temperature is high.

Stop the vehicle and shut off the engine as soon as
possible. If the problem persists, contact an authorized
dealer.

72

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning!

The fault of the warning light is signaled by the switching on of the icon on the instrument panel. In this case, the warning light may not

indicate any faults with the restraint systems. Before proceeding, contact an authorized dealer to have the system checked immediately.

If the warning light does not switch on when the ignition device is moved to ON or if it stays on when driving (together with the message on

the display), there might be a fault in the restraint systems; in this case, the air bags or pretensioners may not deploy in the event of an
accident or, in a lower number of cases, they could deploy erroneously. Before proceeding, contact an authorized dealer to have the system
checked immediately.

Caution!

If the symbol switches on when driving, stop the vehicle and the engine immediately.

73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Amber Warning Lights

Warning Light

What It Means

What To Do

ANTI-LOCK BRAKE (ABS) INDICATOR LIGHT
This light monitors the Anti-Lock Brake System (ABS).
The light will turn on when the ignition is placed in the
ON/RUN position and may stay on for as long as four
seconds.
If the ABS light remains on or turns on while driving,
then the Anti-Lock portion of the brake system is not
functioning and service is required. However, the
conventional brake system will continue to operate
normally if the brake indicator light is not on.
If the ABS light is on, the brake system should be
serviced as soon as possible to restore the benefits of
Anti-Lock Brakes. If the ABS light does not turn on
when the ignition is placed in the ON/RUN position,
have the light inspected by an authorized dealer.

Drive carefully and contact an authorized dealer as soon
as possible.

74

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

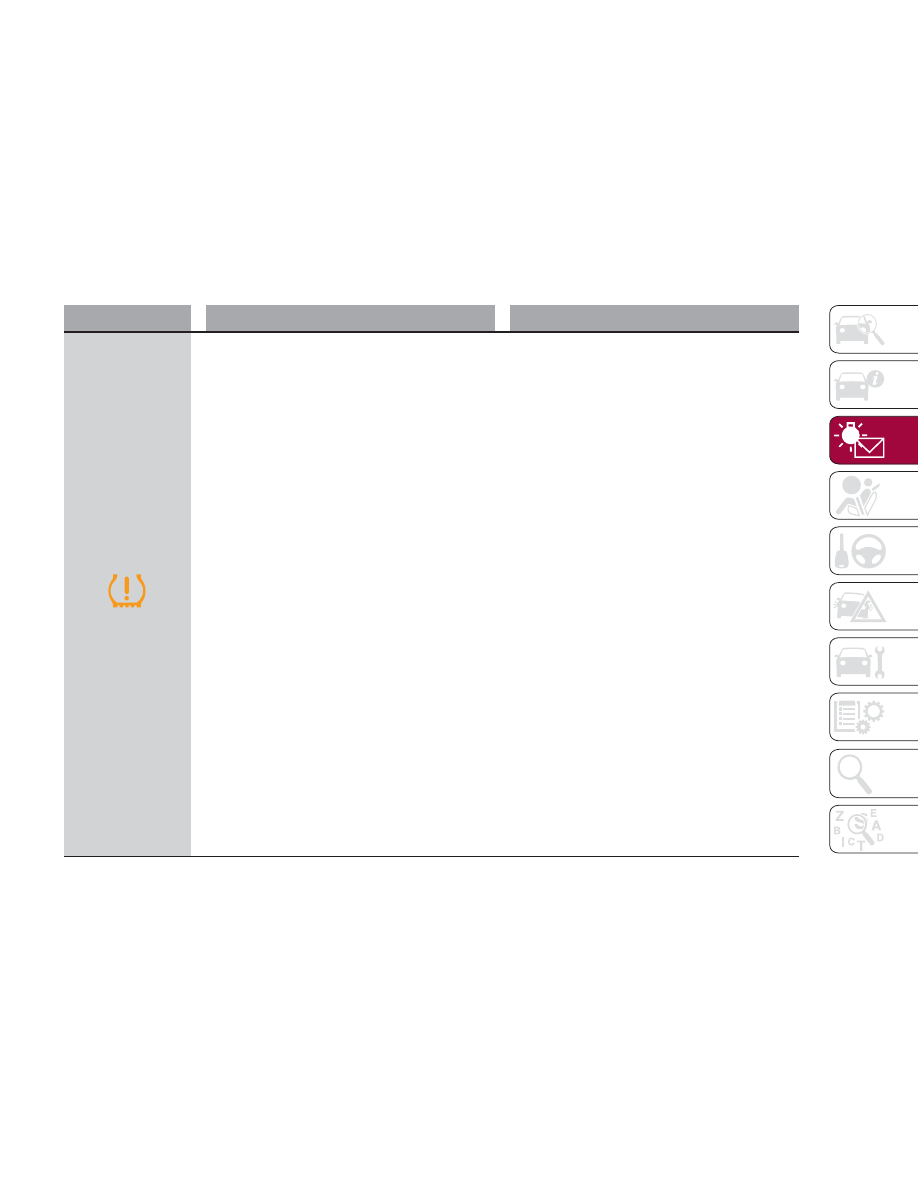

TIRE PRESSURE MONITORING INDICATOR LIGHT
The indicator light illuminates and a message is
displayed to indicate that the tire pressure is lower than
the recommended value and/or that slow pressure loss
is occurring. In these cases, optimal tire duration and
fuel consumption may not be guaranteed.
Should one or more tires be in the condition mentioned
above, the display will show the indications
corresponding to each tire in sequence.

Note:

Do not continue driving with one or more flat tires as
handling may be compromised. Stop the vehicle,
avoiding sudden braking and steering. Repair
immediately using the dedicated tire repair kit and
contact your authorized dealer as soon as possible.
Each tire, including the spare (if provided), should be
checked monthly when cold and inflated to the inflation
pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label. If your
vehicle has tires of a different size than the size
indicated on the vehicle placard or tire inflation pressure
label, you should determine the proper tire inflation
pressure for those tires.
As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale when
one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale
illuminates, you should stop and check your tires as
soon as possible and inflate them to the proper

75

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

pressure. Driving on a significantly under-inflated tire
causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread
life, and may affect the vehicle’s handling and stopping
ability.
Please note that the TPMS is not a substitute for proper
tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has
not reached the level to trigger illumination of the TPMS
low tire pressure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the system is not
operating properly. The TPMS malfunction indicator is
combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for
approximately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction
exists. When the malfunction indicator is illuminated, the
system may not be able to detect or signal low tire
pressure as intended. TPMS malfunctions may occur
for a variety of reasons, including the installation of
replacement or alternate tires or wheels on the vehicle
that prevent the TPMS from functioning properly. Always
check the TPMS malfunction telltale after replacing one
or more tires or wheels on your vehicle, to ensure that
the replacement or alternate tires and wheels allow the
TPMS to continue to function properly.

76

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

Caution!

The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures and
warning have been established for the tire size
equipped on your vehicle. Undesirable system
operation or sensor damage may result when using
replacement equipment that is not of the same size,
type, and/or style. Aftermarket wheels can cause
sensor damage. Using aftermarket tire sealants may
cause the Tire Pressure Monitoring System (TPMS)
sensor to become inoperable. After using an
aftermarket tire sealant it is recommended that you
take your vehicle to an authorized dealership to have
your sensor function checked.

Do not continue driving with one or more flat tires as
handling may be compromised. Stop the vehicle,
avoiding sharp braking and steering. Immediately
restore the correct inflation pressure using the Tire
Repair Kit (refer to “Tire Repair Kit” in “In Case Of
Emergency”) and contact an authorized dealer as soon
as possible.

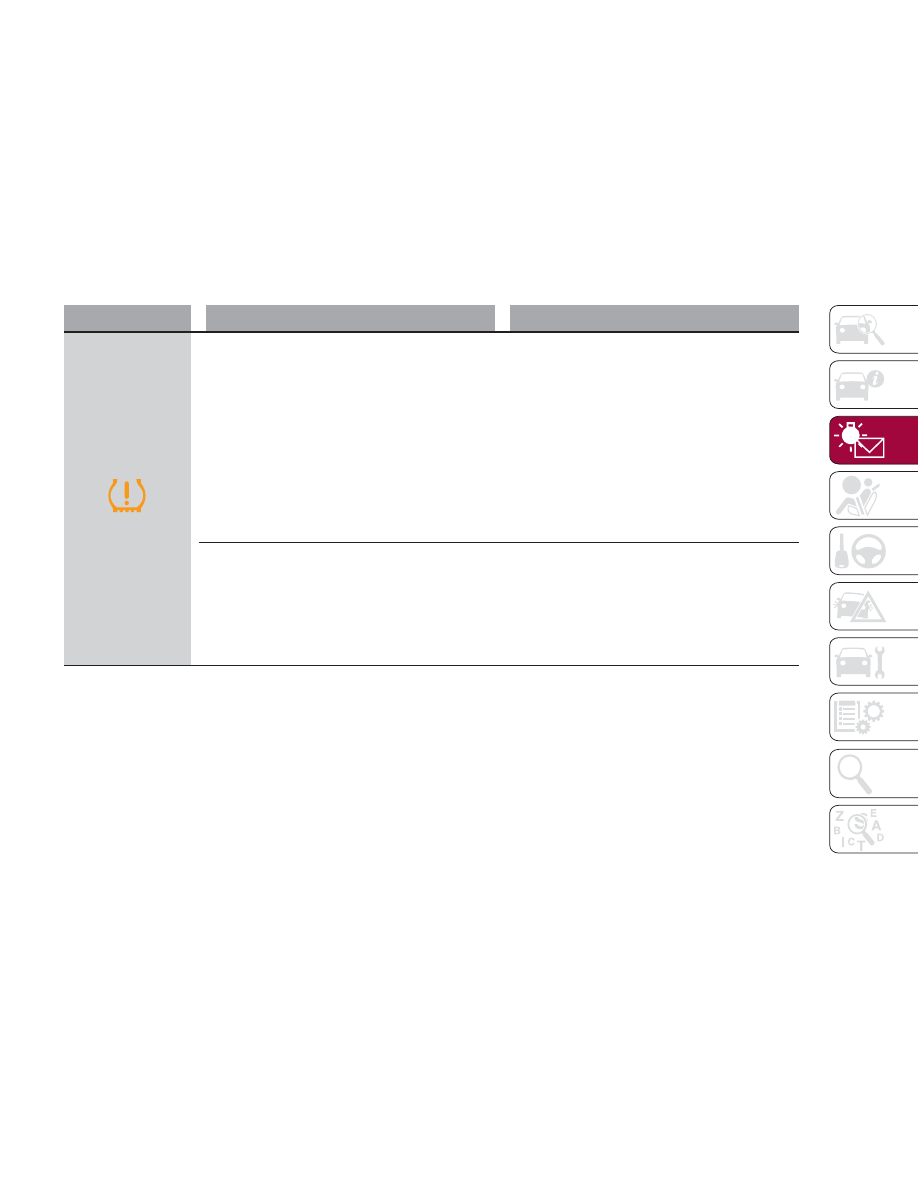

Tire Pressure Low

The indicator light will illuminate to indicate that the tire
pressure is lower than the recommended value and/or
that slow pressure loss is occurring. In these cases,
optimal tire duration and fuel consumption may not be
guaranteed.

In any situation in which the message on the display is
"See Manual", it is ESSENTIAL to refer to “Driving
Assistance Systems” in “Safety,” strictly complying with
the indications that you find there.

77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

ELECTRONIC STABILITY CONTROL (ESC) INDICATOR
LIGHT
When the ignition is cycled to ON, the indicator light
illuminates, but should turn off as soon as the engine is
started.
ESC System Intervention: Intervention by the system
is indicated by the flashing of the indicator light: it
indicates that the car is in critical stability and grip
conditions.

ECS System Failure: If the indicator light does not turn
off, or if it stays on with the engine running, a failure was
found in the ESC system.

In these cases, contact an authorized dealer as soon as
possible.

Hill Start Assist System Failure: The illumination of the
indicator light indicates a Hill Start Assist system failure.

ELECTRONIC STABILITY CONTROL (ESC) OFF
INDICATOR LIGHT — IF EQUIPPED
When the ignition is cycled to ON, the indicator light
illuminates, but should turn off as soon as the engine is
started.
The indicator light illuminates to indicate that some
active safety systems have been partially or totally
deactivated.
For further details about the active safety systems, refer
to “Active Safety Systems” in “Safety.” When the active
safety systems are reactivated, the indicator light turns
off.

78

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

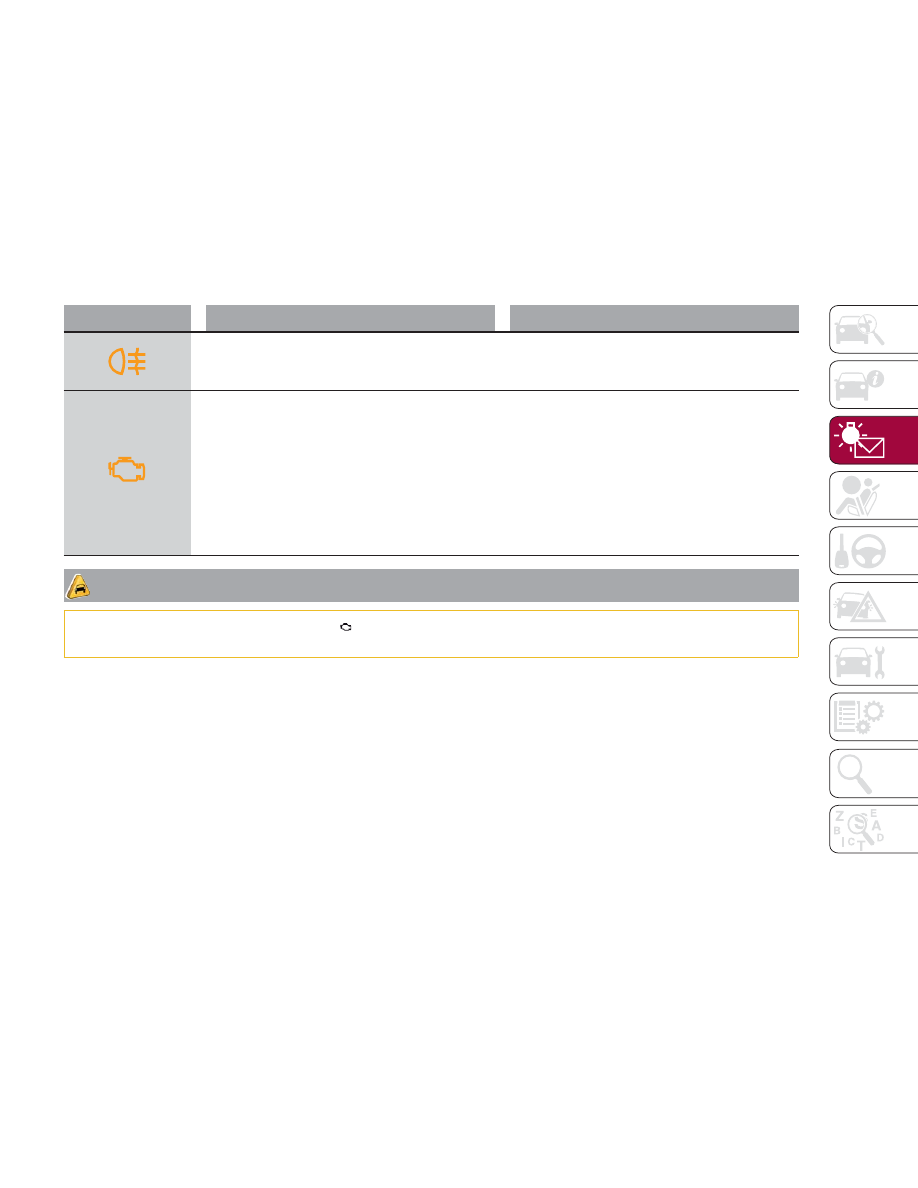

REAR FOG LIGHT
The indicator illuminates when the rear fog light is
activated.

ENGINE CHECK/MALFUNCTION INDICATOR LIGHT
(MIL)
In normal conditions, when the ignition is cycled to ON,
the indicator light illuminates, but it should turn off as
soon as the engine is started.
The operation of the indicator light may be checked by
the traffic police using specific devices. Comply with the
laws and regulations of the country where you are
driving.

Under these conditions, the vehicle can continue
travelling at moderate speed but without demanding
excessive effort from the engine or high speed.
Prolonged use of the car with the indicator light on
constantly may cause damage. Contact an authorized
dealer as soon as possible.

Caution!

If, turning the ignition device to ON, the warning light

does not turn on or if it turns on steadily or flashing when travelling (on some versions

together with the message on the display), contact an authorized dealer as soon as possible.

79

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Warning Light

What It Means

What To Do

FORWARD COLLISION WARNING SYSTEM (FCW) —
IF EQUIPPED
This indicator light informs the driver that the frontal
collision alarm function is not enabled.

FUEL RESERVE / LIMITED RANGE
The indicator light (or the symbol in the display)
illuminates when about 9 liters of fuel is left in the tank.

Warning!

If the warning light (or the icon on the display) flashes while driving, contact an authorized dealer.

80

GETTING

TO

KNOW

YOUR

INSTRUMENT

P

ANEL

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     4      5      6      7     ..
