uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

574

Han

d

lin

g the U

n

expected

7.

Plug in the kit to the accessory power
socket.

u

Be careful not to pinch the cord in a
door or window.

8.

Start the engine.

u

Keep the engine running while injecting
air.

2

Carbon Monoxide Gas

 P. 69

9.

Turn the selector knob to

AIR

*1

,

AIR

ONLY

*2

,

AIR SEULEMENT

*2

.

10.

Press the inflator switch to turn on the kit.

u

The compressor starts to inject air into
the tire.

11.

Inflate the tire to the specified air pressure.

*1: U.S. models
*2: Canadian models

1

Inflating an Under-inflated Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

U.S.

Canada

575

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

12.

Turn off the kit.

u

Check the pressure gauge on the air
compressor.

u

If overinflated, press the pressure relief
button.

13.

Unplug the kit from the accessory power
socket.

14.

Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.

15.

Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).

16.

Repackage and properly stow the kit.

Pressure Relief Button

576

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have the full-size tire repaired or
replaced.

1.

Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.

2.

Put the transmission into

(

P

.

3.

Turn on the hazard warning lights and set the power mode to VEHICLE OFF
(LOCK).

Models with a compact spare tire

1

Changing a Flat Tire

Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not use another type of compact
spare tire or wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

Do not use a puncture-repairing agent on a flat tire,
as it can damage the tire pressure sensor.

Do not mount the compact spare on the front. If
mounted on the front, the compact spare, smaller in
size than the full-size tire, may damage the
differential.

If either front tire goes flat, remove the rear tire on
the same side, and mount the compact spare on the
rear and the rear tire on the front.

Continued

577

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

1.

Open the trunk floor lid.

2.

Take the tool case out of the trunk. Take
the jack and wheel nut wrench out of the
tool case.

3.

Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.

4.

Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.

■

Getting Ready to Replace the Flat Tire

1

Changing a Flat Tire

NOTICE

Do not use the jack if it doesn’t work properly. Call
your dealer or a professional towing service.

1

Getting Ready to Replace the Flat Tire

The shape of the tool case varies by model.

Spare Tire

Tool Case

Wheel

Blocks

The tire to be replaced.

578

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

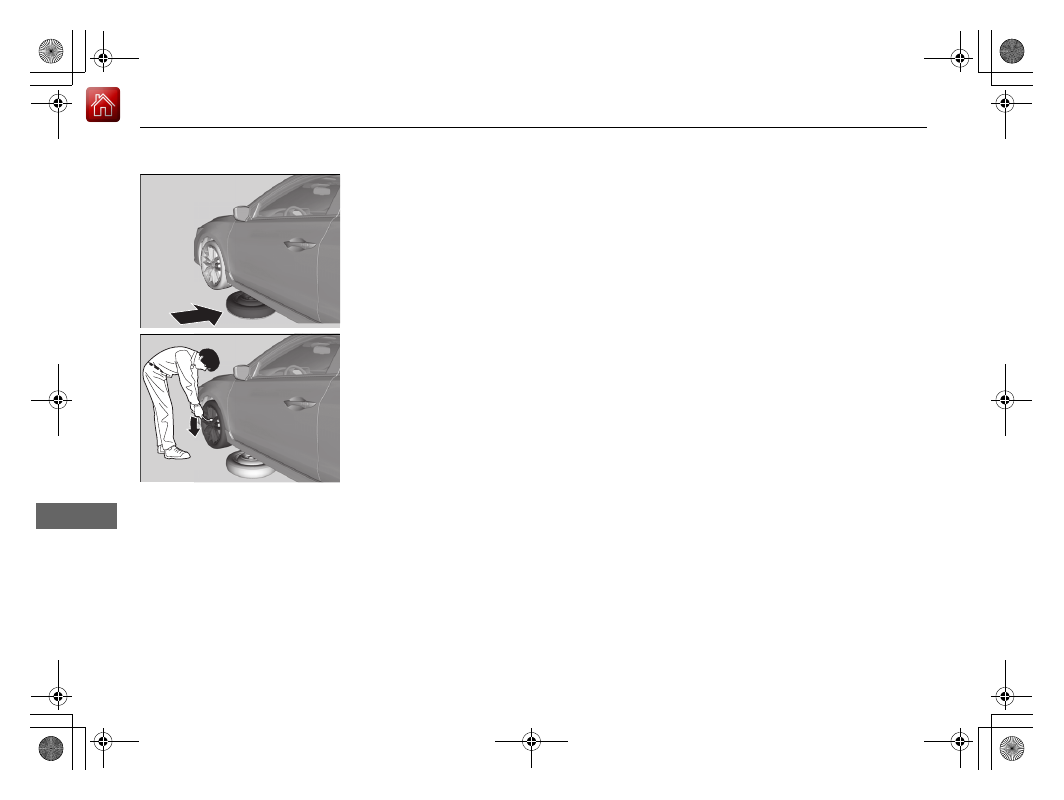

5.

Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.

6.

Loosen each wheel nut about one turn
using the wheel nut wrench.

Continued

579

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

1.

Place the jack under the jacking point
closest to the tire to be changed.

2.

Turn the end bracket clockwise as shown in
the image until the top of the jack contacts
the jacking point.

u

Make sure that the jacking point tab is
resting in the jack notch.

3.

Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.

■

How to Set Up the Jack

1

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.

The following instructions must be followed to use
the jack safely:

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

3

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.

Jacking Points

Jack

Handle

Bar

Wheel Nut

 Wrench as Jack Handle

uu

If a Tire Goes Flat

u

Changing a Flat Tire

580

Han

d

lin

g the U

n

expected

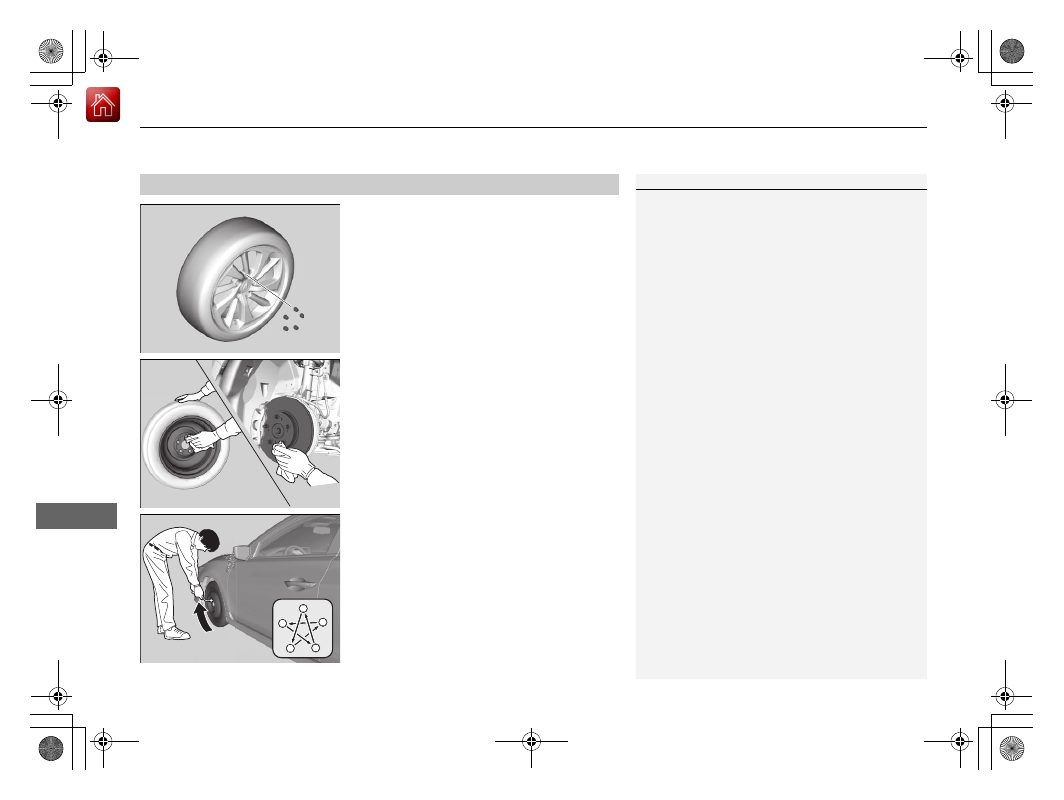

1.

Remove the wheel nuts and flat tire.

2.

Wipe the mounting surfaces of the wheel
with a clean cloth.

3.

Mount the compact spare tire.

4.

Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.

5.

Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.

Wheel nut torque:

80 lbf∙ft (108 N∙m, 11 kgf∙m)

■

Replacing the Flat Tire

1

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

Continued

581

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Han

d

lin

g the U

n

expected

1.

Remove the center cap.

2.

Place the flat tire face down in the spare tire
well.

3.

Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.

4.

Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.

■

Storing the Flat Tire

1

Storing the Flat Tire

3

WARNING

Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.

Center Cap

Spacer

Cone

Wing Bolt

For full-size

tire

For compact

spare tire

uu

If a Tire Goes Flat

u

Changing a Flat Tire

582

Han

d

lin

g the U

n

expected

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers),

Tire

Pressure Monitor Problem

 will appear on the multi-information display and the

indicator will start blinking for a short time and then stay on; however, this is normal
and is no cause for concern.

If you replace the tire with a specified regular tire, the warning message on the
multi-information display and the low tire pressure/TPMS indicator will go off after
a few miles (kilometers).

■

TPMS and the Compact Spare Tire

1

TPMS and the Compact Spare Tire

The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.

Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mounted inside the tire behind
the valve stem.

583

Han

d

lin

g the U

n

expected

Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.

The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check for a message on the multi-information display.

●

If the

To Start, Hold Remote Near Start Button

 message appears

2

If the Keyless Access Remote Battery is Weak

 P. 584

u

Make sure the keyless remote is in its operating range.

2

ENGINE START/STOP Button Operating Range

 P. 139

Check the brightness of the interior lights.

Turn on the interior lights and check the brightness.

●

If the interior lights do not come on at all

2

Battery

 P. 547

●

If the interior lights come on normally

2

 Fuses

 P. 596

The starter turns over normally
but the engine doesn’t start.

There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.

Follow its instructions, and try to start the engine again.

2

 Starting the Engine

 P. 430

Check the immobilizer system indicator.

When the immobilizer system indicator is blinking, the engine cannot be started.

2

Immobilizer System

 P. 132

Check the fuel level.

There should be enough fuel in the tank.

2

 Fuel Gauge

 P. 92

Check the fuse.

Check all fuses, or have the vehicle checked by a dealer.

2

Inspecting and Changing Fuses

 P. 598

If the problem continues:

2

Emergency Towing

 P. 599

1

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle or booster battery to jump start it.

2

If the Battery Is Dead

 P. 586

584

uu

Engine Does Not Start

u

If the Keyless Access Remote Battery is Weak

Han

d

lin

g the U

n

expected

If the Keyless Access Remote Battery is Weak

If the beeper sounds, the

To Start, Hold Remote Near Start Button

 message

appears on the multi-information display, and the

ENGINE START/STOP

 button

flashes, and the engine won’t start, start the engine as follows:

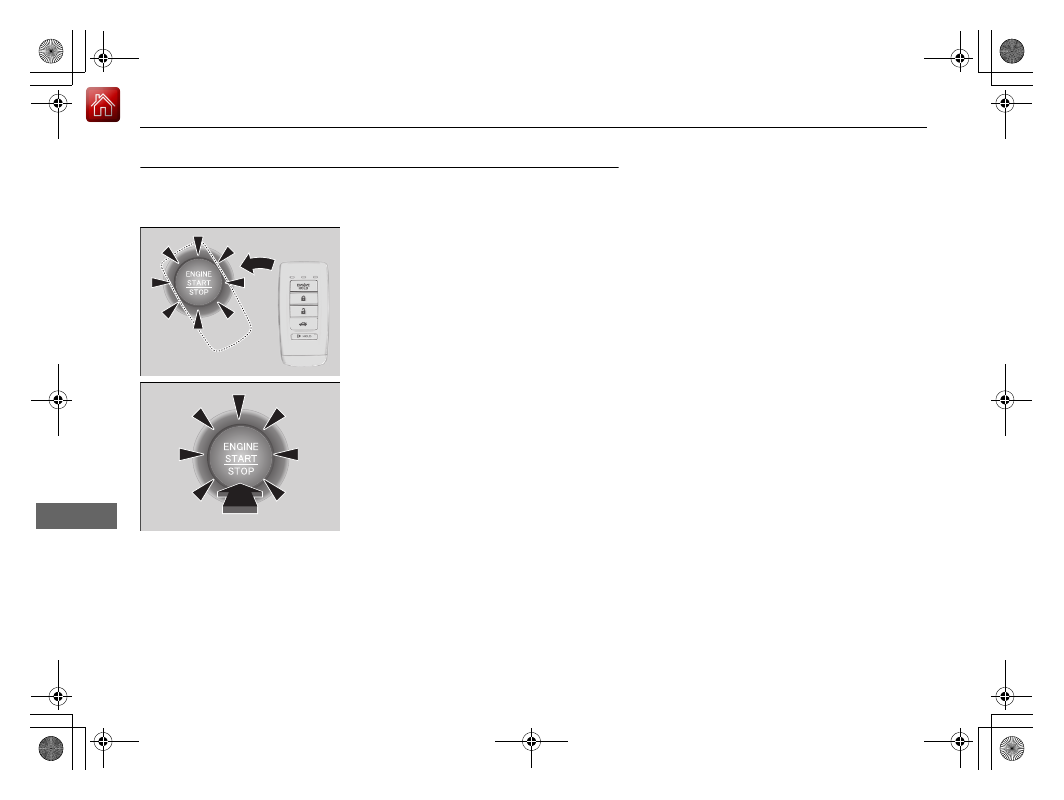

1.

Touch the center of the

ENGINE START/

STOP

 button with the

A

 logo on the keyless

access remote while the

ENGINE START/

STOP

 button is flashing. The buttons on

the keyless access remote should be facing
you.

u

The

ENGINE START/STOP

 button

flashes for about 30 seconds.

2.

Depress the brake pedal and press the

ENGINE START/STOP

 button within 10

seconds after the beeper sounds and the

ENGINE START/STOP

 button changes

from flashing to on.

u

If you don’t depress the pedal, the mode
will change to ACCESSORY.

585

uu

Engine Does Not Start

u

Emergency Engine Stop

Han

d

lin

g the U

n

expected

Emergency Engine Stop

The

ENGINE START/STOP

 button may be used to stop the engine due to an

emergency situation even while driving. If you must stop the engine, do either of the
following operations:

•

Press and hold the

ENGINE START/STOP

 button for about two seconds.

•

Firmly press the

ENGINE START/STOP

 button three times.

The steering wheel will not lock. However, because turning off the engine disables
the power assist the engine provides to the steering and braking systems, it will
require significantly more physical effort and time to steer and slow the vehicle. Use
both feet on the brake pedal to slow down the vehicle and stop immediately in a
safe place.

The power mode is in ACCESSORY when the engine is stopped.
To change the mode to VEHICLE OFF, put the transmission into

(

P

 after the vehicle

comes to a complete stop.

1

Emergency Engine Stop

Do not press the

ENGINE START/STOP

 button while

driving unless it is absolutely necessary for the engine
to be turned off.
If you press the

ENGINE START/STOP

 button while

driving, the beeper sounds.

586

Han

d

lin

g the U

n

expected

If the Battery Is Dead

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

1.

Connect the first jumper cable to your
vehicle's battery

+

 terminal.

2.

Connect the other end of the first jumper
cable to the assisting vehicle's

+

 terminal.

u

Use a 12-volt booster battery only.

u

When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15-
volt. Check the charger manual for the
proper setting.

3.

Connect the second jumper cable to the
assisting vehicle's

-

 terminal.

■

Jump Starting Procedure

1

If the Battery Is Dead

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

Continued

587

uu

If the Battery Is Dead

u

Han

d

lin

g the U

n

expected

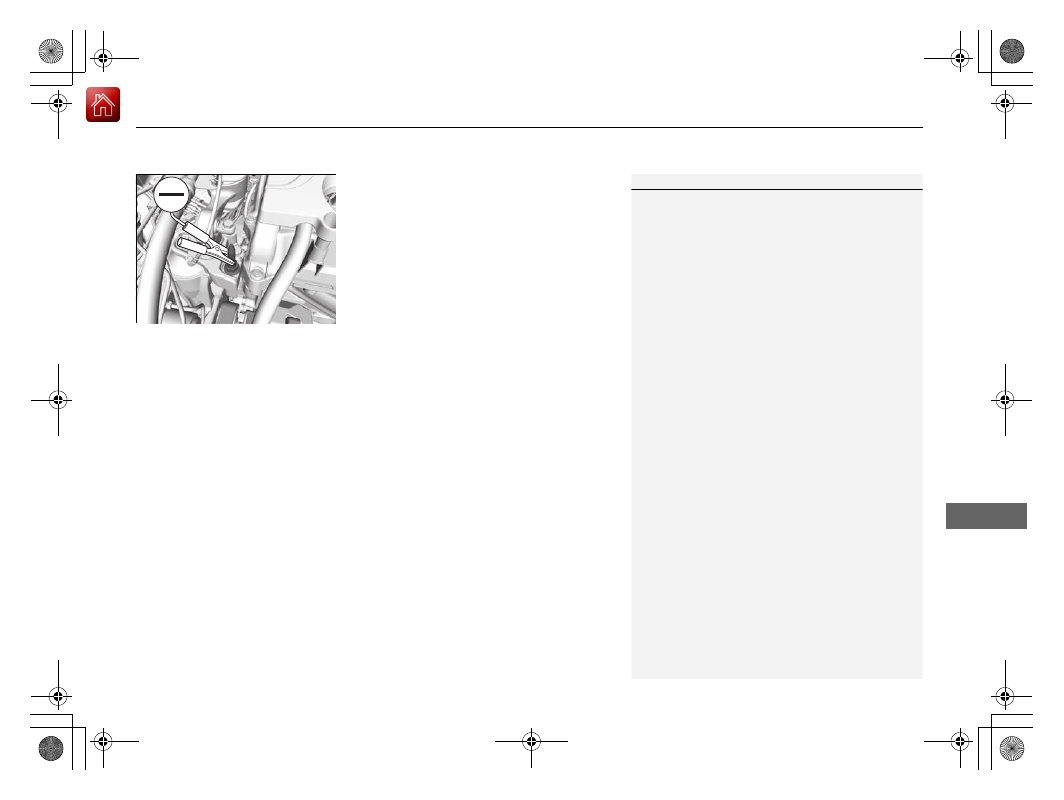

4.

Connect the other end of the second
jumper cable to the engine mounting bolt
as shown. Do not connect this jumper cable
to any other part.

5.

If your vehicle is connected to another
vehicle, start the assisting vehicle's engine
and increase its rpm slightly.

6.

Attempt to start your vehicle's engine. If it
turns over slowly, check that the jumper
cables have good metal-to-metal contact.

1

If the Battery Is Dead

Battery performance degrades in cold conditions and
may prevent the engine from starting.

588

uu

If the Battery Is Dead

u

Han

d

lin

g the U

n

expected

Once your vehicle's engine has started, remove the jumper cables in the following
order.

1.

Disconnect the jumper cable from your vehicle's ground.

2.

Disconnect the other end of the jumper cable from the booster battery

-



terminal.

3.

Disconnect the jumper cable from your vehicle's battery

+

 terminal.

4.

Disconnect the other end of the jumper cable from the booster battery

+



terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

589

Han

d

lin

g the U

n

expected

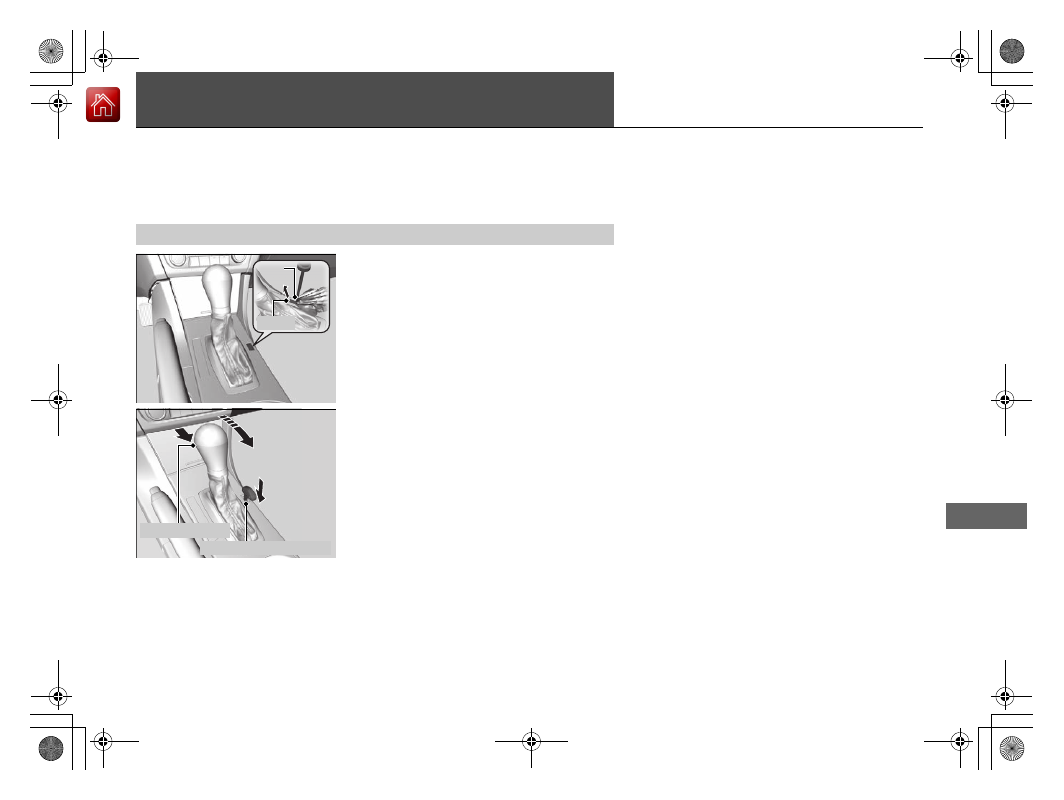

Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the

(

P



position.

1.

Set the parking brake.

2.

Remove the built-in key from the keyless
access remote.

3.

Wrap a cloth around the tip of a small flat-
tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.

4.

Insert the key into the shift lock release slot.

5.

While pushing the key down, press the shift
lever release button, and place the shift
lever into

(

N

.

u

The lock is now released. Have the shift
lever checked by a dealer as soon as
possible.

■

Releasing the Lock

Cover

Slot

Release Button

Shift Lock Release Slot
