Acura ILX (2021 year). Manual in english - page 35

558

uu

Accessories and Modifications

u

Modifications

Main

tenan

ce

Modifications

Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Acura parts or accessories that may have a similar
effect.

Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is properly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.

The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Acura has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, drained battery, or other unexpected problems.

Do not modify or attempt to repair any of the electrical components.

559

Handling the Unexpected

This chapter explains how to handle unexpected troubles.

Tools

Types of Tools .................................. 560

If a Tire Goes Flat

Temporarily Repairing a Flat Tire....... 561

Changing a Flat Tire ......................... 576

Engine Does Not Start

Checking the Engine ........................ 583
If the Keyless Access Remote Battery is

Weak ............................................. 584

Emergency Engine Stop ................... 585

If the Battery Is Dead

....................... 586

Models with a compact spare tire

Shift Lever Does Not Move

.............. 589

Overheating

How to Handle Overheating............. 590

Indicator, Coming On/Blinking

If the Low Oil Pressure Indicator Comes

On................................................ 592

If the Charging System Indicator Comes

On ................................................. 592

If the Malfunction Indicator Lamp Comes

On or Blinks ..................................... 593

If the Brake System Indicator (Red)

Comes On.................................. 594

If the Electric Power Steering (EPS) System

Indicator Comes On......................... 594

If the Low Tire Pressure/TPMS Indicator

Comes On or Blinks ....................... 595

Fuses

Fuse Locations ................................. 596
Inspecting and Changing Fuses........ 598

Emergency Towing

........................... 599

560

Han

d

lin

g the U

n

expected

Tools

Types of Tools

1

Types of Tools

The tools are stored in the cargo area.

Jack

Tool Case

Wheel Nut Wrench/Jack Handle

Jack Handle Bar

Models with a compact spare tire

561

Continued

Han

d

lin

g the U

n

expected

If a Tire Goes Flat

Temporarily Repairing a Flat Tire

If the tire has a large cut or is otherwise severely damaged, you will need to have the
vehicle towed. If the tire only has a small puncture, from a nail for instance, you can
use the temporary tire repair kit so that you can drive to the nearest service station
for a more permanent repair.

If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then stop in a safe place.

1.

Park the vehicle on a firm, level, and non-slippery surface and apply the parking
brake.

2.

Put the transmission into

(

P

.

3.

Turn on the hazard warning lights and set the power mode to VEHICLE OFF
(LOCK).

1

Temporarily Repairing a Flat Tire

The kit should not be used in the following situations.
Instead, contact a dealer or roadside assistance to
have the vehicle towed.

•

The tire sealant has expired.

•

More than one tire is punctured.

•

The puncture or cut is larger than 3/16 inch (4 mm).

•

The tire side wall is damaged or the puncture is
outside the contact area.

•

Damage has been caused by driving with the tire
extremely under inflated.

•

The tire bead is no longer seated.

•

The rim is damaged.

Do not remove a nail or screw that punctured the
tire. If you remove it from the tire, you may not be
able to repair the puncture using the kit.

NOTICE

Do not use a puncture-repairing agent other than the
one provided in the kit that came with your vehicle. If
a different agent is used, you may permanently
damage the tire pressure sensor.

When the puncture is:

Kit Use

Smaller than 3/16 inch

(4 mm)

Yes

Larger than 3/16 inch

(4 mm)

No

Contact
Area

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

562

Han

d

lin

g the U

n

expected

1.

Open the trunk floor lid.

■

Getting Ready to Temporarily Repair the Flat Tire

1

Getting Ready to Temporarily Repair the Flat Tire

Repair notification label and speed restriction label
are applied to the side of temporary tire repair kit.

When making a temporary repair, carefully read the
instruction manual provided with the kit.

Pressure Gauge

AIR

Power Plug

Pressure Relief Button

Repair Notification Label

Instruction Manual

Sealant/Air Hose

REPAIR

Inflator Switch

Speed Restriction Label

Selector Knob

U.S.

Canada

U.S.

Canada

563

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

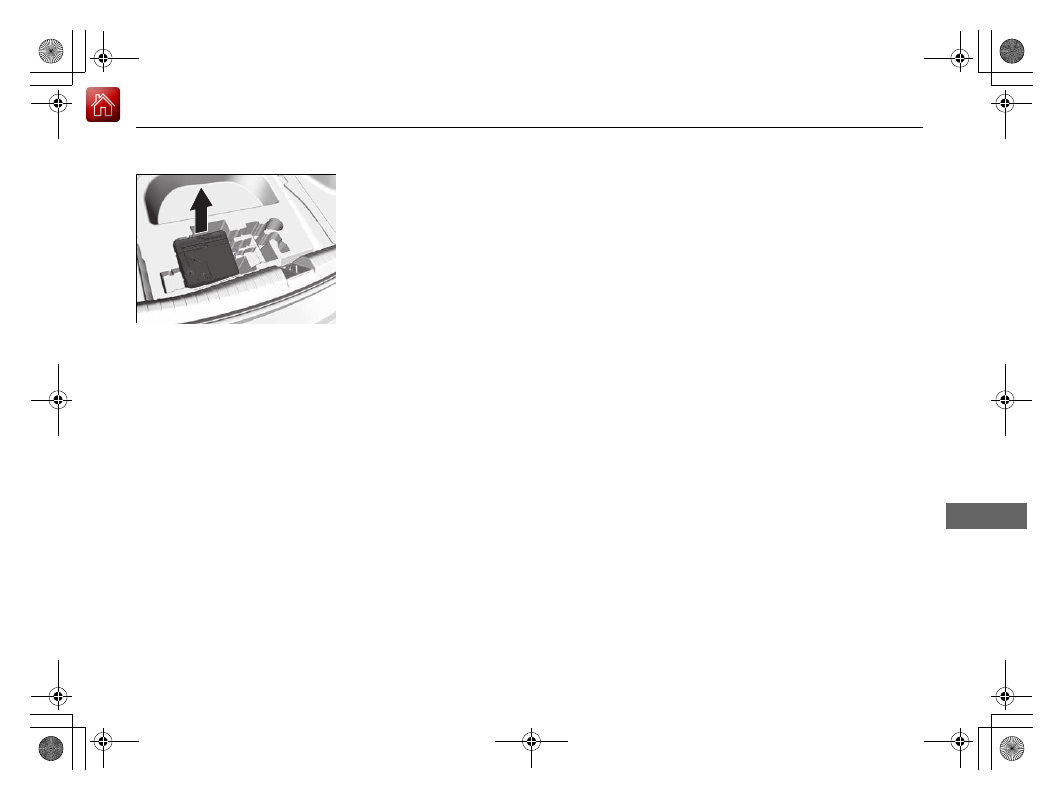

2.

Remove the kit.

3.

Place the kit face up, on flat ground near
the flat tire, and away from traffic. Do not
place the kit on its side.

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

564

Han

d

lin

g the U

n

expected

1.

Remove the valve cap from the tire valve
stem.

2.

Remove the sealant/air hose from the
packaging.

3.

Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.

■

Injecting Sealant and Air

1

Injecting Sealant and Air

In cold temperatures, the sealant may not flow easily.
In this situation, warm it up for five minutes before
using.

The sealant can permanently stain clothing and other
materials. Be careful during handling and wipe away
any spills immediately.

3

CAUTION

Tire sealant contains substances that are
harmful if inhaled, ingested or if contact is
made with the eyes or skin.

Always use in a well-ventilated area and
use gloves and safety glasses for protection;
do not ingest.

For skin or eye contact, flush with cool
water; if ingested, rinse mouth with water.
In all cases, seek medical attention if
necessary.

Valve Stem

Valve Cap

Sealant/Air Hose

Valve Stem

Sealant/Air Hose

Continued

565

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

4.

Plug in the compressor to the accessory
power socket.

u

Be careful not to pinch the cord in a
door or window.

5.

Start the engine.

u

Keep the engine running while injecting
sealant and air.

2

Carbon Monoxide Gas

 P. 69

6.

Turn the selector knob to

REPAIR

*1

,

SEALANT/AIR

*2

,

PRODUIT ANTIFUITE/

AIR

*2

.

*1: U.S. models
*2: Canadian models

1

Injecting Sealant and Air

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

U.S.

Canada

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

566

Han

d

lin

g the U

n

expected

7.

Press the inflator switch to turn on the
compressor.

u

The compressor starts injecting sealant
and air into the tire.

u

When the sealant injection is complete
continue to add air.

8.

After the air pressure reaches front: 35 psi
(240 kPa)/rear: 33 psi (230 kPa), turn off
the kit.

After the air pressure reaches front: 33 psi
(230 kPa)/rear: 32 psi (220 kPa), turn off
the kit.

u

To check the pressure, occasionally turn
off the compressor, and read the
gauge.

9.

Unplug the power plug from the accessory
power socket.

10.

Unscrew the sealant/air hose from the tire
valve stem. Reinstall the valve cap.

ON

OFF

Pressure Gauge

Models with P215/45R17 87V tires

Models with 225/40R18 92V tires

1

Injecting Sealant and Air

Until the sealant injection is complete, the pressure
shown on the pressure gauge will appear higher than
actual. After the sealant injection is complete the
pressure will drop and then begin to rise again as the
tire is inflated with air. This is normal. To accurately
measure the air pressure using the gauge, turn the air
compressor off only after the sealant injection is
complete.

If the required air pressure is not reached within 10
minutes, the tire may be too severely damaged for
the kit to provide the necessary seal, and your vehicle
will need to be towed.

See an Acura dealer for a replacement sealant bottle
and proper disposal of an empty bottle.

Sealant/Air

Hose

Valve Stem

567

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

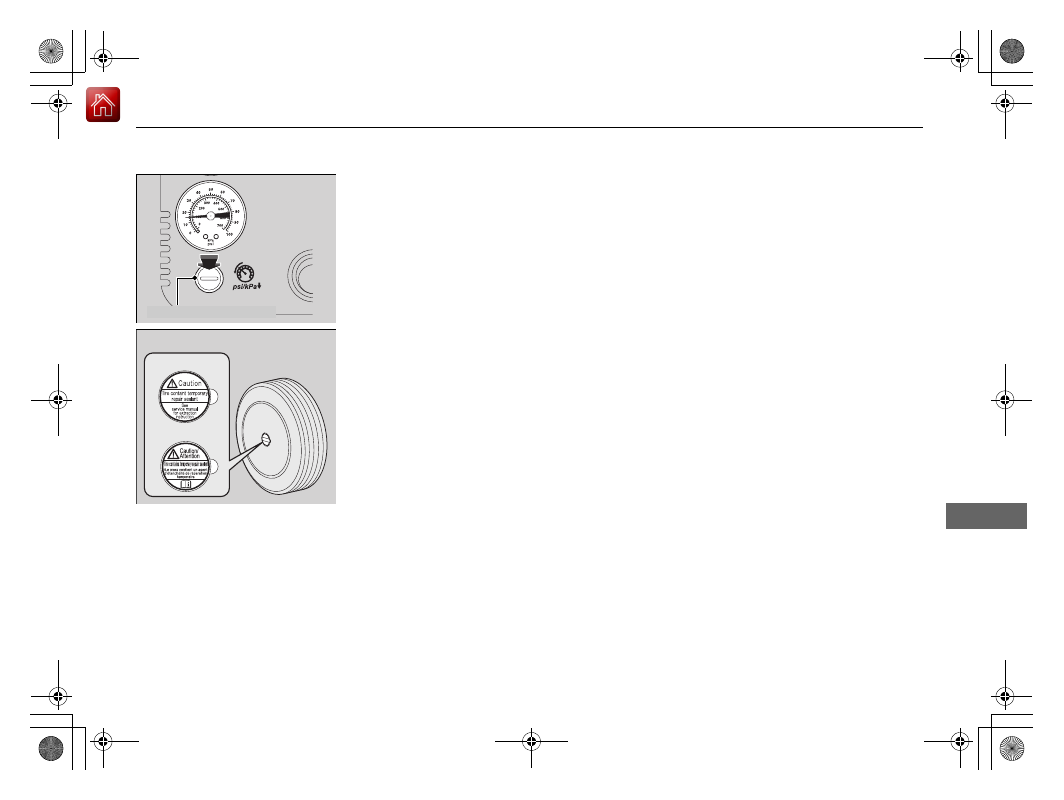

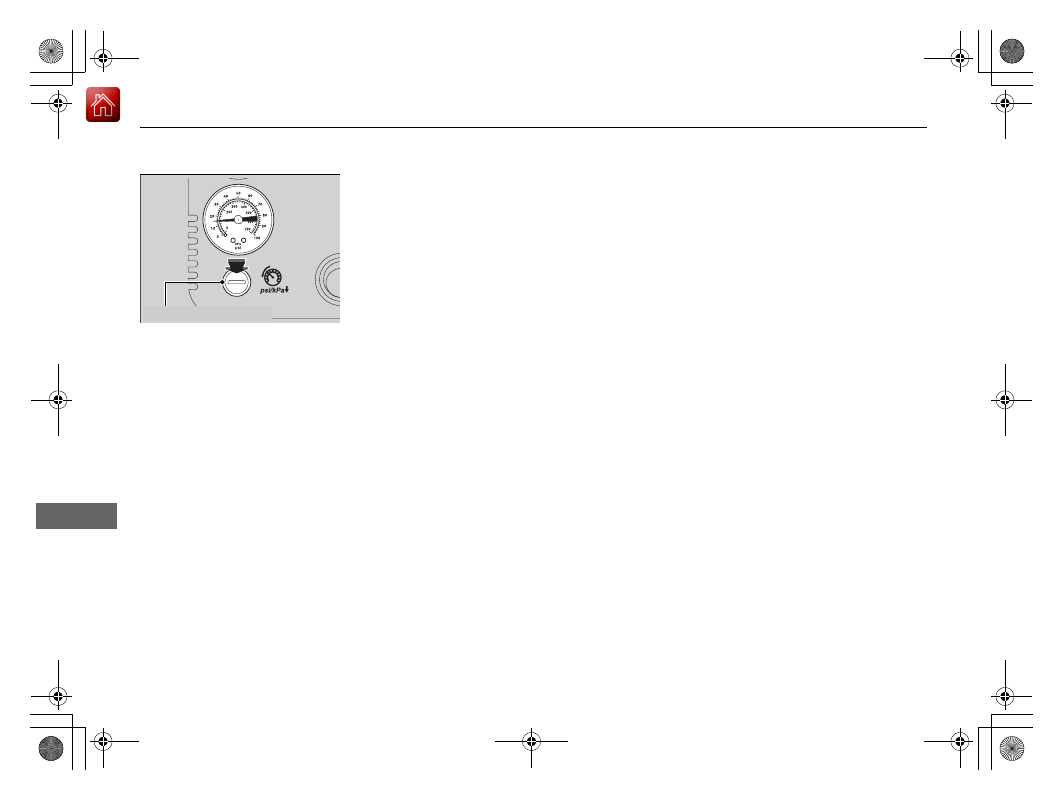

11.

Press the pressure relief button until the
gauge returns 0 psi (0 kPa).

12.

Apply the repair notification label to the
flat surface of the wheel.

u

The wheel surface must be clean to
ensure the label adheres properly.

Pressure Relief Button

Repair Notification Label

U.S.

Canada

568

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

1.

Apply the speed restriction label to the
location as shown.

2.

Drive the vehicle for about 10 minutes.

u

Do not exceed 50 mph (80 km/h).

3.

Stop the vehicle in a safe place.

■

Distributing the Sealant in the Tire

Speed Restriction Label

U.S.

Canada

569

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Continued

Han

d

lin

g the U

n

expected

4.

Recheck the air pressure using the sealant/
air hose on the compressor.

5.

Turn the selector knob to

AIR

*1

,

AIR

ONLY

*2

,

AIR SEULEMENT

*2

.

u

Do not turn the air compressor on to
check the pressure.

2

Inflating an Under-inflated Tire

 P. 573

*1: U.S. models
*2: Canadian models

Sealant/Air Hose

U.S.

Canada

570

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

6.

If the air pressure is

•

Less than 25 psi (175 kPa):

Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.

2

Emergency Towing

 P. 599

•

Front: 35 psi (240 kPa)/rear: 33 psi (230
kPa) or more:

•

Front: 33 psi (230 kPa)/rear: 32 psi (220
kPa) or more:

Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner. Do not
exceed 50 mph (80 km/h). If you have not
reached a service station after 10 minutes,
stop in a safe place and check the tire
pressure.

u

If the air pressure does not go down
after the 10 minute driving, you do not
need to check the pressure any more.

Models with P215/45R17 87V tires

Models with 225/40R18 92V tires

Continued

571

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

•

Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):

Turn the air compressor on to inflate the
tire until the tire pressure reaches to front:
35 psi (240 kPa)/rear: 33 psi (230 kPa).

•

Greater than 25 psi (175 kPa), but less
than front: 33 psi (230 kPa)/rear: 32 psi
(220 kPa):

Turn the air compressor on to inflate the
tire until the tire pressure reaches to front:
33 psi (230 kPa)/rear: 32 psi (220 kPa).

2

Inflating an Under-inflated Tire

 P. 573

Then drive carefully for 10 more minutes
or until you reach the nearest service
station. Do not exceed 50 mph (80 km/h).

u

You should repeat this procedure as
long as the air pressure is within this
range.

Models with P215/45R17 87V tires

Models with 225/40R18 92V tires

1

Distributing the Sealant in the Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

572

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

7.

Unplug the kit from the accessory power
socket.

8.

Unscrew the air only hose from the tire
valve stem. Reinstall the valve cap.

9.

Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).

10.

Repackage and properly stow the kit.

Pressure Relief Button

Continued

573

uu

If a Tire Goes Flat

u

Temporarily Repairing a Flat Tire

Han

d

lin

g the U

n

expected

You can use the kit to inflate a non-punctured under-inflated tire.

1.

Open the trunk floor lid.

2

Getting Ready to Temporarily Repair
the Flat Tire

 P. 562

2.

Remove the kit from the case.

3.

Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.

4.

Remove the air only hose from the kit.

5.

Remove the valve cap.

6.

Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.

■

Inflating an Under-inflated Tire

1

Inflating an Under-inflated Tire

NOTICE

Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.

Sealant/Air Hose

Valve Cap

Valve Stem

Sealant/Air Hose
