RAM 1500 TRX (2022 year). Manual in english

MULTIMEDIA

301

The SiriusXM Guardian™ Customer Care Agent

will ask for the stolen vehicle report number

(as issued by your local law enforcement).

If you have downloaded the Mobile App, you

can push the Settings menu button on your de

vice, select “Help”, and then select “SiriusXM

Guardian™ Customer Care” to make the call.

3. SiriusXM Guardian™ Customer Care will

authenticate that you are the owner of the

vehicle and contact the law enforcement with

whom you filed the stolen vehicle report.

4. SiriusXM Guardian™ Customer Care will work

with your local law enforcement to locate the

vehicle. You will be contacted by law

enforcement if your vehicle is recovered. While

the investigation is ongoing, you should also

contact your insurance company to inform it of

the situation.

Requirements



Vehicle must be properly equipped with the

Uconnect system.



Vehicle must have an operable LTE (voice/data)

or 4G (data) network connection compatible

with your device.



Vehicle must be registered with SiriusXM

Guardian™ and have an active subscription that

includes the applicable feature.

NOTE:

Not all features of SiriusXM Guardian™ are

available everywhere at all times, particularly in

remote or enclosed areas.

Monthly Vehicle Health Report —

If Equipped

Description
Monthly Vehicle Health Report is a Uconnect

service through which a summary of the

performance of your vehicle’s key systems will be

sent to you every month so you can stay on top of

your vehicle’s maintenance needs. This is provided

as a convenience to you and does not substitute

for regular maintenance to your vehicle.
In order to provide the Monthly Vehicle Health

Report, the Uconnect system in your vehicle may

collect and transmit vehicle data to SiriusXM

Guardian™ and to FCA, such as your vehicle’s

health and performance, your vehicle’s location,

your utilization of the features in your vehicle, and

other data.

This data collection and transmission begins when

you enroll in SiriusXM Guardian™ and will continue

even if you cancel your SiriusXM Guardian™

subscription unless you call SiriusXM Guardian™

Customer Care and tell them to deactivate your

Uconnect Services.
Please see the Uconnect Privacy Policy for more

information, located at

www.driveuconnect.com/

connectedservices/privacy.html

(US Residents)

www.driveuconnect.ca

(Canadian Residents).

For more information on SiriusXM Guardian™

private policy, see

https://siriusxmcvs.com/

privacy-policy

Vehicle Health Alert —If Equipped

Description
Your vehicle will send you an email alert if it senses

a problem with one of your vehicle’s key systems.

For further information, go to your Owner’s

website.

NOTE:

Vehicle Health Alert emails require you to register

and activate services. During this process you will

be asked to provide an email address to which the

reports will be sent.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

302

MULTIMEDIA

In-Vehicle Notifications — If Equipped

Description
Your vehicle will send you notifications to remind

you when services are needed, or to alert you of

other important information, such as recall

notices. When you receive a notification through

your touchscreen, press OK to dismiss the

message, or press Call Care to speak with a

SiriusXM Guardian™ Customer Care agent.

NOTE:

Pressing “OK” or the X button on the pop-up screen

will dismiss or close the pop-up, and the In-Vehicle

Messages mailbox will display. In the Mailbox, you

can reopen messages or delete messages.

Amazon Alexa Skill — If Equipped

Enjoy the convenience of using your voice to

command your vehicle with Amazon Alexa!
With Amazon Alexa, you can connect to your

vehicle and remotely access key services and

features.
If your vehicle is equipped with Uconnect

Navigation, you can send a destination directly to

your vehicle using Alexa.
If you need assistance, you can always ask Alexa

for help, or complete a list of commands by saying:

“Alexa, ask <brand name> for help with my car.”

Here are a few of the many questions you can ask

Alexa:



“Alexa, ask <vehicle brand> to start my <vehicle

name> with your Voice Code.”



“Alexa, ask <vehicle brand> to lock my <vehicle

name> with your Voice Code.”



“Alexa, ask <vehicle brand> to send 1000

Chrysler Drive, Auburn Hills, Michigan to my

<vehicle name>.”



“Alexa, ask <vehicle brand> what is the fuel

level of my <vehicle name>.”

An active subscription to SiriusXM Guardian™ is

required. To use Amazon Alexa, first, register for

SiriusXM Guardian™

page 290.

Next, link the Uconnect system on your vehicle to

Amazon Alexa:
1. Download the Amazon Alexa app on your

mobile device (Apple® or Android™).

2. Once in the app, tap MENU and go to SKILLS.
3. Search for <vehicle brand> skill, then tap

Enable.

4. Tap SAVE SETTINGS when prompted.

5. Link the vehicle brand name to the <vehicle

brand> Skill by tapping LINK ACCOUNT.

6. Log in using your Owner Account credentials.

This will be the same user name and password

you used when registering for SiriusXM

Guardian™ connected services. There will be

additional settings to confirm on the following

screen.

7. AUTHORIZE the account to return to the

<vehicle brand> Skill.

You can now begin using the <vehicle brand> Skill

on Alexa!

Google Assistant — If Equipped

With the Google Assistant, you can get help and

keep tabs on your car. Google Assistant is available

across your devices, including Android™ phones,

iPhone® devices, or voice-activated speakers, like

Google Home. If you need assistance, ask Google

for help, or for a complete list of commands by

saying: “Hey Google, ask <brand name> for help

with my car.”

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

303

Here are a few examples of commands:



“Hey Google, ask <vehicle brand> to start my

<vehicle name> with your Voice Code.”



“Hey Google, ask <vehicle brand> to lock my

<vehicle name> with your Voice Code.”



“Hey Google, ask <vehicle brand> to send 1000

Chrysler Drive, Auburn Hills, Michigan to my

<vehicle name>.”



“Hey Google, ask <vehicle brand> what is the

fuel level of my <vehicle name>.”

To link your Uconnect account with Google

Assistant, follow these steps:
1. Download and install the Google Assistant

app on your smart phone from the App

Store® or Google Play.

2. After installation, log in to the Google Assistant

app with your Gmail ID. Verify your account by

pressing the icon in the upper right-hand

corner.

3. Press the Discover button in the bottom left

corner of the screen. Enter the vehicle brand

name.

4. A prompt will appear to link your Uconnect

account. Press “Link Uconnect to Google”.

5. Press “Sign In” and enter the email address

and password you created when you activated

SiriusXM Guardian™. There will be additional

settings to confirm on the following screen.

6. Lastly, press “Authorize” to complete the

linking process.

Now, you can ask Google Assistant to help you:



Remotely start the engine, or cancel a remote

start



Send a destination to your vehicle’s built-in

Uconnect Navigation system



Monitor vehicle vitals, such as tire pressure, fuel

level and oil life



And more!

Family Drive Alerts — If Equipped

Description
Family Drive Alerts help promote safer driving and

give you peace of mind when your loved ones are

out on the road. You can set boundary limits,

monitor driving speed, and pinpoint your vehicle’s

location any time, any place. Use the Mobile App to

set alerts:



Boundary Alert
Receive a notification the moment your vehicle

is driven either out of or into a geographic

boundary that you set.



Curfew Alert
Receive a notification when your car is being

driven outside of the curfew time.



Speed Alert
Receive a notification whenever your car

exceeds a speed limit you set.



Valet Alert
Receive a notification if and when your vehicle is

driven outside a quarter-mile radius of a valet

drop-off zone.

SmartWatch Integration — If Equipped

Description
SmartWatch Integration puts the Mobile App right

on your Apple® Watch or Android™ Wear. To get

started, follow these steps:
1. Download the Mobile App from the App

Store® or Google Play.

2. Log onto the app from your smartphone using

the username and password you created when

you first set up your account.

3. Make sure your watch and smartphone are

connected through Bluetooth®.

4. The Mobile App should appear on your

SmartWatch.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

304

MULTIMEDIA

Once the app is downloaded on your SmartWatch,

you can enjoy these features:



Lock or unlock your vehicle by tapping the

remote lock button in the app and entering your

security PIN.



Remote start or stop your vehicle.



View important vehicle stats, such as fuel level,

vehicle location, tire pressure warning, and

more.

For help, refer to the Uconnect YouTube channel

for SmartWatch Integration.

ANAGE

IRIUS

XM G

UARDIAN

™

CCOUNT

To manage your SiriusXM Guardian™ account,

press the ASSIST button in your vehicle, or call

SiriusXM Guardian™ Customer Care.

NOTE:

It is recommended, when selling your vehicle, or

turning in your lease, to call SiriusXM Guardian™

Care to remove your personal data.

CONNECTED SERVICES FAQS

For additional information about SiriusXM

Guardian™, active subscribers can push the

ASSIST button (if equipped) and then select

SiriusXM Guardian™ Call on your in-vehicle

touchscreen to contact SiriusXM Guardian™.

Your call will be directed to a SiriusXM Guardian™

agent or held in a queue until an agent is available.

If you do not have an active subscription, push the

ASSIST button and press the Activate button on the

touchscreen to activate services.

ONNECTED

ERVICES

SOS FAQ

—

QUIPPED

1. What happens if I accidentally push the SOS

Call button on the mirror or overhead console?

You have 10 seconds after pushing the SOS

Call button to cancel the call. To cancel the

call, either push the SOS Call button again, or

press the Cancel button on the in-vehicle

touchscreen.

2. What type of information is sent when I use the

SOS Call button from my vehicle? Certain

vehicle information, such as make and model,

is transmitted along with the last known

GPS location.

3. When could I use the SOS Call button? You can

use the SOS Call button to make a call if you or

someone else needs emergency assistance.

ONNECTED

ERVICES

EMOTE

OOR

OCK

NLOCK

FAQ

1. How long does it take to unlock or lock the

door? Depending on various conditions, it can

take up to three minutes or more for the

request to get to your vehicle.

2. Which is faster, my key fob or the Mobile App?

Your key fob will lock/unlock the door more

quickly, however its range is limited and your

Mobile App comes in handy for these and

other situations.

3. Will my vehicle be safe if I lose my device?

People sometimes lose their mobile devices,

which is why security measures have been

engineered into the Mobile App. Asking for

your username, password and SiriusXM

Guardian™ Security PIN are required for the

activation of Remote services through your

mobile device. It is your responsibility to

protect your passwords and PINs.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

305

4. Why can’t all mobile devices use the Mobile

App? The Mobile App is compatible with most

devices with the Apple® and Android™

operating systems. The capabilities of these

devices allow us to remotely command your

vehicle. Other operating systems may be

supported in the future.

5. Why is the Mobile App running slow? The

Mobile App relies on a mobile network

connection from your device to send

commands to your vehicle which must have an

operable LTE (voice/data) or 4G (data), or 5G

(data) network connection. If either your

device or your vehicle is in an area with below

average coverage, it may take longer to log in

and send commands.

ONNECTED

ERVICES

OADSIDE

SSISTANCE

FAQ

1. What is the phone number for roadside

assistance call? The phone number is:



US: 1-800-521-2779



Canada: 1-800-363-4869

2. If I am subscribed to SiriusXM Guardian™,

does it cover towing or other expenses

incurred by using roadside assistance? No,

however your new vehicle may include

Roadside Assistance Call services.

ONNECTED

ERVICES

END

& G

FAQ

— I

QUIPPED

1. How long does it take to send the route and

destination to my vehicle? Depending on

various conditions, it can take up to three

minutes for the request to get through to your

vehicle.

2. Can I cancel a route I sent to my vehicle?

Yes, once you enter your vehicle, and start the

engine, the pop-up message stating that you

have a new route will appear. There is an exit

button on the pop-up that will cancel the route

if selected.

3. Can I select a different route than the most

recent one I sent to my vehicle? Yes, once you

enter the vehicle, and start the engine, the

pop-up message offers a “Locations” option.

Once “Locations” is selected, you can choose

from a list of recently sent destinations.

ONNECTED

ERVICES

EHICLE

INDER

FAQ

1. Can someone else locate my vehicle? Your

vehicle may be located by anyone who has

your PIN and access to your account. It is your

responsibility to guard your PIN accordingly.

See the Uconnect and SiriusXM Guardian™

2. How long does it take to sound my horn and

flash the lights? Depending on various

conditions, it can take three minutes or more

for the request to get through to your vehicle.

3. How do I turn off the horn and lights after I turn

them on? If you are close enough to the

vehicle, you can use the key fob to turn off the

horn and lights by pushing the red Panic

button.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

306

MULTIMEDIA

ONNECTED

ERVICES

TOLEN

EHICLE

SSISTANCE

FAQ

— I

QUIPPED

1. Can someone locate my vehicle? To enhance

your privacy, and the privacy of others using

your vehicle, a stolen vehicle police report is

required for you to activate this service.

You must involve local law enforcement to

have SiriusXM Guardian™ locate your vehicle.

We may also locate the vehicle for other law

enforcement or government agencies,

subject to a valid court order telling SiriusXM

Guardian™ to do so. We will also provide the

service for FCA entities to locate a vehicle that

you have purchased through them.

2. How will I know if my vehicle is recovered?

After you provide the SiriusXM Guardian™

Customer Care agent with the stolen vehicle

report, the agent will work together with law

enforcement to try to locate your vehicle. If

your vehicle is recovered, you will be contacted

by law enforcement.

3. Can SiriusXM Guardian™ lower my insurance

rates? Some insurance providers offer lower

rates on vehicles equipped with systems that

can deter auto theft. When shopping for

insurance, be sure to inform the insurance

provider of your SiriusXM Guardian™

connected services subscription to find out if

the insurance provider can offer you a lower

rate.

NOTE:

Neither FCA nor SiriusXM® are insurance

companies, and SiriusXM Guardian™ is not an

insurance product. You are responsible for

obtaining insurance coverage for your vehicle and

yourself.

ONNECTED

ERVICES

EMOTE

EHICLE

TART

FAQ

1. How long does it take to remotely start my

vehicle? Depending on various conditions, it

can take three minutes or more for the

request to get through to your vehicle.

2. Which is faster, my key fob or the Mobile App?

Your key fob will remote start your vehicle

more quickly. However its range is limited. For

example, when you are leaving the stadium

after the game, you can use the Mobile App to

remote start your vehicle and have the inside

of your vehicle comfortable by the time you get

to it.

3. Will my vehicle be safe if I lose my wireless

device? People sometimes lose their wireless

devices, which is why security measures have

been engineered into the Mobile App. Asking

for your username, password and SiriusXM

Guardian™ Security PIN help to ensure that

nobody can start your vehicle if they happen to

find your device.

4. Can someone drive off with my vehicle using

the App? No. Driving your vehicle still requires

the keys to be in the vehicle. The Remote Start

feature simply starts the engine to warm up or

cool down the interior before you arrive.

5. Can I stop a vehicle that is being driven with

the cancel Remote Vehicle Start command?

No. If the vehicle is in motion, the cancel

Remote Vehicle Start button will not stop the

vehicle.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

307

6. Why can’t all mobile devices use the Mobile

App? The Mobile App has been designed to

work on most devices with the Apple® and

Android™ operating systems. The capabilities

of these devices allow us to remotely

command your vehicle. Other operating

systems may be supported in the future.

ONNECTED

ERVICES

EMOTE

ORN

& L

IGHTS

FAQ

1. How long does it take to sound my horn and

flash the lights? Depending on various

conditions, it can take three minutes or more

for the request to get through to your vehicle.

2. Which is faster, my key fob or the Mobile App?

Your key fob will sound the horn and flash the

lights quicker; however, its range is limited.

3. How do I turn off the horn and lights after I turn

them on? If you are close enough to the

vehicle, you can use the key fob to turn off the

horn and lights by pressing the red Panic

button. Otherwise, Remote Horn & Lights will

continue for a maximum of three minutes.

4. Why can’t all mobile devices use the Mobile

App? The Mobile App has been designed to

work on most devices with the Apple® and

Android™ operating systems. The capabilities

of these devices allow us to remotely

command your vehicle. Other operating

systems may be supported in the future.

ONNECTED

ERVICES

CCOUNT

FAQ

— I

QUIPPED

1. How do I register for my SiriusXM Guardian™

account? There are three ways that you can



Push the ASSIST button. A call will be placed

to an agent who can assist in registering

your new account.



Press the Activate Services icon in the Apps

menu. Select the button to speak with an

agent, who can assist in registering your

new account.



Press the Activate Services icon in the Apps

menu. Enter your email on the touchscreen

and then follow the prompts from the

provided email. You will receive an email

with an activation link that will be good for

72 hours. Once you click the activation link,

you will be prompted to fill out your informa

tion and accept Terms and Conditions.

Then, you will be directed to the SiriusXM

Guardian™ home page to complete your

profile and demo the remote services.

2. Why do I need an email address? Without an

email address, customers cannot register for

SiriusXM Guardian™. Customers need to

additional services and create a SiriusXM

Guardian™ Security PIN for remote command

requests.

3. How do I create a SiriusXM Guardian™ security

PIN? Set up your SiriusXM Guardian™ Security

PIN during the registration process. The

SiriusXM Guardian™ Security PIN will be

required to authenticate you when accessing

your account via SiriusXM Guardian™ Call or

performing any remote services, such as

Remote Door Lock/Unlock, Remote Horn &

Lights, or Remote Vehicle Start.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

308

MULTIMEDIA

4. What if I forgot my SiriusXM Guardian™

security PIN? If you’ve already activated

services and forgot your SiriusXM Guardian™

Security PIN, you can reset the PIN by selecting

Edit Profile on your Owner’s Site.

5. How do I update my SiriusXM Guardian™

payment account address? Your SiriusXM

Guardian™ Payment Account address can be

updated online, or by calling SiriusXM

Guardian™ Customer Care from ASSIST in your

vehicle. To update online: login to your Owner’s

Site, and select Edit Profile > SiriusXM

Guardian™ Payment Account.

6. How do I update my SiriusXM Guardian™

profile? Your name, home address, phone

number, email address and SiriusXM

Guardian™ Security PIN can be updated online

on your Owner’s Site. Log in to your Owner’s

Site then select Edit Profile to edit your

personal information. Make your edits and

click Save.

7. Can I try features or packages before I buy

them? Your new vehicle purchase may have

come with an included trial period for certain

Apps and services.

8. Can I access every App and service while

driving? No, some applications and services

are not available while driving. For your own

safety, it is not possible to use some of the

touchscreen features while the vehicle is in

motion (e.g. key pad).

9. What happens when my subscription comes

up for renewal? If you have added a credit card

to your account information, your subscription

will be automatically renewed for a term length

in accordance with the service plan that you

have selected at the then current subscription

rate and on every renewal date thereafter,

unless you cancel your subscription by calling

SiriusXM Guardian™ Care. If you have not

added a credit card to your account, SiriusXM

Guardian™ will send you an email or letter in

advance of your expiration date to remind you

that your subscription is ending soon.

10. How do I manage my SiriusXM Guardian™

notification preferences? Contact SiriusXM

Guardian™ Customer Care, or go to your

Owner’s Site and then update your

preferences on the SiriusXM Guardian™

customer web portal.

11. How do I purchase a subscription? Contact

SiriusXM Guardian™ Customer Care by

pushing the ASSIST button on your rearview

mirror or overhead console.

12. How do I update my credit card information?

Profile, then select SiriusXM Guardian™

Payment Account.

13. How do I find out how much longer I have on

my subscription? Contact SiriusXM Guardian™

Customer Care.
You also can visit your Owner’s Site and

choose a subscription to view its expiration

date. When your subscription is about to ex

pire, you will receive an email or letter of notifi

cation.

14. Can I get a refund if I have not used the entire

subscription? Prorated refunds are provided

from the date of cancellation for annual plans

or longer. Please see the Uconnect and

SiriusXM Guardian™ Terms & Conditions for

refunds related to billing plans of other lengths

and other circumstances.

15. Can I cancel a subscription before it expires?

Yes. If you have an annual subscription, your

subscription will be canceled the day you

cancel. If you have a monthly subscription,

your subscription will be canceled on the last

day of the month in which you choose to

cancel.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

309

16. What should I do if I want to sell my vehicle?

Before your vehicle is sold to a new owner,

you’ll want to remove your account

information. This process removes all personal

information, returns the Uconnect system to

its original factory settings, removes all

SiriusXM Guardian™ connected services and

account information. To remove your account

information from the Uconnect system,

contact SiriusXM Guardian™ Customer Care.

17. What if I forgot to remove my account

information before I returned my lease vehicle

or sold it? Contact SiriusXM Guardian™

Customer Care.

18. What will happen if an operable LTE

(voice/data), 4G (data), or 5G (data) network

connection compatible with my device is

temporarily unavailable? The SOS Call and

ASSIST buttons will NOT function if you are not

connected to an operable LTE (voice/data) or

4G (data), 5G (data) network. Services that

required your smartphone only direct calls to

Roadside Assistance Call may be functioning if

you have an operable network.

ATA

OLLECTION

& P

RIVACY

The Uconnect system collects and transmits data

which may include information about your vehicle,

your vehicle’s health and performance, your

vehicle’s location, your utilization of the features in

your vehicle, and other data. The collection, use

and sharing of this information is required to

provide the SiriusXM Guardian™ connected

services and is further described by the Uconnect

www.driveuconnect.com/connectedservices/

privacy.html

(US Residents) or

www.driveuconnect.ca

(Canadian Residents).

This information may be collected by SiriusXM®

Connected Vehicle Services Inc. and shared with

FCA US LLC for the purposes stated in the

Uconnect Privacy Policy. Vehicle health and

diagnostic information including location data may

be used by Uconnect to provide a Vehicle Health

Report to you.
Even if you cancel your SiriusXM Guardian™

subscription, this vehicle diagnostic health

information, including location data, may still be

transmitted from your vehicle and you may still

have a Vehicle Health Report sent to you.
Use of any of the connected services including

SiriusXM Guardian™ is deemed to be your consent

to the collection, use and disclosure of this

information in accordance with the Uconnect

If you do not want this information to be collected,

used, or shared, you must cancel your Uconnect

services in their entirety by contacting us as

referenced in the Uconnect Privacy Policy.

RADIO OPERATION AND MOBILE PHONES

Under certain conditions, the mobile phone being

on in your vehicle can cause erratic or noisy

performance from your radio. This condition may

be lessened or eliminated by repositioning the

mobile phone within the vehicle. This condition is

not harmful to the radio. If your radio performance

does not satisfactorily improve from repositioning

the mobile phone, it is recommended that the

volume be turned down or off during mobile phone

operation when not using the Uconnect system.

EGULATORY

AFETY

NFORMATION

US/CANADA
Exposure to Radio Frequency Radiation
The radiated output power of the internal wireless

radio is far below the FCC and IC radio frequency

exposure limits. Nevertheless, the wireless radio

will be used in such a manner that the radio is 8 in

(20 cm) or further from the human body.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

310

MULTIMEDIA

The internal wireless radio operates within

guidelines found in radio frequency safety

standards and recommendations, which reflect

the consensus of the scientific community.
The radio manufacturer believes the internal

wireless radio is safe for use by consumers.

The level of energy emitted is far less than the

electromagnetic energy emitted by wireless

devices such as mobile phones. However, the use

of wireless radios may be restricted in some

situations or environments, such as aboard

airplanes. If you are unsure of restrictions, you are

encouraged to ask for authorization before turning

on the wireless radio

page 490.

PERFORMANCE PAGES — IF EQUIPPED

Performance Pages is an application that provides

a display for performance indicators that will help

you gain familiarity with the capabilities of your

vehicle in real time.
To access the Performance Pages, press the

Vehicle button on the touchscreen. Then, press

the Performance tab. Press the desired button

on the touchscreen to access that specific

Performance Page.

The Performance Pages include the following:



Timers



Gauges



G-Force



Pitch & Roll



Dyno/Engine



Vehicle Dynamics

Snapshot
The Snapshot feature allows you to take a

screenshot of any page. The information can be

saved onto a USB device.
To take a snapshot, make sure a USB device is

plugged into the vehicle. Next, press the Snapshot

icon located in the lower left corner of the

touchscreen.
The file will be saved to the USB drive. At the time

a snapshot is taken, the bottom bar of the

touchscreen will be replaced with the historical

data from the vehicle present at the time the

snapshot icon was pressed. The following

information will display:



Date



Vehicle Identification Number (VIN)



Longitude And Latitude Coordinates



Outside Temperature



Odometer

WARNING!

Measurement of vehicle statistics with the

Performance Pages is intended for off-highway

or off-road use only and should not be done on

any public roadways. It is recommended that

these features be used in a controlled

environment and within the limits of the law. The

capabilities of the vehicle as measured by the

Performance Pages must never be exploited in a

reckless or dangerous manner, which can

jeopardize the user’s safety or the safety of

others. Only a safe, attentive, and skillful driver

can prevent accidents.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

311

The following describes each feature and its

operation:

IMERS

When the Timers page is selected, you will be able

to view the Drag and Accel & Braking timers.



Recent
A real-time summary of performance timers for

the most recent valid run, or the status of a test

in progress.



Last
The last recorded run of performance timers.



Best
The best recorded run of performance timers,

except for braking data.

Save
Pressing the SAVE button will let you save the timer

data for Recent, Last, and Best recorded times to

an inserted USB flash drive.
The Timers pages contain:



Reaction Time: Measures the driver's reaction

time for launching the vehicle against a simu

lated drag strip timing light (behavior modeled

after 500 Sportsman Tree) displayed in the

instrument cluster display.

NOTE:

Drag timers (RT, 60 ft [20 m], 330 ft [100 m],

1/8 mile [200 m], 1000 ft [300 m], and 1/4 mile

[400 m]) and Acceleration Timers (0-60 mph

[0-96 km/h] and 0-100 mph [0-160 km/h]) will be

ready to acquire new recent data measurements

when the vehicle is at 0 mph (0 km/h) and vehicle

is in drive.
The timer listed shows the measured time required

to travel at the cited distance is met. Some timers

will also display speeds present at the time the

distance was met.



0-60 mph (0-100 km/h)



0-100 mph (0-160 km/h)



60 ft (20 m) ET



330 ft (100 m) ET



⅛ Mile (200 m) + ET



⅛ Mile (200) + mph



1000 ft (300 m) ET



¼ Mile (400 m) + ET



¼ Mile (400 m) + mph



Brake Distance ft (meters)

NOTE:

The distance measurement will be aborted if the

brake pedal is released or the parking brake is

engaged, before the vehicle comes to a complete

stop.



Brake from mph (km/h)

NOTE:

Brake Distance and Speed timers only display

“ready” when vehicle is traveling at a speed

greater than 30 mph (48 km/h).

AUGES

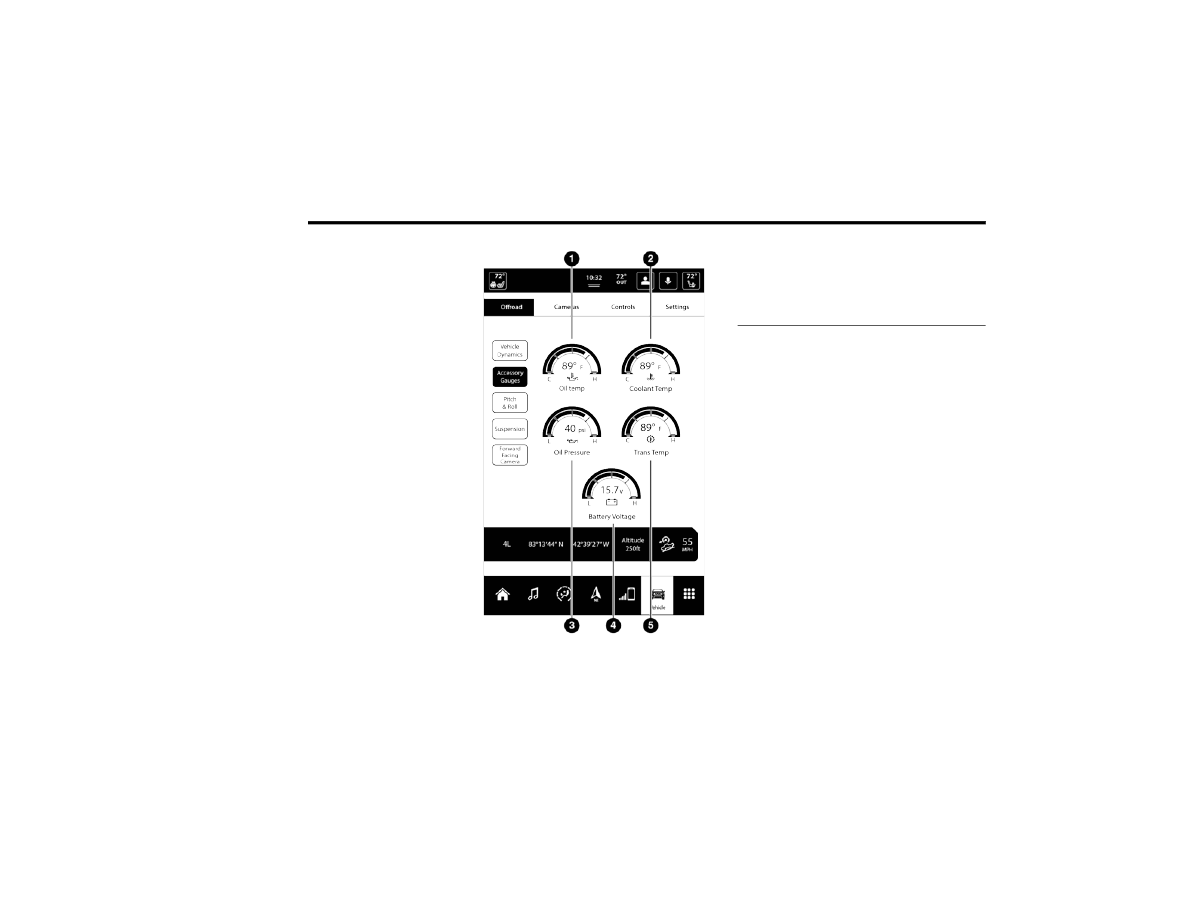

When selected, this screen displays the following

values:



Coolant Temperature
Shows the actual coolant temperature.



Oil Temperature
Shows the actual oil temperature.



Oil Pressure
Shows the actual oil pressure.



Trans Temp
Shows actual transmission oil temperature.



Battery Voltage
Shows actual battery voltage.



Intake Air Temp
Shows actual intake air temperature.

If a gauge is selected, the Gauge Detail View Page

will appear on the screen. This page shows gauge

values for the previous two minutes on the

selected gauge.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

312

MULTIMEDIA

Pressing the Left or Right Arrow will cycle through

the details for each of the gauges. Pressing the

minimize button beside the graph will return to the

Gauge menu.

G-F

ORCE

When G-Force is selected, the following features

will be available:



Vehicle Speed
Measures the current speed of the vehicle in

either mph or km/h, starting at zero with no

maximum value.



Front G-Force
Measures the peak braking force on the front of

the vehicle.



Right G-Force
Measures the peak force on the right side of the

vehicle.



Left G-Force
Measures the peak force on the left side of the

vehicle.



Rear G-Force
Measures the peak acceleration force on the

rear of the vehicle.

NOTE:

Front, Right, Left, and Rear G-Forces are all peak

values. These readings can be reset by clearing

peak G-Force on the instrument cluster.
The friction circle display shows instantaneous

G-Force as a highlight and previous G-Force as

dots within the circle. The system records previous

G-Force for three minutes. If there are multiple

samples at a given point, the color of the dot will

darken from blue to red. Vectors more frequent will

show in red; infrequent vectors will show in blue.

Pitch & Roll

The G-Force page displays the vehicle’s current

pitch (angle up and down) and roll (angle side to

side) in degrees. The Pitch & Roll gauges provide a

visualization of the current vehicle angle.

YNAMOMETER

YNO

)/E

NGINE

Dynamometer (Dyno)

The system will start drawing graphs for Power and

Torque (top chart) and Engine Speed (bottom

chart). The graph will fill from the left side of the

x-axis and fill to the right side of the x-axis (based

on History time selected). Once the right side of the

page is reached, the graph will scroll with the right

side always being the most recent recorded

sample.

The following options can be selected:



Pressing the STOP button will freeze the graph.

Selecting “Play” will clear the graph and restart

the process.



Press the + or – button to change the history

of the graph. The selectable options are

“30”, “60”, “90”, “120” seconds. The graph will

expand or constrict depending on the setting

selected.



Select the “Gear” display setting to turn the

graph gear markers on or off.

NOTE:

The Gear On/Off feature will only display if

your vehicle is equipped with an Automatic

Transmission.

Engine

Press the Left and Right Arrow buttons on the

bottom of the touchscreen to cycle between the

Dyno and Engine pages.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

MULTIMEDIA

313

When selected, this screen displays the following

values:



Vehicle Speed: Shows the actual vehicle speed.



Engine Power: Shows the instantaneous power.



Engine Torque: Shows the instantaneous

torque.



Boost Pressure: Shows the actual engine boost

pressure.



Gear: Shows the current (or pending) operating

gear of the vehicle.

EHICLE

YNAMICS

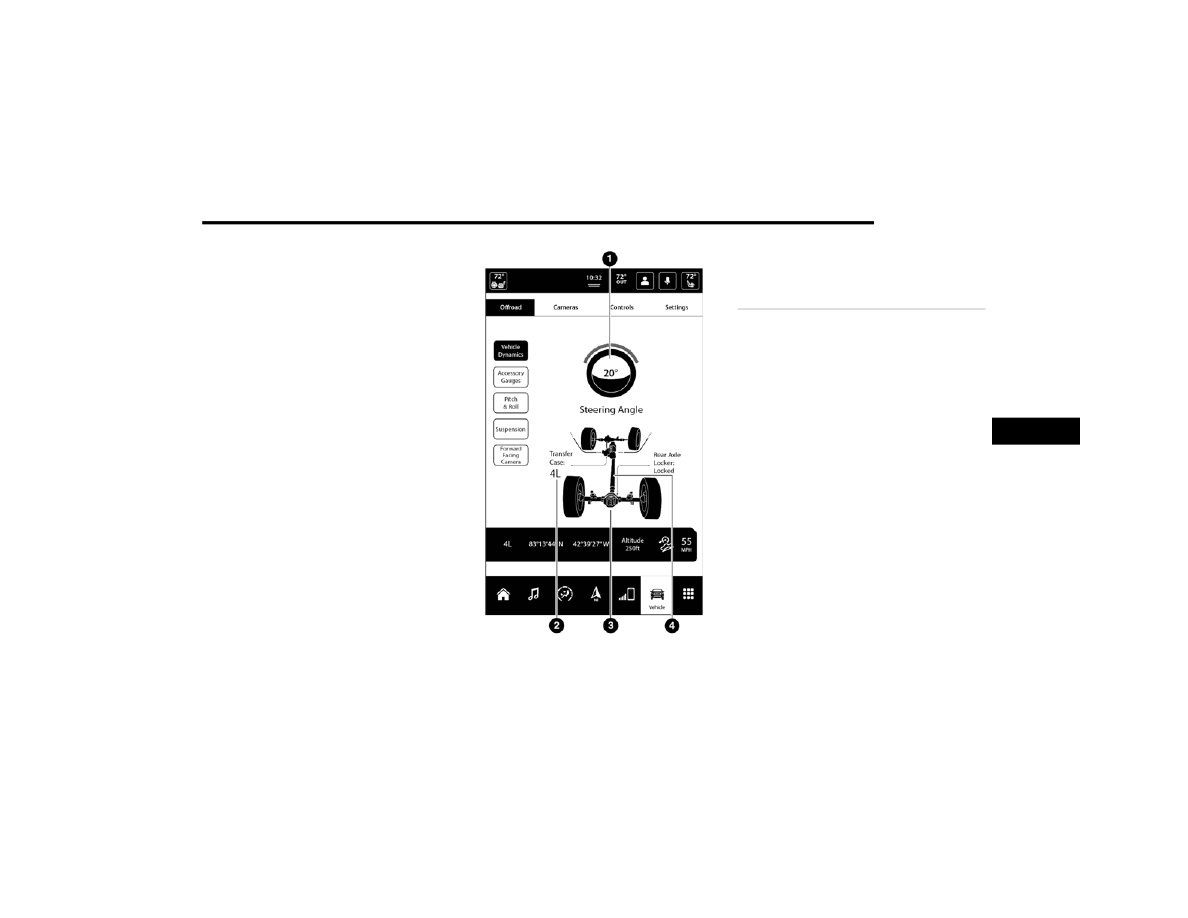

The Vehicle Dynamics page displays information

concerning the vehicle’s drivetrain.
Steering Angle — If Equipped
Steering Angle utilizes the steering angle sensor to

calculate the degree of the steering relative to zero

(straight ahead) reference angle. The zero degree

reference angle measurement indicates the actual

front tire steering angle.

Transfer Case
This feature will be active when the vehicle is in

4WD HIGH, 4WD AUTO, Neutral, or 4WD LOW.

NOTE:

A lock symbol will only be present on the Transfer

Case button when the vehicle is in 4WD LOW.
Rear Axle Locker
This feature will allow you to lock and unlock the

rear axle. To change the status, push the AXLE

LOCK button.

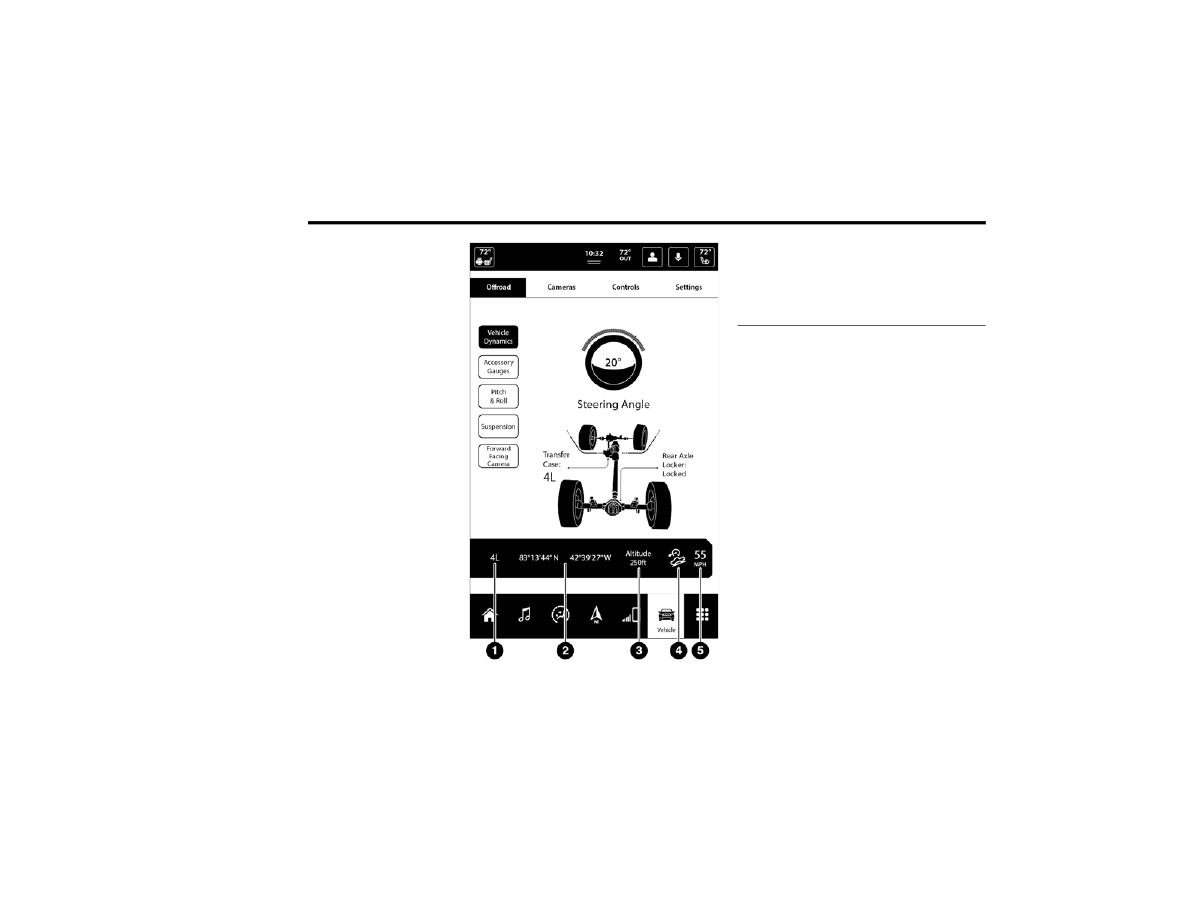

OFF-ROAD PAGES — IF EQUIPPED

Your vehicle may be equipped with Off-Road Pages

which display vehicle information related to the

drivetrain, transfer case, and coolant/oil gauges.
To access Off-Road Pages, press the Vehicle

button on the touchscreen, select the Off-Road

Pages tab, and then select the Off-Road button on

the main screen. Off-Road Pages can also be

accessed through the app drawer.

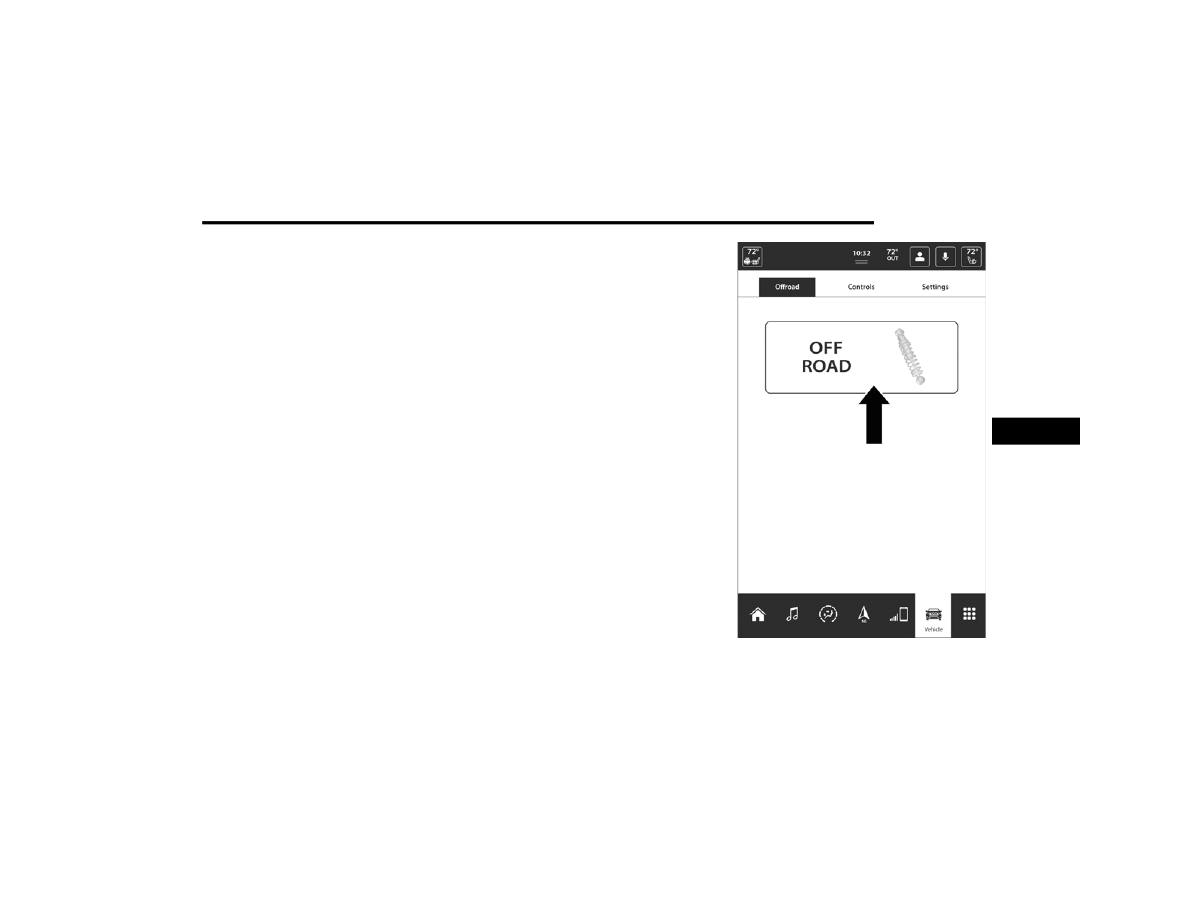

Off-Road Button

-------------------------------------------------------------------------------------------------------------------------------------------------------------

RAM 1500 TRX (2022 year). Manual in english - page 19
