RAM 1500 Classic (2022 year). Manual in english - page 1

11

Secure loose items to prevent weight shifts that could affect the balance of

your vehicle. When the truck camper is loaded, drive to a scale and weigh the

front and rear wheels separately, to determine axle loads. Individual axle loads

should not exceed either of the Gross Axle Weight Ratings (GAWR). The total of

the axle loads should not exceed the Gross Vehicle Weight Rating (GVWR).

If weight ratings are exceeded, move or remove items to get the total weight

below the ratings.

NOTE:

These ratings are also provided on the vehicle certification label located on the

driver’s side B-pillar. See

page 132 for more information.

For any additional instructions, please contact your conversion/camper

manufacturer or an authorized dealer.

VEHICLE MODIFICATIONS/ALTERATIONS

SYMBOL GLOSSARY

Some car components have colored labels with symbols indicating

precautions to be observed when using this component. It is important to

follow all warnings when operating your vehicle. See below for the definition of

each symbol

NOTE:

Warning and Indicator lights are different based upon equipment options and

current vehicle status. Some telltales are optional and may not appear.

WARNING!

Any modifications or alterations to this vehicle could seriously affect its

roadworthiness and safety and may lead to a collision resulting in serious

injury or death.

Red Warning Lights

Seat Belt Reminder Warning Light

Air Bag Warning Light

Brake Warning Light

Vehicle Security Warning Light

Engine Coolant Temperature Warning Light

Battery Charge Warning Light

Oil Pressure Warning Light

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

12

Electronic Throttle Control (ETC) Warning Light

Electric Power Steering (EPS) Fault Warning Light

Trailer Brake Disconnected Warning Light

Door Open Warning Light

Oil Temperature Warning Light

Red Warning Lights

Yellow Warning Lights

Engine Check/Malfunction Indicator Warning Light (MIL)

Electronic Stability Control (ESC) Active Warning Light

Electronic Stability Control (ESC) OFF Warning Light

Low Washer Fluid Warning Light

Low Coolant Level Warning Light

-------------------------------------------------------------------------------------------------------------------------------------------------------------

13

Loose Fuel Filler Cap Warning Light

Tire Pressure Monitoring System (TPMS) Warning Light

Anti-Lock Brake System (ABS) Warning Light

Service 4WD Warning Light

Transmission Temperature Warning Light

Yellow Warning Lights

Yellow Indicator Lights

Low Fuel Indicator Light

TOW/HAUL Indicator Light

Trailer Merge Assist Indicator Light

Cargo Light

4WD Lock Indicator Light

1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

14

4WD Low Indicator Light

4WD Indicator Light

NEUTRAL Indicator Light

Green Indicator Lights

Parking/Headlights On Indicator Light

Front Fog Indicator Light

Turn Signal Indicator Lights

Cruise Control SET Indicator Light

Yellow Indicator Lights

4WD AUTO Indicator Light

Stop/Start Active Indicator Light

White Indicator Lights

Cruise Control Ready Indicator

Cruise Control SET Indicator Light

Blue Indicator Lights

High Beam Indicator Light

Green Indicator Lights

-------------------------------------------------------------------------------------------------------------------------------------------------------------

15

GETTING TO KNOW YOUR VEHICLE

KEYS

K

EY

F

OBS

Your vehicle may be equipped with a standard

ignition key fob or a keyless ignition key fob.
The standard ignition key fob operates the ignition

switch. Insert the square end of the key fob into the

ignition switch located on the instrument panel

and rotate to the desired position. The key fob also

contains an emergency key, which is stored in the

rear of the key fob.

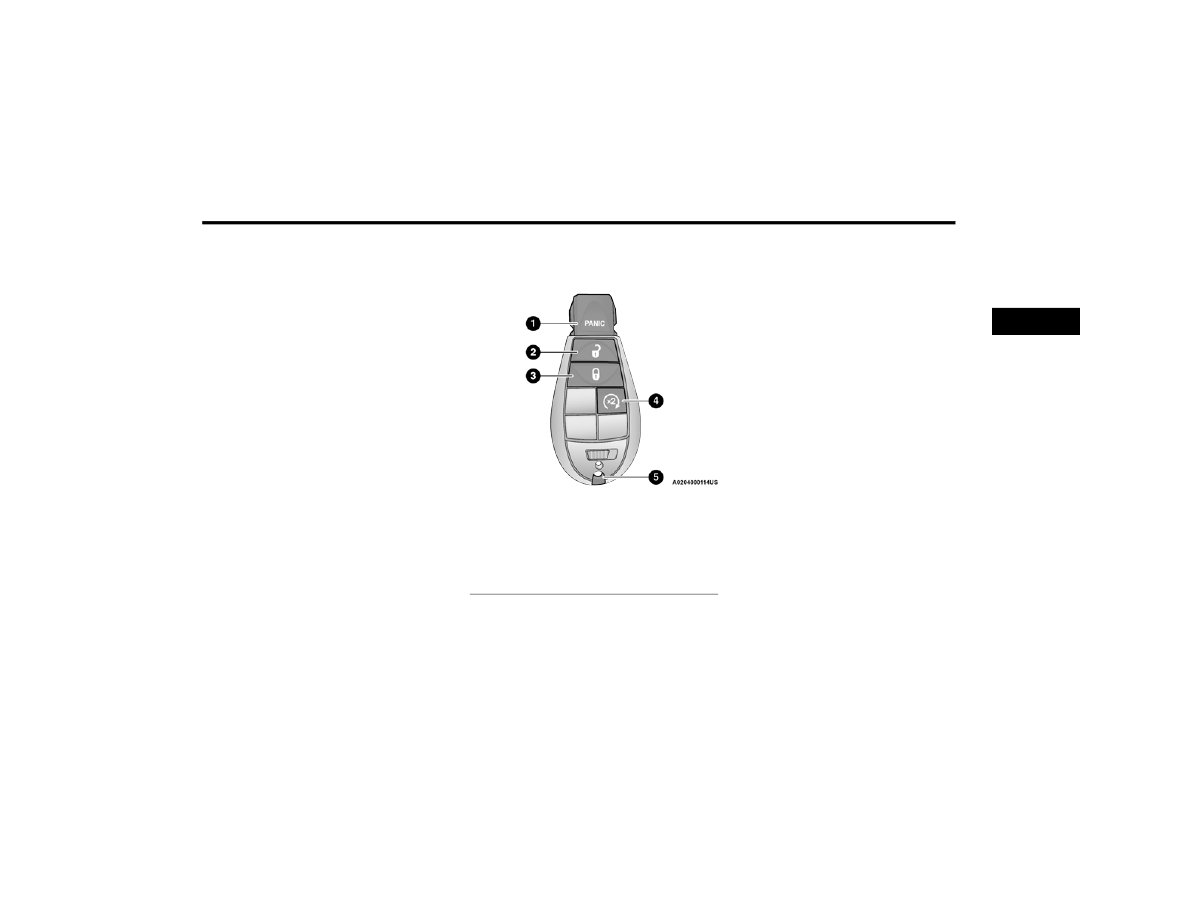

Key Fob For Standard Ignition

Your vehicle may be equipped with a key fob

which supports Passive Entry, Remote Keyless

Entry (RKE), Keyless Enter ‘n Go™ (if equipped),

and Remote Start (if equipped). The key fob allows

you to lock or unlock all doors, tailgate, and the

RamBox (if equipped) from distances up to

approximately 66 ft (20 m). The key fob does not

need to be pointed at the vehicle to activate the

system. The key fob also contains an emergency

key, which is stored in the rear of the key fob.

1 — PANIC Button
2 — Unlock Button
3 — Lock Button
4 — Remote Start Button
5 — Emergency Key Location

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

16

GETTING TO KNOW YOUR VEHICLE

NOTE:



The key fob’s wireless signal may be blocked if

the key fob is located next to a mobile phone,

laptop, or other electronic device. This may

result in poor performance.



With the ignition in the ON position and the

vehicle moving at 2 mph (4 km/h), all RKE

commands are disabled.

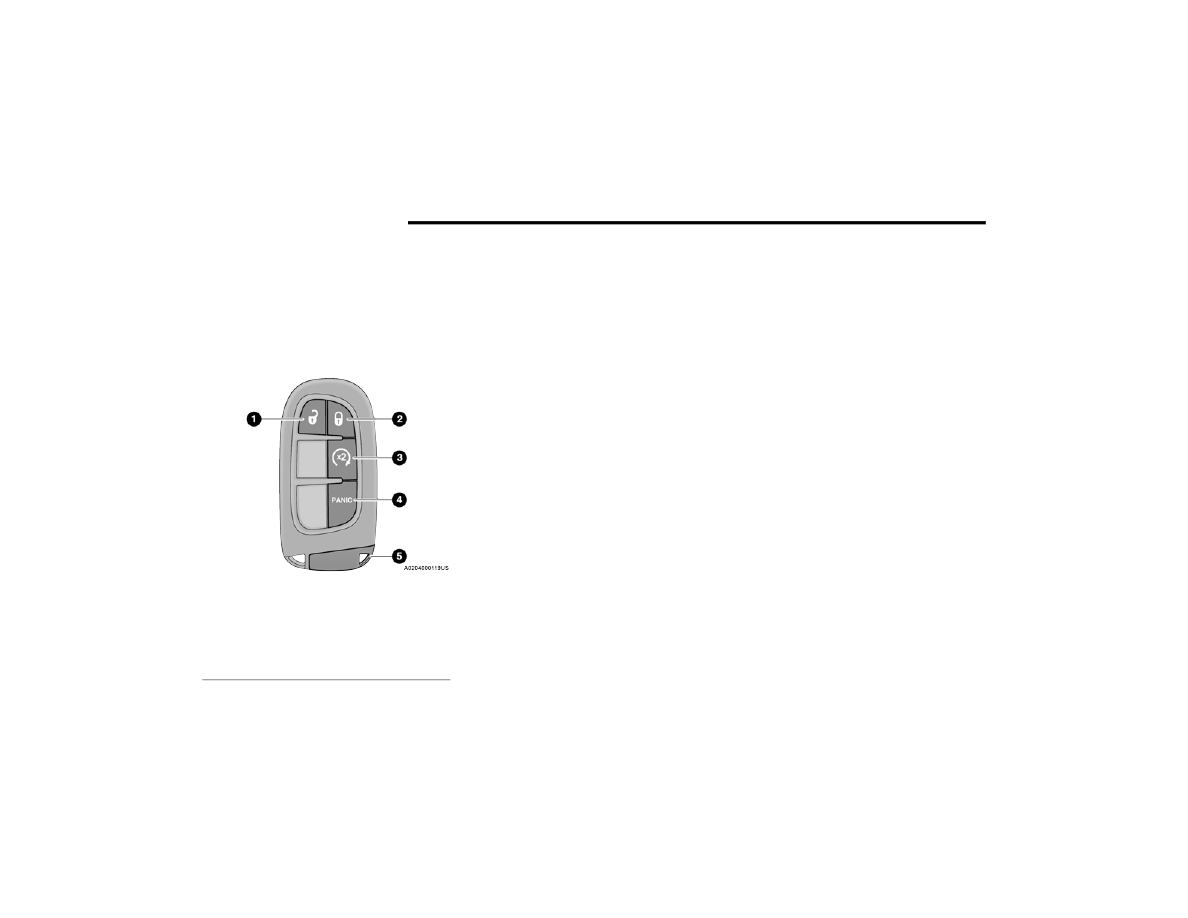

Key Fob For Keyless Ignition

NOTE:



In case the ignition switch does not change with

the push of a button, the key fob may have a low

or fully depleted battery. A low key fob battery

can be verified by referring to the instrument

cluster, which will display directions to follow.



Inserting the key fob with integrated key into the

ignition switch disables the system from

responding to any button pushes from that key

fob. Driving at speeds 5 mph (8 km/h) and

above disables the system from responding to

all key fob buttons for all key fobs

To Lock/Unlock The Doors And Tailgate

Push and release the unlock button on the key fob

once to unlock the driver’s door, or, twice within

five seconds to unlock all doors, the tailgate and

the RamBox (if equipped). To lock all the doors and

the tailgate, push the lock button once.

When the doors are unlocked, the turn signals will

flash and the illuminated entry system will be

activated. When the doors are locked, the turn

signals will flash and the horn will chirp.
All doors can be programmed to unlock on the first

push of the unlock button. The horn chirp when the

lock button is pushed can be programmed on/off

within Uconnect Settings

Key Left Vehicle Feature

If a valid key fob is no longer detected inside the

vehicle while the vehicle’s ignition system is in the

ON/RUN or START position, the message “Key Fob

Has Left The Vehicle” will be shown in the

instrument cluster display along with an interior

chime. An exterior audible and visual alert will also

be activated to warn the driver.
The vehicle’s horn will rapidly chirp three

times along with a single flash of the vehicle’s

exterior lights.

1 — Unlock
2 — Lock
3 — Remote Start
4 — Panic Button
5 — Emergency Key

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

17

NOTE:



The doors have to be open and then closed in

order for the vehicle to check for the presence of

a key fob; the Key Left Vehicle feature will not

activate until all of the doors are closed.



These alerts will not be activated in situations

where the vehicle’s engine is left running with

the key fob inside.

Replacing The Battery In The Key Fob

The replacement battery is one CR2032 battery.

NOTE:



Customers are recommended to use a battery

obtained from Mopar®. Aftermarket coin

battery dimensions may not meet the original

OEM coin battery dimensions.



Perchlorate Material — special handling may

apply. See www.dtsc.ca.gov/hazardouswaste/

perchlorate for further information.



Do not touch the battery terminals that are on

the back housing or the printed circuit board.

1. Remove the emergency key by sliding the

emergency key release (1) on the front of the

standard ignition key fob, or on the back of

the keyless ignition key fob, sideways, and

pulling the emergency key (2) out with your

other hand.

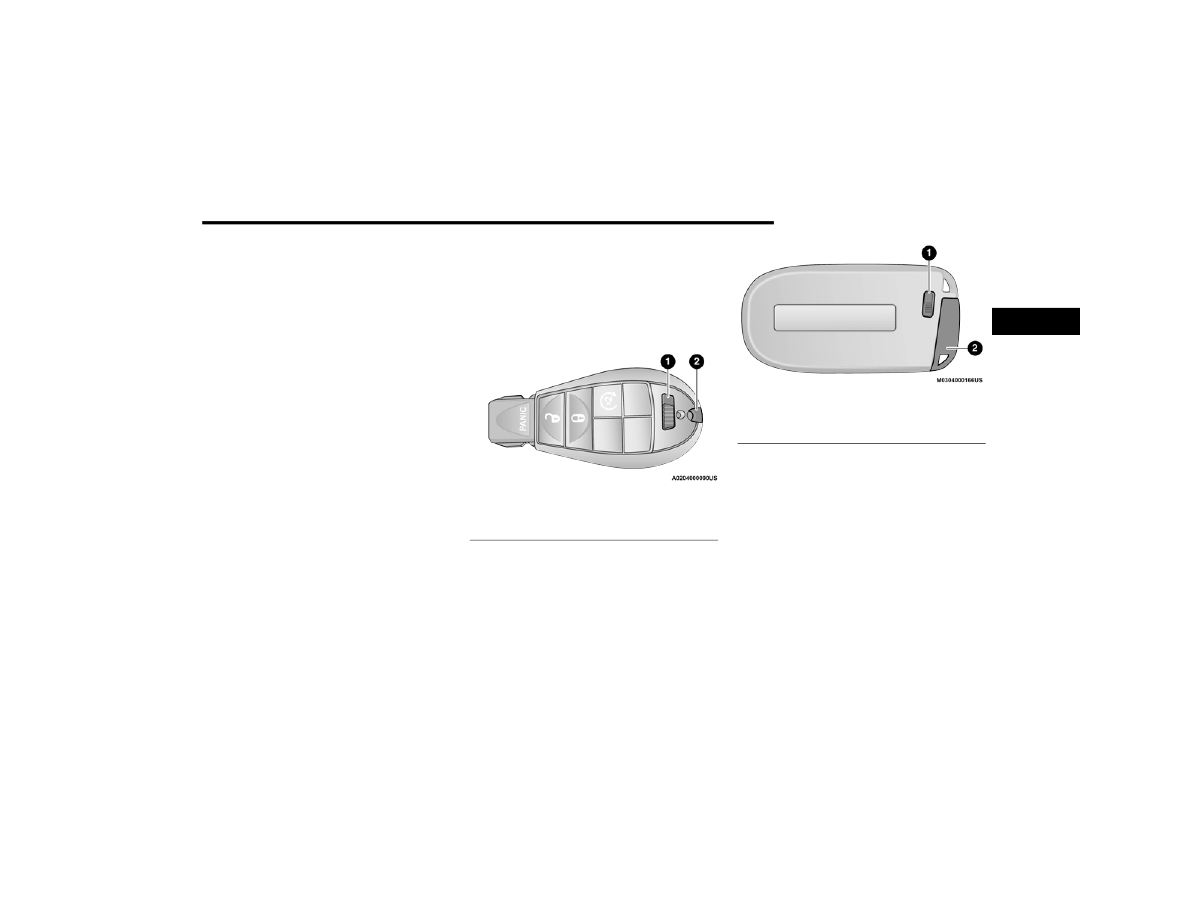

Emergency Key Removal (Standard Ignition Key Fob)

Emergency Key Removal (Keyless Ignition Key Fob)

2. Gently pry the two halves of the key fob apart.

Make sure not to damage the seal during

removal.

1 — Emergency Key Release
2 — Emergency Key

1 — Emergency Key Release
2 — Emergency Key

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

18

GETTING TO KNOW YOUR VEHICLE

3. Remove the battery by turning the back cover

over (battery facing downward) and tapping it

lightly on a solid surface such as a table or

similar, then replace the battery. When

replacing the battery, match the (+) sign on the

battery to the (+) sign on the inside of the

battery clip, located on the back cover. Avoid

touching the new battery with your fingers. Skin

oils may cause battery deterioration. If you

touch a battery, clean it with rubbing alcohol.

4. To assemble the key fob case, snap the two

halves together.

Programming And Requesting Additional

Key Fobs

Programming the key fob may be performed by an

authorized dealer.

NOTE:



Once a key fob is programmed to a vehicle, it

cannot be repurposed and reprogrammed to

another vehicle.



Only key fobs that are programmed to the

vehicle electronics can be used to start and

operate the vehicle. Once a key fob is

programmed to a vehicle, it cannot be

programmed to any other vehicle.

Duplication of key fobs may be performed at an

authorized dealer. This procedure consists of

programming a blank key fob to the vehicle

electronics. A blank key fob is one that has never

been programmed.

NOTE:



When having the Sentry Key Immobilizer system

serviced, bring all vehicle keys with you to an

authorized dealer.



Keys must be ordered to the correct key cut to

match the vehicle locks.

SENTRY KEY

The Sentry Key Immobilizer system prevents

unauthorized vehicle operation by disabling the

engine. The system does not need to be armed or

activated. Operation is automatic, regardless of

whether the vehicle is locked or unlocked.
The system uses a key fob, either a keyless push

button ignition or wireless ignition node system,

and a Radio Frequency (RF) receiver to prevent

unauthorized vehicle operation. Therefore, only

key fobs that are programmed to the vehicle can

be used to start and operate the vehicle. The

system cannot reprogram a key fob obtained from

another vehicle.

WARNING!



The integrated key fob contains a coin cell

battery. Do not ingest the battery; there is a

chemical burn hazard. If the coin cell battery is

swallowed, it can cause severe internal burns

in just two hours and can lead to death.



If you think a battery may have been swal

-

lowed or placed inside any part of the body,

seek immediate medical attention.



Keep new and used batteries away from chil

-

dren. If the battery compartment does not

close securely, stop using the product and

keep it away from children.

WARNING!



Always remove the key fobs from the vehicle

and lock all doors when leaving the vehicle

unattended.



For vehicles equipped with Keyless

Enter ‘n Go™ Ignition, always remember to

place the ignition in the OFF position.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

19

(Continued)

After placing the ignition in the ON/RUN position,

the Vehicle Security Light will turn on for three

seconds for a bulb check. If the light remains on

after the bulb check, it indicates that there is a

problem with the electronics. In addition, if the light

begins to flash after the bulb check, it indicates

that someone attempted to start the engine with

an invalid key fob. In the event that a valid key fob

is used to start the engine but there is an issue

with the vehicle electronics, the engine will start

and shut off after two seconds.
If the Vehicle Security Light turns on during normal

vehicle operation (vehicle running for longer than

10 seconds), it indicates that there is a fault in the

electronics. Should this occur, have the vehicle

serviced as soon as possible by an authorized

dealer.

All of the key fobs provided with your new vehicle

have been programmed to the vehicle electronics

IGNITION SWITCH

I

GNITION

N

ODE

M

ODULE

(IGNM) —

I

F

E

QUIPPED

The Ignition Node Module (IGNM) operates similar

to an ignition switch. It has four operating

positions, three with detents and one that is

spring-loaded. The detent positions are OFF,

ACC, and ON/RUN. The START position is a

spring-loaded momentary contact position. When

released from the START position, the switch

automatically returns to the ON/RUN position.

Ignition Switch

CAUTION!

The Sentry Key Immobilizer system is not

compatible with some aftermarket remote

starting systems. Use of these systems may

result in vehicle starting problems and loss of

security protection.

1 — OFF
2 — ACC (Accessory)
3 — ON/RUN
4 — START

WARNING!



Before exiting a vehicle, always come to a

complete stop, then shift the automatic trans

-

mission into PARK, apply the parking brake,

place the engine in the OFF position, remove

the key fob from the vehicle and lock your

vehicle. If equipped with Keyless Enter ‘n Go™,

always make sure the keyless ignition is in OFF

position, remove the key fob from the vehicle

and lock the vehicle.



Never leave children alone in a vehicle, or with

access to an unlocked vehicle.



Allowing children to be in a vehicle unattended

is dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

20

GETTING TO KNOW YOUR VEHICLE

NOTE:



For more information on normal starting, see



Keyed ignition systems will chime in the OFF or

ACC position when the driver door is open.



In addition to the chime, the message “Key In

Ignition” will display in the cluster.

K

EYLESS

E

NTER

‘

N

G

O

™ I

GNITION

(I

F

E

QUIPPED

)

This feature allows the driver to operate the

ignition switch with the push of a button as long as

the key fob is in the passenger compartment.
The START/STOP ignition button has several

operating modes that are labeled and will

illuminate when in position. These modes are OFF,

ACC, ON/RUN, and START.

Keyless Push Button Ignition

The push button ignition can be placed in the

following modes:
OFF



The engine is stopped



Some electrical devices (e.g. central locking,

alarm, etc.) are still available

ACC



Engine is not started



Some electrical devices are available

(e.g. power sunroof, power windows, etc.)

ON/RUN



Driving position



All electrical devices are available

(e.g. climate controls, heated seats, etc.)

START



The engine will start (when foot is on the brake)

NOTE:

If the ignition switch does not change with the push

of a button, the key fob may have a low battery. In

this situation, a back up method can be used to

operate the ignition switch. Put the nose side (side

opposite of the emergency key) of the key fob

against the START/STOP ignition button and push

to operate the ignition switch.



Do not leave the key fob in or near the vehicle,

or in a location accessible to children, and do

not leave the ignition of a vehicle equipped

with Keyless Enter ‘n Go™ in the ON/RUN

position. A child could operate power

windows, other controls, or move the vehicle.



Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves.

Always remove key fob from the vehicle and lock

all doors when leaving the vehicle unattended.

WARNING!

1 — OFF
2 — ACC (Accessory)
3 — ON/RUN

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

21

(Continued)

Back Up Starting Method

NOTE:



For more information on normal starting, see



Keyed ignition systems will chime in OFF or ACC

when the driver door is open.



Keyless ignition systems will chime in the ACC or

ON/RUN position when the driver door is open.



In addition to the chime, the message “Key In

Ignition” will display in the cluster.

REMOTE START — IF EQUIPPED

This system uses the key fob to start the

engine conveniently from outside the

vehicle while still maintaining security.

The system has a range of approximately

300 ft (91 m).
Remote Start is used to defrost windows in cold

weather, and to reach a comfortable climate in all

ambient conditions before the driver enters the

vehicle.

WARNING!



Before exiting a vehicle, always come to a

complete stop, then shift the automatic trans

-

mission into PARK, apply the parking brake,

place the engine in the OFF position, remove

the key fob from the vehicle and lock your

vehicle. If equipped with Keyless Enter ‘n Go™,

always make sure the keyless ignition is in OFF

position, remove the key fob from the vehicle

and lock the vehicle.



Never leave children alone in a vehicle, or with

access to an unlocked vehicle.



Allowing children to be in a vehicle unattended

is dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.



Do not leave the key fob in or near the vehicle,

or in a location accessible to children, and do

not leave the ignition of a vehicle equipped

with Keyless Enter ‘n Go™ in the ON/RUN

position. A child could operate power

windows, other controls, or move the vehicle.



Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.

CAUTION!

An unlocked vehicle is an invitation for thieves.

Always remove key fob from the vehicle and lock

all doors when leaving the vehicle unattended.

WARNING!

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

22

GETTING TO KNOW YOUR VEHICLE

NOTE:

Obstructions between the vehicle and the key fob

may reduce this range

H

OW

T

O

U

SE

R

EMOTE

S

TART

Push and release the Remote Start button on the

key fob twice within five seconds. The vehicle

doors will lock, the parking lights will flash, and the

horn will chirp twice (if programmed). Then, the

engine will start, and the vehicle will remain in the

Remote Start mode for a 15 minute cycle.
Pushing the Remote Start button a third time shuts

the engine off.

NOTE:



With Remote Start, the engine will only run for

15 minutes.



Remote Start can only be used twice.



If an engine fault is present or fuel level is low,

the vehicle will start and then shut down in

10 seconds.



The parking lights will turn on and remain on

during Remote Start mode.



For security, power window and power sunroof

operation (if equipped) are disabled when the

vehicle is in the Remote Start mode.



The ignition must be placed in the ON/RUN

position before the Remote Start sequence can

be repeated for a third cycle.

All of the following conditions must be met before

the engine will Remote Start:



Gear selector in PARK



Doors closed



Hood closed



Hazard switch off



Brake switch inactive (brake pedal not pressed)



Battery at an acceptable charge level



PANIC button not pushed



Fuel meets minimum requirement



System not disabled from previous Remote

Start event



Vehicle Security system not active



Malfunction Indicator Light (MIL) is not

illuminated



Ignition in OFF position

T

O

E

XIT

R

EMOTE

S

TART

M

ODE

To drive the vehicle after starting the Remote Start

system, push and release the START/STOP ignition

button while pressing the brake pedal prior to the

end of the 15 minute cycle. If the vehicle is not

equipped with a START/STOP ignition button,

insert the key fob into the ignition switch and place

the ignition in the ON/RUN position.

WARNING!



Do not start or run an engine in a closed

garage or confined area. Exhaust gas contains

Carbon Monoxide (CO) which is odorless and

colorless. Carbon Monoxide is poisonous and

can cause serious injury or death when

inhaled.



Keep key fobs away from children. Operation

of the Remote Start system, windows, door

locks or other controls could cause serious

injury or death.

WARNING!



Do not start or run an engine in a closed

garage or confined area. Exhaust gas contains

Carbon Monoxide (CO) which is odorless and

colorless. Carbon Monoxide is poisonous and

can cause serious injury or death when

inhaled.



Keep key fobs away from children. Operation

of the Remote Start system, windows, door

locks or other controls could cause serious

injury or death.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

23

The Remote Start system will turn the engine off if

the Remote Start button on the key fob is pushed

again, or if the engine is allowed to run for the

entire 15 minute cycle. Once the ignition is placed

in the ON/RUN position, the climate controls will

resume the previously set operations

(temperature, blower control, etc.).

NOTE:



To avoid unintentional shutdowns, the system

will disable for two seconds after receiving a

valid Remote Start request.



For vehicles equipped with the Keyless

Enter ‘n Go™ — Passive Entry feature, the

message “Remote Start Active — Push Start

Button” will display in the instrument cluster

display until you push the START/STOP ignition

button.

R

EMOTE

S

TART

F

RONT

D

EFROST

A

CTIVATION

— I

F

E

QUIPPED

When Remote Start is active, and the outside

ambient temperature is 40°F (4.5°C) or below, the

system will automatically activate front defrost for

15 minutes or less. The time is dependent on the

ambient temperature. Once the timer expires, the

system will automatically adjust the settings

depending on ambient conditions. See “Remote

Start Comfort Systems — If Equipped” in the next

section for detailed operation.

For vehicles equipped with the Keyless

Enter ‘n Go™ — Passive Entry feature, the message

“Remote Start Active — Push Start Button” will

display in the instrument cluster display until you

push the START/STOP ignition button.

R

EMOTE

S

TART

C

OMFORT

S

YSTEMS

—

I

F

E

QUIPPED

When Remote Start is activated, the front and rear

defrost will automatically turn on in cold weather.

The heated steering wheel and driver heated seat

feature will turn on if programmed in the comfort

menu screen within Uconnect Settings

page 150. In warm weather, the driver vented

seat feature will automatically turn on when the

Remote Start is activated and is programmed in

the comfort menu screen. The vehicle will adjust

the climate control settings depending on the

outside ambient temperature.
Automatic Temperature Control (ATC) —

If Equipped
The climate controls automatically adjust to an

optimal temperature and mode, dependent on the

outside ambient temperature. When the ignition is

placed in the ON/RUN position, the climate

controls will resume their previous settings.

Manual Temperature Control (MTC) — If Equipped



In ambient temperatures of 40°F (4.5°C) or

below, the climate settings will default to

maximum heat, with fresh air entering the

cabin. If the front defrost timer expires, the

vehicle will enter Mix Mode.



In ambient temperatures from 40°F (4.5°C) to

78°F (26°C), the climate settings will be based

on the last settings selected by the driver.



In ambient temperatures of 78°F (26°C) or

above, the climate settings will default to

MAX A/C, Bi-Level mode, with Recirculation on.

For more information on ATC, MTC, and climate

control settings, see

NOTE:

These features will stay on through the duration of

Remote Start, or until the ignition is placed in the

ON/RUN position. The climate control settings will

change, and exit the automatic defaults, if

manually adjusted by the driver while the vehicle is

in Remote Start mode. This includes turning the

climate controls off using the OFF button.

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

24

GETTING TO KNOW YOUR VEHICLE

R

EMOTE

S

TART

W

INDSHIELD

W

IPER

D

E

–I

CER

A

CTIVATION

— I

F

E

QUIPPED

When Remote Start is active and the outside

ambient temperature is less than 33°F (0.6°C),

the Windshield Wiper De-Icer will activate. Exiting

Remote Start will resume its previous operation. If

the Windshield Wiper De-Icer was active, the timer

and operation will continue.

R

EMOTE

S

TART

A

BORT

M

ESSAGE

The following messages will display in the

instrument cluster display if the vehicle fails to

remote start or exits Remote Start prematurely:



Remote Start Cancelled — Door Open



Remote Start Cancelled — Hood Open



Remote Start Cancelled — Fuel Low



Remote Start Cancelled — System Fault



Remote Start Disabled — Start Vehicle to Reset

The message will stay active until the ignition is

placed in the ON/RUN position.

VEHICLE SECURITY SYSTEM

The Vehicle Security system monitors the vehicle

doors, hood, tailgate, and the ignition for

unauthorized operation. While the Vehicle Security

system is armed, interior switches for door locks

are disabled. If something triggers the alarm, the

Vehicle Security system will provide the following

audible and visible signals:



The horn will pulse



The turn signals will flash



The Vehicle Security Light in the instrument

cluster will flash

T

O

A

RM

T

HE

S

YSTEM

Follow these steps to arm the Vehicle Security

system:
1. Make sure the vehicle’s ignition is placed in

the OFF position.



For vehicles equipped with Keyless Entry,

make sure the vehicle’s keyless ignition

system is OFF.



For vehicles not equipped with Keyless

Entry, make sure the vehicle ignition is OFF

and the key fob is physically removed from

the ignition.

2. Perform one of the following methods to lock

the vehicle:



Push the lock button on the interior power

door lock switch with the driver and/or

passenger door open.



Push the lock button on the exterior Passive

Entry door handle with a valid key fob avail

-

able in the same exterior zone



Push the lock button on the key fob.

3. If any doors are open, close them.

T

O

D

ISARM

T

HE

S

YSTEM

The Vehicle Security system can be disarmed using

any of the following methods:



Push the unlock button on the key fob.



Grab the Passive Entry door handle to unlock

the door



Cycle the ignition out of the OFF position to

disarm the system.



For vehicles equipped with Keyless

Enter ‘n Go™ — Ignition, push the

START/STOP ignition button (requires at

least one valid key fob in the vehicle).



For vehicles not equipped with Keyless

Enter ‘n Go™, insert a valid key fob into the

ignition switch and turn the key to the

ON/RUN position.

The Vehicle Security system is designed to protect

your vehicle. However, you can create conditions

where the system will give you a false alarm. If one

of the previously described arming sequences has

occurred, the Vehicle Security system will arm

regardless of whether you are in the vehicle or not.

If you remain in the vehicle and open a door, the

alarm will sound. If this occurs, disarm the Vehicle

Security system.

-------------------------------------------------------------------------------------------------------------------------------------------------------------

GETTING TO KNOW YOUR VEHICLE

25

(Continued)

If the Vehicle Security system is armed and the

battery becomes disconnected, the Vehicle

Security system will remain armed when the

battery is reconnected; the exterior lights will flash,

and the horn will sound. If this occurs, disarm the

Vehicle Security system.

R

EARMING

O

F

T

HE

S

YSTEM

The Vehicle Security system will rearm itself after

15 minutes if the system has not been disabled.

If the condition which initiated the alarm is still

present, the system will ignore that condition and

monitor the remaining doors and ignition.

S

ECURITY

S

YSTEM

M

ANUAL

O

VERRIDE

The Vehicle Security system will not arm if you lock

the doors using the manual door lock.

DOORS

M

ANUAL

D

OOR

L

OCKS

The power door locks can be manually locked from

inside the vehicle by using the door lock knob. To

lock each door, push the door lock knob on each

door trim panel downward. To unlock the front

doors, pull the inside door handle to the first

detent. To unlock the rear doors, pull the door lock

knob on the door trim panel upward. If the lock

knob is down when the door is closed, the door will

lock. Therefore, make sure the key fob is not inside

the vehicle before closing the door.

NOTE:

Manually locking the vehicle will not arm the

Vehicle Security system.

Door Lock Knob

WARNING!



Do not leave children or animals inside parked

vehicles in hot weather. Interior heat buildup

may cause serious injury or death.



For personal security and safety in the event

of an collision, lock the vehicle doors as you

drive as well as when you park and leave the

vehicle.



Before exiting a vehicle, always shift the auto

-

matic transmission into PARK or REVERSE,

apply the parking brake, place the ignition in

the OFF position, remove the key fobs from

vehicle, and lock all doors.



Never leave children alone in a vehicle, or with

access to an unlocked vehicle. Leaving chil

-

dren in a vehicle unattended is dangerous for

a number of reasons. A child or others could

be seriously or fatally injured. Children should

be warned not to touch the parking brake,

brake pedal or the gear selector.



Allowing children to be in a vehicle unattended

is dangerous for a number of reasons. A child

or others could be seriously or fatally injured.

Children should be warned not to touch the

parking brake, brake pedal or the gear

selector.



Do not leave the key fob in or near the vehicle,

or in a location accessible to children, and do

not leave the ignition of a vehicle equipped

with Keyless Enter ‘n Go™ in the ACC or ON/

RUN position. A child could operate power

windows, other controls, or move the vehicle.

WARNING!

2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

26

GETTING TO KNOW YOUR VEHICLE

P

OWER

D

OOR

L

OCKS

— I

F

E

QUIPPED

The power door lock switches are located on each

front door panel. Push the switch to lock or unlock

the doors.

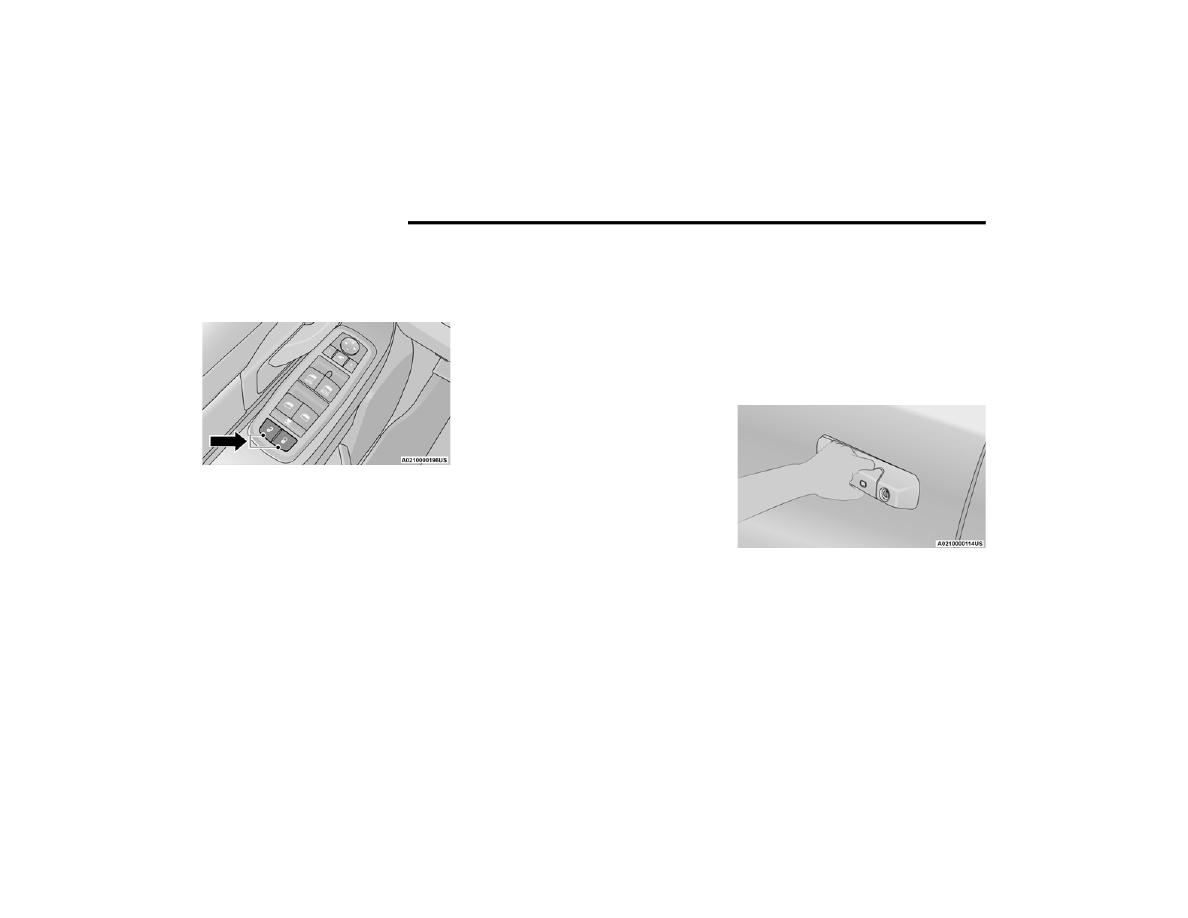

Power Door Lock Switches

NOTE:

The key fob may not be detected by the vehicle

Keyless Enter ‘n Go™ system if it is located next to

a mobile phone, laptop or other electronic device;

these devices may block the key fob’s wireless

signal and prevent the Keyless Enter ‘n Go™

system from starting the vehicle.
If you push the power door lock switch while the

key fob is in the ignition, and any front door is open,

the power locks will not operate. This prevents you

from accidentally locking your key fob in the

vehicle. Removing the key fob or closing the door

will allow the locks to operate. A chime will sound if

the key fob is in the ignition switch and a door is

open, as a reminder to remove the key fob.

K

EYLESS

E

NTER

‘

N

G

O

™ — P

ASSIVE

E

NTRY

(I

F

E

QUIPPED

)

The Passive Entry system is an enhancement to

the vehicle’s key fob and a feature of Keyless

Enter ‘n Go™ — Passive Entry. This feature allows

you to lock and unlock the vehicle’s door(s) without

having to push the key fob lock or unlock buttons.

NOTE:



Passive Entry may be programmed on or off

within Uconnect Settings



The key fob may not be detected by the vehicle

Passive Entry system if it is located next to a

mobile phone, laptop, or other electronic device;

these devices may block the key fob’s wireless

signal and prevent the Passive Entry system

from locking/unlocking the vehicle.



If wearing gloves, or if it has been raining/

snowing on the Passive Entry door handle, the

unlock sensitivity can be affected, resulting in a

slower response time.



If the vehicle is unlocked by Passive Entry and

no door is opened within 60 seconds, the

vehicle will relock and (if equipped) will arm the

Vehicle Security system.



The Vehicle Security system can be armed/

disarmed by pushing the Passive Entry key fob

lock/unlock buttons (if equipped).

To Unlock From The Driver Or Passenger Side:
With a valid Passive Entry key fob within 5 ft

(1.5 m) of the door handle, grab the handle to

unlock the vehicle. Grabbing the driver’s door

handle will unlock the driver door automatically.

Grabbing the passenger door handle will unlock all

doors and the tailgate automatically.

Grab The Door Handle To Unlock

NOTE:

Either the driver door only or all doors will unlock

when you grab hold of the front driver’s door

handle, depending on the selected setting in the

Uconnect system

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Content .. 1 2 ..

///////////////////////////////////////
