Acura TLX (2019 year). Manual

Continued

117

Gauges and Multi-Information Display

Multi-Information Display

strum

nt Pa

nel

Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.

Shows the total number of miles (U.S.) or kilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.

■

Odometer

■

Trip Meter

■

Outside Temperature

■

Average Fuel Economy

Trip Meter

Switch between trip meter A and trip meter B by
pressing the TRIP button.

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

Use the multi-information display’s customized
features to correct the temperature.

2 Customized Features P. 120, 292

Average Fuel Economy

You can change when to reset the average fuel
economy.

2 Customized Features P. 120, 292

19 ACURA TLX-31TZ36400.book 117 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gauges and Multi-Information Display

Multi-Information Display

118

strum

nt Pa

nel

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.

Shows the time elapsed since the Trip A or Trip B was reset.

Shows the average speed in mph (U.S.) or km/h (Canada) since the Trip A or Trip B
was reset.

Shows you turn-by-turn driving directions to your destination linked with the
navigation system.

2 Refer to the Navigation System Manual

■

Instant Fuel Economy

■

Range

■

Elapsed Time

■

Average Speed

■

Turn-by-Turn Directions

Elapsed Time

You can change when to reset the elapsed time.

2 Customized Features P. 120, 292

Average Speed

You can change when to reset the average speed.

2 Customized Features P. 120, 292

Turn-by-Turn Directions

The multi-information display shows a compass when
the route guidance is not used.

You can select whether the turn-by-turn display
comes on or not during the route guidance.

2 Customized Features P. 120, 292

* Not available on all models

19 ACURA TLX-31TZ36400.book 118 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

119

Gauges and Multi-Information Display

Multi-Information Display

Continued

strum

nt Pa

nel

Shows the remaining oil life and Maintenance Minder

2 Maintenance Minder

P. 467

Shows each tire’s pressure.

2 Tire Pressure Monitoring System (TPMS) with Tire Fill Assist P. 424

Shows the current mode for Integrated dynamics system.

2 Integrated Dynamics System P. 387

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.

2 Super Handling-All Wheel Drive

(SH-

AWD®)

P. 423

■

Engine Oil Life and Maintenance Items

■

Tire Pressure Monitor

■

Current Mode for Integrated Dynamics System

■

SH-AWD® Torque Distribution Monitor

* Not available on all models

19 ACURA TLX-31TZ36400.book 119 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gauges and Multi-Information Display

Multi-Information Display

120

strum

nt Pa

nel

Use the multi-information display to customize certain features.

■

How to customize

Select the Vehicle Settings screen by rolling the right selector wheel while the
power mode is in ON, and the vehicle is at a complete stop.
Push the right selector wheel.

■

Customized Features

Customized Features

To customize other features, roll the right selector
wheel.

2 List of customizable options P. 123
2 Example of customization settings P. 128

Customization is possible when you see the driver’s
ID (Driver 1 or Driver 2) on the screen.
The driver’s ID indicates which remote transmitter
you have used to unlock the driver’s door. The
customized settings are recalled every time you
unlock the driver’s door with that remote.

Put the transmission into

(

P before you attempt to

change any customized setting.

Customizing is also available from the information
screen.
You cannot have Vehicle Settings displayed on the
multi-information display while the information
screen shows the same menu.

2 Customized Features P. 292

Right Selector Wheel
Roll: Changes the
customize menus and
items.
Push: Enters the selected
item.

Multi-information
Display: Goes to
Vehicle Settings.

19 ACURA TLX-31TZ36400.book 120 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

121

Gauges and Multi-Information Display

Multi-Information Display

Continued

strum

nt Pa

nel

■

Customization flow

Roll the right selector wheel to select Vehicle Settings and push the right selector wheel.

Vehicle Settings

“Trip A” Reset Timing

Language Selection

Adjust Outside Temp. Display

Memory Position Link

Door Unlock Mode

Keyless Access Light Flash

Driver Assist System Setup

Meter Setup

Driving Position Setup

Keyless Access Setup

“Trip B” Reset Timing

Turn by Turn Display

Forward Collision Warning Distance

ACC Forward Vehicle Detect Beep

Push

Lane Keeping Assist Suspend Beep

Blind Spot Info

Remote Start System On/Off

Seat Position Movement At Entry/Exit

Roll

Keyless Access Beep

Push

Roll

Push

Roll

ACC Display Speed Unit

Road Departure Mitigation Setting

Walk Away Auto Lock

Auto Engine Idle Stop Guidance Screens

Reverse Alert Tone

Roll

* Not available on all models

19 ACURA TLX-31TZ36400.book 121 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

122

Gauges and Multi-Information Display

Multi-Information Display

strum

nt Pa

nel

Door Setup

Maintenance Info.

Default All

Lighting Setup

Key And Remote Unlock Mode

Auto Door Lock

Auto Door Unlock

Keyless Lock Answer Back

Auto Folding Door Mirror

Interior Light Dimming Time

Headlight Auto Off Timer

Auto Light Sensitivity

Push

Roll

Dynamic Mode Setup

Push

Preferred Dynamic Mode

Push

Maintenance Reset

Roll

Security Relock Timer

Wireless Charger Setup

Push

Wireless Charging

Roll

Exit

* Not available on all models

19 ACURA TLX-31TZ36400.book 122 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

123

Gauges and Multi-Information Display

Multi-Information Display

Continued

strum

nt Pa

nel

■

List of customizable options

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driver Assist
System
Setup

Forward Collision
Warning Distance

Changes at which distance CMBS

alerts.

Long/Normal

/Short

ACC Forward Vehicle
Detect Beep

Causes the system to beep when the system detects a
vehicle, or when the vehicle goes out of the ACC with
LSF range.

On/Off

ACC Display Speed Unit

Changes the speed unit for ACC with LSF on the multi-
information display.

mph

/km/h (U.S.)

mph/km/h

(Canada)

Road Departure
Mitigation Setting

Changes the setting for the road departure mitigation
system.

Normal

/Wide/Warning

Only

Lane Keeping Assist
Suspend Beep

Causes the system to beep when the LKAS is suspended.

On/Off

Blind Spot Info

Changes the setting for the blind spot information.

Audible And Visual
Alert

/Visual Alert/Off

* Not available on all models

19 ACURA TLX-31TZ36400.book 123 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

124

Gauges and Multi-Information Display

Multi-Information Display

strum

nt Pa

nel

*1:Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Meter Setup

Language Selection

Changes the displayed language.

English

/Français/

Español

Adjust Outside Temp.
Display

Adjusts the temperature reading by a few degrees.

-5°F ~ ±0°F

~ +5°F

(U.S.)
-3°C ~ ±0°C

~ +3°C

(Canada)

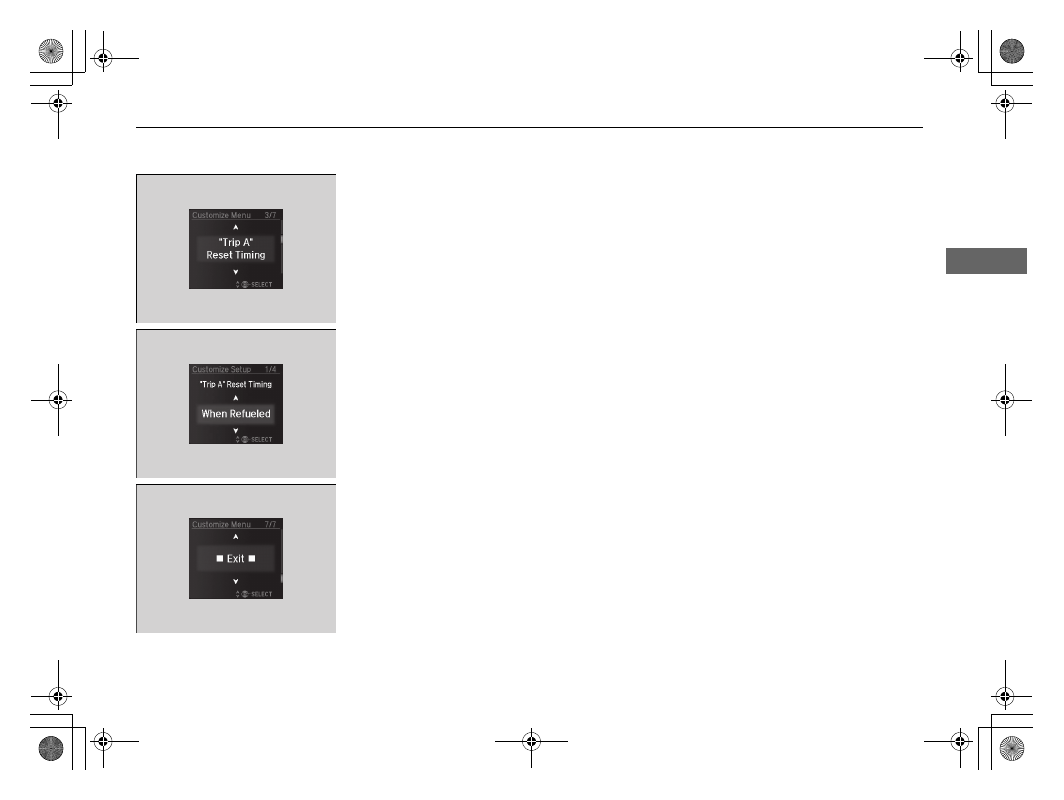

“Trip A” Reset Timing

Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and elapsed
time A.

When Refueled/IGN Off/
Manually Reset

“Trip B” Reset Timing

Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and elapsed
time B.

When Refueled/IGN Off/
Manually Reset

Reverse Alert Tone

Causes the beeper to sound once when the change the
gear position to

(

/Off

Auto Engine Idle Stop
Guidance Screens

Selects whether the Auto Idle Stop guidance screens
comes on.

On/Off

Turn by Turn Display

Selects whether the turn-by-turn display comes on
during the route guidance.

/Off

* Not available on all models

19 ACURA TLX-31TZ36400.book 124 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

125

Gauges and Multi-Information Display

Multi-Information Display

Continued

strum

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Driving
Position
Setup

Memory Position Link

Turns the driving position memory system on and
off.

/Off

Seat Position Movement
At Entry/Exit

Depending on the set seating position the driver seat
may move forward or rearward when entering/
exiting the vehicle.

/Off

Keyless
Access
Setup

Door Unlock Mode

Changes which doors unlock when you grab the
driver’s door handle.

Driver Door Only

/All Doors

Keyless Access Light
Flash

Causes some exterior lights to flash when you
unlock/lock the doors.

/Off

Keyless Access Beep

Causes the beeper to sound when you unlock/lock
the doors.

/Off

Remote Start System On/
Off

Turns the remote engine start feature on and off.

/Off

Walk Away Auto Lock

Changes the settings for the automatic locking the
doors when you walk away from the vehicle while
carrying the keyless access remote.

On/Off

* Not available on all models

19 ACURA TLX-31TZ36400.book 125 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

126

Gauges and Multi-Information Display

Multi-Information Display

strum

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Lighting
Setup

Interior Light Dimming
Time

Changes the length of time the interior lights stay on
after you close the doors.

60sec/30sec

/15sec

Headlight Auto Off
Timer

Changes the length of time the exterior lights stay
on after you close the driver’s door.

60sec/30sec/15sec

/0sec

Auto Light Sensitivity

Changes the timing for the headlights to come on.

Max/High/Mid

/Low/Min

Door Setup

Auto Door Lock

Changes the setting for when the doors
automatically lock.

With Vehicle Speed

/Shift

From P/Off

Auto Door Unlock

Changes the setting for when the doors
automatically unlock.

All Doors When Driver’s
Door Opens

/All Doors

When Shifted To Park/All
Doors When Ignition
Switched Off/Off

Key And Remote Unlock
Mode

Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.

Driver Door

/ All Doors

Keyless Lock Answer
Back

LOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.

/Off

Security Relock Timer

Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door.

90sec/60sec/30sec

Auto Folding Door
Mirror

Changes how you can fold the door mirrors.

Auto Fold With Keyless

Manual Only

* Not available on all models

19 ACURA TLX-31TZ36400.book 126 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

127

Gauges and Multi-Information Display

Multi-Information Display

Continued

strum

nt Pa

nel

*1: Default Setting

Setup Group

Customizable Features

Description

Selectable Settings

Dynamic
Mode Setup

Preferred Dynamic Mode

Changes the Integrated Dynamics System mode
setting for when you set the power mode to ON.

Last Used

/Econ/Normal/

Sport

Wireless
Charger
Setup

Wireless Charging

Turns the wireless charging feature on and off.

/Off

Maintenance
Info.

Maintenance Reset

Resets/Cancels the engine oil life display when you
have performed the maintenance service.

Cancel/Reset

Default All

—

Cancels/Resets all the customized settings as
default.

Cancel/Set

* Not available on all models

19 ACURA TLX-31TZ36400.book 127 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

Gauges and Multi-Information Display

Multi-Information Display

strum

nt Pa

nel

■

Example of customization settings

The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset.

1. Roll the right selector wheel to select

Vehicle Settings, then push the right
selector wheel.

2. Roll the right selector wheel until Meter

Setup appears on the display.

3. Push the right selector wheel.

Language Selection appears first on
the display.

19 ACURA TLX-31TZ36400.book 128 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

Gauges and Multi-Information Display

Multi-Information Display

strum

nt Pa

nel

4. Roll the right selector wheel until “Trip A”

Reset Timing appears on the display, then
push the right selector wheel.

The display switches to the
customization setup screen, where you
can select When Refueled, IGN Off,
Manually Reset, or Exit.

5. Roll the right selector wheel and select

When Refueled, then push the right
selector wheel.

The When Refueled Setup screen
appears, then the display returns to the
customization menu screen.

6. Roll the right selector wheel until Exit

appears on the display, then push the right
selector wheel.

7. Repeat Step 6 until you return to the

normal screen.

19 ACURA TLX-31TZ36400.book 129 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

132

Co
ntrols

Clock

Adjusting the Clock

You can also adjust the time manually in the information screen, with the power
mode in ON.

■

Using the Settings menu on the information screen

1. Press the SETTINGS button.
2. Rotate

to select Clock Settings, then

press .

Repeat the procedure to select Clock
Adjustment.

3. Rotate

to change hour, then move

4. Rotate

to change minute, then press

■

Adjusting the Time

Adjusting the Clock

These indications are used to show how to operate
the interface dial.
Rotate

to select.

Press

enter.

Move

to select a secondary menu.

You can customize the clock display to show the 12
hour clock or 24 hour clock.

2 Customized Features P. 292

You can turn the clock display in the information
screen on and off.

2 Customized Features P. 292

You cannot adjust the time while the vehicle is
moving.

The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.

Except Canadian models

Models with navigation system

Models without navigation system

19 ACURA TLX-31TZ36400.book 132 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

133

Continued

Co
ntrols

Locking and Unlocking the Doors

Key Types and Functions

This vehicle comes with the following keys:

Use the keys to start and stop the engine, and
to lock and unlock all the doors and trunk.
You can also use the remote transmitter to
lock and unlock the doors and trunk.

Key Types and Functions

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

2 Immobilizer System P. 152

Follow the advice below to prevent damage to the
keys:

•

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

•

Do not drop the keys or set heavy objects on them.

•

Keep the keys away from liquids, dust and sand.

•

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.

You can remotely start the engine using the two-way
keyless access remote.

2 Remote Engine Start

P. 365

Models with two-way keyless access remote

Models without two-way keyless
access remote

Models with two-way keyless
access remote

* Not available on all models

19 ACURA TLX-31TZ36400.book 133 ページ２０１８年２月１６日　金曜日　午後１２時２２分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Acura TLX (2019 year). Manual - part 8
