Acura RDX (2019 year). Manual

Continued

133

Gauges and Displays

Multi-Information Display

strum

nt Pa

nel

2 Indicators P. 74

■

Oil Life

Shows the remaining oil life and Maintenance
Minder

2 Maintenance Minder

P. 525

■

Warning

Warning

If there are multiple warnings, you can move the right
selector wheel to the right or left to see other
warnings.

(Example)

■

Maintenance

19 ACURA RDX-31TJB6000.book 133 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gauges and Displays

Multi-Information Display

134

strum

nt Pa

nel

Shows each tire’s pressure.

2 Tire Pressure Monitoring System (TPMS)

with Tire Fill Assist P. 441

Enables you to show another unit on the
multi-information display, head-up display

and audio/information screen and set the
displayed measurements to read in either
miles and km, mph and km/h.

Press the right selector wheel when you select
the Speed/Distance Units on the multi-
information display. Roll the right selector
wheel to select the unit and press it. After this,
a confirmation screen will appear for a few
seconds.

■

Tire Pressure Monitor

Tire Pressure Monitor

The following colors indicate the state of tire
pressure:

•

Green: Within tire pressure regulation.

•

Amber: Above or Below tire pressure regulation.

•

Gray: There is a problem with the system.

■

Speed/Distance Units

* Not available on all models

19 ACURA RDX-31TJB6000.book 134 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

135

Gauges and Displays

Multi-Information Display

Continued

strum

nt Pa

nel

Press the right selector wheel when you select
the Sport Gauge Settings on the multi-
information display.
Roll the right selector wheel to select the
setting and press it.

■

Turbo Meter

When the turbo charger is producing boost,
this meter shows the boost pressure.

■

Sport Gauge Settings

19 ACURA RDX-31TJB6000.book 135 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gauges and Displays

Multi-Information Display

136

strum

nt Pa

nel

■

G-meter

A red circle moves around to indicate where your vehicle is currently receiving a
fictitious force while driving.

G-meter

The meter does not display a fictitious force larger
than 1.2 G.

If there is a problem with the VSA® system, the G-
meter will not track the fictitious force acting on the
vehicle.

When decelerated while moving forward
When accelerated while reversing

When accelerated while moving forward
When decelerated while reversing

Real-time fictitious
force (red)

When steering
to the right

When steering
to the left

Fictitious forces of the past
three seconds (white)

19 ACURA RDX-31TJB6000.book 136 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

137

Gauges and Displays

Multi-Information Display

strum

nt Pa

nel

The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.

2 Super Handling-All Wheel Drive

(SH-

AWD®)

P. 437

■

SH-AWD® Torque Distribution Monitor

* Not available on all models

19 ACURA RDX-31TJB6000.book 137 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

138

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

Head-Up Display

Shows the currently selected Driving View information. You can choose which item
to be displayed using the left selector wheel on the steering wheel. They are
displayed when the power mode is in ON.

2 To Change Head-Up Display Content P. 140

The display can be moved up and down to come level with your eyes.
To raise or lower the head-up display: Press and hold the

button until

the desired position is reached.

Button

3 4

Head-Up Display

Press and hold the

button

to raise the display.

Press and hold the

button

to lower the display.

* Not available on all models

19 ACURA RDX-31TJB6000.book 138 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

139

Gauges and Displays

Head-Up Display

Continued

strum

nt Pa

nel

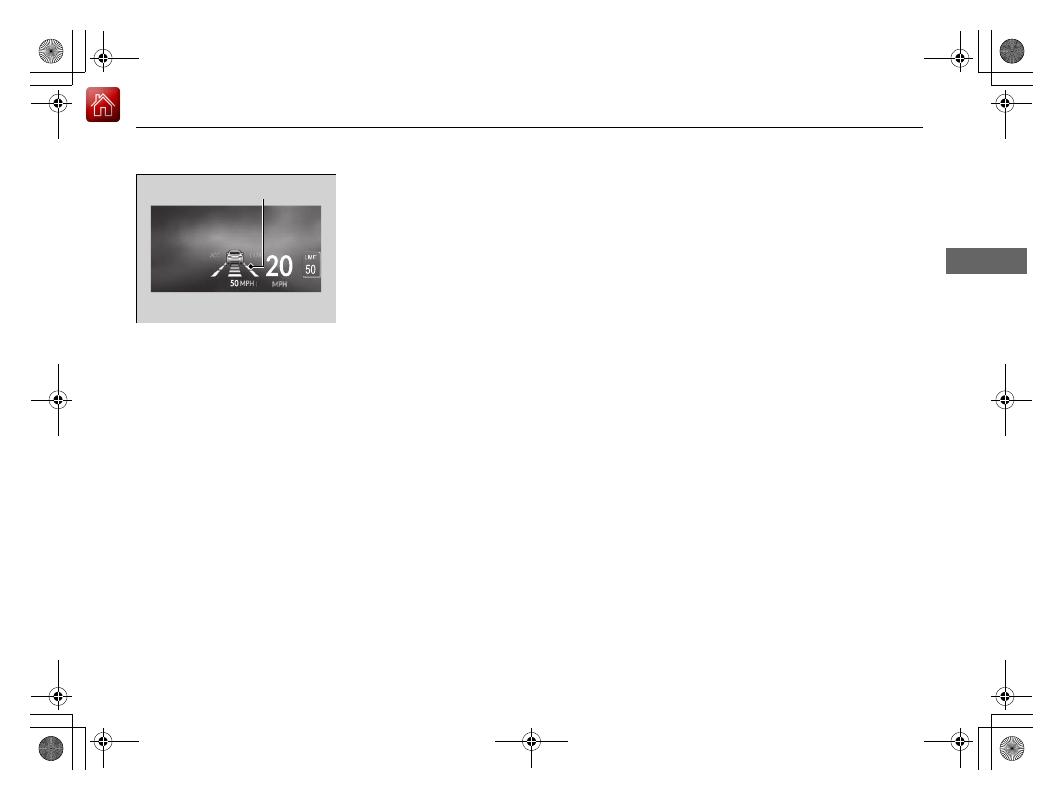

The display also shows the following
warnings.
• Lane Departure Warning: When your

vehicle is too close to the traffic lane lines,
the lane departure warning appears.

2 Lane Keeping Assist System (LKAS)

P. 471

• Head-Up Warning Lights:

Flash when the BRAKE message appears
on the multi-information display.

2 Collision Mitigation Braking System

(CMBS

) P. 446

2 Adaptive Cruise Control (ACC) with

Low Speed Follow (LSF) P. 455

Lane Departure Warning

19 ACURA RDX-31TJB6000.book 139 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

140

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

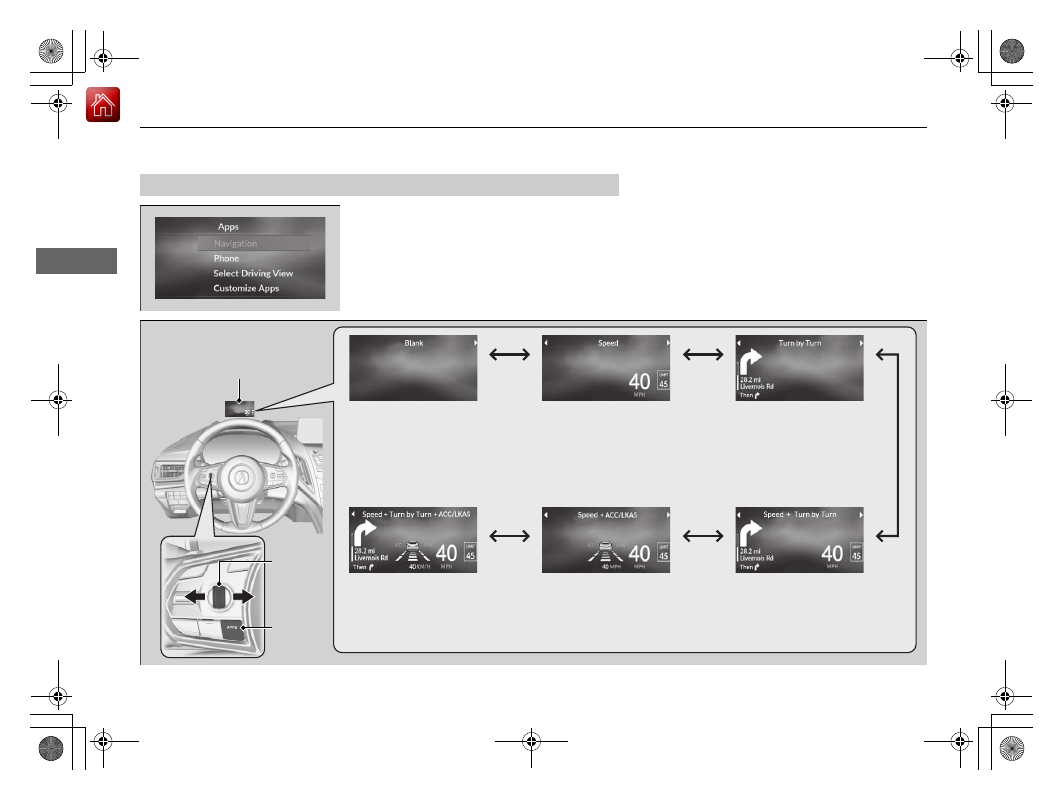

Press the APPS button and roll the left
selector wheel to select Select Driving View
and press the left selector wheel. Each time
you move the left selector wheel to the right
or left, the head-up display content will
change.

■

To Change Head-Up Display Content

Head-Up Display

Blank

Vehicle Speed, Speed
Limit Information

Turn-by-Turn
Directions

Turn-by-Turn Directions,
Current Mode for ACC
with LSF and the LKAS,
Vehicle Speed, Speed
Limit Information

Current Mode for ACC
with LSF and the LKAS,
Vehicle Speed, Speed
Limit Information

Turn-by-Turn Directions,
Vehicle Speed, Speed
Limit Information

Left
Selector
Wheel

APPS
Button

19 ACURA RDX-31TJB6000.book 140 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

141

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

Shows your driving speed in mph or km/h.

Shows the current mode for ACC with LSF and the LKAS.

2 Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) P. 455
2 Lane Keeping Assist System (LKAS) P. 471

Shows you turn-by-turn driving directions to your destination linked with the
navigation system.

2 Refer to the Navigation System Manual

Shows the current speed limit based on information compiled through the
navigation system.

■

Vehicle Speed

■

Current Mode for ACC with LSF and the LKAS

■

Turn-by-Turn Directions

■

Speed Limit Information

Vehicle Speed

Switch between mph and km/h by using the multi-
information display or customized features on the
audio/information screen.

2 Speed/Distance Units P. 134

Speed Limit Information

The speed limit displayed on the screen may differ to
the actual speed limit.
The speed limit for some roads is not displayed.

19 ACURA RDX-31TJB6000.book 141 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

144

Co
ntrols

Clock

Adjusting the Clock

You can adjust the time manually in the audio/information screen, with the power
mode in ON.

You can adjust the time using the true touchpad A.

2 True Touchpad Operation P. 246

1. Press the

(home) button.

2. Select Settings.
3. Select System.
4. Select Date & Time.
5. Select Set Date & Time.
6. Select Automatic Date & Time.
7. Select Off.

To adjust time:

8. Select Set Time.
9. Select

(

When you customize the clock display
to 24 hour clock, AM/PM icon is not
displayed.

2 Customized Features P. 332

10. Press the

(back) button to set the

time.

■

Adjusting the Time

Clock

The clock is automatically updated through the audio
system.

Adjusting the Time

You can also adjust the clock by selecting the clock
displayed on the right side of the display.
1. Press the

(cards list) button.

2. Select Clock using the true touchpad B.
3. Press the true touchpad B.
4. Select Set Date & Time using the true touchpad

5. Select Automatic Date & Time.
6. Select Off.
7. Select Set Date or Set Time.
8. Select

(

- to adjust the dates, hours and

minutes.

9. Press the

(back) button to set the date or

time.

19 ACURA RDX-31TJB6000.book 144 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

145

Clock

Adjusting the Clock

Co
ntrols

To adjust date:

8. Select Set Date.
9. Select

(

10. Press the

(back) button to set the

date.

Adjusting the Time

You can customize the clock display to show the 12
hour clock or 24 hour clock.

2 Customized Features P. 332

19 ACURA RDX-31TJB6000.book 145 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

146

Co
ntrols

Locking and Unlocking the Doors

Key Types and Functions

This vehicle comes with the following keys:

Use the keys to start and stop the engine, and
to lock and unlock all the doors, tailgate, and
fuel fill door.
You can also use the remote transmitter to
lock and unlock all the doors, tailgate, and
fuel fill door.

Key Types and Functions

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

2 Immobilizer System P. 173

Follow the advice below to prevent damage to the
keys:

•

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

•

Do not drop the keys or set heavy objects on them.

•

Keep the keys away from liquids, dust and sand.

•

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.
If the keys do not work properly, have them
inspected by a dealer.

You can remotely start the engine using the two-way
keyless access remote.

2 Remote Engine Start

P. 413

Models with two-way keyless access remote

HOLD

Models without two-way keyless
access remote

Models with two-way keyless
access remote

* Not available on all models

19 ACURA RDX-31TJB6000.book 146 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

147

Locking and Unlocking the Doors

Key Types and Functions

Continued

Co
ntrols

The built-in key can be used to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.

To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
keyless access remote until it clicks.

■

Built-in Key

Models without two-way keyless
access remote

Models with two-way keyless
access remote

Built-in Key

Release Knob

Built-in Key

Release Knob

19 ACURA RDX-31TJB6000.book 147 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Locking and Unlocking the Doors

Key Types and Functions

148

Co
ntrols

Contains a number that you will need if you
purchase a replacement key.

■

Key Number Tag

Key Number Tag

Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.

If you lose your key and you cannot start the engine,
contact a dealer.

19 ACURA RDX-31TJB6000.book 148 ページ２０１８年４月２６日　木曜日　午後４時５１分

-------------------------------------------------------------------------------------------------------------------------------------------------------------
