Gauges and Displays

Head-Up Display

Continued

strum

nt Pa

nel

Head-Up Display

Shows the power distribution monitor, current mode for ACC with LSF, LKAS, and
traffic jam assist, tachometer, gear position indicator, or turn-by-turn directions
along with the vehicle speed. You can choose which item to be displayed using the
multi-information display. They are displayed when the power mode is in ON.

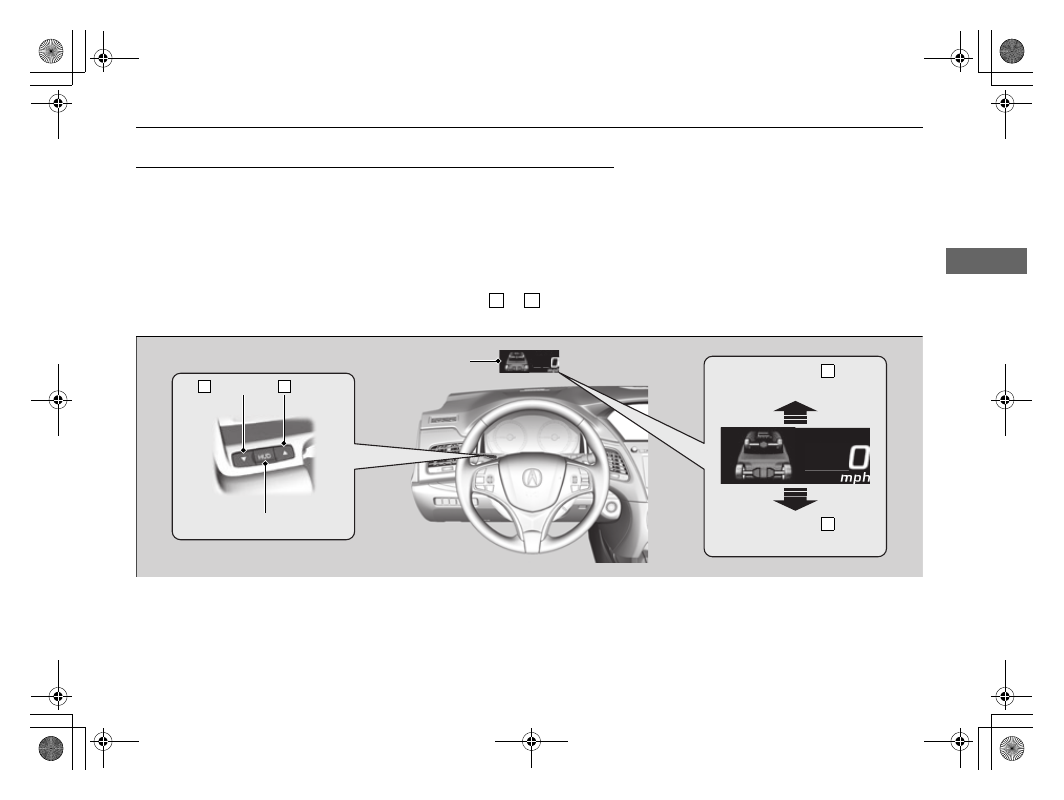

To turn the head-up display on and off: Press the HUD button.
The display can be moved up and down to come level with your eyes.
To raise or lower the head-up display: Press and hold the

button until

the desired position is reached.

Button

HUD Button

Head-Up Display

Press and hold the

button

to raise the display.

Press and hold the

button

to lower the display.

18 ACURA RLX E-AWD-31TY36400.book 119 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

120

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

The display also shows the following
warnings.
• System Message Indicator: Appears

when a problem is detected. A system
message on the multi-information display
appears at the same time.

2 Multi-Information Display Warning

and Information Messages P. 94

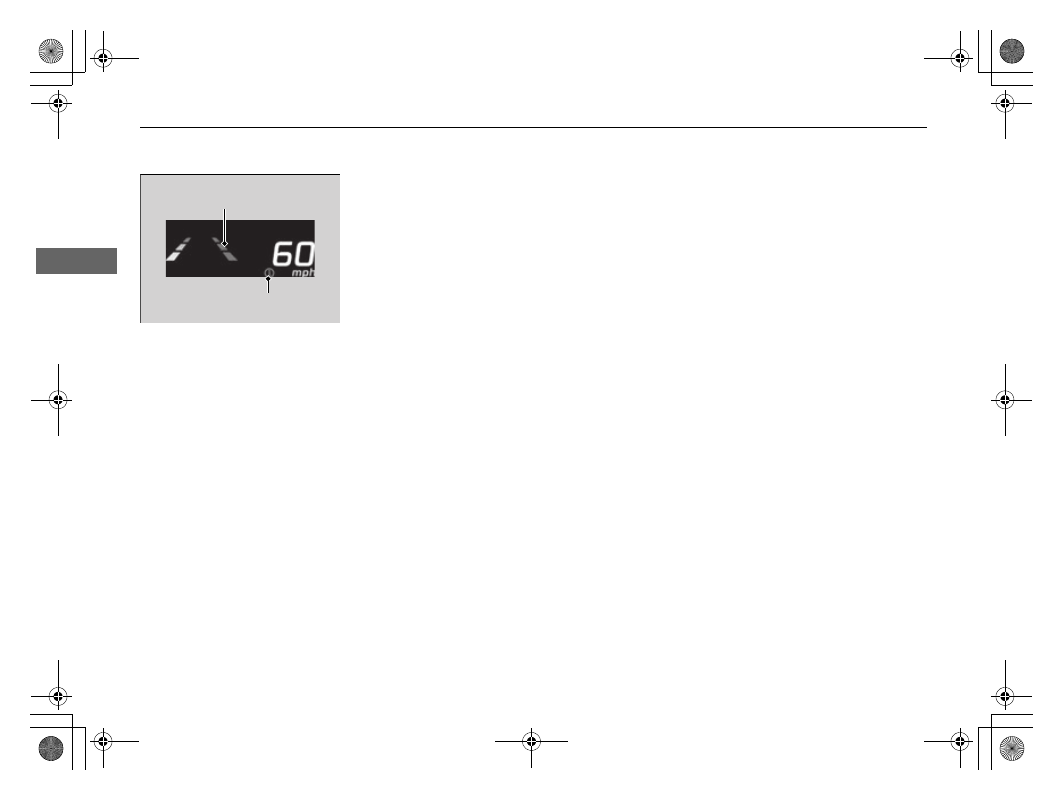

• Lane Departure Warning: When your

vehicle is too close to the traffic lane lines,
the lane departure warning appears.

2 Lane Keeping Assist System (LKAS)

P. 423

• Head-up Warning Lights:

Flash when the BRAKE message appears
on the multi-information display.

2 Collision Mitigation Braking System

(CMBS

) P. 460

Come on when the BRAKE message
appears on the multi-information display.

2 Adaptive Cruise Control (ACC) with

Low Speed Follow (LSF) P. 404

Lane Departure Warning

System Message Indicator

18 ACURA RLX E-AWD-31TY36400.book 120 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

121

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

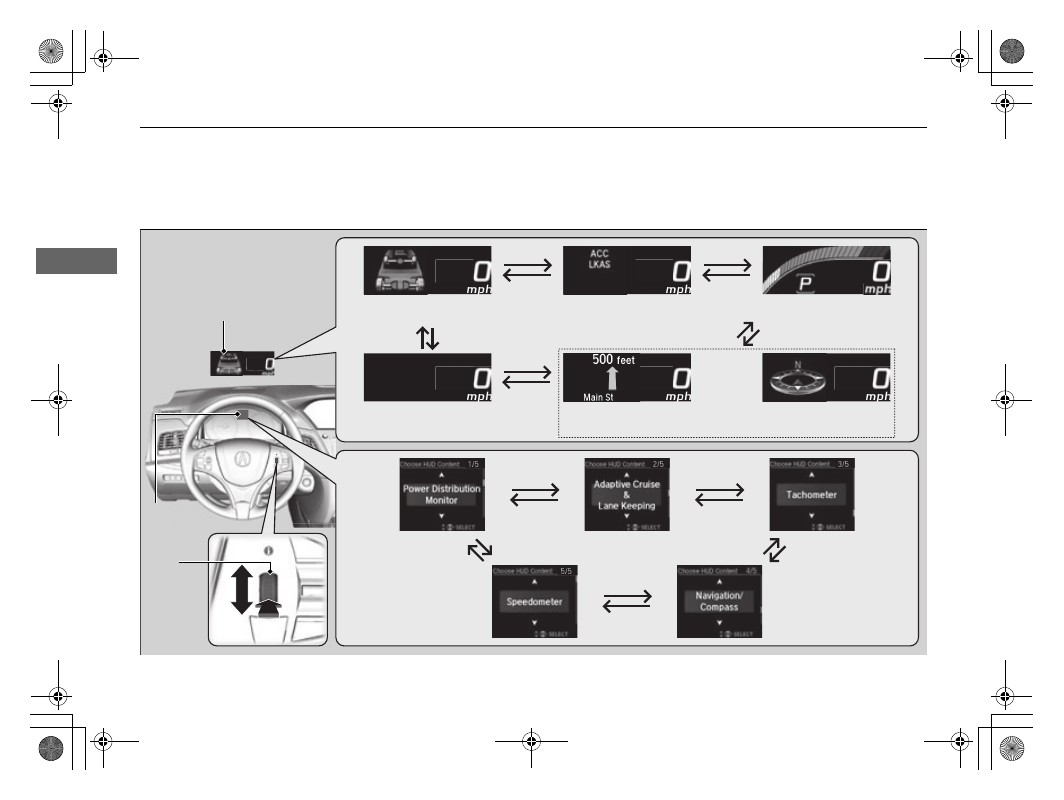

To change the item that comes on along with the vehicle speed on the head-up
display, do the following:

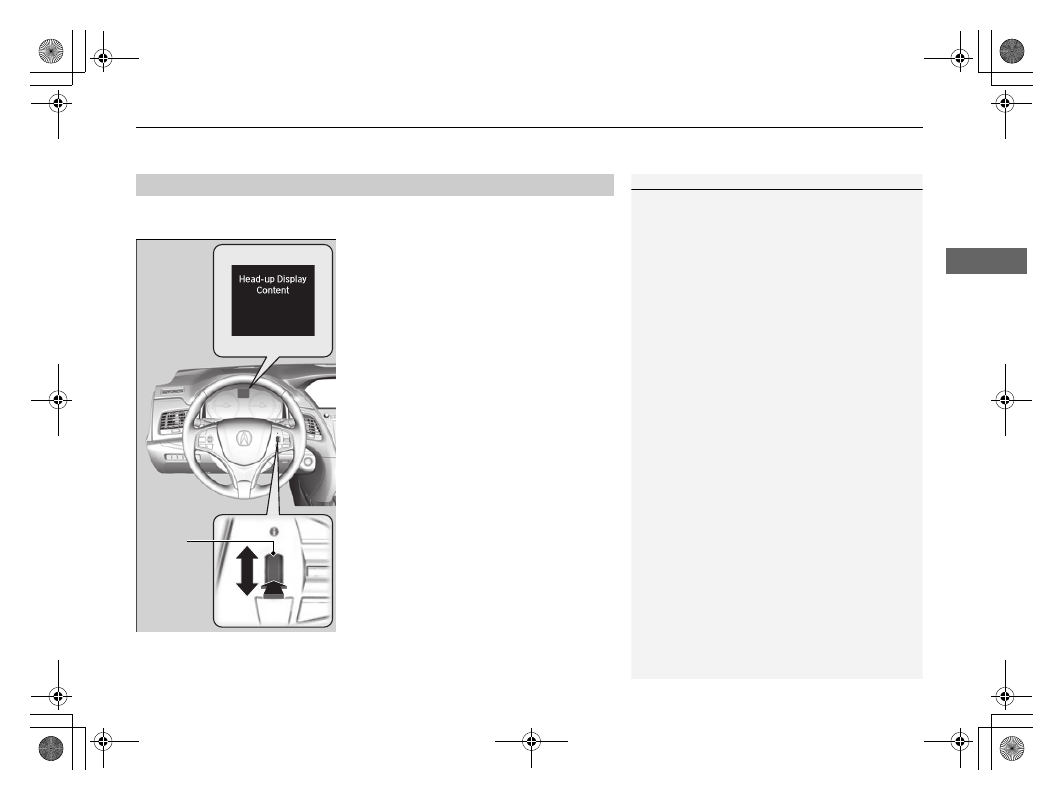

1. Roll the right selector wheel to select Head-

up Display Content on the multi-
information display, then push the right
selector wheel.

2 Switching the Display P. 114

■

To Change Head-Up Display Content

To Change Head-Up Display Content

Accessing the Head-up Display Content menu on
the multi-information display turns on the head-up
display.

When pushing the right selector wheel on any display
on the multi-information display, you can also access
the Head-up Display Content menu.

Right
Selector
Wheel

18 ACURA RLX E-AWD-31TY36400.book 121 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

122

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

2. Roll the right selector wheel to select the vehicle information you want to display,

then push the right selector wheel.

The head-up display and multi-information display show the same content.

Head-Up Display

Multi-
Information
Display

Right
Selector
Wheel

Power Distribution Monitor,
Vehicle Speed

Current Mode for ACC with LSF,
the LKAS, and Traffic Jam Assist,
Vehicle Speed

Tachometer, Gear Position
Indicator, Vehicle Speed

Vehicle Speed

Turn-by-Turn Directions,
Vehicle Speed

Compass, Vehicle Speed

18 ACURA RLX E-AWD-31TY36400.book 122 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

123

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

Shows your driving speed in mph or km/h.

Shows the number of engine revolutions as a bar graph.

Shows the current gear selection.

2 Gear Position Indicator P. 81

Shows the current mode for ACC with LSF, LKAS, and traffic jam assist.

2 To Switch ACC with LSF to Cruise Control P. 416
2 Lane Keeping Assist System (LKAS) P. 423
2 Traffic Jam Assist P. 430

The navigation system shows you turn-by-turn directions to your destination.

When the navigation system is not providing driving guidance, an image of a
compass appears in the head-up display.

2 Refer to the Navigation System Manual

■

Vehicle Speed

■

Tachometer

■

Gear Position Indicator

■

Current Mode for ACC with LSF, the LKAS, and Traffic Jam
Assist

■

Turn-by-Turn Directions

Vehicle Speed

Switch between mph and km/h by using the
customized features on the audio/information
screen.

2 Customized Features P. 297

Turn-by-Turn Directions

You can select whether to have the turn-by-turn
display come on during the route guidance.

2 Customized Features P. 297

18 ACURA RLX E-AWD-31TY36400.book 123 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Gauges and Displays

Head-Up Display

124

strum

nt Pa

nel

Consists of two monitoring displays, one that indicates the vehicle’s power flow,
and the other, the torque distribution.

■

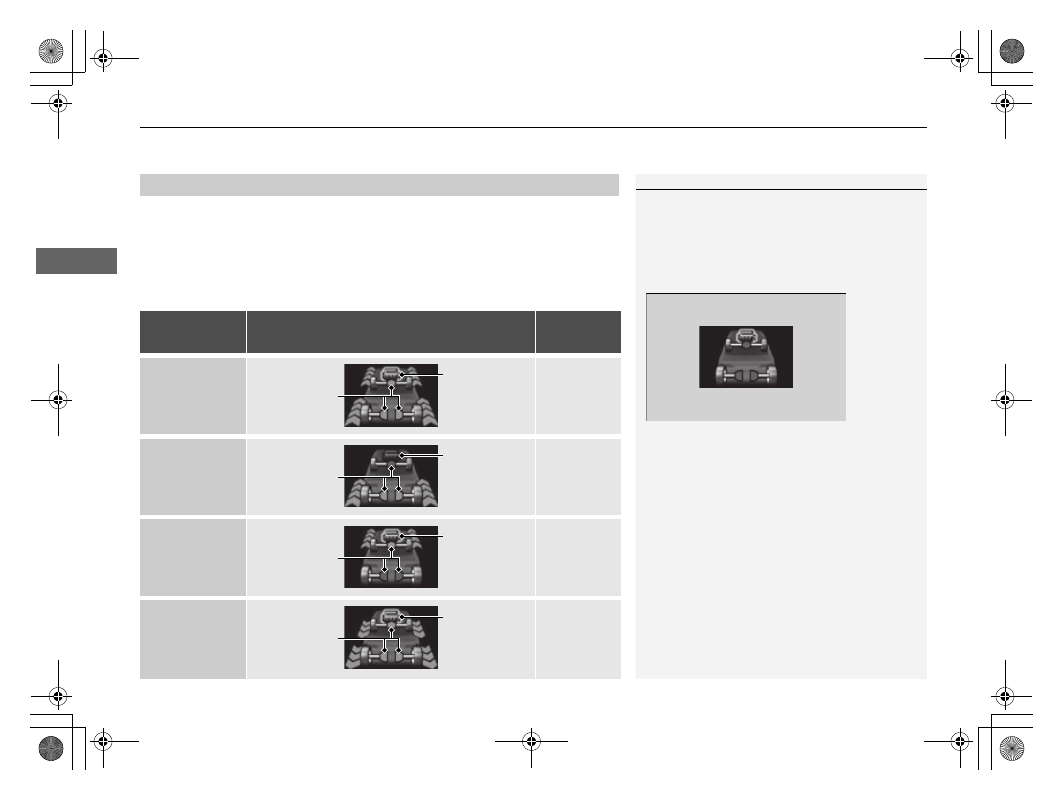

Power flow monitor

Shows motor and engine power flow, indicating what supplies power to the vehicle,
or if the battery is being charged.

■

Power Distribution Monitor

Head-up display

Color of

indicators

Power is
supplied by the
motors and the
engine.

Blue

Power is only
supplied by the
motors.

Blue

Power is only
supplied by the
engine.

Blue

The motors
charge the High
Voltage battery.

Green

Power Distribution Monitor

The power distribution monitor can be also displayed
on the audio/information display.

2 Audio/Information Screen P. 225

While the vehicle is stationary with the engine
running, the following may appear on the display.

Engine Icon
(Engine on)

Power Flow
Indicator

Engine Icon
(Engine off)

Power Flow
Indicator

Engine Icon
(Engine on)

Power Flow
Indicator

Engine Icon
(Engine on)

Power Flow
Indicator

18 ACURA RLX E-AWD-31TY36400.book 124 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

125

Gauges and Displays

Head-Up Display

strum

nt Pa

nel

■

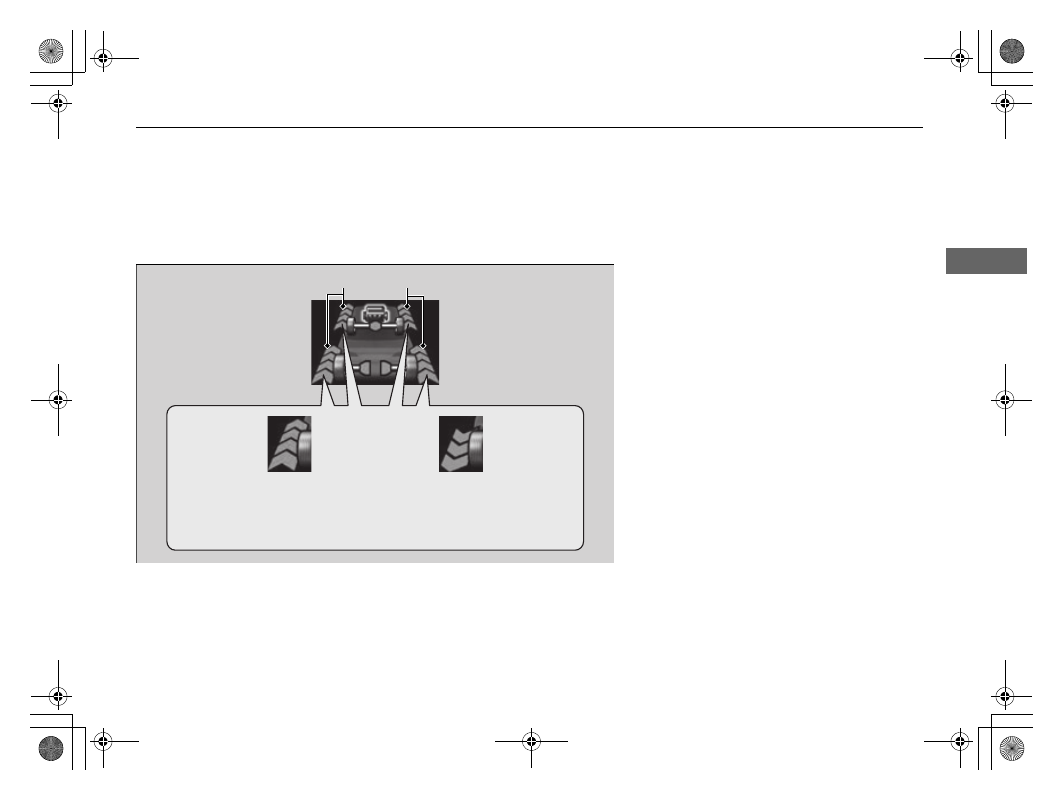

SPORT HYBRID SH-AWD® torque distribution monitor

The indicators on the display show the amount of torque being transferred to each
wheel or regenerative energy being supplied to the High Voltage battery.

2 SPORT HYBRID Super Handling-All Wheel Drive

(SPORT HYBRID SH-AWD®)

P. 444

Torque Indicator

How much torque is being
transferred is shown in
four scales. The indicators
appear in blue.

How much regenerative
braking is being supplied to
the High Voltage battery is
shown in three scales. The
indicators appear in green.

18 ACURA RLX E-AWD-31TY36400.book 125 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

128

Co
ntrols

Clock

Adjusting the Clock

The clock is automatically updated through the navigation system, so the time does
not need to be adjusted.

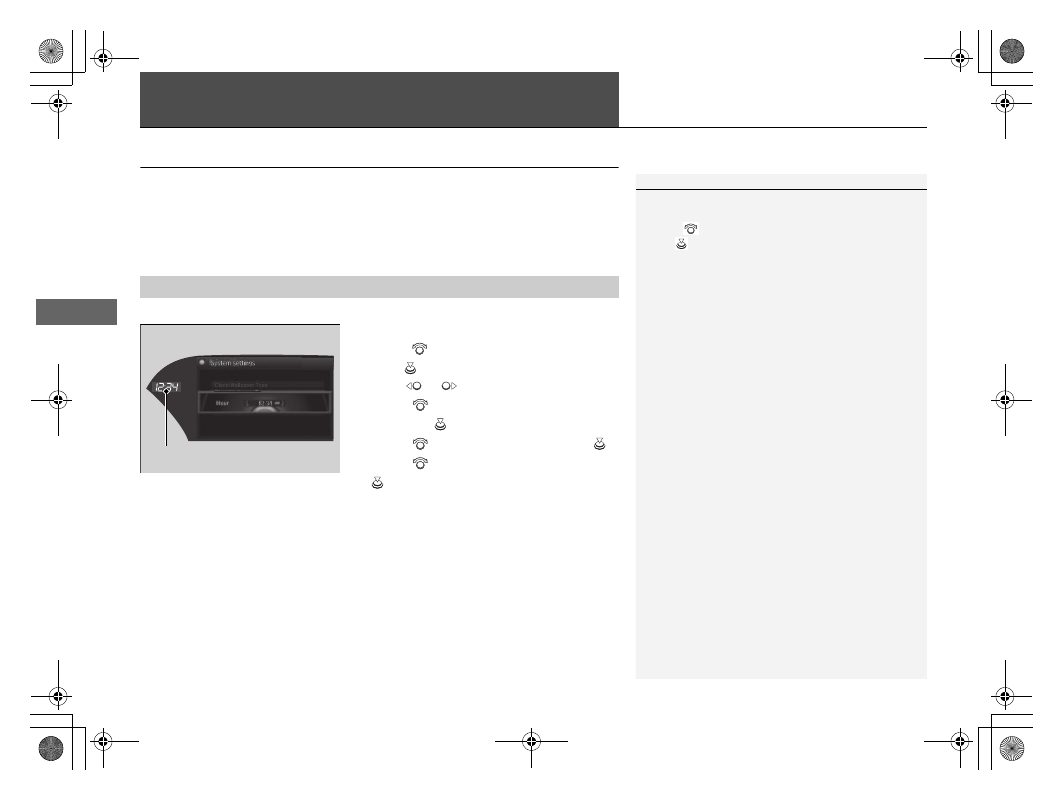

You can also adjust the time manually in the audio/information screen, with the
power mode in ON.

■

Using the Settings menu on the audio/information screen

1. Press the SETTINGS button.
2. Rotate

to select System Settings, then

press .

3. Move

to select the Clock tab.

4. Rotate

to select Clock Adjustment,

then press

5. Rotate

to change hour, then press

6. Rotate

to change minute, then press

■

Adjusting the Time

Adjusting the Clock

These indications are used to show how to operate
the interface dial.
Rotate

to select.

Press

enter.

You can customize the clock display to show the 12
hour clock or 24 hour clock.

2 Customized Features P. 297

Hour

Clock/Wallpaper Type

System settings

Clock Display

18 ACURA RLX E-AWD-31TY36400.book 128 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

129

Continued

Co
ntrols

Locking and Unlocking the Doors

Key Type and Functions

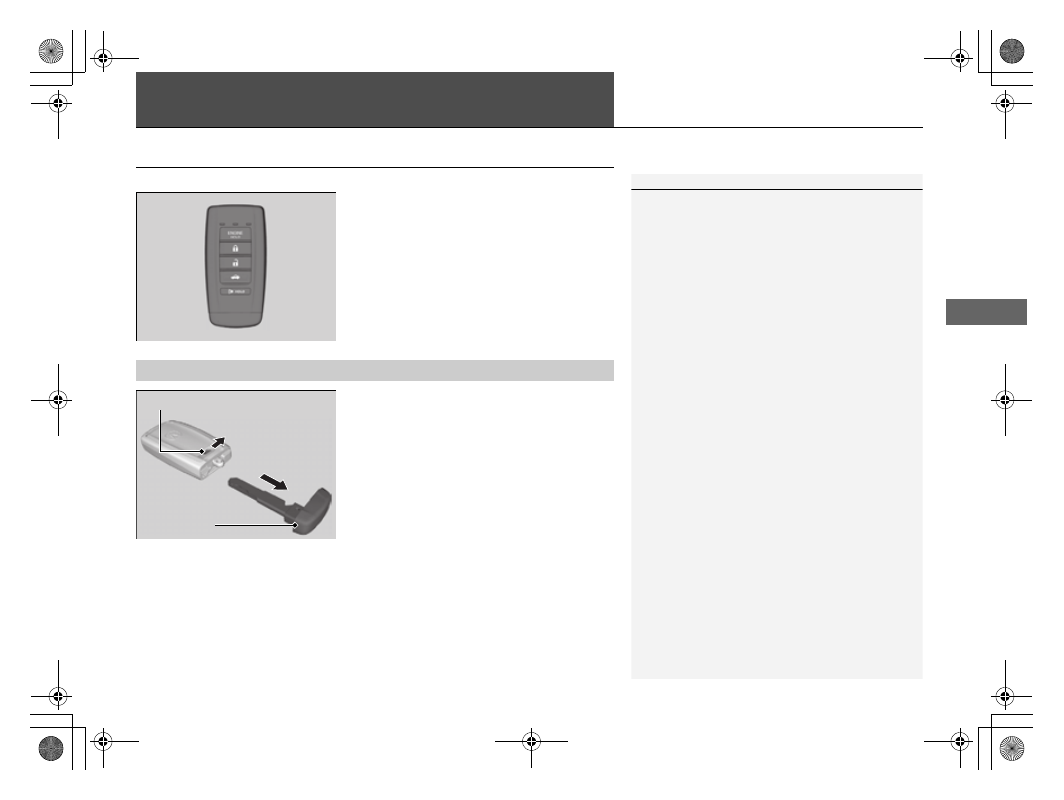

This vehicle comes with the following keys:

Use the keys to turn on and off the power
system, to lock and unlock the doors and to
open the trunk. You can also use the keyless
access system to lock and unlock the doors
and trunk.

The built-in key can be used to lock/unlock the
doors when the keyless access remote battery
becomes weak and the power door lock/
unlock operation is disabled.

To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push the built-in key into the
keyless access remote until it clicks.

Key Type and Functions

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

2 Immobilizer System P. 146

Follow the advice below to prevent damage to the
keys:

•

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

•

Do not drop the keys or set heavy objects on them.

•

Keep the keys away from liquids, dust or sand.

•

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the power
system may not activate, and the remote transmitter
may not work.
If the keys do not work properly, have them
inspected by a dealer.

You can remotely turn the power system on using the
remote engine start.

2 Remote Engine Start with Vehicle

Feedback P. 382

■

Built-in Key

Built-in Key

Release Knob

18 ACURA RLX E-AWD-31TY36400.book 129 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Locking and Unlocking the Doors

Low Keyless Access Remote Signal Strength

130

Co
ntrols

Contains a number that you will need if you
purchase a replacement key.

Low Keyless Access Remote Signal Strength

The vehicle transmits radio waves to locate the keyless access remote when locking/
unlocking the doors, opening the trunk, or to activate the power system.

In the following cases, locking/unlocking the doors, opening the trunk, or activating
the power system may be inhibited or operation may be unstable:
• Strong radio waves are being transmitted by nearby equipment.
• You are carrying the keyless access remote together with telecommunications

equipment, laptop computers, cell phones, or wireless devices.

• A metallic object is touching or covering the keyless access remote.

■

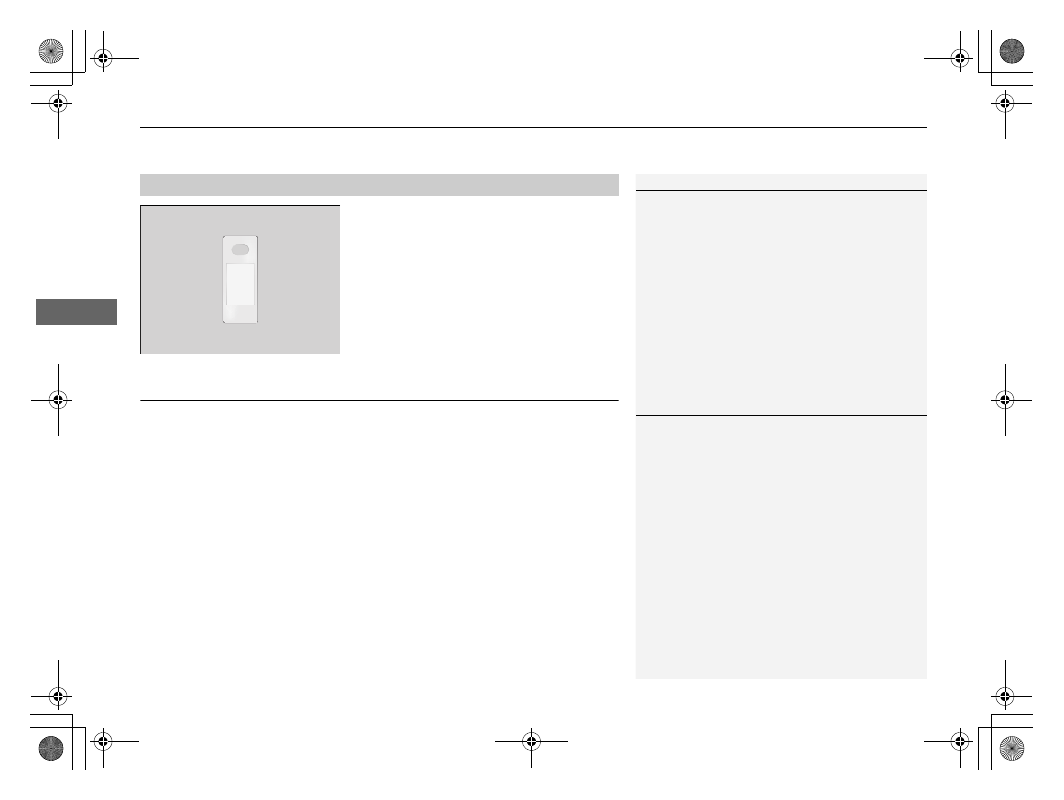

Key Number Tag

Key Number Tag

Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.

If you lose your key and you cannot activate the
power system, contact a dealer.

Low Keyless Access Remote Signal Strength

Communication between the keyless access remote
and the vehicle consumes the keyless access remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the keyless access
remote is receiving strong radio waves. Avoid placing
it near electrical appliances such as televisions and
personal computers.

18 ACURA RLX E-AWD-31TY36400.book 130 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

131

Locking and Unlocking the Doors

Locking/Unlocking the Doors from the Outside

Continued

Co
ntrols

Locking/Unlocking the Doors from the Outside

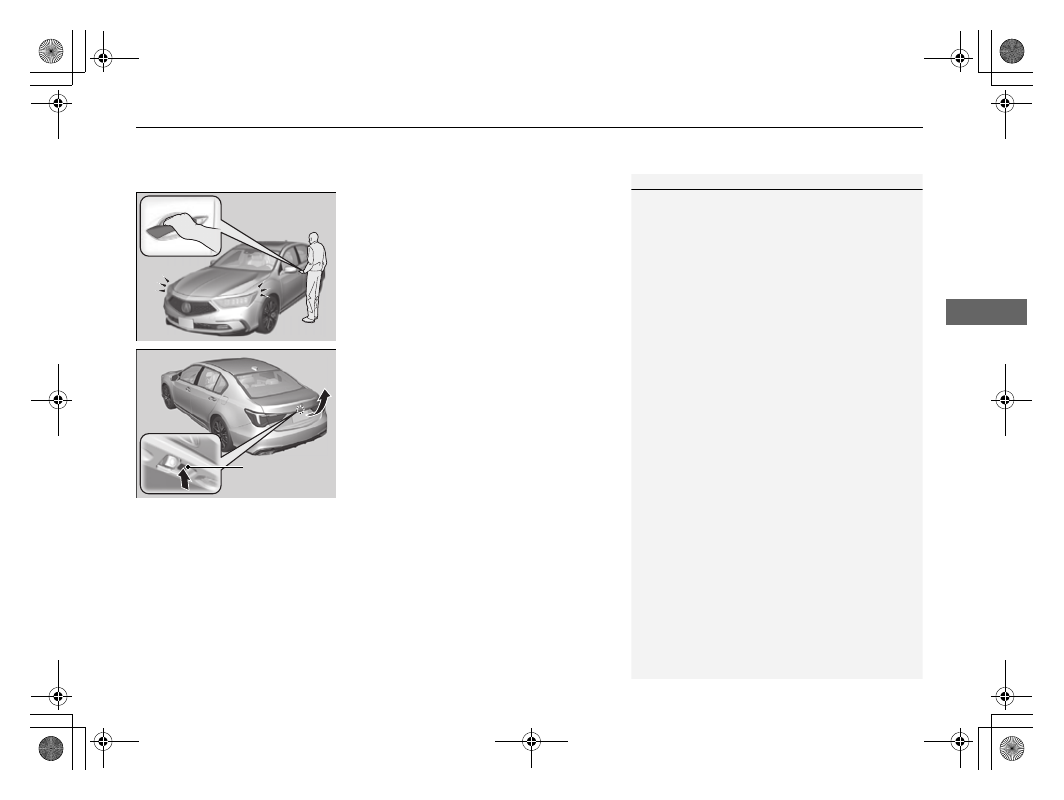

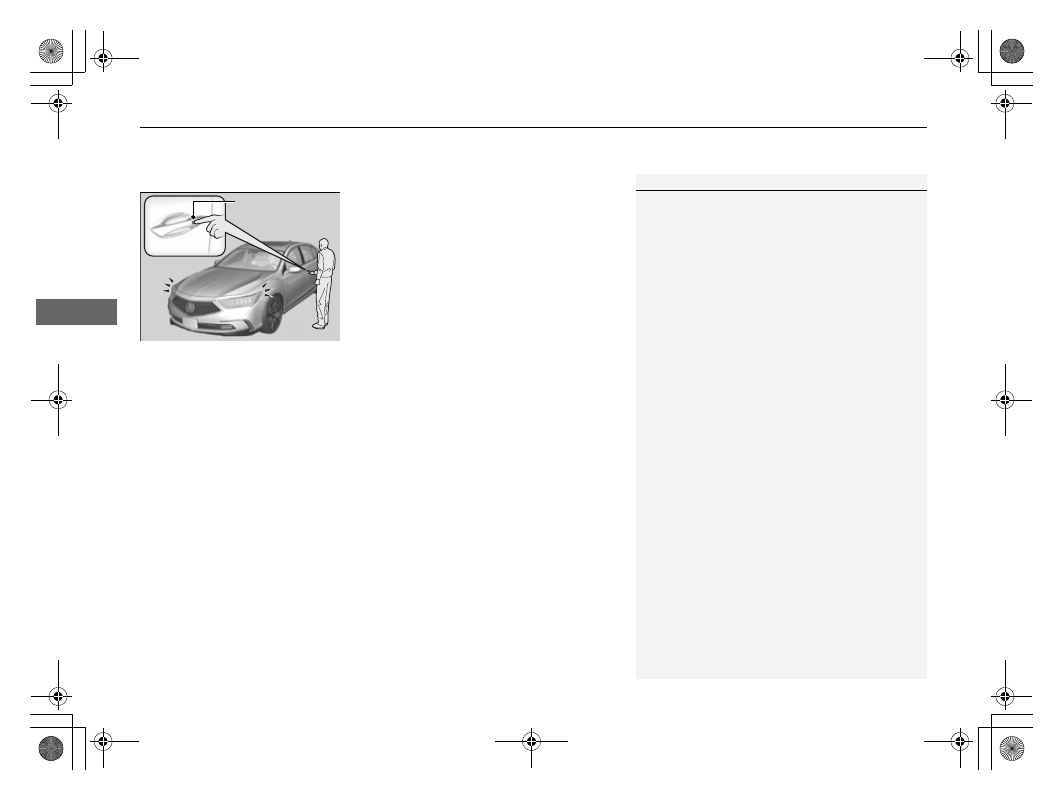

When you carry the keyless access remote,
you can lock/unlock the doors and open the
trunk.

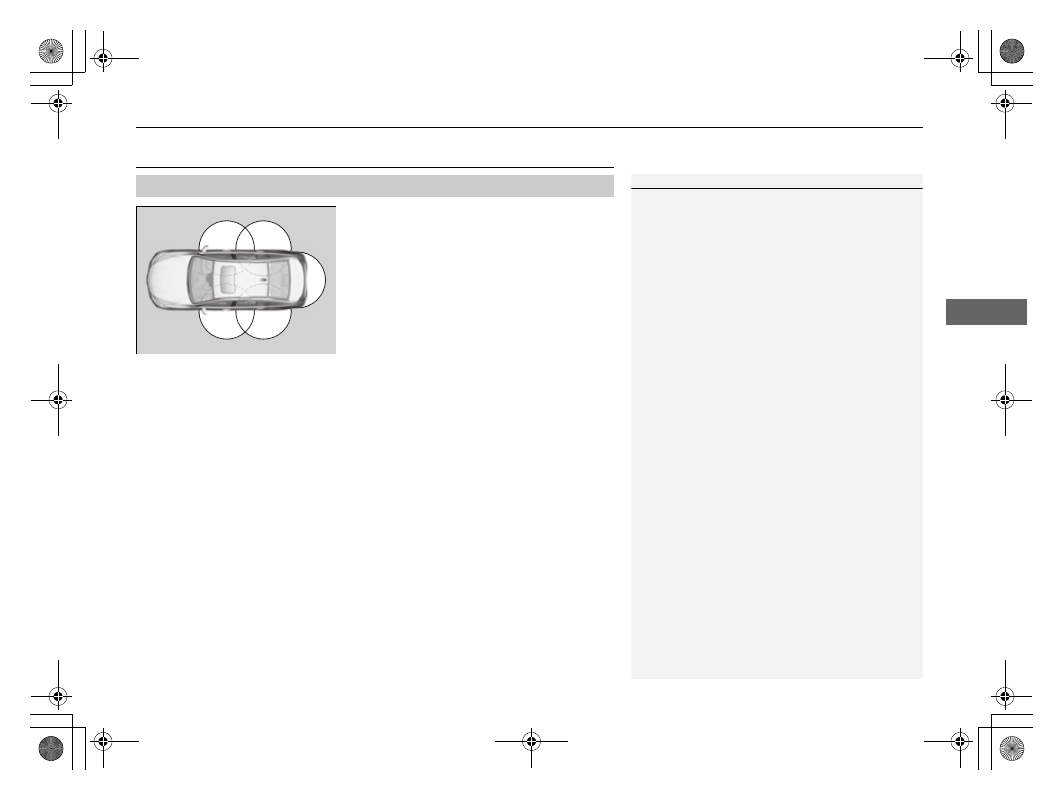

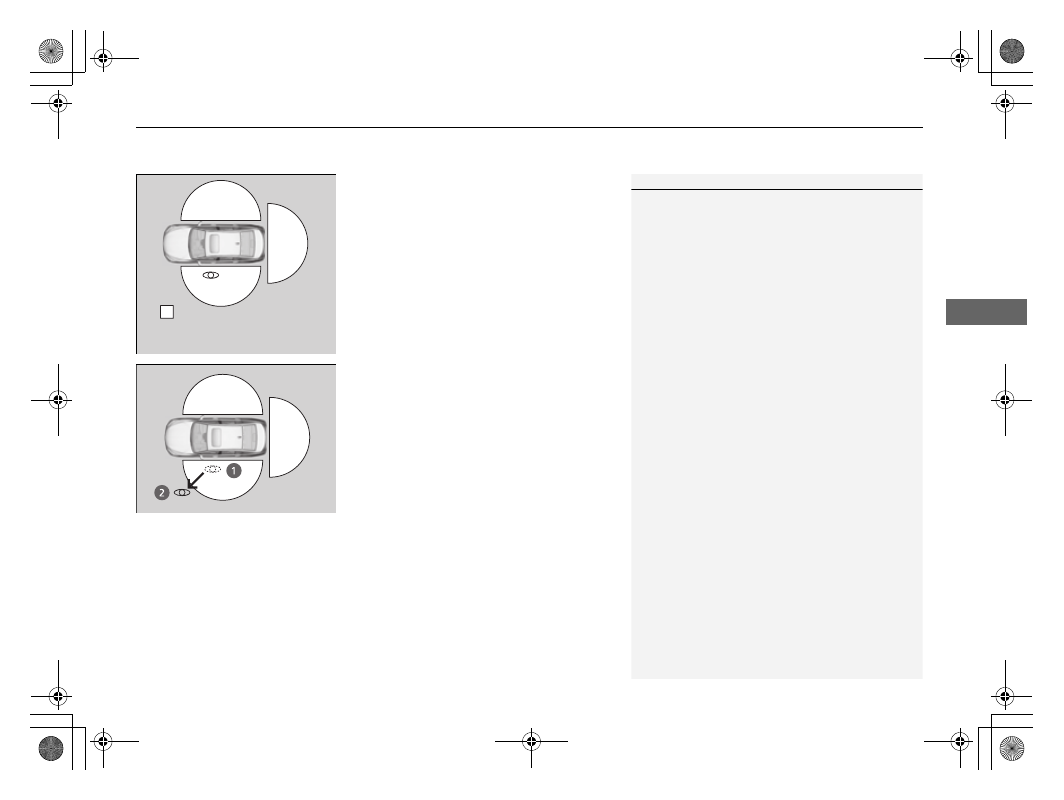

You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.

■

Using the Keyless Access System

Locking/Unlocking the Doors from the Outside

If the interior light switch is in the door activated
position, the interior lights come on when you unlock
the doors.
No doors opened: The lights fade out after 30
seconds.
Doors relocked: The lights go off immediately.

2 Interior Lights P. 182

18 ACURA RLX E-AWD-31TY36400.book 131 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Locking and Unlocking the Doors

Locking/Unlocking the Doors from the Outside

132

Co
ntrols

■

Locking the doors and trunk

Press the door lock button on the front or rear
door.

Some exterior lights flash; the beeper
sounds; all the doors and trunk lock; and
the security system sets.

Using the Keyless Access System

You can lock or unlock doors using the keyless access
system only when the power mode is in VEHICLE OFF.

•

Do not leave the keyless access remote in the
vehicle when you get out. Carry it with you.

•

Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the remote is within range.

•

The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.

•

If you grip a front or rear door handle wearing
gloves, the door sensor may be slow to respond or
may not respond by unlocking the doors.

•

After locking the door, you have up to two seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least two seconds before gripping the handle,
otherwise the door will not unlock.

•

The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that the door is unlocked before
pulling the handle.

•

Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors with the
keyless access remote if it is above or below the
outside handle.

•

The keyless access remote may not operate if it is
too close to the door and door glass.

Door Lock
Button

18 ACURA RLX E-AWD-31TY36400.book 132 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

133

Locking and Unlocking the Doors

Locking/Unlocking the Doors from the Outside

Co
ntrols

■

Locking the doors and trunk (Walk
away auto lock)

When you walk away from the vehicle while
carrying the keyless access remote, the doors
will automatically lock.
The auto lock function activates when all
doors are closed, and the keyless access
remote is within about 5 feet (1.5 m) radius of
the outside door handle.
Exit vehicle while carrying keyless access
remote and close door(s).
1. While within about 5 feet (1.5 m) radius of

the vehicle.

The beeper sounds; the auto lock
function will be activated.

2. Carry the keyless access remote beyond

about 5 feet (1.5 m) from the vehicle and
remain outside this range for 2 or more
seconds.

Some exterior lights flash; the beeper
sounds; all doors will then lock.

Locking the doors and trunk (Walk away auto lock)

The auto lock function is set to OFF as the factory
default setting. The auto lock function can be set to
ON using the audio/information screen.
If you set the auto lock function to ON using the
audio/information screen, only the remote
transmitter that was used to unlock the driver’s door
prior to the setting change can activate auto lock.

2 Customized Features P. 297

After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the keyless access
remote will continue to flash until the doors are
locked.

When you stay beside the vehicle within the
operation range, the doors will automatically lock
approximately 30 seconds after the auto lock
function activating beeper sounds.

When you open a door after the auto lock function
activating beeper sounds, the auto lock function will
be delayed until all doors are closed.

When all doors have been closed and the keyless
access remote is inside the vehicle, or if the keyless
access remote is not detected within about 5 feet
(1.5 m) of the vehicle, auto lock function will not be
activated.

The activation range of
the auto lock function is
about 5 feet (1.5 m)

18 ACURA RLX E-AWD-31TY36400.book 133 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Locking and Unlocking the Doors

Locking/Unlocking the Doors from the Outside

134

Co
ntrols

To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driver’s door.
3. Using the master door lock switch, operate

the lock as follows:
Lock

Unlock

Lock

Unlock.

The beeper sounds and the function is
deactivated.

To restore the function:
• Set the power mode to ON.
• Lock the vehicle without using the auto lock

function.

• Walk away at least more than about 5 feet

(1.5 m) away from the vehicle while
carrying the keyless access remote.

• Open any door.

Locking the doors and trunk (Walk away auto lock)

The auto lock function does not operate when any of
the following conditions are met.

•

The keyless access remote is inside the vehicle.

•

A door or the hood is not closed.

•

The power mode is set to any mode other than
OFF.

•

The keyless access remote is not located within a
radius of about 5 feet (1.5 m) from the vehicle
when you get out of the vehicle and close the
doors.

Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.

•

The keyless access remote is put inside the vehicle
through a window.

•

You are located too close to the vehicle.

•

The keyless access remote is put inside the trunk.

If the warning beeper sounds, check that you are
carrying the keyless access remote. Then, open/close
a door and confirm the auto lock activation beeper
sounds once.

18 ACURA RLX E-AWD-31TY36400.book 134 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Continued

135

Locking and Unlocking the Doors

Locking/Unlocking the Doors from the Outside

Co
ntrols

■

Unlocking the doors and trunk

Grab the driver’s door handle:

The driver’s door unlocks.

Some exterior lights flash twice and the
beeper sounds twice.

Grab the front passenger’s or rear door
handle:

All the doors unlock.

Some exterior lights flash twice and the
beeper sounds twice.

Press the trunk release button:

The trunk unlocks and opens.

A beeper will sounds.

2 Using the Trunk Release Button P. 144

Using the Keyless Access System

If you do not open a door within 30 seconds of
unlocking the vehicle with the keyless access system,
the doors will automatically relock.

When you go into the keyless access system working
range with all the doors locked, the front and rear
door outer handle ambient lights come on for 30
seconds.
The lights do not come on if you have previously
stayed within the range for more than five minutes,
or the doors have been locked for a few days.
The feature activates again after you drive the
vehicle, then lock the doors.

The light flash, beep and unlock settings can be
customized using the audio/information screen.

2 Customized Features P. 297

Trunk Release
Button

18 ACURA RLX E-AWD-31TY36400.book 135 ページ２０１７年７月２０日　木曜日　午後６時８分

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Acura RLX (2018 year). Manual - part 8
