Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

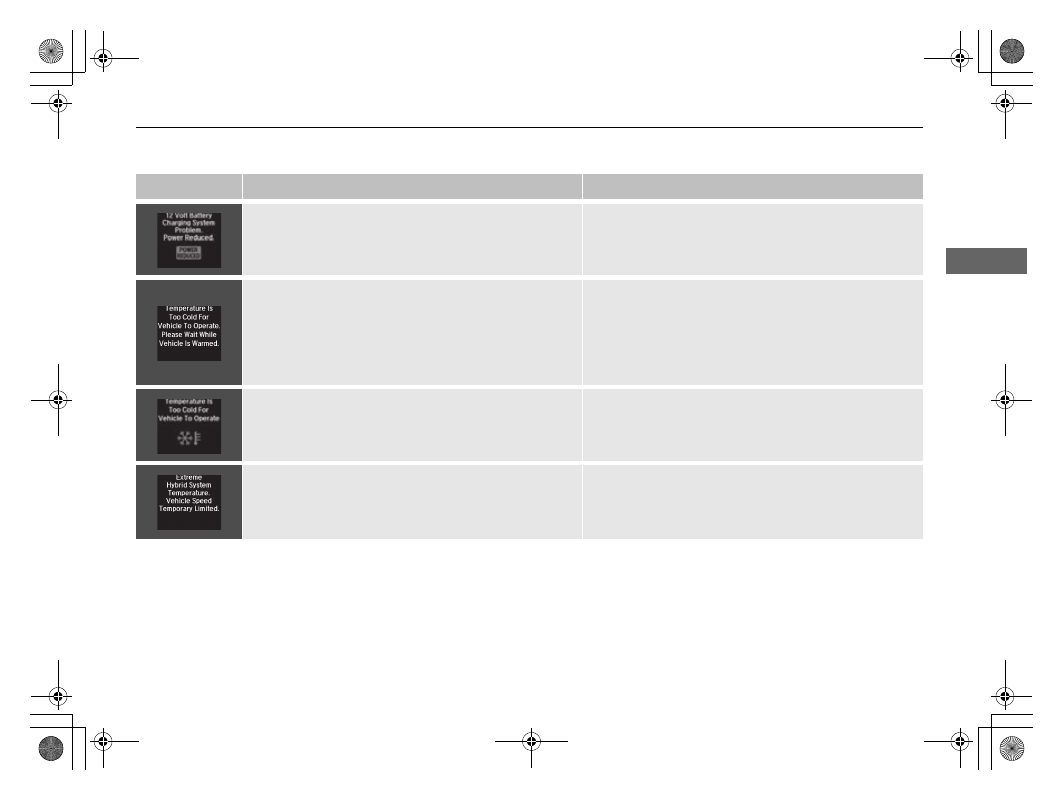

• Appears after the 12-volt battery charging system

indicator comes on.

• Your vehicle has less ability to accelerate and may be

harder to start on an incline.

• Contact a dealer immediately.

• Appears when the High Voltage battery temperature is

too low to operate (approx. -22°F [-30°C] or below).

• You can start the engine and use the climate control

system to warm up the interior, which will also warm
the High Voltage battery enough for you to drive the
vehicle.

• The engine speed does not increase even if you fully

depress the accelerator pedal.

• Appears when the High Voltage battery and other

system control temperatures are too low to operate
(approx. -40°F [-40°C] or below).

• You must wait for an increase in the ambient

temperature or move the vehicle to a warmer location.

• Contact a dealer if necessary.

• Appears when the rear motor fluid temperature is

extremely low.

• The vehicle speed is temporarily limited up to 74 mph

(120 km/h). This is canceled after the fluid temperature
rises.

18 ACURA RLX E-AWD-31TY36400.book  103 ページ  ２０１７年７月２０日　木曜日　午後６時８分

104

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

• Appears if the AWD system has a problem due to a

hybrid system or power distribution control failure.

• Set the power mode to OFF, then set it back to ON.

Have your vehicle checked by a dealer if the message
appears again.

• Appears when the High Voltage battery is running

extremely low due to continuous slow driving.

• Driving at low speed for a long time decreases the

amount of electricity generated, leading to High
Voltage battery drain.

• Appears when the High Voltage battery is drained even

further and a stop is needed to charge the battery.

• Stop in a safe place in

(

P, then charge the High Voltage

battery by letting the engine idle.

2 If the 12-Volt Battery Charging System Indicator

Comes On P. 569

• Appears when the High Voltage battery is being

charged, after it has lost most of its charge. In this case,
the vehicle is parked and the engine is running to
supply power to the charging system.

• Do not drive the vehicle until READY indicator comes

on.

• Apply the parking brake.

2 READY Indicator P. 80

18 ACURA RLX E-AWD-31TY36400.book  104 ページ  ２０１７年７月２０日　木曜日　午後６時８分

105

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

Flashes when the system senses a likely collision with a
vehicle in front of you.

●

Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)

2 Collision Mitigation Braking System

TM

 (CMBS

TM

)

P. 460

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

●

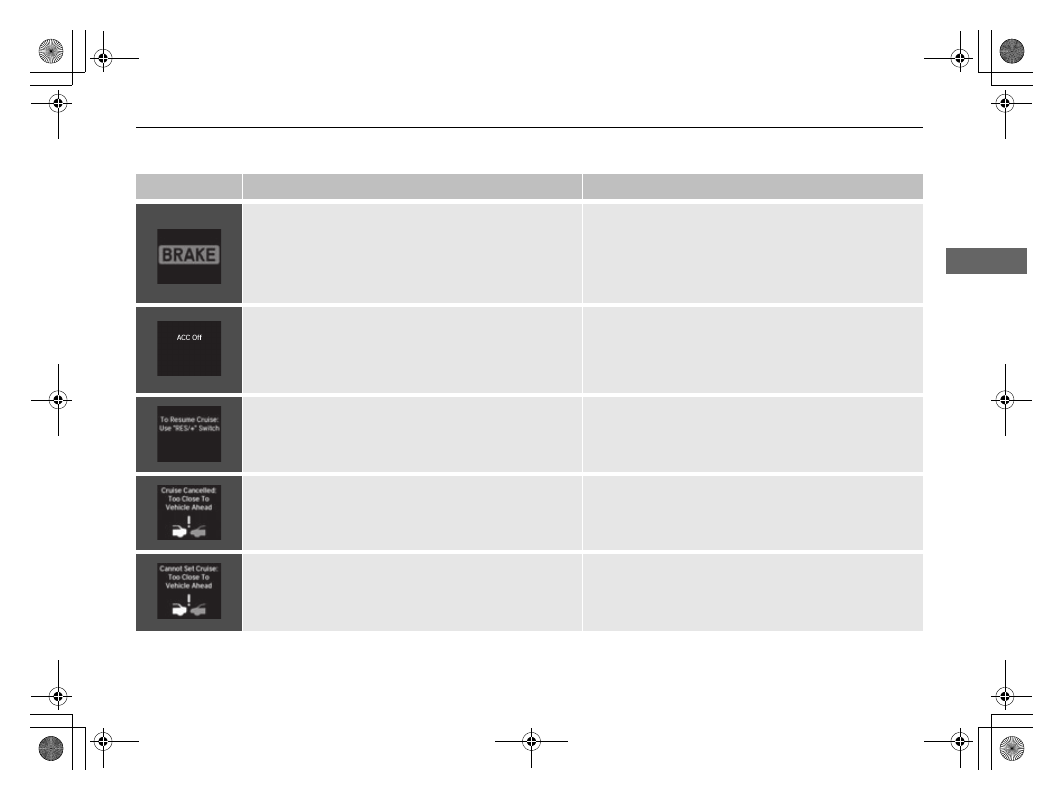

Appears when ACC with LSF has been automatically
canceled.

●

You can resume the set speed after the condition that
caused ACC with LSF to cancel improves. Press the RES/
+/SET/– switch up.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

●

Appears when the vehicle in front of you starts moving
while your vehicle is stopped automatically by ACC with
LSF.

●

Either press the RES/+/SET/– switch, or depress the
accelerator pedal.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

●

Appears when the distance between your vehicle and
the vehicle ahead of you is too close while ACC with LSF
is in operation.

●

ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

●

Appears when pressing the RES/+/SET/– switch down
while the distance between your vehicle and the vehicle
ahead of you is too close.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

18 ACURA RLX E-AWD-31TY36400.book  105 ページ  ２０１７年７月２０日　木曜日　午後６時８分

106

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

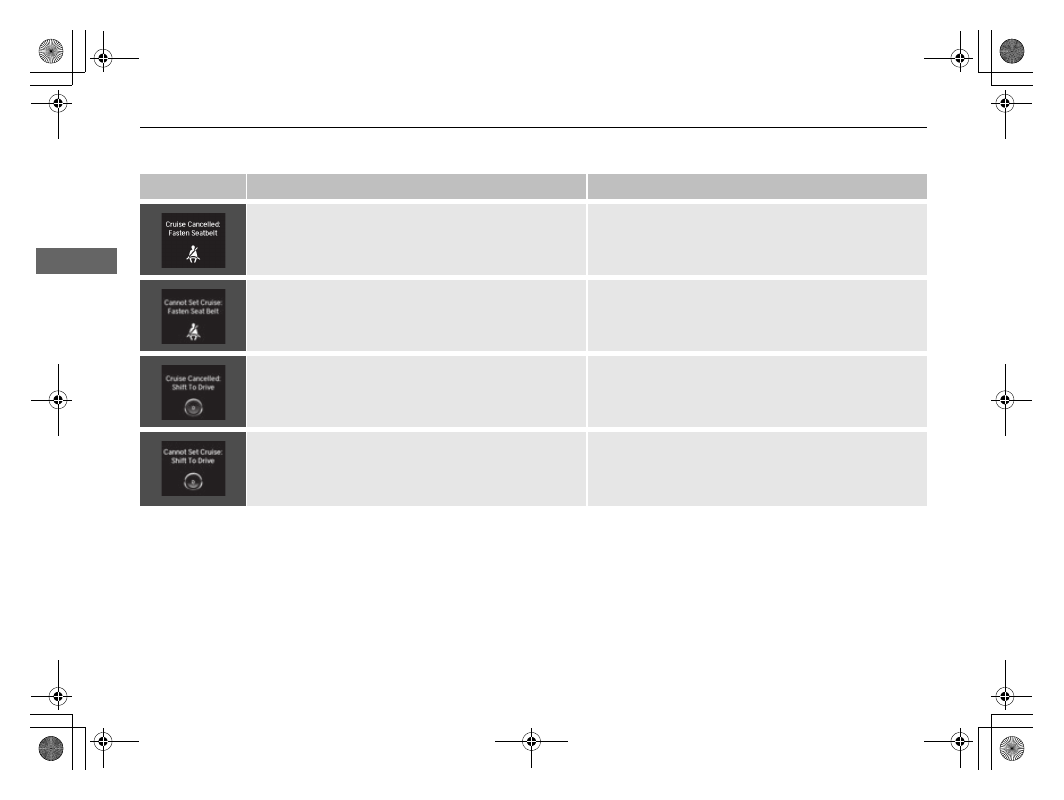

• Appears when the driver’s seat belt is unfastened while

your vehicle is automatically stopped by ACC with LSF.

• ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

●

Appears when pressing the RES/+/SET/– switch down
while the driver’s seat belt is unfastened.

●

ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

• Appears when the transmission is put into any position

other than

(

D while ACC with LSF is in operation.

• ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

• Appears when pressing the RES/+/SET/– switch down

while the transmission is not in

(

D.

• ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

18 ACURA RLX E-AWD-31TY36400.book  106 ページ  ２０１７年７月２０日　木曜日　午後６時８分

107

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

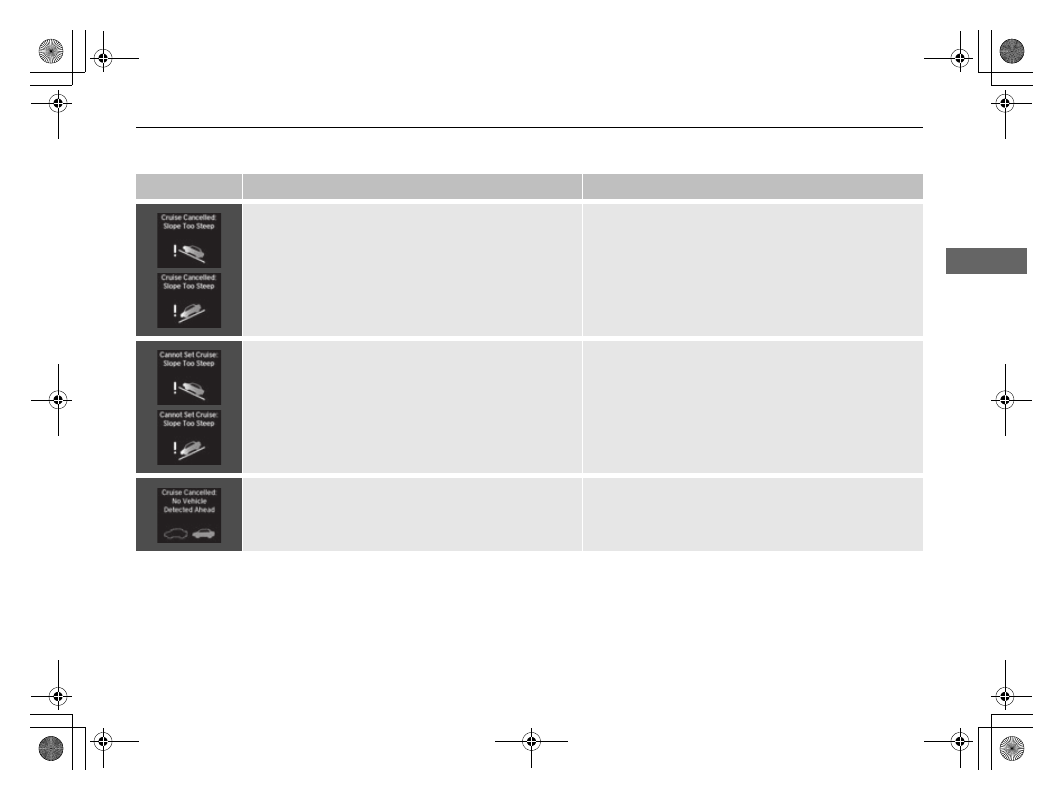

• Appears when the vehicle is stopped on a very steep

slope while ACC with LSF is in operation.

• ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

• Appears when pressing the RES/+/SET/– switch down

while the vehicle is stopped on a very steep slope.

• ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

• Appears when the vehicle speed slows down to 25 mph

(40 km/h) and the vehicle ahead of you goes out of the
ACC with LSF range while ACC with LSF is in operation.

• ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

18 ACURA RLX E-AWD-31TY36400.book  107 ページ  ２０１７年７月２０日　木曜日　午後６時８分

108

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

• Appears when pressing the RES/+/SET/– switch down

while the parking brake is applied.

• ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

2 Parking Brake P. 452

• Appears when the parking brake is applied

automatically while ACC with LSF is in operation.

• ACC with LSF has been automatically canceled.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

2 Parking Brake P. 452

• Appears when pressing the RES/+/SET/– switch down

while the vehicle is moving and the brake pedal is
depressed.

• ACC with LSF cannot be set.

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

• Appears if ACC with LSF is canceled while your vehicle

is automatically stopped by ACC with LSF.

• Immediately depress the brake pedal.

18 ACURA RLX E-AWD-31TY36400.book  108 ページ  ２０１７年７月２０日　木曜日　午後６時８分

109

uu

Indicators

u

Multi-Information Display Warning and Information Messages

Continued

In

strum

e

nt Pa

nel

Message

Condition

Explanation

●

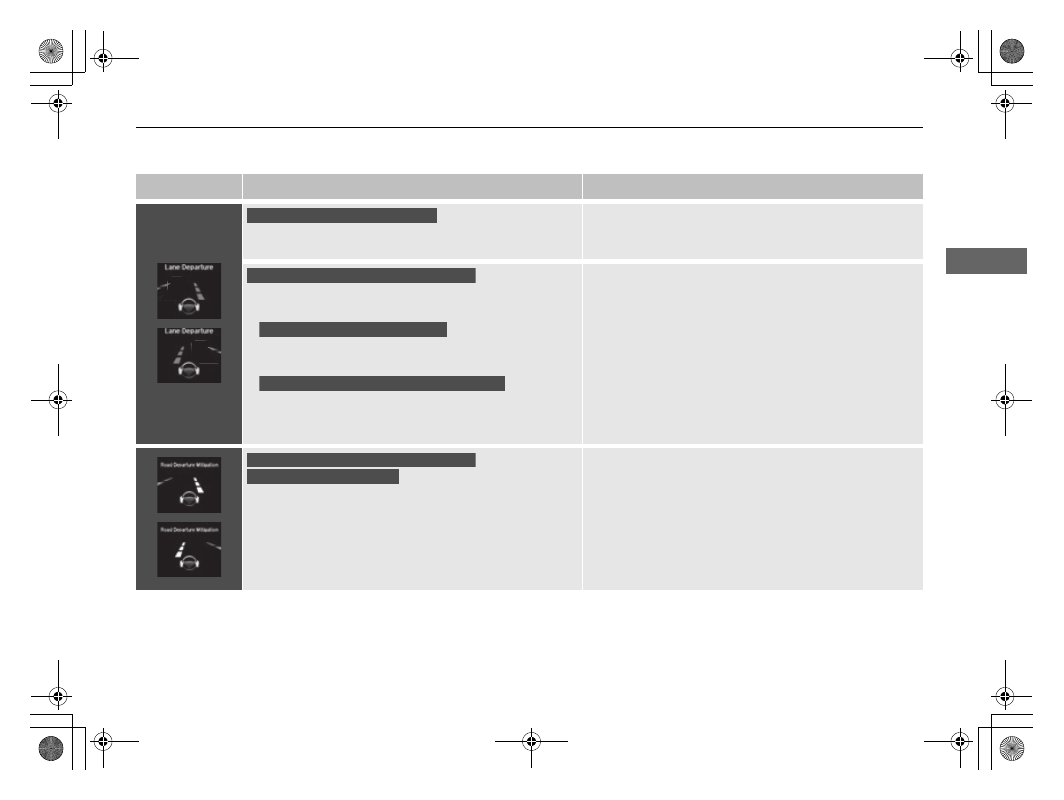

Appears when the vehicle is driving out of a detected
line. The steering wheel vibrates rapidly.

●

Keep the vehicle within the lane you are driving.

2 Lane Keeping Assist System (LKAS) P. 423

●

Appears when the vehicle is driving out of a detected
line.

- The steering wheel vibrates rapidly when the vehicle is

drifting out of a detected line.

- The steering wheel vibrates rapidly when the vehicle is

drifting out of a detected line. The system also steers
the vehicle to help you remain within your driving lane.

●

Keep the vehicle within the lane you are driving.

2 Road Departure Mitigation (RDM) System P. 418

●

You can change the setting for the road departure
mitigation system. Narrow, Normal, Wide, and
Warning Only can be selected.

2 Customized Features P. 297

●

Appears when the vehicle is likely to drive out of a
detected line.
- The system steers the vehicle to help you remain

within your driving lane.

—

Lane Keeping Assist System (LKAS)

Road Departure Mitigation (RDM) System

When you selected Warning Only

When you selected Narrow, Normal, or Wide

Road Departure Mitigation (RDM) System
When you selected Narrow

18 ACURA RLX E-AWD-31TY36400.book  109 ページ  ２０１７年７月２０日　木曜日　午後６時８分

110

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

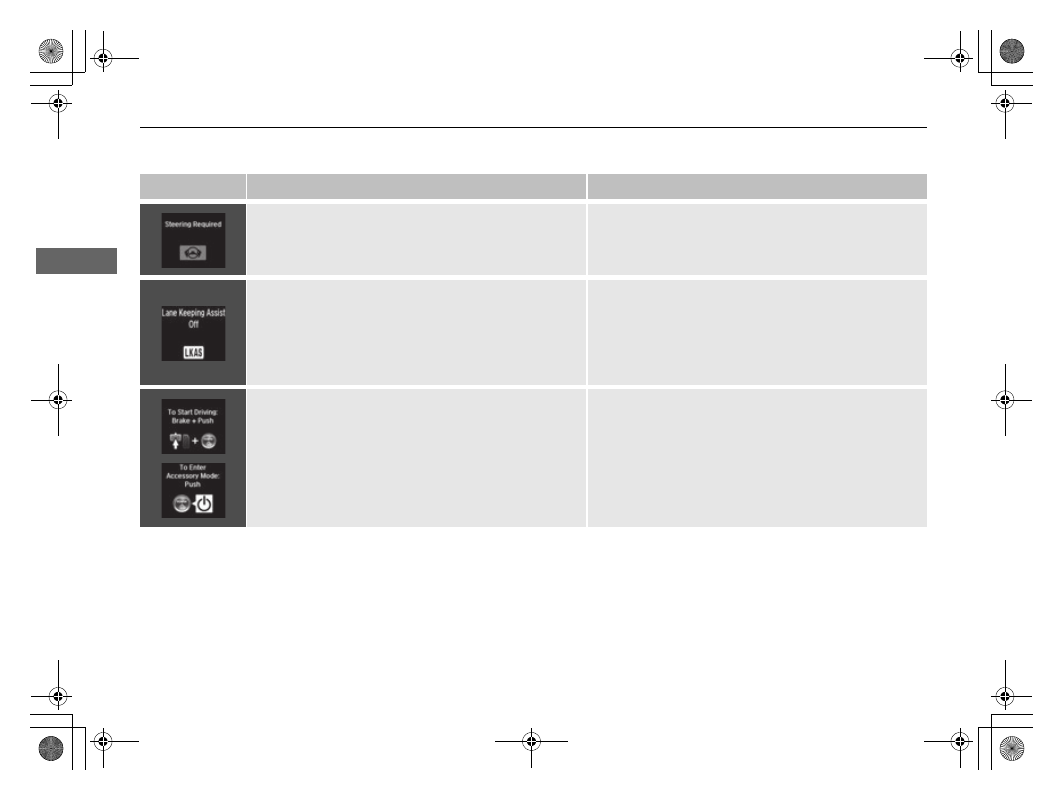

• If you are providing little or no steering input, the

indicator blinks and a beeper sounds.

• Operate the steering wheel to resume the LKAS.

• Appears when the LKAS is in operation, or the LKAS

button is pressed, but there is a problem with a system
related to the LKAS. The LKAS cancels automatically
and a beeper sounds.

u

Traffic jam assist also cancels if it is experiencing a
problem.

• If any other system indicators come on, such as the

VSA®, ABS and brake system, take appropriate action.

2 Indicators P. 76

• Appears when you unlock and open the driver’s door

while the power system is on by two-way keyless access
remote.

2 Remote Engine Start with Vehicle Feedback P. 382

18 ACURA RLX E-AWD-31TY36400.book  110 ページ  ２０１７年７月２０日　木曜日　午後６時８分

111

uu

Indicators

u

Multi-Information Display Warning and Information Messages

In

strum

e

nt Pa

nel

Message

Condition

Explanation

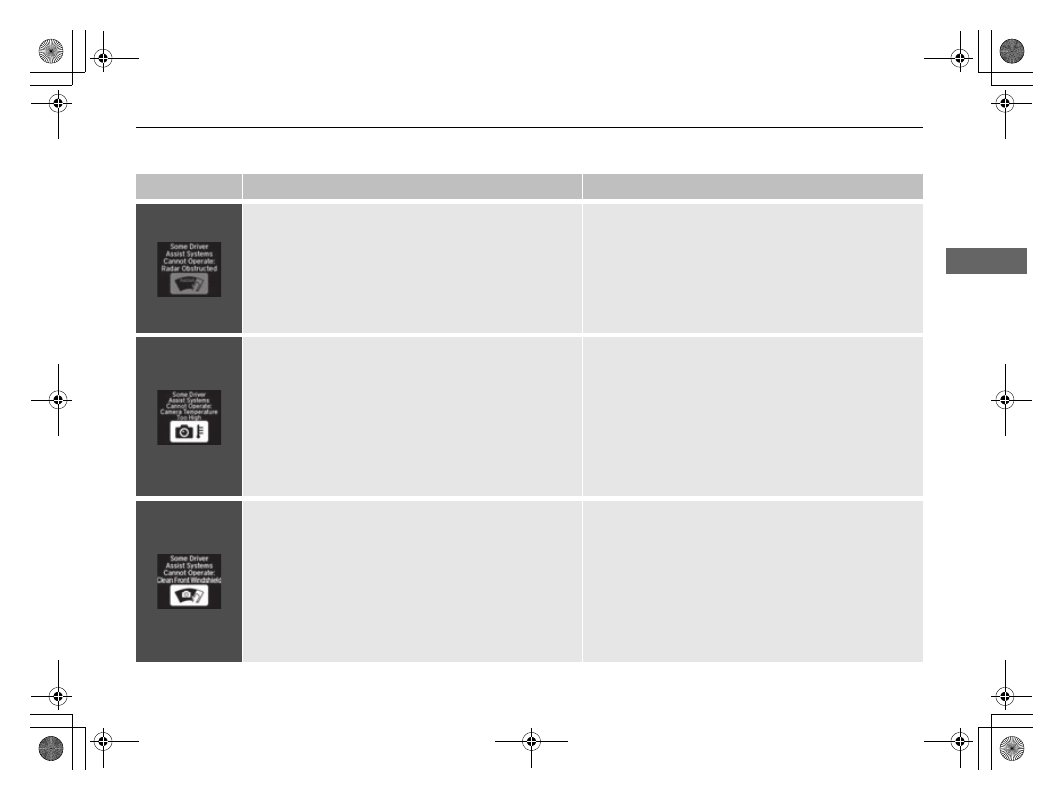

• Appears if anything covers the radar sensor cover and

prevents the sensor from detecting a vehicle in front.

• May appear when driving in bad weather (rain, snow,

fog, etc.)

• When the radar sensor gets dirty, stop your vehicle in a

safe place, and wipe off dirt using a soft cloth.

2 Collision Mitigation Braking System

TM

 (CMBS

TM

)

P. 460

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

2 Road Departure Mitigation (RDM) System P. 418
2 Traffic Jam Assist P. 430

• Appears if the temperature inside the camera is too

high.

• Use the climate control system to cool down the

camera.

2 Front Sensor Camera P. 402
2 Collision Mitigation Braking System

TM

 (CMBS

TM

)

P. 460

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

2 Lane Keeping Assist System (LKAS) P. 423
2 Road Departure Mitigation (RDM) System P. 418
2 Traffic Jam Assist P. 430

• Appears when the area around the camera is blocked

by dirt, mud, etc.

• May appear when driving in bad weather (rain, snow,

fog, etc.)

• Stop your vehicle in a safe place, and wipe it off with a

soft cloth.

2 Front Sensor Camera P. 402
2 Collision Mitigation Braking System

TM

 (CMBS

TM

)

P. 460

2 Adaptive Cruise Control (ACC) with Low Speed

Follow (LSF) P. 404

2 Lane Keeping Assist System (LKAS) P. 423
2 Road Departure Mitigation (RDM) System P. 418
2 Traffic Jam Assist P. 430

18 ACURA RLX E-AWD-31TY36400.book  111 ページ  ２０１７年７月２０日　木曜日　午後６時８分

112

In

strum

e

nt Pa

nel

Gauges and Displays

Gauges

Gauges include the speedometer, tachometer, fuel gauge, High Voltage battery
charge level gauge, and related indicators. They are displayed when the power
mode is set to ON.

Displays your driving speed in mph or km/h.

Shows the number of engine revolutions per minute.

Displays the amount of fuel left in the fuel tank.

■

Speedometer

■

Tachometer

■

Fuel Gauge

1

Fuel Gauge

NOTICE

You should refuel when the needle approaches

.

Running out of fuel can cause the engine to misfire,
damaging the catalytic converter.

The actual amount of remaining fuel may differ from
the fuel gauge reading.

E

18 ACURA RLX E-AWD-31TY36400.book  112 ページ  ２０１７年７月２０日　木曜日　午後６時８分

113

uu

Gauges and Displays

u

Gauges

In

strum

e

nt Pa

nel

Shows the remaining High Voltage battery charge level.

■

High Voltage Battery Charge Level Gauge

1

High Voltage Battery Charge Level Gauge

The High Voltage battery charge level may decrease
under the following conditions:

•

When the 12-volt battery has been replaced.

•

When the 12-volt battery has been disconnected.

•

When the High Voltage battery control system
corrects its reading.

The charge level reading will be corrected
automatically while driving.

Changes in the temperature of the High Voltage
battery can increase or decrease the battery’s
charging capacity. If temperature changes cause the
battery’s capacity to change, the number of
indicators in the battery charge level gauge may also
change, even if the amount of charging remains the
same.

18 ACURA RLX E-AWD-31TY36400.book  113 ページ  ２０１７年７月２０日　木曜日　午後６時８分

114

uu

Gauges and Displays

u

Multi-Information Display

In

strum

e

nt Pa

nel

Multi-Information Display

The multi-information display displays the odometer, trip meter, outside
temperature, and other gauges. It also displays important messages such as
warnings and other helpful information.

■

Main displays

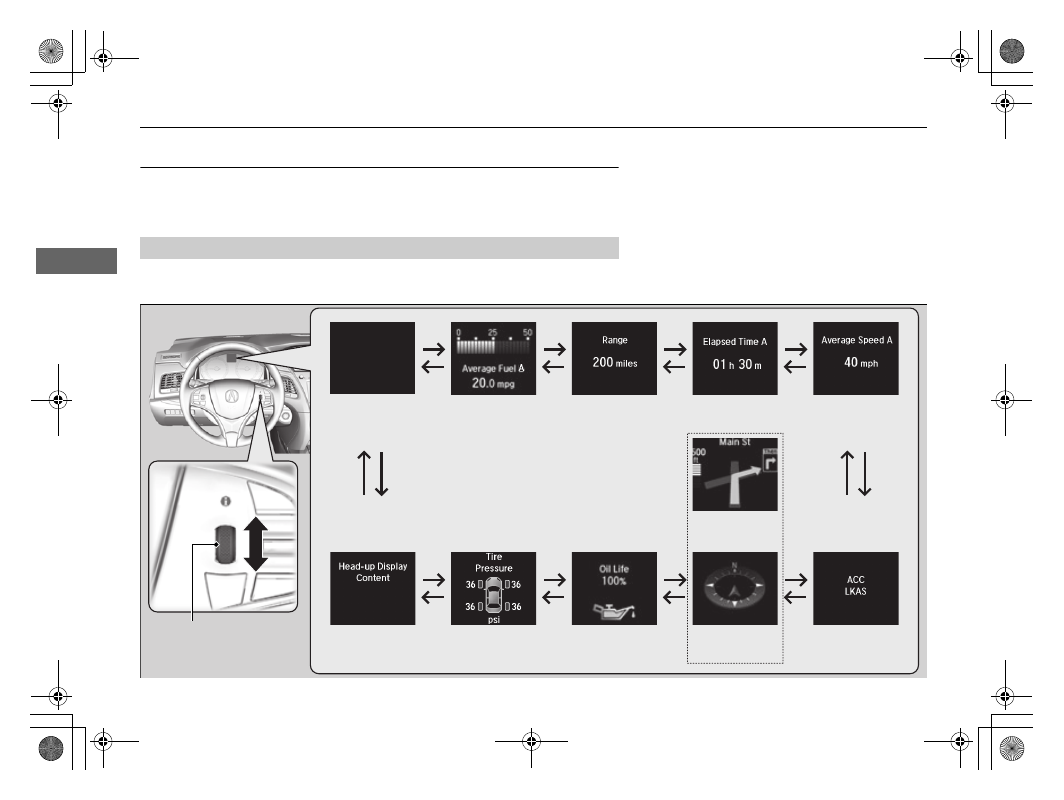

Roll the right selector wheel to change the display.

■

Switching the Display

Right Selector Wheel

Engine Oil Life

Elapsed Time

Blank Screen

Average Speed

Range

Instant Fuel Economy/
Average Fuel Economy

Compass

Tire Pressure for
Each Tire

Current Mode for ACC
with LSF, the LKAS,
and Traffic Jam Assist

Head-up Display
Content

This message shows
when ACC with LSF,
the LKAS, and Traffic
Jam Assist are off.

Turn-by-Turn
Directions

18 ACURA RLX E-AWD-31TY36400.book  114 ページ  ２０１７年７月２０日　木曜日　午後６時８分

115

uu

Gauges and Displays

u

Multi-Information Display

Continued

In

strum

e

nt Pa

nel

■

Lower displays

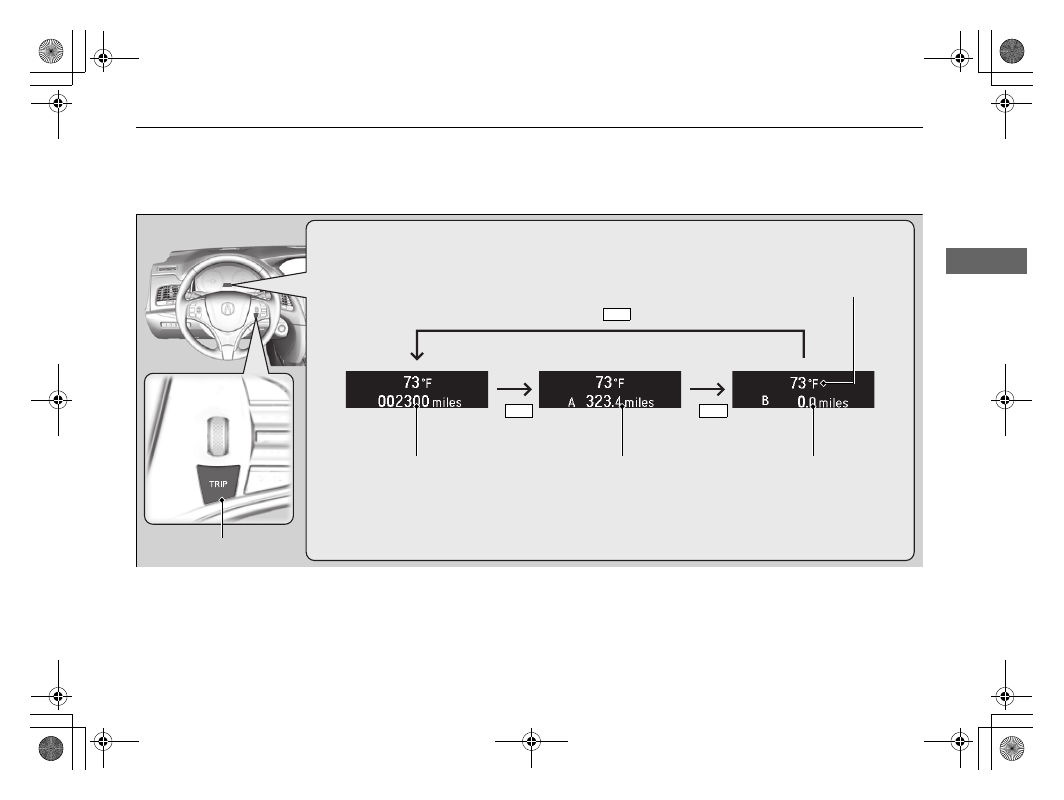

Press the TRIP button to change the display.

Odometer

Trip A

Trip B

Outside temperature

TRIP Button

TRIP

TRIP

TRIP

18 ACURA RLX E-AWD-31TY36400.book  115 ページ  ２０１７年７月２０日　木曜日　午後６時８分

uu

Gauges and Displays

u

Multi-Information Display

116

In

strum

e

nt Pa

nel

Shows the total number of miles or kilometers that your vehicle has accumulated.

Shows the total number of miles or kilometers driven since the last reset. Meters A
and B can be used to measure two separate trips.

■

Resetting a trip meter

To reset the trip meter, display it, and then press and hold the TRIP button. The trip
meter is reset to 0.0.

Shows the outside temperature in Fahrenheit (U.S.) or Celsius (Canada).

■

Adjusting the outside temperature display

Adjust the temperature reading by up to ± 5°F (U.S.) or ± 3°C (Canada) if the
temperature reading seems incorrect.
Use the audio/information screen to correct the temperature.

2 Customized Features P. 297

Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or
l/100 km (Canada). The display is updated at set intervals. When a trip meter is reset,
the average fuel economy is also reset.

■

Odometer

■

Trip Meter

■

Outside Temperature

■

Average Fuel Economy

1

Trip Meter

Switch between trip meter A and trip meter B by
pressing the TRIP button.

1

Outside Temperature

The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).

It may take several minutes for the display to be
updated after the temperature reading has stabilized.

1

Average Fuel Economy

You can change when the average fuel economy is
reset.

2 Customized Features P. 297

18 ACURA RLX E-AWD-31TY36400.book  116 ページ  ２０１７年７月２０日　木曜日　午後６時８分

Continued

117

uu

Gauges and Displays

u

Multi-Information Display

In

strum

e

nt Pa

nel

Shows the instant fuel economy as a bar graph in mpg (U.S.) or l/100 km (Canada).

Shows the estimated distance you can travel on the remaining power and fuel. This
estimated distance is based on the vehicle’s current fuel economy.

Shows the time elapsed since Trip A or Trip B was reset.

Shows the average speed in mph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.

Shows the current mode for ACC with LSF, LKAS, and traffic jam assist.

2 To Switch ACC with LSF to Cruise Control P. 416
2 Lane Keeping Assist System (LKAS) P. 423
2 Traffic Jam Assist P. 430

■

Instant Fuel Economy

■

Range

■

Elapsed Time

■

Average Speed

■

Current Mode for ACC with LSF, the LKAS, and Traffic Jam
Assist

1

Elapsed Time

You can change when the elapsed time is reset.

2 Customized Features P. 297

1

Average Speed

You can change when the average speed is reset.

2 Customized Features P. 297

18 ACURA RLX E-AWD-31TY36400.book  117 ページ  ２０１７年７月２０日　木曜日　午後６時８分

uu

Gauges and Displays

u

Multi-Information Display

118

In

strum

e

nt Pa

nel

The navigation system shows you turn-by-turn directions to your destination.

When the navigation system is not providing driving guidance, an image of a
compass appears in the multi-information display.

2 Refer to the Navigation System Manual

Shows the remaining oil life and Maintenance Minder

TM

.

2 Maintenance Minder

TM

 P. 497

Shows the tire pressure of each tire.

2 Tire Pressure Monitoring System (TPMS) P. 447

Shows the display for changing the head-up display content.

2 To Change Head-Up Display Content P. 121

■

Turn-by-Turn Directions

■

Engine Oil Life

■

Tire Pressure Monitor

■

Head-Up Display Content

1

Turn-by-Turn Directions

You can select whether to have the turn-by-turn
display come on during the route guidance.

2 Customized Features P. 297

18 ACURA RLX E-AWD-31TY36400.book  118 ページ  ２０１７年７月２０日　木曜日　午後６時８分
