Acura NSX (2017 year). Manual - part 1

4

Quick

 Referenc

e Guide

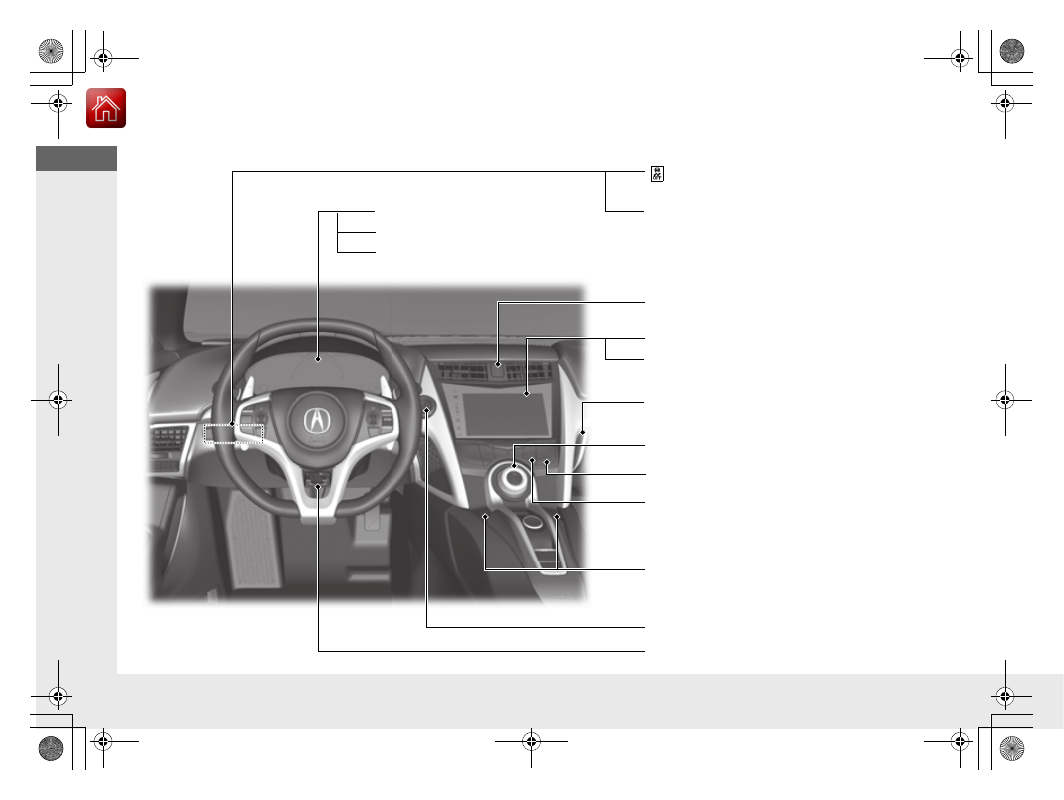

Quick Reference Guide

Visual Index

❙

Steering Wheel Adjustments

(P 140)

❙

ENGINE START/STOP Button

(P 127)

❙

 (Vehicle Stability Assist (VSA®)

System OFF) Button

(P 334)

❙

System Indicators

(P 70)

❙

Gauges

(P 95)

❙

Driver Information Interface

(P 98)

❙

Rear Window Defogger/
Heated Mirror Button

(P 137)

❙

Parking Sensor System Button

*



(P 353)

❙

Hazard Warning Button

❙

Seat Heater Buttons

*



(P 155)

❙

Audio System

(P 162)

❙

Climate Control System

(P 156)

❙

MID Vents

(P 20, 156)

❙

Navigation System

*



() See the Navigation System Manual

❙

IDS Mode Switch

(P 323)

17 NSX-31T6N6000.book  4 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

5

Quick

 Referenc

e Guide

❙

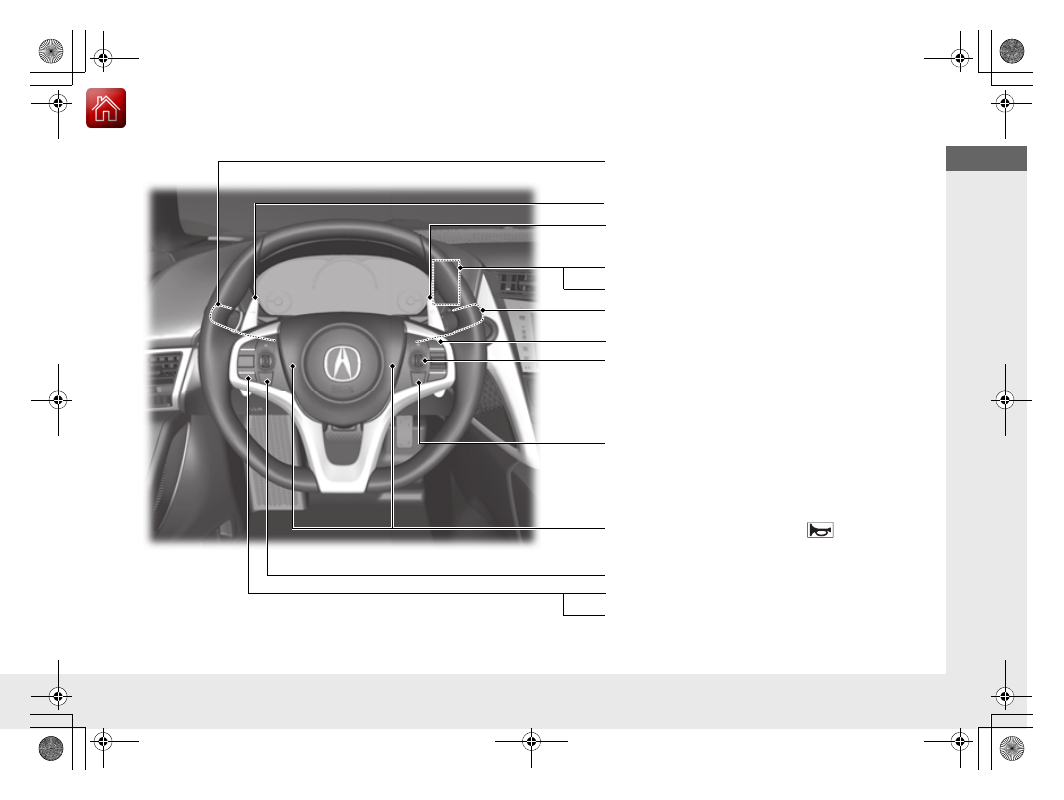

Wipers/Washers

(P 135)

❙

Headlights/Turn Signals

(P 130, 131)

❙

Paddle Shifter (Shift down)

(P 322)

❙

Paddle Shifter (Shift up)

(P 322)

❙

Horn (Press an area around

.)

❙

Voice Control Buttons

(P 184)

❙

Bluetooth® HandsFreeLink® System
Voice Control Buttons

(P 258)

❙

TRIP Button

(P 99, 100)

❙

Right Selector Wheel

(P 98)

❙

Audio Remote Controls

(P 165)

❙

Brightness Control

(P 136)

❙

Mph/Km/h Change Button

(P 95)

❙

Cruise Control Buttons

(P 330)

* Not available on all models

17 NSX-31T6N6000.book  5 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

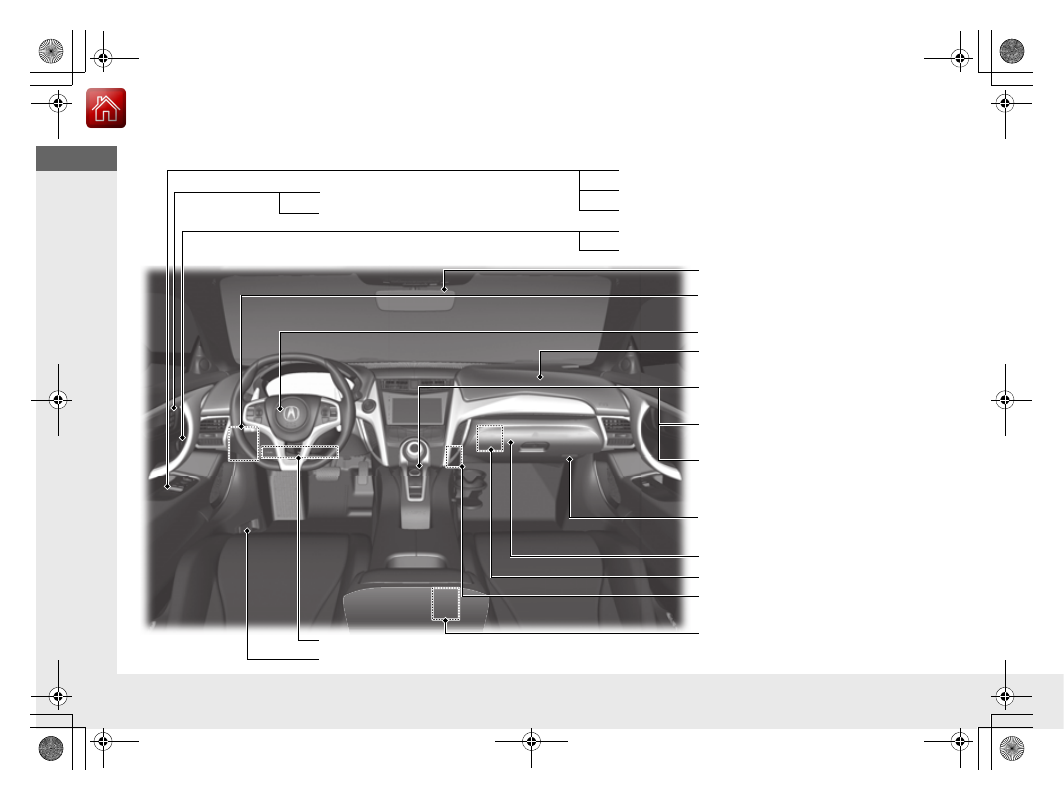

Visual Index

6

Quick

 Referenc

e Guide

❙

Power Window Switches

(P 125)

❙

Driver’s Front Airbag

(P 46)

❙

Hatch Release Button

(P 119)

❙

Hood Release Handle

(P 374)

❙

Passenger’s Front Airbag

(P 46)

❙

Glove Box

(P 151)

❙

Driver’s Knee Airbag

(P 50)

❙

Door Mirror Controls

(P 142)

❙

Power Door Lock Master Switch

(P 117)

❙

Fuel Fill Door Release Button

(P 358)

❙

USB Port

(P 163)

❙

Memory Buttons

*



(P 139)

❙

SET Button

*



(P 139)

❙

Rearview Mirror

(P 141)

❙

Driver’s Side Interior Fuse
Boxes

(P 445)

❙

Passenger’s Side Interior Fuse
Box

(P 446)

❙

USB Port

(P 163)

❙

Accessory Power Socket

(P 154)

❙

Electric Parking Brake Switch

(P 344)

❙

Automatic Brake Hold Button

(P 347)

❙

Shift Button
Electronic Gear Selector

(P 314)

17 NSX-31T6N6000.book  6 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

7

Quick

 Referenc

e Guide

❙

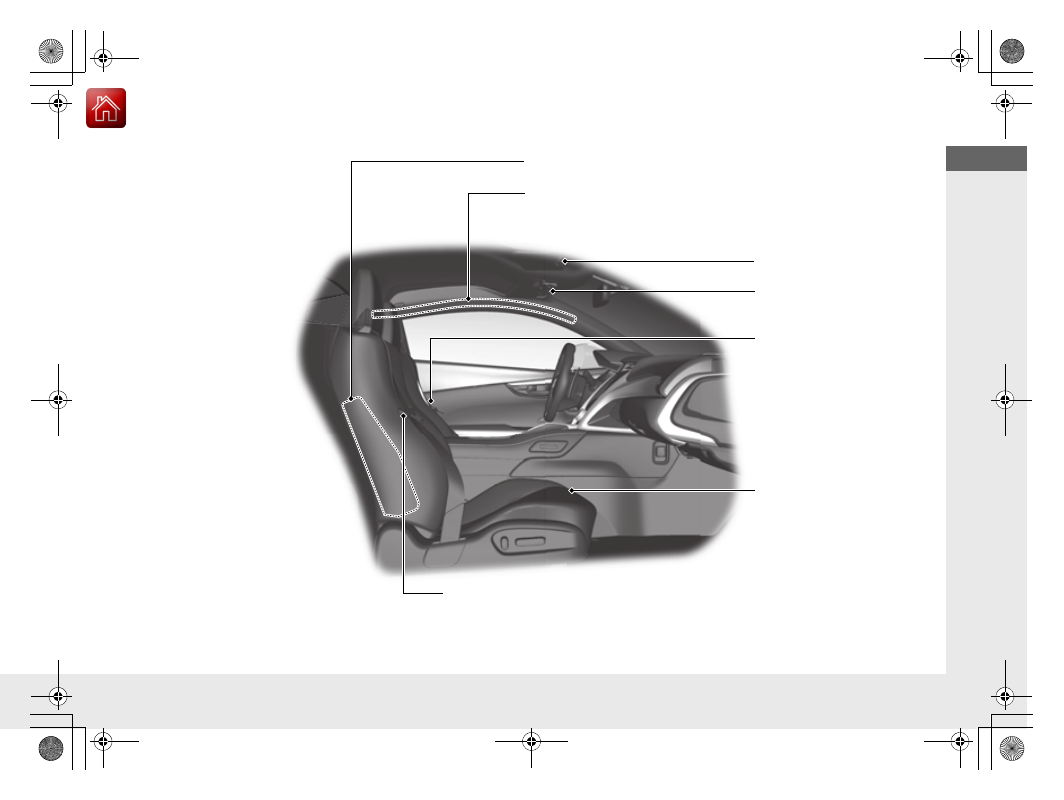

Side Airbags

(P 52)

❙

Side Curtain Airbags

(P 54)

❙

Seat Belts

(P 36)

❙

Seat

(P 144)

❙

Sun Visors

❙

Map Lights

(P 150)

❙

Seat Belt (Installing a Child Seat)

(P 63)

* Not available on all models

17 NSX-31T6N6000.book  7 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

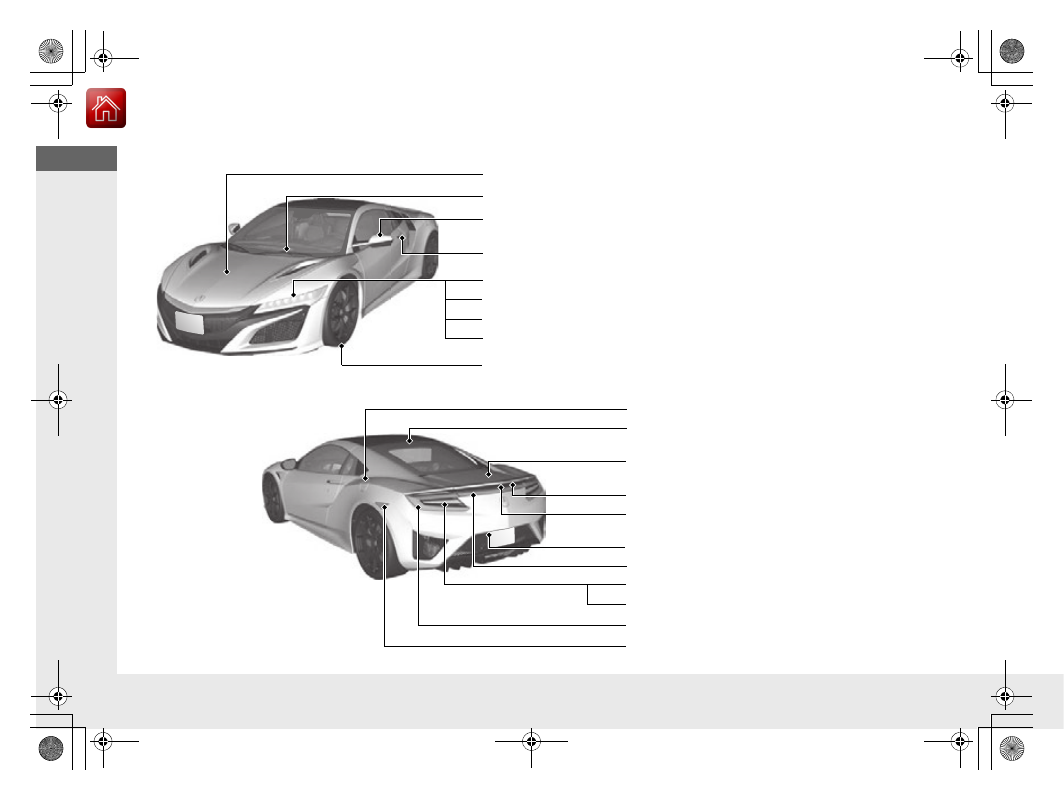

Visual Index

8

Quick

 Referenc

e Guide

❙

Maintenance Under the Hood

(P 371)

❙

Windshield Wipers

(P 135, 390)

❙

Power Door Mirrors

(P 142)

❙

Headlights

(P 131, 387)

❙

How to Refuel

(P 358)

❙

High-Mount Brake Light

(P 389)

❙

Opening/Closing the Hatch

(P 119)

❙

Brake/Taillights

(P 388)

❙

Front Turn Signal/Parking Lights

(P 130, 131, 387)

❙

Back-Up Lights

(P 388)

❙

Rear License Plate Lights

(P 389)

❙

Hatch Release Button

(P 119)

❙

Door Lock/Unlock Control

(P 107)

❙

Front Side Marker Lights

(P 131, 387)

❙

Daytime Running Lights

(P 134, 387)

❙

Tires

(P 393, 419)

❙

Taillights

(P 388)

❙

Rear Turn Signal Lights

(P 388)

❙

Rear Side Marker Lights

(P 388)

❙

Multi-View Rear Camera

(P 356)

17 NSX-31T6N6000.book  8 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

9

Quick

 Referenc

e Guide

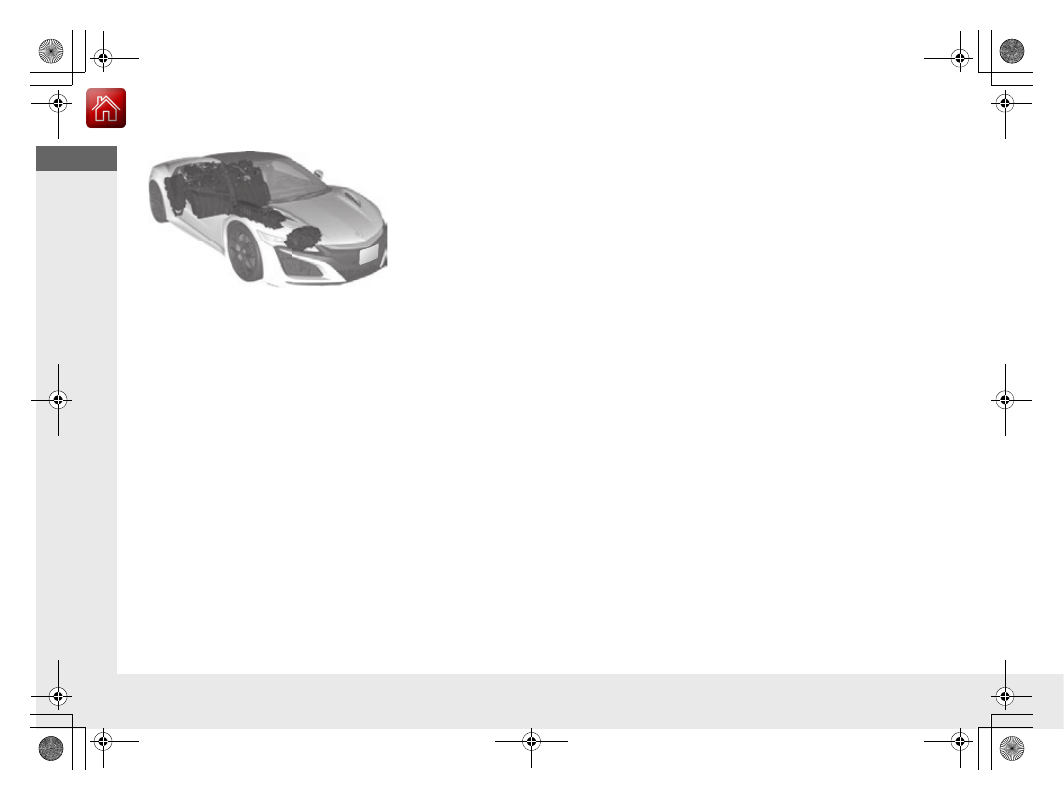

SPORT HYBRID Super Handling-All Wheel Drive

TM



(SPORT HYBRID SH-AWD®)

Your SPORT HYBRID SH-AWD® vehicle uses a Twin Motor Unit, Direct Drive Motor, and a gasoline engine as propulsion sources, with electric
motors receiving electricity from an internal High Voltage battery.

17 NSX-31T6N6000.book  9 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

10

Quick

 Referenc

e Guide

*: When IDS is in SPORT+ mode or TRACK mode, EV Launch and EV Cruising cannot be operated.
*: Operating paddle shifters when the gear position is in

(

D

 cancels EV Launch and EV Cruising.

Operating

mode

EV Launch

*

Engine Drive

EV Cruising

*

Power Acceleration

Vehicle

Speed

Launch Acceleration:

●

Front Motor Drive

Gentle Acceleration:

●

Engine Drive

Low Speed Cruise:

●

Front Motor Drive

Aggressive Acceleration:

●

Engine Drive

●

Motor Assist

Twin Motor

Unit

Drive

-

Drive

Drive

Direct Drive

Motor

Stopped

Generate / -

Stopped

Generate / Drive

Gasoline

Engine

Stopped

Running

Stopped

Running

Battery

Discharges

Charges/Discharges

Discharges

Discharges

17 NSX-31T6N6000.book  10 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

11

Quick

 Referenc

e Guide

Operating

mode

Engine Cruising

Regeneration

AWD Mode

Vehicle

Speed

High Speed Cruise:

●

Engine Drive

Deceleration:

●

Front & Rear Regeneration

Slippery Condition:

●

Engine Drive

●

Front Motor Drive

Twin Motor

Unit

-

Regenerate

Drive

Direct Drive

Motor

Generate/Drive

Stopped

Generate/Drive

Gasoline

Engine

Running

Running/Stopped

Running

Battery

Charges/Discharges

Charges

Charges/Discharges

17 NSX-31T6N6000.book  11 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

12

Quick

 Referenc

e Guide

Energy Efficiency

As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engine.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.

Battery Types

There are two types of batteries used in this vehicle; a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a High Voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.

Regenerative Energy and Regenerative Braking

When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the electric motors
act as generators that a portion of the electrical energy that was used to accelerate the vehicle. This regenerative braking slows the vehicle
in a manner similar to engine braking in a gasoline-powered vehicle.

17 NSX-31T6N6000.book  12 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

13

Quick

 Referenc

e Guide

Auto Engine Stop/Start

Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.

In the following cases, however, Auto Engine Stop may not activate.
● When the Integrated Dynamics System (IDS) is in SPORT+ mode or TRACK mode.

● The vehicle momentarily needs additional power for aggressive acceleration, or driving uphill or at high speed.

● The climate control system is in heavy use.

● The High Voltage battery temperature is high or low.

● The High Voltage battery state of charge is low.

● The engine coolant temperature is low.

● When the door is opened after releasing seatbelt.

● When the shift position is in

(

M (Manual) mode.

About Your Vehicle’s Limited Operating Temperature

If the outside temperature is about -4°F (-20°C), some operation might be limited.
The limited operation is listed below:

2 High Voltage Battery (P90)
2 Dual Clutch Transmission (P313)
2 Shifting (P314)

Sounds Unique to the SPORT HYBRID SH-AWD® System

When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this vehicle‘s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unusual noise
should one develop.

About a system to cool the High Voltage battery using the climate control system.

● The system will not be activated when the defroster is ON.

● When the outside temperature is in extreme hot or cold condition, the system may not provide sufficient cooling performance to the

High Voltage battery due to the protection of the electric A/C compressor.

● When the system is active, the climate control system may not work sufficiently.

17 NSX-31T6N6000.book  13 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

14

Quick

 Referenc

e Guide

Safety Precautions

Do not touch the High Voltage system

Attempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. If the High Voltage system needs maintenance or repair, it
should be performed at an authorized Acura NSX dealer.

If a crash occurs

●Be careful of electric shock hazard.

u

If a severe crash damages your vehicle’s High Voltage system, there is a possibility of electrical shock

due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.

u

The High Voltage battery contains a flammable electrolyte that could leak as a result of a severe

crash. Avoid any skin or eye contact with the electrolyte as it is corrosive. If you accidentally touch it,
flush your eyes or skin with a large quantity of water for at least five minutes, and seek medical
attention immediately.
●Use a fire extinguisher for an electrical fire.

u

Attempting to extinguish an electrical fire with a small quantity of water, from a garden hose for

instance, can be dangerous.
●Anytime the vehicle is damaged in an accident, have it repaired by an authorized Acura
NSX dealer.

Emergency Shutdown System for the High Voltage System

The emergency shutdown system may activate when the vehicle is impacted by some
incident such as a crash. When this system activates, the High Voltage system automatically
shuts down, and your vehicle no longer will move under its own power. To return the High
Voltage system back to normal operation, consult an authorized Acura NSX dealer.

Acura collects and recycles High Voltage batteries used in its vehicles – consult an
authorized Acura NSX dealer for more information.

17 NSX-31T6N6000.book  14 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

15

Quick

 Referenc

e Guide

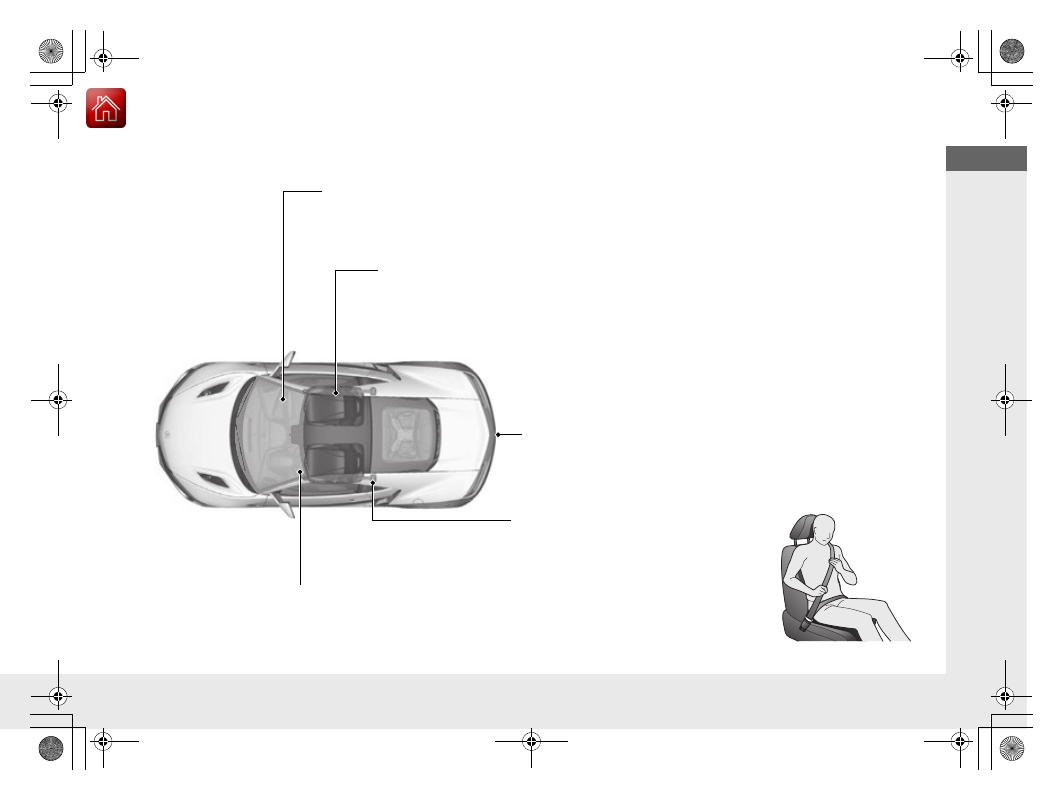

Safe Driving

(P 31)

Airbags

(P 43)

● Your vehicle is fitted with airbags to help protect you and

your passenger during a moderate-to-severe collision.

Child Safety

(P 58)

● Your vehicle is not recommended for child passengers. If you decide to

disregard our recommendations and transport a child passenger, the child
should be properly restrained.
Never put a rear-facing child seat in the passenger’s seat.

Exhaust Gas Hazard

(P 67)

● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

Before Driving Checklist

(P 35)

● Before driving, check that the seats, steering wheel,

and mirrors have been properly adjusted.

Seat Belts

(P 36)

● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passenger is wearing their

seat belt correctly.

Fasten your lap belt as
low as possible.

17 NSX-31T6N6000.book  15 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

16

Quick

 Referenc

e Guide

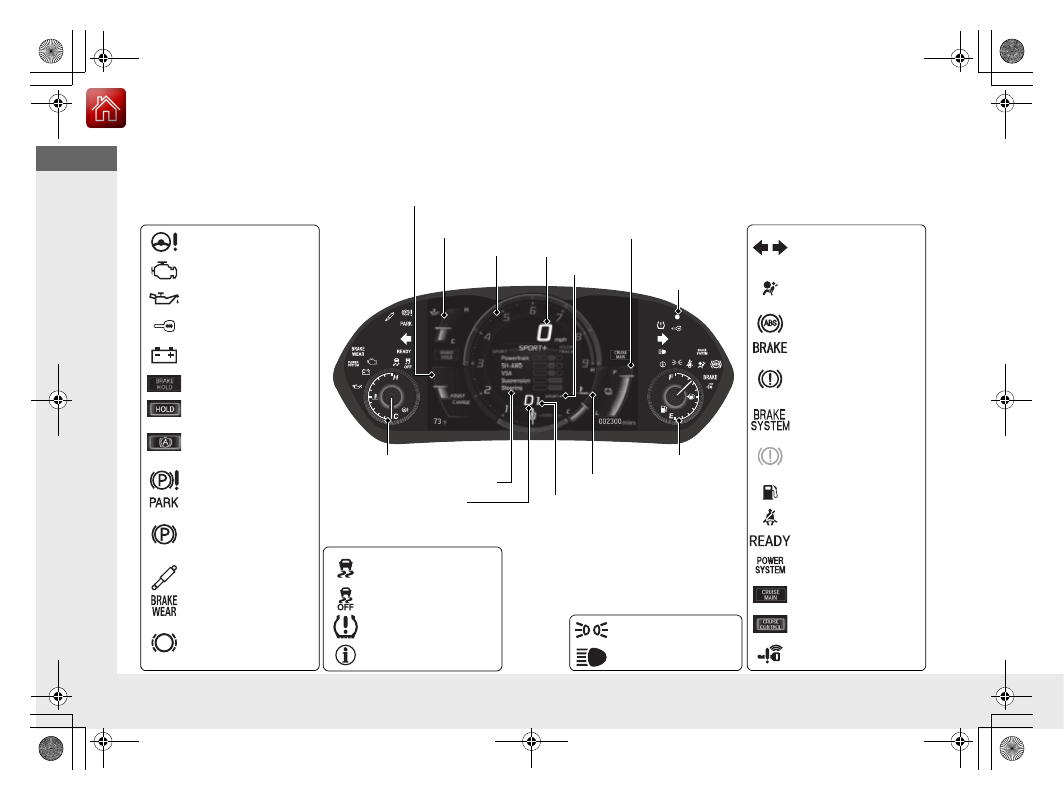

Instrument Panel

(P 69)

System Indicators

Malfunction Indicator

Lamp
Low Oil Pressure

Indicator

12-Volt Battery Charging

System Indicator

Anti-lock Brake System

(ABS) Indicator

Vehicle Stability Assist

(VSA®) System

Indicator

VSA® OFF Indicator

Electric Power Steering

(EPS) System Indicator

Lights Indicators

Lights On Indicator

High Beam Indicator

Immobilizer System

Indicator

Seat Belt Reminder

Indicator

System Indicators

System Message

Indicator

Brake System

Indicator (Red)

Supplemental

Restraint System

Indicator

Low Fuel Indicator

Gauges

(P 95)

/Driver Information Interface

(P 98)

/System Indicators

(P 70)

Low Tire Pressure/

TPMS Indicator

Turn Signal and

Hazard Warning

Indicators

Keyless Access System

Indicator

High Voltage Battery
Charge Level Gauge

Security System
Alarm Indicator

Fuel Gauge

Tachometer

Driver Information Interface

Speedometer

Gear Position Indicator

Gear Selection Indicator

Electric Parking Brake

System Indicator

Electric Parking Brake

Indicator

Automatic Brake Hold

System Indicator

Brake System

Indicator (Amber)

System Indicators

Automatic Brake Hold

Indicator

U.S.

Canada

U.S.

Canada

U.S.

Canada

U.S.

Canada

READY Indicator

POWER SYSTEM

Indicator

Temperature Gauge

ASSIST/CHARGE Gauge

U.S.

Canada

Active Damper System

Indicator

Brake Wear Indicator

CRUISE MAIN

Indicator

CRUISE CONTROL

Indicator

Engine Oil Temperature
Gauge

IDS Mode

SH-AWD® Temperature Gauge

17 NSX-31T6N6000.book  16 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

17

Quick

 Referenc

e Guide

Controls

(P 103)

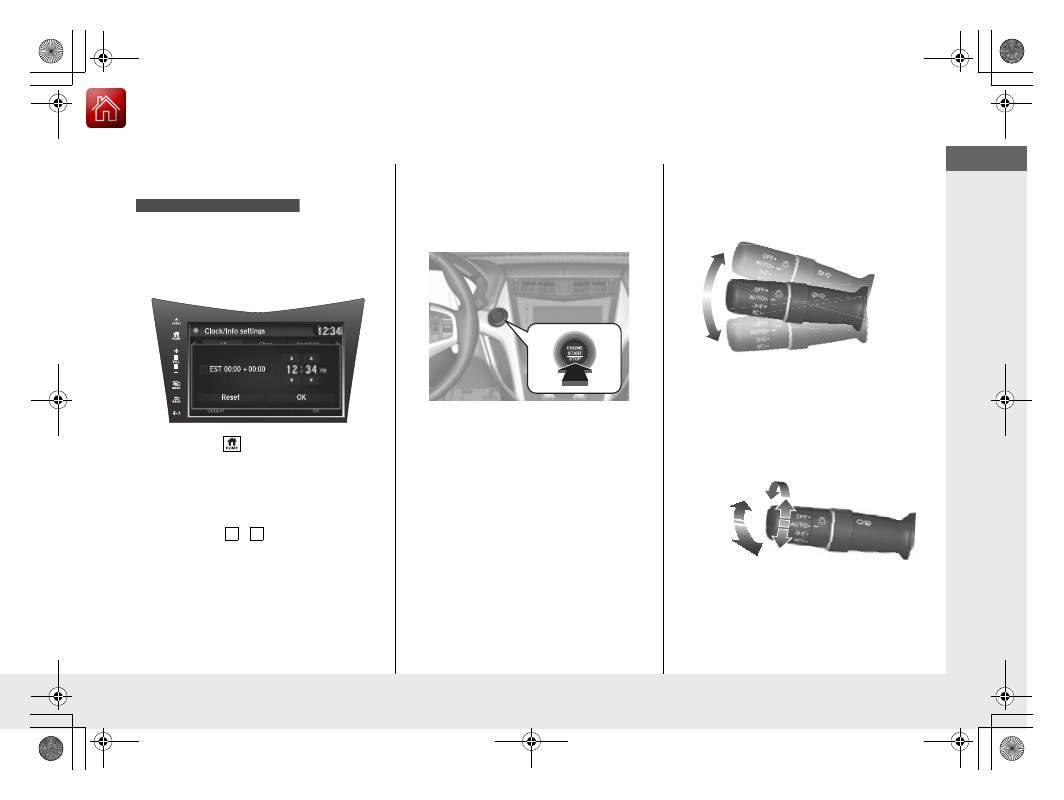

Clock

(P 104)

The navigation system receives signals from
GPS satellites, updating the clock
automatically.

You can also adjust the time manually.

a

Select the

 (HOME) icon, then select

Settings.

b

Select Clock/Info, then Clock
Adjustment.

c

Touch the

 /

 icon to adjust the

numbers up or down.

d

Select OK.

Models with navigation system

3

4

ENGINE START/STOP
Button

(P 127)

Press the button to changes the vehicle’s
power mode.

Turn Signals

(P 130)

Lights

(P 131)

Turn Signal Control Lever

Right

Left

Light Control Switches

Low Beam

High Beam

Flashing

17 NSX-31T6N6000.book  17 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

18

Quick

 Referenc

e Guide

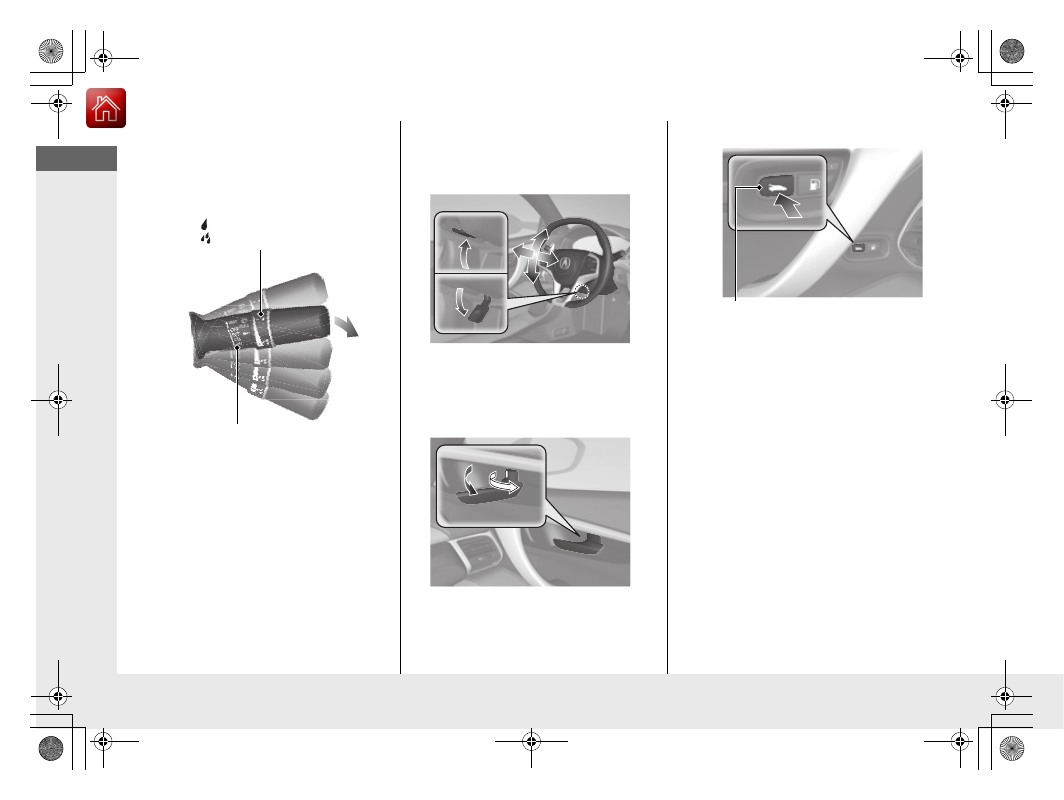

Wipers and Washers

(P 135)

Wiper/Washer Control Lever

Adjustment Ring

 : Lower speed, fewer sweeps

: Higher speed, more sweeps

MIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipe

Pull
toward
you to
spray
washer
fluid.

Steering Wheel

(P 140)

● To adjust, push the adjustment lever

down, adjust to the desired position, then
lock the lever back in place.

Unlocking the Doors
from the Inside

(P 115)

● Pull either inner door handle to unlock

and open it in one motion.

● Unlocking and opening the driver’s door

from the inner handle unlocks the
passenger’s door.

Hatch

(P 119)

● To unlock and open the hatch:

• Press the hatch release button on the

driver’s door.

• Press the hatch release button on the

keyless access remote.

• Press the hatch release button on the

hatch.

Hatch Release Button

17 NSX-31T6N6000.book  18 ページ  ２０１６年４月２２日　金曜日　午後３時４４分

19

Quick

 Referenc

e Guide

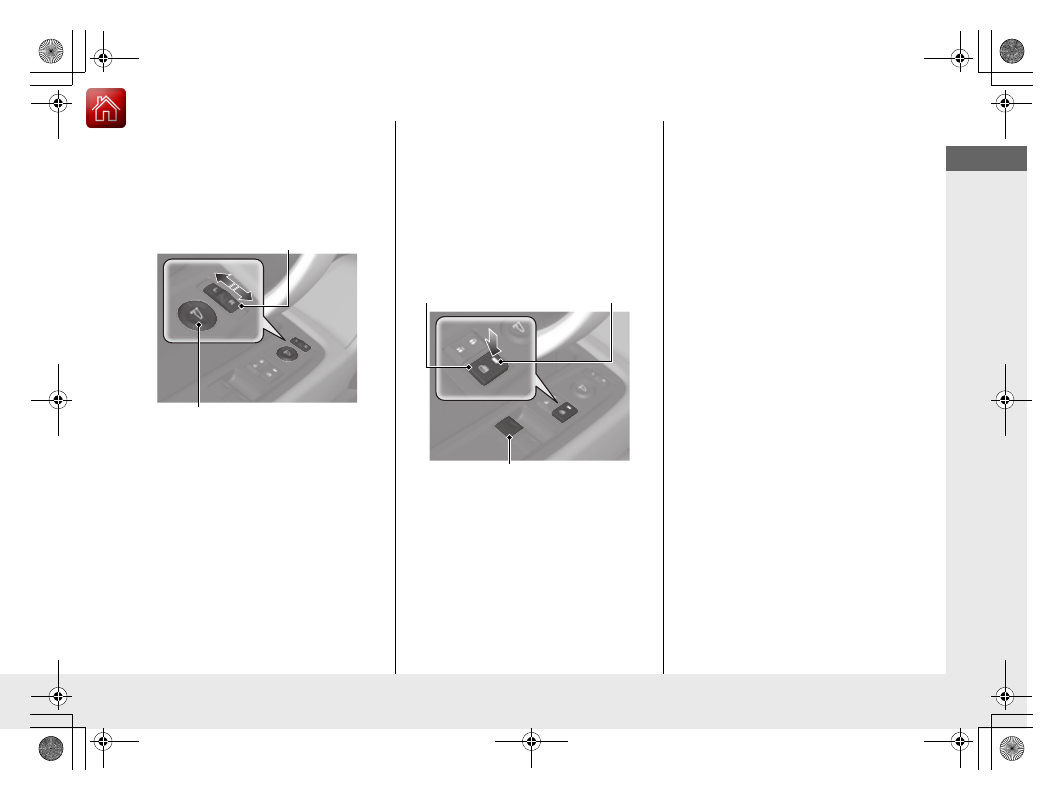

Power Door Mirrors

(P 142)
● With the power mode in ON, move the

selector switch to L or R.

● Push the appropriate edge of the

adjustment switch to adjust the mirror.

Selector Switch

Adjustment Switch

Power Windows

(P 125)

● With the power mode in ON, open and

close the power windows.

● If the power window lock button is in the

off position, the passenger’s window can
be opened and closed with its own
switch.

● If the power window lock button is in the

on position (indicator on), the passenger’s
window switch is disabled.

Power Window Lock Button

Window Switch

Indicator

17 NSX-31T6N6000.book  19 ページ  ２０１６年４月２２日　金曜日　午後３時４４分
