Quick Reference Guide

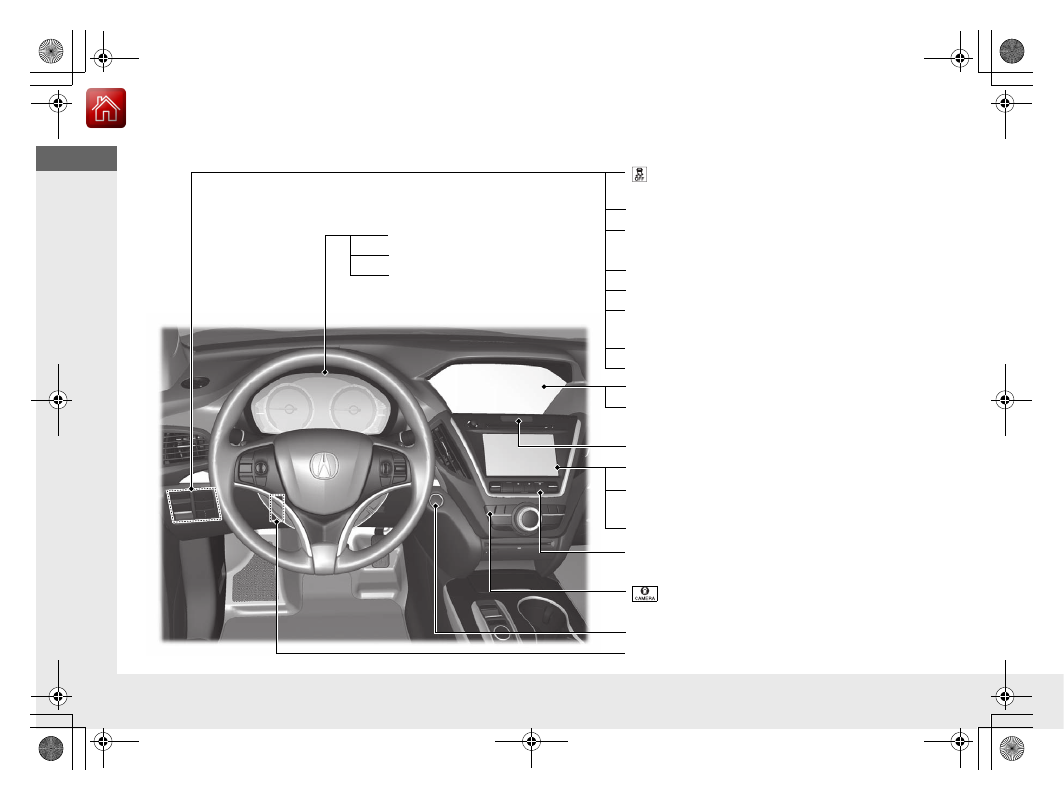

Visual Index

❙

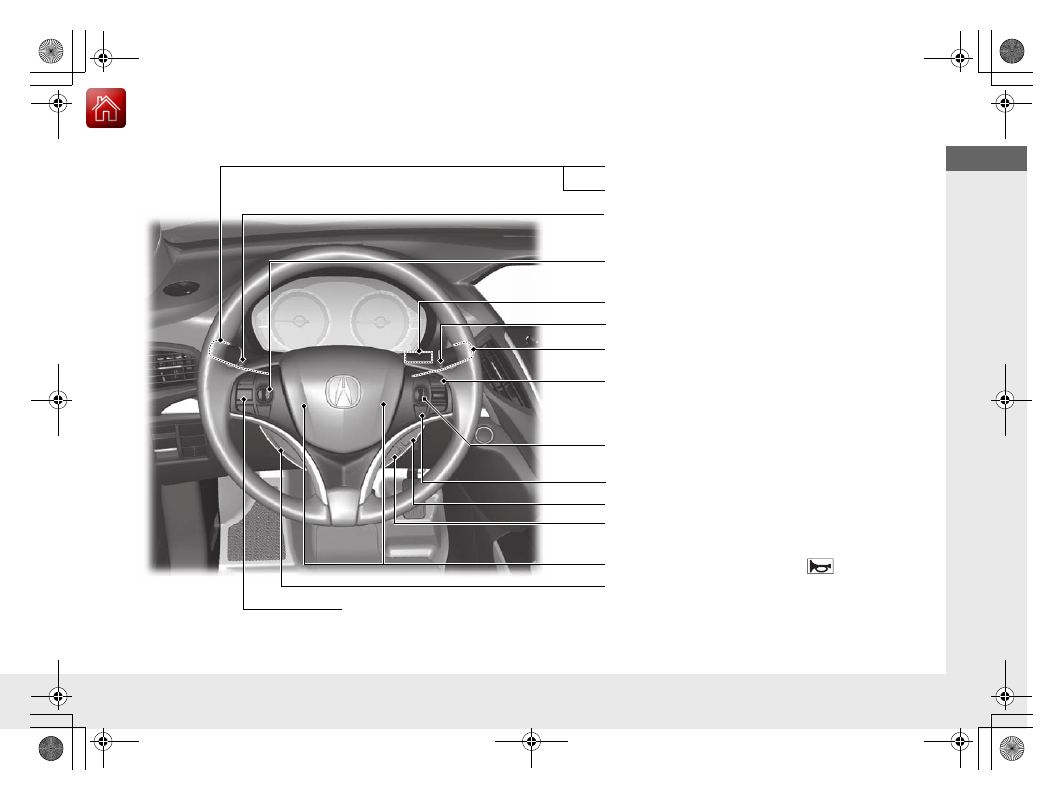

Steering Wheel Adjustments

(P183)

❙

POWER Button

(P164)

❙

Navigation System

() See the Navigation System Manual

❙

Audio/Information Screen

❙

Hazard Warning Button

❙

On Demand Multi-Use Display

TM

❙

Audio System

() See the Navigation System Manual

❙

System Indicators

(P78)

❙

Gauges

(P117)

❙

Multi-Information Display
(MID)

(P119)

❙

Climate Control System

(P214)

❙

Rear Defogger/Heated Door Mirror
Button

(P180)

❙

 (Surround View Camera) Button

*



() See the Navigation System Manual

❙

 (Vehicle Stability Assist (VSA®)

System OFF) Button

(P288)

❙

Parking Sensor System Button

*



(P319)

❙

Collision Mitigation Braking System

TM



(CMBS

TM

) OFF Button

(P310)

❙

Headlight Washer Button

*



(P178)

❙

Heated Windshield Button

*



(P180)

❙

Electric Parking Brake Switch

(P299)

❙

Road Departure Mitigation (RDM)
Button

(P276)

❙

Automatic Brake Hold Button

(P303)

17 ACURA MDX E-AWD-31TRX6000.book  4 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

5

Quick

 Referenc

e Guide

❙

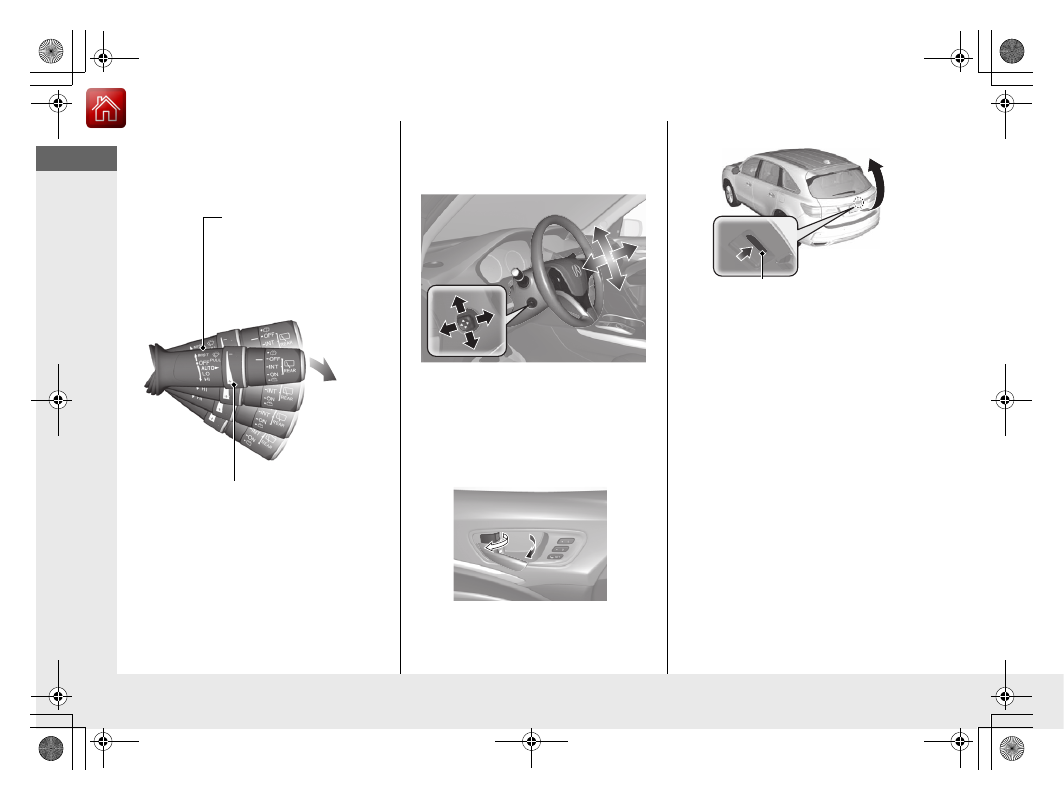

Wipers/Washers

(P175)

❙

Audio Remote Controls

() See the Navigation System Manual

❙

Paddle Shifter (Shift down)

(P254)

❙

Paddle Shifter (Shift up)

(P254)

❙

Horn (Press an area around

.)

❙

Navigation System Voice Control Buttons

() See the Navigation System Manual

❙

Brightness Control

(P179)

❙

Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons

(P259)

❙

TRIP Button

(P120)

❙

Interval Button

(P268)

❙

Lane Keeping Assist System (LKAS) Button

(P281)

❙

Multi-function Steering-wheel Controls

(P119)

❙

Heated Steering Wheel Button

*



(P211)

❙

Headlights/Turn Signals

(P167, 168)

❙

Fog Lights

*



(P171)

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  5 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

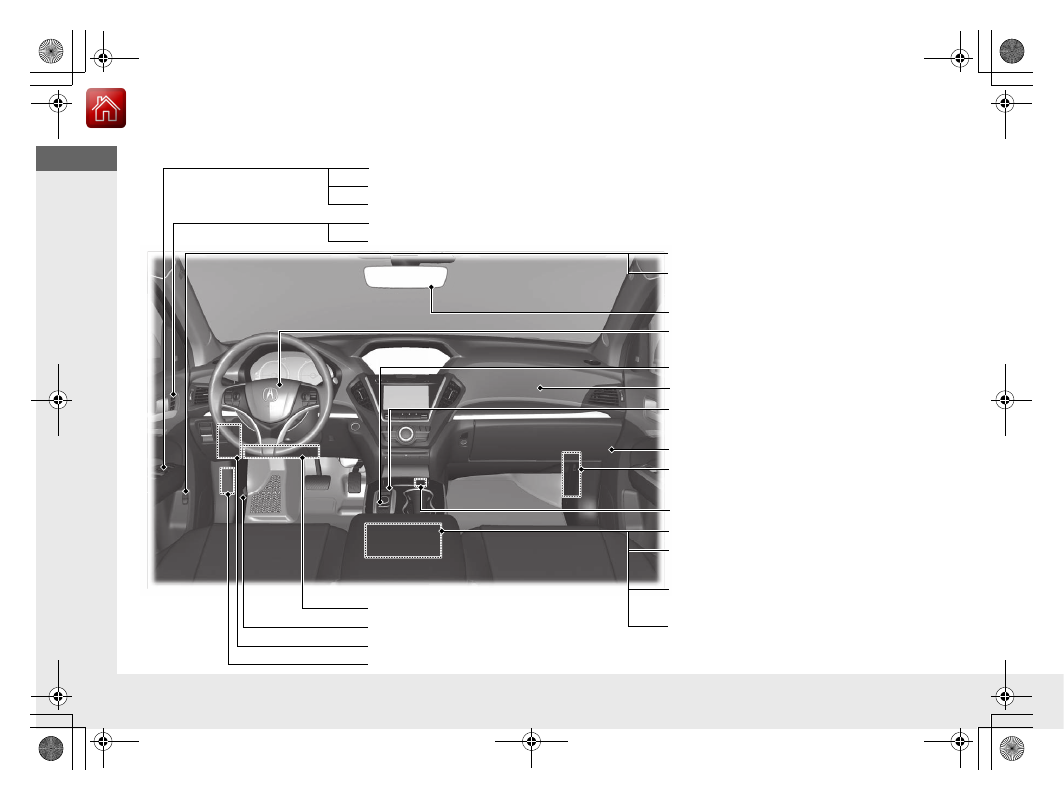

Visual Index

6

Quick

 Referenc

e Guide

❙

Power Window Switches

(P161)

❙

Hood Release Handle

(P340)

❙

Driver’s Side Interior Fuse Box

(P421)

❙

Driver’s Knee Airbag

(P52)

❙

Memory Buttons

(P182)

❙

SET Button

(P182)

❙

Shift Button
Electronic Gear Selector

(P247)

❙

Rearview Mirror

(P184)

❙

Driver’s Front Airbag

(P48)

❙

Accessory Power Socket

(P208)

❙

Passenger’s Side Interior Fuse
Box

(P424)

❙

Glove Box

(P203)

❙

Door Mirror Controls

(P185)

❙

Power Door Lock Master Switch

(P149)

❙

Driver’s Side Interior Fuse Box

(P422)

❙

Passenger’s Front Airbag

(P48)

❙

Power Tailgate Button

(P155)

❙

Fuel Fill Door Release Button

(P328)

❙

Dynamic Mode Button

(P256)

❙

USB Ports

() See the Navigation System Manual

❙

Auxiliary Input Jack

() See the Navigation System Manual

❙

Accessory Power Socket

*



(P208)

❙

AC Power Outlet

*



(P209)

17 ACURA MDX E-AWD-31TRX6000.book  6 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

7

Quick

 Referenc

e Guide

❙

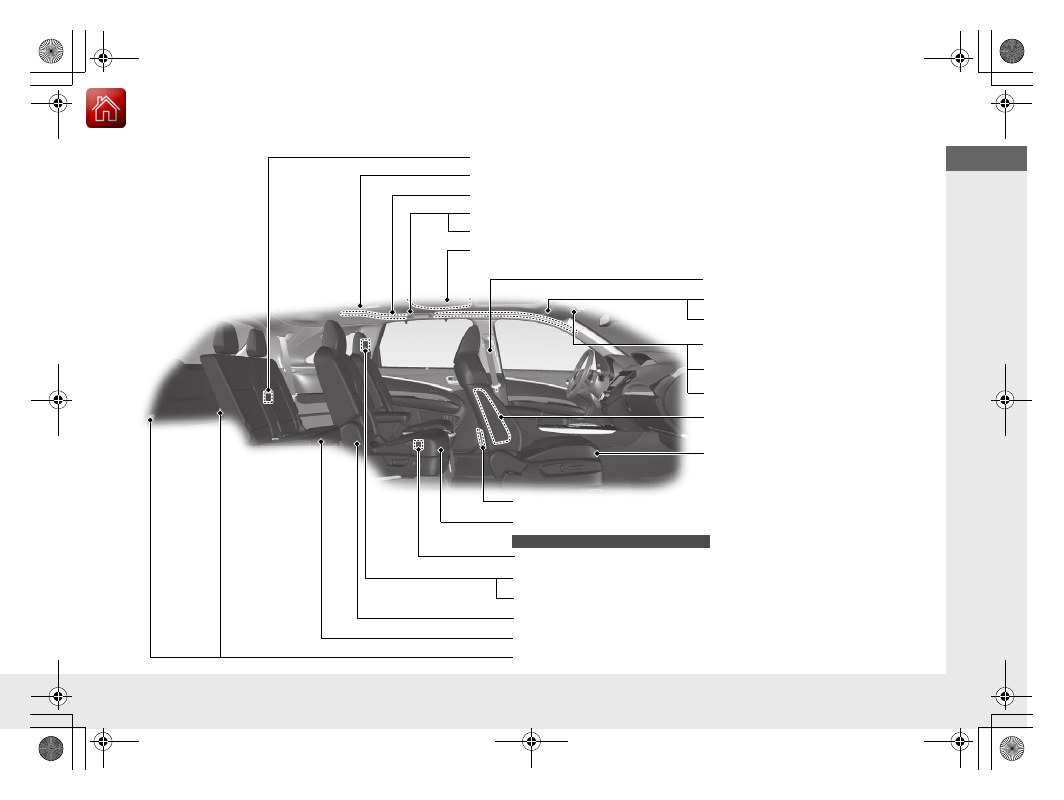

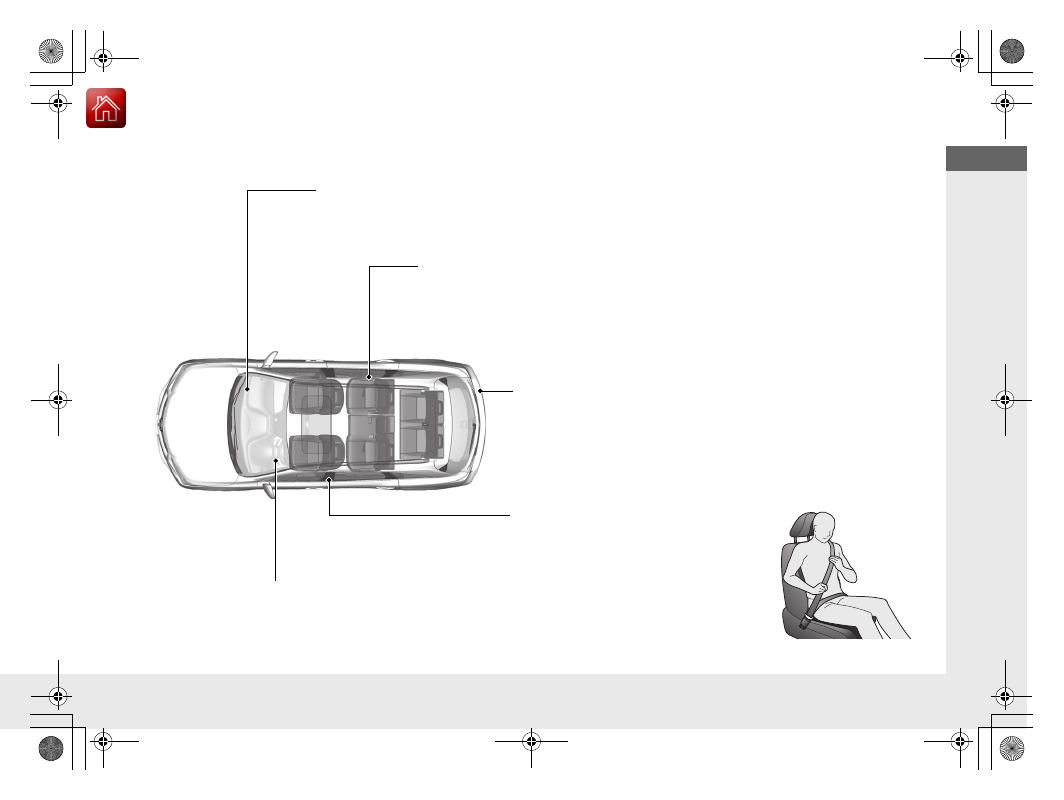

Side Curtain Airbags

(P56)

❙

Grab Handle

❙

Seat Belt with Detachable Anchor

*



(P42)

❙

Accessory Power Socket

(P209)

❙

Side Airbags

(P54)

❙

Front Seat

(P187)

❙

Sun Visors

❙

Vanity Mirrors

❙

Coat Hook

(P210)

❙

Seat Belts

(P40)

❙

Rear Entertainment System

*



() See the Navigation System Manual

❙

LATCH to Secure a Child Seat

(P65)

❙

Seat Belt (Installing a Child Seat)

(P68)

❙

Third Row Seat

(P198)

❙

Second Row Seat

(P189)

❙

USB Ports

*



() See the Navigation System Manual

❙

Seat Belt to Secure a Child Seat

(P68)

❙

USB Ports

() See the Navigation System Manual

Models with rear console compartment

❙

Map Lights

(P202)

❙

Moonroof Switch

(P163)

❙

Sunglasses Holder

(P211)

❙

Cargo Area Lights

(P202)

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  7 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

Visual Index

8

Quick

 Referenc

e Guide

❙

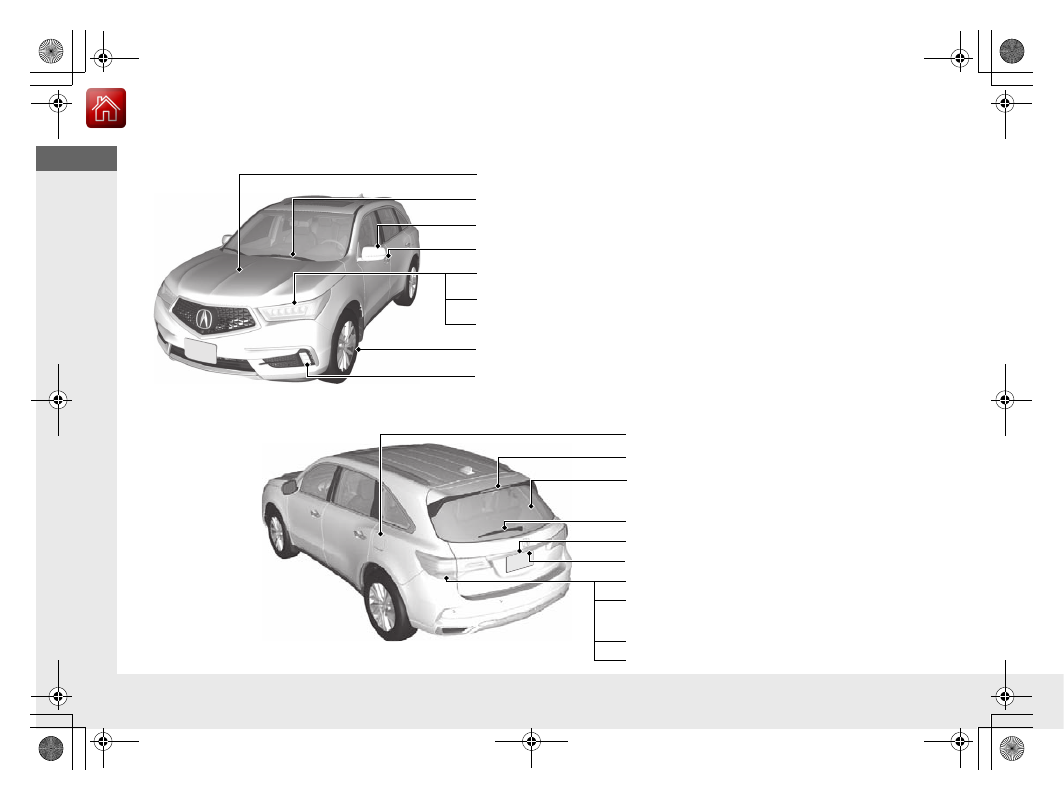

How to Refuel

(P328)

❙

High-Mount Brake Light

(P356)

❙

Opening/Closing the Tailgate

(P152)

❙

Back-Up Lights

(P355)

❙

Multi-View Rear Camera

*



(P326)

❙

Tailgate Outer Handle

(P152)

❙

Rear Side Marker Lights

(P354)

❙

Taillights

(P354)

❙

Brake Light and Rear Turn Signal Lights

(P353)

❙

Rear Wiper

(P177)

❙

Maintenance Under the Hood

(P339)

❙

Windshield Wipers

(P175, 357)

❙

Tires

(P361, 385)

❙

Door Lock/Unlock Control

(P139)

❙

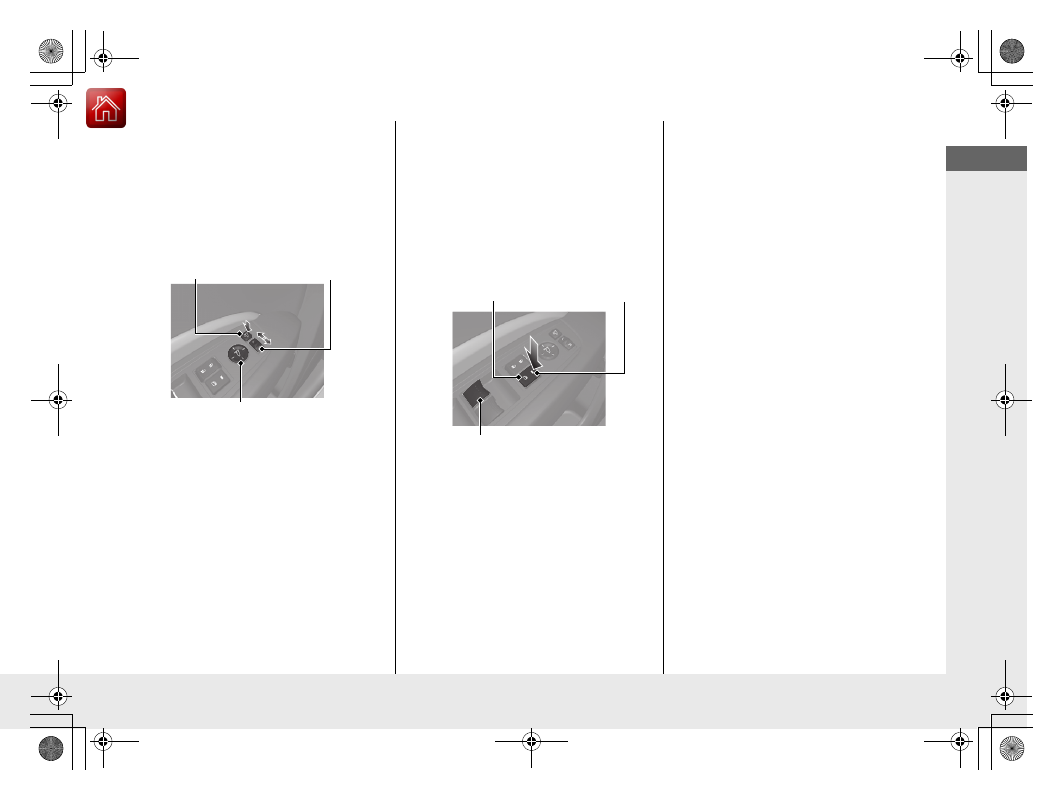

Power Door Mirrors

(P185)

❙

Headlights

(P168, 352)

❙

Side Marker Lights

(P168, 352)

❙

Front Turn Signal/Parking Lights

(P167, 352)

❙

Fog Lights

*



(P171, 352)

17 ACURA MDX E-AWD-31TRX6000.book  8 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

9

Quick

 Referenc

e Guide

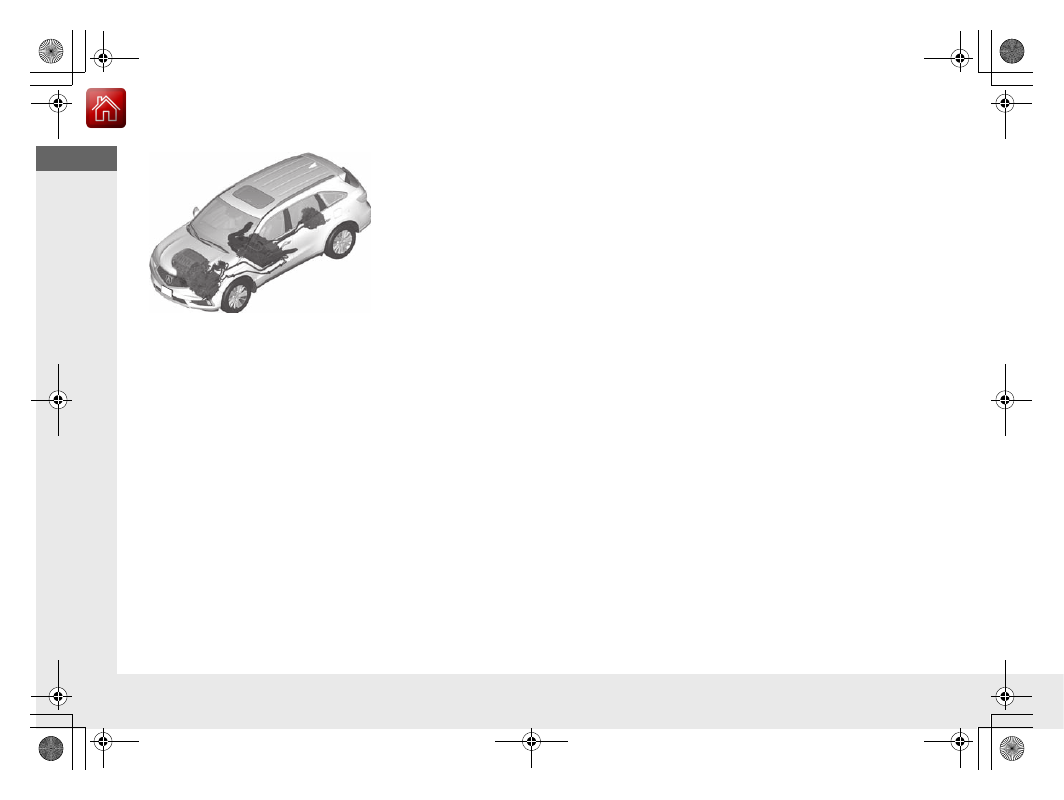

SPORT HYBRID Super Handling-All Wheel Drive

TM



(SPORT HYBRID SH-AWD®)

Your SPORT HYBRID SH-AWD® vehicle uses both electric motors and a gasoline engine as propulsion sources, with electric motors receiving
electricity from an internal High Voltage battery.

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  9 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

10

Quick

 Referenc

e Guide

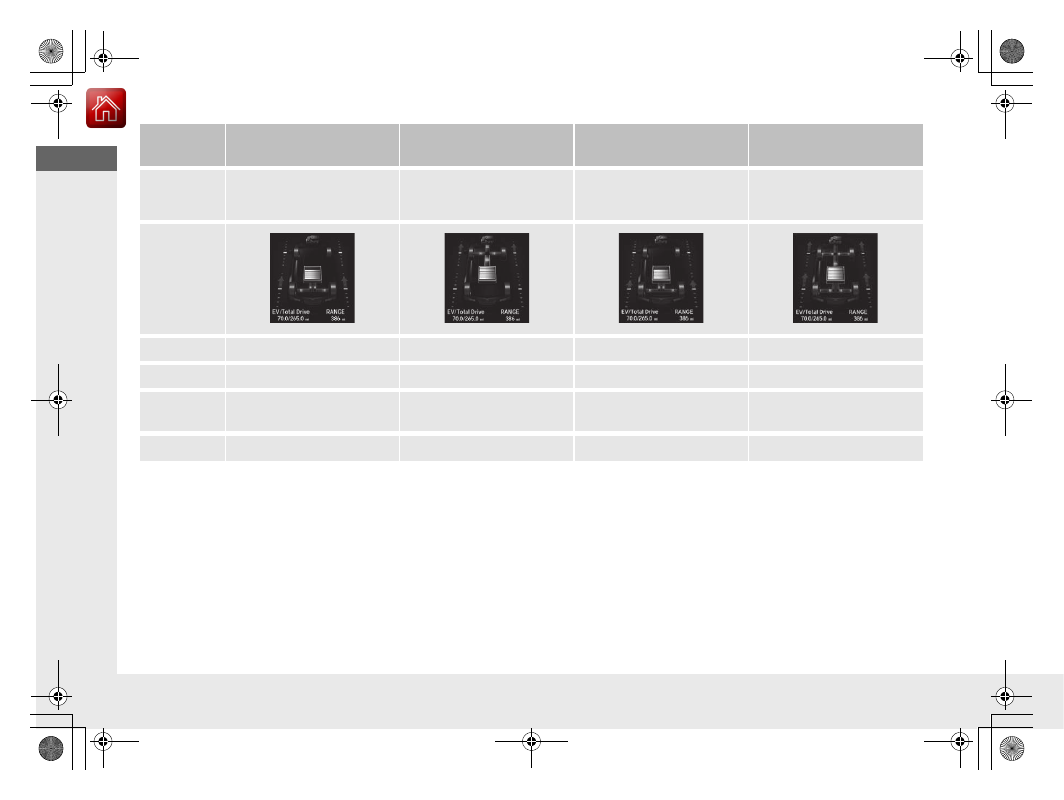

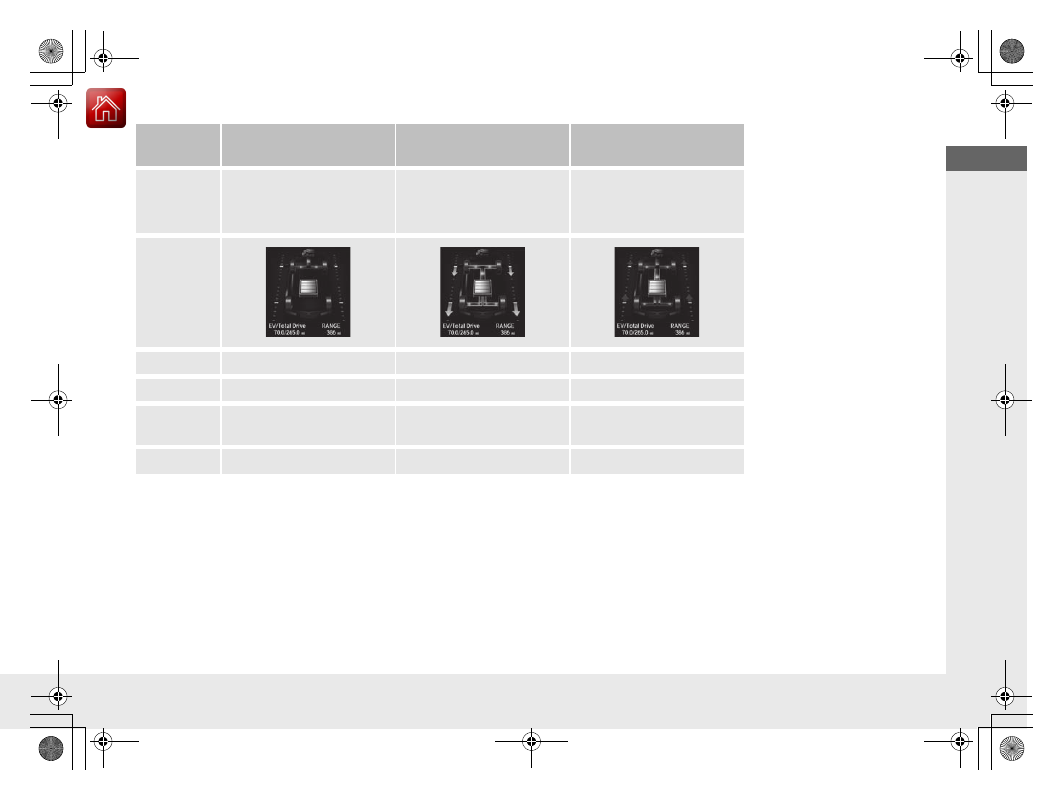

*: When Integrated Dynamics System is in SPORT+ mode, EV Launch and EV Cruising cannot be operated.
*: Operating paddle shifters when the gear position is in

(

D

 or

(

S

 cancels EV Launch and EV Cruising.

Operating

mode

EV Launch

*

Engine Drive

EV Cruising

*

Power Acceleration

Vehicle

Speed

Launch Acceleration:

●

Rear Motor Drive

Gentle Acceleration:

●

Engine Drive

Low Speed Cruise:

●

Rear Motor Drive

Aggressive Acceleration:

●

Engine Drive

●

Motor Assist

Power Flow

Monitor

Electric Motors

Drive

-  /  Drive

Drive

Drive

Generators

-

Generate  /  -

-

-

Gasoline

Engine

Stopped

Running

Stopped

Running

Battery

Discharges

Charges/Discharges

Discharges

Discharges

17 ACURA MDX E-AWD-31TRX6000.book  10 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

11

Quick

 Referenc

e Guide

Operating

mode

Engine Cruising

Regeneration

AWD Mode

Vehicle

Speed

High Speed Cruise:

●

Engine Drive

Deceleration:

●

Front & Rear Regeneration

Slippery Condition:

●

Engine Drive

●

Front Generation

●

Rear Motor Drive

Power Flow

Monitor

Electric Motors

Drive

Regenerate

Drive

Generators

Generate

Regenerate

Generate

Gasoline

Engine

Running

Stopped

Running

Battery

Charges/Discharges

Charges

Charges/Discharges

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  11 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

12

Quick

 Referenc

e Guide

Energy Efficiency

As with a gasoline-powered vehicle, hybrid vehicle fuel efficiency and driving range is most impacted by your driving style. Aggressive
acceleration and high-speed driving can easily trigger the system to switch the propulsion source to the gasoline-powered engine.
In addition, heavy climate control system use negatively affects vehicle range and efficiency. Either of these use patterns will more quickly
reduce the High Voltage battery's state of charge.

Battery Types

There are two types of batteries used in this vehicle: a standard 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems; and a high voltage battery that is used to power the propulsion motors and recharge the 12-volt battery.

Regenerative Energy and Regenerative Braking

When decelerating without the accelerator being depressed or the brake pedal being applied, or while driving downhill, the electric motors
act as generators that recover a portion of the electrical energy that was used to accelerate the vehicle. This regenerative braking slows the
vehicle in a manner similar to engine braking in a gasoline-powered vehicle.
When the high voltage battery is fully charged or its condition is affected by extreme temperatures or other factors, regenerative braking
may not work.

17 ACURA MDX E-AWD-31TRX6000.book  12 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

13

Quick

 Referenc

e Guide

Auto Engine Stop/Start

Your vehicle’s gasoline engine will automatically stop and start during vehicle operation as needed to meet driving and battery conditions.
These are some examples that could cause the gasoline engine to automatically start.

In the following cases, however, Auto Engine Stop may not activate.
● When the Integrated Dynamics System is in SPORT+ mode.

● The vehicle momentarily needs additional power for aggressive acceleration, driving uphill, or driving at high speeds.

● The climate control system is in heavy use.

● The High Voltage battery temperature is high or low.

● The High Voltage battery state of charge is low.

● When the gear position is in

(

S or

(

R.

Sounds Unique to the SPORT HYBRID SH-AWD® System

When you first start driving this vehicle, you likely will hear some unfamiliar sounds, particularly when you first turn on the power system,
while driving, and just after parking. Some of these sounds are unique to this vehicle‘s powertrain, fuel, and climate control systems; others
are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design.
These sounds are not a cause for concern, and you will soon recognize them as normal and thus be able to detect any new or unusual noise
should one develop.

17 ACURA MDX E-AWD-31TRX6000.book  13 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

14

Quick

 Referenc

e Guide

Safety Precautions

Do not touch the High Voltage system

Attempting to take a High Voltage system component apart or disconnect one of its wires
can cause severe electrical shock. If the High Voltage system needs maintenance or repair, it
should be performed at an Acura dealer.

If a crash occurs

●Be careful of electric shock hazard.

u

If a severe crash damages your vehicle’s High Voltage system, there is a possibility of electrical shock

due to exposed High Voltage components or wires. If this happens, do not touch any of the High
Voltage system components or any of its orange wires.
●Avoid contact with High Voltage battery fluid.

u

The High Voltage battery contains a flammable electrolyte that could leak as a result of a severe

crash. Avoid any skin or eye contact with the electrolyte as it is corrosive. If you accidentally touch it,
flush your eyes or skin with a large quantity of water for at least five minutes, and seek medical
attention immediately.
●Use a fire extinguisher for an electrical fire.

u

Attempting to extinguish an electrical fire with a small quantity of water, from a garden hose for

instance, can be dangerous.
●Anytime the vehicle is damaged in a crash, have it repaired by an Acura dealer.

Emergency Shutdown System for the High Voltage System

The emergency shutdown system may activate when the vehicle is impacted by some
incident such as a crash. When this system activates, the High Voltage system automatically
shuts down, and your vehicle no longer will move under its own power. To return the High
Voltage system back to normal operation, consult an Acura dealer.

Acura collects and recycles High Voltage batteries used in its vehicles – consult an Acura
dealer for more information.

17 ACURA MDX E-AWD-31TRX6000.book  14 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

15

Quick

 Referenc

e Guide

Safe Driving

(P31)

Airbags

(P45)

● Your vehicle is fitted with airbags to help protect you and

your passengers during a moderate-to-severe collision.

Child Safety

(P60)

● All children 12 and younger should be seated in the rear seat.

● Smaller children should be properly restrained in a forward-facing child seat.

● Infants must be properly restrained in a rear-facing child seat.

Exhaust Gas Hazard

(P75)

● Your vehicle emits dangerous exhaust gases that contain carbon

monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.

Before Driving Checklist

(P36)

● Before driving, check that the front seats, head restraints,

steering wheel, and mirrors have been properly adjusted.

Seat Belts

(P37)

● Fasten your seat belt and sit upright well

back in the seat.

● Check that your passengers are wearing

their seat belts correctly.

Fasten your lap belt as
low as possible.

17 ACURA MDX E-AWD-31TRX6000.book  15 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

16

Quick

 Referenc

e Guide

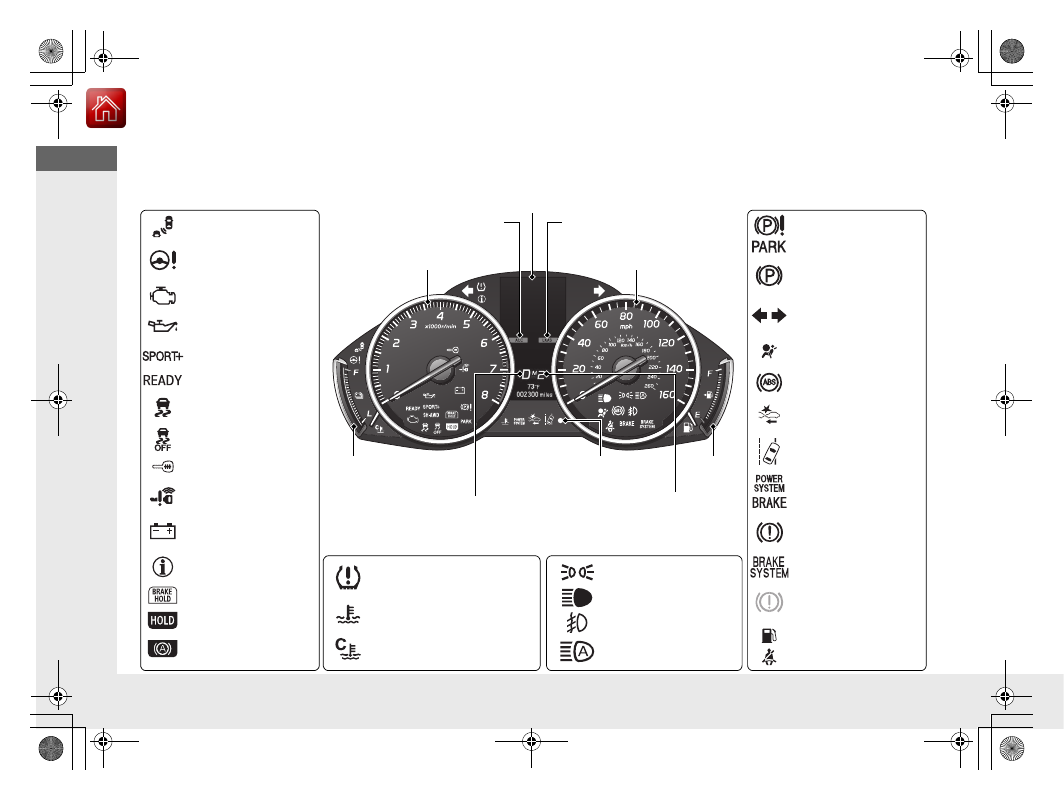

Instrument Panel

(P77)

System Indicators

Malfunction Indicator

Lamp

Low Oil Pressure

Indicator

12-Volt Battery

Charging System

Indicator

Anti-lock Brake System

(ABS) Indicator

Vehicle Stability Assist

(VSA®) System

Indicator

VSA® OFF Indicator

Speed-sensitive Electric

Power Steering (EPS)

System Indicator

Lights Indicators

Lights On Indicator

High Beam Indicator

Immobilizer System

Indicator

Seat Belt Reminder

Indicator

System Indicators

System Message

Indicator

Brake System

Indicator (Red)

Supplemental

Restraint System

Indicator

Low Fuel Indicator

Gauges

(P117)

/Multi-Information Display (MID)

(P119)

/System Indicators

(P78)

Low Tire Pressure/

TPMS Indicator

Turn Signal and

Hazard Warning

Indicators

Keyless Access System

Indicator

High Voltage Battery

Charge Level Gauge

Security System Alarm Indicator

Fuel

Gauge

Tachometer

MID

Speedometer

Gear Position Indicator

M (sequential mode) Indicator/

Sequential Mode Gear Selection

Indicator

Brake System

Indicator (Amber)

Blind spot information

(BSI) Indicator

System Indicators

Collision Mitigation

Braking System

TM



(CMBS

TM

) Indicator

Road Departure

Mitigation (RDM)

Indicator

Lane Keeping Assist System

(LKAS) Indicator

Adaptive Cruise Control (ACC)

with Low Speed Follow (LSF)

Indicator

U.S.

Canada

U.S.

Canada

Fog Light Indicator

*

Automatic Brake Hold

System Indicator

Automatic Brake Hold

Indicator

U.S.

Canada

Electric Parking Brake

System Indicator

Electric Parking Brake

Indicator

U.S.

Canada

Auto High-Beam

Indicator

POWER SYSTEM

Indicator

High Temperature Indicator

Low Temperature Indicator

SPORT+ Mode

Indicator

READY Indicator

17 ACURA MDX E-AWD-31TRX6000.book  16 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

17

Quick

 Referenc

e Guide

Controls

(P135)

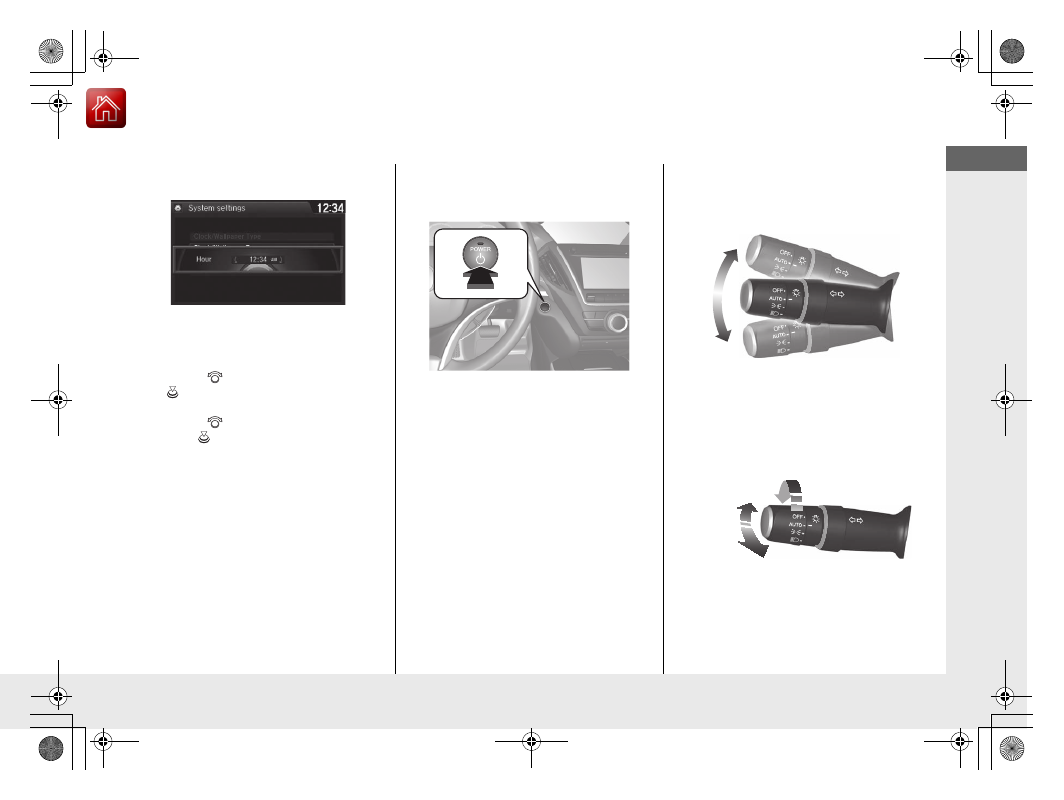

Clock

(P136)

a

Enter the Clock Adjustment screen.

2 Adjusting the Clock (P136)

b

Rotate

 to change hour, then press

.

c

Rotate

 to change minute, then

press .

The navigation system receives signals from
GPS satellites, updating the clock
automatically.

POWER Button

(P164)

Press the button to change the vehicle’s
power mode.

Turn Signals

(P167)

Lights

(P168)

Turn Signal Control Lever

Right

Left

Light Control Switches

Low Beam

High Beam

Flashing

* Not available on all models

17 ACURA MDX E-AWD-31TRX6000.book  17 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

18

Quick

 Referenc

e Guide

Wipers and Washers

(P175)

AUTO should always be turned OFF before
cleaning the windshield or driving through a
car wash.

Wiper/Washer Control Lever

MIST
OFF
AUTO: Wiper speed varies
automatically
LO: Low speed wipe
HI: High speed wipe

Pull toward
you to spray
washer fluid.

Adjustment Ring

(

-: Low Sensitivity

(

+: High Sensitivity

Steering Wheel

(P183)

● To adjust, push and hold the adjustment

switch to move the steering wheel to the
desired position.

Unlocking the Front
Doors from the Inside

(P148)
● Pull either front door inner handle to

unlock and open it at the same time.

Tailgate

(P152, 153)

● Press the tailgate outer handle to unlock

and open the tailgate when you carry the
keyless access remote.

● Press the power tailgate button on the

driver’s door or the remote transmitter to
open and close the power tailgate.

Tailgate Outer Handle

17 ACURA MDX E-AWD-31TRX6000.book  18 ページ  ２０１７年１月２０日　金曜日　午後２時５３分

19

Quick

 Referenc

e Guide

Power Door Mirrors

(P185)
● With the power mode in ON, move the

selector switch to L or R.

● Push the appropriate edge of the

adjustment switch to adjust the mirror.

● Press the fold button to fold the door

mirrors.

Selector Switch

Adjustment Switch

Fold Button

Power Windows

(P161)

● With the power mode in ON, open and

close the power windows.

● If the power window lock button is in the

off position, each passenger’s window
can be opened and closed with its own
switch.

● If the power window lock button is in the

on position (indicator is on), each
passenger’s window switch is disabled.

Power Window Lock Button

Window Switch

Indicator

17 ACURA MDX E-AWD-31TRX6000.book  19 ページ  ２０１７年１月２０日　金曜日　午後２時５３分
