Temporarily Repairing a Flat Tire

u

Continued







4. Recheck the air pressure using the air only

hose on the compressor.

u

Do not turn the air compressor on to
check the pressure.

2 Inflating An Under-inflated Tire P. 284

If the air pressure is:

u

Less than 19 psi (130 kPa), do not add air
or continue driving. The leak is too
severe. Call for help and have your
vehicle towed.

2 Emergency Towing P. 308

u

33 psi (230 kPa) or more, continue
driving for another 10 minutes or until
you reach the nearest service station. Do
not exceed 50 mph (80 km/h).

u

Greater than 19 psi (130kPa), but less
than 33 psi (230kPa), add air using the
pump until the tire pressure reaches 33
psi (230 kPa), then drive carefully for 10
more minutes or until you reach the
nearest service station. Do not exceed 50
mph (80 km/h).

5. Repackage and properly stow the kit.

Air Only Hose

14 ACURA TSX 5D-31TL76300.book  283 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

uu

Temporarily Repairing a Flat Tire

u

284









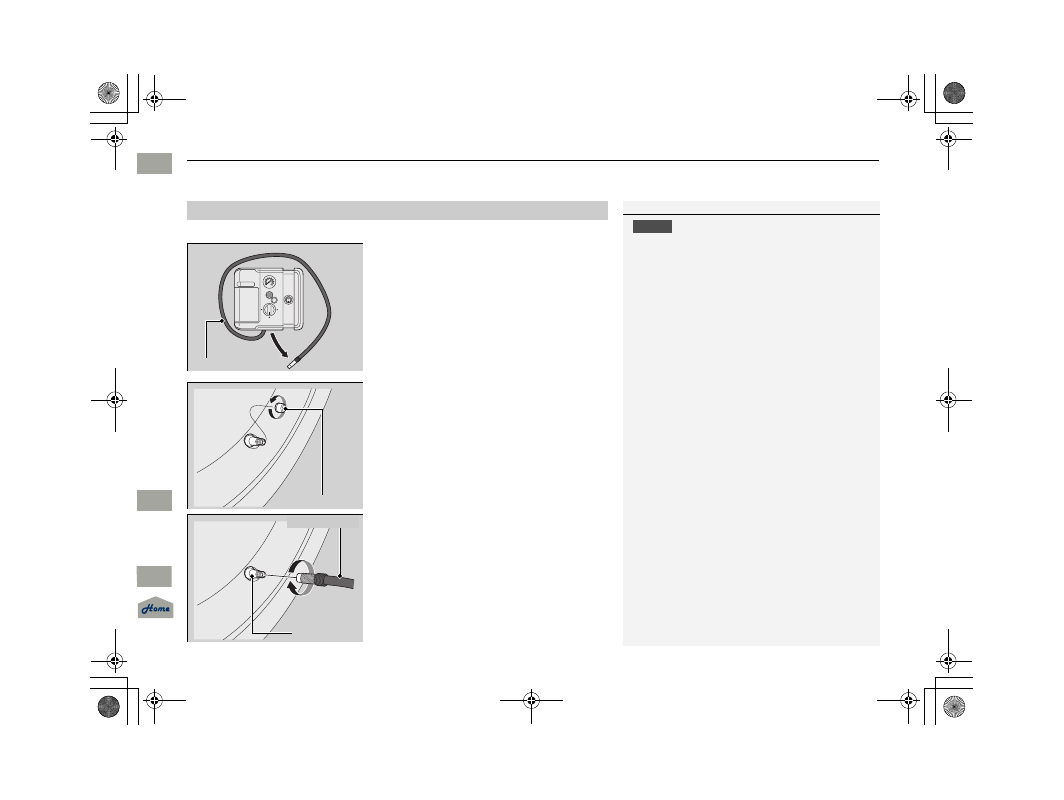

You can use the kit to inflate a non-punctured under-inflated tire.

1. Pull the handle on the cargo area floor lid

and open the lid.

2 Getting Ready to Temporarily Repair

the Flat Tire P. 278

2. Pull the strap on the under-floor storage.

3. Remove the kit from the case.

u

Place the kit on flat ground near the tire
to be inflated, away from traffic.

4. Remove the air only hose from the kit.

5. Remove the valve cap.

6. Attach the air only hose onto the tire valve

stem. Screw it until it is tight.

■

Inflating An Under-inflated Tire

1

Inflating An Under-inflated Tire

NOTICE

Do not operate the tire repair kit compressor for
more than 15 minutes. The accessory power socket
and compressor can overheat and become
permanently damaged.

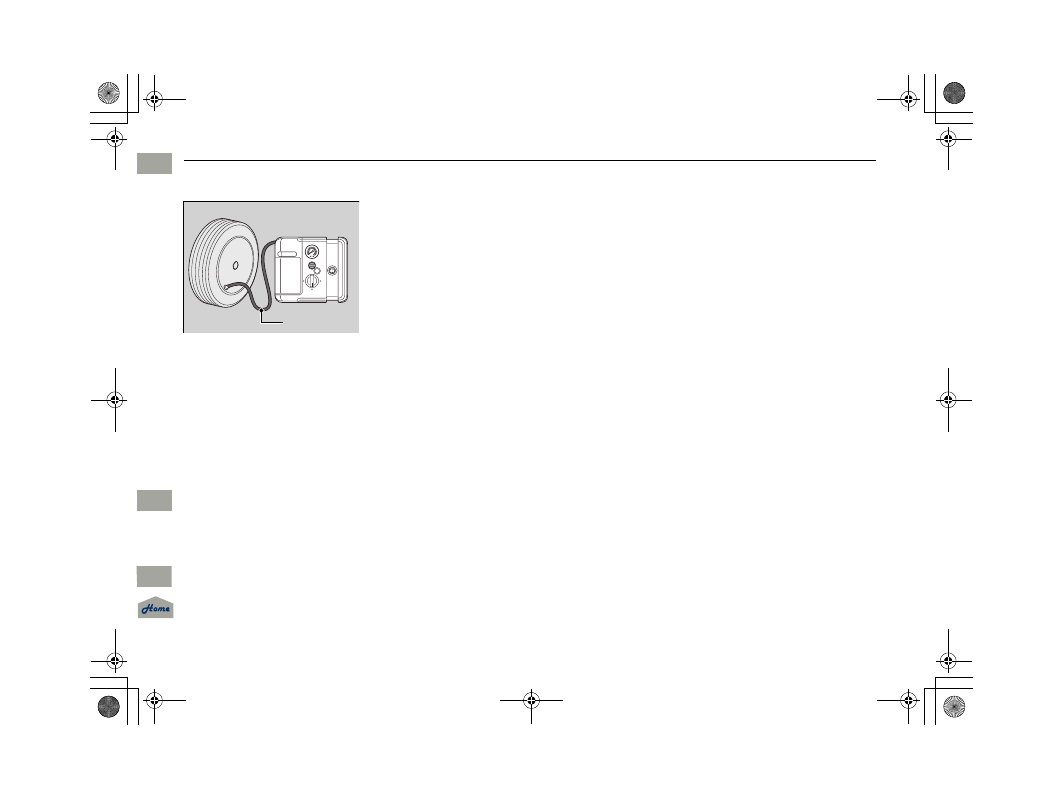

Air Only Hose

Valve Cap

Valve Stem

Air Only Hose

14 ACURA TSX 5D-31TL76300.book  284 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

285

uu

Temporarily Repairing a Flat Tire

u







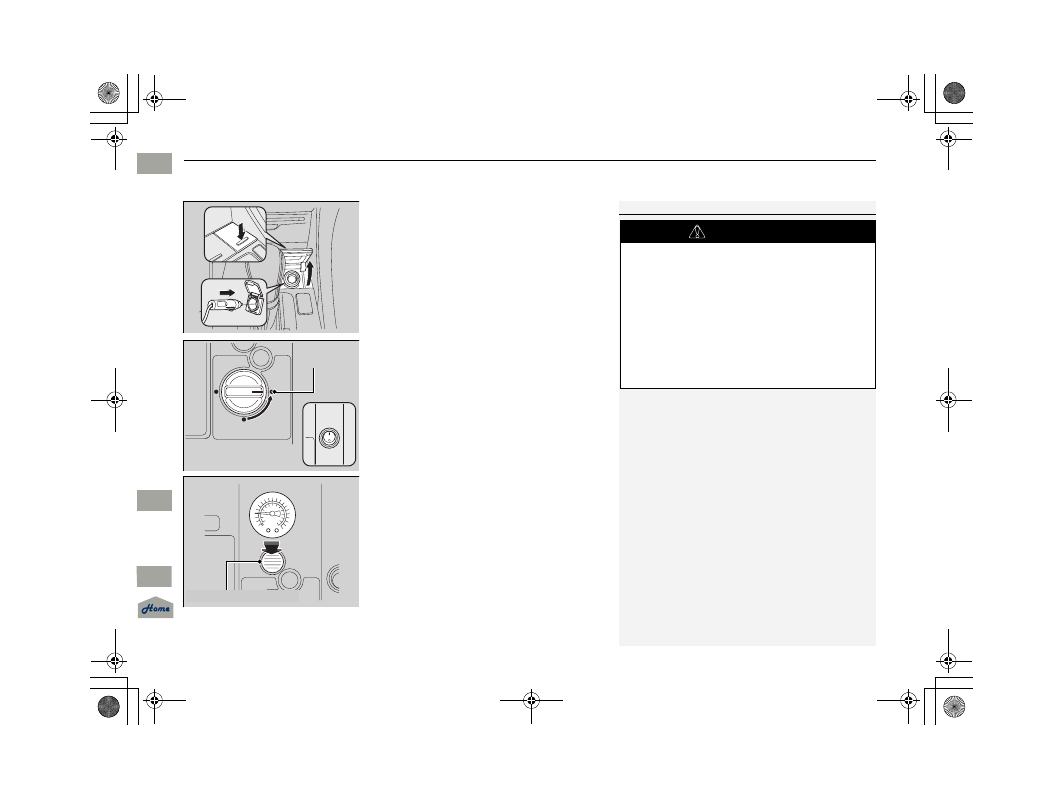

7. Plug in the kit to the accessory power

socket. Be careful not to pinch the cord in
a door or window.

u

Do not plug any other electric devices
to other accessory power sockets.

8. Start the engine.

u

Keep the engine running w hile

injecting air.

2 Carbon Monoxide Gas P. 61

9. Turn the selector switch to AIR ONLY.

10. Press the inflator switch to turn on the kit.

u

The compressor starts to inject air into
the tire.

11. Inflate the tire to the specified air pressure.

12. Turn off the kit.

u

Check the pressure gauge on the
air compressor.

u

If overinflated, press the pressure

relief button.

1 3. Unplug the kit from  the accessory

power socket.

14. Unscrew the air only hose from the tire

valve stem. Reinstall the valve cap.

15. Repackage and properly stow the kit.

1

Inflating An Under-inflated Tire

3

WARNING

Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.

Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with the vehicle outdoors.

AIR ONLY
side

ON

Pressure Relief Button

14 ACURA TSX 5D-31TL76300.book  285 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

286









Tools

Types of Tools

Vehicles with optional spare tire kit

1

Types of Tools

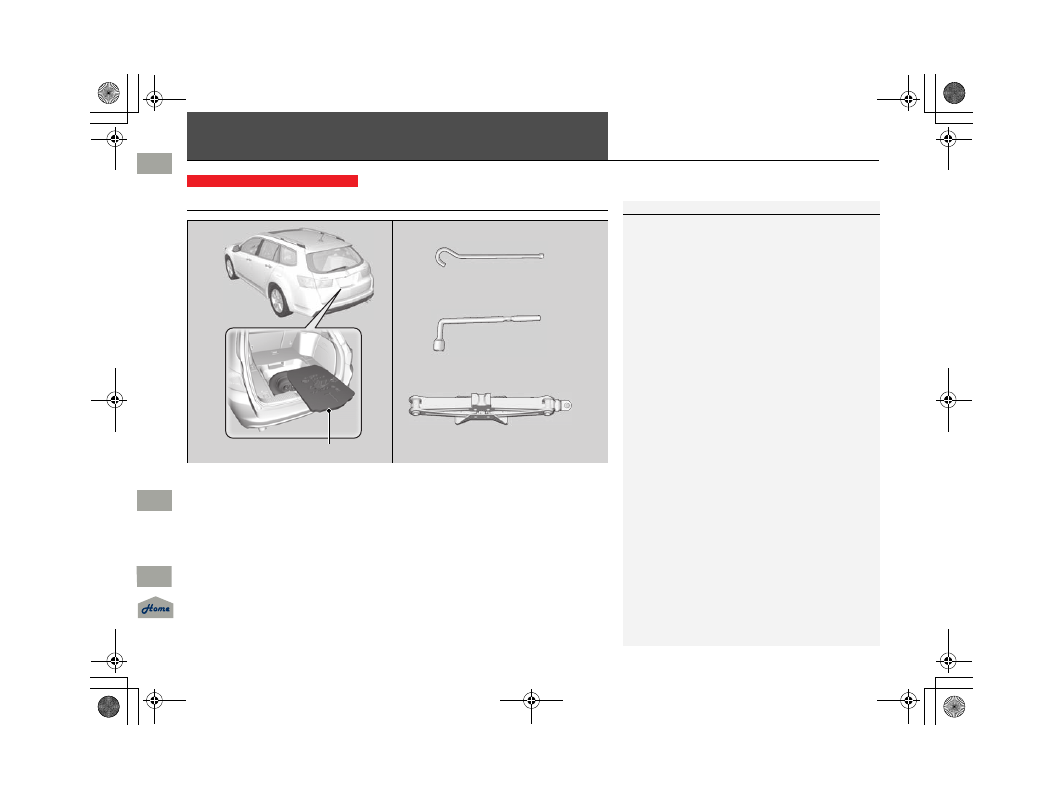

The tools are stored in the cargo area.

Wheel Nut Wrench/

Jack Handle

Jack

Jack Handle Bar

Tool Case

14 ACURA TSX 5D-31TL76300.book  286 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

287

Continued







If a Tire Goes Flat

Changing a Flat Tire

If a tire goes flat while driving, grasp the steering wheel firmly, and brake
gradually to reduce speed. Then, stop in a safe place. Replace the flat tire with
the compact spare tire. Go to a dealer as soon as possible to have the full-size tire
repaired or replaced.

1. Park the vehicle on firm, level, and non-slippery surface and apply the

parking brake.

2. Move the shift lever in

 (

P .

3. Set the parking brake.

4. Turn on the hazard warning lights and turn the ignition switch to LOCK

 (

0 .

Vehicles with optional spare tire kit

1

Changing a Flat Tire

Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm

2

)

When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.

The compact spare tire and wheel in your vehicle are
specifically for this model.

Do not use them with another vehicle.

Do not use another type of compact spare tire or
wheel with your vehicle.

Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it will
the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.

14 ACURA TSX 5D-31TL76300.book  287 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

288

uu

If a Tire Goes Flat

u

Changing a Flat Tire









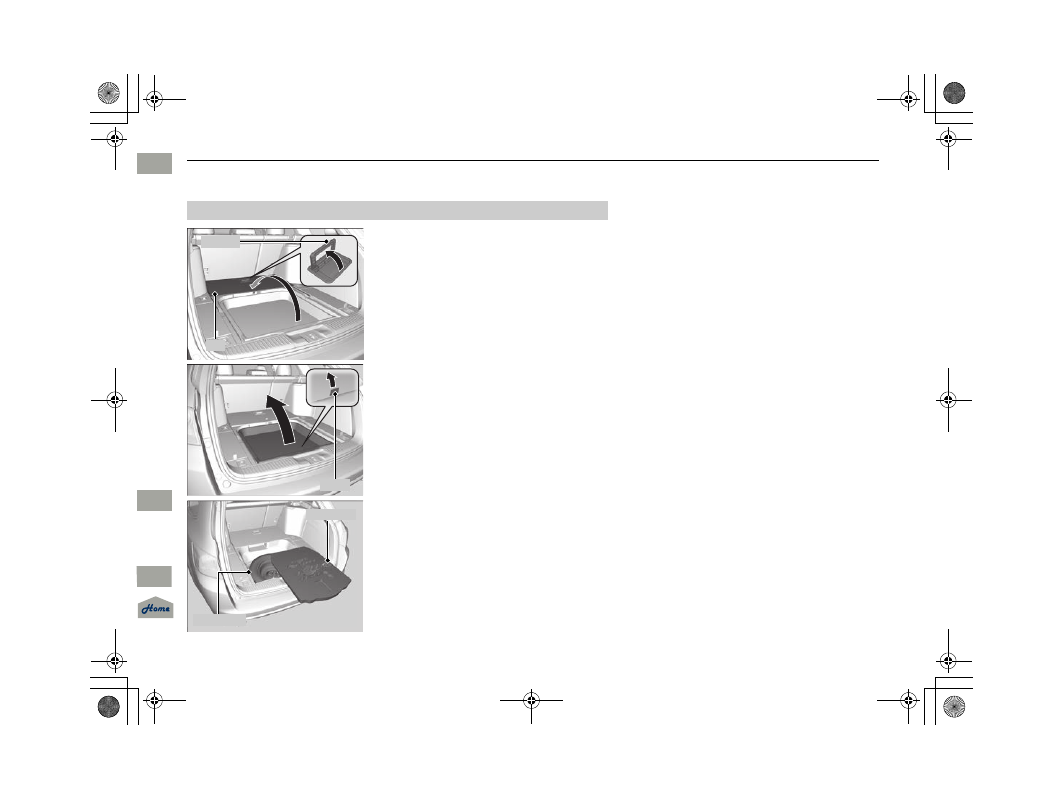

1. Pull the handle on the cargo floor lid and

open the lid.

2. Pull the strap on the under-floor storage.

3. Take the tool case out of the cargo area.

Take the jack and wheel nut wrench out of
the tool case.

4. Unscrew the wing bolt, and remove the

spacer cone. Then, remove the spare tire.

■

Getting Ready to Replace the Flat Tire

Handle

Lid

Strap

Tool Case

Spare Tire

14 ACURA TSX 5D-31TL76300.book  288 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

289

uu

If a Tire Goes Flat

u

Changing a Flat Tire

Continued







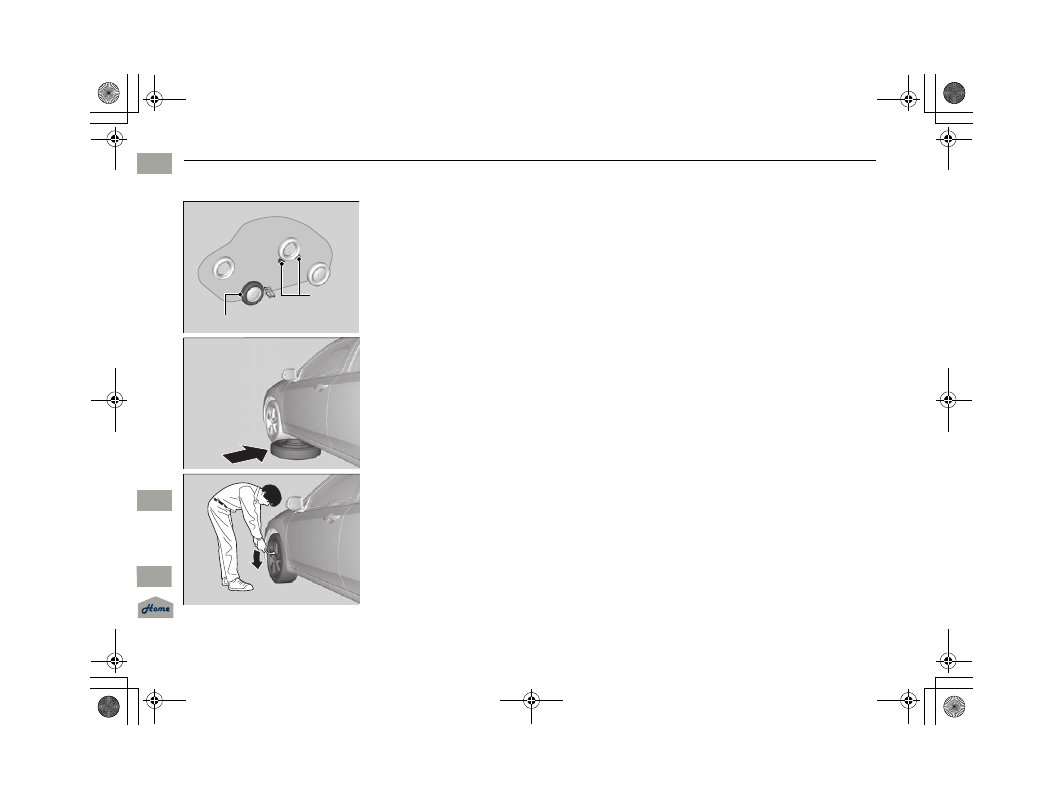

5. Place a wheel block or rock in front and rear

of the wheel diagonal to the flat tire.

6. Place the compact spare tire (wheel side up)

under the vehicle body, near the tire that
needs to be replaced.

7. Loosen each wheel nut about one turn

using the wheel nut wrench.

Wheel
Blocks

The tire to be replaced.

14 ACURA TSX 5D-31TL76300.book  289 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

uu

If a Tire Goes Flat

u

Changing a Flat Tire

290









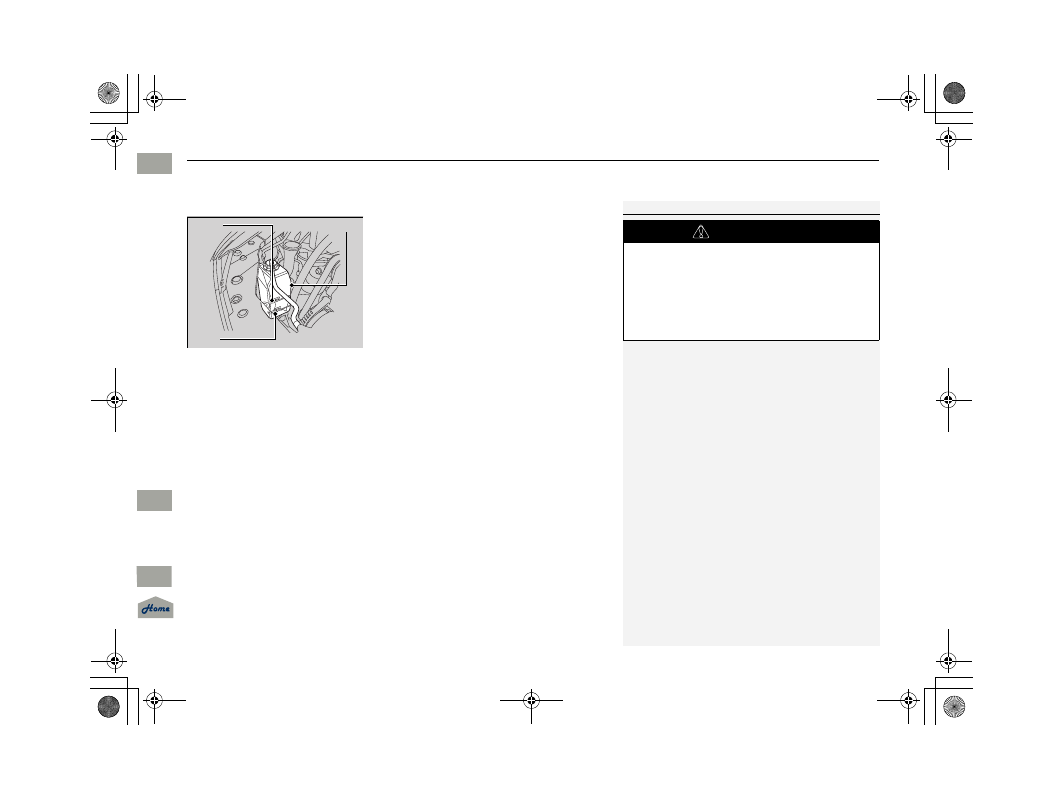

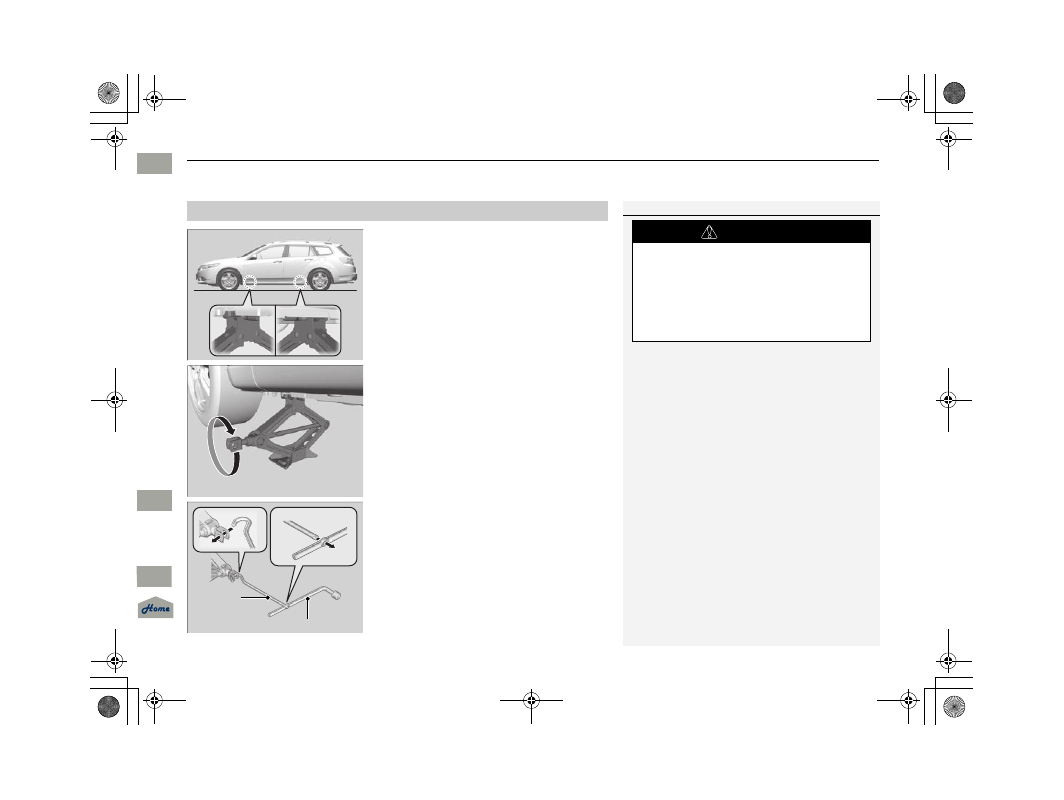

1. Place the jack under the jacking point

closest to the tire to be changed.

2. Turn the end bracket (as shown in the

image) clockwise until the top of the jack
contacts the jacking point.

u

Make sure that the jacking point tab is
resting in the jack notch.

3. Raise the vehicle, using the extension

bar and the jack handle, until the tire is off
the ground.

■

How to Set Up the Jack

1

How to Set Up the Jack

Do not use the jack with people or luggage in the
vehicle.

Use the jack provided in your vehicle.

Other jacks may not support the weight (“load”) or
their shape may not match.

The following instructions must be followed to use
the jack safely.

•

Do not use while the engine is running.

•

Use only where the ground is firm and level.

•

Use only at the jacking points.

•

Do not get in the vehicle while using the jack.

•

Do not put anything on top of or underneath the
jack.

3

WARNING

The vehicle can easily roll off the jack,
seriously injuring anyone underneath.

Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.

Wheel Nut Wrench as Jack Handle

Extension
Bar

14 ACURA TSX 5D-31TL76300.book  290 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

Continued

291

uu

If a Tire Goes Flat

u

Changing a Flat Tire







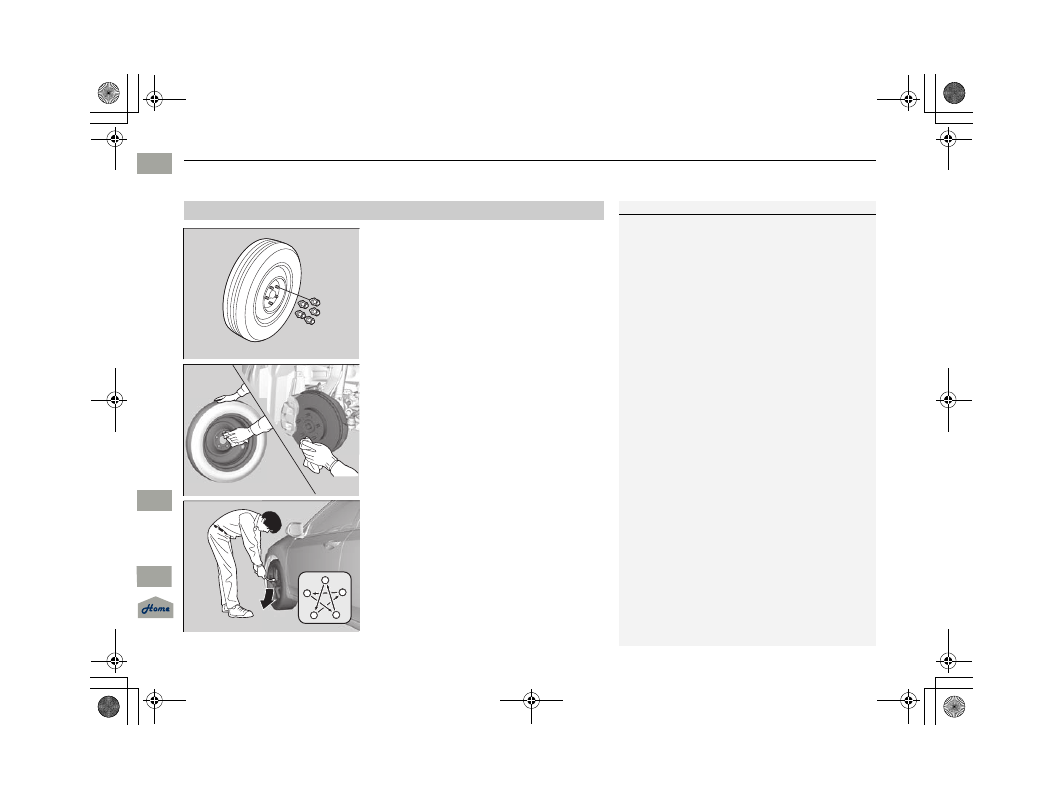

1. Remove the wheel nuts and flat tire.

2. Wipe the mounting surfaces of the wheel

with a clean cloth.

3. Mount the compact spare tire.

4. Screw the wheel nuts until they touch

the lips around the mounting holes, and
stop rotating.

5. Lower the vehicle and remove the jack.

Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.

Wheel nut torque:
80 lbf∙ft (108 N∙m, 11 kgf∙m)

■

Replacing the Flat Tire

1

Replacing the Flat Tire

Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.

14 ACURA TSX 5D-31TL76300.book  291 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

uu

If a Tire Goes Flat

u

Changing a Flat Tire

292









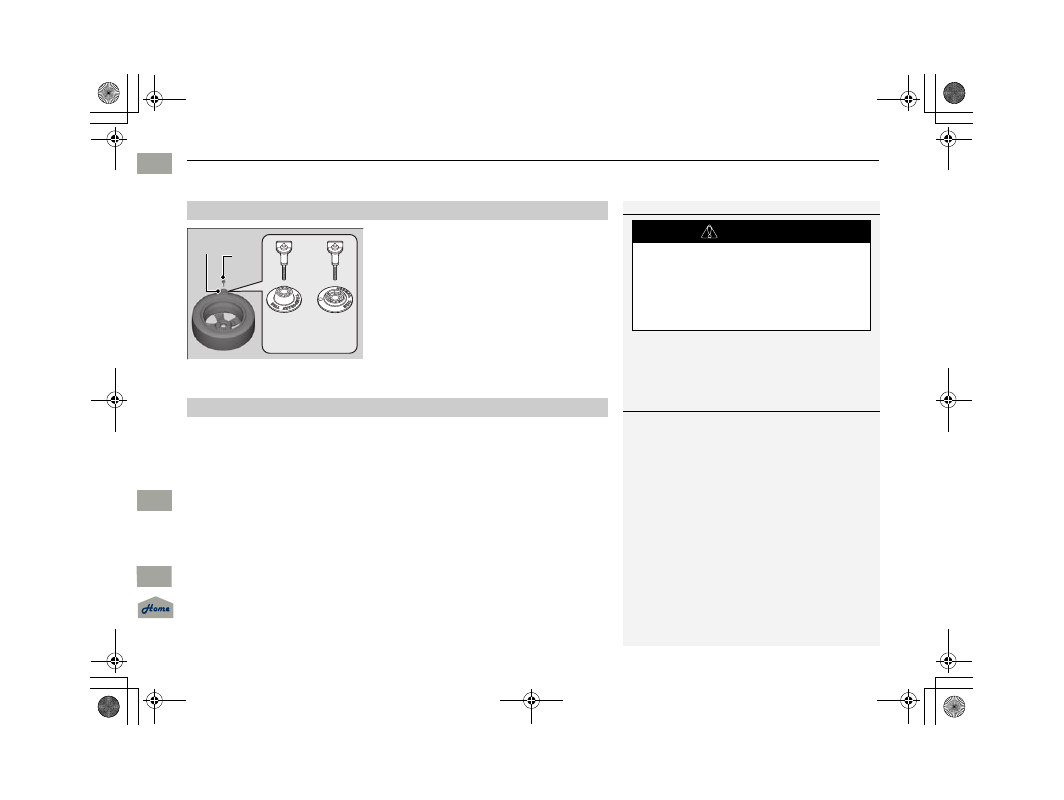

1. Remove the center cap and place the flat

tire face down in the spare tire well.

2. Remove the spacer cone from the wing

bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.

3. Securely put the jack and wheel nut wrench

back in the tool case. Store the case in the
cargo area.

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. CHECK TPMS
SYSTEM appears on the multi-information display, but this is normal.

If you replace the tire with a specified regular tire, the warning message on
the multi-information display and the TPMS indicator will go off after a few
miles (kilometers).

■

Storing the Flat Tire

1

Storing the Flat Tire

3

WARNING

Loose items can fly around the interior
in a crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.

Spacer
Cone

Wing
Bolt

For
compact
spare tire

For 
full-size
tire

■

TPMS and the Spare Tire

1

TPMS and the Spare Tire

The system cannot monitor the pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.

Use TPMS specific wheels. Each is equipped with a
tire pressure sensor mounted inside the tire behind
the valve stem.

14 ACURA TSX 5D-31TL76300.book  292 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

293







Engine Does Not Start

Checking the Engine

If the engine does not start, check the starter.

Starter condition

Checklist

Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.

Check brightness of the interior light.
Turn on interior lights and check brightness.

●

If the interior lights are dim or do not come on at all

2 Checking the Battery P. 268

●

If the interior lights come on normally



2 Inspecting and Changing Fuses P. 307

The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.

Review the engine start procedure.
Follow its instructions, and try to start the engine again.



2 Starting the Engine P. 199

Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.

2 Immobilizer System P. 100

Check the fuel level.
There should be enough fuel in the tank.



2 Fuel Gauge P. 74

Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.

2 Inspecting and Changing Fuses P. 307

If the problem continues:

2 Emergency Towing P. 308

1

Checking the Engine

If you must start the vehicle immediately, use an
assisting vehicle to jump start it.

2 Jump Starting P. 294

14 ACURA TSX 5D-31TL76300.book  293 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

294









Jump Starting

Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood.

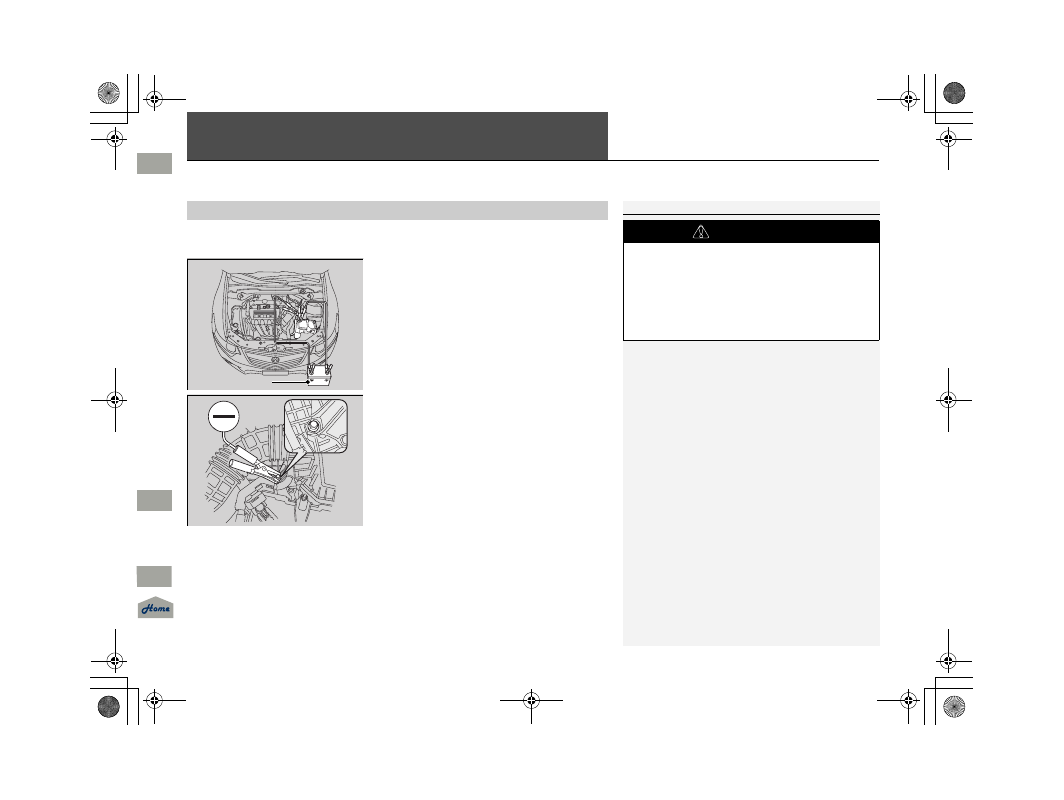

1. Connect the first jumper cable to your

vehicle’s battery + terminal.

2. Connect the other end of the first jumper

cable to the booster battery + terminal.

u

Use a 12-volt booster battery only.

3. Connect the second jumper cable to the

booster battery - terminal.

4. Connect the other end of the second

jumper cable:

Engine mounting bolt

Do not connect this jumper cable to any
other part.

5. If your vehicle is connected to another

vehicle, start the assisting vehicle’s engine
and increase its rpm slightly.

6. Attempt to start your vehicle’s engine. If it

turns over slowly, check that the jumper
cables have good metal-to-metal contact.

■

Jump Starting Procedure

1

Jump Starting

Securely attach the jumper cables clips so that they
do not come off when the engine vibrates. Also be
careful not to tangle the jumper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.

Battery performance degrades in cold conditions and
may prevent the engine from starting.

3

WARNING

A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.

Keep all sparks, open flames, and smoking
materials away from the battery.

Booster Battery

14 ACURA TSX 5D-31TL76300.book  294 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

295

uu

Jump Starting

u







Once your vehicle’s engine has started, remove the jumper cables in the
following order.

1. Disconnect the jumper cable from your vehicle’s ground.

2. Disconnect the other end of the jumper cable from the booster

battery - terminal.

3. Disconnect the jumper cable from your vehicle’s battery + terminal.

4. Disconnect the other end of the jumper cable from the booster battery

+ terminal.

Have your vehicle inspected by a nearby service station or a dealer.

■

What to Do After the Engine Starts

14 ACURA TSX 5D-31TL76300.book  295 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

296









Shift Lever Does Not Move

Follow the procedure below if you cannot move the shift lever out of the



(

P



 position.

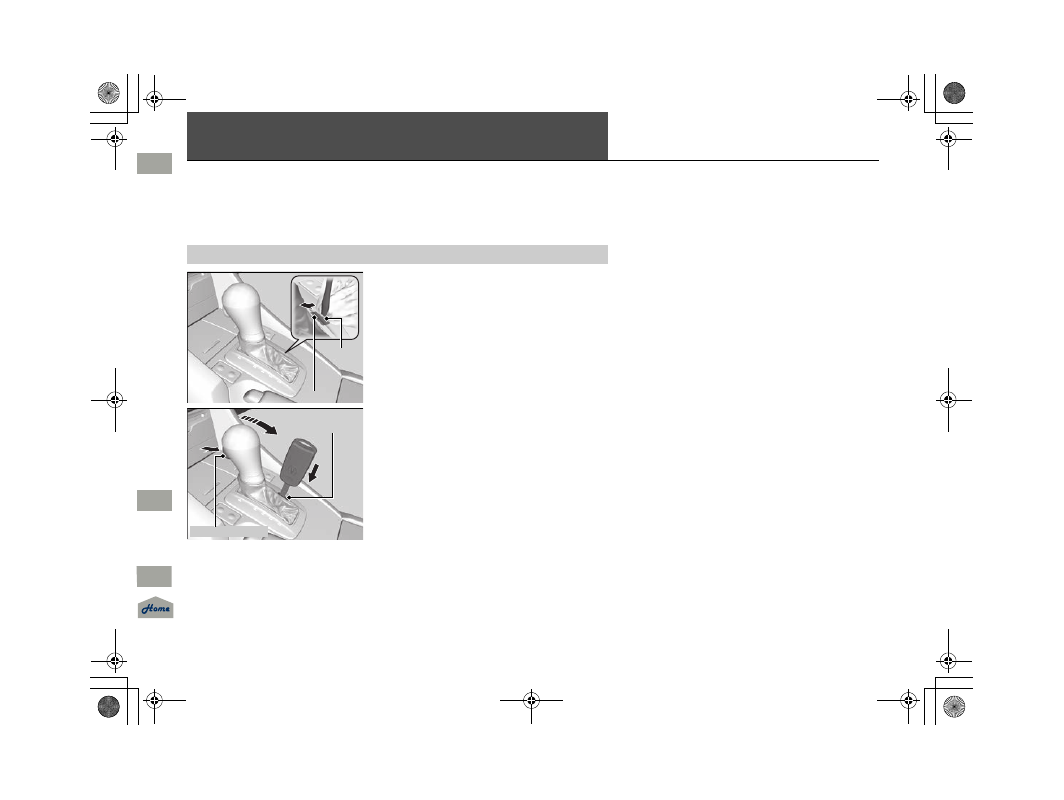

1. Set the parking brake.

2. Remove the key from the ignition switch.

3. Wrap a cloth around the tip of a small flat-

tip screwdriver. Put it into the shift lock
release slot as shown in the image, and
remove the cover.

4. Insert the key into the shift lock release slot.

5. While pushing the key down, press the shift

lever release button and place the shift lever
into

 (

N .

u

The lock is now released. Have the

shift lever checked by a dealer as soon
as possible.

■

Releasing the Lock

Slot

Cover

Release Button

Shift Lock
Release Slot

14 ACURA TSX 5D-31TL76300.book  296 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

297

Continued







Overheating

How to Handle Overheating

Overheating symptoms are as follows:

• The temperature gauge needle is at the

 mark or the engine suddenly

loses power.

• Steam or spray comes out of the engine compartment.

■

First thing to do

1. Immediately park the vehicle in a safe place.

2. Turn off all accessories and turn on the hazard warning lights.

u

No steam or spray present: Keep the engine running and open the hood.

u

Steam or spray is present: Turn off the engine and wait until it subsides.
Then open the hood.

1

How to Handle Overheating

NOTICE

Continuing to drive with the temperature gauge
needle at the     mark may damage the engine.

3

WARNING

Steam and spray from an overheated
engine can seriously scald you.

Do not open the hood if steam is coming
out.

H

H

14 ACURA TSX 5D-31TL76300.book  297 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon

uu

Overheating

u

How to Handle Overheating

298









■

Next thing to do

1. Check that the cooling fan is operating and

stop the engine once the temperature
gauge needle comes down.

u

If the cooling fan is not operating,
immediately stop the engine.

2. Once the engine has cooled down, inspect

the coolant level and check the cooling
system components for leaks.

u

If the coolant level in the reserve tank is
low, add coolant until it reaches the
MAX mark.

u

If there is no coolant in the reserve tank,
check that the radiator is cool. Cover the
radiator cap with a heavy cloth and open
the cap. If necessary, add coolant up to
the base of the filler neck, and put the
cap back on.

■

Last thing to do

Once the engine has cooled sufficiently, restart it and check the temperature gauge.



If the temperature gauge needle has gone down, resume driving. If it has not gone
down, contact a dealer for repairs.

1

How to Handle Overheating

If the coolant is leaking, contact a dealer for repairs.

Use water as an emergency/temporary measure only.
Have a dealer flush the system with proper antifreeze
as soon as possible.

3

WARNING

Removing the radiator cap while the
engine is hot can cause the coolant to spray
out, seriously scalding you.

Always let the engine and radiator cool
down before removing the radiator cap.

MAX

Reserve Tank

MIN

14 ACURA TSX 5D-31TL76300.book  298 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

H

a

n

d

li

ng
 th
e Un

ex
pe
ct

e

d

TOC

2014 TSX Sport Wagon
