Gauges and Multi-Information Display

u

Multi-Information Display

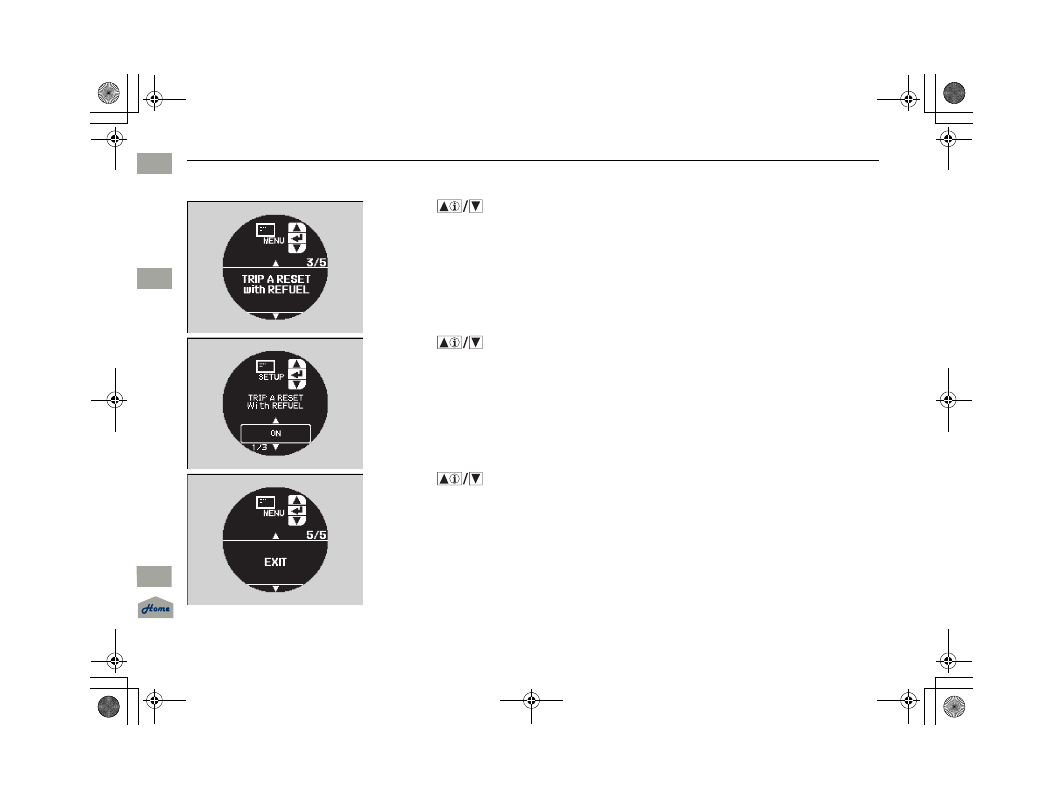

4. Press the

 button until TRIP A

RESET with REFUEL appears on the
display, then press the SEL/RESET button.

u

The display switches to the
Customization setup screen, where you
can select ON, OFF, or EXIT.

5. Press the

 button and select ON,

then press the SEL/RESET button.

u

The ON setup screen appears, then the
display returns to the Customization
menu screen.

6. Press the

 button until EXIT

appears in the display, then press the SEL/
RESET button.

7. Repeat step 6 until you return to the normal

screen.

14 ACURA TSX 5D-31TL76300.book  84 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

Instrument Panel

TOC

2014 TSX Sport Wagon

86

C

ont

rol
s

Setting the Clock

Clock

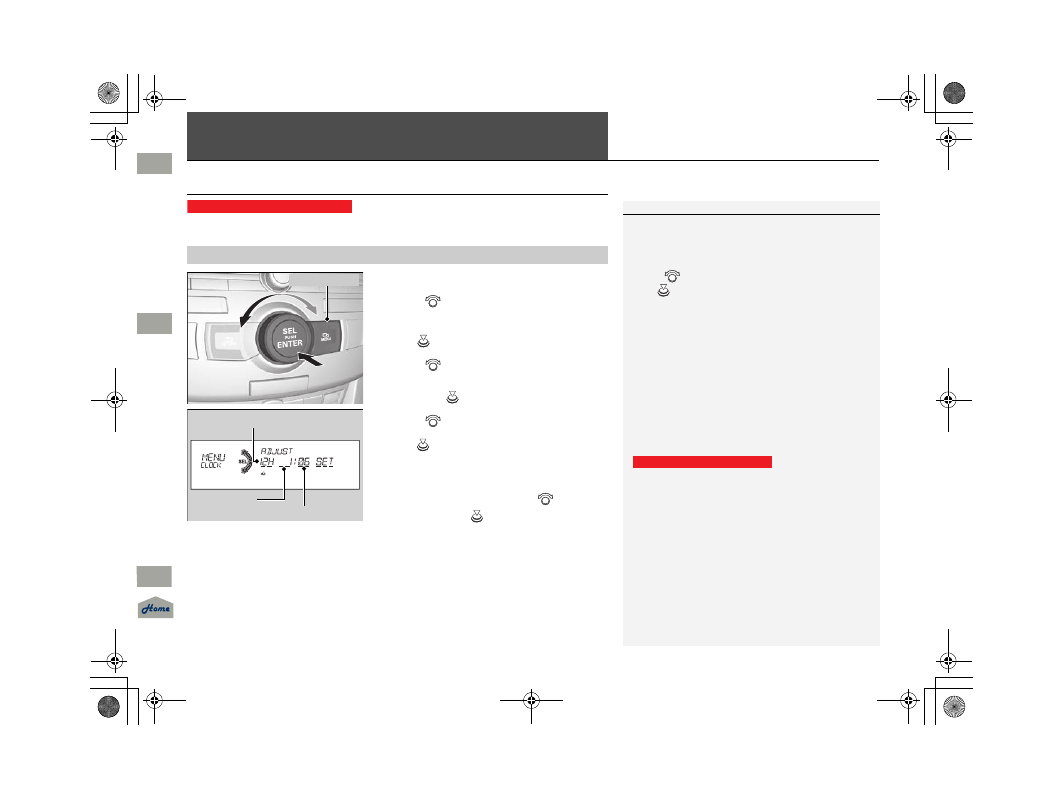

You can adjust the time in the clock display, using the CLOCK button.

1. Press the MENU button.

2. Rotate

 to select CLOCK ADJUST in

the display.

3. Press  . CLOCK ADJUST appears.

4. Rotate

 to select the item you want to

adjust (12/24 hour mode, hour, minute).
Then press  .

5. Rotate

 to make the adjustment.

6. Press   to enter your selection. The display

returns to CLOCK ADJUST. Repeat steps 4
to 6 to adjust other items.

7. To enter the selection, Rotate

 and select

SET, then press  .

8. Press the MENU button to go back to the

normal display.

■

Adjusting the Time

1

Clock

You can switch the clock display between 24 hours
and 12 hours when in the menu mode.

Selector Knob Icon details
Rotate

 to select.

Press

 to enter.

To set the time to the nearest hour:
Press and hold the CLOCK button until the clock
display begins to blink, then press the

 (

3

 (Reset)

button.

Depending on the displayed time, the clock sets
forward or backward.
Example:
1:06 will reset to 1:00
1:53 will reset to 2:00

The clock is automatically updated through the
navigation system, so the time does not need to be
adjusted.

Models with navigation system

Models without navigation system

Menu Button

12/24 Hour Mode

Hour Setting

Minute Setting

14 ACURA TSX 5D-31TL76300.book  86 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

TOC

2014 TSX Sport Wagon

87

Continued

Locking and Unlocking the Doors

Key Types and Functions

This vehicle comes with the following keys:

Use the key to start and stop the engine, and
to lock and unlock all the doors, tailgate, and
fuel fill door. You can also use the remote
transmitter to lock and unlock the doors,
tailgate, and fuel fill door.

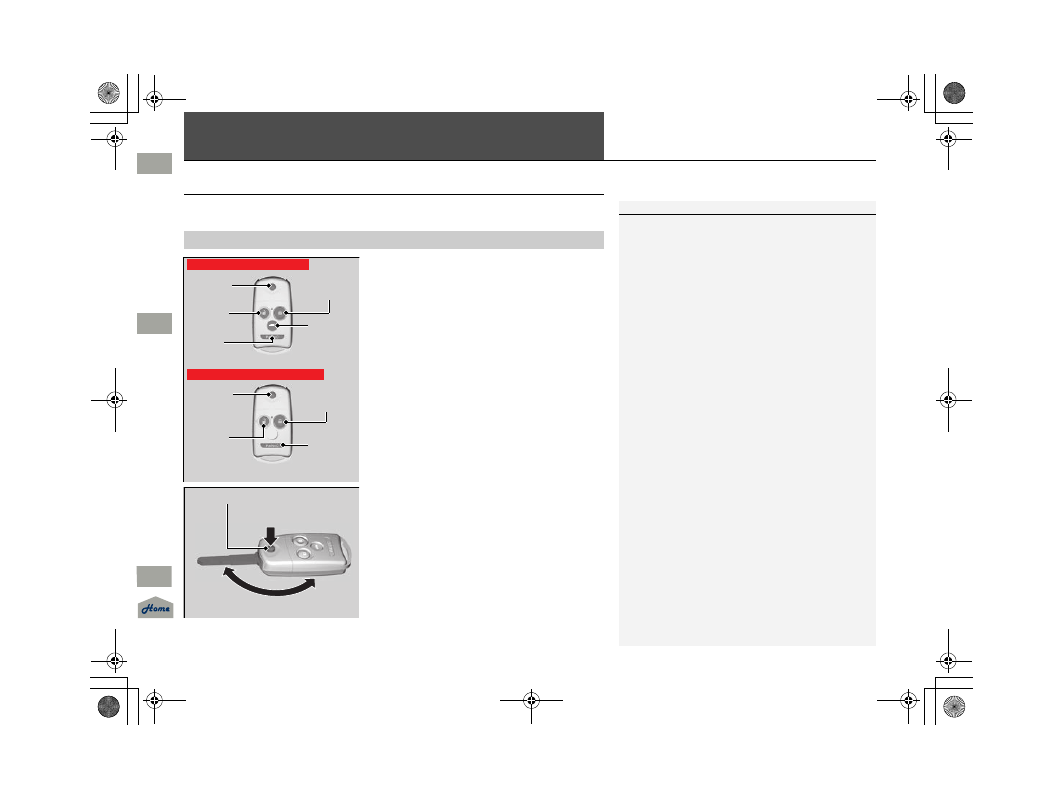

The master key folds up inside the
remote transmitter.

1. Press the release button to release the key

out from the transmitter.

u

Make sure to fully extend the key.

2. To close the key, press the release button

then push the key inside the transmitter
until you hear a click.

■

Retractable Master Keys

1

Key Types and Functions

All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft.

2 Immobilizer System P. 100

The keys contain precision electronics.
Adhere to the following advice to prevent damage to
the electronics:

•

Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.

•

Do not drop the keys or set heavy objects on them.

•

Keep the keys away from liquids.

•

Do not take the keys apart except for replacing the
battery.

If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter may not
work.

If the keys do not work properly, have them
inspected by a dealer.

If the key is not fully extended, the immobilizer
system may not work properly, and the engine may
not start.

Avoid contact with the key whenever it extends or
retracts.

Panic
Button

Power
Tailgate
Button

Lock
Button

Release
Button

Unlock
Button

Release
Button

Unlock
Button

Panic
Button

Lock
Button

Model with power tailgate

Model without power tailgate

Release Button

Press

14 ACURA TSX 5D-31TL76300.book  87 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

uu

Locking and Unlocking the Doors

u

Key Types and Functions

88

Can be used to start and stop the engine, and
lock and unlock driver’s door.

Contains a number that you will need if you
purchase a replacement key.

■

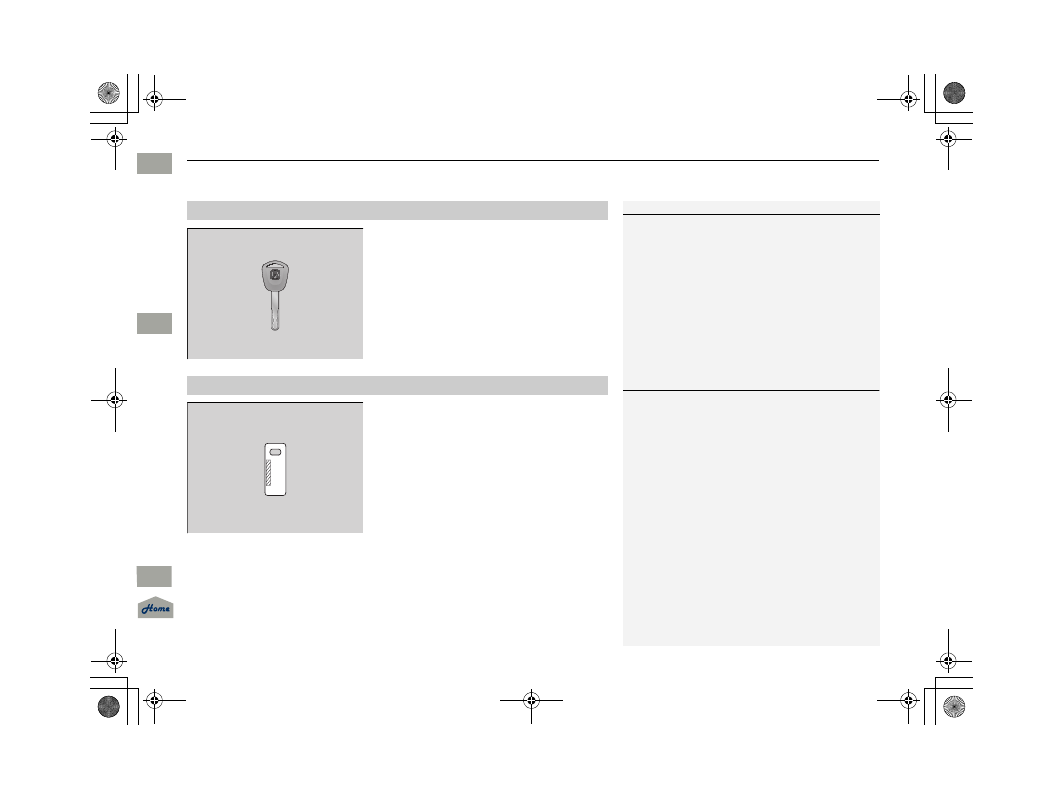

Valet Key

1

Valet Key

When you need to leave a key with a third party,
leave the valet key.

■

Key Number Tag

1

Key Number Tag

Keep the key number tag separate from the key in a
safe place outside of your vehicle.

If you wish to purchase an additional key, contact a
dealer.

If you lose your key and you cannot start the engine,
contact a dealer.

14 ACURA TSX 5D-31TL76300.book  88 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

89

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

Continued

Locking/Unlocking the Doors from the Outside

■

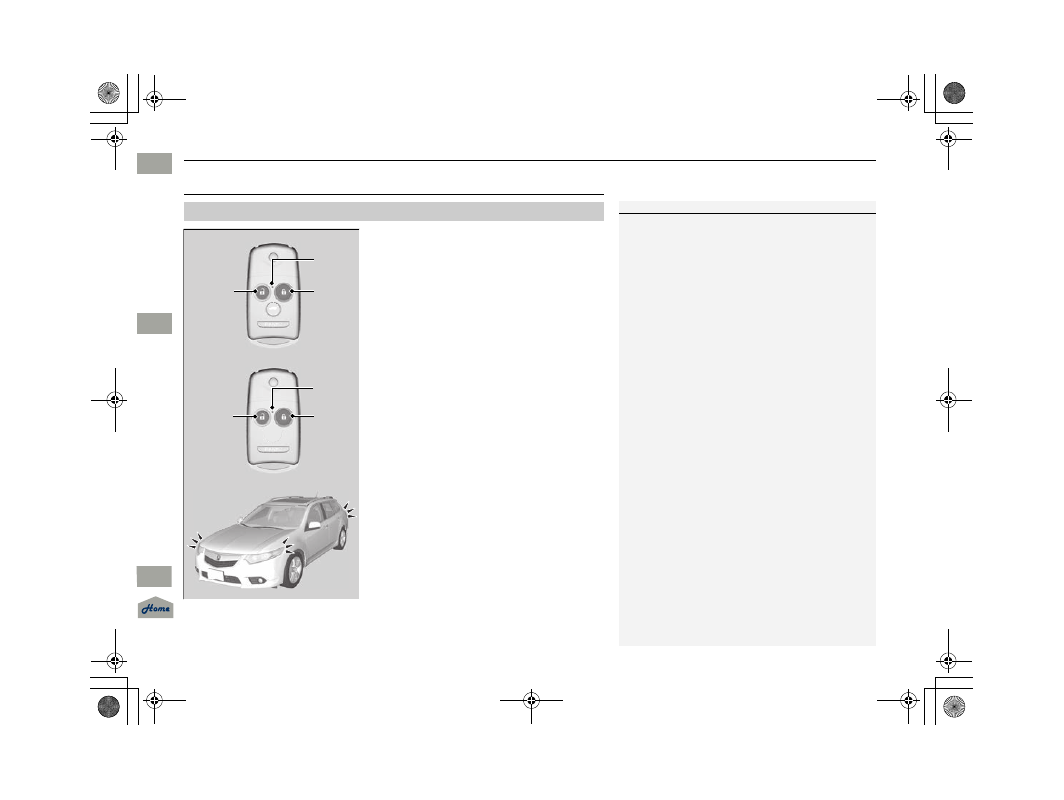

Locking the doors

Press the lock button.

Once:

u

Some exterior lights flash, all the doors,
tailgate, and fuel fill door lock, and the
security system sets.

Twice (within five seconds after the
first push):

u

A beeper sounds and verifies the security
system is set.

■

Unlocking the doors

Press the unlock button.

Once:

u

Some exterior lights flash twice, and the
driver’s door and fuel fill door unlock.

Twice:

u

The rem aining doors and the

tailgate unlock.

■

Using the Remote Transmitter

1

Using the Remote Transmitter

If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.

If the interior light switch is in the door activated
position, the interior lights come on when you press
the unlock button.

No doors opened: The lights fade out after 30
seconds.

Doors relocked with the remote: The lights go off
immediately.

2 Interior Lights P. 128

The remote transmitter uses low-power signals, so
the operating range may vary depending on the
surroundings.

The remote transmitter will not work when the key is
in the ignition switch. The remote will not lock the
vehicle when a door or tailgate is open.

If the distance at which the remote transmitter works
varies, the battery is probably low.

If the LED does not come on when you press a
button, the battery is dead.

2 Replacing the Battery P. 270

LED

Lock
Button

Unlock
Button

LED

Lock
Button

Unlock
Button

14 ACURA TSX 5D-31TL76300.book  89 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Outside

90

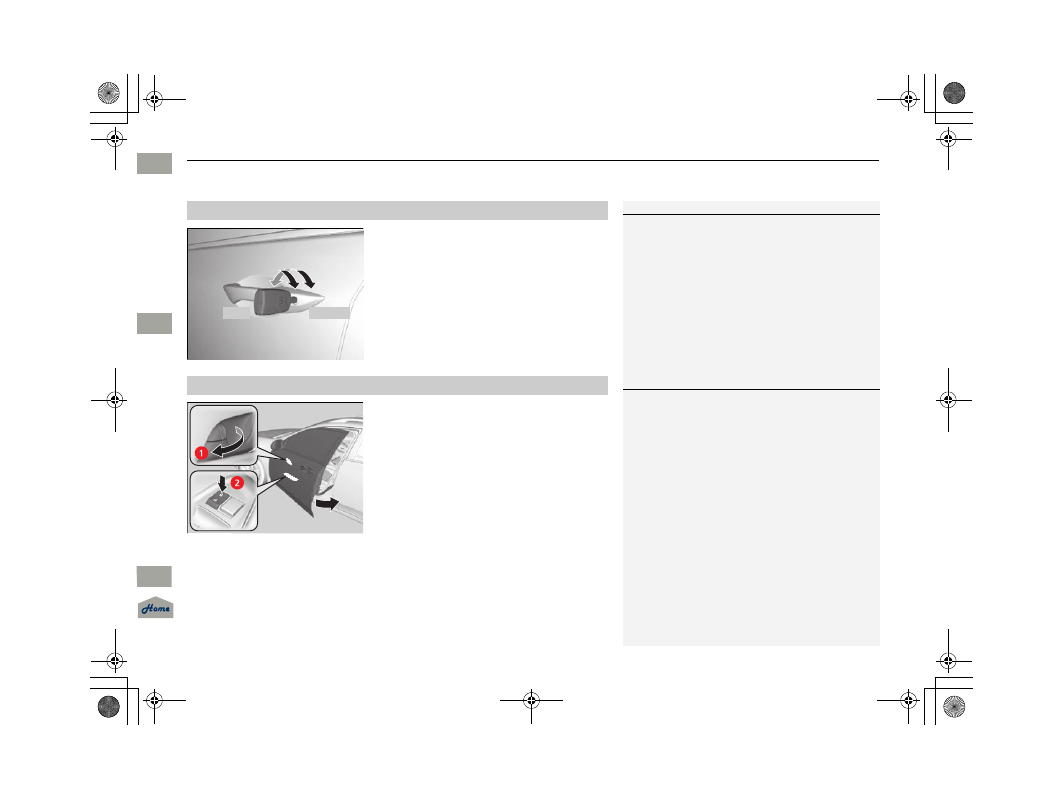

Fully insert the key and turn it.

If you are using the master key, make sure it is
fully extended.

■

Locking the driver’s door

Pull the lock tab rearward

a

 or push the

master door lock switch in the lock direction

b

, and close the door.

■

Locking the passenger’s doors

Pull the lock tab rearward and close the door.

■

Lockout prevention system

The doors and the tailgate cannot be locked when the key is in the ignition switch,
and any door or the tailgate is open.

■

Locking/Unlocking the Doors Using a Key

1

Locking/Unlocking the Doors Using a Key

When you lock the driver’s door with a key, all the
other doors, tailgate, and fuel fill door lock at the
same time. When unlocking, the driver’s door and
fuel fill door unlock first. Turn the key a second time
within a few seconds to unlock the remaining doors
and the tailgate.

Lock

Unlock

■

Locking a Door Without Using a Key

1

Locking a Door Without Using a Key

When you lock the driver’s door, all the other doors,
the tailgate, and fuel fill door lock at the same time.
Make sure you have the key in your hand before
locking the door to prevent it from being locked in
the vehicle.

14 ACURA TSX 5D-31TL76300.book  90 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

91

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

Continued

Locking/Unlocking the Doors from the Inside

■

Locking a door

Pull the lock tab rearward.

■

Unlocking a door

Push the lock tab forward.

Pull the front door inner handle.

u

The door unlocks and opens in one
motion.

■

Using the Lock Tab

1

Using the Lock Tab

When you lock the door using the lock tab on the
driver’s door, all the other doors, tailgate, and fuel fill
door lock at the same time.

When you unlock the door using the lock tab on the
driver’s door, only the driver’s door will unlock.

To Unlock

Lock Tab

To Lock

■

Unlocking Using the Inner Handle of Front Doors

1

Unlocking Using the Inner Handle of Front Doors

The front door inner handles are designed to allow
front seat occupants to open the door in one motion.
However this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.

Children should always ride in a rear seat where
childproof door locks are provided.

2 Childproof Door Locks P. 93

Inner Handle

14 ACURA TSX 5D-31TL76300.book  91 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

uu

Locking and Unlocking the Doors

u

Locking/Unlocking the Doors from the Inside

92

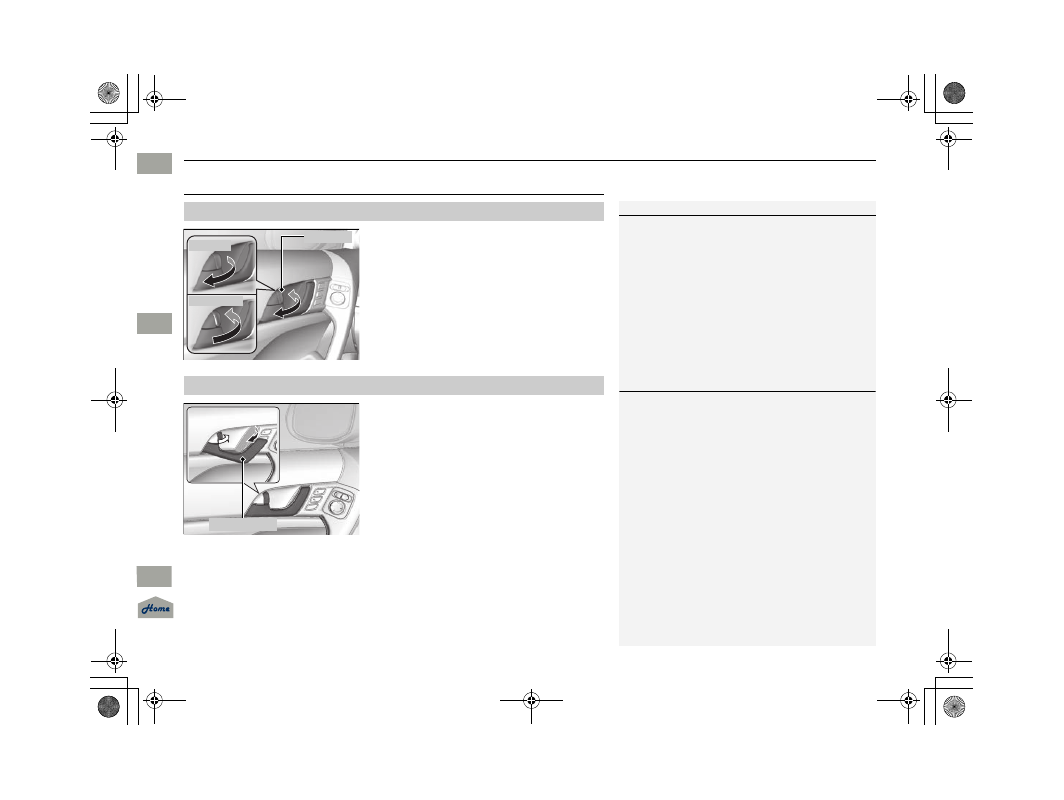

Press the master door lock switch in as shown
to lock or unlock all doors and the tailgate.

■

Using the Master Door Lock Switch

1

Using the Master Door Lock Switch

When you lock/unlock the driver’s door using the
master lock switch, all the other doors, tailgate, and
fuel fill door lock/unlock at the same time.

Master Door
Lock Switch

To Unlock

To Lock

14 ACURA TSX 5D-31TL76300.book  92 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

93

uu

Locking and Unlocking the Doors

u

Childproof Door Locks

Childproof Door Locks

The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.

Slide the lever in the rear door to the lock
position, and close the door.

■

When opening the door

Open the door using the outside door handle.

Auto Door Lock/Unlock

■

Auto door lock

The auto door lock function automatically locks all the doors when the vehicle
reaches about 10 mph (15 km/h).

■

Auto door unlock

The driver's door unlocks when the shift lever is moved into

 (

P  with the brake

pedal depressed.

■

Setting the Childproof Door Locks

1

Childproof Door Locks

To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.

Lock

Unlock

1

Auto Door Lock/Unlock

The auto door lock/unlock settings can be
customized using the multi-information display.

2 Customized Features P. 79

14 ACURA TSX 5D-31TL76300.book  93 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

94

Opening and Closing the Tailgate

Precautions for Opening/Closing the Tailgate

Always make sure individuals and objects are clear of the tailgate before opening or
closing it.

■

Opening the tailgate

• Open the tailgate all the way.

u

If it is not fully opened, the tailgate may begin to close under its own weight.

• Be careful when it is windy. The wind may cause the tailgate to close.

■

Closing the tailgate

Keep the tailgate closed while driving to:

u

Avoid possible damage.

u

Prevent exhaust gas from leaking into the vehicle.

2 Carbon Monoxide Gas P. 61

1

Precautions for Opening/Closing the Tailgate

Be careful not to put your hands between the tailgate
and the cargo area when closing the tailgate.

When operating the power tailgate, make sure there
is enough space around your vehicle. People near the
tailgate may be seriously hurt if the tailgate hits their
head or closes on their hands. Be especially cautious
if children are around.

When you are storing or picking up luggage from the
cargo area while the engine is idling, do not stand in
front of the exhaust pipe. You may get burned.

Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.

3

WARNING

Closing a power tailgate while anyone is in
the path of the tailgate can cause serious
injury.

Make sure everyone is clear before closing
the tailgate.

14 ACURA TSX 5D-31TL76300.book  94 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

95

uu

Opening and Closing the Tailgate

u

Opening/Closing the Tailgate Using the Tailgate Open Handle

Opening/Closing the Tailgate Using
the Tailgate Open Handle

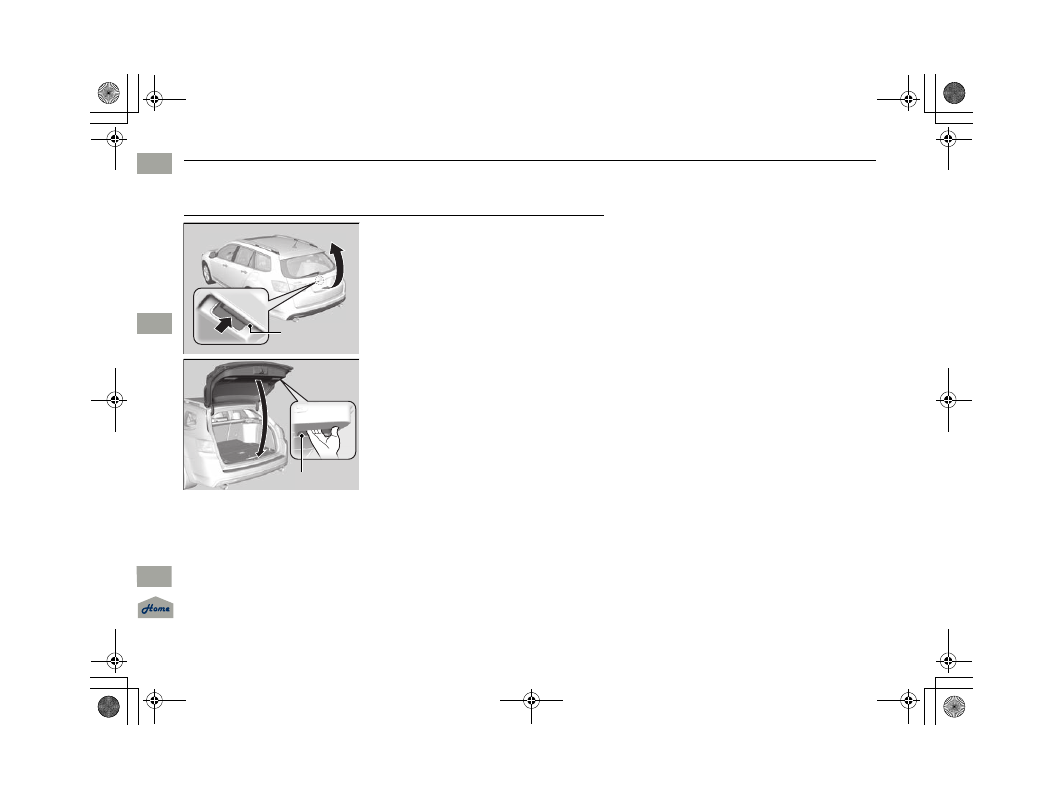

When all the doors are unlocked, the tailgate
is unlocked. Pull the tailgate open handle and
lift open the tailgate.

To manually close the tailgate, grab the inner
handle, pull the tailgate down, and push it
closed from the outside.

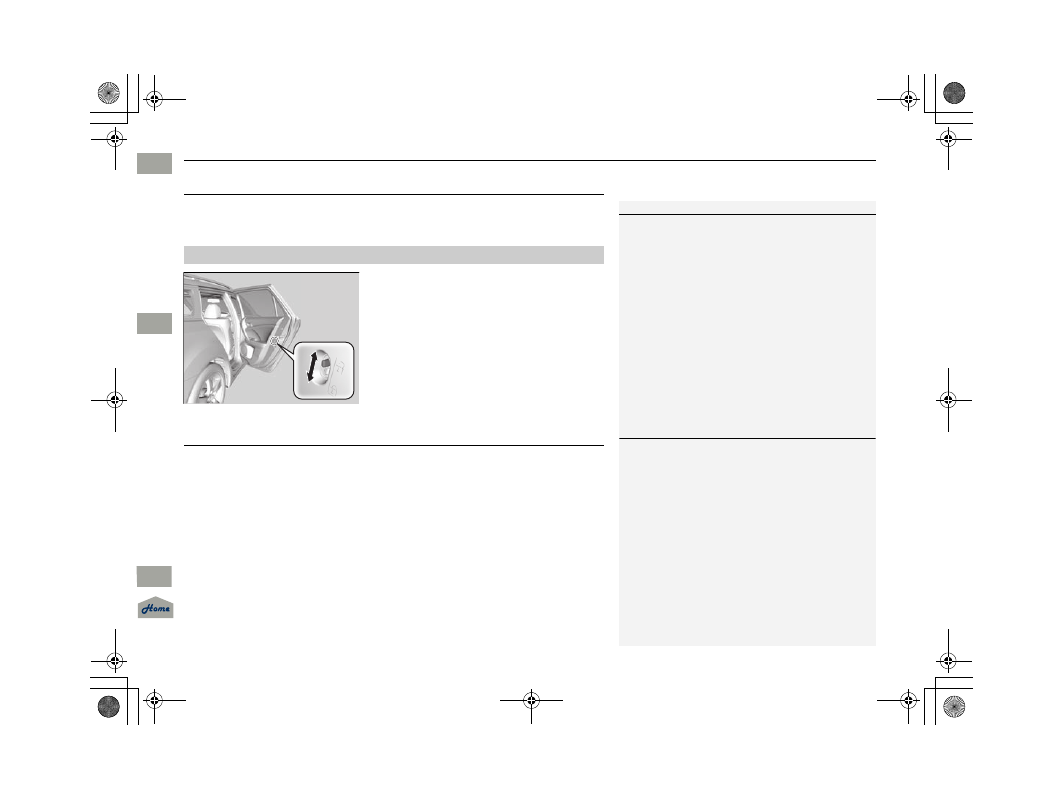

Tailgate Open
Handle

Inner Handle

14 ACURA TSX 5D-31TL76300.book  95 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

96

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

*

Opening/Closing the Power Tailgate

*

The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tailgate switch on the driver’s door, or
pressing the button on the tailgate.

■

The power tailgate can be opened when:

• The tailgate is fully closed.

• The shift lever is in

 (

P .

• Press and hold the tailgate button on the remote transmitter for about

one second.

u

If you have changed the power tailgate keyless open mode setting to when
unlocked, you need to unlock the tailgate before you press the tailgate button
to open it.

2 Customized Features P. 79

■

The power tailgate can be closed when:

• The tailgate is fully open.

• The shift lever is in

 (

P .

• Press and hold the tailgate button on the remote transmitter for about

one second.

1

Opening/Closing the Power Tailgate

*

The power tailgate may not open or close under the
following conditions:

•

You start the engine while the tailgate is
automatically opening or closing.

•

The vehicle is parked on a steep hill.

•

The vehicle is swayed in a strong wind.

•

The tailgate or the roof is covered with snow or ice.

If you close the power tailgate when all the doors are
locked, the power tailgate locks automatically.

If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tailgate resumes once you
manually close the tailgate.

Installing aftermarket components other than
genuine Acura accessories on the power tailgate may
prevent it from fully opening or closing.

Make sure the power tailgate is fully open before you
get your luggage in and out.

Make sure the power tailgate is fully closed before
you start the vehicle.

The beeper sounds when you turn the ignition switch
to ON

 (

w

, and move the shift lever out of the

 (

P



position while the power tailgate is still open, or
closing.

* Not available on all models

14 ACURA TSX 5D-31TL76300.book  96 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

Continued

97

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

*

To open or close the power tailgate, do
the following:

■

If the power tailgate keyless open
mode is in ANYTIME

Press and hold the tailgate button for about
one second.

■

If the power tailgate keyless open
mode is in WHEN UNLOCKED

Press the unlock button twice and unlock all
doors and the tailgate first. Then, press and
hold the tailgate button for about one second.

The beeper sounds and some exterior
light flash.

To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.

■

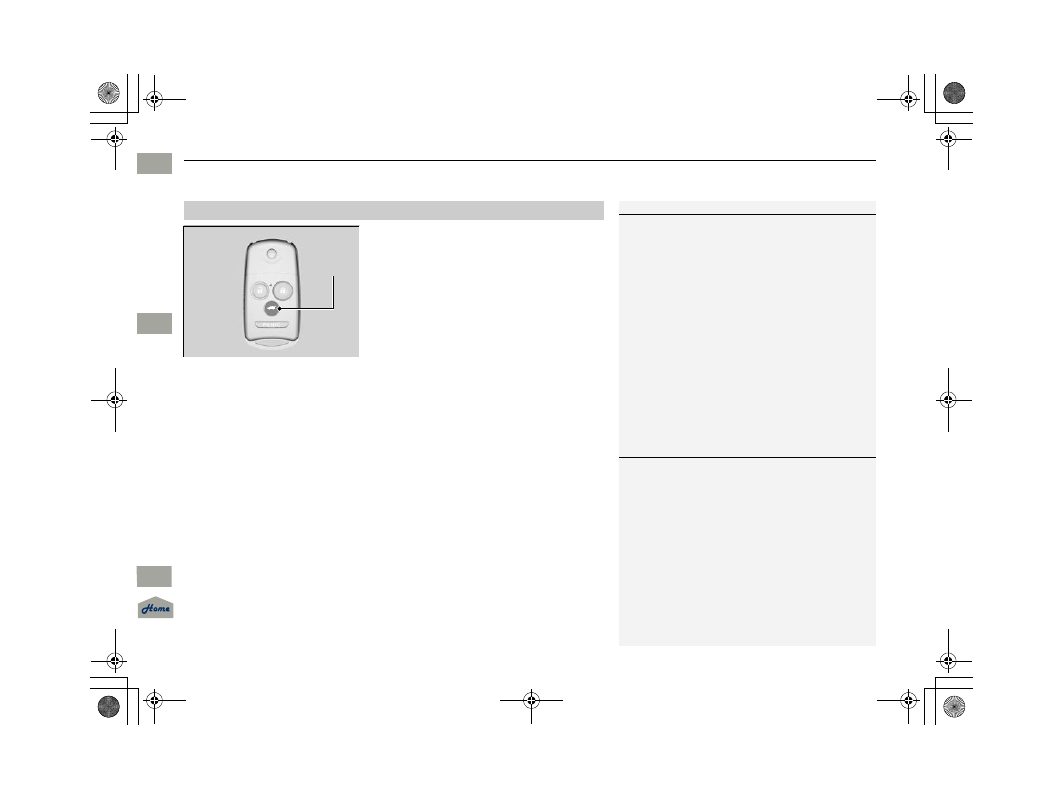

Remote Transmitter

1

Opening/Closing the Power Tailgate

*

If the power tailgate meets resistance while opening
or closing, the auto reverse feature reverses the
direction. Three beeps sound.

The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.

Do not touch the sensors located on both sides of the
tailgate. The power tailgate does not close if you
touch either sensor when you are trying to close the
tailgate.

Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.

1

Remote Transmitter

You can change the condition for opening the power
tailgate with the multi-information display.

2 Customized Features P. 79

Tailgate
Button

* Not available on all models

14 ACURA TSX 5D-31TL76300.book  97 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

*

98

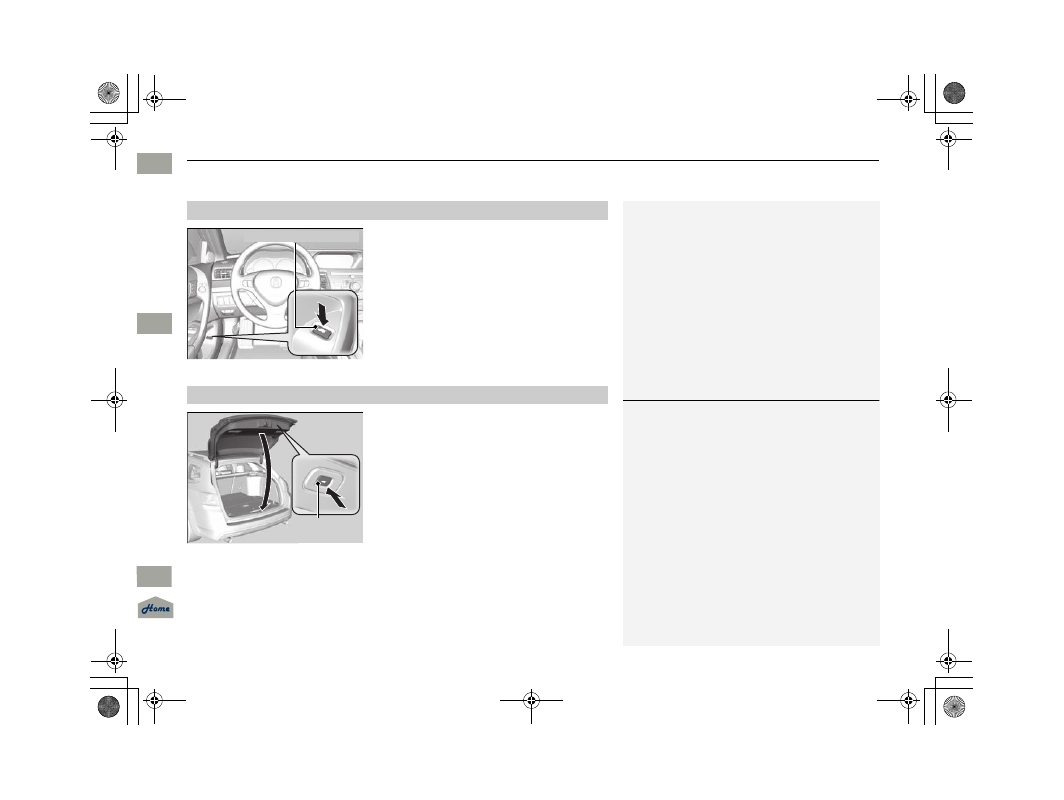

To open or close the power tailgate, press the
tailgate button in the driver’s door for about
one second. The beeper sounds and some
exterior lights flash.

To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.

Press the button on the tailgate to close the
power tailgate.

If you press the button again while the
power tailgate is closing, it stops and
reverses direction.

■

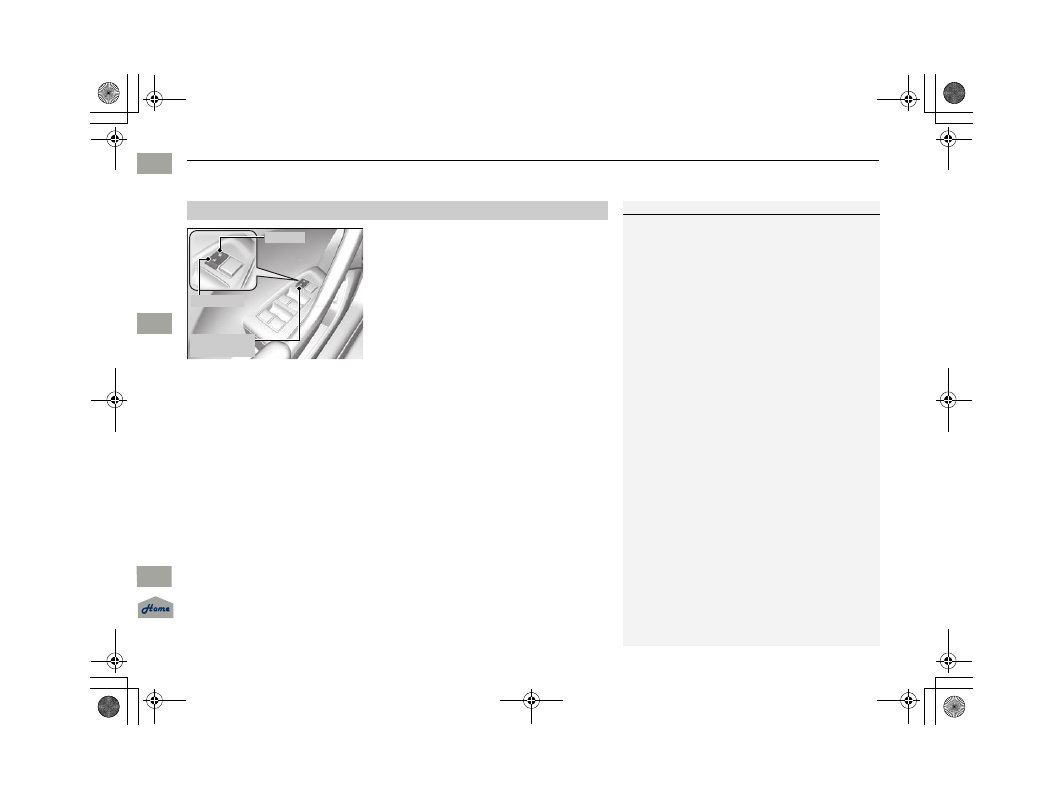

Power Tailgate Button

Power Tailgate Button

■

Power Tailgate Close Button

1

Power Tailgate Close Button

If you pull the tailgate open handle while the tailgate
is automatically opening or closing, the power
tailgate operation stops. Use caution if the tailgate
stops in the middle of either operation. It may
suddenly swing up or down.

Power Tailgate
Close Button

14 ACURA TSX 5D-31TL76300.book  98 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

99

uu

Opening and Closing the Tailgate

u

Opening/Closing the Power Tailgate

*

If you manually close the power tailgate, it latches automatically.

The power tailgate fail-safe mode detects if there is an extra load on the tailgate (for
example, it is covered with snow). If an extra load is detected, the tailgate opens
completely then lowers to the closed position.

■

Auto-Closer

■

Power Tailgate Fail-Safe Mode

1

Auto-Closer

The auto-closer feature does not activate if you pull
the tailgate open handle while the power tailgate is
closing.

Do not put any force on the tailgate while the power
tailgate is latching.

Keep your hands away from the tailgate when you
manually close the tailgate and let it latch
automatically. It is dangerous to put your hands
around the tailgate as it starts to latch itself.

1

Power Tailgate Fail-Safe Mode

If you try to manually close the power tailgate
immediately after it fully opens, the power tailgate
fail-safe mode may activate.

Once the power tailgate fail-safe mode activates,
wait until the power tailgate fully closes. Keep away
from the power tailgate when it is in motion.

If the power tailgate fail-safe mode constantly
activates, consult at a dealer.

14 ACURA TSX 5D-31TL76300.book  99 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon

100

Security System

Immobilizer System

The immobilizer system prevents a key that has not been pre-registered from
starting the engine. Each key contains electronic transmitters that use electronic
signals to verify the key.

Pay attention to the following when inserting the key into the ignition switch:

• Do not allow objects that emit strong radio waves near the ignition switch.

• Make sure the key is not covered by or touching a metal object.

• Do not bring a key from another vehicle’s immobilizer system near the

ignition switch.

Security System Alarm

The security system alarm activates when the doors, tailgate, or hood are opened
without the key, or remote transmitter. It also activates if you turn the ignition
switch to ON

(

w  after locking the doors with the remote transmitter.

■

When the security system alarm activates

The horn sounds intermittently, and all the exterior lights flash.

■

To deactivate the security system alarm

Unlock the vehicle using the key, or remote transmitter. The system, along with the
horn and flashing lights, are deactivated.

1

Immobilizer System

NOTICE

Leaving the ignition key in the vehicle can result in
theft or accidental movement of the vehicle.

Always take the ignition key with you whenever you
leave the vehicle unattended.

Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.

1

Security System Alarm

The security alarm continues for a maximum of two
minutes until the security system deactivates.

14 ACURA TSX 5D-31TL76300.book  100 ページ  ２０１３年６月１７日　月曜日　午後３時２１分

QRG

Index

C

ont

rol
s

TOC

2014 TSX Sport Wagon
