０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１２２１ＦＡＡＴ００

−

DTC 22-1:

Special Tools Required

YES

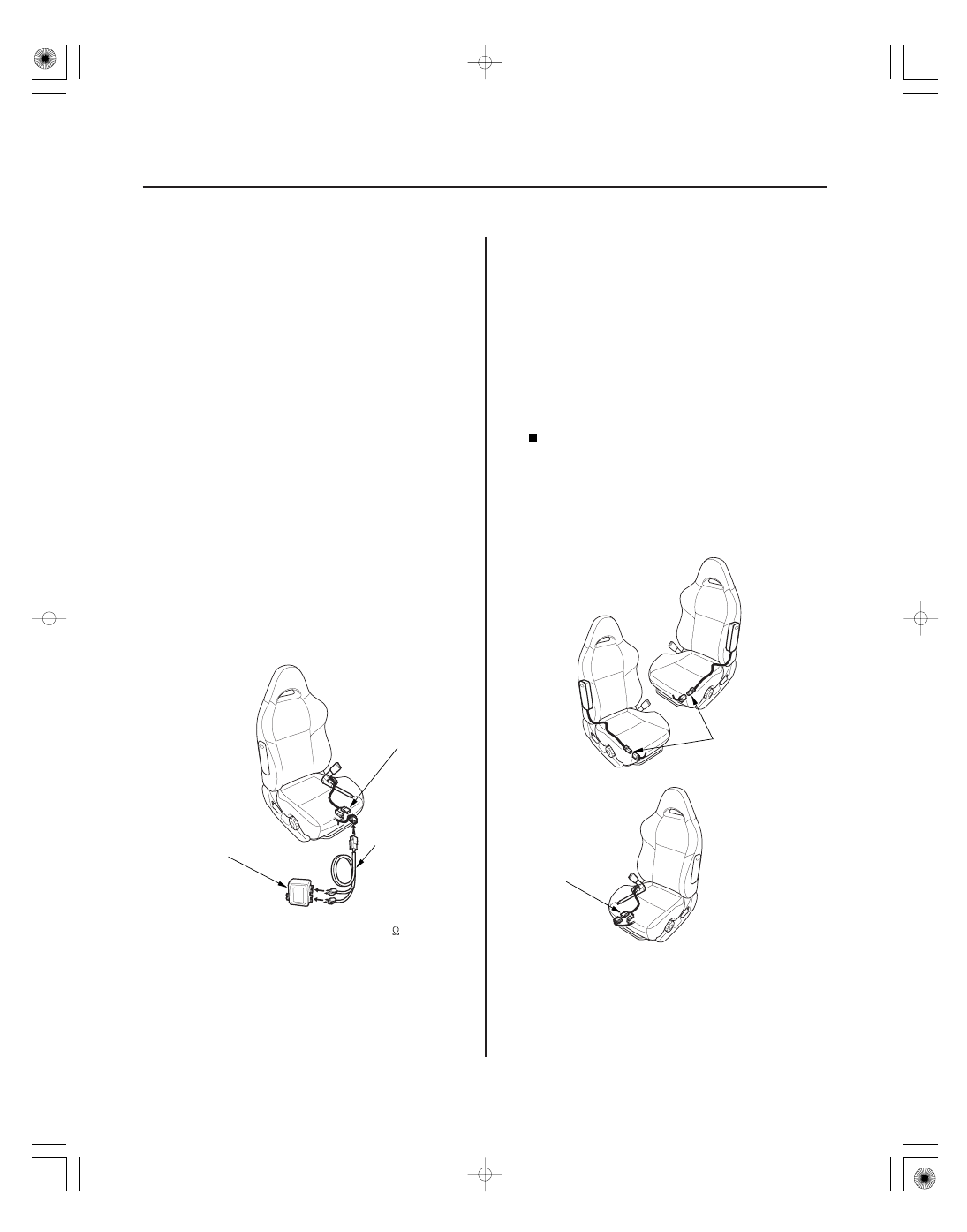

23-68

SRS

DTC Troubleshooting (cont’d)

07SAZ-TB4011A

07XAZ-SZ30100

Open or Increased Resistance in

Front Passenger’s Seat Belt Buckle Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s seat belt buckle

tensioner 4P connector (A) from the floor wire
harness.

5. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the floor
wire harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Open or increased resistance in the front

passenger’s seat belt buckle tensioner; replace the
front passenger’s seat belt buckle (see page 23-5).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect both side airbag 2P connectors (A) and

the driver’s seat belt buckle tensioner 4P
connector (B).

Does the SRS indicator stay on?

Is DT C 22-1 indicated?

05/06/27 18:09:52 61S6M040_230_0068

−

０１

＊０１

０１

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１２２３ＦＡＡＴ００

−

YES

Special Tools Required

YES

DTC 22-3:

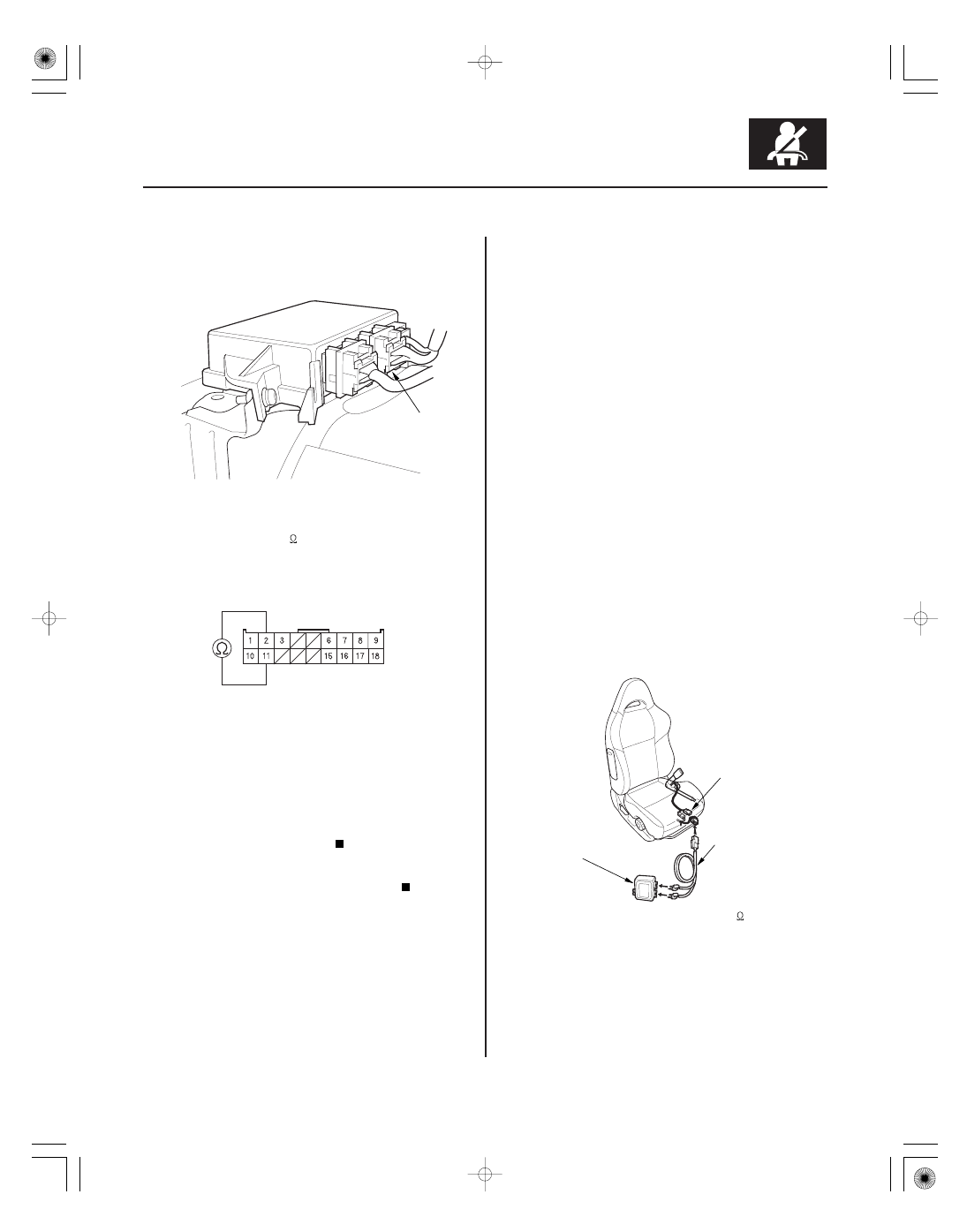

23-69

SRS UNIT CONNECTOR B (18P)

07SAZ-TB4011A

07XAZ-SZ30100

11. Disconnect SRS unit connector B (18P) from the

SRS unit. Do not disconnect the simulator lead
from the floor wire harness 4P connector.

12. Check resistance between the No. 2 and No. 11

terminals of SRS unit connector B (18P). There
should be 2.0

3.0

Faulty SRS unit or poor connection at SRS

unit connector B (18P) and at the SRS unit. Check
the connection; if the connection is OK, replace the
SRS unit (see page 23-141).

Open or increased resistance in the floor wire

harness; replace the floor wire harness.

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s seat belt buckle

tensioner 4P connector (A) from the floor wire
harness.

5. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the floor
wire harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

(cont’d)

Short to Another Wire or

Decreased Resistance in Front Passenger’s
Seat Belt Buckle Tensioner

Wire side of female terminals

Is the r esistance as specif ied?

Does the SRS indicator stay on?

05/06/27 18:09:52 61S6M040_230_0069

０２

０１

＊０１

−

YES

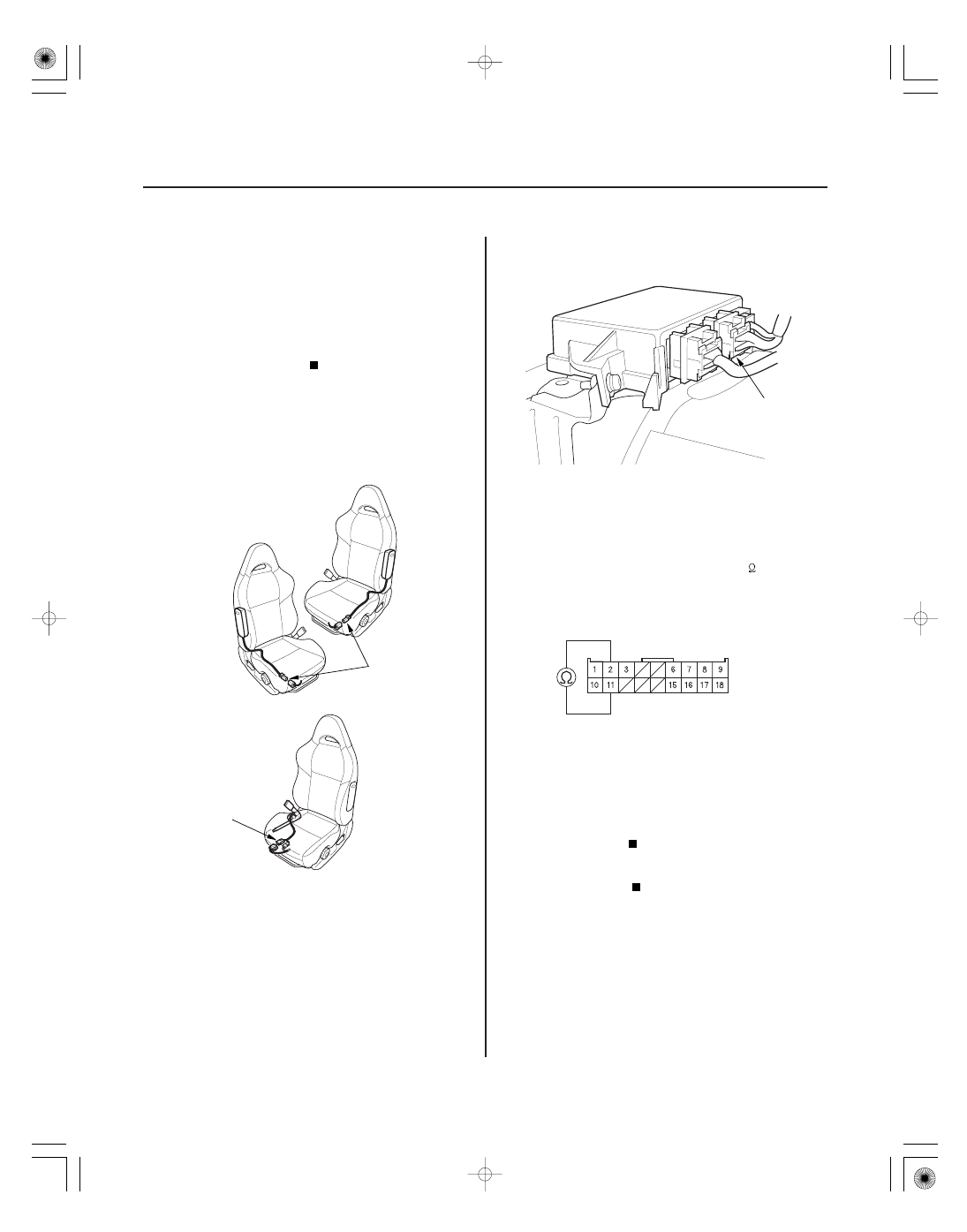

23-70

SRS

DTC Troubleshooting (cont’d)

SRS UNIT CONNECTOR B (18P)

8. Read the DTC.

Go to step 9.

Short in the front passenger’s seat belt buckle

tensioner; replace the front passenger’s seat belt
buckle (see page 23-5).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect both side airbag 2P connectors (A) and

the driver’s seat belt buckle tensioner 4P
connector (B).

11. Disconnect SRS unit connector B (18P) from the

SRS unit.

12. Disconnect the simulator lead from the floor wire

harness 4P connector.

13. Check resistance between the No. 2 and No. 11

terminals of SRS unit connector B (18P). There
should be an open circuit or at least 1 M

Faulty SRS unit; replace the SRS unit

(see page 23-141).

Short in the floor wire harness; replace the

floor wire harness.

Wire side of female terminals

Is DT C 22-3 indicated?

Is the r esistance as specif ied?

05/06/27 18:09:53 61S6M040_230_0070

０１

０２

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１２２４ＦＡＡＴ００

−

DTC 22-4:

Special Tools Required

YES

23-71

07SAZ-TB4011A

07XAZ-SZ30100

Short to Power in Front Passenger’s

Seat Belt Buckle Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s seat belt buckle

tensioner 4P connector (A) from the floor wire
harness.

5. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the floor
wire harness 4P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Short to power in the front passenger’s seat

belt buckle tensioner; replace the front passenger’s
seat belt buckle (see page 23-5).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect both side airbag 2P connectors (A) and

the driver’s seat belt buckle tensioner 4P
connector (B).

(cont’d)

Does the SRS indicator stay on?

Is DT C 22-4 indicated?

05/06/27 18:09:53 61S6M040_230_0071
