DTC 4-1:

Special Tools Required

YES

23-60

SRS

DTC Troubleshooting (cont’d)

07SAZ-TB4011A

07TAZ-SZ5011A

07SAZ-TB4011A

07XAZ-SZ30100

C504

Open or Increased Resistance in

Front Passenger’s Seat Belt Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

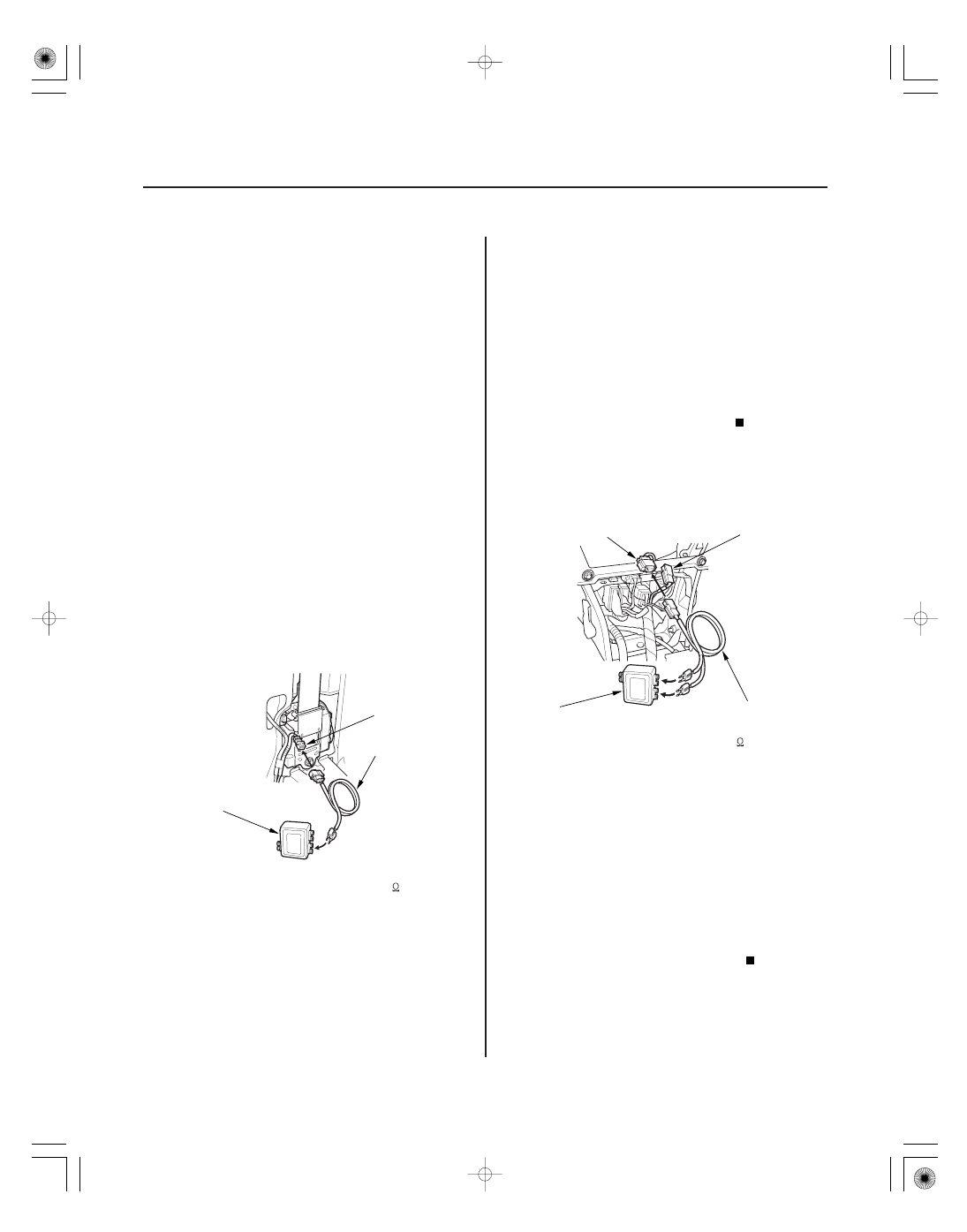

4. Disconnect the front passenger’s seat belt

tensioner 2P connector from the floor wire harness
(A).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead C to the floor
wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Open or increased resistance in the front

passenger’s seat belt tensioner; replace the front
passenger’s seat belt (see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the floor wire harness 4P connector (A)

from the dashboard wire harness C504.

11. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector C504.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Open or increased resistance in the floor wire

harness; replace the floor wire harness.

Does the SRS indicator stay on?

Is DT C 4-1 indicated?

05/06/27 18:09:22 61S6M040_230_0060

−

０３

０２

＊０１

−

YES

23-61

SRS UNIT CONNECTOR A (18P)

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and driver’s seat
belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit. Do not disconnect the simulator lead
from the dashboard wire harness.

18. Check resistance between the No. 9 terminal and

the No. 18 terminal of SRS unit connector A (18P).
There should be 2.0

3.0

Faulty SRS unit or poor connection at SRS

unit connector A (18P) and the SRS unit. Check the
connection; if the connection is OK, replace the
SRS unit (see page 23-141).

Open or increased resistance in the

dashboard wire harness; replace the dashboard
wire harness.

Wire side of female terminals

Is the r esistance as specif ied?

05/06/27 18:09:49 61S6M040_230_0061

０１

Ｓ６Ｍ６Ａ００Ｋ７９１０００８１０４３ＦＡＡＴ００

−

DTC 4-3:

Special Tools Required

YES

23-62

SRS

DTC Troubleshooting (cont’d)

07SAZ-TB4011A

07TAZ-SZ5011A

07SAZ-TB4011A

07XAZ-SZ30100

C504

Short to Another Wire or Decreased

Resistance in Front Passenger’s Seat Belt
Tensioner

• SRS inflator simulator 07SAZ-TB4011A
• SRS simulator lead C 07TAZ-SZ5011A
• SRS simulator lead F 07XAZ-SZ30100

1. Erase the DTC memory (see page 23-23).

2. Turn the ignition switch ON (II), and check that the

SRS indicator comes on for about 6 seconds and
then goes off.

Go to step 3.

Intermittent failure, system is OK at this time.

Go to Troubleshooting Intermittent Failures
(see page 23-24). If another DTC is indicated, go to
the DTC Troubleshooting Index.

3. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

4. Disconnect the front passenger’s seat belt

tensioner 2P connector from the floor wire
harness (A).

5. Connect the SRS inflator simulator (2

connector) and the simulator lead C to the floor
wire harness 2P connector.

6. Reconnect the battery negative cable.

7. Erase the DTC memory.

8. Read the DTC.

Go to step 9.

Short in the front passenger’s seat belt

tensioner; replace the front passenger’s seat belt
(see page 23-4).

9. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

10. Disconnect the floor wire harness 4P connector (A)

from the dashboard wire harness C504.

11. Connect the SRS inflator simulator (2

connectors) and the simulator lead F to the
dashboard wire harness 4P connector C504.

12. Reconnect the battery negative cable.

13. Erase the DTC memory.

14. Read the DTC.

Go to step 15.

Short in the floor wire harness; replace the

floor wire harness.

Does the SRS indicator stay on?

Is DT C 4-3 indicated?

05/06/27 18:09:50 61S6M040_230_0062

０３

０２

＊０１

−

YES

23-63

SRS UNIT CONNECTOR A (18P)

15. Turn the ignition switch OFF. Disconnect the

battery negative cable, and wait for 3 minutes.

16. Disconnect the driver’s airbag connector (A), front

passenger’s airbag connector (B), and driver’s seat
belt tensioner connector (C).

17. Disconnect SRS unit connector A (18P) from the

SRS unit.

18. Disconnect the simulator lead from the dashboard

wire harness 4P connector.

19. Check resistance between the No. 9 terminal and

the No. 18 terminal of SRS unit connector A (18P).
There should be an open circuit or at least 1 M

Faulty SRS unit; replace the SRS unit

(see page 23-141).

Short in the dashboard wire harness; replace

the dashboard wire harness.

Wire side of female terminals

Is the r esistance as specif ied?
