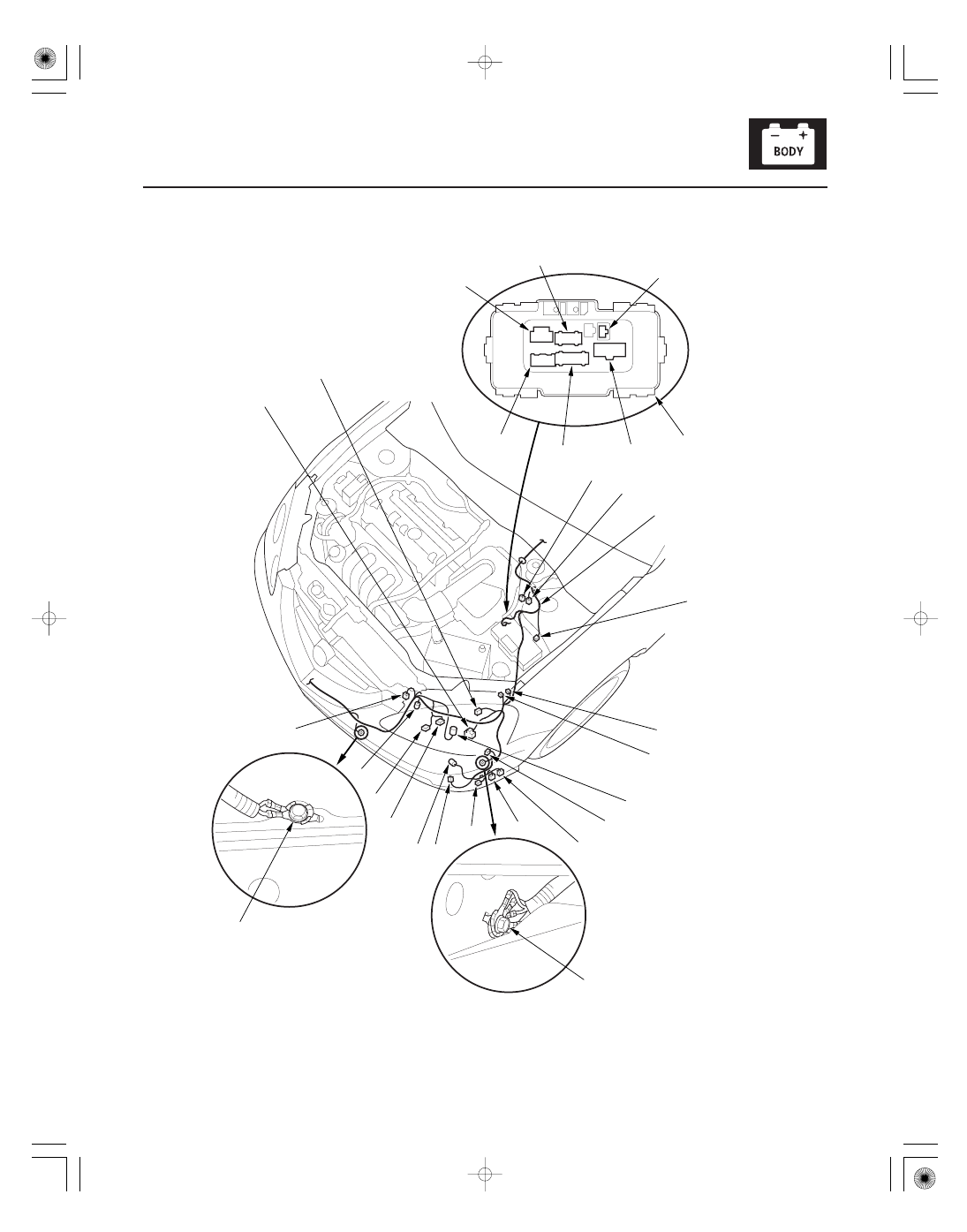

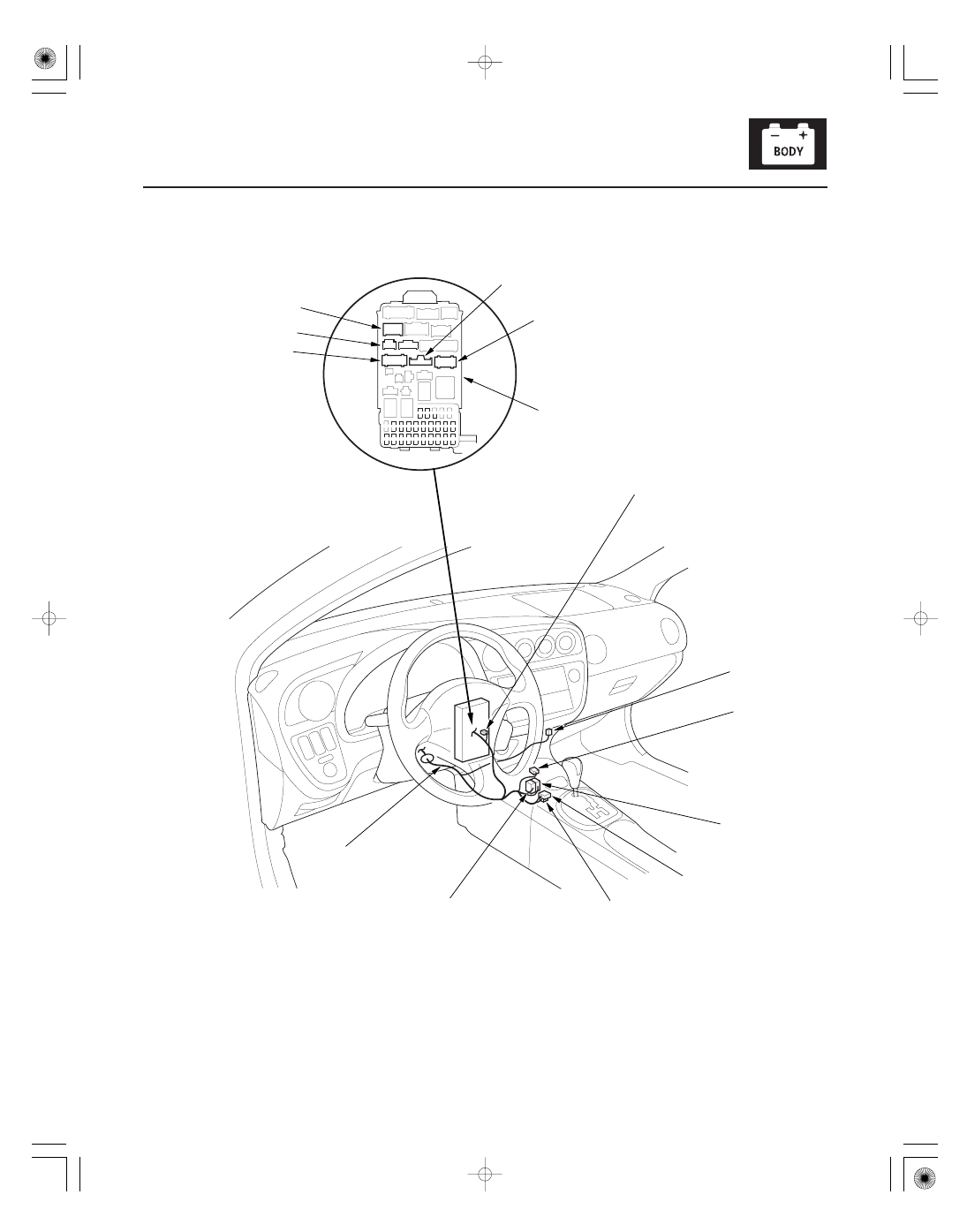

Engine Compartment Wire Harness (’05-06 models) (Left branch) (cont’d)
Connector or Terminal
Ref
Cavities
Location
Connects to
Notes
22-22
Connectors and Harnesses
Connector to Harness Index (cont’d)
A/C pressure switch
3
2
Front of engine compartment
A/F sensor
18
4
Below the backside of engine
ELD unit
20
3
Under-hood fuse/relay box
Horn (Low)
7
1
Behind front bumper
Left front wheel sensor
16
2
Left side of engine compartment
Left front impact sensor
12
2
Left side of engine compartment
Left front parking light
5
2
Behind left headlight
Left front side marker light
25
2
Left headlight
Left front turn signal light
4
2
Behind left headlight
Left headlight (high beam)
13
2
Behind left headlight
Left headlight (low beam)
26
3
Behind left headlight
Optional connector (for fog light)
14
1
Left side of engine compartment
Outside air temperature sensor
6
2
Behind front bumper
Radiator fan motor
1
2
Front of engine compartment
Rear window washer motor
11
2
Behind left side of front bumper
Secondary heated oxygen sensor (SHO2S)
17
4
Left side of engine compartment
Test tachometer connector
15
2
Left side of engine compartment
Under-hood fuse/relay box connector A
(see page 22-54)
22
2
Under-hood fuse/relay box
Under-hood fuse/relay box connector B
(see page 22-54)
24
12
Under-hood fuse/relay box
Under-hood fuse/relay box connector C
(see page 22-54)
19
7
Under-hood fuse/relay box
Under-hood fuse/relay box connector D
(see page 22-54)
21
14
Under-hood fuse/relay box
Under-hood fuse/relay box connector E
(see page 22-54)
23
5
Under-hood fuse/relay box
Washer fluid level switch
8
2
Behind left side of front bumper
Canada
Windshield washer motor
10
2
Behind left side of front bumper
G301
9
Left side of engine compartment
Body ground via engine
compartment wire
harness
G302
2
Under the radiator
Body ground via engine
compartment wire
harness
