Engine Compartment Wire Harness (’02-04 models) (Right branch)

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-18

Connectors and Harnesses

Connector to Harness Index (cont’d)

4

5

6

7

8

9

10

11

12

13

3

2

1

ENGINE COMPARTMENT WIRE HARNESS

ABS modulator-control unit

1

25

Right side of engine compartment

A/C compressor

10

1

Front of engine compartment

A/C condenser fan motor

12

2

Front of engine compartment

Hood switch (security)

13

2

Front of engine compartment

Horn (security)

6

1

Behind front bumper

Radiator fan switch

11

2

Front of engine compartment

Right front wheel sensor

3

2

Right side of engine compartment

Right front parking light

2

2

Behind right headlight

Right front turn signal light

8

2

Behind right headlight

Right headlight (high beam)

9

3

Behind right headlight

Right headlight (low beam)

7

3

Behind right headlight

G201

5

Behind right side of front bumper

Body ground via engine
compartment wire harness

G202

4

Behind right side of front bumper

Body ground via engine
compartment wire harness

05/06/27 18:02:07 61S6M040_220_0019

０１

Ｓ６Ｍ６ＡＺＨＪ５４２８３２２４５０３ＤＢＡＴ００

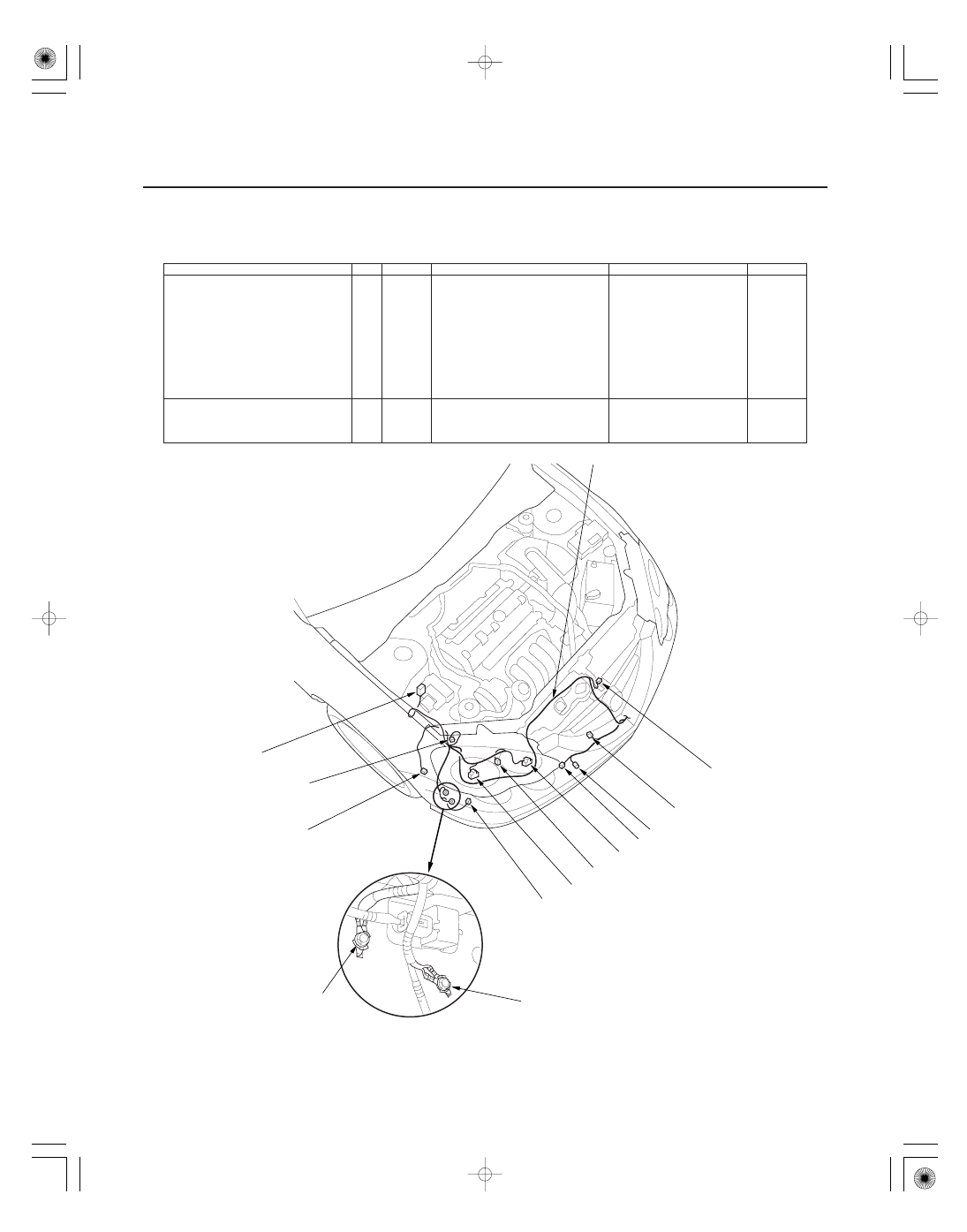

Engine Compartment Wire Harness (’05-06 models) (Right branch)

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-19

1

2

3

4

5

6

7

8

9

10

11

12

13

14

ENGINE COMPARTMENT
WIRE HARNESS

ABS modulator-control unit

1

25

Right side of engine compartment

A/C compressor

11

1

Front of engine compartment

A/C condenser fan motor

13

2

Front of engine compartment

Hood switch (security)

14

2

Front of engine compartment

Horn (security)

5

1

Behind front bumper

Radiator fan switch

12

2

Front of engine compartment

Right front wheel sensor

2

2

Right side of engine compartment

Right front parking light

9

2

Behind right headlight

Right front side marker light

7

2

Behind right headlight

Right front turn signal light

10

2

Behind right headlight

Right headlight (high beam)

8

2

Behind right headlight

Right headlight (low beam)

6

3

Behind right headlight

G201

4

Behind right side of front bumper

Body ground via engine
compartment wire harness

G202

3

Behind right side of front bumper

Body ground via engine
compartment wire harness

05/06/27 18:02:07 61S6M040_220_0020

Ｓ６Ｍ６ＡＺＦＪ５４２８３２２４５０３ＤＢＡＴ５０

Engine Compartment Wire Harness (’02-04 models) (Left branch) (cont’d)

Connector or Terminal

Ref

Cavities

Location

Connects to

Notes

22-20

Connectors and Harnesses

Connector to Harness Index (cont’d)

A/C pressure switch

3

2

Front of engine compartment

A/F sensor

16

4

Below the backside of engine

ELD unit

18

3

Under-hood fuse/relay box

Horn (Low)

5

1

Behind front bumper

Left front wheel sensor

14

2

Left side of engine compartment

Left front impact sensor

10

2

Left side of engine compartment

Left front parking light

11

2

Behind left headlight

Left front turn signal light

24

2

Behind left headlight

Left headlight (high beam)

23

3

Behind left headlight

Left headlight (low beam)

25

3

Behind left headlight

Optional connector (for fog light)

12

1

Left side of engine compartment

Outside air temperature sensor

4

2

Behind front bumper

Radiator fan motor

1

2

Front of engine compartment

Rear window washer motor

9

2

Behind left side of front bumper

Secondary heated oxygen sensor (SHO2S)

15

4

Left side of engine compartment

Test tachometer connector

13

2

Left side of engine compartment

Under-hood fuse/relay box connector A
(see page 22-54)

20

2

Under-hood fuse/relay box

Under-hood fuse/relay box connector B
(see page 22-54)

22

12

Under-hood fuse/relay box

Under-hood fuse/relay box connector C
(see page 22-54)

17

7

Under-hood fuse/relay box

Under-hood fuse/relay box connector D
(see page 22-54)

19

14

Under-hood fuse/relay box

Under-hood fuse/relay box connector E
(see page 22-54)

21

5

Under-hood fuse/relay box

Washer fluid level switch

6

2

Behind left side of front bumper

Canada

Windshield washer motor

8

2

Behind left side of front bumper

G301

7

Left side of engine compartment

Body ground via engine
compartment wire
harness

G302

2

Under the radiator

Body ground via engine
compartment wire
harness

05/06/27 18:02:07 61S6M040_220_0021

０１

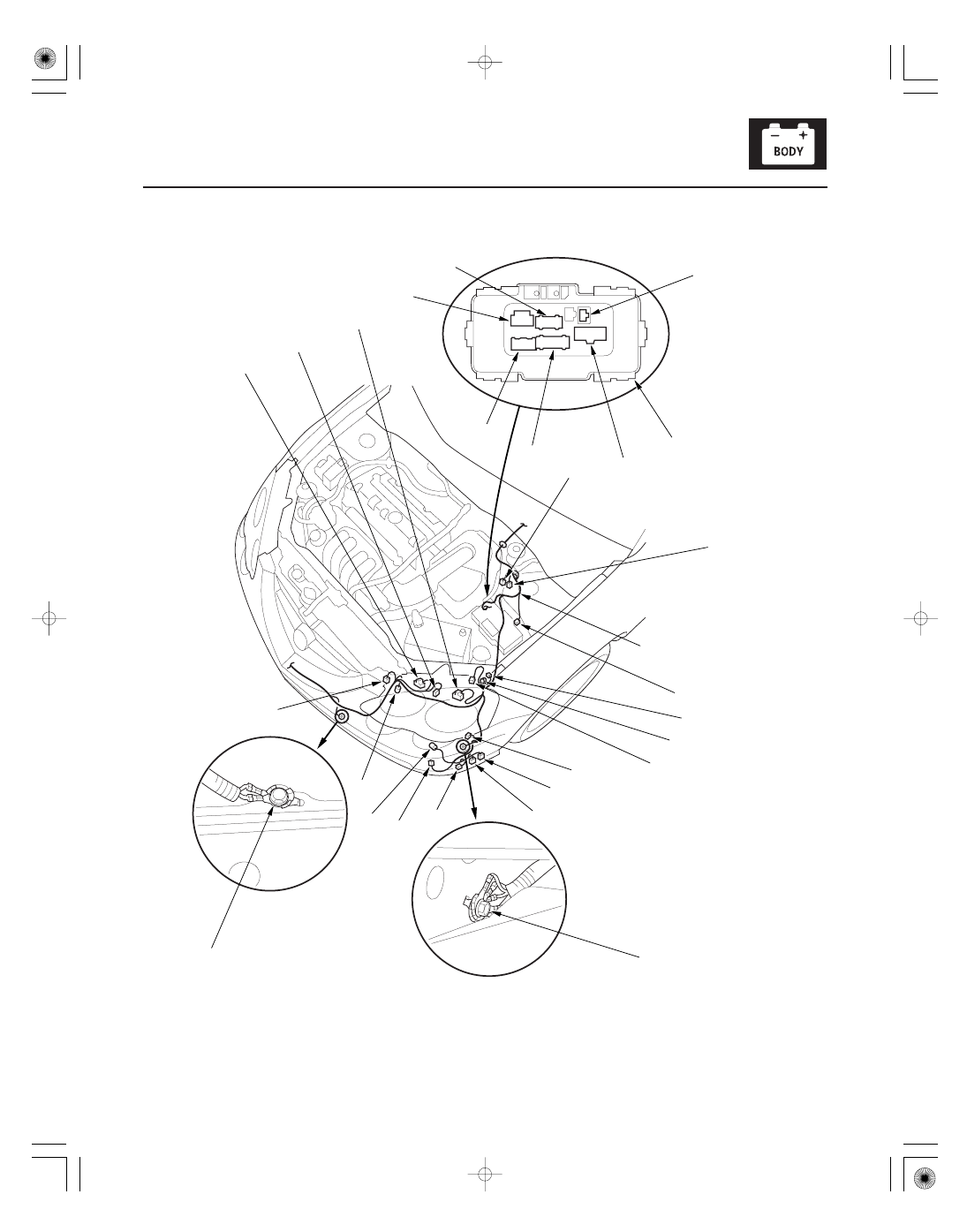

22-21

19

20

21

22

17

UNDER-HOOD FUSE/RELAY
BOX

15

16

13

ENGINE COMPARTMENT WIRE
HARNESS

12

10

11

9

8

14

7

6

5

4

3

1

2

23

24

25

18
