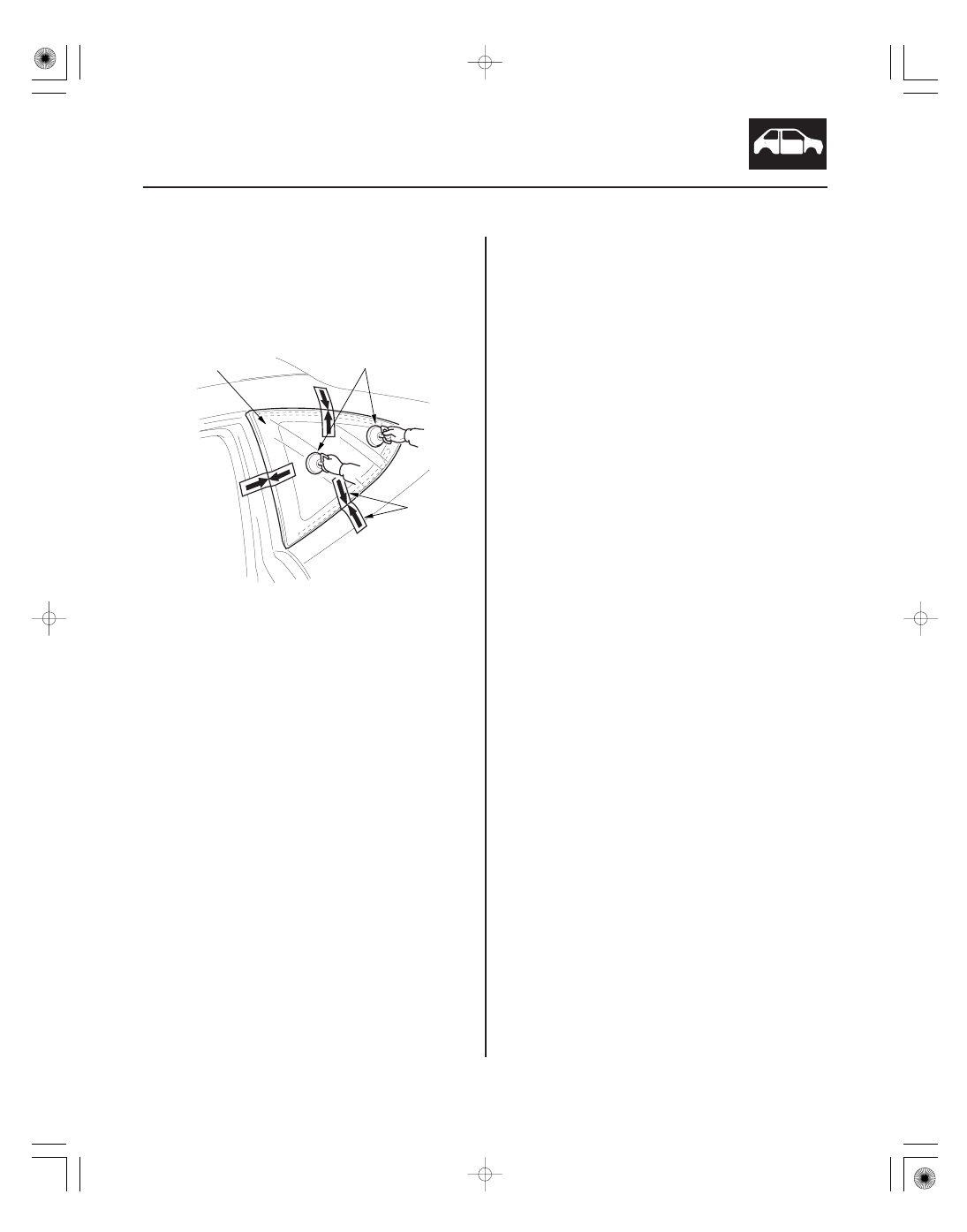

01 09 01 20-36 Glass Quarter Glass Replacement (cont’d) : Apply body primer to exposed paint as shown. 16 mm 16 mm 16 mm 16 mm 1 mm 4.5 mm 2 mm 4.5 mm 13 mm (0.51 in.) 8 mm (0.31 in.) A 13 mm 8 mm 2 mm A A B B B B A Inside Inside A Inside 5 mm 27 mm 5 mm A A A 13. With a sponge, carefully apply a light coat of body primer to any exposed paint around the flange • Do NOT apply body primer to any remaining original adhesive on the flange. • Be careful not to mix up the body and glass primer sponges. • Never touch the primed surface with your hands. 14. Cut a ‘‘V’’ in the end of the nozzle (A) on the adhesive cartridge as shown. 15. Put the cartridge in a caulking gun, and run a bead of adhesive (A) around the edge of the quarter • After applying the adhesive, peel the separator off the butyl tape. • Apply the adhesive within 30 minutes after applying the glass primer. Make a slightly thicker 05/06/27 18:22:29 61S6M040_200_0037 |
