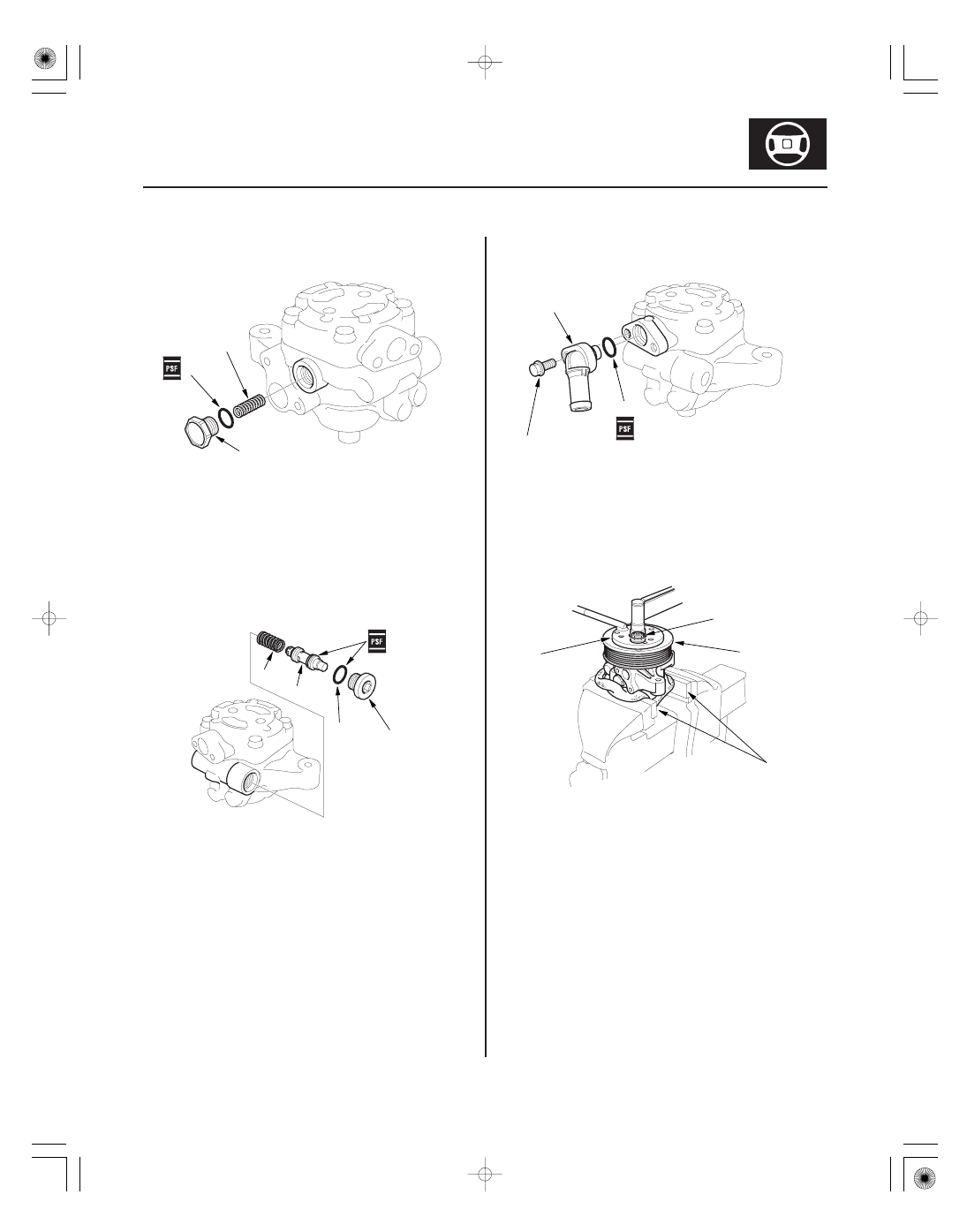

05 16 04 03 17-21 C B A B A C D B 6 x 1.0 mm A 07ZAB-S5A0100 A B C 37. Install the pump preload spring (A) in the pump housing. 38. Coat the new 12.7 mm O-ring (B) with power steering fluid, and install it on the pump housing 39. Install the pump housing cap on the pump housing, and tighten it to the specified torque. 40. Install the pressure control valve spring (A) in the pump housing. 41. Coat the pressure control valve (B) with power steering fluid, and install it on the pump housing. 42. Coat the new 16.7 mm O-ring (C) with power steering fluid, and install it on the flow control 43. Install the flow control valve cap on the pump housing, and tighten it to the specified torque. 44. Coat the new 13 mm O-ring (A) with power steering fluid, and install it on the inlet joint (B). 45. Install the inlet joint on the pump housing. 46. Install the pulley (A), then loosely install the pulley nut (B). Hold the power steering pump in a vise 47. Hold the pulley with the special tool, and tighten the pulley nut to the specified torque. 48. Check that the pump turns smoothly by turning the pulley. If it turns hard, loosen the four flange bolts 49. Reinstall the power steering pump (see page 17-14). 05/06/27 18:15:07 61S6M040_170_0022 |
