Acura RSX Honda Integra. Manual - part 255

＊０６

１３

−

YES

14-145

PCM CONNECTORS

ATP D3 (RED)

LG1 (BRN/YEL)

A (31P)

C (22P)

PCM CONNECTOR C (22P)

ATP D3 (RED)

37. Shift to all positions other than D3.

38. Measure the voltage between PCM connector

terminals C9 and A9.

Go to step 43.

Go to step 39.

39. Turn the ignition switch OFF.

40. Jump the SCS line with the HDS.

41. Disconnect PCM connector C (22P).

42. Check for continuity between PCM connector

terminal C9 and body ground.

Repair short to ground in the wire between

PCM connector terminal C9 and the transmission
range switch, then go to step 49.

Update the PCM if it does not have the latest

software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

(cont’d)

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

05/06/27 17:50:42 61S6M040_140_0146

＊０７

１５

−

YES

14-146

Automatic Transmission

DTC Troubleshooting (cont’d)

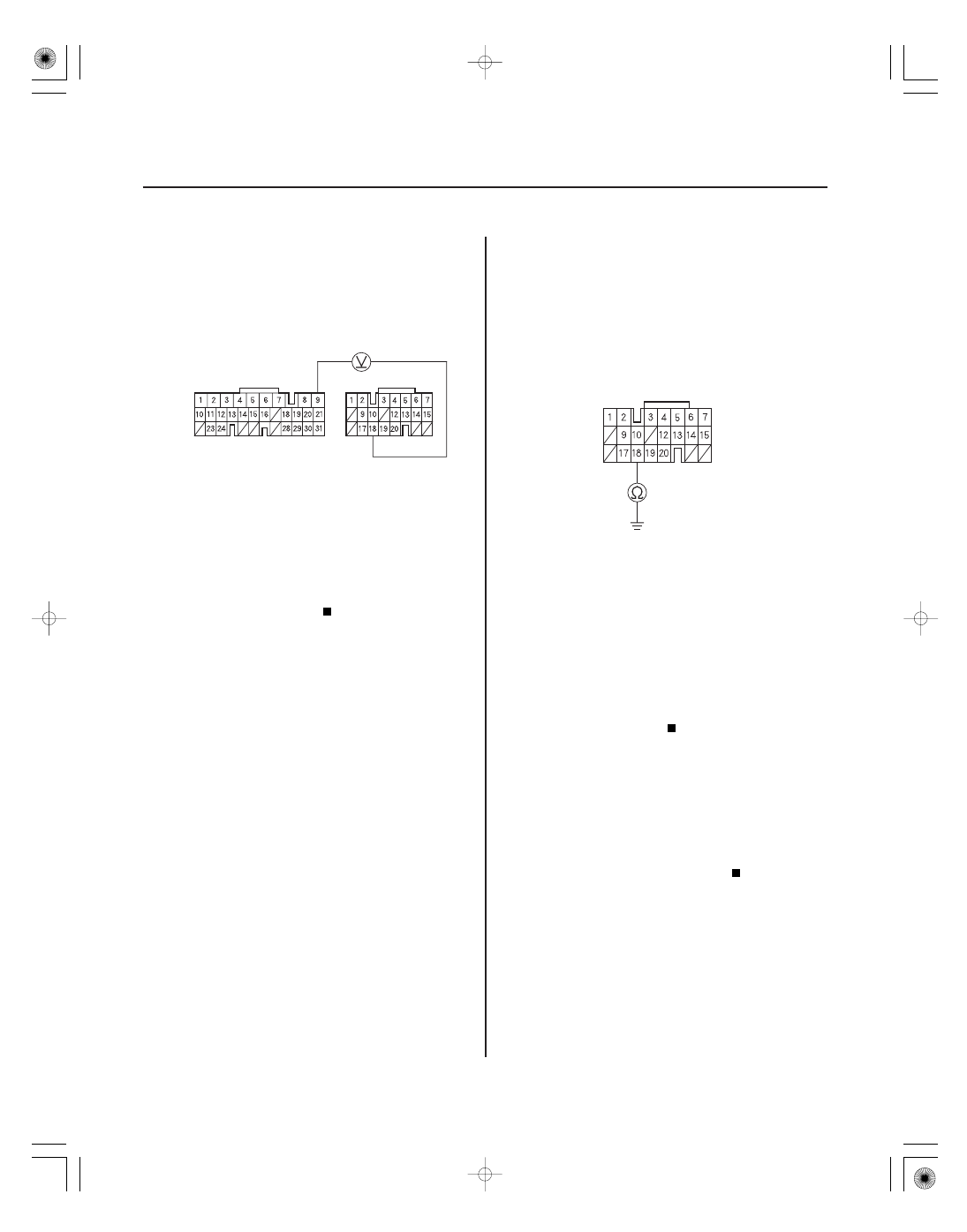

PCM CONNECTORS

ATP FWD (BLU/YEL)

LG1 (BRN/YEL)

A (31P)

C (22P)

PCM CONNECTOR C (22P)

ATP FWD (BLU/YEL)

43. Shift to all positions other than D and D3.

44. Measure the voltage between PCM connector

terminals C18 and A9.

Update the PCM if it does not have the latest

software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

Go to step 45.

45. Turn the ignition switch OFF.

46. Jump the SCS line with the HDS.

47. Disconnect PCM connector C (22P).

48. Check for continuity between PCM connector

terminal C18 and body ground.

Repair short to ground in the wire between

PCM connector terminal C18 and the transmission
range switch, then go to step 49.

Update the PCM if it does not have the latest

software, or substitute a known-good PCM
(see page 14-11), then recheck. If the symptom/
indication goes away with a known-good PCM,
replace the original PCM.

49. Clear the DTC with the HDS.

50. Move the shift lever to each position, and monitor

the OBD status for P0705 in the DTCs/Freeze Data in
A/T Mode Menu for a pass/fail.

Troubleshooting is completed.

Return to step 1 and recheck.

Wire side of female terminals

Is ther e batter y voltage?

Is ther e continuity?

Does the r esult indicate a passed?

05/06/27 17:50:42 61S6M040_140_0147

Ｓ６Ｍ６ＡＰＰＫ７７１０００９０７０６ＦＡＡＴ００

−

DTC P0706:

2005-2006 Models

YES

14-147

Open in Transmission Range

Switch Circuit

NOTE:

• Record all freeze data and review General

Troubleshooting Information (see page 14-8) before
you troubleshoot.

• This code is caused by an electrical circuit problem

and cannot be caused by a mechanical problem in the
transmission.

1. Clear the DTC with the HDS.

2. Raise the front of the vehicle, make sure it is

securely supported, and allow the front wheels to
rotate freely.

3. Start the engine, drive the vehicle in the D position

until the vehicle speed reaches 35 mph (56 km/h),
then slow down and stop the wheels.

4. Monitor the OBD status for P0706 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Go to step 5.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the transmission range switch and PCM. If the
tester indicates NOT COMPLETED, return to step 1
and recheck.

5. Test the transmission range switch (see page

14-306).

Inspect the end of the selector control shaft

(see step 6 on page 14-308), and go to step 6.

Replace the transmission range switch, then

go to step 24.

6. Install the transmission range switch correctly, and

adjust the shift cable (see page 14-299).

7. Clear the DTC with the HDS.

8. Raise the front of the vehicle, make sure it is

securely supported, and allow the front wheels to
rotate freely.

9. Start the engine, drive the vehicle in the D position

until the vehicle speed reaches 35 mph (56 km/h),
then slow down and stop the wheels.

10. Monitor the OBD status for P0706 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Go to step 11.

The problem has been corrected. If the tester

indicates NOT COMPLETED, return to step 7 and
recheck.

11. Shift the shift lever into the D position, and verify

the ATP FWD and ATP D inputs with the HDS in the
A/T data list.

Go to step 12.

Go to step 17.

12. Shift to the D3 position, and verify the ATP FWD

and ATP D3 inputs with the HDS in the A/T date list.

Go to step 13.

Go to step 17.

13. Clear the DTC with the HDS, and turn the ignition

switch OFF.

14. Raise the front of the vehicle, make sure it is

securely supported, and allow the front wheels to
rotate freely.

15. Start the engine, drive the vehicle in the D position

until the vehicle speed reaches 35 mph (56 km/h),
then slow down and stop the wheels.

(cont’d)

Does the r esult indicate a f ailed?

Is the switch OK ?

Does the r esult indicate a f ailed?

Is the AT P F W D and AT P D ON?

Is the AT P F W D and AT P D3 ON?

05/06/27 17:50:42 61S6M040_140_0148

０１

０２

０３

−

YES

14-148

Automatic Transmission

DTC Troubleshooting (cont’d)

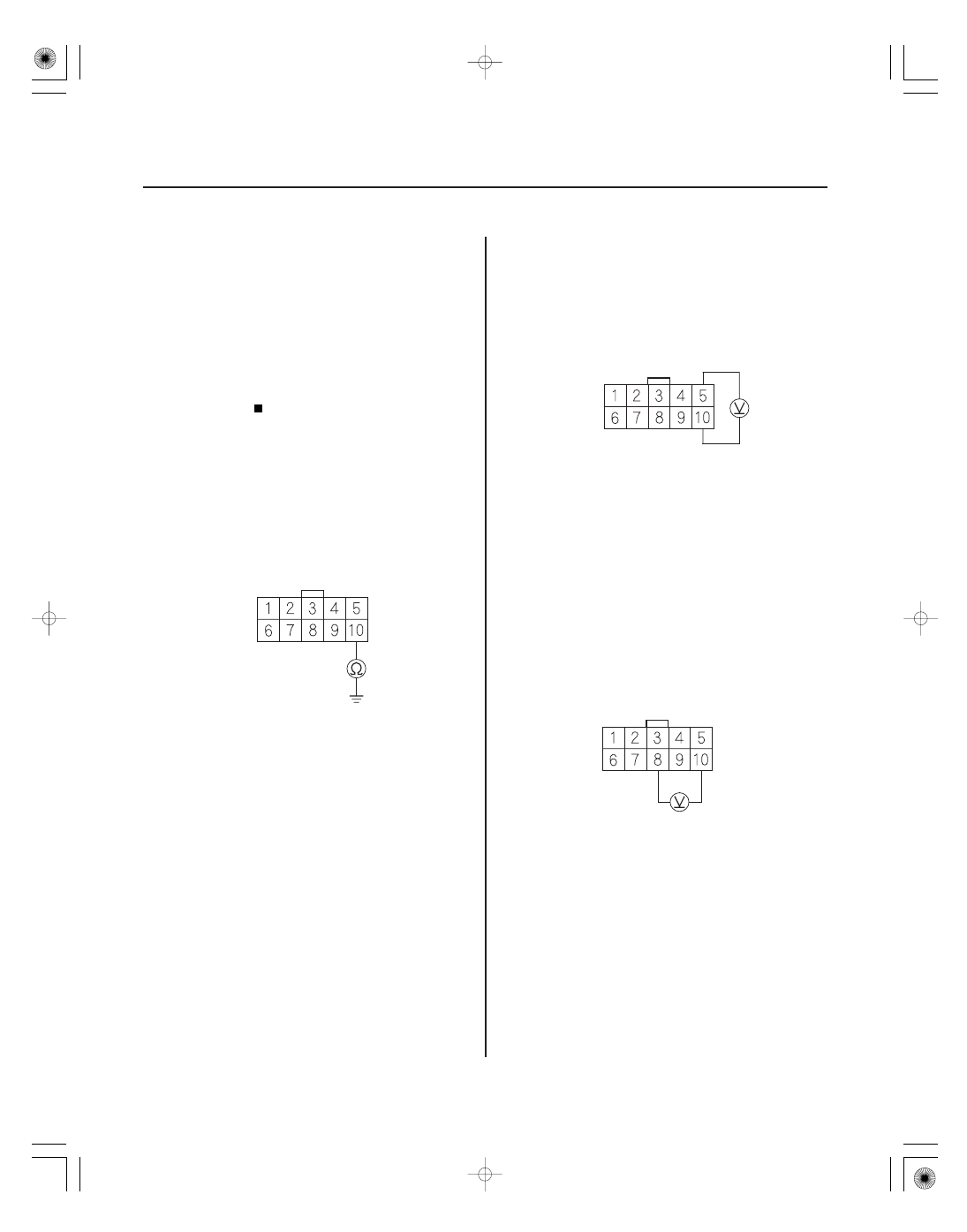

TRANSMISSION RANGE
SWITCH CONNECTOR

PG (BLK)

TRANSMISSION RANGE
SWITCH CONNECTOR

PG (BLK)

ATP FWD (YEL/RED)

TRANSMISSION RANGE
SWITCH CONNECTOR

PG (BLK)

ATP D (PNK)

16. Monitor the OBD status for P0706 in the DTCs/

Freeze Data in A/T Mode Menu for a pass/fail.

Go to step 17.

Intermittent failure, the system is OK at this

time. Check for poor connections or loose terminals
at the transmission range switch and PCM. If the
tester indicates NOT COMPLETED, return to step 13
and recheck.

17. Turn the ignition switch OFF.

18. Disconnect the transmission range switch

connector.

19. Check for continuity between transmission range

switch connector terminal No. 10 and body ground.

Go to step 20.

Repair open in the wire between transmission

range switch connector terminal No. 10 and ground
(G101), or repair poor ground (G101), then go to
step 24.

20. Turn the ignition switch ON (II).

21. Measure the voltage between transmission range

switch connector terminals No. 5 and No. 10.

Go to step 22.

Repair open in the wire between the

transmission range switch and PCM connector
terminal C18, then go to step 24.

22. Measure the voltage between transmission range

switch connector terminals No. 8 and No. 10.

Go to step 23.

Repair open in the wire between the

transmission range switch and PCM connector
terminal C17, then go to step 24.

Wire side of female terminals

Does the r esult indicate a f ailed?

Is ther e continuity?

Is ther e batter y voltage?

05/06/27 17:50:42 61S6M040_140_0149
