EVAP System

DTC Troubleshooting (cont’d)

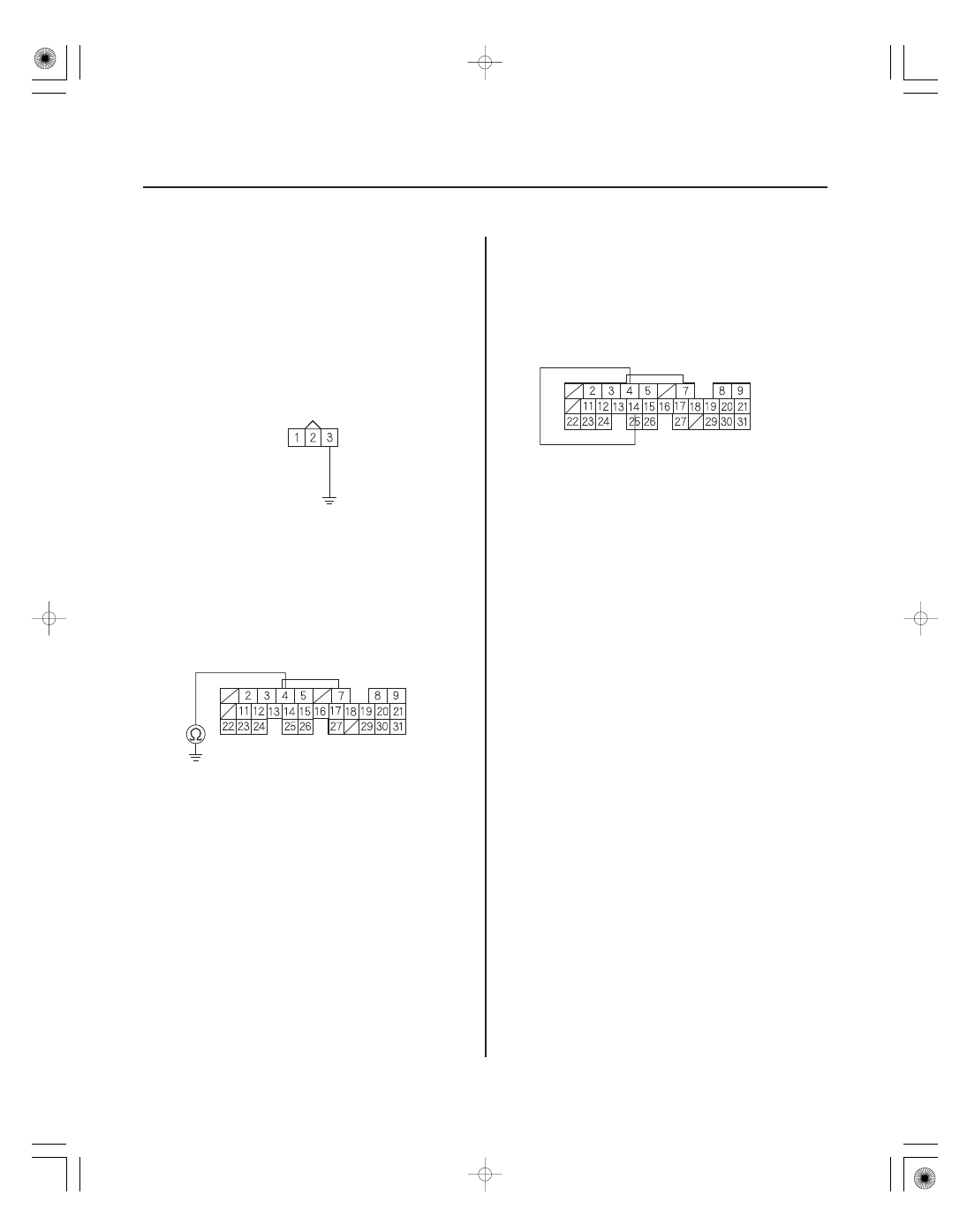

FTP SENSOR 3P CONNECTOR

SG3
(PNK)

JUMPER WIRE

ECM/PCM CONNECTOR E (31P)

SG3
(PNK)

ECM/PCM CONNECTOR E (31P)

SG3
(PNK)

FTP
(LT GRN)

JUMPER WIRE

16. Turn the ignition switch OFF.

17. Jump the SCS line with the HDS.

18. Disconnect ECM/PCM connector E (31P).

19. Connect FTP sensor 3P connector terminal No. 3 to

body ground with a jumper wire.

20. Check for continuity between ECM/PCM connector

terminal E4 and body ground.

Go to step 33.

Repair open in the wire between the ECM/

PCM (E4) and the FTP sensor, then go to step 27.

21. Turn the ignition switch OFF.

22. Connect ECM/PCM connector terminals E4 and E14

with a jumper wire.

23. Turn the ignition switch ON (II).

24. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 33.

Repair open in the wire between the ECM/

PCM (E14) and the FTP sensor, then go to step 27.

25. Turn the ignition switch OFF.

26. Replace the FTP sensor (see page 11-473).

27. Reconnect all connectors.

Wire side of female terminals

Is ther e continuity?

Is about 7 .3 kPa ( 2.16 in.Hg, 55 mmHg), 4.7 V , or
mor e indicated?

05/06/27 17:43:14 61S6M040_110_0438

−

YES

11-439

28. Turn the ignition switch ON (II).

29. Reset the ECM/PCM with the HDS.

30. Do the ECM/PCM idle learn procedure (see page

11-349).

31. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0453 is indicated, check for poor

connections or loose terminals at the FTP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

Go to step 32.

32. Monitor the OBD STATUS for DTC P0453 in the

DTCs MENU with the HDS.

Troubleshooting is complete.

If the screen indicates FAILED, check for poor

connections or loose terminals at the FTP sensor
and the ECM/PCM, then go to step 1. If the screen
indicates NOT COMPLETED, go to step 30 and
recheck.

33. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

34. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0453 is indicated, check for poor

connections or loose terminals at the FTP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Ar e any T empor ar y DT Cs or DT Cs indicated?

Does the scr een indicate PASSED?

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:43:14 61S6M040_110_0439

０１

０２

Ｓ６Ｍ６ＡＡＬＫ７２１０００９０４５７ＦＡＡＴ００

−

DTC P0457:

YES

11-440

EVAP System

DTC Troubleshooting (cont’d)

EVAP System Leak Detected/Fuel

Fill Cap Loose or Missing
(2005-2006 models)

1. Check the fuel fill cap (the cap must say ‘‘Tighten to

click’’). It should turn 1/4 turn after it’s tight, then it
clicks.

Go to step 2.

Replace or tighten the cap, then go to step 19.

2. Check the fuel fill cap seal (A) and the fuel fill pipe

mating surface (B). Make sure the fuel fill cap tether
cord (C) is not caught under the cap.

Replace the fuel fill cap or the fuel fill pipe,

then go to step 19.

Go to step 3.

3. Turn the ignition switch ON (II).

4. Clear the DTC with the HDS.

5. Do the EVAP FUNCTION TEST in the INSPECTION

MENU with the HDS.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the FTP sensor or the EVAP canister vent shut valve
and the ECM/PCM.

Go to step 6.

6. Turn the ignition switch OFF.

7. Remove the EVAP canister vent shut valve from the

EVAP canister (see page 11-474).

8. Connect the 2P connector to the EVAP canister vent

shut valve.

9. Turn the ignition switch ON (II).

10. Do the EVAP CVS ON in the INSPECTION MENU

with the HDS.

11. Check the EVAP canister vent shut valve (A)

operation.

Check the routing of the EVAP canister vent

tube, then go to step 18.

Go to step 12.

Is the cor r ect f uel f ill cap installed and pr oper ly
tightened?

Is the f uel f ill cap seal missing or damaged, is the
f uel f ill pipe damaged, or is the tether cor d caught
under the cap?

Is the r esult OK ?

Does the valve oper ate?

05/06/27 17:43:15 61S6M040_110_0440

−

YES

11-441

12. Turn the ignition switch OFF.

13. Replace the EVAP canister vent shut valve

(see page 11-474).

14. Turn the ignition switch ON (II).

15. Reset the ECM/PCM with the HDS.

16. Do the ECM/PCM idle learn procedure (see page

11-349).

17. Do the EVAP FUNCTION TEST in the INSPECTION

MENU with the HDS.

Troubleshooting is complete.

Check for poor connections or loose terminals

at the FTP sensor or the EVAP canister vent shut
valve and the ECM/PCM, then go to step 16.

18. Reinstall the EVAP canister vent shut valve

(see page 11-474).

19. Turn the ignition switch ON (II).

20. Reset the ECM/PCM with the HDS.

21. Do the ECM/PCM idle learn procedure (see page

11-349).

22. Do the EVAP FUNCTION TEST in the INSPECTION

MENU with the HDS.

Troubleshooting is complete.

Check for poor connections or loose terminals

at the FTP sensor or the EVAP canister vent shut
valve and the ECM/PCM, then go to step 2.

Is the r esult OK ?

05/06/27 17:43:15 61S6M040_110_0441
