11-434

EVAP System

DTC Troubleshooting (cont’d)

28. Update the ECM/PCM if it does not have the latest

software, or substitute a known-good ECM/PCM
(see page 11-6).

29. Check for Temporary DTCs or DTCs with the HDS.

If DTC P0452 is indicated, check for poor

connections or loose terminals at the FTP sensor
and the ECM/PCM, then go to step 1. If any other
Temporary DTCs or DTCs are indicated, go to the
indicated DTC’s troubleshooting.

If the ECM/PCM was updated, troubleshooting

is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see page 11-284).

Ar e any T empor ar y DT Cs or DT Cs indicated?

05/06/27 17:43:13 61S6M040_110_0434

01

S6M6AAJK72100090453FAAT00

DTC P0453:

YES

NO

YES

NO

11-435

ECM/PCM CONNECTOR E (31P)

FTP (LT GRN)

FTP Sensor Circuit High Voltage

(2002-2004 models)

1. Check the vacuum lines of the FTP sensor for

misrouting, leakage, breakage, or clogging.

Go to step 2.

Repair or replace vacuum lines as

necessary.

2. Reset the ECM/PCM (see page 11-4).

3. Remove the fuel fill cap.

4. Turn the ignition switch ON (II).

5. Monitor the FTP sensor voltage with the HDS, or

measure voltage between body ground and ECM/
PCM connector terminal E14.

Intermittent failure, system is OK at this time.

Check for poor connections or loose terminals at
the FTP sensor and the ECM/PCM.

Go to step 6.

(cont’d)

Wire side of female terminals

Ar e the vacuum lines OK ?

Is ther e about 2.5 V ?

05/06/27 17:43:14 61S6M040_110_0435

01

03

02

YES

NO

YES

NO

YES

NO

11-436

EVAP System

DTC Troubleshooting (cont’d)

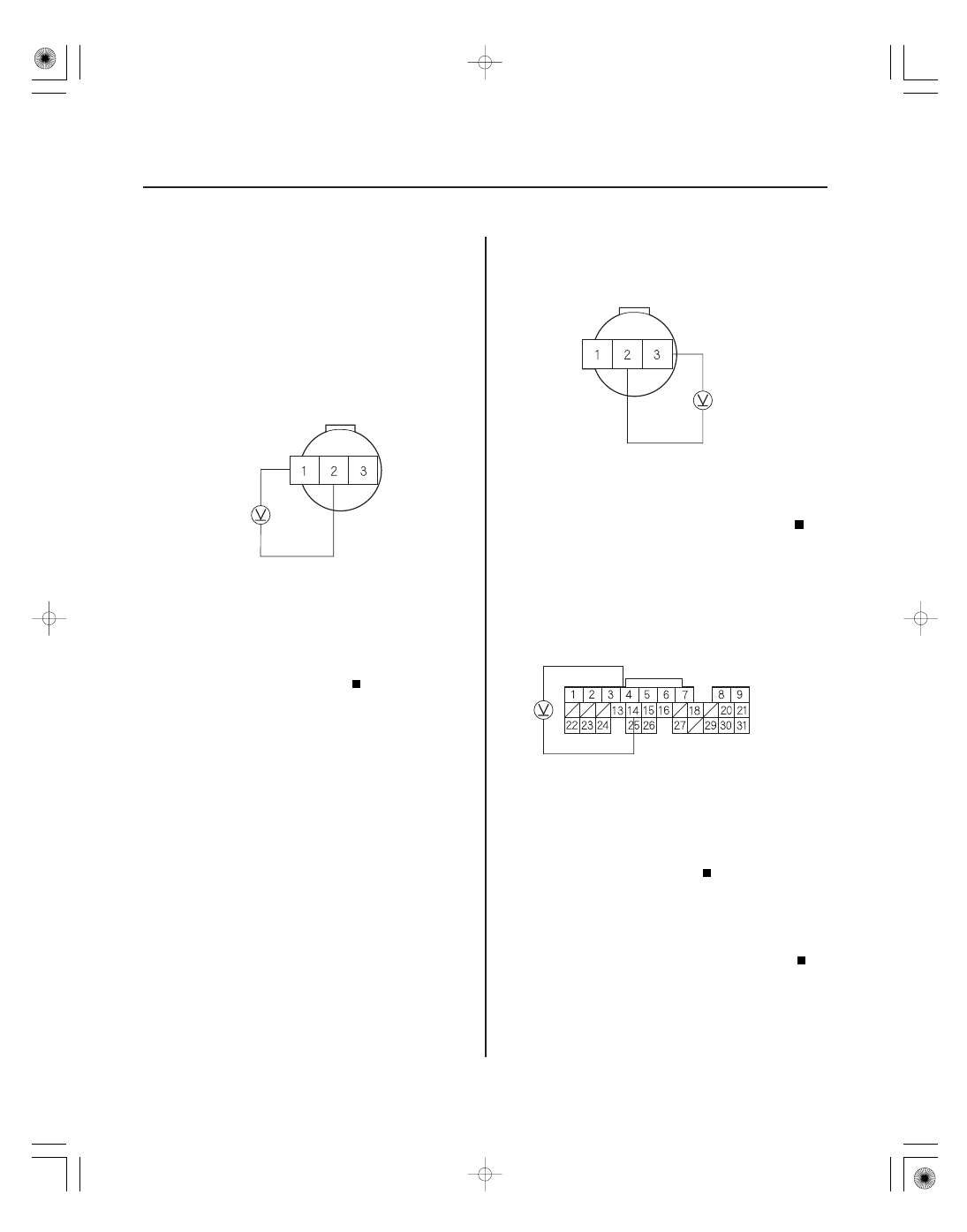

FTP SENSOR 3P CONNECTOR

VCC3 (YEL/BLU)

SG3 (PNK)

SG3 (PNK)

FTP SENSOR 3P CONNECTOR

FTP (LT GRN)

ECM/PCM CONNECTOR E (31P)

SG3 (PNK)

FTP (LT GRN)

6. Turn the ignition switch OFF.

7. Reinstall the fuel fill cap.

8. Disconnect the FTP sensor 3P connector.

9. Turn the ignition switch ON (II).

10. Measure voltage between FTP 3P connector

terminals No. 1 and No. 2.

Go to step 11.

Repair open in the wire between the FTP

sensor and the ECM/PCM (E4).

11. Measure voltage between FTP sensor 3P connector

terminals No. 2 and No. 3.

Replace the FTP sensor (see page 11-473).

Go to step 12.

12. Measure voltage between ECM/PCM connector

terminals E4 and E14.

Repair open in the wire between the FTP

sensor and the ECM/PCM (E14).

Update the ECM/PCM if it does not have the

latest software, or substitute a known-good ECM/
PCM (see page 11-6), then recheck. If the symptom/
indication goes away with a known-good ECM/PCM,
replace the original ECM/PCM (see page 11-284).

Wire side of female terminals

Wire side of female terminals

Wire side of female terminals

Is ther e about 5 V ?

Is ther e about 5 V ?

Is ther e about 5 V ?

05/06/27 17:43:14 61S6M040_110_0436

*01

*02

S6M6AALK72100090453FAAT00

DTC P0453:

YES

NO

YES

NO

YES

NO

YES

NO

11-437

FTP SENSOR 3P CONNECTOR

FTP
(LT GRN)

SG3
(PNK)

JUMPER WIRE

FTP SENSOR 3P CONNECTOR

SG3
(PNK)

VCC3
(YEL/BLU)

FTP Sensor Circuit High Voltage

(2005-2006 models)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Turn the ignition switch OFF.

4. Remove the fuel fill cap.

5. Turn the ignition switch ON (II).

6. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 10.

Go to step 7.

7. Install the fuel fill cap.

8. Start the engine. Hold the engine speed at

3,000 rpm without load (in Park or neutral) until the
radiator fan comes on, then let it idle.

9. Monitor the OBD STATUS for DTC P0453 in the

DTCs MENU with the HDS.

Go to step 10.

If the screen indicates PASSED, intermittent

failure, system is OK at this time. Check for poor
connections or loose terminals at the FTP sensor
and the ECM/PCM. If the screen indicates NOT
COMPLETED, go to step 6 and recheck.

10. Turn the ignition switch OFF.

11. Disconnect the FTP sensor 3P connector.

12. Connect FTP sensor 3P connector terminals No. 2

and No. 3 with a jumper wire.

13. Turn the ignition switch ON (II).

14. Check the FTP SENSOR in the DATA LIST with the

HDS.

Go to step 15.

Go to step 25.

15. Measure voltage between FTP sensor 3P connector

terminals No. 1 and No. 3.

Go to step 21.

Go to step 16.

(cont’d)

Wire side of female terminals

Wire side of female terminals

Is about 7 .3 kPa ( 2.16 in.Hg, 55 mmHg), 4.7 V , or
mor e indicated?

Does the scr een indicate F AILED?

Is about 7 .3 kPa ( 2.16 in.Hg, 55 mmHg), 4.7 V , or
mor e indicated?

Is ther e about 5 V ?

05/06/27 17:43:14 61S6M040_110_0437
